Installation Manual
WINDOW MOUNT ANTENNA
COVERT WIFI
PMAN5100
PMAN5100/PMAN5101
COVERT WIFI WINDOW
MOUNT ANTENNA
INSTALLATION MANUAL
PMLN7726_.book Page 1 Monday, August 27, 2018 4:35 PM

PMLN7726_.book Page 2 Monday, August 27, 2018 4:35 PM

Foreword
This manual applies to digital mobile radios, unless otherwise specified. It includes
instructions for installing the Covert WIFI antenna in a vehicle window mount configuration.
Product Safety and RF Exposure Compliance
ATTENTION
This radio is restricted to occupational use only to satisfy FCC RF energy exposure require-
ments. Before using this product, read the RF energy awareness information and operating
instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motoro-
la Solutions Publication part number 6881095C99) to ensure compliance with RF energy ex-
posure limits.
For a list of Motorola Solutions-approved antennas, batteries and other accessories, visit
https://www.motorolasolutions.com/en_us/products/apx-story.html.
Document Copyrights
No duplication or distribution of this document or any portion thereof shall take place without
the express written permission of Motorola Solutions. No part of this manual may be
reproduced, distributed, or transmitted in any form or by any means, electronic or
mechanical, for any purpose without the express written permission of Motorola Solutions.
Disclaimer
The information in this document is carefully examined, and is believed to be entirely
reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Motorola
Solutions reserves the right to make changes to any products herein to improve readability,
function, or design. Motorola Solutions does not assume any liability arising out of the
applications or use of any product or circuit described herein; nor does it cover any license
under its patent rights nor the rights of others.
Before using this product, read the operating instructions for safe
usage contained in the Product Safety and RF Exposure booklet
enclosed with your radio.
!
C a u t i o n
PMLN7726_.book Page 1 Monday, August 27, 2018 4:35 PM

Introduction
The vehicle WIFI window mount antenna is intended for mounting on the windshield of the
vehicle. After completing the installation, the cable is concealed between the headlining and
the roof of the vehicle, with minimum disturbance to the headlining and the upholstery.

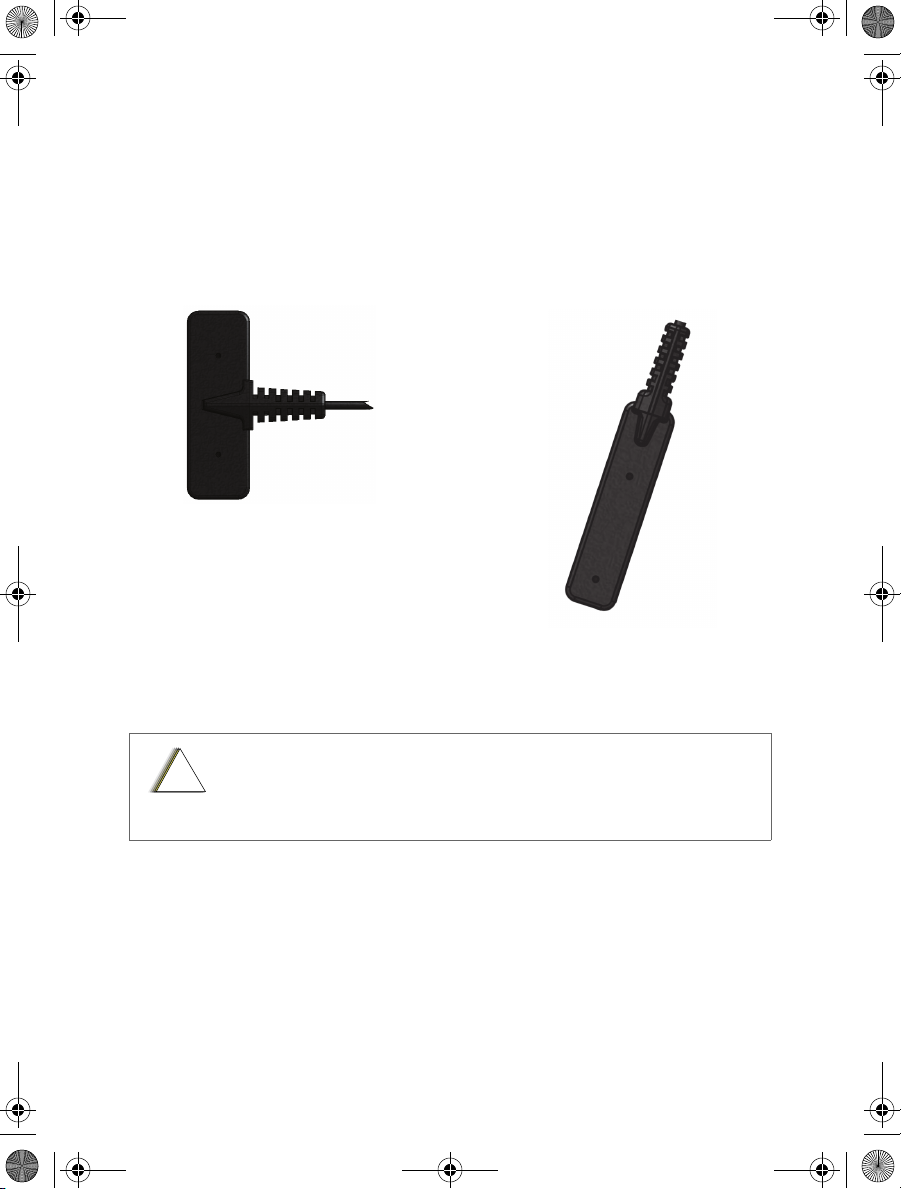

Figure 1-1 shows the WIFI window mount antenna.
Figure 1-1. WIFI Window Mount Antenna
FCC Requirements
Consider the following factors when installing an antenna.
• Install the vehicle antenna internal to the vehicle on the windshield, and in accordance
with the requirements contained in this manual.
• Ensure the antenna cable is easily routed to the radio.
• Ensure that the antenna cable is routed separately and not in parallel to any other
vehicle wiring or mobile radio cable wiring.
To comply with FCC regulations when installing the antenna lead-in
cable, do not shorten the cable.
PMAN5100 PMAN5101
!
C a u t i o n
PMLN7726_.book Page 2 Monday, August 27, 2018 4:35 PM

PMAN5100
PMAN5101

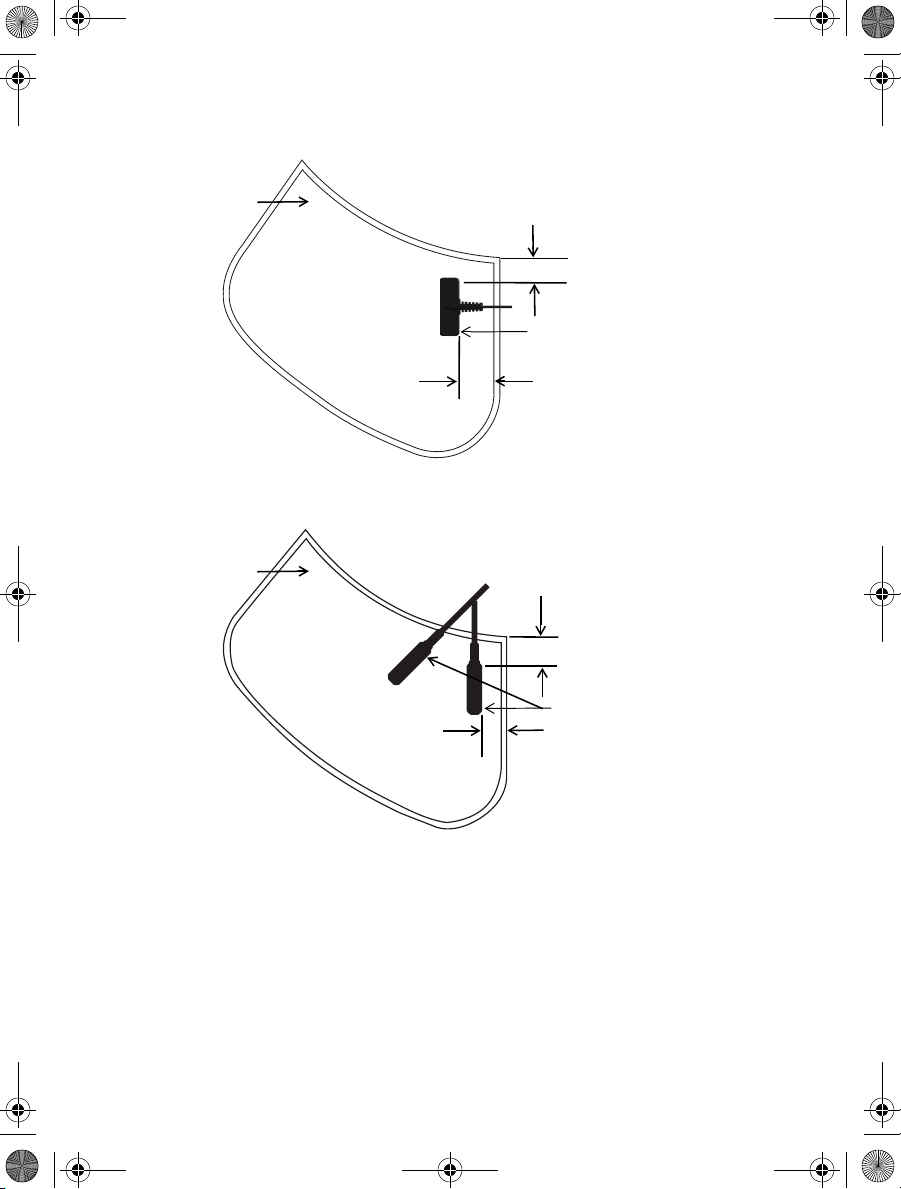

Figure 1-2. Recommended Installation on Windshield
Windshield Minimum 1 inch
• Vertical orientation
• No metallic object
around
• Minimum distance of
1 inch from the edges
Minimum 1 inch
Windshield Minimum 1 inch
• Any orientation
• No metallic object
around
• Minimum distance
of 1 inch from the
edges
Minimum 1 inch
PMLN7726_.book Page 3 Monday, August 27, 2018 4:35 PM

Installation Procedure
The antenna installation procedure is for a typical passenger car. The procedure varies
depending on the type of vehicle on which the antenna is installed. The procedure outlined
is universal.
Installing the Antenna
1. Select a location for the antenna on the windshield. The antenna needs to be on the
passenger side, close to the top, and on the front windshield.
NOTE:
• Ensure the antenna does not obstruct the view of the driver.
• For optimum performance, choose a higher location on the windshield.
• Do not mount the antenna to the dashboard or the rear deck as the antenna may
obstruct the view of the vehicle driver, and effect optimal RF performance.
• Check the antenna location for any electrical interferences. Keep away from metallic
tint, defroster wires, or other obstructions on the windshield.
• Keep WIFI antenna at least one inch away from the windshield edge and the car
chassis metal.
2. Ensure the antenna is vertically polarized, so the radiation pattern is omni-directional.
3. Test fit the antenna on the selected area before removing the release liner from the tape
on the antenna mounting surface.
4. Probe the headlining with your fingers to verify that all points of obstruction are avoided.
5. Determine the routing of the cable from the antenna to the radio set, and remove the
mold and trim necessarily to pull the cable through.
NOTE: Use an electrician fishtape if you experience difficulty with cable routing.
6. Ensure the mounting glass surface is clean and free of debris. Clean the surface area
with a lint-free cloth using isopropyl alcohol to remove any residue grease or dirt.
7. Remove the release liner and carefully position the antenna above the selected
mounting area.
8. Place the antenna on the mounting surface, and apply even pressure to allow the foam
tape to conform to the windshield curvature.
NOTE: 50% of the bond strength is achieved after 20 minutes. Avoid contact with the
antenna for a minimum of 20 minutes after initial installation. Full bond strength
of the adhesive tape is after 72 hours.
9. Recheck the connections, and reinstall molding and trimming.
The adhesive tape is very strong and bonds instantly on the
mounting surface. Once the antenna is placed on the surface, it
cannot be moved.
!
C a u t i o n
