Motorola V8260 User manual

APPLICANT: MOTOROLA, INC. FCC ID: IHDT5AG1
EXHIBIT 8
INSTRUCTION MANUAL
A preliminary draft copy of the Users Manual follows:

Welcome
Thank you for Motorola-a global leader in communications technology.
All Motorola celluler phones are designed and manufactured to meet Motorola’s exacting
specifications and world-class quality standards.
During development, our laboratory testing team took the durable “Motorola V” phone through its
paces. They cooked it, dusted it, and dropped it - the phone still worked !
We are confident that the one you purchase will meet your own exacting standards.
Thank you for choosing Motorola, and by all means, enjoy your “Motorola V” phone !

V8260
4
Exposure to Radio Frequency Signals
You wireless handheld portable telephone is a low power radio transmitter and receiver.
When it is ON, it receives and also sends out radio frequency (RF) signals.
International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996
Verband Deutscher Elektrotechniker(VDE) DIN-0848
United States Federal Communications Commission, Radio Frequency Exposure
Guidelines(1996)
National Radiological Protection Board of the United Kingdom, GS 11, 1988
American National Standards Institute(ANSI) IEEE. C95. 1-1992
National Council on Radiation Protection and Measurements(NCRP). Report 86
Department of Health and Welfare Canada. Safety Code 6.
V8260
5
These standards were based on extensive scientific review. For example, over 120
scientists, engineers, and physicians from universities, government health agencies, and
industry reviewed the available body of research to develop the updated ANSI Standard.
The design of your phone complies with these standards when used normally.
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachment could damage the phone and may violate local agency
regulations.
Phone Operation
Normal Operation
Hold the phone as you world any other telephone, with the antenna pointed up and over
your shoulder.
Tips on Efficient Operation:
Observe the following guidelines to operate your phone most efficienty.
- Extend your antenna fully.
- Do not touch the antenna unnecessarily when the phone is in use.
Contact with the antenna affects call quality and may cause the phone to operate at a
higher power level otherwise needed.
SAFETY INFORMATION

V8260
6
Batteries
CAUTION ! All batteries can cause property damage, injury or burns if a conductive
material, such as jewelry, keys or beaded chains, touches exposed terminals. The material
may complete an electrical circuit and become quite hot. To protect against such
unwanted current drain, exercise car in handing and charged battery, particularly when
placing it inside your pocket, purse or other container with metal objects.
Driving
Check the laws and regulations on the use of wireless telephones in the areas where you
drive. Always obey them. Observe the following guidelines when using your phone while
driving.
Give full attention to driving-driving safely is your first responsibility;
Use hands-free phone operation, if available.
Pull off the road and park before making or answering a call if driving conditions to
require.
V8260
7
Vehicles
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles. Check with the manufacturer of any equipment that has been added to
your vehicle.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. DO NOT place objects, including both installed or
portable wireless equipment, in the area over the bag or in the air bag deployment area. If
in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury
could result.
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However, certain
electronic equipment may not be shielded against the RF signals from your wireless
phone.
Pacemakers
The Health Industry Manufactures Association recommends that a minimum separation on

V8260
8
six (6 ) inches be maintained between a handheld wireless phone and a pacemaker to avoid
potential interference with the pacemaker. These recommendations are consistent with the
independent research by and recommendations of Wireless Technology Research.
Person with pacemakers:
- Should ALWAYS keep the phone more than six inches from their pacemaker when the phone
is turned ON;
- Should not carry the phone in a breast pocket;
- Should use the ear opposite the pacemaker to minimize the potential for interference.
- Should turn the phone OFF immediately if you have any reason to suspect that interference is
taking place.
Other medical devices
If you use any other personal medical device, consult the manufacture of your device to
determine if it is adequately shielded from external RF energy. Your physician may be able to
assist you in obtaining this information.
V8260
9
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of such
interference, you ,may want to consult your hearing aid manufacture to discuss alternatives.
Aircraft
Airline regulations prohibit using your phone while in the air.
Switch OFF your phone before boarding an aircraft.
Potentially Explosive Atmospheres
Turn your phone Off when in any area with a potentially explosive atmosphere, and obey all
signs and instruction. Sparks in such areas could cause an explosion or fire resulting in
bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked. The
include fueling areas such as gasoline station; below deck on boats, fuel or chemical
transfer or storage facilities; vehicles using liquefied petroleum has (such as propane or
butane); area where the air contains chemicals or particles, such as grain, dust, or metal
powders; and any other area where you would normally be advised to turn off your vehicle
engine.

V8260
10
BEFORE USE
Confirm Components
Name and Function of Each Part
Function of Each Button
Description of Display Symbols
How to Use Battery
Assemble Battery Pack
Dissemble Battery Pack
Battery Pack Management Information
How to charge Battery Pack
Charge State of Battery Pack
Charge Time of Battery Pack
Use Time of Battery Pack
Low Voltage Warning
Precautions in Use
HOW TO USE BASIC FUNCTIONS
Turn on power
Turn off power
Make a phone call
Receive a phone call
Indicate CALL in absence
Electronic dialing
List of originating numbers
HOW TO USE MENU FUNCTIONS
Phone Book
Save Phone Book
Set Turbo Dial
Correct and Edit
Delete
Search Phone Book
Fast Search
By location
By Name
View Memory
Called
Unanswered
View My No.
Tone Control
Bell/Melody
Ring/Vib
Ringer Vol.
Earpiece Vol.
Keypad Tone
Link Tone
Sending Tone
14
15
16
17
18
18
18
19
20
22
23
24
25
25
27
27
28
29
29
30
31
14
15
16
17
18
18
18
19
20
22
23
24
25
25
27
27
28
29
29
30
31
V8260
11
Alarm/Timer
Alarm
Set Alarm
Clear Alarm
World Times
User Times
Individual
All Calls
Roam Calls
Reset Timer
One Minute
PIMS
Schedule
Save Schedule
Confirm Schedule
Delete Schedule
Work Plan
Save Work Plan
Confirm Work Plan
Delete Work Plan
Calculator
Calendar
Features
Bklt Color
Bklt Time
Banner
City Code
Intl. Code
Service Lamp
Auto Hyphen
Redial
Call Answer
LCD Contrast
Lock/Security
Lock Mode
Set Lock
Clear Lock
Emergency #
Change PWD
Clear Calls
Restrict
Default Mode
Second Number
Register Second No.
Delete Second No.
Select Second No. Bell
Change NAM
S/W Version
54
54
55
58
60
62
64
65
66
67
68
69
69
70
72
73
74
75
76
77
78
79
80
80
81
82
83
84
85
86
87
88
89
90
90
90
91
92
93
94
95
96
97
97
98
99
100
101
CONTENTS CONTENTS

V8260
12
Game
Car Race
Poker
Voice Dial
Save Voice
View Voice Item
Auto Dialing
Delete All
Config Data
Data Speed
Receive Mode
FUNCTIONS USED DURING CALL
Control Earpiece
Memo During Call
Send My No.
Cut Sending Tone
MAIL
Enter Characters
Enter Korean Characters
Enter English Characters and Numbers
Enter Special Characters
Voice Mail
Text Mail
Sending Mail
To send
Recall Msgs
Delete Mail
Alert Method
Set Alert
Set Preview
n.TOP Config
Init URL
Proxy URL
APPENDIX
Recording
n.TOP Function
Connect to n.TOP
Use n.TOP
Mybell Service
Wireless Data Communication Service
How to use ear microphone
Before thinking it is out of order
Motorola Service Center
Quality Assurance
102
103
103
104
104
105
106
107
108
108
109
111
111
112
112
114
114
116
117
118
120
122
122
124
126
127
127
128
129
129
130
132
134
134
134
135
136
137
138
140
145
Confirm Components 14
Name and Function of Each Part 15
Function of Each Button 16
Description of Display State Symbols 17
How to Use Battery 18
Precautions In Use 25
BEFORE USE
CONTENTS

V8260
14
BEFORE USE
Portable Phone Battery Pack Desktop Charger
User Manual Leather Holster
Components may vary with specifications of service providers.
Charger
(DC power unit)
(V8260/500 mAh) (V8260/900 mAh)
Confirm Components
BEFORE USE
Receiver
Antenna
LCD display
Volume button
Ear-microphone terminal
Sender
Service Lamp
Dial button
Power cable connection jack
Name and Functions of Each Part
V8260
15
BEFORE USE

V8260
16
BEFORE USE
Makes or receives a call
Turns the phone on and off,
Ends a call and ends the selected
Function to convert to initial menu
Left/Right - Selects/Cancels a menu
Up/Down - Searches entries
(If held down while searching,searches
automatically)
Dial Buttons - Enters numbers and characters
Emergency dialing (See P.92)
International call abbreviated dialing (See P.84)
Scroll button - searches menu sequentially
Lock/Unlock (See P.90)
Etiquette set/clear (See P.47)
Volume button - Searches menu item and
control volume during call (See P.111)
When entering a character or number,
corrects or erases it
- Pressing briefly: erase one character by one
- Pressing long: erase all
Records call and voice (See P.132~133)
one-touch dialing (See P.134)
Phone Book one-touch dialing (See P.41)
PIMS one-touch dialing (See P.70)
Alarm one-touch dialing (See P.55)
Functions of Each Button
BEFORE USE
When attempting a call or in use, indicates signal strength of the area
Indicates In Use state. Indicated when attempting a call or in use.
Indicates the received tone is a vibration mode.
Indicates that a message is received. Indicated when voice mail or text mail is
received. Disappears when message is opened.
Indicates that alarm is set. Disappears when alarm is cleared.
Indicates the current remaining battery charge
Full charged low charged needs immediate charging
Indicates that n.TOP is connected to Internet.
Indicates that Etiquette is set. Disappears when the function is cleared.
Indicates that the phone is locked. Disappears when it is unlocked.
Displayed when using ear-microphone.
Displayed when using Handsfree.
Displayed when User Times is set.
Indicates electronic dial can be entered. (See P.30)
Indicates that special characters can be entered. (See P.117)
Description of Display Symbols
V8260
17
BEFORE USE

V8260
18
BEFORE USE
Assemble battery pack
Fit a battery pack correctly onto the indent of the
phone.
Push it downwards in the arrow direction until it
clicks into place.
Dissemble battery pack
Push dissembling button upwards.
Dissemble battery pack from phone.
How to Use Battery
BEFORE USE
Battery pack management information
Make sure to use the designated dedicated charger and battery pack.
Make sure to use the dedicated charger, or otherwise it may give damage to battery pack
or in danger of explosion.
Never make short circuit of connection terminal of battery pack, it may be in danger of explosion.
Always charge and store battery pack in room temperature.
If charging in too hot places (inside car in summer, near firearms) or too cold places, it is not well
charged and lamp turns into orange color. And, in case of storing it for a long period, battery
charge will be decreased, reducing use time.
Never dissemble or put charger and battery pack near firearms.
Store charger and battery pack out of reach of children.
Take precautions not to apply strong shock to battery pack or not to drop it, it may be
out of order or life may decrease.
Manage charger and battery pack in clean conditions. If foreign matter is attached to the metal part
of the connection terminal of charger and battery pack, it may not be charged.
Since battery pack for charging is a consumption goods, repeating charging and discharging will
reduce life. If use time is reduced to about half, purchase and use a new a battery pack.
V8260
19
BEFORE USE

V8260
20
BEFORE USE

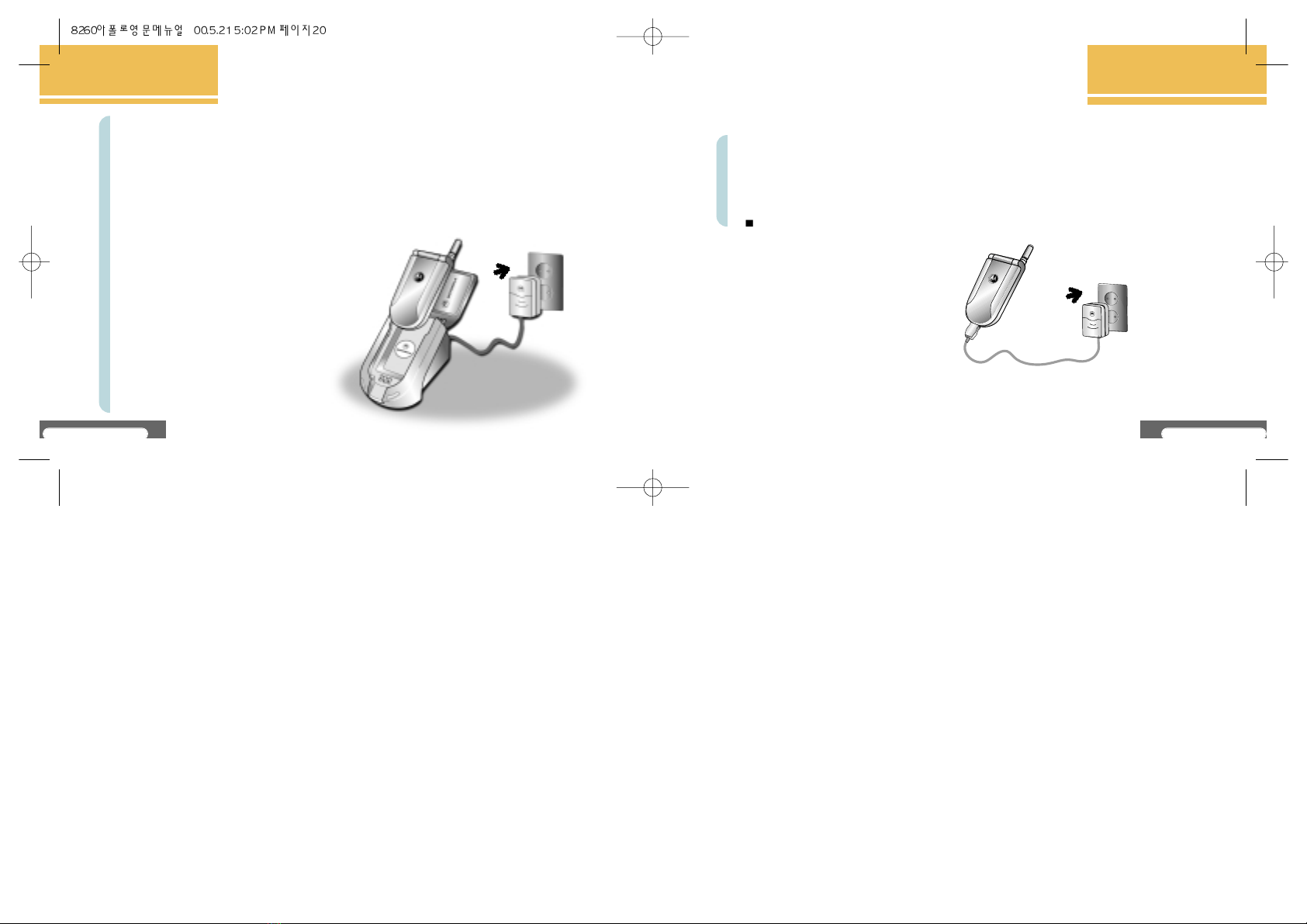

Charging with power cable
1. Connect power cable to charger (DC power unit) and plug power adapter in outlet.
2. Insert power cable jack to connection part of bottom of the phone.
3. Charge state is indicated on lamp of charger (DC power unit).
Purchase power cable additionally in near agent.
BEFORE USE
V8260
21
BEFORE USE
How to charge battery pack
When purchasing the product, it is not fully charged so use it after charging fully.
Charging with desktop charger
1. Connect desktop charger to charger (DC power unit) and plug power adapter in outlet.
2. Charge by inserting the phone in the front charging socket of the desktop charger
and battery pack in the rear socket. First charge the phone inserted in the front
charging socket.
3. Charge state is indicated on lamp of desktop charger.
220V
220V

Front charging socket
(left lamp)
Rear charging socket
(left lamp)
V8260
22
BEFORE USE
Charge state of battery pack
Charging method
Charging with power cable
Charging with desktop
charger
Classification
-
Waiting to
charging
-
-
Orange
Charging in
progress
Red
Red
Red
Charging
completed
Green
Green
Green
Charger lamp
(DC power unit) is turned off
When charging with desktop charger
Charge state is indicated on lamp of desktop charger.
< When lamp blinks in red >
This indicates that connection state of charging terminal is not good. Confirm the cleanness state
of battery pack and retry.
This indicates that battery pack is over-discharged, and after a short time, lamp returns into normal
color and charging begins.
This indicates that battery pack or other components are faulty, contact service center.
< When lamp is orange >
This indicates that charging is in waiting state or, the phone is being charged in too hot or to cold
places.
When the temperature returns to room temperature, lamp changes into red and charging begins.
When charging with power cable
Charge state is indicated on lamp of charger (DC power unit).
< When lamp blinks in red >
This indicates that connection state of charging terminal is not good. Again connect charger (DC
power unit) jack to the phone.
This indicates that battery pack or other components are faulty, contact service center.
Charge time of battery pack (when phone is turned off)
Charge time may vary with battery pack state.
In case AC power applied to power adapter is low, charge time may be longer.
If surrounding temperature is too high or too low, the phone is not well charged. Always charge in
room temperature.
BEFORE USE
V8260/500 mAh
About 90 minutes
Classification
Time
V8260/900 mAh
About 130 minutes
V8260
23
BEFORE USE

V8260
24
BEFORE USE
Low voltage warning
If battery pack is almost used out, beep-beep sound is heard and blinks.
If continuing to use it, power of the phone is turned off after a short time. Charge immediately.
If blinks, even though pressing button, display and button LCD is not turned on and
message receiving, saving and setup function is not normally supported. Immediately charge and use it.
Make sure to use the designated dedicated battery pack and charger.
When using the unauthorized battery pack and charger, service is not provided.
Do not use in areas with high temperature and humidity. If the phone is immersed in water, it may
cause faults and repair may be impossible. When the phone is in wet state, never turn on the power.
Dissemble the battery pack and ask for repair in the near service center.
Do not dissemble or modify the phone. If dissembling it at your own way, you cannot be provided with
free service.
Avoid vibration or shock to the phone and when not in use, store it in places where shock may be
avoided.
When using the phone, do not hold or contact antenna.
Do not wash the phone with chemical solution such as solvent or thinner.
BEFORE USE
Precautions in use
V8260
25
BEFORE USE
V8260/500 mAh
About 100 minutes
About 40~110 hours
Classification
Continuous call
Continuous waiting
V8260/900 mAh
About 180 minutes
About 90~200 hours
Use time of battery pack
Continuous waiting time is based on slot mode 2 and varies with service type of service provider.
In call state, more power is consumed than in waiting state, and the longer call duration is, the
shorter waiting time is.
When receiving a call, the same amount of time is consumed as when making a call.
In areas where service is provided, waiting time becomes shorter.
Use time varies with charge state, temperature (low temperature/high temperature) and wave state of
location in use and surrounding illumination state.
What is slot mode?
The cellular phone makes a call possible by informing the location of the phone user to BTS while
communicating with
BTS every specified interval. This is called slot mode, and the more number of times of communication with
BTS is, the shorter waiting time is.

V8260
27
Press button long
Service lamp is turned on, Motorola logo is displayed and after a short time, display
turns into initial display.
HOW TO USE BASIC FUNCTIONS
Press button long
Motorola logo disappears and power is turned off.
Turn on power
Turn off power
Turn on power
Turn off power
Make a phone call
Receive a phone call
Indicate CALL in absence
Electronic dialing
List of originating numbers
HOW TO USE BASIC
FUNCTIONS
27
27
28
29
29
30
31

HOW TO USE BASIC FUNCTIONS
V8260
29
Phoneringsandthe CALL
messageisdisplayedasintheright
screen.
OpensFolderand
receivesthecall. Whencallends,
closesFolderor
presses
button.
In case the user has not received a call, the following is displayed on screen.
Pressing button returns the display to the initial screen
Telephone numbers received in absence are stored in Unanswered list.(See P.44)
HOW TO USE BASIC FUNCTIONS
V8260
28

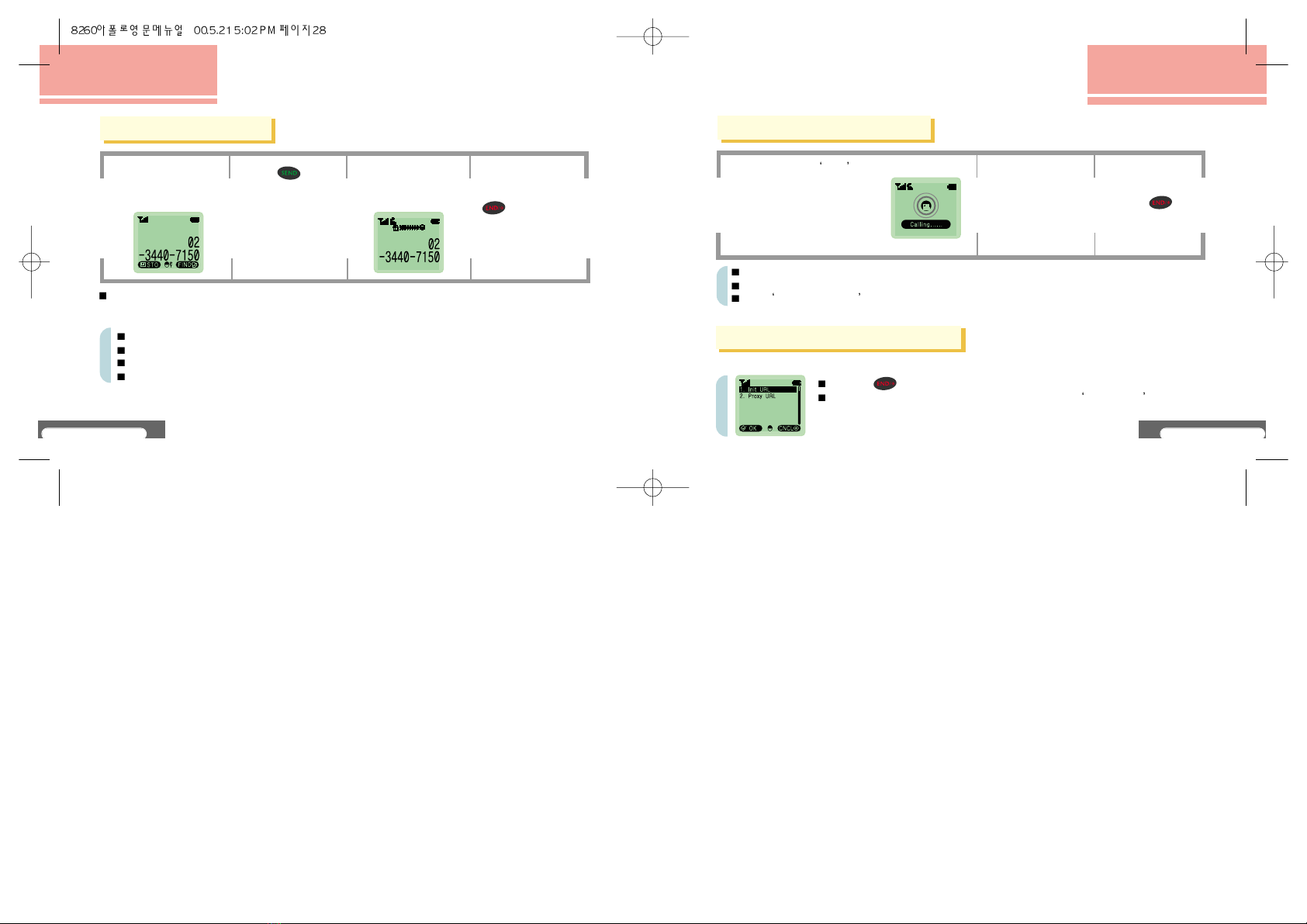

Pressareacodeandphone
number. Press button. Calling Whencallisended, closefolderorpress
button.
Making a phone call in other ways
Make a phone call
In case a call is not connected, redialing is made. (See P.87)
Receiving a phone call
Indicating Call in absence
If it is set to Vibrate or Lamp, the phone vibrates or lamp blinks.
When the Folder is open, press any button.
When Automatic Answer is set, ringer tone rings three time and call is automatically connected.
Making a call with turbo dial : Press long the last number of the address set. (See P.35)
Making a call with electronic dialing : Convenient when using ARS. (See P.30)
Making a call with emergency call : Can make a call even when the phone is in LOCK state. (See P.92)
Making a call with voice dial : Can make a call with voice without pressing DIAL button (See P.104~107)

Pstops continuously : To enter Pafter telephone number, press . Number after
Pis sent out only by pressing button.
Tstop briefly : To enter Tafter telephone number, press . Number after Tis
sent out after a while.
To store telephone number entered electronically in phone book, press [STO]
button. (See P.33~36)
HOW TO USE BASIC FUNCTIONS
V8260
31

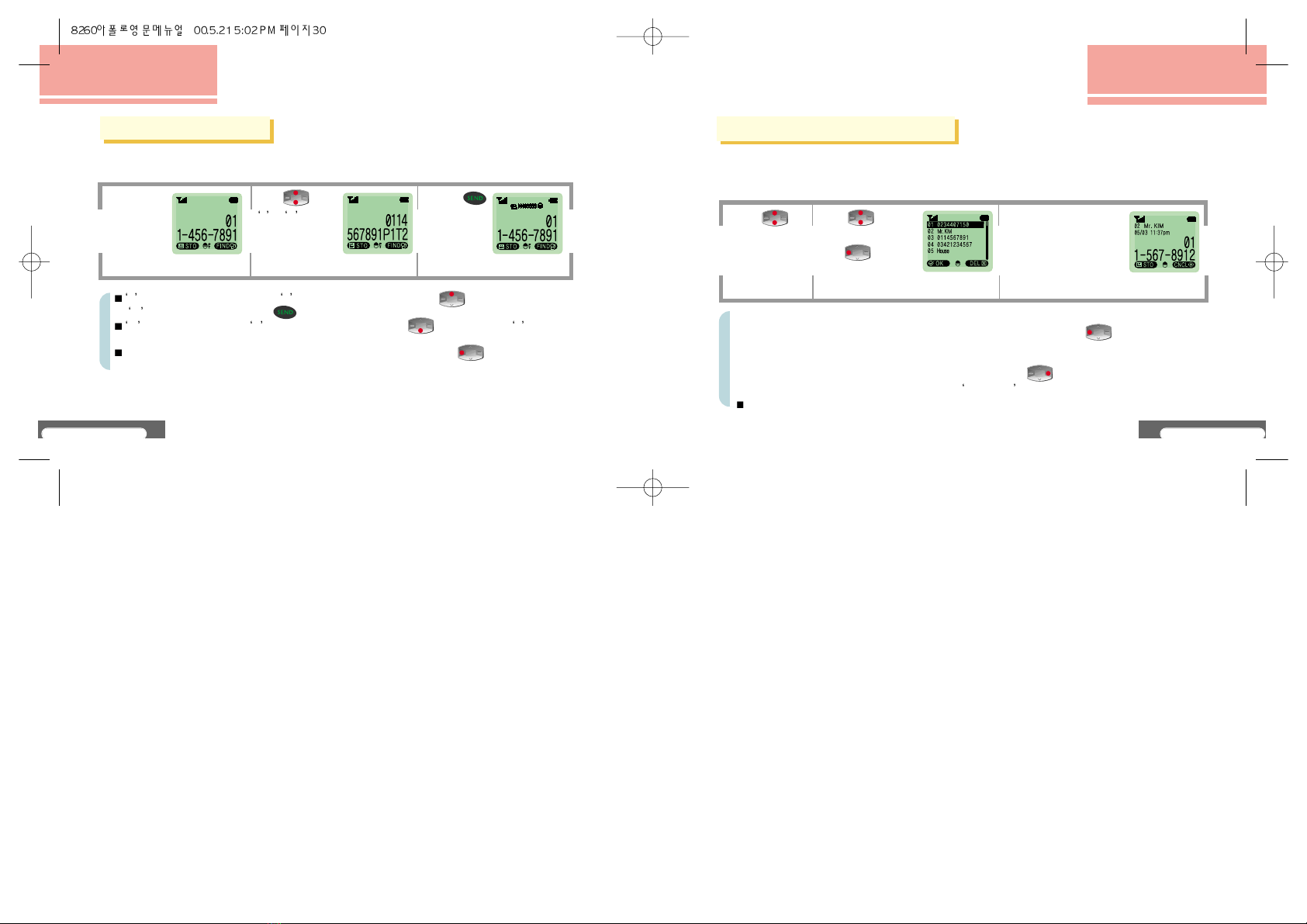

Press
ininitialscreen.
HOW TO USE BASIC FUNCTIONS
V8260
30
When using ARS, enters multiple numbers in advance for convenient use. (telebanking, paging,
confirming voice mail)
Electronic dialing
Enter
telephone
number.
Press ,enter
Por Tand
dialnumber
electronically.
Pressing
button
connectsto
thephone.
List of outgoing numbers
The list of telephone numbers the user called is displayed.
Confirming list of outgoing numbers
Press tomove
tothedesiredlistand
press [OK].
Contentsof the selected
list ofoutgoing numbers
is displayed (outgoing
number,sequence,name,
dateandtimeofcall)
Storing list of outgoing numbers
When contents of the selected list of outgoing numbers is displayed, press [STO]
to store the list. (See P.33~36)
Erasing list of outgoing numbers
When the selected list of outgoing numbers is displayed, press [DEL] to erase the list. (See P.37)
(To erase all lists of outgoing numbers, erase in Delete List . (See P.94)
In case of telephone number stored in storage address, the name is displayed.

Phone Book 33
Tone Control 46
Alarm / Timer 54
PIMS 69
Features 80
Lock / Security 90
Game 102
Voice Mail 104
Config Data 108
HOW TO USE
MENU FUNCTIONS
HOW TO USE MENU FUNCTIONS
V8260
33
Enteratelephone
numberandpress
[STO].
Entermemory
addressandpress
[OK].
Enterthenameto
storeandpress
[OK].
(SeeP.114~117)
Aftermessageis
displayed, Enter
nextnumber is
displayed.
Press tomove
totheicontostore
andpress
[OK].

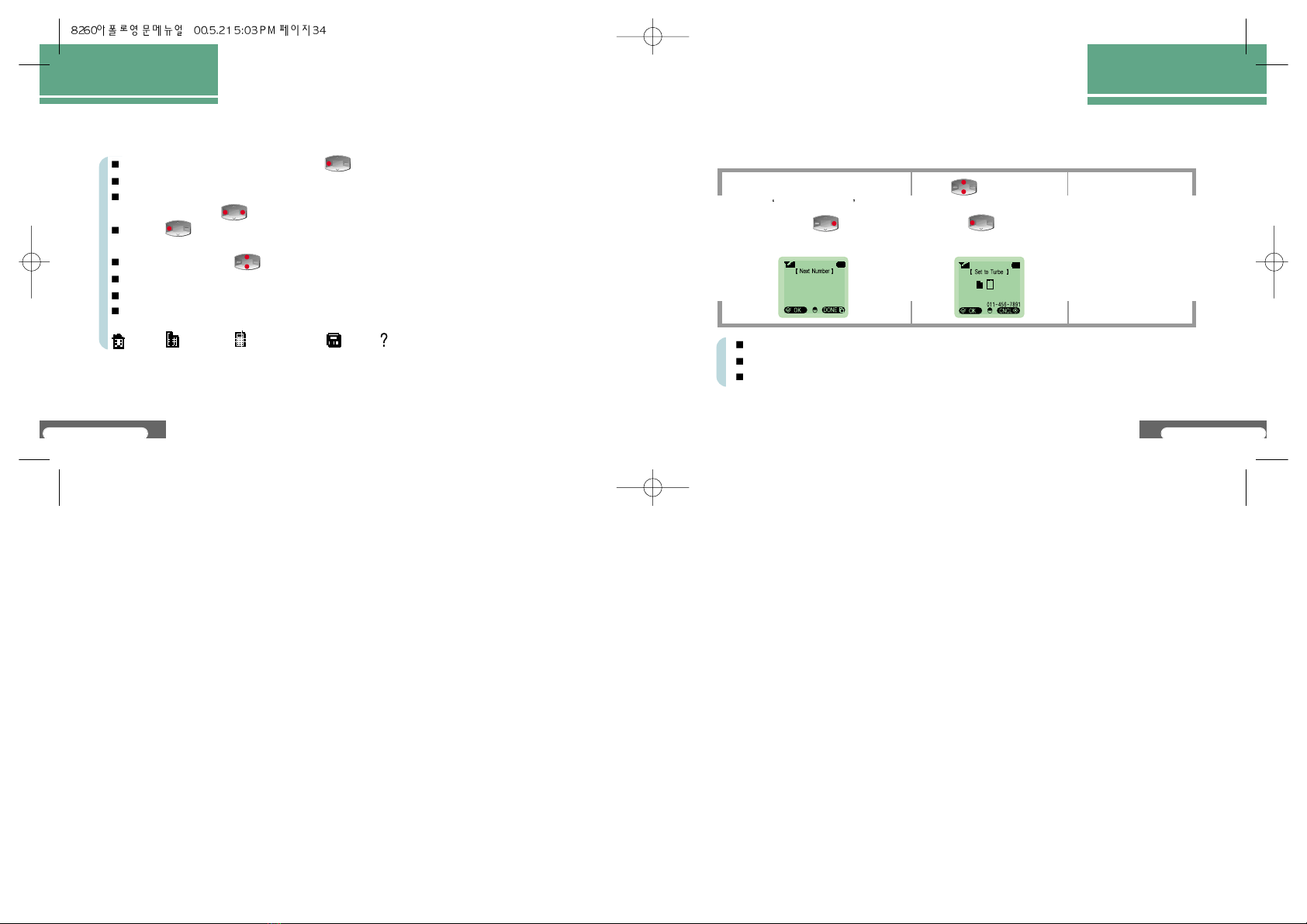

Phone Book
Storing in phone book
The phone can store up to 5 telephone number for a person and when you want to
retrieve them, you cam make a call with various search methods.

HOW TO USE MENU FUNCTIONS
V8260
34
After pressing telephone number, pressing [OK] can continue to store the next number.
Memory address shows the latest address available.
When designating memory address, the address in which telephone number is already
stored is indicated as [ADD/BACK].
Pressing [ADD] can additionally store telephone number in the icon not designated
of five icons. (See P.36)
Pressing [Dial] button or can enter the desired address.
The name to store can be stored up to 10 characters and 20 alphabets.
When entering name, if a name already stored exists, it is
Up to 200 addresses can be stored.
Home Company Portable phone Pager User customized
HOW TO USE MENU FUNCTIONS
V8260
35
Setting turbo dial
When making a phone call, pressing long the last number of the stored address make a
call to the telephone number of the icon in which turbo dial is set.
Turbo dial is set only in one icon of one storage address.
Only icons containing stored telephone number is displayed when setting turbo dial.
Setting or clearing turbo dial completes storing telephone number.
Enterthetelephonenumbertostore
andif Enternextnumber is
displayed,press [DONE]
Press tomovetothe
iconinwhichtosetturbodial
andpress [OK].
Aftermessageis
displayed,movetothe
initialscreen

HOW TO USE MENU FUNCTIONS
V8260
36

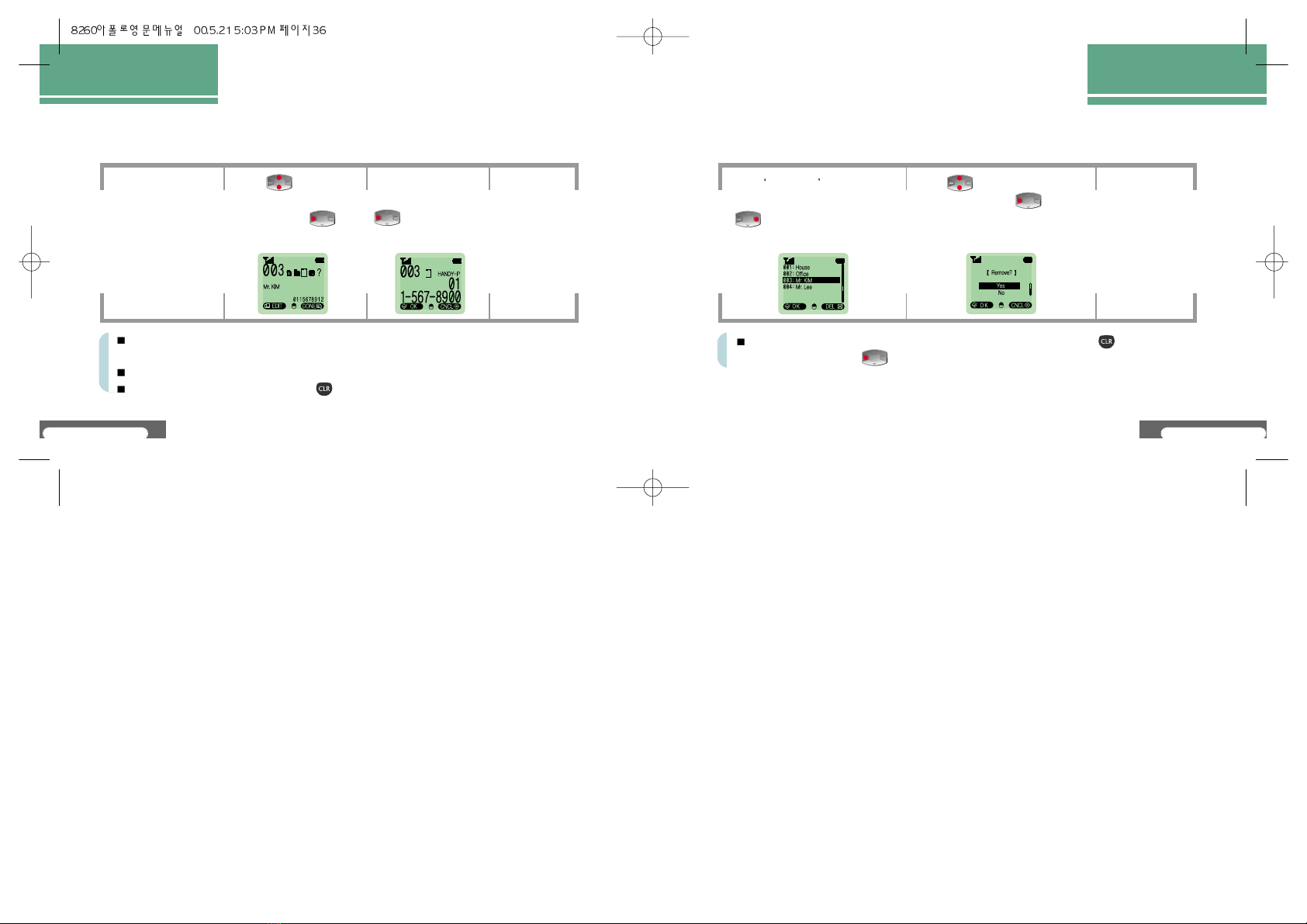

Correcting and editing
Corrects, adds or erases telephone number and name already stored.
Usingphonebook
searchfunction,findand
selecttheaddressto
correct.(SeeP.38~41)
Press tomovetothe
icontocorrectandnameto
storeandpress [Edit].
Aftermessageis
displayed,move
totheprevious
menu.
Aftercorrecting
telephonenumber,press
[OK].
In case there are telephone numbers stored when selecting the icon to store, telephone
number is displayed.
Selecting the name to store can correct the name.
To erase number when correcting, press button.
HOW TO USE MENU FUNCTIONS
V8260
37
Erasing
Erases stored contents.
Using FastSearch ,findandmove
totheaddresstoerase,andpress
[DEL].(See P.38)
Aftermessageis
displayed,moveto
thepreviousmenu.
Press tomovetothedesired
setupvalueandpress [OK].
To erase stored contents of icon in address, select the icon and press long button
to erase, and then press [OK].
