Motorola SE-1010 User manual

Document Number: 504834-001
Broadband Communications Sector
SE-1010 / SE-2000 Encoder
Product Manual
Version 1.0

Documentation Notice
The information contained in this document is subject to change without notice and should not be construed as a
commitment by Motorola BCS.
Motorola BCS assumes no responsibility for any errors that may appear in this document nor does it make express or
implied warranty of any kind with regard to this material, including but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Motorola BCS shall not be liable for incidental or consequential
damages in connection with, or arising out of the provision, performance or use of this document and the program
material which it describes.
The software described in this document is furnished under a license and may be used or copied only in accordance
with the terms of such license. No responsibility is assumed for the use or reliability of software on equipment that is
not supplied by Motorola BCS or its affiliated companies.
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, Pursuant to Part 15
of the FCC Rules. These limits are designed to provide a reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Any changes or modifications not expressly approved in writing by the manufacturer could void the user's authority to
operate the equipment.
Canadian Department of Communications compliance statement:
This equipment does not exceed Class A limits per radio noise emissions for digital apparatus set out in the Radio
Interference Regulation of the Canadian Department of Communications. Operation in a residential area may cause
unacceptable interference to radio and TV reception requiring the owner or operator to take whatever steps are
necessary to correct the interference.
Avis de conformite aux normes du ministere des Communications du Canada:
Cet equipment ne dépasse pas les limites de Classe A d'émission de bruits radioélectriques pour les appareils
numériques tels que prescrites par le Règlement sur le brouillage radioélectrique etabli par le ministére de
Communications du Canada. L'exploitation faite en milieu résidentiel peut entrainer le brouillage des réceptions radio
et télé, ce qui obligerait le propriétaire ou l'operateur à prendre les dispositions nécessaires pour en éliminer les
causes.
CISPR 22 (EN 55022) Compliance
This equipment has been tested and found to comply with the limits for Class A information technology equipment,
per C.I.S.P.R. Publication 22 (EN 55022). The class A limits may be too liberal for domestic establishments and some
residential areas. Shielded I/O cables must be used when operating this equipment.
Document Revision: A
Date: June 6, 2003
Document No.: 504834-001
Manufactured under license from Dolby Laboratories.
Covered under one or more of the following U.S. Patents: 5,216,503; 5,506,844; 6,167,084 and patents pending.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or
service names are the property of their respective owners. Dolby is a trademark of Dolby Laboratories.
© Motorola 2003.
General Instrument Corporation doing business as the Broadband Communications Sector of Motorola, Inc.
6450 Sequence Drive
San Diego, CA 92121
[phone]
http://www.motorola.com

LIMITED WARRANTY
SE-1010 / SE-2000 ENCODER
To Original Commercial Purchaser
General Instrument Corporation doing business as the Broadband Communications Sector of Motorola,
Inc. (“Motorola BCS”) hereby warrants only to the original commercial purchaser of SE-1010 / SE-2000
Encoder(s) (“Encoder”) (“You”), that such Encoder and the media upon which any software is furnished
in connection with the Encoder shall be free from defects in material and workmanship for a period of
twelve (12) months commencing from date of shipment for commercial use.
The warranties set above shall not apply (i) to any Encoder or media subjected to accident, misuse,
neglect, alteration, improper handling, improper transport, improper storage, improper use or application,
improper installation, improper testing or unauthorized repair, or (ii) to cosmetic problems or defects
which result from normal wear and tear under ordinary use, and do not affect the performance or use of
the Encoder or media.
During the term of the Warranty Period, Motorola BCS’s sole and exclusive liability will be, at its
expense, to either repair or replace any nonconforming Equipment returned to Motorola BCS. A
replacement unit need not be new. Equipment returned for repairs shall be packed securely by You and
shall be shipped prepaid, together with a statement setting forth the claimed defect, to Motorola BCS’
designated repair facility. Motorola BCS shall prepay and bear the cost of freight for shipments to You of
repaired or replaced Encoders.
THE FOREGOING IS IN LIEU OF ALL WARRANTIES, EXPRESS, IMPLIED, STATUTORY OR
OTHERWISE IN CONNECTION WITH FURNISHING THE GOODS, SOFTWARE, AND SERVICES
HEREUNDER, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT AND
ANY OTHER IMPLIED WARRANTY OBLIGATION ON THE PART OF MOTOROLA BCS.

Document Number: 504834-001 i
Table of Contents
1 Introduction ............................................................................................................................1
SE-1010 / SE-2000 Applications ............................................................................................................ 2
2 Installation ..............................................................................................................................3
Inventory and Installation........................................................................................................................ 3
Inventory .......................................................................................................................................... 3
Mounting .......................................................................................................................................... 4
Positioning........................................................................................................................................ 4
3 Basic Operation .....................................................................................................................5
Navigation............................................................................................................................................... 5
Navigational Legend ........................................................................................................................ 6
Menu Description ............................................................................................................................. 7
Selecting an Option.......................................................................................................................... 7
Editing an Option.............................................................................................................................. 7
Activating Presets................................................................................................................................... 8
SE Encoder Factory Presets............................................................................................................ 9
Fault and Alarm ...................................................................................................................................... 9
4 Menus....................................................................................................................................11
Preset Menu ......................................................................................................................................... 12
Name Parameter............................................................................................................................ 12
Video Options................................................................................................................................. 13
Audio1 and Audio2 Options ........................................................................................................... 14
VBI Options .................................................................................................................................... 16
PID Options.................................................................................................................................... 17
PGM Number ................................................................................................................................. 17
Transport Output Menu ........................................................................................................................ 18
ServiceName Menu .............................................................................................................................. 19
Network Type Menu ............................................................................................................................. 20
Control Menu ........................................................................................................................................ 22
Control............................................................................................................................................ 22
IP Addrs ......................................................................................................................................... 23
Ethernet Addrs ............................................................................................................................... 23
Misc Menu ............................................................................................................................................ 24
Test Menu............................................................................................................................................. 24
Status Log Menu................................................................................................................................... 25
Clear Status Log ............................................................................................................................ 25
Reset Menu .......................................................................................................................................... 25
Reset Menu .......................................................................................................................................... 26
Software Version .................................................................................................................................. 26

ii SE-1010 / SE-2000 Encoder Product Manual, Version 1.0
Appendix A Log Messages ....................................................................................................27
Appendix B Connector Pinouts.............................................................................................29
Appendix C Connectors and Required Cables ....................................................................31
Appendix D Specifications.....................................................................................................33
List of Tables

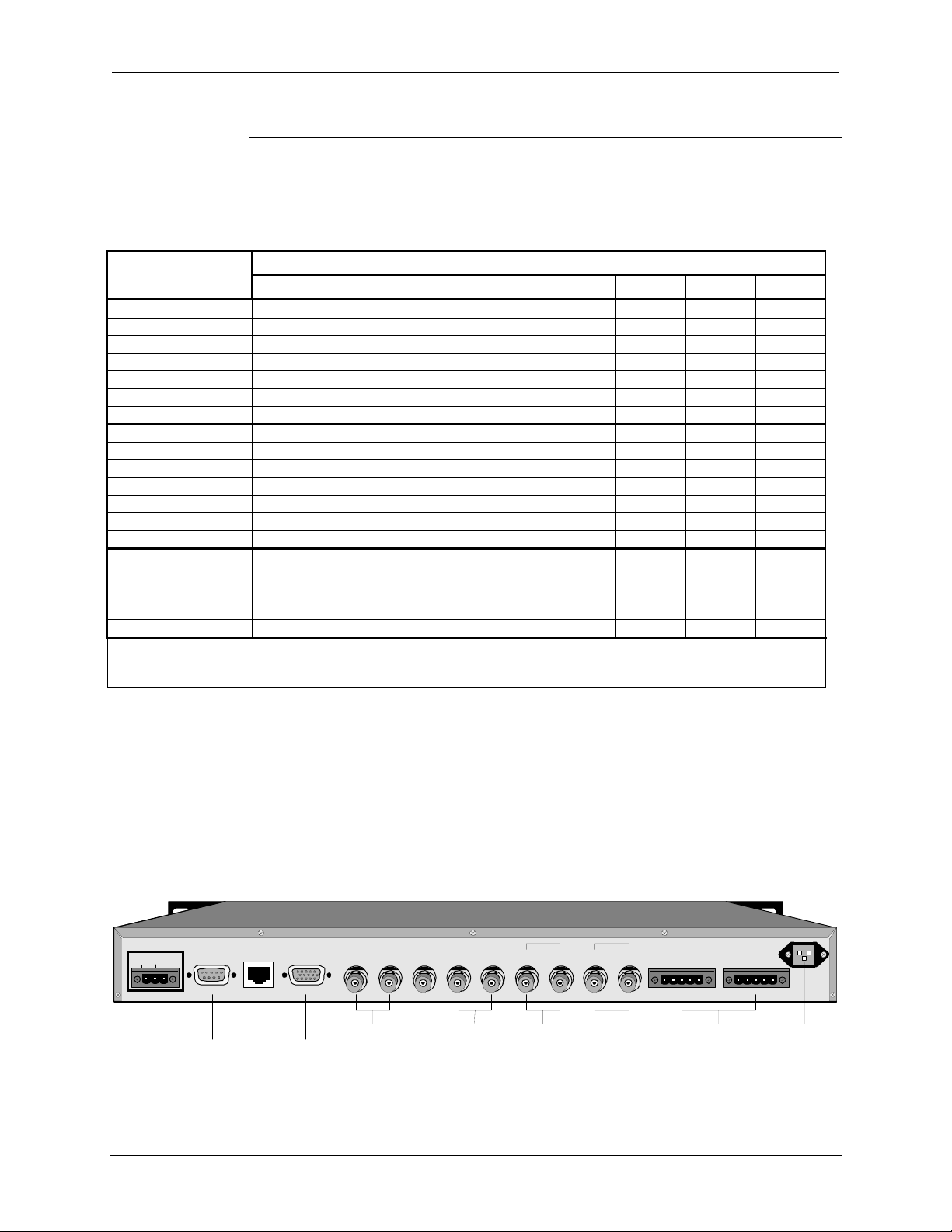

1 Default Settings For Factory-defined Presets....................................................................................... 9
2 Video Options...................................................................................................................................... 13
3 Audio1 / Audio2 Options ..................................................................................................................... 14
4 VBI Options – When video input is set to NTSC, PAL-M, or 525SDI................................................. 16
5 VBI Options – When video input is set to PAL or 625SDI.................................................................. 16
6 PID Options......................................................................................................................................... 17
7 Transport Output Options ................................................................................................................... 18
8 ServiceName Options ......................................................................................................................... 19
9 DVB-S (Satellite) Options ................................................................................................................... 20
10 DVB-C (Cable) Options....................................................................................................................... 21
11 DVB-T (Terrestrial) Options ................................................................................................................ 21
12 Test Options........................................................................................................................................ 24
A1 Log Messages..................................................................................................................................... 28
B1 Connector Pinouts .............................................................................................................................. 29
C1 Connectors.......................................................................................................................................... 31
C2 Required Cables ................................................................................................................................. 31
D1 Specifications ...................................................................................................................................... 33

Document Number: 504834-001 1
1
Introduction
Congratulations on the recent purchase of Motorola’s SE-1010 / SE-2000 Encoder. The
SE-1010 / SE-2000 Encoder represents Motorola Broadband Communication Sector’s (BCS)
sixth generation video compression technology in a compact chassis that is ideally suited for
the cable headend, small broadcast, and high bandwidth contribution applications.
The SE-1010 / SE-2000 Encoder follows Motorola BCS’s long tradition for providing
exceptional video quality such as:
•Automatic film detection and telecine processing
•Adaptive field/frame processing
•Scene change detection
•Adaptive quantization level processing
•Digital Video Broadcasting (DVB) compliance
•Support for 4:2:0 and 4:2:2 encoding modes (The SE-1010 Encoder supports only 4:2:0.)
•Pure Pixel™ two-pass encoding (The SE-1010 Encoder does not have this feature.)
•Adaptive temporal/spatial noise filtering
•ScenePreview scene change detection
•Proactive buffer management
•Improved motion estimation processing
The encoder’s easy-to-use features include:
•Front panel or SNMP control
•Factory preset and user modifiable configurations
•Flexible input and output options
This product manual provides critical information to set up and configure the SE-1010 / SE-
2000 Encoder. Please read this manual before starting installation.
ENTER
ON-LINE
FAULT
VIDEO
AUDIO 1
AUDIO 2
Single Channel Encoder

2 SE-1010 / SE-2000 Encoder Product Manual, Version 1.0
SE-1010 / SE-2000 Applications
The SE encoder is ideal for encoding at digital cable head-ends, electronic newsgathering,
ATSC broadcasting, and for DVB satellite distribution.
Note: Please refer to the documentation that comes with the IRT, TMX-2010, and/or MPS for
configuration information of those devices. Because the SE encoder does not output system
time, the downstream device must supply system time.
For the SE encoder-to-IRT application, an SNTP Time Server must be used to provide system
time to the IRT. For part numbers and other details, see “Connectors and Required Cables”
on page 31.
For digital cable head-ends, a number of SE encoders can be used to digitize analog
programming for inclusion in the digital tier. The following high-level diagrams show
example configurations.
Example 1 shows an SE encoder connected to an IRT.
Example 2 shows several SE encoders connected to an MPS.
Example 3 shows SE encoders connected to a TMX-2010 that is connected to a SEM.
IRT
Example 1
SE-1010 or SE-2000
QAM
ENTER
Single Channel Encoder SE -2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
Example 2
MPS
QAM
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
SE-1010s or SE-2000s
Example 3
SEM
TMX-2010
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
SE-1010s or SE-2000s
Ethernet
TMX
Element
Manager
QAM

Document Number: 504834-001 3
2
Installation
The information in this chapter provides easy guidelines for installing the SE encoder. The
following diagram shows the front panel:
Inventory and Installation
To prevent damage and/or safety hazards, always handle the SE encoder with care. Use the
SE encoder only according to instructions provided in this product manual. For part numbers
and other details, see “Connectors and Required Cables” on page 31.
Inventory
Verify that the shipping carton contains the following items:
•An SE-1010 or SE-2000 encoder with attached mounting brackets
•SE-1010 / SE-2000 Encoder Product Manual (this manual)
•SE-1010 / SE-2000 Encoder Release Notes
•Detachable EIC power cord
•Three (3) Phoenix connectors (2 audio, 1 Form_C)
•One (1) DHEI cable
•One (1) clip-on cord retainer
•Four (4) phillips screws
•Four (4) washers
ENTER
ONLINE
FAULT
VIDEO
AUDIO 1
AUDIO 2
Single Channel Encoder
ENTERStatus LCD Service Arrow
LEDs LEDs Buttons Button
Screen
SE -2000

4 SE-1010 / SE-2000 Encoder Product Manual, Version 1.0
CC/LOG PORTFORM_C OUT ETHERNET DHEI OUT ASI OUT ASI MON DS3 OUT DIGITAL AUDIO IN A DIGITAL AUDIO IN B DIGITA L VIDEO LOOP THRU DIGITAL VIDEO IN ANALOG AUDIO A IN L+ L- GND R+ R- ANALOG AUDIO B IN L+ L- GND R+ R-
ANALOG VIDEO
LOOP THRU ANALOG VIDEO IN
Form_C Out
CC/Log Port
Ethernet
DHEI Out
ASI DS3 Digital
Audio
Digital
Video
Analog
Video
Analog
Audio
COM NC NO
AC
Power
Mounting
The encoder with the supplied mounting brackets is designed for installation in an EIA
standard 19-inch (480 mm) equipment rack. When mounting the encoder in a rack, use pan or
round head screws and washers in all four front panel mounting locations. This ensures a
secure mount for the size and weight of the unit. Please provide screws that match the rack.
SE encoders are stackable, one on top of another, within arack, without any spacing
requirements. Place each SE encoder in a stable and level position within the rack and ensure
that all front enclosure screws are tightened to 2 ft.-lbs. If multiple SE encoders are installed
in a rack assembly, the operator may choose to have a certification agency evaluate the
condition of the rack.
Positioning
When positioning the SE encoder:
•To prolong service life, make sure that the area around the SE encoder is free of dust and
other airborne particles.
•Operate the SE encoder in a temperature-controlled environment. Do not place the
encoder near a heat source.
•Do not install multiple SE encoders so that the air intake from one unit is aligned with the
outlet of another.
•Do not install an SE encoder in areas of high humidity or where water can infiltrate the unit.
•To avoid magnetic interference from the high-voltage cable, do not run AC power cables
and signal leads in the same duct.
For signal information for the various connectors, see “Connector Pinouts” on page 29. The

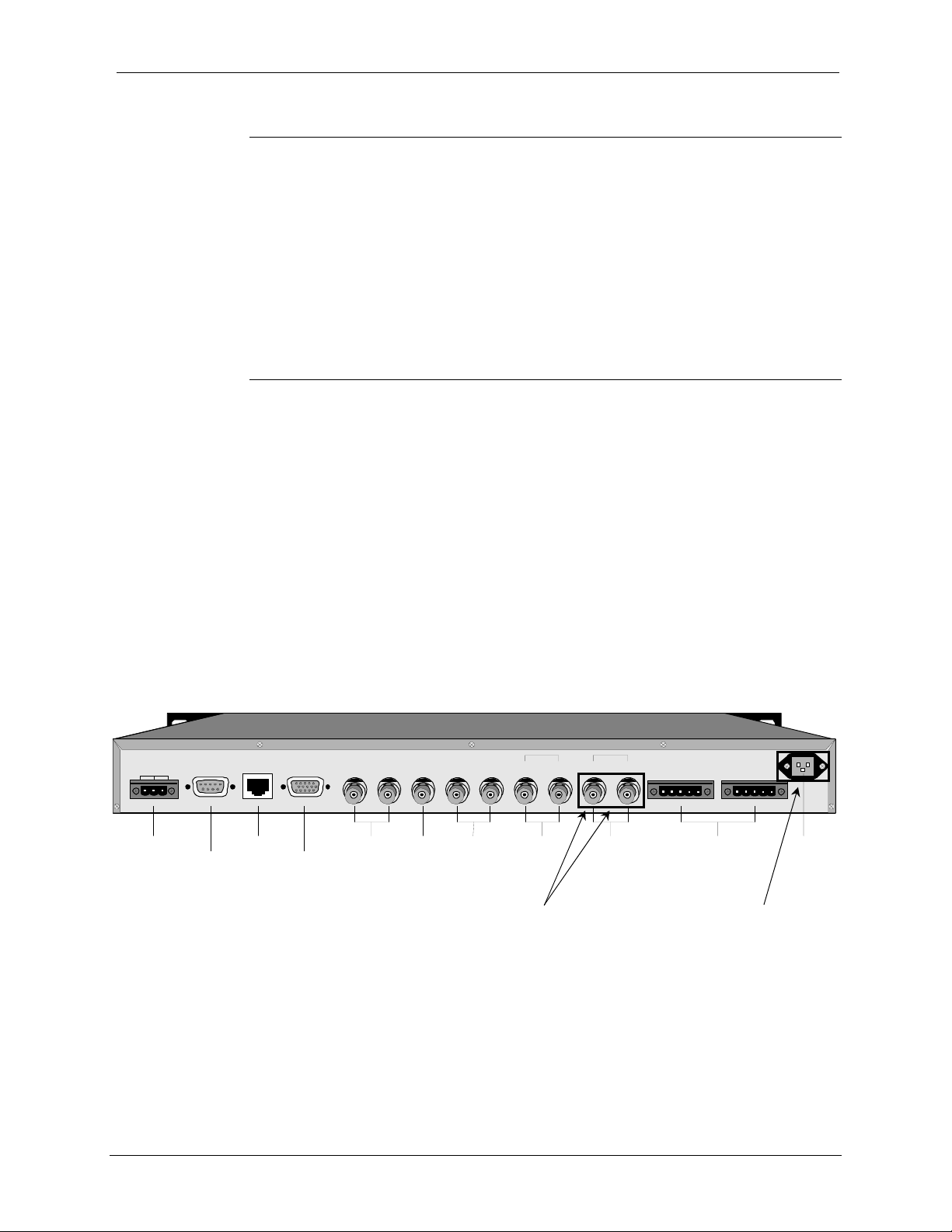

following diagram shows the back panel.
Note: For applications that use the Analog Video In
connector, attach a 75–ohm termination to the Analog
Video Loop Thru connector.
Note: Clip the supplied cord
retainer on the two standoffs.

Document Number: 504834-001 5
3
Basic Operation
Navigation
When the encoder powers up, the Liquid Crystal Display (LCD) displays the software version:
Use the front panel’s four arrow and ENTER buttons to navigate the LCD’s two
40-character lines.
Use the up ( /\ ) and down ( \/ ) arrow buttons to scroll through the following nine menus:
•Preset
•Transport Output
•Service Name
•Network Type
•Control
•Misc. (Miscellaneous)
•Test
•Status Log
•Reset
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FA ULT
ENTER
•
S E - 2 0 0 0 V e r 1 . 0 0 / 1 . a
M o t o
r
o l a B C S

6 SE-1010 / SE-2000 Encoder Product Manual, Version 1.0
Continue using the up ( /\ ) and down ( \/ ) arrow buttons until the Preset menu displays as
shown below.
Navigational Legend
The first four characters on the Edit Line (second line) show the navigational legend. The
legend shows which arrow buttons can be used to navigate through menus. The following
diagram shows the legend with the corresponding arrow and ENTER buttons.
< indicates that you can press the left ( < ) arrow button.
> indicates that you can press the right ( > ) arrow button.
| (vertical line) indicates that you can press the up ( /\ ) or down ( \/ ) arrow button.
E indicates that you can press the ENTER button.
ENTER
Single Channel Encoder SE-2000
VIDEO
AUDIO 1
AUDIO 2
ONLINE
FAULT
< | > E
ENTER
•
P r e s e t N a m e V i d e o A u d i o 1 A u d i o 2
<
|
> 1 P r e s e t 1
Menu Line
Edit Line

Document Number: 504834-001 7
Menu Description
The LCD screen’s top line is named the Menu Line and it displays all the menu options. The
bottom line is named the Edit Line and it displays the navigational legend and all encoder
options. Each of the nine menus has a Menu Line and Edit Line.
The Preset menu has the following eight options:
Preset Name Video Audio1 Audio2 VBI PID PGM
Because this menu has more options than the LCD screen can display at one time, press the
left and right arrow buttons to see the other options.
Note: “Preset” is the name of this menu, so the word “Preset” does not scroll. Only the
options scroll.
Selecting an Option
Use the left and right arrow buttons to move the pointer to Audio1 option.
Note: Always verify that the pointer (>) appears at the left of the option. To assist the reader
to see the selected area, this manual shows abox around the selected option as shown above.
Editing an Option
To edit an option
1. Navigate to the desired option on the Menu Line and press the ENTER button.
A blinking cursor appears on the Edit Line.
2. Go to the Std option. To move the cursor right and left, press the left and right arrow
buttons.
3. To change the setting to MP2, use the up and down arrow buttons.
The diagram below shows the Preset menu with Audio1 selected and Std is set to MP2.
4. To confirm the change and return the pointer to the Menu Line, press the ENTER button.
•
P r e s e t N a m e V i d e o > A u d i o 1 A u d i o 2
< > 1 > S t d : M P 2 M o d e : A N S t e r e o R a t e : 1 9 2
•
P r e s e t N a m e V i d e o > A u d i o 1 A u d i o 2
< > 1 S t d : A C 3 M o d e : A N S t e r e o R a t e : 1 9 2
•
P r e s e t A u d i o 1 A u d i o 2 V B I > P I D
< > 1 V : 0 0 3 2 A 1 : 0 0 3 3 A 2 : 0 0 3 4 P M T : 0 0 3 5

8 SE-1010 / SE-2000 Encoder Product Manual, Version 1.0
Activating Presets
The Preset menu has 30 presets. Preset options can be changed as needed. Each time a setting
is changed and the ENTER button is pressed, the change is saved as part of the current preset.
Notice that the change made on page 7 of this manual applies to Preset 1.
After redefining several options within a preset, the operator will want to navigate to another
preset and make changes there also. The presets are numbered 1 to 30 and each preset has a
name. For example, an operator may want to change “Preset 1” to “High Res NTSC.”
To activate another preset
1. Navigate to the Preset menu and use the left and right arrow buttons on the Menu Line to
position the pointer (>) to the left of Preset as shown above.
2. Press the ENTER button to move the blinking cursor to the Edit Line. The blinking
cursor should be on the Preset number.
3. Use the up and down buttons to select the desired Preset number.
4. Press the ENTER button to select that Preset.
5. Verify that the LCD displays the following warning message:
6. To confirm, press the ENTER button again.
or
To stay with the current preset and remove the warning message from the LCD screen,
press any of the four arrow buttons (Left, Right, Up, or Down).
CAUTION
To maintain uninterrupted service, always make changes while offline. Making important
changes to the SE encoder will display the following message which is displayed any time
the change will result in a service interruption.
Preset Number
•
R e c o n f i g u r a t i o n w i l l d i s r u p t s e r v i c e !
P r e s s E N T E R t o c o n f i r m, <
|
> t o r e
j
e c t.
•
R e c o n f i g u r a t i o n w i l l d i s r u p t s e r v i c e !
P r e s s E N T E R t o c o n f i r m, <
|
> t o r e
j
e c t.
•
> P r e s e t N a m e V i d e o A u d i o 1 A u d i o 2
<
|
> 1 P r e s e t 1
Preset Name
Menu Line
Edit Line

Document Number: 504834-001 9
CC/LOG PORTFORM_C OUT ETHERNET DHEI OUT ASI OUT ASI MON DS3 OUT DIGITAL AUDIO IN A DIGITAL AUDIO IN B DIGITA L VIDEO LOOP THRU DIGITAL VIDEO IN ANALOG AUDIO A IN L+ L- GND R+ R- ANALOG AUDIO B IN L+ L- GND R+ R-
ANALOG VIDEO
LOOP THRU ANALOG VIDEO IN
Form_C Out
CC/Log Port
Ethernet
DHEI Out
ASI DS3 Digital
Audio
Digital
Video
Analog
Video
Analog
Audio
COM NC NO
AC
Power
SE Encoder Factory Presets
Table 1 shows the encoder’s 30 factory-defined presets. To restore the presets to their default
settings, see “Reset Menu” on page 26.
Table 1 Default Settings For Factory-defined Presets
Presets
Menu : Option
1 2 3 4 5 6 7
8 −30
Video : In NTSC 525SDINTSC 525SDINTSC 525SDINTSC 525SDI
Video : Res 528 x 480 528 x 480 352 x 480 352 x 480 704 x 480 704 x 480 704 x 480 704 x 480
Video : Rate 4.00 Mbps 4.00 Mbps 3.00 Mbps 3.00 Mbps 5.00 Mbps 5.00 Mbps 8.00 Mbps 8.00 Mbps
Video : GOP (Length) 15 15 15 15 15 15 15 15
Video : Film On On On On On On On On
Video : Aspect 4:3 4:3 4:3 4:3 4:3 4:3 4:3 4:3
Video : Fmt 4:2:0 4:2:0 4:2:0 4:2:0 4:2:0 4:2:0 4:2:0 4:2:0
Audio : Std AC3 AC3 AC3 AC3 AC3 AC3 AC3 AC3
Audio : Mode AN Stereo DG Stereo AN Stereo DG Stereo AN Stereo DG Stereo AN Stereo DG Stereo
Audio : Rate 192 kbps 192 kbps 192 kbps 192 kbps 256 kbps 256 kbps 256 kbps 256 kbps
Audio1 : Language eng eng eng eng eng eng eng eng
Audio2 : Language eng eng eng eng eng eng eng eng
Audio : DialNorm -31 dB -31 dB -31 dB -31 dB -31 dB -31 dB -31 dB -31 dB
PID : V (Video) 0032 0032 0032 0032 0032 0032 0032 0032
PID : A1 (Audio 1) 0033 0033 0033 0033 0033 0033 0033 0033
PID : A2 (Audio 2) 0034 0034 0034 0034 0034 0034 0034 0034
PID : P (PMT) 0035 0035 0035 0035 0035 0035 0035 0035
PID : W (WST) 0036 0036 0036 0036 0036 0036 0036 0036
PGM 00001 00001 00001 00001 00001 00001 00002 00002
Note: All other parameters are 0, No, or disabled.
Fault and Alarm
The SE encoder provides a Form_C contact closure to trigger alarm equipment. The following
diagram shows the Form_C port on the left of the back panel. To view the error messages that
will activate the Form_C, see Table A1 on page 28. For Form_C pinouts, see “Connector
Pins” on page 29.

Document Number: 504834-001 11
4
Menus
This chapter contains diagrams of SE encoder menus and describes the options available to
view and/or change. The following navigational diagram shows the menu hiearchy and a page
number where each menu is described in detail.
RESET
STATUS LOG CLEAR
Test
Misc
Control IP Addrs Ethernet Addrs
Network Type DVB-S DVB-C DVB-T
ServiceName NetworkName NetworkID Date/Time
Transport Output
Preset Name Video Audio1 Audio2 VBI PID PGM
(Software version)
See page 12
See page 18
See page 19
See page 20
See page 22
See page 24
See page 24
See page 25
See page 26
See
p
a
g
e 26

12 SE-1010 / SE-2000 Encoder Product Manual, Version 1.0
Preset Menu
The SE encoder has 30 presets. To review the factory-defined presets, see Table 1 on page 9.
Use the Preset menu to select the desired preset configuration.
To access the Preset menu and view options
1. Navigate to the Preset menu as shown below:
2. Press the right arrow ( > ) button to access the submenu: Name, Video, Audio1, Audio2,
VBI, PID, or PGM.
Name Parameter
To change the name of a preset
1. To access the Name parameter in the Preset menu, press the right arrow ( > ) button until
the pointer is in front of the name and press ENTER.
2. Press the right and left arrow buttons to move the pointer to the name.
3. For each character in the name:
•Use the up and down arrow buttons to enter another letter or number.
•Use the right arrow button to move the cursor to the next character.
•Use the left arrow button to move the cursor backward.
Note: Names can be up to 28 characters.
To insert a space, choose the underscore character ( _ ).
4. After changing the name, press the ENTER button.
•
P r e s e t > N a m e V i d e o A u d i o 1 A u d i o 2
< > 1 P r e s e t 1
•
> P r e s e t N a m e V i d e o A u d i o 1 A u d i o 2
< > 1 P r e s e t 1

Document Number: 504834-001 13
Video Options
To access a preset’s video options, press the right arrow ( > ) button until the pointer is in
front of Video and press ENTER. Use the arrow buttons to view or change video options.
Table 2 describes each option.
Table 2 Video Options
Option Definition Description
In Input Use this option to select an input and format type:
NTSC : Selects NTSC analog composite input
PAL : Selects PAL analog composite input
PAL-M : Selects PAL 525 analog composite input
525SDI: Selects Serial Digital Component Video, 525 line
625SDI: Selects Serial Digital Component Video, 625 line
OFF : Video is not enabled
Res Resolution Use this option to select a horizontal resolution: 720, 704, 544,
528, 480, or 352.
For NTSC, PAL-M, and 525SDI, the vertical resolution is 480.
SE-2000 encoders also supports a vertical resolution of 512.
For PAL and 625SDI, the vertical resolution is 576. Higher res-
olutions give improved picture detail, but require higher bitrates
to maintain details without noticeable compression artifacts.
Rate Bit Rate Select the desired video packet bit-rate (video transport stream
rate) as shown below:
SE-1010 : 1.00 Mbps to 15.00 Mbps (in 10 kbps increments)
SE-2000 : 0.50 Mbps to 15.00 Mbps (in 10 kbps increments)
GOP Group of
Pictures
(refresh
rate).
Use this option to select a GOP rate: 1, 3, 6, 9, 12, 15, 18, 21,
24, 27, or 30. The default is 15. GOP is the number of frames
that occur before an Iframe is repeated. For example, a
selection of 15 results in this sequence:
I B B P B B P B B P B B P B B I
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
Temporal Temporal
Filter
SE-2000 Only Select the desired Pure Pixel motion adaptive
temporal filter: OFF, AUT (automatic), or a value from 1 to 10.
1 is the weakest filtering and 10 is the strongest filtering.
BWFilter Brick Wall
Filter
SE-2000 Only Select the desired Pure Pixel adaptive spatial
filter: OFF, AUT (automatic), or a value from 1 to 10. 1 applies
the weakest filtering and 10 applies the strongest filtering.
Film Film Mode Use this option to enable (ON) or disable (OFF) the film-mode
detection for 3:2 pulldown.
Aspect Aspect
Ratio
Select the desired screen resolution signaling: 4:3 (standard
aspect ratio) or 16:9 (widescreen aspect ratio).
Fmt Format SE-1010 Only The LED displays 4:2:0 (for standard distribution
feeds). This value is read-only and cannot be changed.
SE-2000 Only Select the desired MPEG profile video: 4:2:0
(for standard distribution feeds) or 4:2:2 (for high-quality
contribution feeds).
StatMux Statistical
Multiplexing
During normal standalone operation, this read-only field is set to
OFF.
•
P r e s e t N a m e > V i d e o A u d i o 1 A u d i o 2
< > 1 I n : N T S C R e s : 5 2 8 x 4 8 0 R a t e : 4 . 0 0

14 SE-1010 / SE-2000 Encoder Product Manual, Version 1.0
Audio1 and Audio2 Options
The Audio1 and Audio2 menus operate in the same way. To view or change the Audio1 or
Audio2 parameter in the Preset menu, press the right arrow ( > ) button until the pointer is in
front of the Audio1 or Audio2 option. The following diagram shows the pointer in front of
Audio1. Table 3 describes each option.
Table 3 Audio1 / Audio2 Options
Option Definition Description
Std Audio
Standard
Use this option to select the desired audio standard: AC3,
MP2 (MPEG Layer 2), or OFF. For all ATSC and DigiCipher®
II applications, select AC3. The OFF selection disables audio.
Mode Audio Mode This Audio Mode option has a prefix (to set the desired input)
and a suffix (to set the desired audio compression). First use
the up and down arrow buttons to select the desired input:
SDI: Extracts embedded audio from the SDIvideo input
(CCIR601). See SDIChannel at the bottom on
next page.
DG : Takes audio from external digital audio input.
AN : Takes audio from the analog audio input.
To access the suffix, press the right arrow ( > ) and use the up
and down arrow buttons to set the desired audio processing:
Stereo, Joint, Mono L, Mono, Mono R, Dual (Dual Mono), or
Precmp (pre-compressed).
Note: Most applications use Stereo coding for the primary
audio, and either Stereo or Dual Mono for the Secondary
Audio Programs (SAP).
Rate Audio Rate Use this option to select the audio compression rate in kbps
(elementary stream bitrate). The options are 96, 112, 128,
160, 192, 224, 256, 320, 384, 448, 512, 576, and 640. For
more details, see “Audio Processing” at the bottom of page 34.
(Audio1/Audio2 options are continued on the next page.)
•
P r e s e t N a m e V i d e o > A u d i o 1 A u d i o 2
< > E 1 S t d : A C 3 M o d e : A N S t e r e o R a t e : 1 9 2
