TP-Link TL-FC111A-20 V1 User manual

10/100 Mbps WDM Media Converter
Enlarge Your Ethernet Network
©2020 TP-Link 7106508844 REV1.0.0
LED Explanation
On: Power on
O:
Power o
PWR
On: Valid link
Flashing: Transmitting or receiving data
O: Invalid link
Scenario 1: Connect Devices with and without Optical Interfaces
LC-SC Fiber Cable
Ethernet Device
with Optical Interfaces
Twisted-Pair Cable
Ethernet Device
without Optical Interfaces
Media Converter
Fast Ethernet
100BASE-X (Fiber) Interface
10/100M
PWR
Link/Act
Package Contents: Converter, Power Adapter, Installation Guide

EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU,
2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Adapter shall be installed near the equipment and shall be easily accessible.
Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due
to improper use of the device. Please use this product with care and operate at your own risk.
Note: Please use one TL-FC111A-20 and one TL-FC111B-20 to work properly.

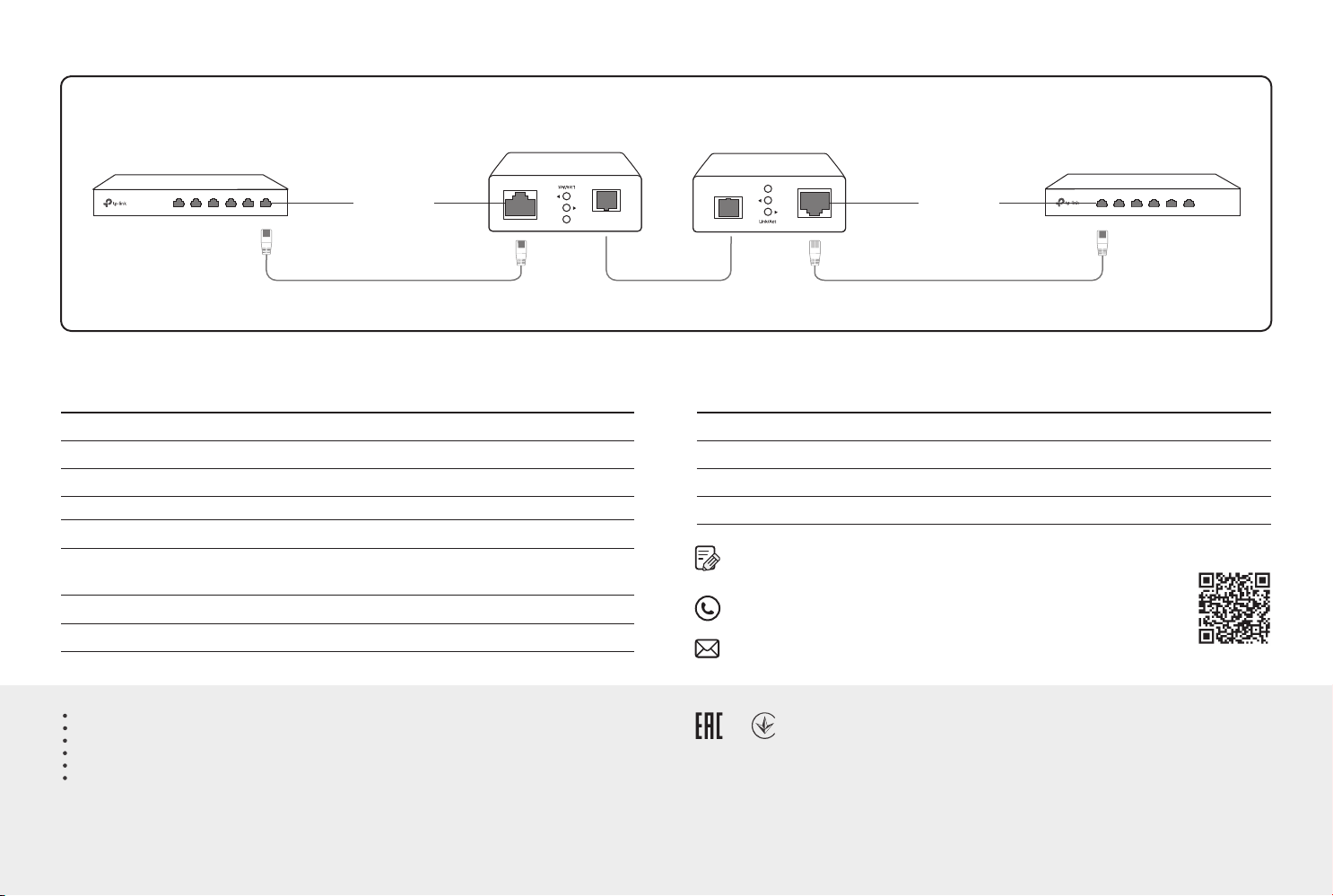

Scenario 2: Connect Devices without Optical Interfaces
SC-SC Fiber CableTwisted-Pair Cable Twisted-Pair Cable
Ethernet Device
without Optical Interfaces
Media Converter Media Converter Ethernet Device
without optical Interfaces
10/100M
10/100M
General Specifications Environmental and Physical Specifications
Specications
0˚C to 50˚C (32˚F to 122˚F)
-40˚C to 70˚C (-40˚F to 158˚F)
5% to 90% RH non-condensing
10% to 90% RH non-condensing
Operating Temperature
Storage Temperature
Storage Humidity
Operating Humidity
IEEE 802.3, IEEE 802.3i, IEEE802.3u
Standards
1 SC ber optic; 1 RJ45 jackConnector
Twisted-Pair 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
External Power Adapter: 5 V/0.6 APower
TL-FC111A-20: 1550 nm TX, 1310 nm RX
TL-FC111B-20: 1310 nm TX, 1550 nm RX
Wave Length
Dimensions 94.5*73*27 mm
Fiber 9/125 μm single-mode ber (≤20 km)
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
If you have any suggestions or needs on the product guides, welcome
to email [e-mail].
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com to join TP-Link
Community.
PWR
PWR
Fast Ethernet
Fast Ethernet
PWR, Link/ActLED
