ASTRO®APX™ 4000 Series
Digital Portable Radios
Quick Reference Card
RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before using
the radio, read the RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios which contains important
operating instructions for safe usage and RF energy awareness
and control for Compliance with applicable standards and
Regulations.

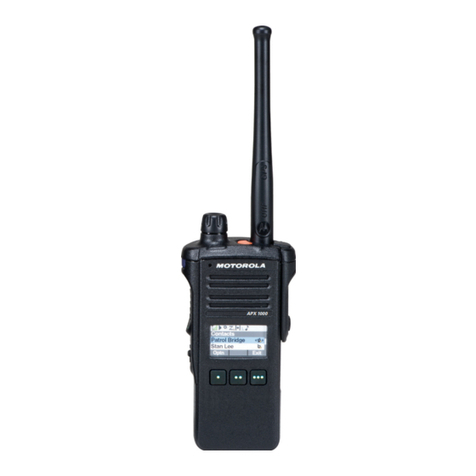

Radio Controls
Radio On/Off
Zones and Channels
Receiving and Transmitting
Sending an Emergency Alarm
*Default timer of Emergency button press to
activate Emergency is 50 milliseconds. This
timer is programmable, see Emergency
Operation in the user guide for details.
To exit emergency at any time, press and hold
the Emergency button.
Antenna
Accessory
Connector
Multi-Function Knob
(MFK):
Primary Feature:
_________________
Secondary Feature:
_________________
Battery
Microphone
•On – Press and hold the MFK until the display
lights up.
•Off – Press and hold the MFK until you see
Power off?, then press Menu Select button
below Yes.
1Press the MFK to see on the screen.
2Turn the MFK to scroll to desired zone or
channel.
3Press MFK to select the desired zone or
channel and exit Mode Change.
Top Lightbar
Side Button 1
__________
PTT Button
Top Side
(Select)
Button
__________ Main
Speaker
Microphone
Side Button 2
__________
LED
Menu Select
Buttons
Main Display
Top (Orange)
Button
__________
1Select zone/channel.
2Listen for a transmission.
OR
Press and hold Volume Set button.
OR
Press Monitor button and listen for activity.
3Adjust volume, if necessary.
4Press the PTT button to transmit; release to
receive.
1Press and hold the Emergency button*.
2The display shows Emergency and the
current zone/channel. Radio sounds a short,
medium-pitched tone, and the LED blinks red
momentarily.
3When acknowledgment is received, you hear
four beeps; alarm ends; and radio exits
emergency.
*PMLN6227C*
PMLN6227C
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are
used under license. All other trademarks are the property of their respective owners. © 2012 and 2015 by Motorola Solutions, Inc. All Rights Reserved. 06/15
1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.
QR-Card.fm Page 3 Tuesday, September 1, 2015 3:16 PM

English
Sending an Emergency Call
To exit emergency at any time, press and hold
the Emergency button.
Sending a Silent Emergency Call
To exit emergency at any time, press and hold
the Emergency button.
Display Status Icons
1Press the Emergency button.
2Press and hold the PTT button. Speak clearly
into the microphone.
3Release the PTT button to end call.
4Press and hold Emergency button to exit
emergency.
1Press the Emergency button.
2The display does not change; the LED does
not light up, and there is no tone.
3Silent emergency continues until you:
Press and hold the Emergency button to exit
emergency state.
OR
Press and release the PTT button to exit the
Silent Emergency Alarm mode and enter
regular dispatch or Emergency Call mode.
Receiving a call or data
Transmitting a call or data
Blinks when the battery is low.
The more stripes, the stronger the
signal strength for the current site
(trunking only).
Direct radio to radio communication or
connected through a repeater.
On = Direct
Off = Repeater
This channel is being monitored.
L= Radio is set at Low power.
H= Radio is set at High power.
Scanning a scan list.
Blinking dot = Detects activity on the
Priority-One Channel
during scan.
Steady dot = Detects activity on the
Priority-Two Channel
during scan.
The vote scan feature is enabled.
u
t
8
V
O
M
HOR .
i
j
k
On = User is currently associated with
the radio.
Off = User is currently not associated
with the radio.
Blinking = Device registration or user
registration with the server failed due
to an invalid username or pin.
Data activity is present.
MFK is in Mode Change feature.
MFK is in Volume Change feature.
On = Secure operation.
Off = Clear operation.
Blinking = Receiving an encrypted
voice call.
n
o
m
