Motorola GP380 Ex Operating and maintenance manual

MOTOROLA and the Stylized M Logo are registered in the U.S. Patent & Trademark Office.
All other product or service names are the property of their respective owners.
© Motorola, Inc. 2005-2007. BASIC USER GUIDE
GP380 Ex Portable Radio
6866546D12-P
NL
SV TU
SF
DA
DE
EN
ES
FR
RO
RU
IT
CZ
PR
HU
PL
@6866546D12@
MTM800 User Cover 06/Jan/05

2
10
9
12
11
3
4
8
5
6
1
7
14
13
6866546D12-P.book Page 1 Thursday, September 27, 2007 1:06 PM

1English
BASIC USER GUIDE
BASIC USER GUIDE
CONTENTS
General Information. . . . . . . . . . . . . . . . . 2
Operation and Control Functions. . . . . . 3
Radio Controls . . . . . . . . . . . . . . . . . . . . . . 3
Audio Signal Tones . . . . . . . . . . . . . . . . . . 4
Programmable Buttons . . . . . . . . . . . . . . . 6
Keypad Keys . . . . . . . . . . . . . . . . . . . . . . . 6
Menu Keys . . . . . . . . . . . . . . . . . . . . . . . . . 7
Menu Navigation Chart . . . . . . . . . . . . . . . 8
LCD Display and Icons. . . . . . . . . . . . . . . . 9
Getting Started . . . . . . . . . . . . . . . . . . . . 10
Radio On-Off/Volume Control . . . . . . . . . 10
Selecting a Radio Channel. . . . . . . . . . . . 10
Sending a Call . . . . . . . . . . . . . . . . . . . . . 10
Receiving a Call . . . . . . . . . . . . . . . . . . . . 10
Cancelling a Call . . . . . . . . . . . . . . . . . . . 10
Ending a Call . . . . . . . . . . . . . . . . . . . . . . 10
Battery Information . . . . . . . . . . . . . . . . 11
Battery Care and Tips . . . . . . . . . . . . . . . 11
Recycling or Disposal of Batteries . . . . . . 12
Charging the Battery . . . . . . . . . . . . . . . . 12
Accessory Information . . . . . . . . . . . . . .13

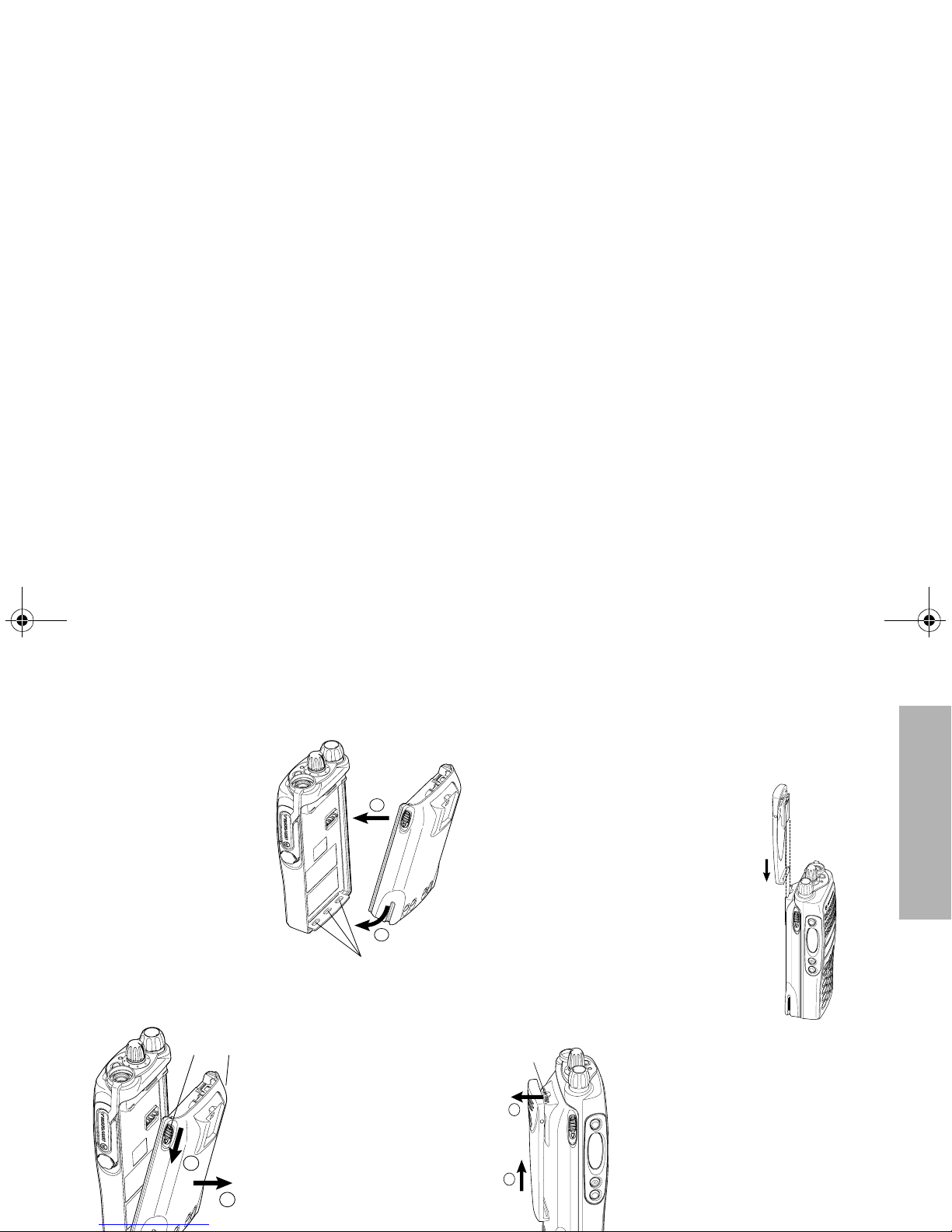

Attaching/Removing the Battery . . . . . . . .13
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
C
opyr
i
g
h
t
I
n
f
ormat
i
on
The Motorola products described in this manual may include copyrighted Motorola
computer programs stored in semiconductor memories or other mediums. Laws in
the United States and other countries preserve for Motorola certain exclusive
rights for copyrighted computer programs, including the exclusive right to copy or
reproduce in any form the copyrighted computer program. Accordingly, any
copyrighted Motorola computer programs contained in the Motorola products
described in this manual may not be copied or reproduced in any manner without
the express written permission of Motorola. Furthermore, the purchase of Motorola
products shall not be deemed to grant either directly or by implication, estoppel, or
otherwise, any licence under the copyrights, patents, or patent applications of
Motorola, except for the normal non-exclusive royalty-free licence to use that
arises by operation of the law in the sale of a product.
6866546D12-P.book Page 1 Thursday, September 27, 2007 1:06 PM

2
English
BASIC USER GUIDE
GENERAL INFORMATION
This user guide covers the basic operation of the
GP380 ATEX Portable Radio. Please consult your
dealer for further, more detailed information which is
contained in a full feature user guide 6864110B28.
ATTENTION!
This radio is restricted to occupational use only to
satisfy ICNIRP RF energy exposure requirements.
Before using this product, read the RF energy
awareness information and operating instructions in
the Product Safety and RF Exposure booklet
(Motorola Publication part number 6864117B25) to
ensure compliance with RF energy exposure limits.
Before using this product, read the
operating instructions for safe usage
contained in the Product Safety and RF
Exposure booklet 6864117B25 enclosed
with your radio.
!
C a u t i o n
6866546D12-P.book Page 2 Thursday, September 27, 2007 1:06 PM

3English
BASIC USER GUIDE
OPERATION AND CONTROL FUNCTIONS
Radio Controls
The numbers below refer to the illustrations on the
inside front cover.
1. Rotary Knob
Used as a channel selector and for multi-
function scrolling.
2. On-Off / Volume Knob
Used to turn the radio on or off, and to adjust
the radio’s volume.
3. Side Button 1 (programmable)
Recommended for Monitor/Cancel Button.
4. Push to Talk Button (PTT)
Press and hold down this button to talk, release
it to listen.
5. Side Button 2 (programmable)
6. Side Button 3 (programmable)
7. Top Button (programmable)
Recommended as Emergency button.
8. LED Indicator
Green: Successful power up.
Green Flashing: Radio scanning.
Red: Radio transmitting.
Red Flashing: Channel busy - when receiving.
Yellow: Radio called.
Yellow Flashing: Radio call reminder alert.
Red Flashing: Low battery warning - when
transmitting.
9. Microphone
10. LCD Display (1 Line)
11. Menu Keys
12. Keypad
13. Antenna
14. Accessory Connector
Connects headsets, remote speaker/micro-
phones and other accessories. Replace
attached dust cap when not in use.
6866546D12-P.book Page 3 Thursday, September 27, 2007 1:06 PM

4
English
BASIC USER GUIDE
Audio Signal Tones
High pitched tone Low pitched tone
Tone Signal Description
Power up OK Radio self-test OK.
Power up Fail Radio self-test fail.
Button/
Keypad Error
Button/keypad key/
menu key press not
permitted.
Engaged Channel busy or not
permitted to transmit.
Call Failed Call failed to connect.
Force Monitor
Radio must monitor
channel before trans-
mission permitted.
Button
Feature
Enable
Any option button
pressed to enable a
feature.
Button
Feature
Disable
Any option button
pressed to disable a
feature.
Group Call Radio receives a
Group Call.
Individual Call Radio receives an
Individual Call.
Call Reminder Reminder of
unanswered call.
TOT Pre-Alert Warns of expiry of
time out timer.
Monitor Alert Alerts to change of
squelch.
Voice Storage Voice Storage-
Recording.
Voice Storage Voice Storage-
Warning.
Voice Storage Voice Storage-
Full.
Scan Start Radio starts scanning.
Scan Stop Radio stops scanning.
Priority Call
Decode
Radio detects a
priority call.
Priority
Channel
Radio landed on the
priority channel.
Lone Worker Reminds lone worker
to respond.
Tone Signal Description
6866546D12-P.book Page 4 Thursday, September 27, 2007 1:06 PM

5English
BASIC USER GUIDE
Low
Battery
Battery below receive
threshold level.
Hardware
Error
Hardware error, tone
continues until valid
operation.
Cancel
Message
Previous message or
message currently
being played from
Voice Storage has
been deleted.
Channel Free
Beep
Indicates current
channel is free.
Incoming
Emergency
Alert
Indicates an
emergency situation.
Keypad
Acknowledge
Confidence tone when
any key pressed.
Ringtones English/French/
General
Incoming calls (high
tones), outgoing calls
(low tones).
Tone Signal Description
6866546D12-P.book Page 5 Thursday, September 27, 2007 1:06 PM

6
English
BASIC USER GUIDE
Programmable Buttons
Several of your radio’s keys and buttons can be
programmed by your dealer as short-cut buttons for
many of the radio’s features. Programmable buttons
include:
• The top button, side buttons 1, 2 and 3.
Check with your dealer for a complete list of the
functions your radio supports.
On your radio there is a keypad lock feature which
allows you to lock the keypad keys and menu keys
to eliminate accidental key presses.
Press the keypad lock button to lock the keys, the
display icon Lwill be lit and the display will show:
After 2 seconds the radio returns to the IDLE state.
Press the keypad lock button again to unlock the
keys when the icon will be extinguished and the
display will show:
The radio will then return to the IDLE state.
Keypad Keys
These keys are used when dialling a phone number,
making a radio call or for numeric channel selection.
Lock Keypad
Unlock Keypad
123
456
789
*0#
6866546D12-P.book Page 6 Thursday, September 27, 2007 1:06 PM

7English
BASIC USER GUIDE
Menu Keys
Menu/Select Key c
Used to enter the Menu Mode. When you are in the
Menu Mode, this key is also used to make menu
selections.
Exit Key x
Used to move up to the next higher Menu level.
When the top level menu is selected this key is
used to exit the Menu Mode.
Up Key +
Used for scrolling when in Menu Mode.
Down Key e
Used for scrolling when in Menu Mode.
Right Key f
Used as More key to provide additional information.
Left Key d
Used as a backspace key when editing.
Left
Up
Down Right
Menu/
Select
Exit
xc
+
df
e
6866546D12-P.book Page 7 Thursday, September 27, 2007 1:06 PM

8
English
BASIC USER GUIDE
+e
Menu Navigation
c
on/off
cto enter Menu Mode.
+or e to scroll through the list.
cto select Menu item.
xto return to previous menu level
+or e to scroll through
sub-list.
cto select sub-menu item.
Menu Navigation Chart
(Refer to Menu Navigation guidelines—
lower, left-hand corner of this page)
SW Version
CP Version
SW Part No.
CP Part No.
select/
ID
status/
voice/
select/
enter ID
Voice
Storage Utilities
Channel
+e
+e
+e
Call Forward
Missed
Calls
Voice
Recorder
select/
record/
play/
delete
select/
enterID
Channel No.
Contact
List
select/
enter ID
Status
Emergency
Msg.
select/
record/
play/
delete
Whisper
Backlight
Compand
Scan
Talkaround
Option Board
Lone Worker
high/low
+e
Power Level
Radio
Information
6866546D12-P.book Page 8 Thursday, September 27, 2007 1:06 PM

9English
BASIC USER GUIDE

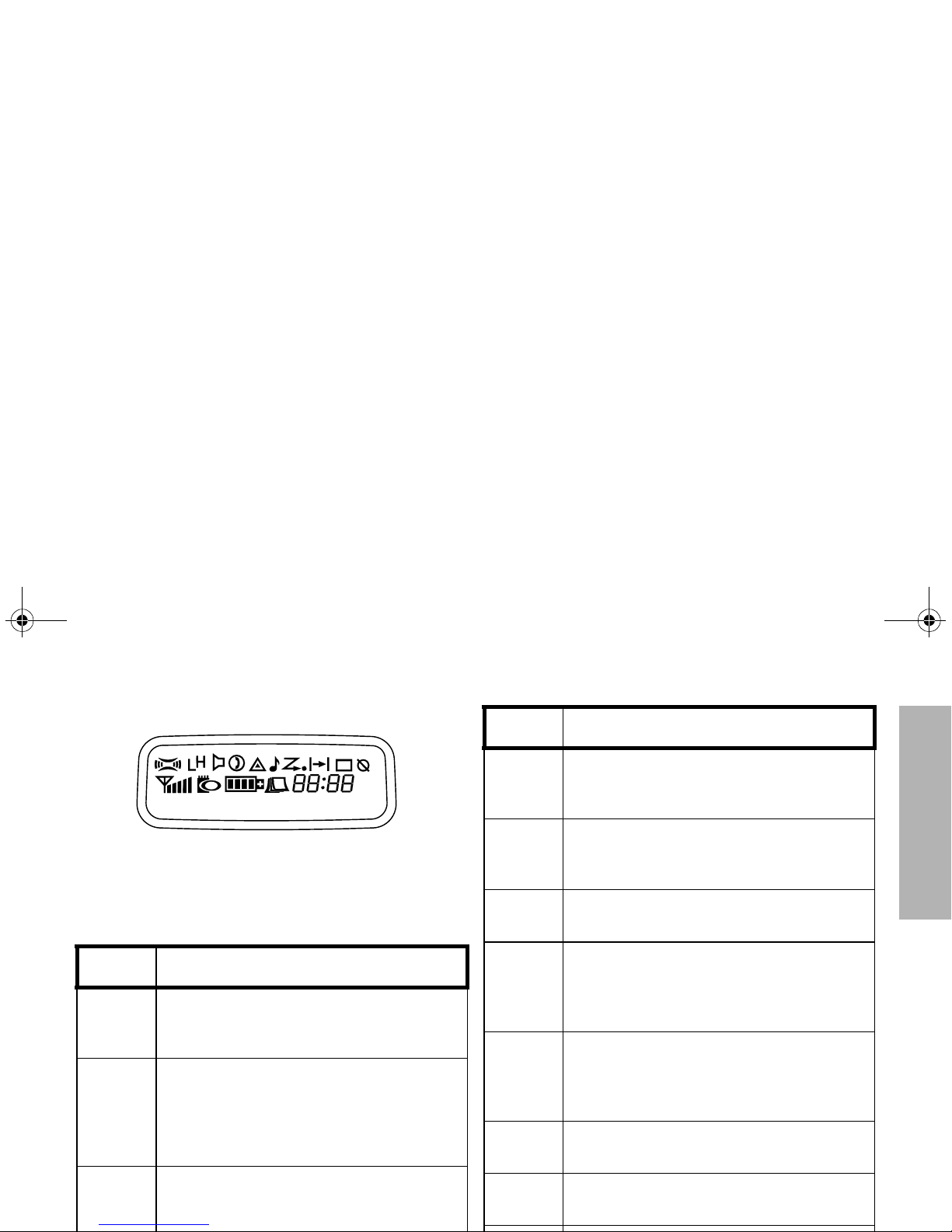

LCD Display and Icons
Displays channel, menu, and radio status
information. The top two screen rows show radio
status indicator symbols, explained in the table
below:
Symbol Name and Description
A
XPAND™ Indicator
Indicates that you have activated the
companding feature.
B
Power Level Indicator
“L”lights when your radio is configured to
transmit in Low Power. “H”lights when your
radio is configured to transmit in High
Power.
C
Monitor Indicator
On indicates carrier squelch.
Off indicates signalling squelch.
F
Voice Recorder Indicator
Indicates that there are stored messages or
memos in the voice recorder.
H
Scan Indicator
Indicates that you are scanning. The dot is
lit during priority scan mode.
L
Keypad Lock Indicator
On indicates that the keypad and menu
keys are locked. Off indicates unlocked.
NOption Board Indicator
Indicates that an option board is activated.
P
Battery Level Indicator
Shows the remaining charge in your battery,
based on how many bars are displayed.
Flashing, indicates flat battery.
Q
Missed Call Indicator
On indicates call in list.
Off indicates no calls in list.
Flashing, indicates new call in list.
DDTMF Indicator
Indicates DTMF is enabled.
JTalkaround Indicator
Indicates talkaround enabled.
!Timer
Shows the call time.
Symbol Name and Description
6866546D12-P.book Page 9 Thursday, September 27, 2007 1:06 PM

10
English
BASIC USER GUIDE
GETTING STARTED
Radio On-Off/Volume Control
To turn the radio on, turn the On-Off/Volume Control
knob clockwise. To turn the radio off, turn the
On-Off/Volume Control knob counterclockwise until
you hear a click.
At power up the radio will display a message
customised by your dealer, e.g.:
After this text has been displayed, the radio perform
a self test routine. On completion of a successful
self test the radio will display:
This may be a number or an alias and will be the
channel currently selected by the rotary channel
selector. Alternatively, if required the radio may
display a message customised by your dealer, e.g.
Selecting a Radio Channel
Turn the channel selector rotary knob clockwise or
counterclockwise until you reach the desired
channel indicated on the display or enter channel
number from keypad.
Sending a Call
1. Select the desired channel.
2. Press the PTT button and speak clearly into the
microphone.
Your mouth should be 2.5 to 5 cm away from
the microphone.
3. Release the PTT button when you finish
speaking.
Note:The system may have a limited call time and
the call may be terminated automatically if this
call time is exceeded.
Receiving a Call
1. Turn your radio on and adjust the volume level.
2. Switch to the desired channel.
3. If, at any time, a call is received you will hear
the call at the volume level you have set.
Cancelling/Ending a Call
To terminate a call at any time press the Monitor/Call
Cancel button. Always end a call by pressing the
Monitor/Call Cancel button.
Radio On
Channel Number
Ready
6866546D12-P.book Page 10 Thursday, September 27, 2007 1:06 PM

11 English
BASIC USER GUIDE
BATTERY INFORMATION
Battery Care and Tips
This product is powered by a lithium-ion
rechargeable battery.
The following battery tips will help you obtain the
highest performance and longest cycle life from your
Motorola rechargeable battery.
• Charge your new battery overnight (14-16 hrs)
before using it to obtain maximum battery
capacity and performance.
• Charging in non-Motorola equipment may lead
to battery damage and void the battery warranty.
• When charging a battery that is attached to the
radio, turn the radio off to ensure a full charge.
• The battery should be at about 25°C/77°F (room
temperature) whenever possible. Charging a
cold battery (below 10°C/50° F) may result in
leakage of electrolyte and ultimately, in failure of
the battery.
• Charging a hot battery (above 35°C/95°F)
results in reduced discharge capacity, affecting
the performance of the radio. Motorola rapid-rate
battery chargers contain a temperature-sensing
circuit to ensure that the battery is charged
within these temperature limits.
• New batteries can be stored up to two years
without significant cycle loss. Store new/unused
batteries in a cool dry area.
• Batteries which have been in storage should be
charged overnight.
• Do not return fully charged batteries to the
charger for an “extra boost”. This action will
significantly reduce battery life.
• Do not leave your radio and battery in the
charger when not charging. Continuous charging
will shorten battery life. (Do not use your charger
as a radio stand.)
• For optimum battery life and operation use only
Motorola brand chargers. They were designed to
operate as an integrated energy system.
6866546D12-P.book Page 11 Thursday, September 27, 2007 1:06 PM

12
English
BASIC USER GUIDE
Recycling or Disposal of Batteries
Motorola endorses and encourages the
recycling of all re-chargeable batteries.
Contact your dealer for further information.
Charging the Battery
If a battery is new, or its charge level is very low, you
will need to charge the battery before you can use it in
your radio.
The Picon flashes when the battery is flat and the
hardware error tone will sound. This icon will only
appear when a genuine Motorola battery is used.
Note: Batteries are shipped uncharged from the
factory. New batteries could prematurely
indicate full charge, charge a new battery for
14-16 hrs before initial use.
1. Place the radio with the battery attached, or the
battery alone, in the charger.
2. The charger’s LED indicates the charging
progress.
Battery chargers will charge only the Motorola
authorized batteries listed below; other batteries will
not charge.
NiCd
Charger LED Status
Red Battery is charging
Green Battery is fully charged
Flashing Red * Battery is unchargeable
Flashing Yellow Charger is getting ready to charge
Flashing Green Battery is 90% charged
* Battery is damaged. Please contact your dealer.
Part No. Description
NNTN5510_R GP Series ATEX Li-Ion Battery
6866546D12-P.book Page 12 Thursday, September 27, 2007 1:06 PM

13 English
BASIC USER GUIDE
ACCESSORY INFORMATION
Attaching the Battery
1. Fit the extensions at
the bottom of the
battery into the slots
at the bottom of the
radio’s body.
2. Press the top part of
the battery towards
the radio until you
hear a click.
Removing the Battery
Ensure radio is switched off.
1. Slide the battery
latches, on both sides
of the battery, down-
wards.
2. Pull the top part of the
battery away from the
radio’s body, and
remove the battery.
Caution: The following section on attaching/
removing Belt Clips - excludes the ATEX radios
which must use the mandatory carry case)
Attaching the Belt Clip
1. Align the grooves of the
belt clip with those of
the battery.
2. Press the belt clip
downwards until a click
is heard.
Removing the Belt Clip=
1.Use a key to press the belt
clip tab away from the battery.
2.Slide the belt clip upwards
to remove it.
1
2
Slots
2
1
Battery
Latches
2
1
Belt Clip Tab
6866546D12-P.book Page 13 Thursday, September 27, 2007 1:06 PM
