Motorola GP644 User manual

Professional Radio
GP644
User Guide
6866542D03
Issue: April 2003

29
3
4
8
5
6
1
7
10

1English
CONTENTS
CONTENTS
RadioOverview .................... 3
Operation and Control Functions . . . . . . . . 3
Radio Controls . . . . . . . . . . . . . . . . . . . 3
Programmable Buttons . . . . . . . . . . . . . 4
Audio Signal Tones. . . . . . . . . . . . . . . . 5
GettingStarted..................... 7
Battery Information. . . . . . . . . . . . . . . . . . . 7
Battery Care and Tips . . . . . . . . . . . . . . 7
Recycling or Disposal of Batteries . . . . 8
Charging the Battery . . . . . . . . . . . . . . . 8
Accessory Information . . . . . . . . . . .... 9
Attaching the Battery . . . . . . . . . . . . . . . . . 9
Removing the Battery. . . . . . . . . . . . . . . . . 9
Attaching the Antenna . . . . . . . . . . . . . . . 10
Removing the Antenna. . . . . . . . . . . . . . . 10
RadioOperation................... 11
Turning the Radio On-Off. . . . . . . . . . . . . 11
Adjusting the Radio’s Volume . . . . . . . . . 11
Radio Registration . . . . . . . . . . . . . . . . . . 12
RadioCalls........................13
Making a Call. . . . . . . . . . . . . . . . . . . . . . .13
Contact List . . . . . . . . . . . . . . . . . . . . . . . .13
User Absent. . . . . . . . . . . . . . . . . . . . . . . .13
Dedicated Calls . . . . . . . . . . . . . . . . . . . . .14
Ending a Call . . . . . . . . . . . . . . . . . . . . . . .14
Cancelling a Call . . . . . . . . . . . . . . . . . . . .14
Receiving a Call. . . . . . . . . . . . . . . . . . . . .15
Receiving a Call on a OACSU System. . 15
Receiving a Call on a FOACSU System. 15
Missed Calls . . . . . . . . . . . . . . . . . . . . . . .16
Call Diversion . . . . . . . . . . . . . . . . . . . . . .17
Emergency Calls . . . . . . . . . . . . . . . . . . . .18
Personality........................19
MPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Talkgroup. . . . . . . . . . . . . . . . . . . . . . . . . .20
Fixed and Dynamic Groups . . . . . . . . .20
Conventional Mode . . . . . . . . . . . . . . . . . .21
Personality Selection . . . . . . . . . . . . . . . . .22

2
English
CONTENTS
C
omputer
S
o
f
tware
C
opyr
i
g
h
t
The products described in this manual may include copyrighted computer
programmes stored in semiconductor memories or other media. Laws in the
United States of America and other countries preserve for Motorola Europe
and Motorola Inc. certain exclusive rights for copyrighted computer
programmes, including the right to copy or reproduce in any form the
copyrighted computer programme. Accordingly, any copyrighted computer
programmes contained in the products described in this manual may not be
copied or reproduced in any manner without the express written permission of
the holders of the rights. Furthermore, the purchase of these products shall not
be deemed to grant either directly or by implication, estoppel, or otherwise, any
licence under the copyrights, patents, or patent applications of the holders of
the rights, except for the normal non-exclusive royalty free licence to use that
arises by operation of the law in the sale of the product.

3English
RADIO OVERVIEW
RADIO OVERVIEW
This user guide covers the operation of the
GP644 Portable Radio.
Before using this radio, refer to the Product Safety
and RF Exposure booklet for Portable Two-way
Radios 6864117B25_ enclosed with your radio.
OPERATION AND CONTROL FUNCTIONS

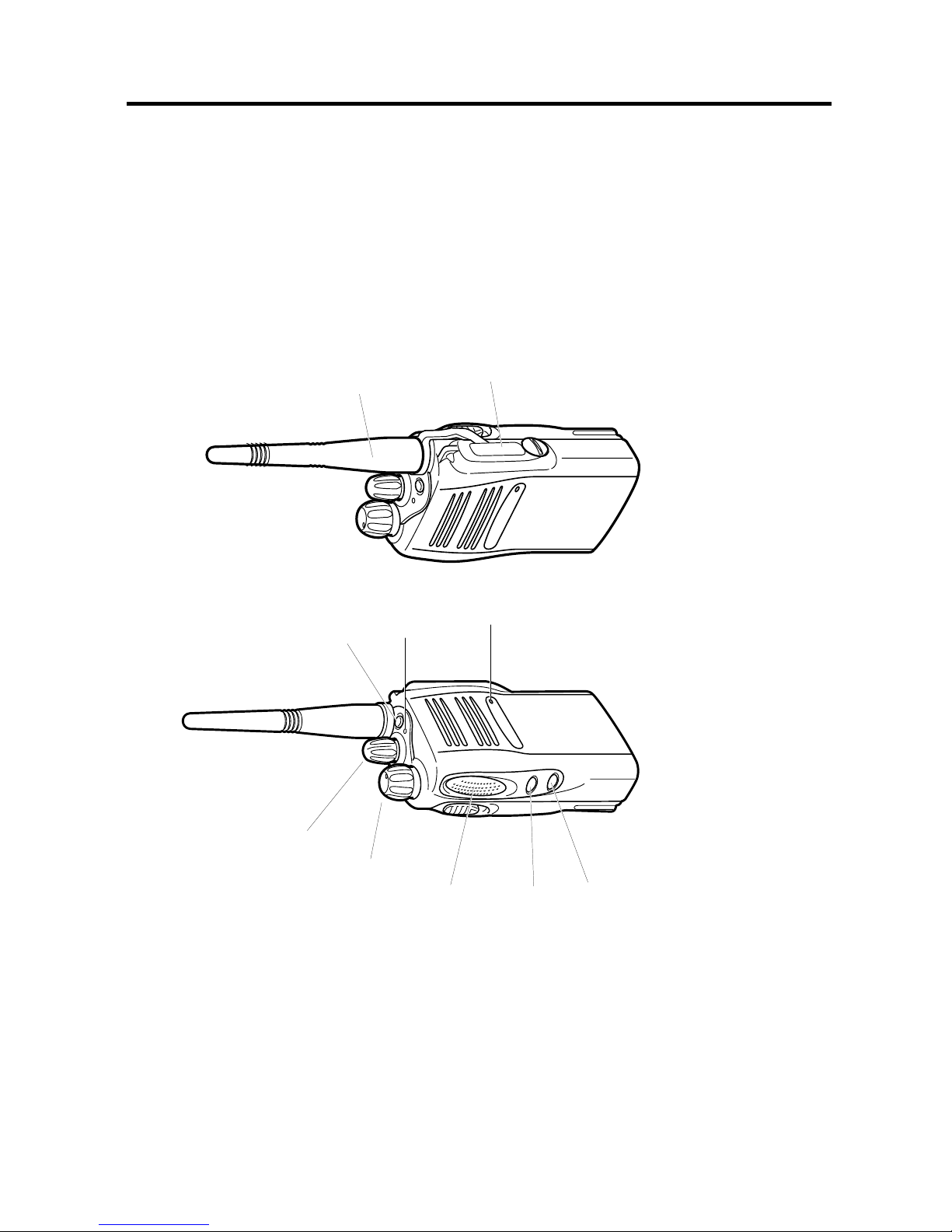

Radio Controls
The numbers below refer to the illustrations on
the inside front cover.
1. Rotary Knob
Used as a multi-function scroll key and as a
channel selector in Conventional mode.
2. On-Off / Volume Knob
Used to turn the radio on or off, and to adjust
the radio’s volume.
3. Push to Talk Button (PTT)
Press and hold down this button to talk, release
it to listen.
4. Clear Button (Side Button 1)
Used to cancel a call, clear down at the end of
a call or Carrier Monitor (Conventional mode).
5. Side Button 2 (programmable)
Personality button, otherwise programmable.
6. Top Button (programmable)
Recommended as Emergency button.
7. LED Indicator
Green: Flashes to indicate NO SERVICE.
Red: On when radio is transmitting.
Red Flashing: When transmitting - battery low.
Green: On to indicate monitor mode active
(Conventional Mode).
Red Flashing: When receiving - channel busy
(Conventional Mode).
8. Microphone
9. Antenna
10. Accessory Connector
Connects headsets, remote speaker/micro-
phones and other accessories. Replace
attached dust cap when not in use.

4
English
RADIO OVERVIEW
Programmable Buttons
Several of your radio buttons can be
programmed (by your dealer) to activate the
radio features.
The following table shows the features that can
be assigned to the Top button and Side Button 2.
Feature Description
Dedicated Call/
Emergency
To make a call to a pre-determined number. This can
be an emergency number, effectively activating an
Emergency Call.
Personality
To select one of two radio personalities, (e.g. MPT
trunking system or conventional system).
This will normally be Side Button 2.
Missed Calls
To select the Missed Call list. This is a list of calls
received and stored by the radio when you were
unable to take the call.

5English
RADIO OVERVIEW
Audio Signal Tones (Normal Tones)
High pitched tone Low pitched tone
Tone Signal Description
Self test Power up.
Tone A Call clear indication.
Tone B
Traffic channel
allocated or PTT/ Mic/
Loudspeaker enabled.
Tone C1 System busy.
Tone C2 Unavailable.
Tone C3 Called party busy.
Tone C4 Invalid number.
Tone D
Call set up in progress,
wait for further
indications.
Tone F
Transaction
confirmed, called unit
will call back.
Tone G
Look at display for
call set up or
System information.
Tone H Invalid entry.
Key click
Confidence tone when
any key pressed or
speech limitation alert.
Fail tone
Hardware error or
Call timed out
(conventional mode).
Tone I Low battery warning.
Tone L1 1st Personality.
Tone L2 2nd Personality.
Tone M1 Talkgroup Confirmation.
Tone M2 Talkgroup unavailable.
Tone N1 Out of range alert.
Ring
tones
Standard/
English/French/
General
Incoming call, press
PTT, then wait for
further indications.
Tone Signal Description

6
English
RADIO OVERVIEW
Audio Signal Tones (Alternative)
High to Low pitched tones
Tone Signal Description
Self test Power up.
Tone A Call clear indication.
Tone B
Traffic channel
allocated or PTT/ Mic/
Loudspeaker enabled.
Tone C1 System busy.
Tone C2 Unavailable.
Tone C3 Called party busy.
Tone C4 Invalid number.
Tone D
Call set up in progress,
wait for further
indications.
Tone F
Transaction
confirmed, called unit
will call back.
Tone G
Look at display for
call set up or
System information.
Tone H Invalid entry.
Key click
Confidence tone when
any key pressed or
Speech limitation alert.
Fail tone
Hardware error or
Call timed out
(conventional mode).
Tone I Low battery warning.
Tone L1 1st Personality.
Tone L2 2nd Personality.
Tone M1 Talkgroup Confirmation.
Tone M2 Talkgroup unavailable.
Tone N1 Out of range alert.
Ring
tones
Standard/
English/French/
General
Incoming call, press
PTT, then wait for
further indications.
Tone Signal Description

7English
GETTING STARTED
GETTING STARTED
BATTERY INFORMATION
Battery Care and Tips
This product is powered by a nickel-metal-
hydride (NiMH) or lithium-ion rechargeable
battery.
The following battery tips will help you obtain the
highest performance and longest cycle life from
your Motorola rechargeable battery.
• Charge your new battery overnight (14-16 hrs)
before using it to obtain maximum battery
capacity and performance.
• Charging in non-Motorola equipment may lead
to battery damage and void the battery warranty.
• When charging a battery that is attached to the
radio, turn the radio off to ensure a full charge.
• The battery should be at about 25°C (room
temperature) whenever possible. Charging a
cold battery (below 10°C) may result in leakage
of electrolyte and ultimately, in failure of the
battery.
• Charging a hot battery (above 35°C) results in
reduced discharge capacity, affecting the
performance of the radio. Motorola rapid-rate
battery chargers contain a temperature-sensing
circuit to ensure that the battery is charged
within these temperature limits.
• New batteries can be stored up to two years
without significant cycle loss. Store new/unused
batteries in a cool dry area.
• Batteries which have been in storage should be
charged overnight.
• Do not return fully charged batteries to the
charger for an “extra boost”. This action will
significantly reduce cycle life.
• Do not leave your radio and battery in the
charger when not charging. Continuous charging
will shorten battery life. (Do not use your charger
as a radio stand.)
• For optimum battery life and operation use only
Motorola brand chargers. They were designed to
operate as an integrated energy system.

8
English
GETTING STARTED
Recycling or Disposal of Batteries
Motorola endorses and encourages the recycling
of all re-chargeable batteries. Contact your local
Motorola dealer for further information.
Charging the Battery
If a battery is new, or its charge level is very low,
indicated by high pitched warning tones, you will
need to charge the battery before you can use it
in your radio.
Note: Batteries are shipped uncharged from the
factory. New batteries could prematurely
indicate full charge, charge a new battery for
14-16 hrs before initial use.
1. Place the radio with the battery attached, or the
battery alone, in the charger.
2. The charger’s LED indicates the charging
progress.
Battery chargers will charge only the Motorola
authorized batteries listed below; other
batteries will not charge.
Charger LED Status
Red Battery is charging
Green Battery is fully charged
Flashing Red * Battery is unchargeable
Flashing Yellow Charger is getting ready to charge
Flashing Green Battery is 90% charged
*
Battery is damaged. Please contact your dealer.
Part No. Description
JMNN4023
JMNN4024
JMNN4025
Lithium-Ion
Lithium-Ion High Capacity
NiMH Factory Mutual

9English
GETTING STARTED
ACCESSORY INFORMATION
Attaching the Battery
1. Fit the extensions at the bottom of the battery
into the slots at the bottom of the radio’s body.
2. Press the top part of the battery towards the
radio until you hear a click.
Removing the Battery
1. Turn off the radio, if it is turned on.
2. Slide the battery latches, on both sides of the
battery, downwards.
3. Pull the top part of the battery away from the
radio’s body, and remove the battery.
Slots
Battery
Latches

10
English
GETTING STARTED

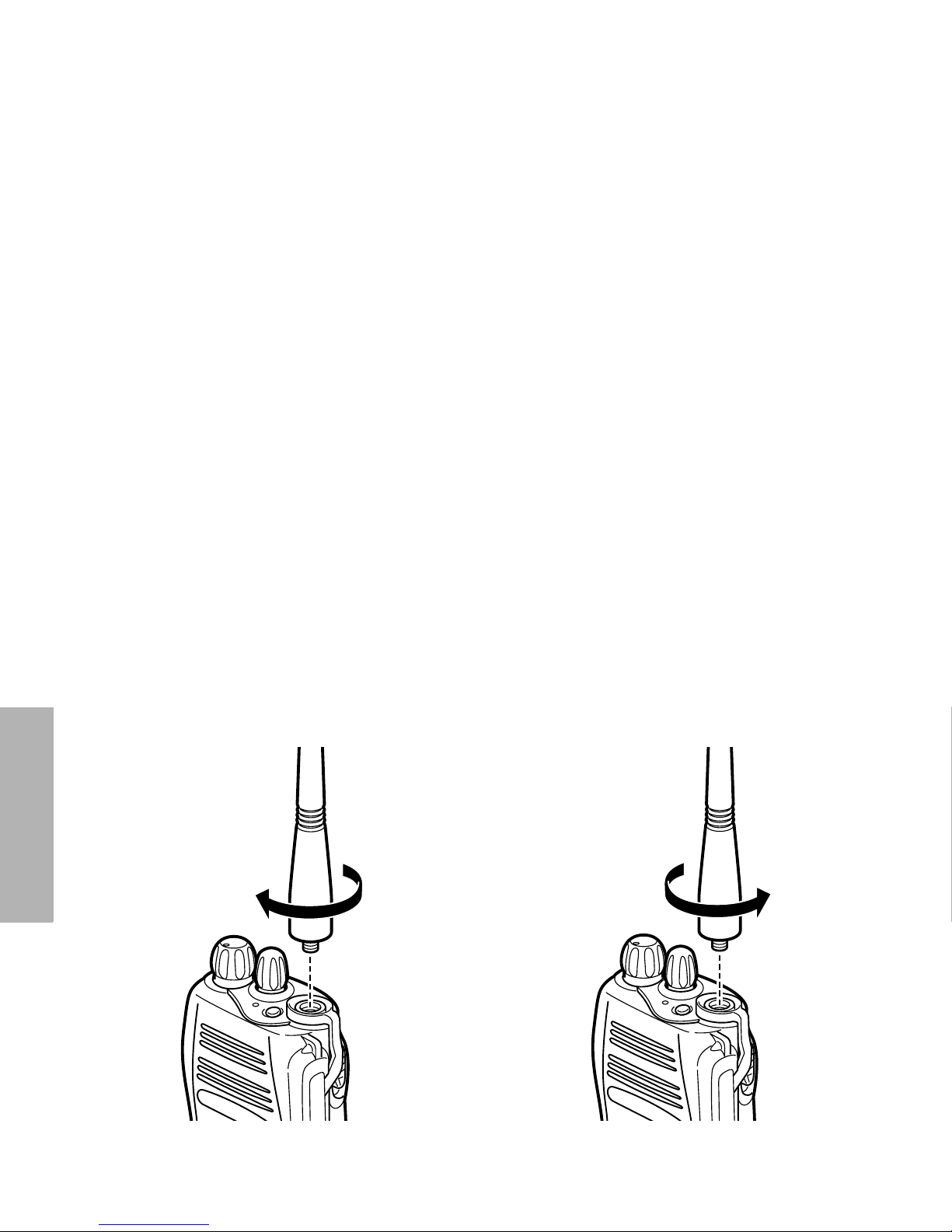

Attaching the Antenna
1. Align the threaded end of the antenna with the
radio’s antenna connector.
2. Turn the antenna clockwise to fasten it.
Removing the Antenna
1. Turn the antenna counterclockwise until you
can remove it.

11 English
GETTING STARTED
RADIO OPERATION
Turning The Radio On or Off
• To turn the radio on, turn the On-Off/Volume
Control knob clockwise.
• To turn the radio off, turn the On-Off/Volume
Control knob counterclockwise until you hear a
click.
Adjusting the Radio’s Volume
• Turn the On-Off/Volume Control knob to adjust
the volume level.
ON OFF

12
English
GETTING STARTED
Radio Registration
When turned on, the radio enters a self test routine,
the self test tone will sound and the LED will light
green. If the radio fails the self test a continuous low
tone will sound until the radio is turned off .
Note: If the radio fails the self test routine, consult
your dealer.
When the self test is complete the radio will scan for
system access with the LED on the top of the radio
flashing GREEN.
The radio personality will be the one last used prior
to the radio being switched off. To check the radio
personality or select a new personality refer to
PERSONALITY - Personality Selection.
When a system is acquired, the green LED will go
off.

13 English
RADIO CALLS
RADIO CALLS
Making a Call
The radio is capable of making a variety of
calls, including calls to individual radios,
groups of radios and calls to private and public
telephone systems.
Before you can make a call the radio must be
in the IDLE STATE, i.e. a personality has been
selected and no call is in progress.
The radio can make calls by using the Contact
List or Dedicated Calls.
Contact List
The contact list allows access to up to 16
preprogrammed numbers using the rotary
knob (1) when the radio is in the IDLE STATE.
Use the rotary knob to scroll through the list
and select the required number indicated on
base of the knob. Make the call by:
If a contact list number is selected but no call
request is sent, tone H sounds and the radio
reverts to the IDLE STATE.
User Absent
User Absent is a network feature which may be
enabled in your radio. With this feature
enabled, entry into the user absent mode is
automatic and any calls received when you are
away from your radio will be put into the
Missed Calls list automatically and the
message “Will call back” sent to the caller.
When you return to your radio, check whether
tone G sounds every 10 seconds which
indicates that your radio is in user absent
mode. Press any button to exit user absent
mode and return the radio to the idle state for
normal operation.
1PTT button to make radio call.
The radio sends out its ID and sounds a tone.
2After the call is set-up, press PTT button and
talk with your mouth 2.5-5 cm from micro-
phone. Release PTT to listen.
3When finished with call.
4CLEAR BUTTON Tone A sounds

14
English
RADIO CALLS
Dedicated Calls
Dedicated calls can be made from a
preprogrammed Dedicated Call button. Press
the Dedicated Call button to make a call to a
commonly used pre- programmed number.
The call may also be programmed as an
Emergency call, Priority call or Status call.
Ending a Call
Always end a call by:
Cancelling a Call
At any time while setting up a call it may be
cancelled by:
1CLEAR BUTTON Tone A sounds
1CLEAR BUTTON Tone D or G
sounds

15 English
RADIO CALLS
Receiving A Call
There are two types of systems on which the
radio may be used, Off Air Call Set Up (OACSU)
and Full Off Air Call Set Up (FOACSU).
If you are in doubt about which system you are
operating on, please consult your dealer.
Receiving a call on an OACSU system
When the radio is called:
Receiving a call on an FOACSU system
When the radio is called:
Note: The system may have a limited call time and
the call may be terminated automatically if
this call time is exceeded.
1Tone D sounds LED flashes red. Call is
being set up
2Tone B sounds LED extinguished
1Ringing tone sounds LED flashes red.
2PTT button to accept call.
(Unless in talkgroup personality, when the
radio unmutes automatically for dynamic and
fixed group calls)
3Tone D sounds LED flashes red. Call is
being set up
4Tone B sounds LED extinguished

16
English
RADIO CALLS
Missed Calls
If a call remains unanswered, the call will be
stored by the radio, provided that missed calls
has been programmed into your radio.
Only one call can be stored. If the same radio
calls more than once the call is only stored
once. When the call have been stored by the
radio, any further calls received overwrite the
stored call.
When a call has been stored by the radio, tone
G will sound every ten seconds.
The Missed Call List is entered directly by
pressing the Missed Call button when the radio
is in the IDLE STATE.
You can call back to the number in the Missed
Call list by:
On a successful call set- up, the entry is
automatically deleted from the stack and the
radio returns to the IDLE STATE.
An unanswered call may be deleted from the
Missed Call list at any time by:
Note: The calls in the Missed Call list are not
deleted when the radio is turned off. It is not
possible to call back status calls.
1PTT button to make the call.
The radio sends out its ID and sounds a tone.
2After the call is set-up, press PTT button and
talk with your mouth 2.5-5 cm from micro-
phone. Release PTT to listen.
3CLEAR BUTTON Tone A sounds
1Press MISSED CALL button to enter list
2Press CLEAR button to delete entry in list
Radio returns to IDLE STATE

17 English
RADIO CALLS
Call Diversion
Incoming speech calls or status calls can be
diverted from your radio or to your radio.
Call diversion and cancellation may be
programmed into the Contact List. Please
contact your network manager or dealer for
further information.

18
English
RADIO CALLS
Emergency Calls
An emergency call allows you the highest form
of priority calling and normally takes
precedence over all other calls.
Your radio can be programmed to give you a
one-button quick access to call a particular
radio or centre (predefined by your dealer) in
emergency situations.
To initiate an emergency call:
Emergency can be stopped by one of the
following:
Note: The emergency time duration is
programmed into your radio by your dealer.
Your radio may receive an emergency call
when:
1Press the Emergency button
1Switching the radio Off and On again.
2Pressing the CLEAR button.
3The emergency time duration is reached.
Tone D or Ring Tone Ring Tone will sound
depending on your system
