Moultrie Pro Hunter II User manual

Instructions for Pro Hunter II Feeder Kit
THANK YOU for your purchase of a Moultrie Pro Hunter II Feeder Kit. Please read this sheet before
operating the unit. If you should have any questions about this product or any other Moultrie product,
please contact us at www.moultriefeeders.com/support. Allow us to better serve you by
activating your 1-year warranty online at http://www.moultriefeeders.com/warranty
If mounting the Moultrie Quick Lock Feeder Kit to:
• a Moultrie 30 or 55-gallon barrel* or Moultrie 6.5-gallon bucket, refer to Section C.
• a Moultrie 30-Gallon Quick-Lock Hopper, refer to Section D.
• any other containers, please visit our website at www.moultriefeeders.com
STOP
READ THIS FIRST
BEFORE
PROCEEDING
CONFIGURING AND TESTING FEEDER
A
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
For devices approved under Part 15, the user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user about changes or modications to the device (Section 15.21).
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

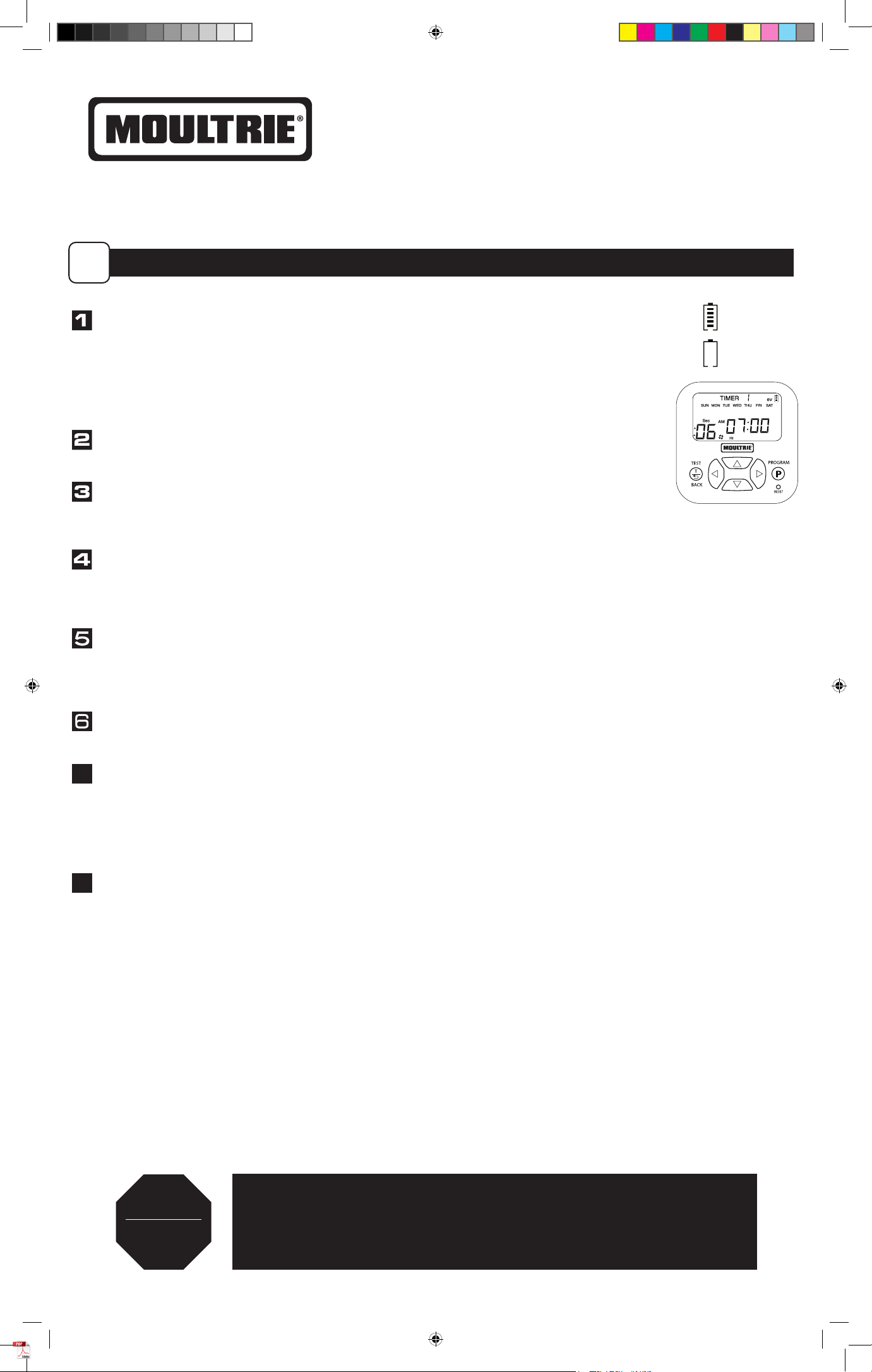

SET CURRENT TIME: Press the PROGRAM button and SET CURRENT TIME will appear. Press UP or DOWN to set the
hour, then press RIGHT to go to the minutes. Press UP or DOWN to set the minutes. Press the BACK button to return
to the Main Menu , or press PROGRAM to proceed through the settings.
NOTE: The timer is capable up to 10 feed times, each 1-60 seconds each, and each can operate on any day of
the week where each day can be toggled ON/OFF.
SET CURRENT DAY: Press the PROGRAM button until the Set Current Day screen appears. Press LEFT or RIGHT to
select the current day. Press BACK to return to the Main Menu, or press PROGRAM to proceed through the settings.
SET EST. FEED REMAINING: Press the PROGRAM button until the Est. Feed Remaining screen appears. Press UP or
DOWN to select the amount of feed you have in the feeder. Press BACK to return to the Main Menu, or press
PROGRAM to proceed through the settings.
SET FEED TIME: Press the PROGRAM button until the desired Feed Timer appears at the top of the screen. Press the
DOWN button until the feed time is ashing. Press PROGRAM to enter edit mode. Press UP or DOWN to set the hour.
Press the RIGHT button to go over to the minutes. Press UP or DOWN to set the minutes. Press PROGRAM or BACK to
return to the Feed Timer. The factory settings include two feeder times 7am and 6pm, each for 6 seconds.
SET DAYS OF THE WEEK: After setting the feed time, press UP so the days of the week start ashing. Press PROGRAM
to enter edit mode. By default all days should be enabled. Press LEFT or RIGHT to highlight the desired day. Press
DOWN to disable the selected day. Press UP to re-enable the selected day. Once all desired days are selected, press
PROGRAM or BACK to return to the Feed Timer.
SET RUN DURATION: Press DOWN and LEFT until the RUN DURATION seconds are ashing. Press PROGRAM to enter
edit mode. Press UP or DOWN to set desired feed duration. Press PROGRAM or BACK to return to the Feed Timer. 
SET MOTOR SPEED: Press UP or DOWN until the motor speed setting is ashing at the bottom of the screen. Press
PROGRAM to enter edit mode. Press RIGHT or LEFT to select the desired motor setting. Press PROGRAM or BACK to
return to the Feed Timer.
When the Feed Timer is blinking at the top of the screen, press PROGRAM or RIGHT to advance to the next feed
timer. Repeat for all required feed times.
TEST FEEDER: Press the BACK button to reach the Main Menu. Press the TEST button to enter the Test Mode. The
Test duration will appear (this will be the same as the duration as Feed Timer 1). Press UP or DOWN to set the Test
Duration. Press PROGRAM. Press RIGHT or LEFT to select desired motor speed. Press PROGRAM to perform test.
After a 5 second countdown, the test will commence. 
Full Battery
Empty Battery
7
7
8
8
MFG-13448_Pro Hunter II_2020 Manual-ENGLISH_12-7-20_FINAL.indd 1MFG-13448_Pro Hunter II_2020 Manual-ENGLISH_12-7-20_FINAL.indd 1 12/7/20 10:46 AM12/7/20 10:46 AM

1
1
ALIGN LUGS AND
L-SLOTS
2
DO NOT EXCEED 400 LBS
OF FEED IN 55-GAL FEEDERS
Quick-Lock
Feeder Kit
Quick-Lock
Adapter
NOTE: DO NOT LOAD FEEDER until it is standing up and in place (see Section D-4).
Belly Band
Ring
Bolt
Spacer
Lock
Washer
Nut
DO NOT EXCEED 200 LBS
OF FEED IN 30-GAL FEEDERS
Belly Band
Ring
ASSEMBLE WITH MOULTRIE QUICK-LOCK ADAPTER
C
55-Gallon or 30-Gallon Barrel*
Assemble Quick-Lock adapter by snapping bolt tabs in place as shown.
Turn the metal drum upside down and slide the belly band ring
around perimeter and make sure that belly band is snug against
the bottom structure ring as shown (Moultrie barrel only).
Slide the bolt through the belly band ring, spacer and
lock washer as shown. Tighten nut on bolt until metal
belly band ring tabs are touching spacer on each side.
Mount Quick-Lock adapter using (3) 1/4” x 1” bolts, nuts and
washers provided in the pre-drilled holes (Moultrie barrel only).
Or use the Quick-Lock adapter as a template to mark and drill
the mounting holes (non-Moultrie barrel).
Connect Quick-Lock feeder kit to assembled adapter as shown.
*Can also be used on a 6.5-gallon bucket.
Assembled
Quick-Lock
Adapter
Bolt Tabs
ADJUSTING FUNNEL HEIGHT
B

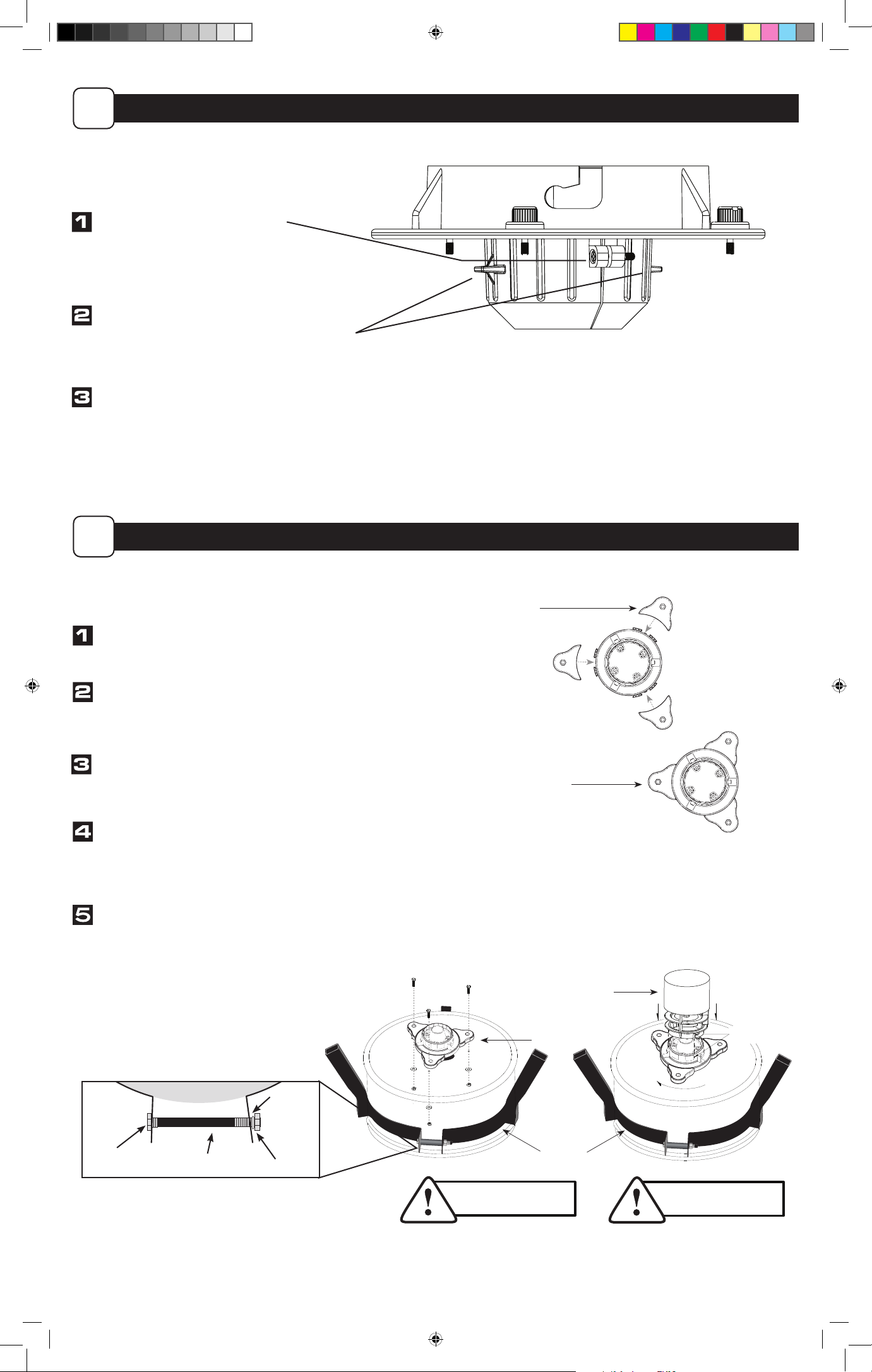

Once the funnel is in desired position,
retighten the screw with Phillips-head
screwdriver. Do not overtighten.
To adjust funnel height:
With a Phillips-head screwdriver,
loosen screw.
With screw loosened, use tabs to position funnel
in one of the two positions by either pushing
down or up depending on desired position.
MFG-13448_Pro Hunter II_2020 Manual-ENGLISH_12-7-20_FINAL.indd 2MFG-13448_Pro Hunter II_2020 Manual-ENGLISH_12-7-20_FINAL.indd 2 12/7/20 10:46 AM12/7/20 10:46 AM

12072020 / MFG-13448
Align holes of hopper top, then press sides of hopper bottom until it
snaps snugly in place. Insert bolt through each hole, place lock washer
on bolt and screw wingnut onto bolt until tight. Repeat for all 12 bolts.
Note: Failure to properly secure two halves can result in leakage.

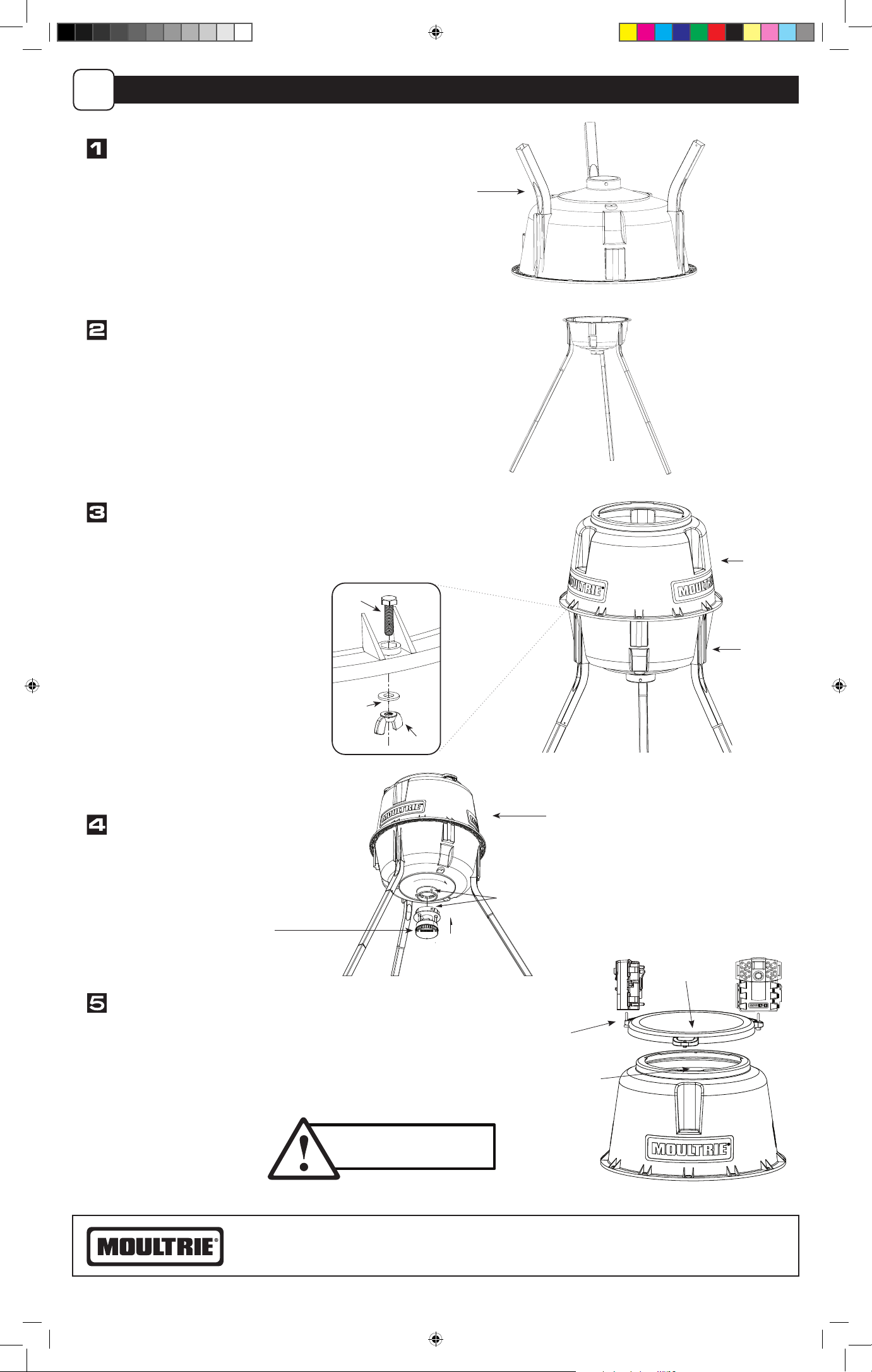

Place hopper bottom at on the ground, and
slide the three provided angled leg brackets
into the hopper as shown.
Make sure to fully insert brackets as far as
you are able to ensure the strength of the feeder.
Angled
Leg
Brackets
Insert two (2) leg sections into each of the square leg brackets.
Tap leg sections into place to ensure tight t.
Flip hopper bottom assembly upside-down so that all three (3)
legs are on the ground.
Hopper
Top
Bolt
Lock
Washer
Wingnut
Hopper
Bottom
DO NOT EXCEED
200 LBS OF FEED
Lid Stop
Lid
1/4”-20 x 1”
Phillips-head
Bolt
ASSEMBLE MOULTRIE 30-GALLON QUICK LOCK HOPPER
D
Connect Quick-Lock feeder kit to
assembled hopper as shown.
After completing hopper assembly,
install as many legs sections as are
needed for your application.
Fill with corn/feed. Do not exceed 200 lbs.
Install lid by aligning handles with notches in hopper top. Twist until
lid rests ush against lid stop.
To install a Moultrie game camera or Feeder Power Panel (sold separately),
thread included 1/4”-20 x 1” Phillips-head bolt upward through hole in
lid handle and tighten bolt. Lid will hold up to 3 devices.
2
1
Quick-Lock
Feeder Kit
Hopper
Align lugs and L-slots
Our Service Department will gladly answer any questions you have.
