Movacolor MC-12 User manual

Movacolor B.V • Koperslagersstraat 31• 8601 WL Sneek • The Netherlands
Internet: www.movacolor.com • Email: [e-mail]
+ 31 (0) 515 570020 + 31 (0) 515 570021
MC-12
User Manual 1.05.UK.01
Software version : V1.05
Manual revision : 01
Date : September 2009

1

2
INDEX
INDEX _____________________________________________________________________________________________________2
1. Introduction ______________________________________________________________________________________________3
Symbols: _________________________________________________________________________________________________3
Terms: ___________________________________________________________________________________________________3
2. General information________________________________________________________________________________________4
2.1 Safety ________________________________________________________________________________________________4
2.2 Certification ____________________________________________________________________________________________4
2.3 Operating environmental conditions _________________________________________________________________________4
3. Overview Dosing unit ______________________________________________________________________________________5
3.1 MC-12 Components overview. _____________________________________________________________________________5
3.2 Motor and dosing system. _________________________________________________________________________________5
3.3 Neckpiece_____________________________________________________________________________________________6
4. Metering principle _________________________________________________________________________________________7
5. Dosing systems / Capacities ________________________________________________________________________________8
6. Installation ______________________________________________________________________________________________10
6.1 Transport _____________________________________________________________________________________________10
6.2 Receipt ______________________________________________________________________________________________10
6.3 Mechanical Installation __________________________________________________________________________________10
6.4 Changing from Dosing cylinder to Feed screw ________________________________________________________________11
6.5 Electrical Connections___________________________________________________________________________________12
7. Operation _______________________________________________________________________________________________13
7.1 The Interface __________________________________________________________________________________________13
7.2 General ______________________________________________________________________________________________13
7.3 Start up ______________________________________________________________________________________________14
7.4 Configuration __________________________________________________________________________________________14
7.5 Speed and Timer _________________________________________________________________________________14
7.6 Production (Motor On/Off) __________________________________________________________________________15
7.7 Test (Material output), can only be used when unit is stopped ______________________________________________15
7.8 Alarms / Warnings ______________________________________________________________________________________15
7.9 Keyboard lock _________________________________________________________________________________________15
8. System performance ______________________________________________________________________________________16
APPENDIX A: MC-12 Wiring Diagram _______________________________________________________________________17
APPENDIX B: MC-12 Technical Specifications _______________________________________________________________18
APPENDIX C: MC-12 General dimensions ___________________________________________________________________19
APPENDIX D: MC-12 Declaration of Conformity ______________________________________________________________20

3
1. Introduction
Thank you for purchasing a Movacolor metering device. This manual is addressed to operators
and qualified technicians taking care of the metering of dry additives to ensure correct use of the
Movacolor dosing unit.
IMPORTANT NOTE: THIS MANUAL MUST BE READ BEFORE INSTALLING THE DOSING
UNIT. KEEP THIS MANUAL IN A PLACE ACCESSIBLE TO ALL OPERATORS.
Symbols:
Important note
Attention; safety regulations for the operator
Terms:
Operator: A person charged to operate, adjust, maintain and clean the machine.
Qualified Technician: A specialized, suitable trained person authorized to execute the
installation, non-routine maintenance, or repairs requiring special
knowledge of the machine and how it operates.

4
2. General information
2.1 Safety
The equipment is only designed and may only be used, for the dosing of dry additives.
Any use that does not conform to the instructions is considered improper and as such
releases the manufacturer from any liability in regard to damage to things and/or persons.
Always switch off the Movacolor control cabinet and disconnect from electrical power
before performing maintenance.
Ensure that all parts are securely fixed to the extruder or injection molding machine.
Dangerous voltages are present inside the control cabinet for up to 2 minutes after it has
been switched off.
2.2 Certification
•The Movacolor dosing unit is designed and produced conform the following European
regulations:
•standards for machinery (health, safety, environment)
•EMC (electromagnetic compatibility)
•VEM (safety electric material)
•98/37/EC, Annex 1(See the declaration of conformity, Appendix C)
2.3 Operating environmental conditions
•The unit must be protected against weather conditions
•Operating temperature -20 to +70 degr. C.

5
3. Overview Dosing unit
3.1 MC-12 Components overview.
3.2 Motor and dosing system.
There are mainly two dosing systems, the dosing cylinder and the feed screw.
(for more information see chapter 5)
Hopper 6ltr
Stepper Motor
Dosing system (Dosing cylinder)
Slide valve (closed)
Slide valve (open)
Standard NST40 Neckpiece
MC-12 Controller
The serial number of the motor can be found on the
backside of the motor.
Motor axle:
The motor shaft is equipped with one flat side which
fits exact in shaft of the dosing cylinder.
To connect the dosing cylinder just put it on the
motor axle while turning it to find the flat side, than
press the dosing cylinder completely backwards.

6
3.3 Neckpiece
The NST40-Neckpiece is the standard neckpiece for the MC-12 . The window of the NST40
neckpiece can be dismounted for easy cleaning. Together with the window the insert is taken out.
Easy cleaning
Dismount only these 4 bolts. Take out the window in a 45°angle.

7
4. Metering principle
The Dosing Cylinder® of Movacolor combined with a very precise adjustable stepping motor
ensures that the additive output is accurate and regular. For every particular application Movacolor
provides different neckpieces but the most common mounting of the neckpiece is between the
production machine and the hopper. In the figure below a cut through of the NST40 neckpiece can
be seen.
During operation, the virgin material runs from the
machine hopper through the neckpiece (1) into the
machine. Inside the neckpiece the virgin material flow (4)
is divided into two streams by the cover plate(3). In the
space below the cover plate, the rotating cylinder (2) is
dosing additive.
Additive is added directly into the center of the virgin
material flow, just before it enters the production
machine (5). This is a great advantage over metering devices
that use batch pre-mixing because pre-mixing can
actually cause material separation. Separation of
materials results in an irregular additive flow into the
production machine.
Fig. 3
1. Neckpiece 2. Dosing cylinder 3. Cover plate
4. Virgin material 5. To production machine

8
5. Dosing systems / Capacities
Depending on the application a different dosing system might be needed.
Use the following table to determine roughly the best system for the application. For more detailed
information please contact your agent or Movacolor.
Dosing system Granular
materials
Powder
Materials
Accuracy Dosing capacity
Gram/sec.
Dosing capacity
Kg/hour
GLX YES YES ++ 0,02 to 1,6* 0,07 to 5,8*
GX YES YES + 0,2 to 5,0* 0,72 to 18,0*
HX NO YES ++ 0,01 to 1,6** 0,04 to 5,8**
A-20
Feed screw
YES YES +/- 0,5 to 20* 1,8 to 72*
Note * measured with normal granular masterbatch 0,8 kg/dm3.
Note ** measured with free flowing powder 0,65 kg/dm3.
Which type of dosing system do I need with which neckpiece?
TYPE CODE FOR STANDARD NECKPIECE CODE FOR WATERCOOLED NECKPIECE
GLX GLX GLXC
GX GX GXC
HX HX HXC
A20LT A20 A20C
Front side view
GLX
Back side view
GX
HX
A20LT

9
To determine the kind of material in your application use the description below.
* For other sizes contact Movacolor.
The actual capacity of the dosing system depends on:
•The volume weight of the material (bulk density)
•The specific weight of the material (specific density)
•The granular shape of the material
•The granule size
•The surface structure of the material

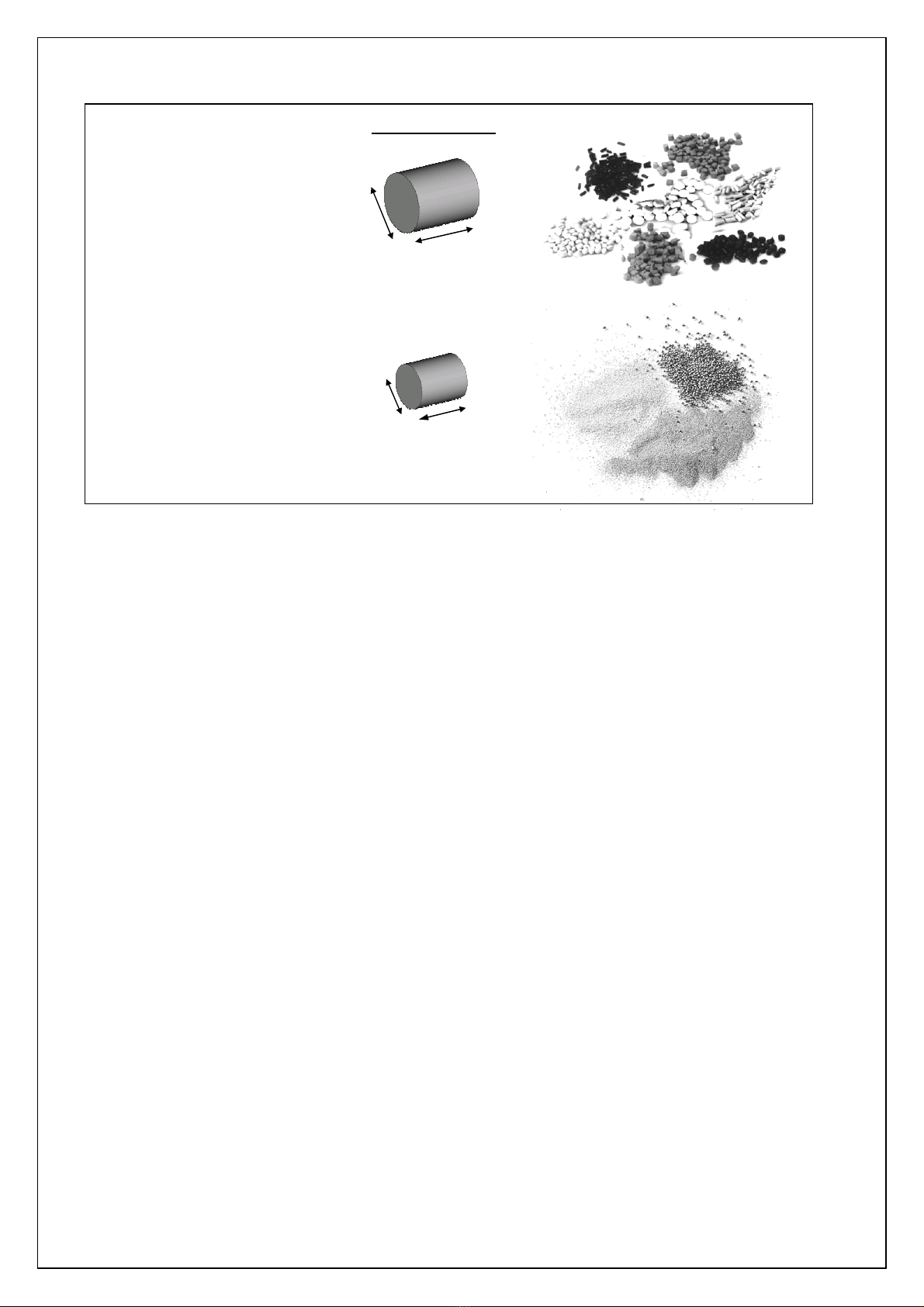

Granular material can be normal or micro. The granular material and powder material has to be
free flowing, non-static and not sticky.
Normal Granules:
(NG)
Micro
/ Mini
Granules:
(MG)
The term Micro/Mini Granules also
includes free flowing powder.
Ø < 4 mm L < 4 mm *
Ø < ø2,5 mm L < 3 mm *
L
ø
L
ø
Material types
