Movie Vision MV6000 User manual

Owner's Manual
Mobile DVD/CD Player
Models: MV6000
MV6000C
For operational or technical assistance, after reading this manual,
please call us toll free at [phone] or visit www.magnadyne.com

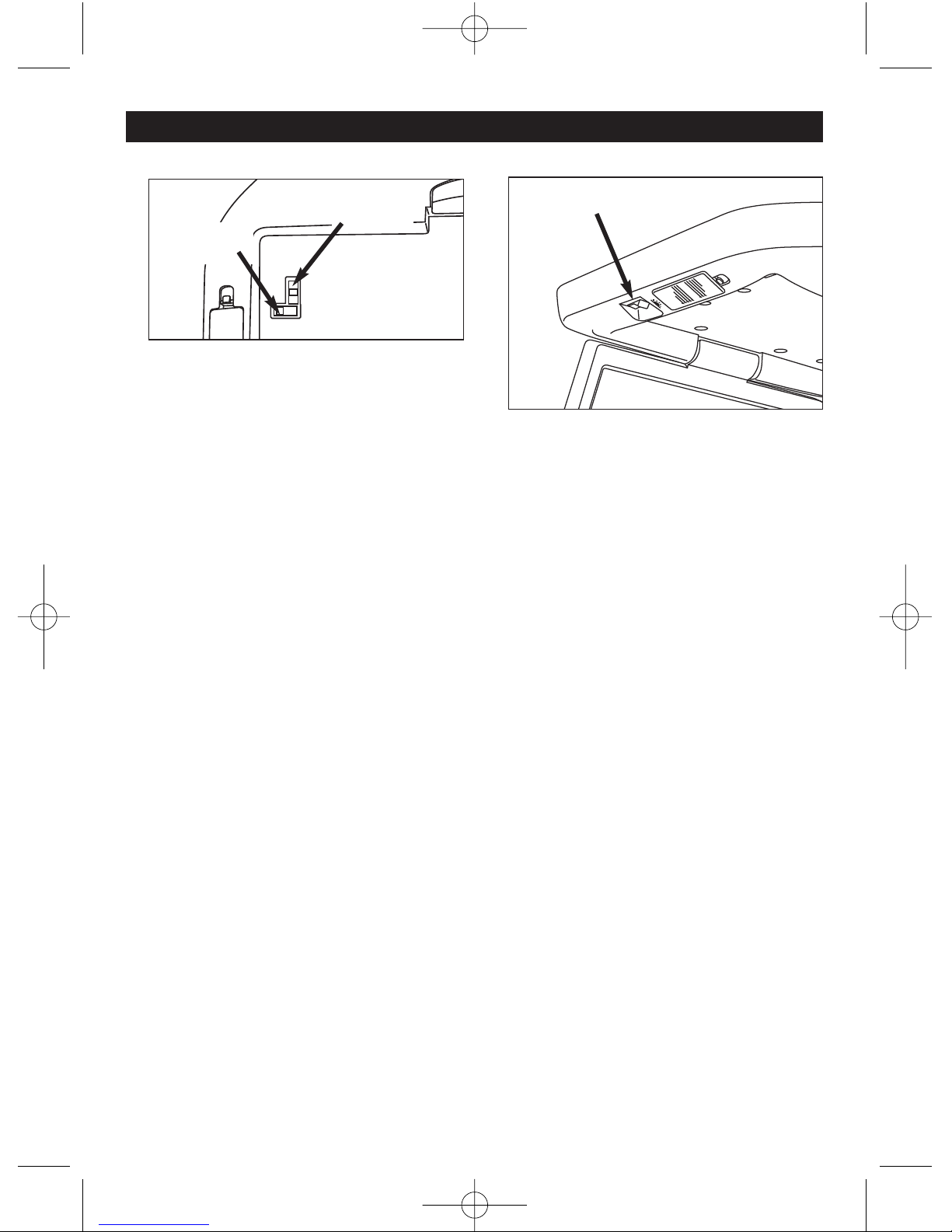

90.1MHz
90.5MHZ
MV6000-UM.qxp 4/5/05 16:13 Page 1

2
Features
• Compatible with PAL and NTSC Systems. This
player can play discs recorded in either PAL or
NTSC format.
• CD, DVD, CD-R, CD-RW, MP3 Compatible.
• L/R stereo analog audio outputs for
connection to existing head unit aux. inputs.
Video output is composite video.
• Supplied Remote Features: multi-language
audio-track/subtitle, multi-angle (where avail-
able), plus all basic functions.
Use this Product Safely
Driving
Be aware of road and traffic conditions. Keep
the volume at a low level.
Moisture
Do not expose the product to water or exces-
sive moisture. This could cause electrical
shorts, fire or other damage.
Parking
Parking in direct sunlight can produce very high
temperatures inside your vehicle. Give the car
interior a chance to cool down before starting
playback.
Proper Power Supply
This product is designed to operate with a 12 Volt
DC, negative ground battery system.
Protecting the Disc Mechanism
Avoid inserting any foreign objects into the slot of
this player. Failure to observe this precaution may
cause malfunction of this unit.
Repairs
Contact our customer service representatives.
Do not attempt to disassemble or adjust this
product yourself.
Installation
The unit should be installed in a horizontal posi-
tion.
MV6000-UM.qxp 4/5/05 16:13 Page 2

3
Safety Information. . . . . . . . . . . . . . . . . . . . . . 3
Disc Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Screen and DVD/CD Functions . . . . . . . . . . 5-7
Location of Functions. . . . . . . . . . . . . . . . . . 5
Adjusting the Monitor . . . . . . . . . . . . . . . . . 6
Inserting a DVD/CD . . . . . . . . . . . . . . . . . . . 6
Changing to an Auxiliary Input Source. . . . . 6
Transmitter Frequency Selection . . . . . . . . . 7
Car Radio Interface . . . . . . . . . . . . . . . . . . . 7
Mono/Stereo Switch. . . . . . . . . . . . . . . . . . . 7
Dome Light Operation . . . . . . . . . . . . . . . . . 7

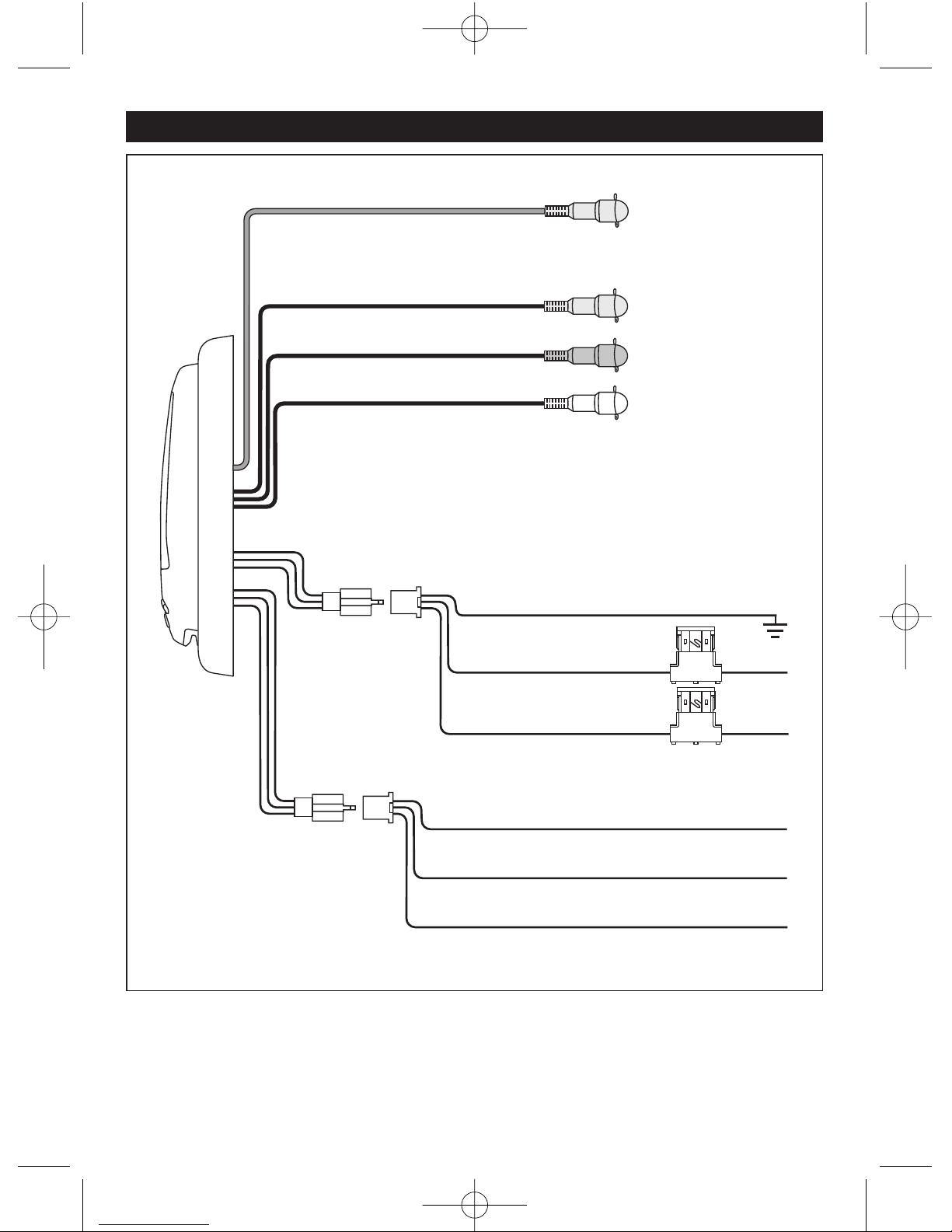

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . 8
Wiring Instructions . . . . . . . . . . . . . . . . . . . 9
Remote Control. . . . . . . . . . . . . . . . . . . . 10-11
Remote Control Functions . . . . . . . . . . 10-11
Headphones . . . . . . . . . . . . . . . . . . . . . . 12-13
Headphone Operation. . . . . . . . . . . . . . . . . 13
Basic Operation. . . . . . . . . . . . . . . . . . . . 14-15
Turn the Unit On. . . . . . . . . . . . . . . . . . . . . 14
Loading a DVD/CD Disc . . . . . . . . . . . . . . 14
Ejecting a Disc . . . . . . . . . . . . . . . . . . . . . 14
Standby State. . . . . . . . . . . . . . . . . . . . . . . 14
Basic Play. . . . . . . . . . . . . . . . . . . . . . . 14-15
Advanced Operation . . . . . . . . . . . . . . . . 16-17
Initial DVD Setup . . . . . . . . . . . . . . . . . . 18-19
Specifications. . . . . . . . . . . . . . . . . . . . . . . . 20
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 21
Replacement Parts . . . . . . . . . . . . . . . . . 22-23
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Contents
Safety Information
CAUTION:
THIS MOBILE DVD PLAYER IS A CLASS I LASER
PRODUCT. HOWEVER, THIS MOBILE DVD PLAYER
USES A VISIBLE/INVISIBLE LASER BEAM WHICH
COULD CAUSE HAZARDOUS RADIATION EXPO-
SURE IF DIRECTED. BE SURE TO OPERATE THE
MOBILE DVD PLAYER CORRECTLY AS INSTRUCT-
ED. USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZ-
ARDOUS RADIATION EXPOSURE. DO NOT OPEN
COVERS AND DO NOT REPAIR YOURSELF. REFER
SERVICING TO QUALIFIED PERSONNEL.
CAUTION:
FCC REGULATIONS STATE THAT ANY UNAUTHO-
RIZED CHANGES OR MODIFICATIONS TO THIS
EQUIPMENT MAY VOID THE USER’S AUTHORI-
TY TO OPERATE IT.
WARNING:
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
• THIS DEVICE IS INTENDED FOR CONTINUOUS
OPERATION.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK AND ANNOYING INTERFERENCE, USE
ONLY THE RECOMMENDED ACCESSORIES.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Magnadyne Corporation and other
rights owners. Use of this copyright protection
technology must be authorized by Magnadyne
Corporation and is intended for home and other
limited viewing uses only unless otherwise author-
ized by Magnadyne Corporation. Reverse engineer-
ing or disassembly is prohibited.
Region Management Information:
This Mobile DVD Player is designed and manufac-
tured to respond to the Region Management
Information that is recorded on a DVD disc. If the
Region number described on the DVD disc does
not correspond to the Region number of this
Mobile DVD Player, this Mobile DVD Player can-
not play this disc.
MV6000-UM.qxp 4/5/05 16:13 Page 3

Disc Formats Supported by this Player:
Discs which cannot be played with this player:
• DVD-ROM
• DVD-R/DVD-RAM
• CDV
• CD-G

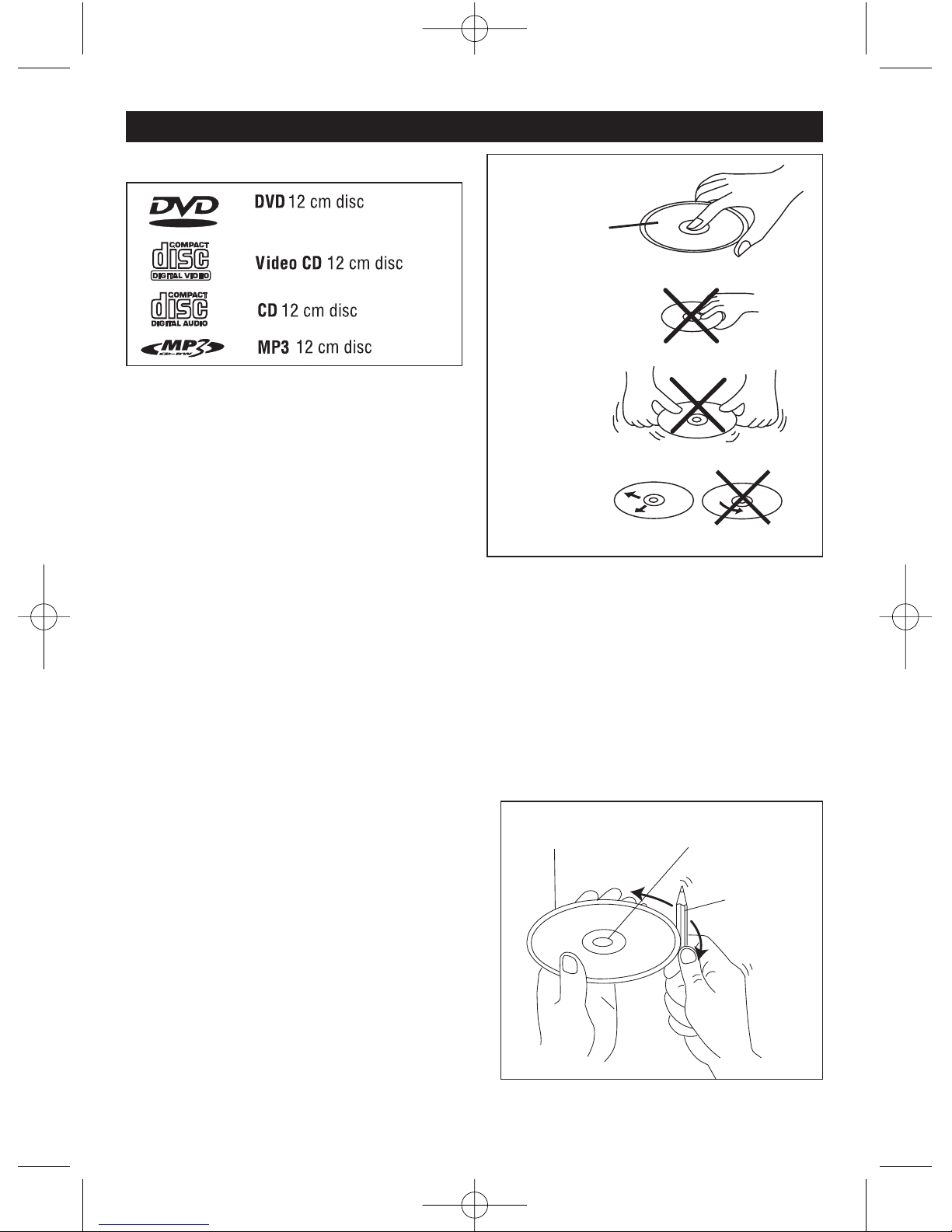

Disc Handling
• Dirt, dust, scratches and warping disc will
cause non operation.
• Do not place stickers on disc or scratch disc.
• Do not warp discs.
• A disc should always be kept in its case
when not in use to prevent damage.
• Do not place discs in the following places:
1. Direct sunlight.
2. Dirty, dusty and damp areas.
3. Near car heaters.
4. Car seats or dashboard.
Disc Cleaning
Use a dry soft cloth to wipe the surface. If the
disc is quite dirty, use a soft cloth slightly moist
with isopropyl (rubbing) alcohol. Never use sol-
vents such as benzine, thinner or conventional
record cleaners as they may mar the surface of
the disc.
Note: A disc may become somewhat scratched
(although not enough to make it unusable)
depending on handling and conditions in the
usage environment.
Preparing New Discs with Rough Spots
A new disc may have rough edges on its inside
and outside edges. If a disc with rough edges is
used, the proper setting will not be performed
and the player will not play the disc. Therefore,
remove the rough edges in advance by using a
ball point pen or pencil as shown. To do this,
press the side of the pen or pencil against the
inside and outside edges of the disc.
4
Disc Notes
V
I
D
E
O
(Single-sided disc only)
Label side up
Do not touch
the underside
of the disc
Do not bend
Wipe the disc
from center
toward the
outside edge.
Rough spots
on inside edge
Ball point pen
or pencil
Rough spots on
outside edge
MV6000-UM.qxp 4/5/05 16:13 Page 4

5
Screen and DVD/CD Functions

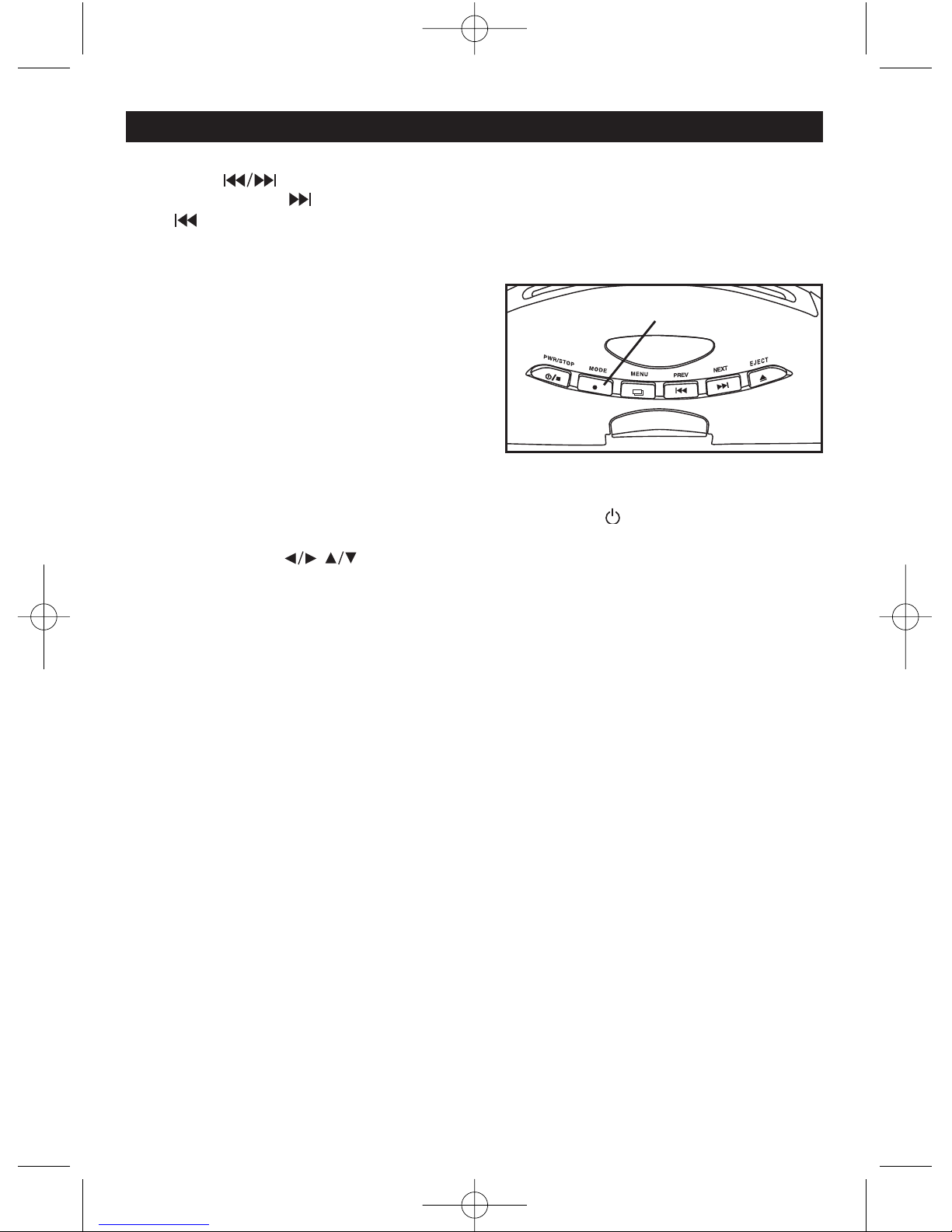

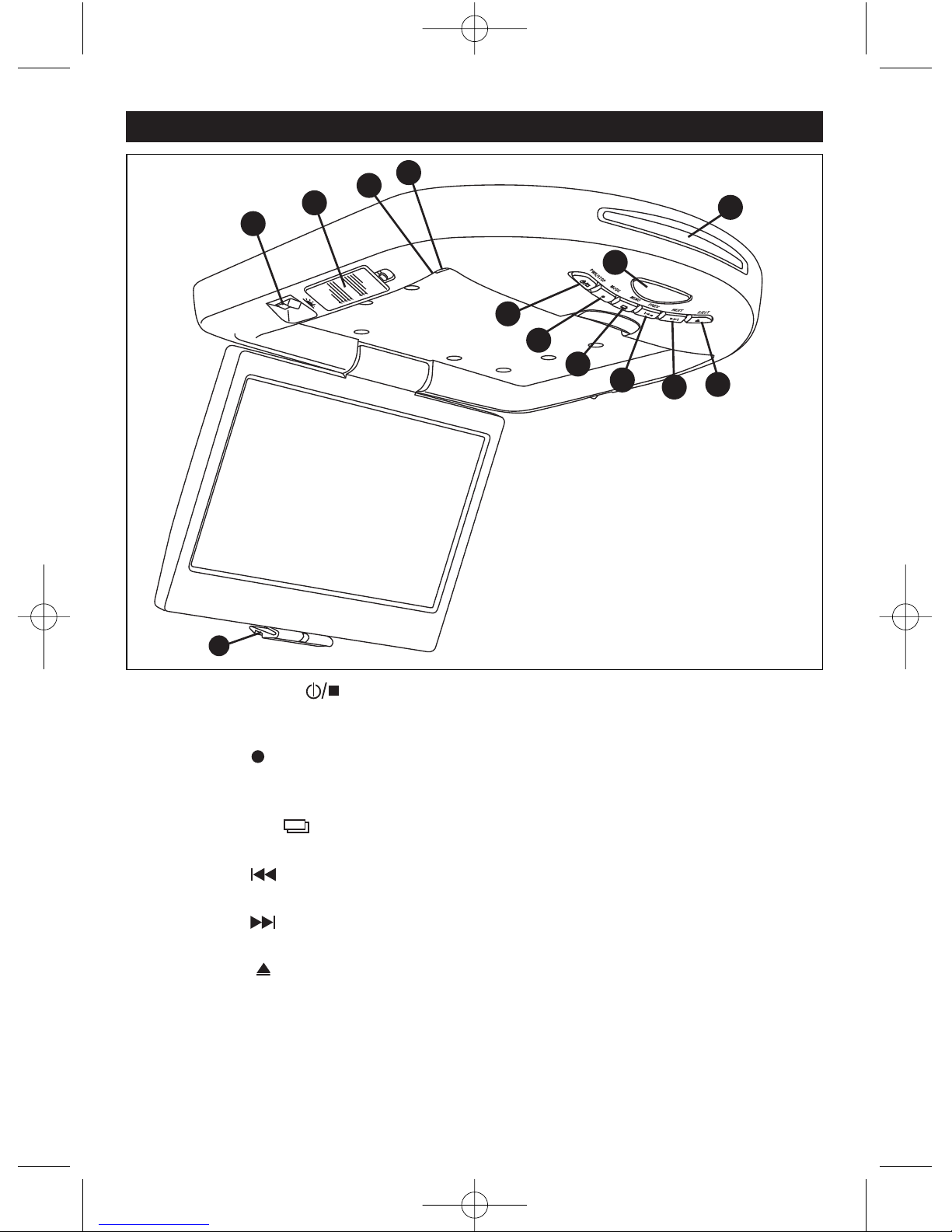

1. PWR / STOP Button ( ): Press this but-
ton to turn the unit On/Off. Press to stop disc
play.
2. MODE Button ( ): Press this button to change
the play source between DVD/CD player and
an auxiliary input source.
3. PLAY/PAU Button ( ): Press this button to
display on screen monitor controls.
4. PREV Button ( ): Press this button during
playback to skip back to the previous track.
5. NEXT Button ( ): Press this button during
playback to skip forward to the next track.
6. EJECT Button ( ): Press this button to eject
the disc.
7. Infrared Remote Sensor: This is the sensor for
the infrared remote.
8. Disc Slot: To play a DVD/CD, insert a disc into
slot with label facing up.
9. Transmitter Frequency Selection: 3 position
frequency switch to select a different frequen-
cy. It transmits a signal that is received by
the MovieVision headphones. The signal can
also be received by the vehicle’s car radio.
10. Mono/Stereo Switch: Changes the unit from
Mono to Stereo
11. Dome Light: The dome lights located in the
MovieVision screen housing will illuminate
whenever the vehicle doors are open.
12. Dome Light Switch: To activate the dome
lights while the vehicle is in motion, press
the dome light switch.
13. Viewing Screen Release: To release the
screen, push inward on the tab and pull
downward. Place the screen to the desired
viewing position. To lock the viewing screen
in the closed position, press upward on the
edge of the screen housing until the screen
locks into place (you will hear a snap sound).
90.1MHz
90.5MHZ
1
2
3
6
7
8
12
9
13
4
11
5
10
