movistar WLD71-T3 User manual

WLD71-T3 LTE Router
User Manual

1
Safety Precautions
Please read this user’s manual before operating this product.
The information contained in this document is subject to
change without notice. Features or specifications may be
different depending on the type of product model purchased.
Safe Use of This Product
Carefully follow the warnings and safety notices presented
within this manual. Please pay special attention to the
following indications of potentially hazardous situations:
Warning:
Indicates a hazardous situation, which, if not avoided, could
result in serious injury.
Caution:
Indicates a situation, which, if not avoided, could damage this
product or other devices.
Note:
Indicates additional user information to make the user aware
of possible problems and to help the user understand, use and
maintain the product.
This product needs only an occasional wipe with a dry
cloth.
Avoid high moisture conditions and keep away from liquids
and humidity.
Do not install or use the product where it is exposed to
direct sunlight or heat.

2
Care must be taken when using the device in close
proximity to personal medical devices, such as pacemakers
and hearing aids.
Do not use this product in environments with a potential
explosion hazard.
The product must be placed horizontally on a hard flat
surface. Do not place the product where it may be subject
to physical shock or vibration or where the product may
drop, topple, slide or shake, which may cause personal
injury or damage to the product.
If lightning is expected, or the product is not going to be
used for a long period of time, unplug the power cord from
the unit.
The use of electronic transmitting devices in aircraft,
hospitals and petrol stations is forbidden. Please follow the
rules and warnings in these conditions.
The product must ONLY be used with the power supply
cord and power adapter supplied by the manufacturer.
Openings on the housing of the product are required for
ventilation. Do not block or obstruct the airflow through
these openings.
Do not operate the product on a soft surface such as a
carpet, rug, bed, etc.

3
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiates
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician
for help.

4
RF Exposure Warning
This equipment must be installed and operated in accordance
with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
CAUTION:
Any changes or modifications not expressly approved by the
grantee of this device could void the user's authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

5
Table of Contents
1. UNPACKING INFORMATION ..........................................7
2. INTRODUCTION .............................................................8
2.1 REAR PANEL ............................................................... 8
2.2 LED DEFINITIONS........................................................ 9
3. INSTALLATION .............................................................11
4. CONNECT DEVICES TO THE ROUTER.............................13
5. WEB USER INTERFACE .................................................15
5.1 ACCESSING THE WEB USER INTERFACE .......................... 15
5.2 WEB USER INTERFACE INTRODUCTION .......................... 16
6. HOME..........................................................................17
7. WI-FI............................................................................18

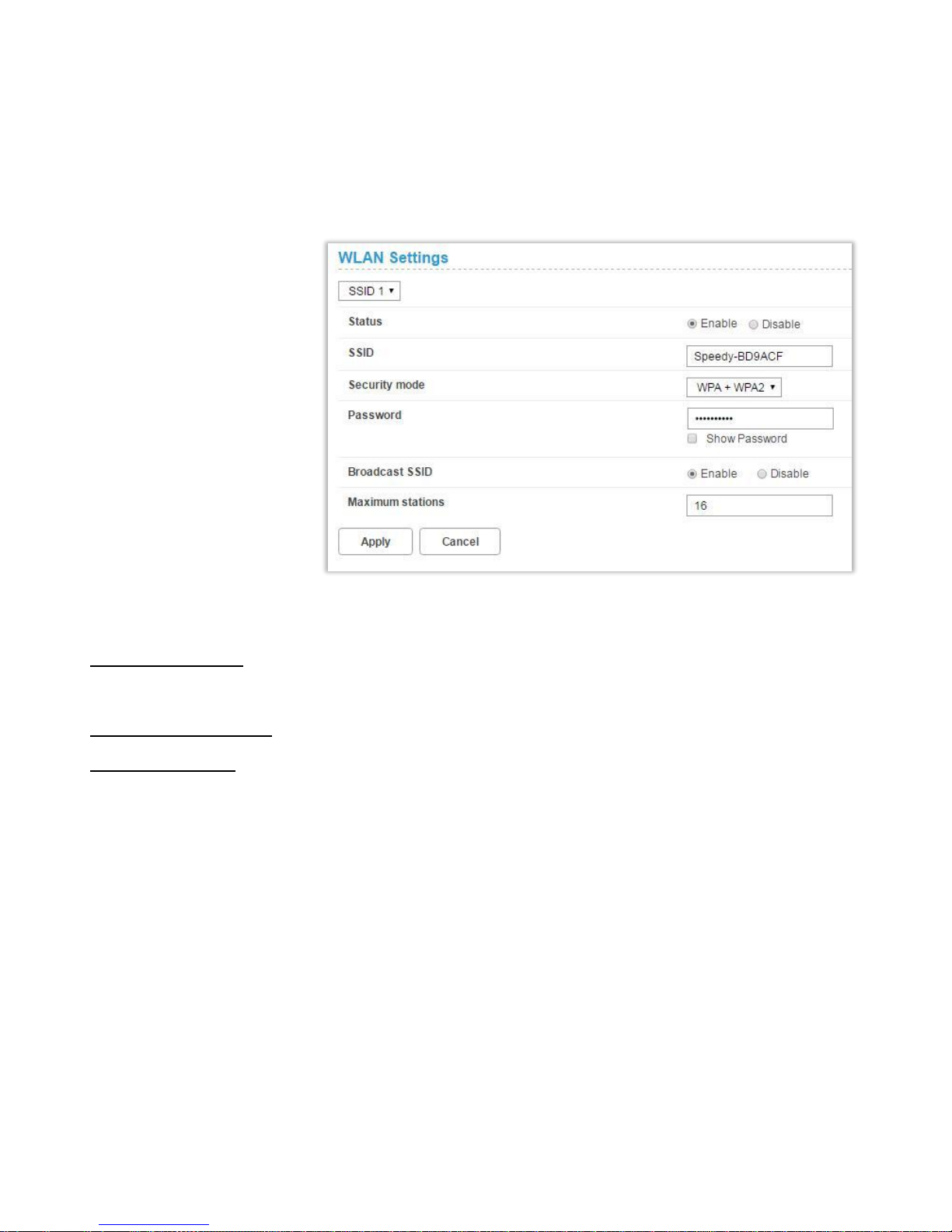

7.1 WLAN SETTINGS ...................................................... 18
7.2 WLAN ADVANCED SETTINGS ...................................... 20
7.3 WLAN MAC FILTER.................................................. 20
7.4 WPS SETTINGS......................................................... 21
7.5 CONNECTED DEVICES ................................................. 23
8. SETTINGS.....................................................................24
8.1 QUICK SETUP............................................................ 25
8.2 DIAL-UP .................................................................. 28
8.3 ETHERNET................................................................ 34
8.4 SECURITY ................................................................. 38

6
8.5 DHCP..................................................................... 48
8.6 STATISTICS ............................................................... 49
8.7 VOICE ..................................................................... 51
9. SYSTEM .......................................................................52
9.1 DEVICE INFORMATION................................................ 52
9.2 MODIFY PASSWORD .................................................. 53
9.3 DIAGNOSIS............................................................... 54
9.4 RESTORE DEFAULTS ................................................... 55
9.5 REBOOT................................................................... 56
9.6 DATE AND TIME ........................................................ 56
9.7 SMS....................................................................... 58
10. UPDATE...................................................................59
10.1 ONLINE UPDATE........................................................ 59
10.2 LOCAL UPDATE ......................................................... 59
11. SPECIFICATIONS ......................................................60

7
1. Unpacking Information
Thank you for purchasing this product. Before installation,
please confirm you have all required items on hand:
WLD71-T3 LTE Router × 1
Power Adaptor: AC 90 V–264 V (47 Hz–63 Hz) input,
DC 12 V output (1 A) × 1
Ethernet Cable × 1
Telephone Cable × 1
Quick Start Guide × 1
User Manual × 1
Warranty Card × 1


8
2. Introduction
2.1 Rear Panel
1. Reset
Reset the Router by pressing this button.
2. Wi-Fi/WPS
Connect to other WPS-compatible devices by
pressing this button.
Wi-Fi function is turned on/off by a long press
(for 5 seconds).
WPS association window is activated by a short
press (less than 3 seconds).
3. Phone
Connect to the telephone line.
4. Ethernet
ports 1–4
Connect to your devices such as a PC and laptop.
Note: Eth1 also functions as a WAN port for
connecting to a DSL or cable modem.
5. 12 V
Connect to the power adapter
6. ON/OFF
Press to turn the power on or off.

9
2.2 LED Definitions
1. 4G/3G/2G
Network
Cyan
Connected to 4G network
Blue
Connected to 3G network
Green
Connected to 2G network
Blinking
red (2 Hz)
Connection failure
Red
Failure during POST
(power-on self-test), or
error due to hardware or
firmware problems
2. Signal
Strength
Blue
Good coverage
Green
Minimum coverage
Red (2 Hz)
Poor coverage
3. Telephone
Blue
Off-hook
Off
On-hook

10
4. Wi-Fi/WPS
Blue
Wi-Fi interface on
Blinking
blue (2 Hz)
WPS setup process
Off
Wi-Fi interface off
5. Internet
Blue
Internet connection in
progress
Off
No internet connection

11
3. Installation
1. Open the SIM card slot cover.
2. Insert a SIM card into the SIM card slot, and slide the cover
back over the SIM card slot.

12
3. Connect the Router to the power adapter and plug the
power adapter into a wall outlet.
Note: Always use the adapter that comes with the Router
for the power supply.
4. Turn on the power switch of the Router.

13
4. Connect devices to the Router
You can wirelessly connect devices to the Router or use RJ-45
Ethernet cables to connect via its LAN ports.
Note:
The DHCP server
in the Router is
turned on as a
default setting.
When connecting
a computer to
the Router,
please ensure that the computer is set up to obtain an IP
address automatically.
To connect devices to the Router wirelessly:
1. Enable the Wi-Fi function of devices such as your laptop,
tablet PC, or smartphone.

14
2. If your device supports WPS, press the WPS button on the
Router and then press the WPS button on your device to
establish a connection. If not, skip this step and complete
the steps below.
3. When the device finishes searching for Wi-Fi networks,
select the SSID of the Router.
Note: Each Router is configured with a default SSID and its
own unique password. Look for the label showing the SSID
and password information on the housing of the Router.
4. Enter the password from the label to associate your device
with the Router and connect to the Internet.

15
5. Web User Interface
5.1 Accessing the Web User Interface
The Web User Interface allows you to configure the Router
using your web browser.
1. Ensure that the computer you use is connected to the
Router.
2. Open your web browser and type
192.168.1.1
in the address field.
3. An authentication screen will appear. Use the default
username and password printed on the label on the
housing of the Router.
4. The Web UI page will appear. Click the items on the
banner to access different management functions.
5. We recommend you change the password for greater
system security. Please access the Web UI and then go to
System Modify Password.

16
5.2 Web User Interface Introduction
1. Basic
Information
Provides information including:
Signal strength of the connected
mobile network, connection mode,
number of connected devices, and
unread SMS.
2. Language/Web
UI Log-out
Click the drop-down list to select a
preferred language.
3. Management
Function
Click the icon to access each
management function.
4. Internet Usage
Display of data usage
5. Connection
Information
Provides information including:
Name of the mobile network
service provider, connection mode,
cell ID, and LTE signal strength
indicators
1
2
3
4
5

17
6. Home
This page displays basic system information including a
summary of the Internet, system, Wi-Fi, and Local Area
Network (LAN).
Internet:
Indicates Internet data usage, including total data usage
(download/upload); click Setting to view the data plan.
Manager:
Displays the connection mode, signal strength, and connection
information

18
7. Wi-Fi
Click the Wi-Fi icon on the top menu, and the following content
will appear. The side menu indicates the current displayed
menu.
Select the Wi-Fi profile for which you wish to change security
settings.
Note:
The Wi-Fi profile supports establishment of four local
wireless networks with different SSIDs. Each profile has its
own security mode.
7.1 WLAN Settings
Status: Choose to Enable or Disable the SSID function.

19
SSID: The Service Set Identifier (SSID) is the name of the
wireless network broadcasting from this system. In order for
computers to connect to the local network over a wireless link,
they must select
this network
name from the
list of detected
wireless netw
orks in the area.
Security mode:
Select one
security method
from the
drop-down
menu.
None (Open): This mode allows all Wi-Fi devices to connect to
the Router without any security protection.
WPA2 Personal: Use for WPA2-level encryption.
WPA+WPA2: Enables both WPA- and WPA2-level wireless
protected access modes.
Password: Specify a password for your wireless network.
Show password: Displays the password when the check box is
selected.
Broadcast SSID: Select Enable if you want to broadcast this
SSID. The SSID will be displayed when you search for available
networks. Select Disable if you do not want to broadcast this
SSID.
Maximum stations: The maximum number of guest Wi-Fi
clients allowed on the Router.
