Series 300 Electric Towel Warmers
Installation, Operation & Maintenance Instructions
_________________________
Model #
_________________________
Serial #
PUR 100559A Rev. 2/12

Table o Contents
___________________
General Information . . . . . . . . . . .3
Specifications . . . . . . . . . . . . . . . .3
Wall Preparation . . . . . . . . . . . . . .4
Mounting Dimensions . . . . . . . . . .4
Installation: W328, W336, W348 . . .5
Electrical Connections . . . . . . . . . .6
Optional Programmable Timer . . . .7
Installation: F328 . . . . . . . . . . . . .7
Installation: Cord Models . . . . . . . .8
___________________
The towel warmer is
an electric device. It must be installed by
a licensed electrician in accordance with
the National Electrical Code (NEC) and
local code.
___________________
IMPO TANT NOTE: As you follow these
instructions, you will notice warning and
caution symbols. This blocked information is
important for the safe and efficient installa-
tion and operation of this Towel Warmer.
These are types of potential hazards that may
occur during this installation and operation:
states a hazard may
cause serious injury or death if precautions
are not followed.
signals a situation where
minor injury or product damage may occur if
you do not follow instructions.
IMPO TANT NOTE: This highlights
information that is especially relevant to a
problem-free installation.
All information in these instructions are based
on the latest product information available at
the time of publication. Sussman-Automatic
Corporation reserves the right to make
changes at any time without notice.

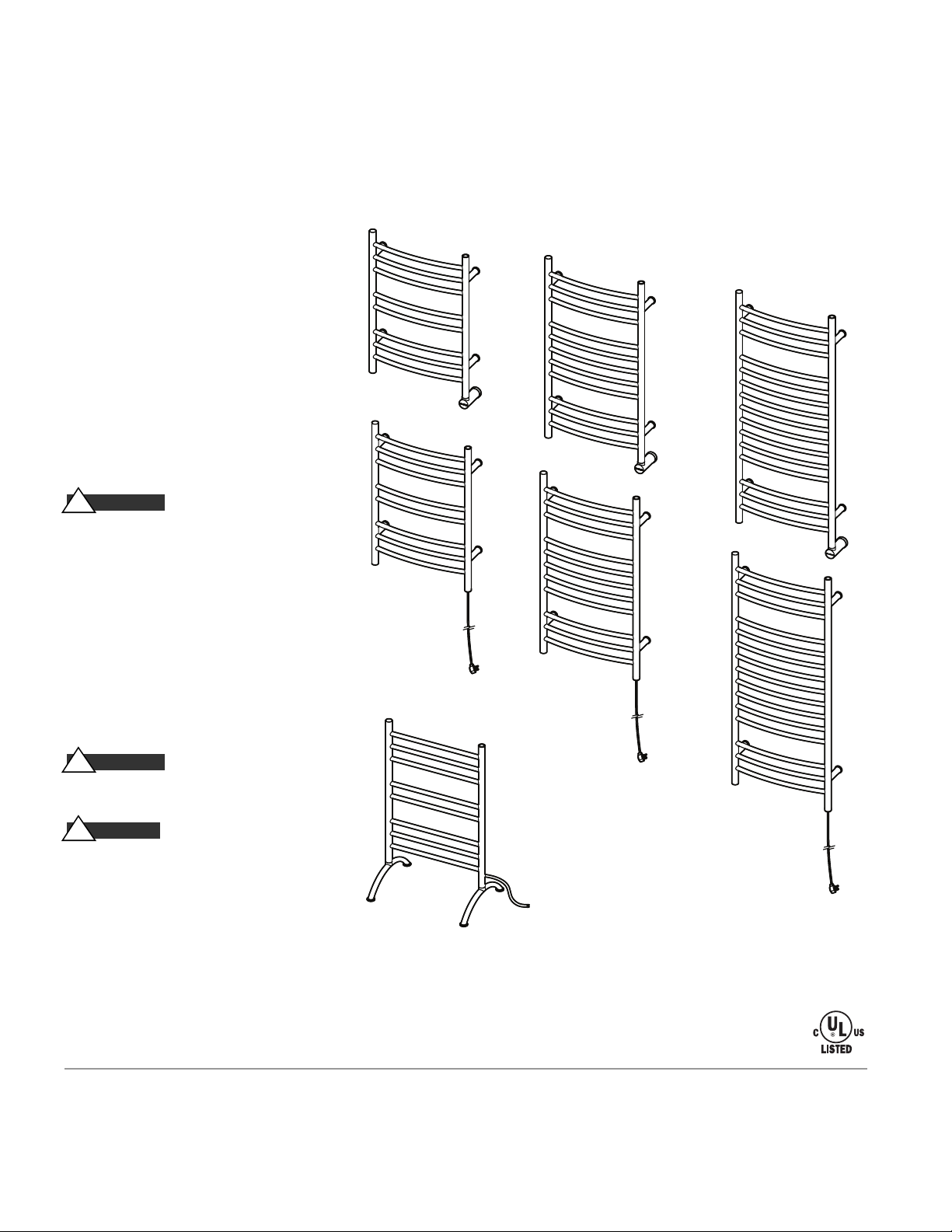

Series 300 Electric Towel Warmers
Models W328, 328CORD, F328, 336, 336CORD, 348, 348CORD
_______________________________________ _______________________________________
Model Serial #
!WA N ING
!WA N IN G
!CA UT IO N
mr.steam®
Sussman-Automatic
Corporation®
[email protected]
www.mrsteam.com
43-20 34th Street
Long Island City, NY 11101
TEL:800 76 STEAM
FAX:[phone]
9410 S. La Cienega Blvd.
Inglewood CA 90301
TEL: 800 72 STEAM
FAX: [phone]
328
328CORD
336
336CORD
348
348CORD
F328
PUR 100559A Rev. 2/12
©2011 Sussman-Automatic Corporation
MR. STEAM and des., A Lifetime of Pleasure, AromaFlo, AutoFlush, Clean Steam...Every Time, ChromaSteam, Club
Therapy, eTempo, eTempo/Plus, From Bathroom to Spa, Making Wellness a Way of Life, Music Therapy, Steam on
Demand, Steam@ ome, Steam Stop, SteamTherapy, and Sussman are registered trademarks of Sussman-
Automatic Corporation. AromaSteam, Butler Package, Digital 1, Express Steam, omeWizard, Spa Package, Steam
Genie, The Intelligent Steambath and Valet Package are trademarks of Sussman-Automatic Corporation.

mr.steam®towelwarmers Installation, Operation & Maintenance Instructions
_________________________________________________________________
INSTALLER:
___________________________________________________
READ T IS ENTIRE INSTRUCTION MANUAL T OROUG LY BEFORE
BEGINNING INSTALLATION. LEAVE T ESE INSTRUCTIONS WIT
OMEOWNER.
BE CERTAIN ELECTRICITY IS S UT OFF AT
MAIN PANEL BEFORE ATTEMPTING TO WIRE OR SERVICE T E
TOWEL WARMER. Follow instructions to make certain the Towel
Warmer is properly mounted and secured to the wall.
FAILURE TO FOLLOW T ESE STEPS COULD RESULT IN AZARDOUS
CONDITIONS INCLUDING ELECTROCUTION.
1. Install in accordance with National and local codes.
2. Do not locate in shower stall, tub or near water spray.
3. Do not locate within
the shower or tub zone.
See illustration.
4. All models are to be
protected by dedicated
and suitably rated GFCI
circuit breaker or equal.
TO ENSURE CORRECT OPERATION OF YOUR TOWEL WARMER,
PLEASE FOLLOW ALL INSTRUCTIONS CAREFULLY, OBSERVING T E
"CAUTION" and “WARNING” NOTATIONS FOR EAC STEP.
Inspect Towel Warmer
Unpack the Towel Warmer carefully to avoid any damage or loss of
any part. When opening the box be sure that the parts are not
accidentally discarded. Towel Warmers are shipped in specially
designed shipping cartons. The entire surface of the Towel Warmer
is hand-wrapped to protect the finish. It is your responsibility to
immediately inspect for any damage.
3
TO EL ARMER SPECIFICATIONS
_____________________________________________________________
Model No. Dimensions (inches) Amps Volts/Phase Weight (lbs.)
W x H x D
_____________________________________________________________
328 20 x 313⁄8x 4 3⁄40.82 120/1 10
F328 197⁄8x 343⁄8x 113⁄40.82 120/1 10
336 20 x 387⁄8x 43⁄41.11 120/1 14
348 20 x 491⁄4x 43⁄41.40 120/1 18
HOMEOWNER:
_______________________________________________
T ANK YOU for selecting Mr.Steam Towel Warmer, the perfect
addition to bathrooms, family spas, and exercise rooms within
your home. Our products have been a standard for quality and
comfort, and we are sure that you will experience continued
enjoyment from the Towel Warmer you have purchased by
following these instructions.
TOWEL WARMERS ARE OT! The Towel
Warmer is an electrical heating appliance, intended only for
indoor residential applications and, as such, should be installed
and used with certain precautions for your safety.
1. INSTALLATION PROCEDURES FOR WALL-MOUNTED UNITS MUST
BE ACCOMPLIS ED BY QUALIFIED PERSONNEL IN STRICT
ACCORD WIT APPLICABLE NATIONAL AND LOCAL BUILDING
AND ELECTRICAL CODES.
2. DO NOT place TOWEL WARMER units inside a shower, sauna or
steam room enclosure or any other wet location or with
elevated temperature because the towel warmer may be an
electrocution hazard.
3. CAUTION is advised when a Towel Warmer is accessible to
children because the towel warmer is hot.
4. A dedicated wall switch or timer should be used to control the
TOWEL WARMER unit. Contact Mr.Steam for an in-wall 24-hour-
7 day timer (PN W-103588DIG) Note: All switches and control
devices must be installed on the load (black) side of the Towel
Warmer circuit in compliance with the National Electrical Code
(NEC) and local code. (see page 6for installation instructions)
IMPO TANT: The finish of your Towel Warmer can be
protected and maintained by an occasional wiping with a soft,
non-abrasive, damp cloth and lightly polished, thereafter, with a
soft dry cloth when the Towel Warmer is cold. Under no circum-
stances should abrasive cleaning powders, metal polish or chlo-
rine-based cleaners be used on any part of this product.
IMPO TANT: This appliance is for warming towels only.
DO NOT use this appliance to dry wet towels.
IMPO TANT: This appliance is intended for towels washed in
water. Fabrics that contain soap or detergent residue may show
what appears to be scorch marks. owever this may be the dis-
coloration of the residue. Mr.Steam is not responsible for discolor-
ing or damage of any fabrics. Refer to the Mr.Steam towel warmer
warranty for additional terms and conditions.
For illustrative purposes only
!WA N IN G
!WA N IN G
!WA N IN G
Shower/Tub
Zone
Do not locate the
towel warmer within
the shower/tub zone
This picture shows the recommended
method of draping a towel on a towel
warmer. Ensure as much as possible of
the towel's surface is touching the towel
warmer for optimum towel warming.
Note: Dimensions are approximate
Note: ard wired and cord connected models have the same dimensions, amps
and weight. Cord connected models include an integral 6 foot power cord.

MOUNTING DIMENSIONS
Note: “C” dimension is not applicable for cord connected models
IMPO TANT NOTE: Towel Warmers may have small
dimensional variations and must be measured prior
to installation. Do not use dimensions to determine
location of mounting holes.
mr.steam®towelwarmers Installation, Operation & Maintenance Instructions
_________________________________________________________________
4
WALL PREPARATION
• DO NOT mount the Towel Warmer without providing
structurally secure upper and lower headers as shown.
• DO NOT mount the Towel Warmer directly to sheet
rock or any other non-structural surface.
• Use longer fasteners as required if the finished wall surface
prevents adequate mounting with the screws provided.
• Provide a clearance hole in the lower header as required
to route field wiring to the Towel Warmer wiring box.
(not applicable for cord connected models)
IMPO TANT NOTE: See electrical rough-in instruc-
tions on page 6.
IMPO TANT NOTE: Towel Warmers may have small
dimensional variations and must be measured prior to
installation. Do not use dimensions to determine
location of mounting holes.
!CA UT IO N
MOUNTING DIMENSIONS (inches)
Hard Wired & Cord Connected
MODEL ABC
328 18
7
⁄
16
17
15
⁄
16
7
1
⁄
4
336 18
7
⁄
16
25
9
⁄
16
7
1
⁄
4
348 18
7
⁄
16
35
3
⁄
4
7
1
⁄
4
This
End
Up
Wiring Box
UpperHeader(Z)
LowerHeader(Z)
Finished
wall surface
Towel Warmer
MOUNTING DIMENSIONS (inches)
Hard Wired & Cord Connected
MODEL X(min) Y Z (min)
( eader horizontal length) ( eader vertical length) ( eader size)
328 19 17
15
⁄ 16 2 x 6
336 19 25
9
⁄ 16 2 x 6
348 19 35
3
⁄ 4 2 x 6
For Technical Service Assistance:
East Coast Tel: [phone]
West Coast Tel: [phone]

mr.steam®towelwarmers Installation, Operation & Maintenance Instructions
_________________________________________________________________
5
INSTALLATION:
W328, W336, W348
TO P EVENT SHOCK HAZA D, THE ELECT ICITY MUST BE
TU NED OFF AT THE MAIN PANEL BEFO E ANY WI ING IS DONE.
IMPO TANT NOTE:
See electrical rough-in instructions on page 6.
Install Towel Warmers in upright position only. Locate with wiring
box on bottom as shown. Failure to install properly may result
in a hazardous condition. See page 4.
!WA N IN G
!WA N IN G
Allen
Wrench
Wiring Box
Mounting
Bracket
Mounting
Screw
Towel
Warmer
Mounting
Bolt
Sleeve
Extension
7. Slide the towel warmer onto
the mounting brackets. Mark
the location for the wiring box
escutcheon.
8. Remove the towel warmer and
secure the escutcheon to the
wall per the instructions on
page 6.
9. Slide the towel warmer onto the mounting
brackets. Secure the towel warmer in place
using the mounting bracket set screws.
1. Remove Towel Warmer and
parts from the packing
materials.
2. Using the allen key provided,
loosen the wiring box set
screw. DO NOT remove the
wiring box.
3. Gently rotate the wiring box as
shown. Tighten the set screw
firmly to prevent the wiring
box from rotating.
4. Locate the mounting brackets
on the wall by measuring the
mounting holes on the towel
warmer.
5. Using the screws provided
secure the brackets to the wall.
6. Insert the sleeves into the
extensions. Using the
mounting bolts secure the
extensions and sleeves to
the 4threaded holes on
the towel warmer.
Wiring Box
Escutcheon
Escutcheon
Set Screw
Wiring Box
Mounting Bracket
Extension
Mounting
Bracket
Set Screw
• (4) Mounting bolts
• (4) Sleeves
• (4) Extensions
• Wiring box escutcheon
• (2) Allen wrenches
• Instructions
• Warranty
BOX CONTENTS:
• Towel Warmer
• (4) Mounting Screws
• (3) Wiring Box Mounting Screws
• (2) Wiring Box Set Screws
• (4) Mounting Brackets
• (4) Mounting bracket Set Screw
(Note: Cord connected models use
4 knurled thumb screws )
WiringBox
Mounting
Screws
Wiring
Box
Escutcheon

ELECTRICAL CONNECTIONS
TO P EVENT SHOCK HAZA D, THE
ELECT ICITY MUST BE TU NED OFF AT THE MAIN
PANEL BEFO E ANY WI ING
IS ATTEMPTED.
The towel warmer is an electric device.
It must be installed by a licensed electrician in accordance
with the National Electrical Code (NEC) and local code.
Installation of a wall switch or timer to
turn the towel warmer on and off is required.
NOTE: When the towel warmer is energized (ON), the indi-
cator light on the towel warmer will illuminate.
NOTE: The Towel Warmer wires are color coded: BLACK for
LINE, W ITE for NEUTRAL, GREEN/YELLOW for EQUIP-
MENT GROUND.
Install Towel Warmers in upright position
only. Locate with wiring box and pilot light on bottom as
shown on pages 4 & 5. Failure to install properly may result in
overheating and a hazardous condition.’
All wiring must conform to National Electrical Code (NEC)
and local code.
mr.steam®towelwarmers Installation, Operation & Maintenance Instructions
_______________________________________________________________
6

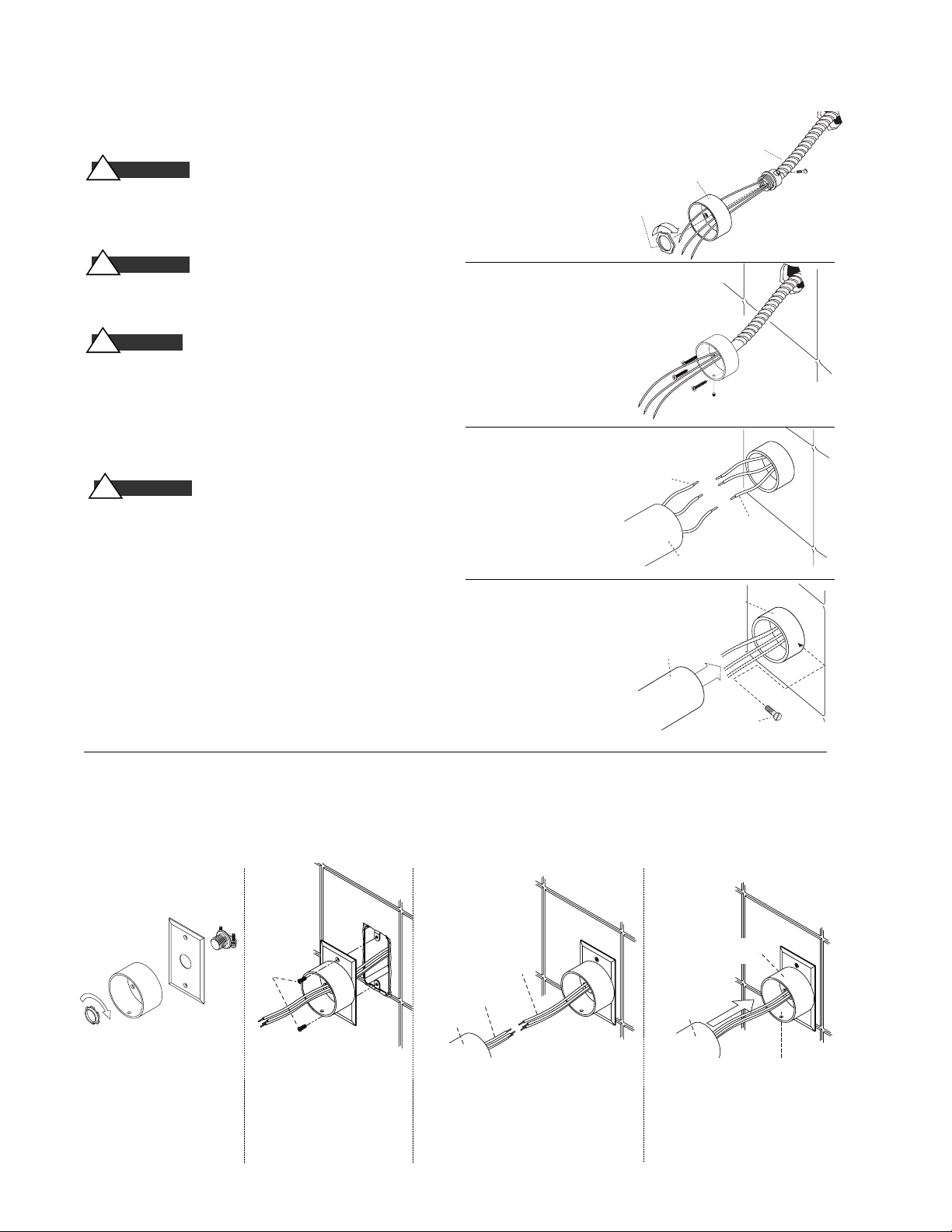

Wiring Box
Set Screw(s)
Wiring Box
Wiring Box
Field
Wires
Wiring Box
Escutcheon
Wiring Box
Escutcheon
BX Connector
Lock Nut
BX Cable*
(or greenfield)
Wires from
wiring box
!WA N IN G
1. Assemble the BX cable
connector to the wiring box
escutcheon as shown.
NOTE: NM (non-metallic) cable,
if permitted by National and
Local Codes, may be used
instead of BX cable
2. Secure wiring box escutcheon
to the wall with screws
provided. (Use longer screws
as required by construction
conditions.)
3. Connect wiring per
instructions.
4. Slide the wiring box into the
wiring box escutcheon and
tighten the set screw firmly.
Secure the upper and lower
brackets per the instructions
on page 5.
!WA N IN G
!WA N IN G
!CA UT IO N
Instructions or Installing a 300 Series Towel Warmer with a Junction Box.
A wall plate is required to complete this installation. Available wall plates:
Polished Chrome 104093PC Oil Rubbed Bronze 104093ORB White 104093W
Field
Wires
Wires from
Wiring Box
Wiring Box
Wiring
Box Set
Wiring
Box
Wiring Box
Escutcheon
Wall
Plate
Screws
1. Assemble the bushing to
the wall plate and wiring
box escutcheon as shown.
2. Secure the assembly to
the junction box using
the screws provided
with the wall plate.
3. Connect wires
per instructions
4. Slide the wiring box into the
wiring box escutcheon and
tighten the set screw firmly.
Secure the upper threaded
flanges and lower brackets
with screws provided.

TO P EVENT ELECT IC SHOCK HAZA D, NO BA E WI E
O WI E ST ANDS SHALL BE EXPOSED AFTE MAKING CONNECTIONS.
Towel Warmer surface may continue to be hot for a period
of time after it has been turned off.
INSTALLATION: MODEL F328
BOX CONTENTS:
•Towel Warmer with 6' Grounding Type
Power Cord
• (2) Legs
• (2) Leg Screws
• (1) Large Allen Key
• (2) Spacers
• Instruction & Operation Manual
• Warranty
1. With the unit unplugged, assemble the tubular legs
to the bottom of the Towel Warmer as shown.
2. DO NOT OVERTIG TEN!
Locate F328 on a flat hard surface.
Failure to do so may result in an unstable installation
resulting in a hazardous condition.
Towel Warmer
Spacer
Leg
Leg Screw
Allen Wrench
IMPO TANT: DO NOT
OVE TIGHTEN!
mr.steam®towelwarmers Installation, Operation & Maintenance Instructions
_________________________________________________________________
7

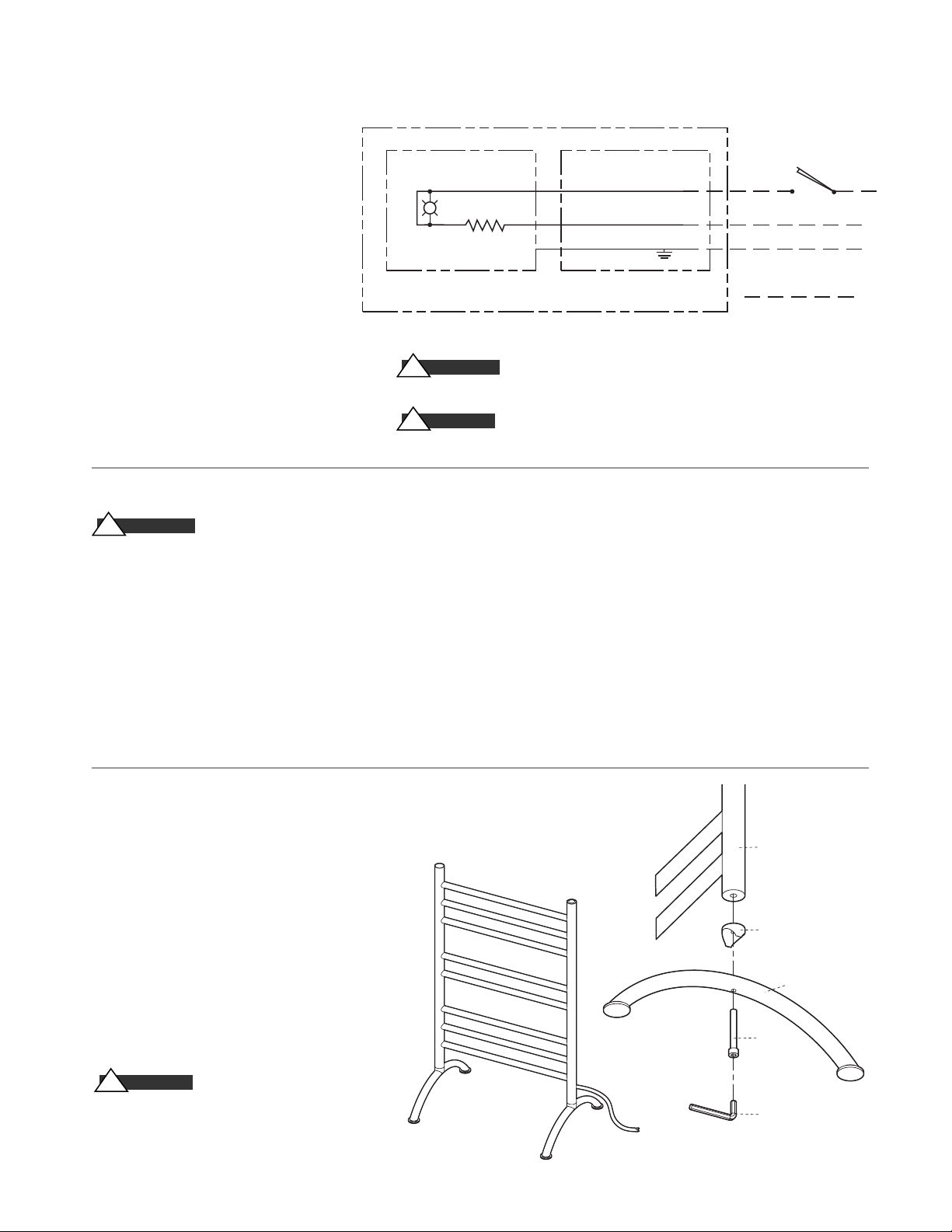

AVAILABLE DIGITAL PROGRAMMABLE TIMER
1. Read the operating instructions provided with the timer.
2. Disconnect power supply prior to installation to prevent electrical shock.
3. Damage to the contacts caused by short circuiting will void the warranty.
4. Wire in accordance with National Electrical and Local Code requirements.
Be sure all connections are secure. Double check all twist-on wire connectors.
5. Mount timer into a single gang wall box using supplied screws.
6. If timer does not operate, check that the timer's black wire is connected to
hot line and not the load. If necessary, reverse connections to red and black wires
7. When the indicator light on the towel warmer is illuminated, the towel
warmer is energized.
AVAILABLE DECORATIVE
FACE PLATES FOR TIMER:
Brushed Stainless Steel 103872D-SB
Polished Stainless Steel 103872D-SP
GENERAL:
The Towel Warmer requires 120 VAC, 50/60
z power. Specific amperage needed is listed
in the Towel Warmer Specifications
Chart on page 3 of this manual.
A.
Electrical connections should be made as
prescribed by the National Electrical Code
and local code. The unit should be field
wired using 14 AWG min 90°C-rated insu-
lated copper wire. All models are to be pro-
tected by a separate 15 amp circuit break-
er, GFCI or equal.
B. Make connections between Towel Warmer and
house wiring using approved connections to
comply with the National Electrical Code and
local codes. LINE (black), NEUTRAL
(white), and GROUND.
Electric Towel Warmer
Element
Heating Element Wiring Box
Field Wiring
L
N
GRND
L
N
GRND
Field Installed Wall Switch or
Mr. Steam Digital Programmable Timer
PN: 103588DIG
Indicator Light
X
X
X
!CAUTION
!CA UT IO N
!WA N IN G
!WA N IN G

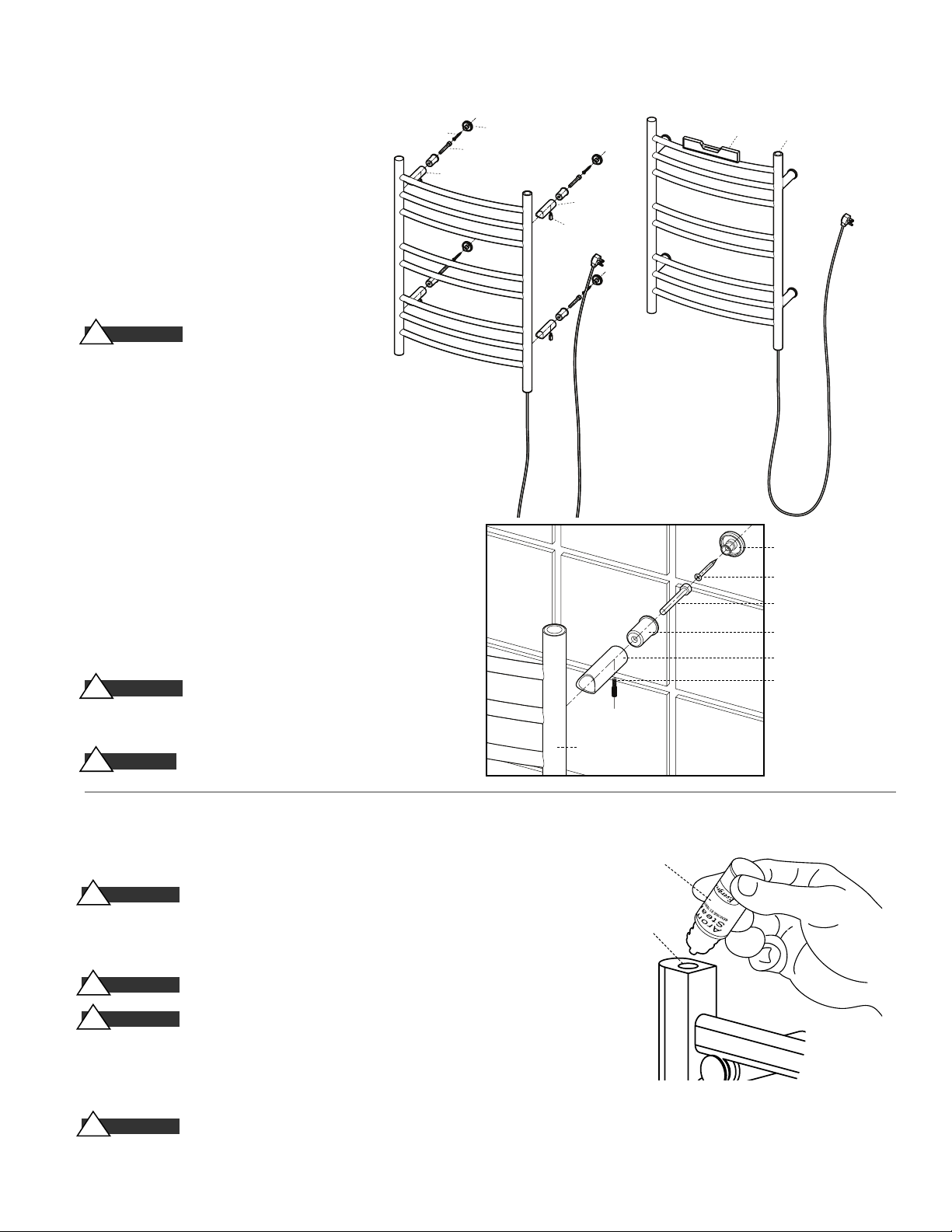

INSTALLATION: W328CORD,
W336CORD, W348CORD
Sleeve
Extension
Mounting
Bracket
Set Screw
Mounting
Screw
Mounting Bolt
Mounting Bracket
Level
(not supplied)ON
Indicator
Light
mr.steam®towelwarmers Installation, Operation & Maintenance Instructions
_________________________________________________________________
8
BOX CONTENTS:
• Towel Warmer
• (4) Mounting screws
• (4) Mounting brackets
• (4) Mounting bracket
knurled thumb screw
• (4) Mounting bolts
Plug into a grounded 3prong
outlet. DO NOT remove ground prong. DO NOT
use an adapter. DO NOT use an extension cord.
1. Remove Towel Warmer and parts from the
packing materials.
2.
An outlet should be provided per National and local
electrical Codes such that when plugged in the cord is
not stretched, pinched or routed in such a manner as
to cause a hazard.
3. Locate the mounting brackets on the wall by measuring
the mounting holes on the towel warmer.
4. Using the screws provided secure the brackets to the wall.
5. Insert the sleeves into the extensions. Using the mounting
bolts secure the extensions and sleeves to the 4threaded
holes on the towel warmer.
6.
Slide the towel warmer onto the mounting brackets and
secure in place using the knurled thumb screws provided
with the cord connection kit
Install Towel Warmers in upright position only.
Locate with cord on bottom as shown. Failure to install properly
may result in a hazardous condition. See page 4.
Do not fasten power supply cord to wall surface.
!WA N IN G
!CA UT IO N
!WA N IN G
• (4) Sleeves
• (4) Extensions
• Allen wrench
• Instructions
• Warranty
Towel Warmer
Mounting
Bracket
Mounting Screw
Mounting Bolt
Sleeve
Extension
Knurled Thumb
Screw
USING MR.STEAM ESSENTIAL OILS
Enjoy AromaSteam essential oils by placing one or two drops of oil into your 300 series towel
warmer aroma well as shown in the illustration. Only use Mr.Steam
®
AromaSteam essential oils.
Use essential oils with caution. Essential oils are for external use only.
Keep out of reach of children. Essential oils are highly concentrated and are potent
substances and should not be applied directly to the skin as they can be irritants.
Use essential oils with caution.
Start with one drop to gauge strength and suitability.
Some people may find that the aroma makes them dizzy and the
user should turn off the towel warmer and exit the room IMMEDIATELY. If skin irritation
occurs stop using the oils immediately. Remove any excess oil by washing in mild soap
and water. If ingested, rinse mouth with water. Administer water or milk to dilute.
Contact a physician immediately.
Use care not to allow oil to contact towels.
Tightly close oil bottles when storing oils. Keep oil bottles away from sources of ignition.
!WA N IN G
!CA UT IO N
!CA UT IO N
!CA UT IO N
AromaSteam 10ml ottle
with integrated dropper
Aroma Well
