mr. steam Steambatch System User manual

PUR 100431 5/12
General Guidelines for Installing
the Mr.Steam
®
Steambath System
mr
.steam
®
.mrsteam.com EAST COAST 800-76-STEAM WEST COAST 800-72-STEAM

____________________________________________
For additional and important detailed Installation,
Operation and Maintenance information, it is strongly
recommended that reference be made to the Mr.Steam®
Residential Steambath Generator Manual PN 101289
or contact Mr.Steam®at 1-800-76-Steam,
[email protected] or visit www.mrsteam.com
____________________________________________

2
Steamhead
Field Installed
Water Supply Line
Steam Generator
Control
Cable
Field Installed
Power Supply
Automatic
Drain Valve Field Installed
Steam Supply Pipe
In-Showwer
Control
Locating th Mr.St am®G n rator
Select a location as near as practical to the steam room.
Typical locations include: closet, vanity cabinet, heated attic or basement.
1 . ocate steambath generator within 50 feet of steam room. Note: The standard
length of the cable for connecting the control to the steam generator is 30 feet.
The steam generator and control must be located accordingly. A 60 foot cable
(PN 103990-60) is available as a special order part.
2.DO NOT install steambath generator inside steam room.
3.DO NOT install steambath generator outdoors or wherever environmental
conditions may affect the safety and/or performance of the generator.
4.DO NOT install steambath generator or plumbing lines in
unheated attic or any locations where water could freeze.
5.DO NOT install steambath generator near flammable or
corrosive materials or chemicals such as gasoline, paint thinners,
or the like. Installation in areas having high concentrations of
chlorine (such as pool equipment room) must be avoided.
6.Install steambath generator on a solid and level surface.
Keyhole slots are provided for wall mounting. Insure the
steam generator is properly secured and level when
mounting with keyhole slots.
7.Install steambath generator in an upright position only.
Install a pressure reducing valve to limit supply to 15-20 PSIG
8.Install anti-water hammer device as necessary.
9.Provide a minimum of (12) inches at both ends and top of the steam
generator or as required for servicing.
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

3
ON
OFF
Main Electrical
Disconnect Panel
240V
PowerLine
1" Air Gap Indirect Drain System.
Check local plumbing code for
receptor, trap and vent requirements.
Models MS 90E – MS 400E (single phase wiring shown)
Models MS Super 1E - 6E (single phase wiring shown)
Transformer
Liquid Level
Control Board
Water Feed
Solenoid
Steam Outlet
Liquid Level
Probe
AutoFlush Plug &
Play Connection
Contactor
Power
Supply
Knock-Out Water Feed
Transformer
Water Feed
Solenoid
Water Feed
Liquid Level Probe
AutoFlush Plug &
Play Connection
Fuses
Power Blocks
Contactor
Power Supply
Knock-Out
Steam
Outlet
* Super 1 is not internally fused
Liquid Level
Control Board
Fi ld Pow r Supply Conn ction
________________________________________
TO AVOID EQUIPMENT DAMAGE
DO NOT CONNECT POWER SUPP Y
DIRECT Y TO E EMENTS!!!
________________________________________
NOTE: For illustrative purposes only.
Consult with qualified licensed electrician
for electrical installation.
1, 2, Ground
to be field wired
Please refer to the wiring
diagram in the Mr.Steam
Installation Manual for
complete wiring information.
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

4
Water Feed Line
(3⁄8" NPT)
Wat r F d
1. Connect hot or cold water line. Hot water
line is preferable, however hot water
should not exceed 160˚ F.
2. Provide a shut off valve in the water supply
line upstream of the steambath generator.
3. Do not overheat inlet solenoid valve with
solder connections. Overheating will
damage parts.
4. Flush inlet water line thoroughly before
making connection to unit.
5. Strainer recommended upstream of feed
water connection.
6. For best performance water pressure
should be 15 to 20 PSIG. Reduce pressure
as required if necessary.
7. Provide anti-water hammer device as
required.
8. As required by local codes, install an
approved backflow preventer.
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

5
Steam Generator
Steam Outlet
Pipe
Union
212˚ F Rate
Pipe Insulation
PITCH UP OR DOWN
BUT DO NOT CREATE
VALLEYS OR TRAPS
St am Outl t Pip
Steam Outlet (1⁄2" NPT)
1. Do not install any valve in steam line.
Flow of steam must be unobstructed.
2. Use 1⁄2-inch brass pipe or copper tubing
from unit to steam head as permitted by
codes.
3. Insulate steam line using pipe insulation
rated 250˚ F or higher.
4. Pitch steam line 1⁄4" per foot towards
steam head or steam generator to avoid
valleys and trapping of condensate.
NOTE: Running the steam line down and
then up will create a steam trap blocking
the flow of steam.
NOTE: A 1.5" hole in the steamroom
is required to mount the steamhead.
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

6

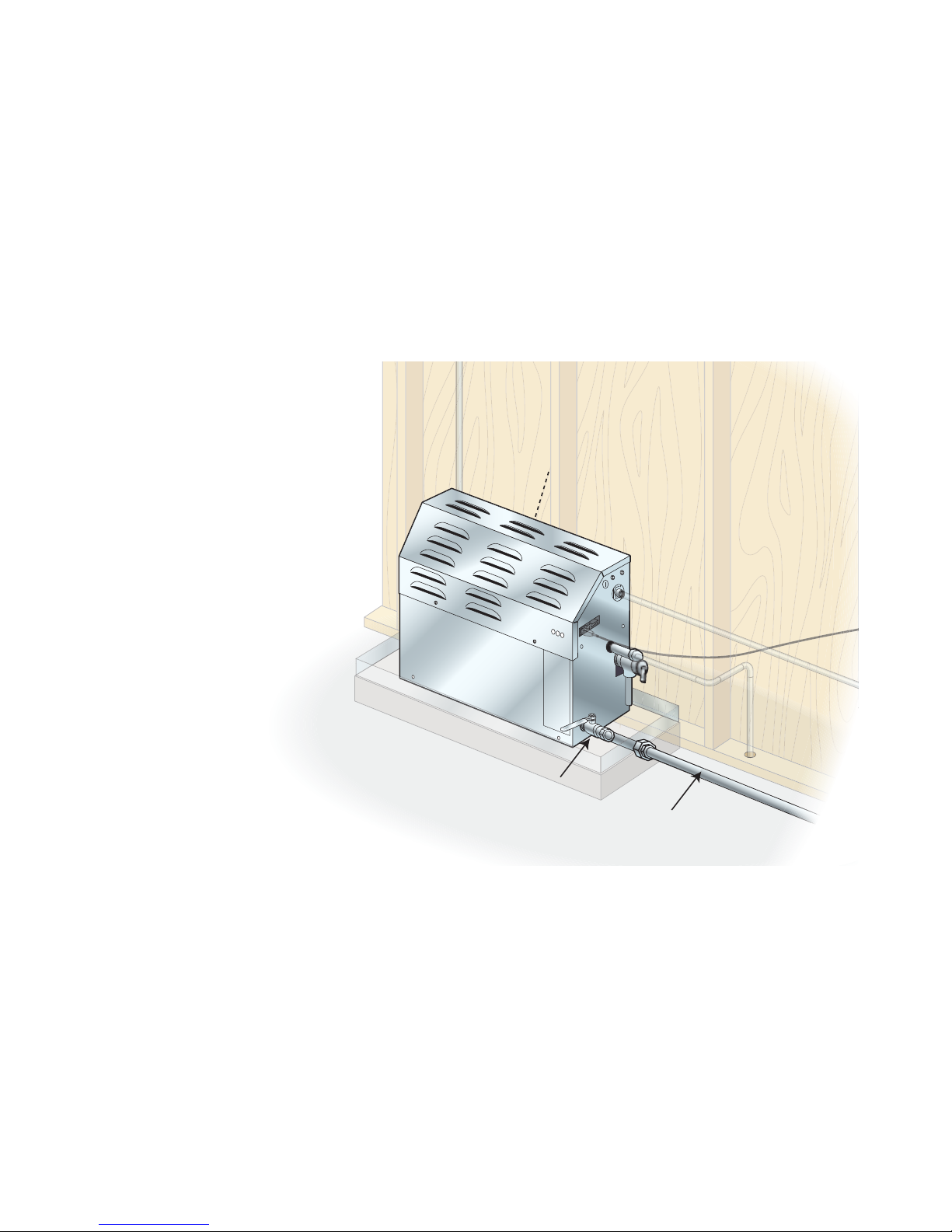

Steam Generator
PITCH AS REQUIRED
FOR GRAVITY DRAIN
Manual Drain Valve
Shown in Closed Position
Manual Drain Lin
Drain (1⁄2" NPT)
NOTE: A drain valve is provided to
facilitate servicing. Provide a drain line
connection from steambath generator
drain valve according to National and
local Codes.
Check local plumbing code for recep-
tor, trap and vent requirements.
Unit drains by gravity.
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

7

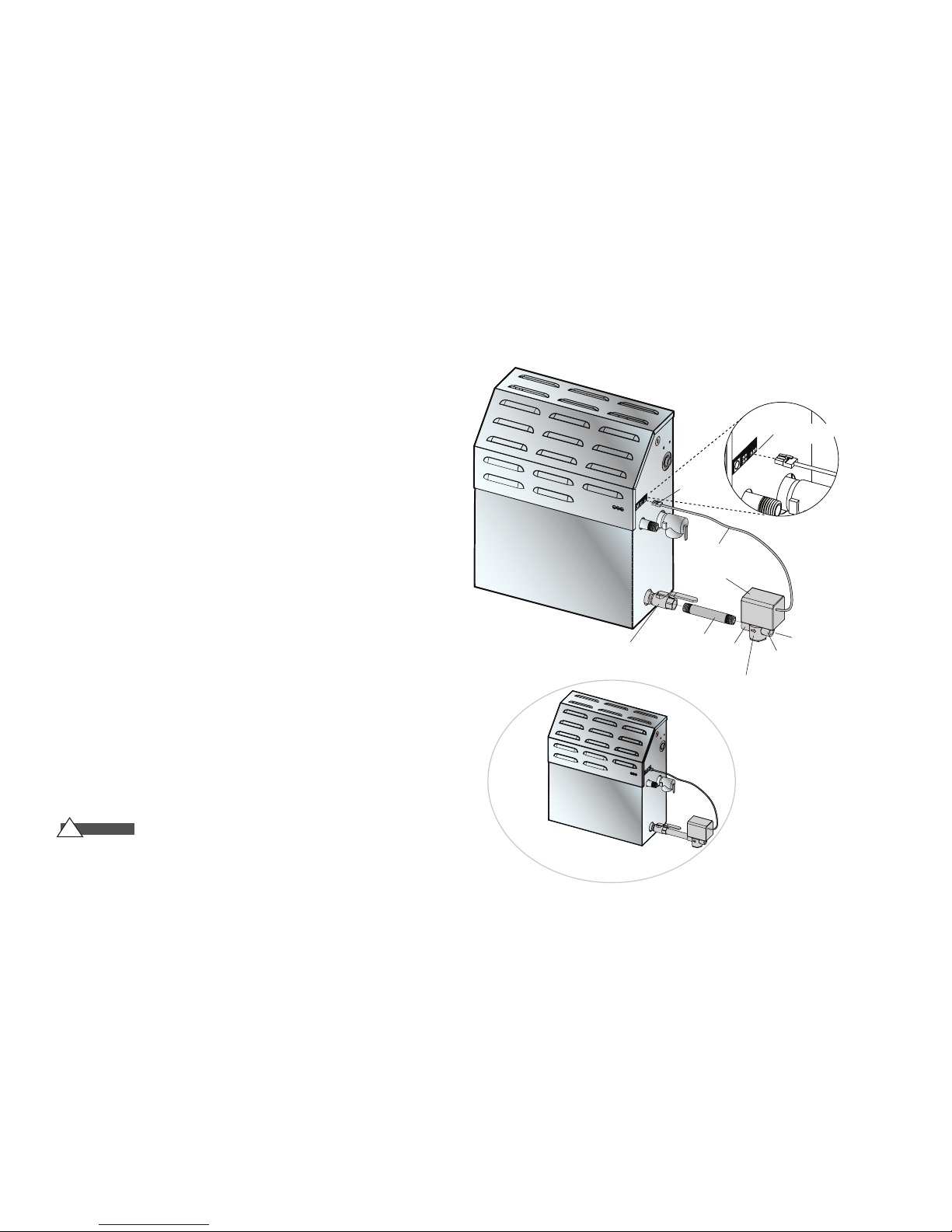

Autoflush Shown
Fully Assembled
Drain Valve
(shown in the correct open position)
DO NOT REMOVE THIS DRAIN VALVE
Nipple copper or
brass nipple
1⁄2" NPT x 3-1⁄2" or
longer (not supplied)
Steam
Generator
AutoFlush Cord
AutoFlush Valve
AutoFlush
Cord
Connector
Plumb to
Drain Line
End
"B" End
"A"
Arrow indicates
correct direction
of flow
3 Pin Connector
for AutoFlush
Optional AutoFlush
Operation
The optional AutoFlush System feature automatically drains the
Mr.Steam®system following each use. A time delay allows the water
to cool down (about two hours) before it drains by gravity for a safe
and gentle operation.
NOTE: If the Express Steam option has been installed, the AutoFlush
will drain for ten minutes then refill with fresh water to begin the
pre-heat cycle.
Installation Instructions
1. Plumbing to be performed by a qualified plumber and shall be in
accordance with applicable national and local codes. Unit drains
by gravity. A drain line that is lower than the AutoFlush assembly
must be available. The AutoFlush System valve outlet is threaded
1⁄2
" NPT. Check plumbing code for receptor, trap and vent require-
ments.
2. Use copper or brass nipple
1⁄2
" NPT x 3
1⁄2
" or longer (not supplied)
to connect AutoFlush valve (end "B") to the Drain Valve (valve end
“A” and “B” are indicated on bottom of AutoFlush Valve)
PROVIDE DRAIN P UMBING ACCORDING TO
OCA CODES. P UMB AS REQUIRED FOR AUTOF USH SYSTEM.
!CAUTION

8
Typical Steam
Generator Unit
3/4" Outlet
Drain Pan
Drip Pan
PN 103867
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

9
Thermostat
Express Steam
Heating Element
Expr ss St am
(only available factory installed)
Suitable for all MS Models.
Express steam is equipped with a low power
heating element and thermostat to keep the
water in the tank warm enough to bring up
steam quicker. All express steam compo-
nents and wiring are installed at the factory.
No additional wiring or plumbing is required
by installers.

10
Transformer
Drain Line
Liquid Level
Control Board
Water Feed
Solenoid
Water Inlet
Safety Valve
AutoFlush
Valve
(optional)
Stainless Steel Tank
Heating Element
Express Steam
Heater (optional)
Access Cover
Liquid Level Probe
Plug and Play
Connection
Power Block
Power Supply
Knock-Out
Contactor
Steam Outlet
Fuses
Parts
MS SUPER 2E shown

11
Secondary Unit
Primary Unit
(unit the control
is connected to)
• Standard Tandem Cable for
Connecting (2) Units PN 103904
• Optional Tandem Cable for
Connections up to (5) Units
PN 103917
Tand m St am G n rator Installation
(MS Sup r 4E, 5E & 6E)
Refer to the Mr.Steam Installation manual
for additional installation information.
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

12
Typical Steam
Generator Installation
Locate control where it will
sense general room temperature
and NOT direct steam emission
from the steam head.
Refer to the Mr.Steam
Installation manual for
additional control
installation information.
T mpo®and T mpo/Plus®Controls
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

13
1" hole

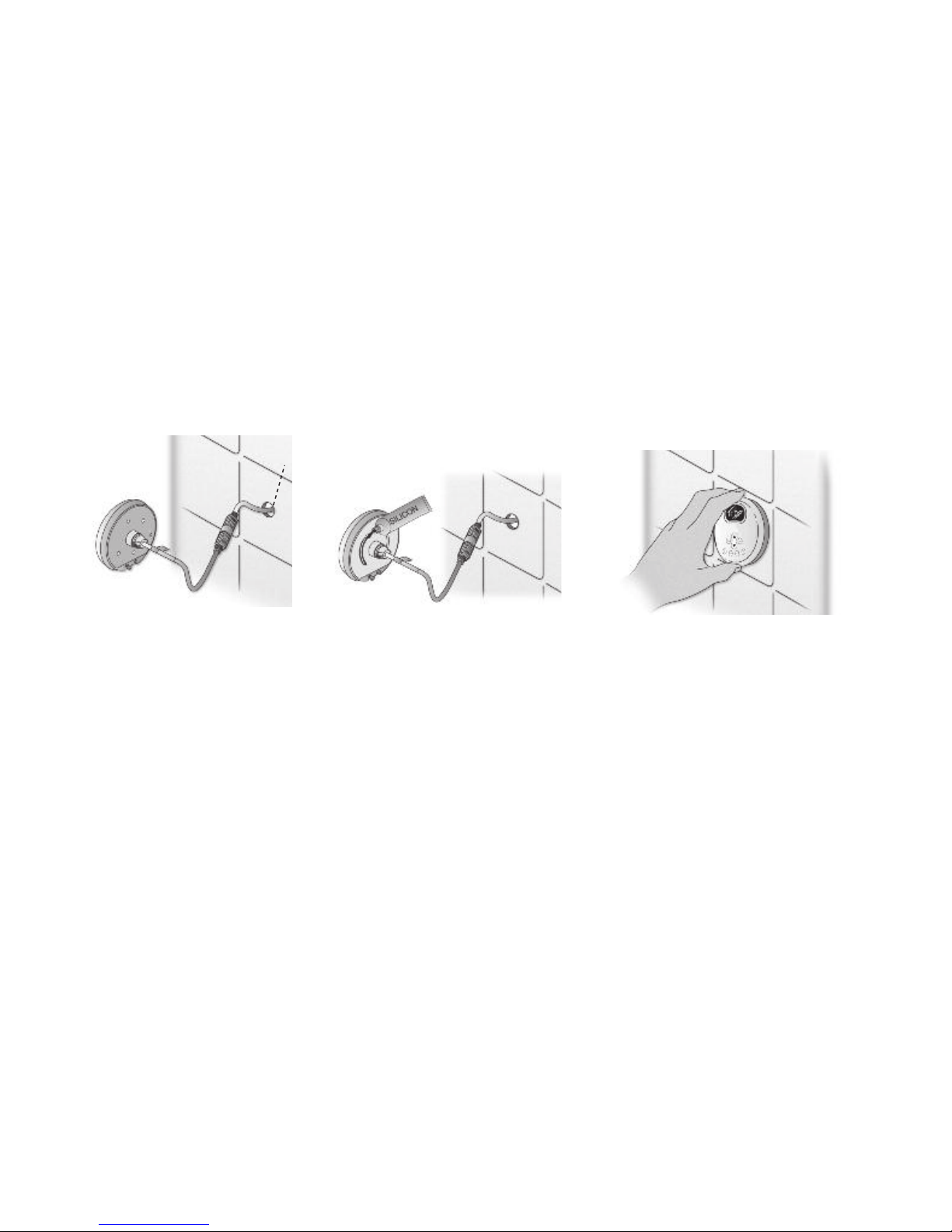

Installing th T mpo®or T mpo/Plus®Control
1. Firmly connect the connector to the control.
Turn on power to the steam generator and test
the control to verify correct connections. Test
per instructions. Proceed with installation and
verification of proper control function.
IMPORTANT: Turn power to the steam generator
OFF before installing the control. Failure to turn
the power off will result in an inoperable control.
2. Remove & discard peel-off paper to expose
adhesive liner
3. Run a bead of silicone (provided) as shown to
the C shaped groove.
IMPORTANT: Do not apply excessive amounts of
silicone. Do not apply silicone to any other parts
of the control including the adhesive gasket.
4. Insure the mounting surface is clean and dry
as required for good adhesion. Apply silicone
into the hole in the wall as required to create
a moisture seal. Hold the control with the ED
display in the 12 o'clock position and press
the control against the wall until the adhesive
sticks and holds firmly as shown above.

14
To eTempo or
eTempo/Plus controls
Conn cting th Control Cabl to th St am G n rator
Route the control cable (provided
with the control) from the wall cutout
to the steam generator.
IMPORTANT: Do not strain, staple,
pinch or otherwise damage the con-
trol cable. Route cable as required
to permit replacement.
The 30' (and optional 60') control
cable features identical Mini-Din
connectors at both ends.
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

15
MSTS Remote Temperature Sensor
Locate the Remote
Temperature Sensor (MSTS)
where it will sense general
room temperature and NOT
direct steam emission from
the steam head.
Refer to the Mr.Steam
Installation manual for
additional control
installation information.
Locating th T mpo®or T mpo/Plus®
Control Outsid th St am Room
by Using R mot
T mp ratur S nsor
For Illustrative purposes only. Consult with qualified designer,
architect or contractor for steamroom construction details.

16
St am G ni ®Control
• Activate your steam shower from
anywhere in the home - Wirelessly
• Penetrates walls! Radio Frequency
activated. Can be easily connected
with any Mr.Steam®bath generator
• Adapts to standard Mr.Steam®
generator. No upgrade required
• Easy Plug & Play connection
• Can be used inside the shower
• Removable lanyard for convenience
& storage “wearability”

17
Use Teflon or equal
sealant on pipe threads
Apply with silicone or
equal sealant as required
for moisture seal
End of pipe to be
recessed 1/4"
(without Acrylic Shield)
Oil Well
Steamhead
Locating
Nipple
Step 3 Step 4 Step 5
AromaSt am™St amh ad and
Optional Acrylic Shi ld Installation
NOTE: Steamhead to be installed 6-12" above the floor.
A 1.5" diameter hole in the steamroom is required to mount the steamhead.
Refer to the Mr.Steam Installation Manual for additional installation information.
The Acrylic Shield (PN 103938) is for use when acrylic
or other non-heat resistant materials are used for the
steamroom enclosure.

18
Mr.Steam Essential Oils
made from natural plant
extracts. Packaged as
individual 10ml bottles
with integral dropper.
Using Ess ntial Oils with th
AromaSt am™St amh ad

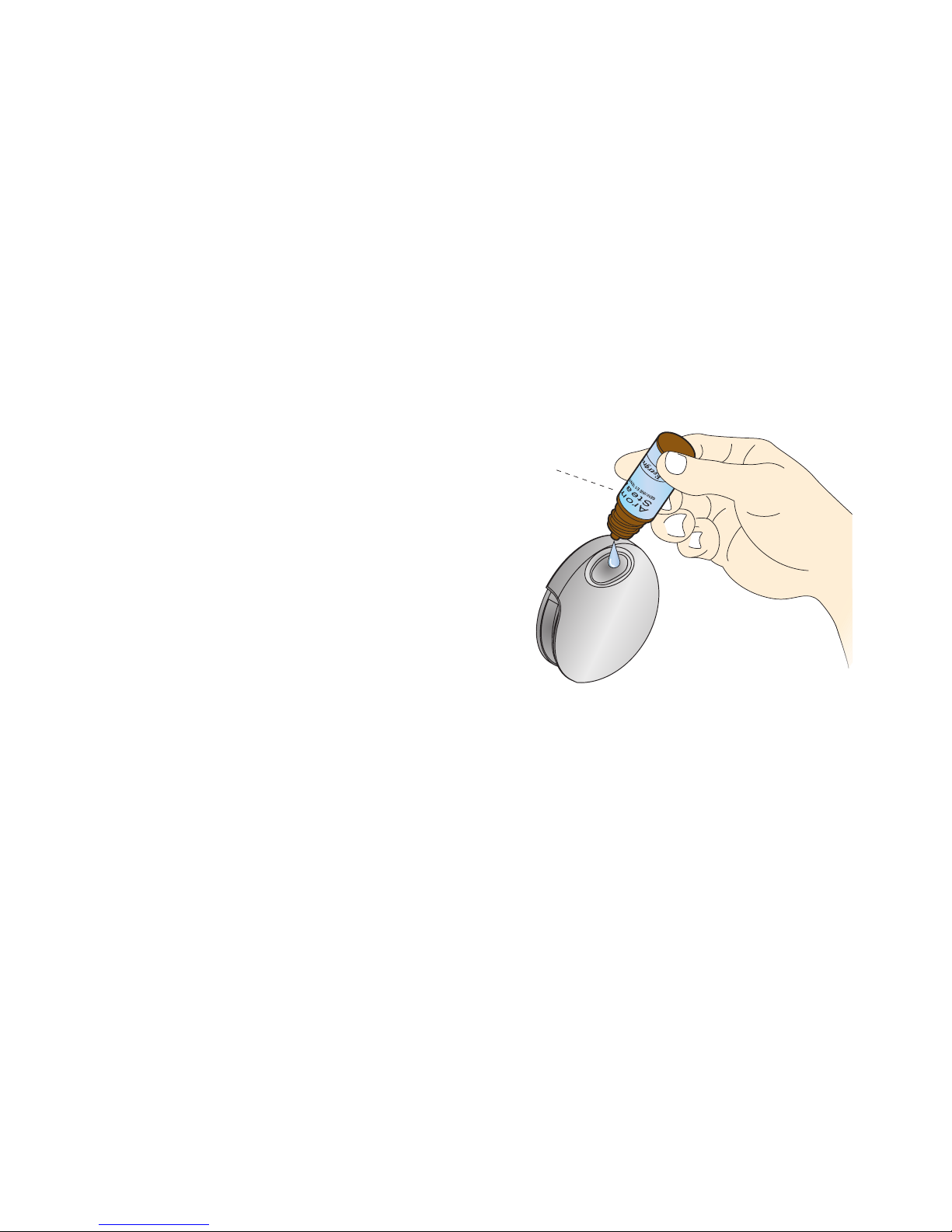

Enjoy essential oils by placing a drop or two, into your
steamhead as shown in the illustration.
CAUTION: Use essential oils with caution. Essential oils are for external
use only. Keep out of reach of children. Essential oils are highly concen-
trated and are potent substances and should not be applied directly to the
skin as they can be irritants. Use essential oils with caution.
CAUTION: Place the drops into the Mr.Steam AromaSteam steamhead
well prior to turning on the steambath. Do not place drops in a hot steam
head as SERIOUS INJURY CAN RESU T IF YOU DO NOT FO OW THIS
WARNING.
CAUTION: Start with one drop to gauge strength and suitability.
imit to a maximum of a few drops during a steambathing session.
CAUTION: Some people may find that the aroma makes them dizzy and
the user should exit the steam bath IMMEDIATE Y. If skin irritation occurs
stop using the oils immediately. Remove any excess oil by washing in mild
soap and water. If ingested, rinse mouth with water. Administer water or
milk to dilute. Contact a physician immediately.
Tightly close containers when storing oils. Keep away from sources
of ignition.

19
Typical Installation
Typical Mr.Steam
Steam Generator
Cable to Steam Generator
(Request Cable)
Pump Line Cord 120V
(grounded receptacle required)
Mounting
Bracket
AromaSteam
System
Atomizer Nozzle
Pressure Hose
Steam Line
STEAM ROOM
UTILITY
ROOM
Min. distance16"
Max. distance 36"
Steam head
Scent Container
The Demand Button remains unused
(in the ON position) when the Aromasteam
system is operated by the eTempo/Plus control.
90˚ T
Max ht.6 ft.
AromaSt am™Syst m
MS Aroma
Electronic Oil delivery system evenly
infuses aroma into steam for an aro-
matherapy experience. Complete with
in-shower control, oil container caddy,
hoses, fittings and oil atomizer.
AromaSteam Essential oils are available
in one-liter bottles. Not for use with
acrylic or fiberglass rooms.
ocate the AromaSteam system
to monitor the consumption of
essential oils and for easy oil
replacement.
NOTE: CAB ES SHOU D NOT
CONTACT STEAM PIPE.
