MSI B450 GAMING PRO CARBON User manual

I

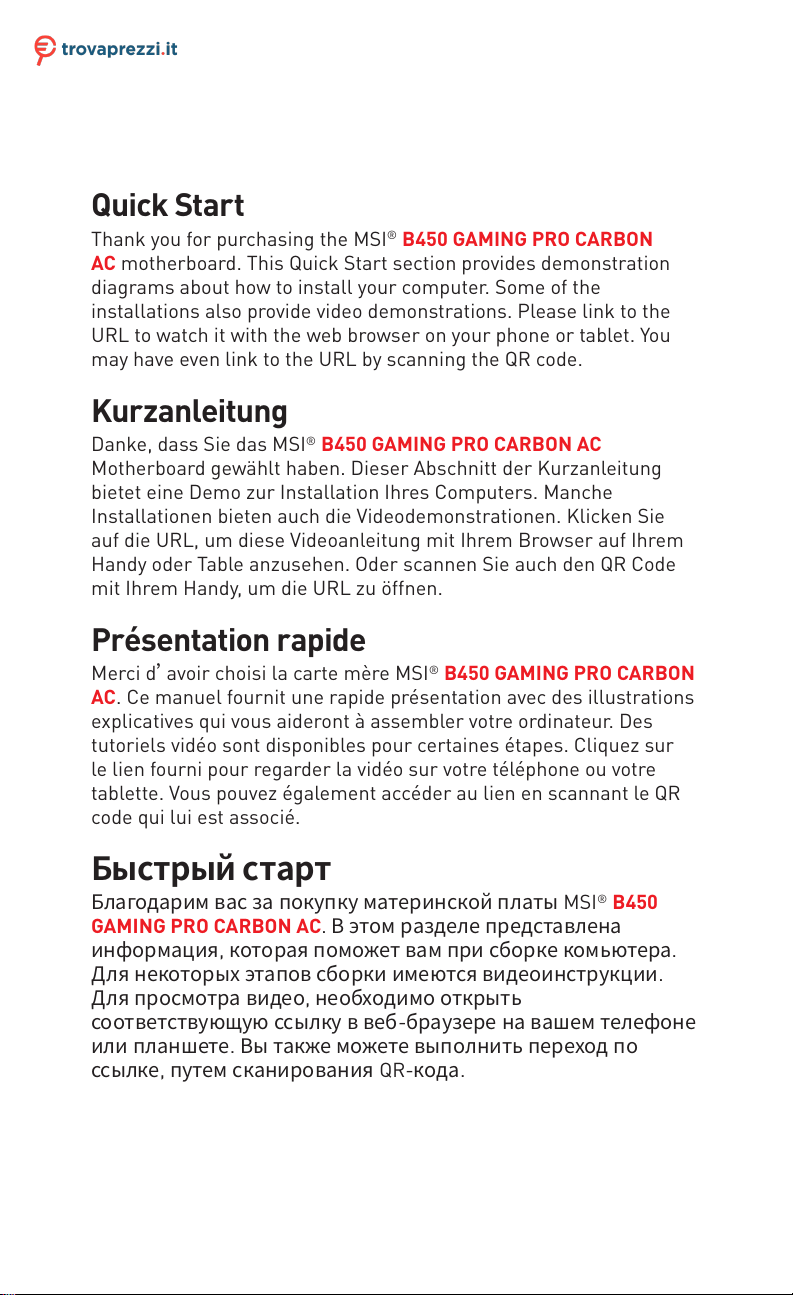

Quick Start
Quick Start
Thank you for purchasing the MSI®B450 GAMING PRO CARBON
AC motherboard. This Quick Start section provides demonstration
diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the
URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®B450 GAMING PRO CARBON AC
Motherboard gewählt haben. Dieser Abschnitt der Kurzanleitung
bietet eine Demo zur Installation Ihres Computers. Manche
Installationen bieten auch die Videodemonstrationen. Klicken Sie
auf die URL, um diese Videoanleitung mit Ihrem Browser auf Ihrem
Handy oder Table anzusehen. Oder scannen Sie auch den QR Code
mit Ihrem Handy, um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®B450 GAMING PRO CARBON
AC. Ce manuel fournit une rapide présentation avec des illustrations
explicatives qui vous aideront à assembler votre ordinateur. Des
tutoriels vidéo sont disponibles pour certaines étapes. Cliquez sur
le lien fourni pour regarder la vidéo sur votre téléphone ou votre
tablette. Vous pouvez également accéder au lien en scannant le QR
code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®B450
GAMING PRO CARBON AC. Вэтом разделе представлена
информация, которая поможет вам при сборке комьютера.
Для некоторых этапов сборки имеются видеоинструкции.
Для просмотра видео, необходимо открыть
соответствующую ссылку ввеб-браузере на вашем телефоне
или планшете. Вы также можете выполнить переход по
ссылке, путем сканирования QR-кода.
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per MSI B450 Gaming
Pro Carbon AC o cerca il tuo prodotto tra le migliori offerte di Schede Madri

II Quick Start
Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора
https://youtu.be/Xv89nhFk1vc
1
2
3
6
4
5
7
89
CPU_FAN1

III
Quick Start

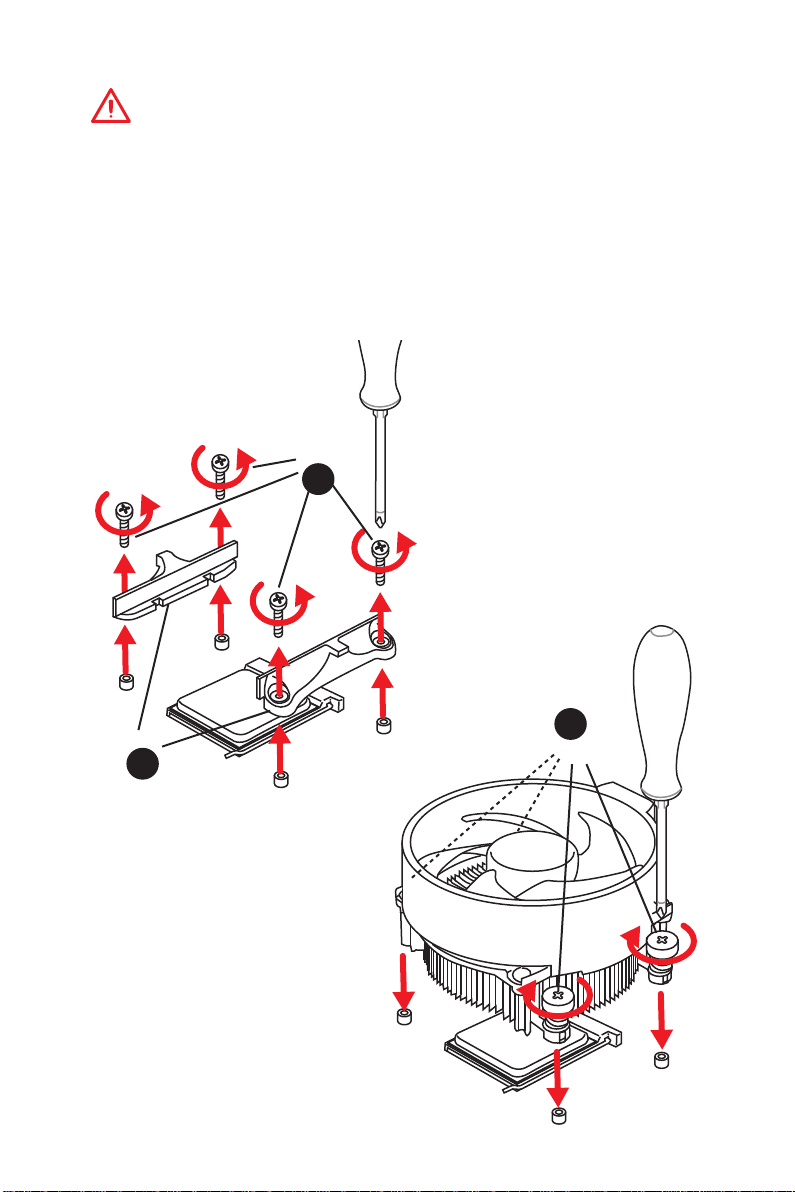

If you are installing the screw-type CPU heatsink, please follow the figure below
to remove the retention module first and then install the heatsink.
Wenn Sie einen CPU-Kühler mit Schraubenbefestigung einsetzen, folgen Sie bitte
den Anweisungen unten um das Retention-Modul zu entfernen und den Kühler zu
installieren.
Si vous voulez installer un ventirad pour processeur à vis, veuillez suivre les
instructions ci-dessous pour d’abord retirer le module de rétention puis installer le
ventirad.
Вслучае установки процессорного кулера ссистемой крепления на винтах,
следуйте указаниям на рисунке ниже для снятия пластикового модуля
крепления. Затем установите кулер.
1
2
3

IV Quick Start
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs
DIMMB2 DIMMB2
DIMMB1
DIMMA2 DIMMA2 DIMMA2
DIMMA1
1
1
2
2
3
3

V
Quick Start

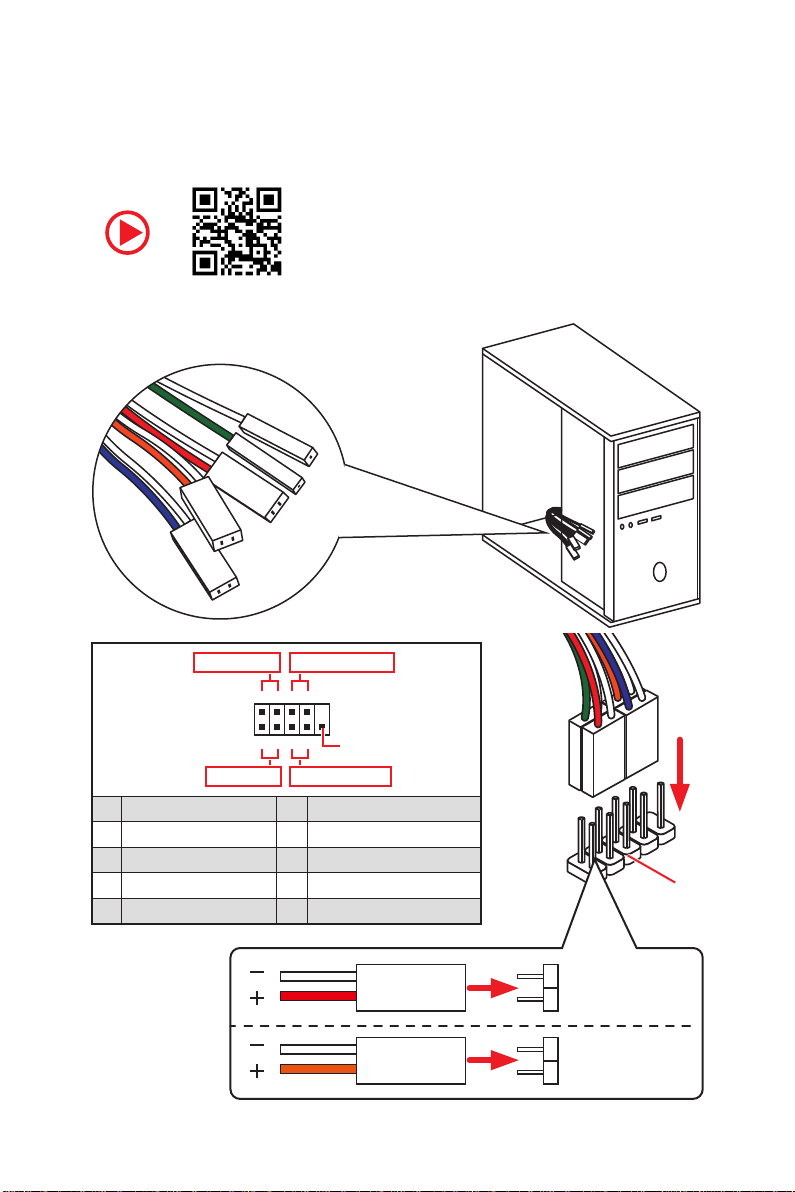

Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели
http://youtu.be/DPELIdVNZUI
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

VI Quick Start

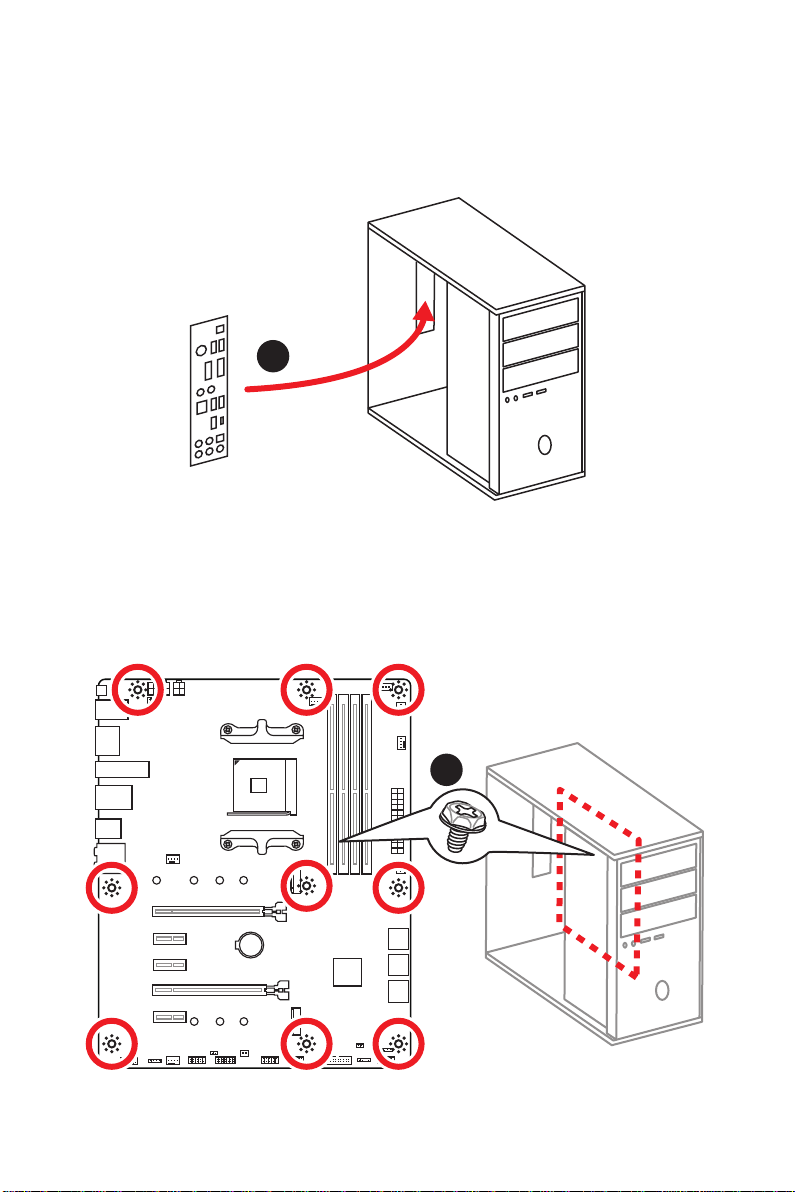

Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
BAT1
1
2

VII
Quick Start
1
23
4
5
Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc

VIII Quick Start
Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
http://youtu.be/mG0GZpr9w_A
1
2
3
4
5
6

IX
Quick Start
Connecting Peripheral Devices/ Peripheriegeräte/
Connecter un périphérique anschliessen/ Подключение
периферийных устройств
Ryzen™ with Radeon Vega Graphics Processors

XQuick Start
Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1
CPU_PWR2

XI
Quick Start
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания
1
4
2
3

XII NOTE
NOTE

1
Contents
Contents
Safety Information................................................................................................. 2
Specifications......................................................................................................... 3
JCORSAIR1 Connector Specification ..................................................................... 8
Package contents .................................................................................................. 9
Rear I/O Panel ..................................................................................................... 10
Overview of Components .................................................................................... 14
Processor Socket.................................................................................................. 15
DIMM Slots............................................................................................................ 16
PCI_E1~5: PCIe Expansion Slots.......................................................................... 17
M2_1~2: M.2 Slots (Key M) ................................................................................... 18
SATA1~6: SATA 6Gb/s Connectors ....................................................................... 19
JFP1, JFP2: Front Panel Connectors................................................................... 19
CPU_PWR1~2, ATX_PWR1: Power Connectors ................................................... 20
JUSB1~2: USB 2.0 Connectors............................................................................. 21
JUSB3: USB 3.1 Gen1 Connector ......................................................................... 21
CPU_FAN1, PUMP_FAN1, SYS_FAN1~4: Fan Connectors................................... 22
JAUD1: Front Audio Connector ............................................................................ 22
JCI1: Chassis Intrusion Connector....................................................................... 23
JCOM1: Serial Port Connector ............................................................................. 23
JTPM1: TPM Module Connector........................................................................... 24
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 24
JRGB1~2, JRAINBOW1: RGB LED connectors..................................................... 25
JCORSAIR1: CORSAIR Connector ........................................................................ 26
EZ Debug LED....................................................................................................... 27
BIOS Setup........................................................................................................... 28
Entering BIOS Setup............................................................................................. 28
Resetting BIOS...................................................................................................... 29
Updating BIOS....................................................................................................... 29
EZ Mode ................................................................................................................ 31
Advanced Mode .................................................................................................... 33
OC Menu................................................................................................................ 34
Software Description........................................................................................... 38
Installing Windows®10......................................................................................... 38
Installing Drivers .................................................................................................. 38
Installing Utilities ................................................................................................. 38

2Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on the
PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place anything
over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

3
Specifications
Specifications
CPU Support AMD®Ryzen™ 1st and 2nd Generation/ Ryzen™ with
Radeon™ Vega Graphics Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory
y4x DDR4 memory slots, support up to 64GB*
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz
(by A-XMP OC MODE)
yDual channel memory architecture
ySupports non-ECC UDIMM memory
ySupports ECC UDIMM memory (non-ECC mode)
* Please refer www.msi.com for more information on compatible memory.
Expansion Slots
y1x PCIe 3.0 x16 slot (PCI_E1)
Supports x16 speed with AMD®Ryzen™ 1st and 2nd
Generation processors
Supports x8 speed with AMD® Ryzen™ with Radeon
Vega Graphics processors
y1x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*/ **
y3x PCIe 2.0 x1 slots*
* PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing
M.2 PCIe SSD in M2_2 slot.
** PCI_E4 will run x1 speed when installing devices in any PCIe 2.0x1 slot.
Onboard Graphics
y1x DisplayPort, supports a maximum resolution of
4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz,
1920x1200 @60Hz*
y1x HDMI™ 1.4 port, supports a maximum resolution of
4096x2160 @30Hz, 2560x1600 @60Hz*
* Only support when using AMD®Ryzen™ with Radeon Vega Graphics Processors
* Maximum shared memory of 2048 MB
Multi-GPU ySupports 2-Way AMD®CrossFire™ Technology
Audio
Realtek®ALC1220 Codec
y7.1-Channel High Definition Audio
ySupports Optical S/PDIF output
Continued on next page

4Specifications
Continued from previous page
Storage
AMD® B450 Chipset
y4x SATA 6Gb/s ports*
y1x M.2 slot (M2_2, Key M)*
Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD® CPU
y1x M.2 slot (M2_1, Key M)*
Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/
22110 storage devices
y2x SATA 6Gb/s ports*
* PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing
M.2 PCIe SSD in M2_2 slot.
* SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1
slot.
RAID
ySupports RAID 0, RAID 1 and RAID 10 for SATA storage
devices
ySupports RAID 0 and RAID 1 for M.2 NVMe RAID
USB
AMD®B450 Chipset
1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
on the back panel
1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port
on the back panel
2x USB 3.1 Gen1 (SuperSpeed USB) ports available
through the internal USB 3.1 Gen1 connector
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 4 ports available through the internal
USB 2.0 connectors)
AMD®CPU
2x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the
back panel
LAN 1x Intel®I211AT Gigabit LAN controller
WiFi & Bluetooth
Intel®Dual Band Wireless-AC 9260
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,
5GHz) up to 867 Mbps speed.
Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0,
BLE,4.2
1 x M2_3 slot with E key (Wi-Fi mode)
Continued on next page

5
Specifications
Continued from previous page
Back Panel
Connectors
y1x BIOS FLASHBACK+ button
y1x PS/2 keyboard/ mouse combo port
y2x USB 2.0 Type-A ports
y1x DisplayPort
y1x HDMI™port
y2x WiFi Antenna connectors
y1x LAN (RJ45) port
y2x USB 3.1 Gen1 Type-A ports
y1x USB 3.1 Gen2 Type-A port
y1x USB 3.1 Gen2 Type-C port
y5x audio jacks
y1x Optical S/PDIF OUT connector
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y1x 4-pin ATX 12V power connector
y6x SATA 6Gb/s connectors
y2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
y1x USB 3.1 Gen1 connectors (support additional 2 USB 3.1
Gen1 ports)
y1x 4-pin CPU fan connector
y1x 4-pin water-pump-fan connector
y4x 4-pin system fan connectors
y1x TPM module connector
y1x Front panel audio connector
y2x System panel connectors
y1x Chassis Intrusion connector
y1x Serial Port connector
y1x Clear CMOS jumper
y1x 2pin LED Power connector
y2x 5050 RGB LED strip 12V connectors (JRGB1~2)
y1x WS2812B Individually Addressable RGB LED strip 5V
connector (JRAINBOW1)
y1x CORSAIR connector (JCORSAIR1)
Continued on next page

6Specifications
Continued from previous page
I/O Controller NUVOTON NCT6797 Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yATX Form Factor
y12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 6.1, SM BIOS 2.8
yMulti-language
Software
yDrivers
yAPP MANAGER
ySUPER CHARGER
yCOMMAND CENTER
yLIVE UPDATE 6
ySMART TOOL
yRAMDISK
yX-BOOST
yGAMING APP
yMYSTIC LIGHT
yGAMING LAN MANAGER
yNahimic Audio
yOpen Broadcaster Software (OBS)
yCPU-Z MSI GAMING
yNorton™Internet Security Solution
yGoogle Chrome™, Google Toolbar, Google Drive
Continued on next page

7
Specifications
Continued from previous page
Special Features
yAudio
Audio Boost
Nahimic 3
Voice Boost
yStorage
Twin Turbo M.2
yCooling
Extended heastink
Pump Fan
GAMING Fan Control
yLED
Mystic Light
Mystic Light Extension
Mystic light SYNC
EZ DEBUG LED
yProtection
M.2 Shield
PCIe Steel Armor
PCIe Steel Slot
yPerformance
Multi GPU-CrossFire Technology
DDR4 Boost
CORE Boost
GAME Boost
USB with type A+C
AMD Turbo USB 3.1 Gen 2
Continued on next page

8Specifications
Continued from previous page
Special Features
yNetwork
GAMING LAN with Gaming LAN Manager
Intel WiFi
yVR
VR Ready
yGamer Experience
GAMING HOTKEY
GAMING MOUSE Control
yBIOS
Click BIOS 5
StoreMI
BIOS FLASHBACK+
AMD FreeSync™ Ready
AMD Precision Boost OverDrive™
yCertification
GAMING Certified
JCORSAIR1 Connector Specification
Supporting CORSAIR RGB Products Maximum connection
Lighting PRO RGB LED Strip 7
HD RGB Fan 6
SP RGB Fan 6
LL RGB Fan 5
