MSI KM2M Combo User manual

i
Version 1.0
G52-M6738X1-G22
MS-6738 (v1.X) Micro ATX Mainboard
KM2M Combo

ii
Manual Rev: 1.0
Release Date: December 2002
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-StarInternational MS-6738
Testedtocomply
withFCCStandard
ForHomeorOfficeUse

iii
CopyrightNotice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered
trademarks of AMD Corporation.
Intel®and Pentium®are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Microsoft is a registered trademark of Microsoft Corporation. Windows®98/
2000/NT/XP are registered trademarks of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or
trademarks of NVIDIA Corporation in the United States and/or other countries.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington Tech-
nology Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer
Memory Card International Association.
Revision History
Revision Revision History Date
V1.0 First release for PCB 1.x Dec.2002

iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. Do not cover the openings.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the PowerCord beforeinserting any add-oncard ormodule.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged.
zLiquid has penetrated into the equipment.
zThe equipment has been exposed to moisture.
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged.
zThe equipment has obvious sign of breakage.
12. Do not leave this equipment in an environment unconditioned, storage
temperatureabove600 C(1400F),itmaydamagetheequipment.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

v
CONTENTS
FCC-B Radio Frequency Interference Statement ...........................................ii
Copyright Notice ..........................................................................................iii
Revision History ........................................................................................... iii
Safety Instructions .......................................................................................iv
Chapter1.GettingStarted ........................................................................ 1-1
Mainboard Specifications .................................................................... 1-2
Mainboard Layout ...............................................................................1-4
MSI Special Features ...........................................................................1-5
PCAlert™4 ...................................................................................1-5

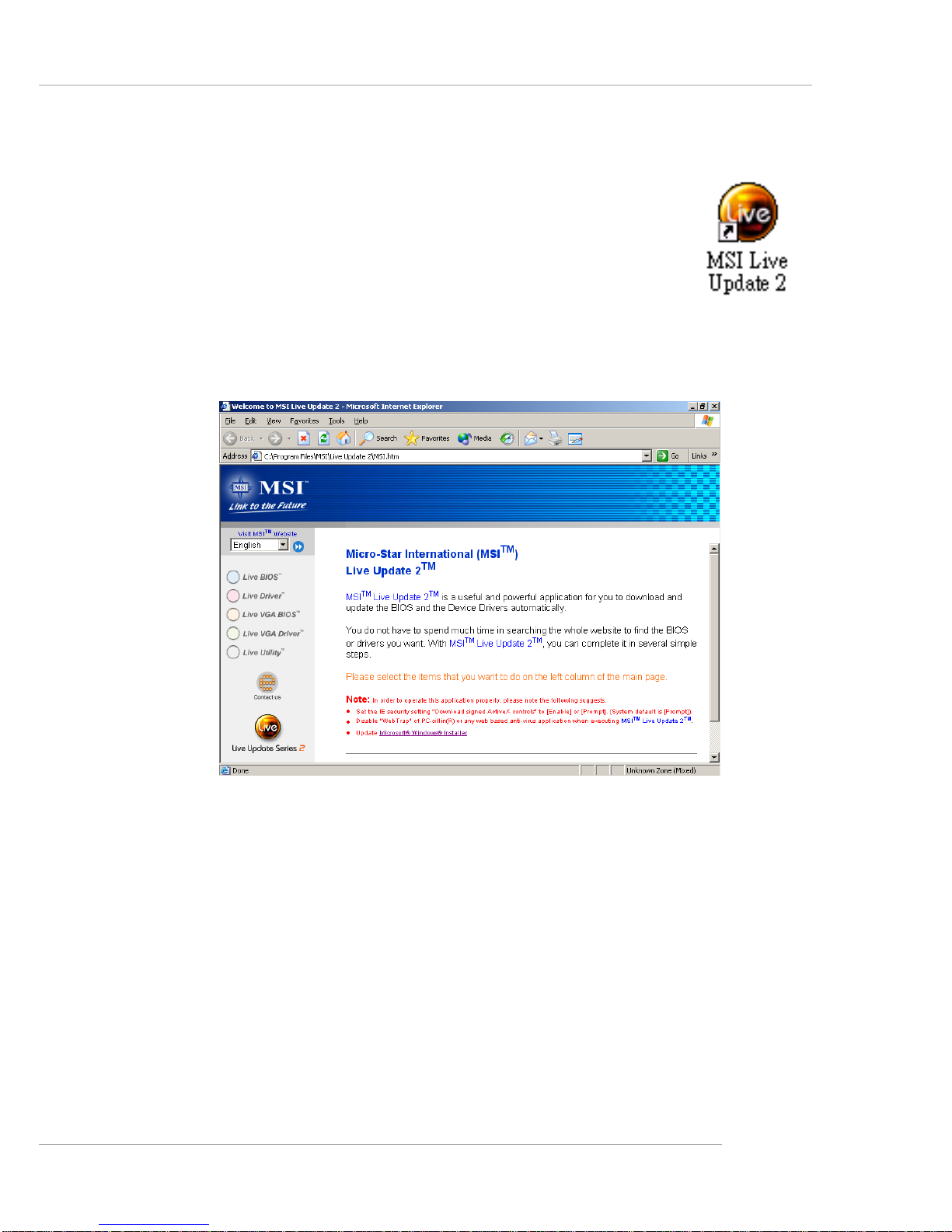

LiveBIOS™/LiveDriver™ ............................................................1-7
Live Monitor™ ..............................................................................1-8
Chapter2.HardwareSetup ....................................................................... 2-1
Quick Components Guide ....................................................................2-2
Central Processing Unit: CPU ..............................................................2-3
CPU Core Speed Derivation Procedure .........................................2-3
CPU Installation Procedures for Socket 462 ..................................2-4
Installing AMD Athlon CPU (Socket 462) Cooler Set ...................2-5
Memory................................................................................................ 2-6
DDR Module Combination ............................................................ 2-7
Installing DDR Modules ...............................................................2-7
SDR Module Combination ............................................................2-8
Installing SDR Modules ................................................................2-8
Power Supply .......................................................................................2-9
ATX 20-Pin Power Connector: CONN1 .........................................2-9
ATX 12V Power Connector: JPW1 ................................................2-9
BackPanel .......................................................................................... 2-10
Mouse Connector ....................................................................... 2-10
Keyboard Connector ................................................................... 2-11

vi
Serial Port Connectors: COM A & JCOM2 (Optional) ................ 2-12
VGA Connector ........................................................................... 2-13
RJ-45LAN Jack(Optional) .......................................................... 2-13
Audio Port Connectors ............................................................... 2-13
Parallel Port Connector: LPT1...................................................... 2-14
Connectors......................................................................................... 2-15
Floppy Disk Drive Connector: FDD1........................................... 2-15
Chassis Intrusion Switch Connector: JCI1 .................................. 2-15
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-16
Fan Power Connectors: CPUFA1/SYSFA1 .................................. 2-17
Front Panel Connectors: JFP1 & JFP2 ......................................... 2-18
Front Panel Audio Connector: JAUD1 ........................................ 2-19
Front USB Connectors: JUSB1 .................................................... 2-20
SPDIF Connector: JSP1 ............................................................... 2-21
CD-InConnector: JCD1 ............................................................... 2-22
IrDA Infrared Module Header: JIR1 ............................................ 2-22
Jumpers .............................................................................................. 2-23
Clear CMOSJumper: JBAT1 ........................................................ 2-23
FSB Mode Jumper: SW1 ............................................................. 2-24
Slots ................................................................................................... 2-25
AGP (Accelerated Graphics Port) Slot (Optional)........................ 2-25
PCI Interrupt Request Routing .................................................... 2-26
Chapter3.BIOSSetup.............................................................................. 3-1
Entering Setup......................................................................................3-2
Control Keys ................................................................................. 3-2
Getting Help .................................................................................. 3-3
The Main Menu ...................................................................................3-4
Standard CMOS Features ....................................................................3-6
Advanced BIOS Features ....................................................................3-8
Advanced Chipset Features............................................................... 3-12

vii
Integrated Peripherals ........................................................................ 3-16
Power Management Setup ................................................................. 3-21
PNP/PCI Configurations..................................................................... 3-25
PC Health Status ................................................................................ 3-27
Frequency/Voltage Control ................................................................ 3-28
LoadFail-Safe/Optimized Defaults ..................................................... 3-29
Set Supervisor/User Password........................................................... 3-30
Appendix:Using4-or6-ChannelAudioFunction ....................................A-1
Using 4- or 6-Channel Audio Function ...............................................A-2
Installing the Audio Driver...........................................................A-2
Using 4- or 6-Channel Audio Function ........................................A-2
Testing the Connected Speakers.........................................................A-6
Testing Each Speaker: ..................................................................A-6
PlayingKaraOK ..................................................................................A-8
PlayingKaraOK............................................................................A-8
Troubleshooting ........................................................................................ T-1
Glossary ....................................................................................................G-1

1-1
Getting Started
Thank you for purchasing KM2M (MS-6738) v1.X Mi-
cro ATX mainboard. The KM2M is based on VIA®KM266 &
VIA®VT8235 chipsets and provides 6 USB ports for high-speed
data transmission. With all these special designs, the KM2M
v1.x delivers a high performance and professional desktop plat-
form solution.
Getting Started

1-2
KT3 Ultra2-C ATX Mainboard
MS-6738 Micro ATX Mainboard
Mainboard Specifications
CPU
hSocket A for AMD®DuronTM/AthlonTM/ XPTM processor.
hSupports 1GHz to AthlonTM/ XPTM 2600+ processor.
Chipset
hVIA®KM266 Chipset.
- FSB @200/266MHz.
- Integrated Savage 8 2D/3D Graphic Controller.
- AGP 4x and high bandwidth Vlink host controller.
- Advanced memory controller support PC2100 (DDR266) technology.
hVIA®VT8235 Chipset
- 533MB/sec Vlink client controller.
- Direct sound ready AC97 digital audio controller.
- Ultra DMA 66/100/133 master mode EIDE controller.
- Supports both ACPI and legacy APM power management.
- 6 ports USB 2.0 controller.
- Integrated Ethernet MAC.
MainMemory
hSupports four memory banks using two 184-pin DDR DIMMs or two 168-
pin SDR DIMMs.
hSupports a maximum memory size of 2GB .
hSupports 2.5v DDR SDRAM DIMM.
Slots
hOne 4x/2x 2.0 AGP (Accelerated Graphics Port) universal slot. (Optional)
hThree PCI 2.2 32-bit Master PCI Bus slots,supporting 3.3v/5v PCI bus
Interface.
On-Board IDE
hDual Channel master mode IDE controller on the VIA®VT8235 Chipset
provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/
133 operation modes.
hCan connect up to four IDE devices.
On-Board Peripherals
hOn-Board Peripherals include:

1-3
Getting Started
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88
Mbytes.
- 1 serial port (COM1), 1 Intel-spec serial port (JCOM2, Optional) and 1
VGA port
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB ports (Rear * 4 / Front * 2)
- 1 Line-In/Line-Out/Mic-In port
- 1 LAN RJ45 connector (Optional)
- 1 IrDA connector for SIR/CIR/ASKIR/HPSIR
Audio
hFront Audio supported.
hChip Integrated.
- 5.1 channel AC’97 software Audio.
- Realtek ALC 650 codec.
LAN (Optional)
hVIA VT8235 integrated MAC + VIA 6103 PHY.
hRJ45 connector.
BIOS
h2MB Award BIOS with PNP BIOS, ACPI, SMBIOS 2.3, Green and Boot
Block.
hProvides DMI 2.0, WFM 2.0, WOL, WOR, chassis intrusion, and SMBus for
system management.
Dimension
hMicro-ATX Form Factor: 24.5 cm (L) x 23.8 cm (W).
Mounting
h6 mounting holes.
Others
hLAN Wake-Up function
hSupport DMI (Desktop Management Interface) through BIOS
hSupport PCI 2.2
hPC2001 Compliant
hSupport PS2 Keyboard/Mouse and USB Keyboard/Mouse wake up function

1-4
KT3 Ultra2-C ATX Mainboard
MS-6738 Micro ATX Mainboard
Mainboard Layout
KM2M Combo (MS-6738) v1.X Micro ATX Mainboard
SOCKET462
DIMM1
DIMM2
DIMM3
DIMM4
Top : mouse
Bottom: keyboard
USB ports
T: R J 45 L A N j a c k
B: USB ports
JCD1
JSP1
JAUD1
Codec
VIA
VT6103
AGP Slot
BATT
+
BIOS
Winbond
83697HF
VT8235
VIA
KM266
IDE1
IDE2
FDD1
PCI Slot 1
PCI Slot 2
PCI Slot 3
JFP1 JFP2
JUSB1
JCOM2
JPW1
CPUFA1
SYSFA1
ATX
PowerSupply
JBAT1
SW1
JIR1
JCI1
T:
Line-Out
Mic
M:Line-In
B:
Top : LPT
Bottom:
COM A
VGA port

1-5
Getting Started
PC Alert™ 4
The PC AlertTM 4 is a utility you can find in the CD-ROM disk. The utility
is just like your PC doctor that can detect the following PC hardware status
during real time operation:
Ømonitor CPU & system temperatures
Ømonitor fan speeds
Ømonitor system voltages
If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown until the condition returns to the normal status.
Users can use the Adjusting Keys to change the minimum and maximum
threshold of each item for the system to send out a warning message. Click
Temperature to select the temperature modes of either Fahrenheit (℉) or Cel-
sius (℃). The PC Alert4 icon on the Status Area will show the current CPU
temperature.
temperature
modes
Adjusting Keys
COOLER XP
MSI Special Features

1-6
KT3 Ultra2-C ATX Mainboard
MS-6738 Micro ATX Mainboard
MSI Reminds You...
The new feature COOLER XP will work only if your mainboard
supports AMD Athlon XP CPU.
Items shown on PC Alert 4 vary depending on your system’s status.
To better protect the CPU from overheating, a new feature, COOLER
XP, has been added to decrease the temperature of AMD Athlon XP CPU. To
do so, simply click COOLER XP and the screen will show the Cute skin (as
shown below) with information about the CPU and chipset. Right-click the
mouse to select the skin you want to switch to.
Cute

1-7
Getting Started
Live BIOS™/Live Driver™
The Live BIOS™/Live Driver™ is a tool used to detect
and update your BIOS/drivers online so that you don’t need to
search for the correct BIOS/driver version throughout the Web
site. To use the function, you need to install the “MSI Live
Update 2” application. After the installation, the “MSI Live
Update 2” icon (as shown on the right) will appear on the screen.
Double click the “MSI Live Update 2” icon, and the fol-
lowing screen will appear:
Five buttons are placed on the leftmost pane of the screen. Click the desired
button to start the update process.
zz
zz
zLive BIOS – Updates the BIOS online.
zz
zz
zLive Driver – Updates the drivers online.
zz
zz
zLive VGA BIOS – Updates the VGA BIOS online.
zz
zz
zLive VGA Driver – Updates the VGA driver online.
zz
zz
zLive Utility – Updates the utilities online.
If the product you purchased does not support any of the functions listed
above, a “sorry” message is displayed. For more information on the update
instructions, insert the companion CD and refer to the “Live Update Guide”
under the “Manual” Tab.

1-8
KT3 Ultra2-C ATX Mainboard
MS-6738 Micro ATX Mainboard
Live Monitor™
The Live Monitor™ is a tool used to schedule the search
for the latest BIOS/drivers version on the MSI Web site. To use
the function, you need to install the “MSI Live Update Series 2”
application. After the installation, the “MSI Live Monitor” icon
(as shown on the right) will appear on the screen. Double click
this icon to run the application.
Double click the “MSI Live Monitor” icon at the lower-right corner
of the taskbar, and the following dialog box will appear. You can specify how
often the system will automatically search for the BIOS/drivers version, or
change the LAN settings right from the dialog box.
You can right-click the MSI Live Monitor icon to perform the functions
listed below:
zz
zz
zAuto Search – Searches for the BIOS/drivers version you need immediately.
zz
zz
zView Last Result – Allows you to view the last search result if there is any.
zz
zz
zPreference – Configures the Search function, including the Search schedule.
zz
zz
zExit – Exits the Live Monitor™ application.

2-1
Hardware Setup
Chapter 2. Hardware
Setup
This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the
jumpers on the mainboard. Also, it provides the instructions
on connecting the peripheral devices, such as the mouse,
keyboard, etc.
While doing the installation, be careful in holding the
components and follow the installation procedures.
Hardware Setup

2-2
MS-6738 Micro ATX Mainboard
Quick Components Guide
SDRAM, p.2-6
CPU, p.2-3
Back Panel
I/O, p.2-10 FDD1, p.2-15
JUSB1, p.2-20
JIR1, p.2-22
PCI Slots,
p.2-25
IDE1, IDE2,
p.2-16
CONN1, p.2-9
JPW1, p.2-9
JBAT1, p.2-23
JCD1, p.2-21
SYSFA1, p.2-17
CPUFA1, p.2-17
AGP Slot,
p.2-25
DDR DIMMs, p.2-6
JSP1, p.2-21
JFP1 & JFP2,
p.2-18
JCI1, p.2-15
JCOM2, p.2-12
SW1, p.2-24
JAUD1, p.2-19

2-3
Hardware Setup
Central Processing Unit: CPU
CPU Core Speed Derivation Procedure
CPU Clock multipled by Core/Bus ratio equals the CPU core speed.
For example:
If CPU Clock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHz x 14
= 1.4 GHz
The mainboard supports AMD®Athlon™, Athlon™ XP and Duron™
processors in the 462 pin package. The mainboard uses a CPU socket called
Socket-462 for easy CPU installation. When you are installing the CPU, make
sure the CPU has a heat sink and a cooling fan attached on the top to
prevent overheating. If you do not find the heat sink and cooling fan, contact
your dealer to purchase and install them before turning on the computer.
Thermal Issue for CPU
As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly cru-
cial when building computer systems. Maintaining the proper
thermal environment is key to reliable operation. As such, the
processor must be maintained in the specified thermal requirements. AMD
recommends the use of high performance thermal interface material.
AMD Athlon™/Duron™ processor with a speed of 600MHz and above re-
quires LARGER heatsink and fan. You also need to add thermal grease be-
tween the CPU and heatsink to improve heat dissipation. Then, make sure
that the CPU and heatsink are securely fastened and in good contact with each
other. These are needed to prevent damaging the processor and ensuring
reliable operation.
You can check AMD’s web site for more information.
!
WARNING!

2-4
MS-6738 Micro ATX Mainboard
CPU Installation Procedures for Socket 462
1. Please turn off the power and
unplug the power cord before
installing the CPU.
2. Pull the lever sideways away
from the socket. Make sure
to raise the lever up to a 90-
degree angle.
3. Look for the gold arrow. The
gold arrow should point to-
wards the lever pivot. The
CPU can only fit in the correct
orientation.
4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation
procedures may cause
permanent damages to your
mainboard.
5. Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your fingers pressing
tightly on top of the CPU to
make sure the CPU is
properly and completely
embedded into the socket.
Open Lever
90 degree
Sliding
Plate
Close
Lever
Press down
the CPU
Gold arrow
Gold arrow
Gold arrow
Incorrect CPU placement
(not at 90-degree angle)
X
O

2-5
Hardware Setup
The following instructions will guide
you through the heat sink installation
procedures. Please consult your agent
for the proper CPU cooler set.
1. Position your CPU cooler set onto
the CPU.
2. Use one end of the clip to hook
the latch of the CPU sliding plate.
3. Hook the other latch to fix the
cooling fan set. You may need a
screw drive to press down the
other side of the clip.
4. Connect the fan to the power sup-
ply connector provided on your
mainboard.
Installing AMD Athlon CPU (Socket 462) Cooler Set
Apply some heat
sink paste
MSI Reminds You...
Please apply some heat sink paste on top of CPU to dissipate
the heat more effectively.
