MSI MICRO ATX EX7 User manual

CHAPTER 1 INTRODUCTION
1-1
The MICRO ATX EX7 mainboard is a high-performance personal computer
mainboard based on the Intel®Pentium®II processor. This mainboard
combines leading edge AGP ATI®3D RAGE PRO technology in graphics
and YAMAHA®YMF740 PCI technology in audio. The Intel®Pentium®II
processor supports MMXTM(Multimedia Extension) technology.
The mainboard uses the highly integrated Intel®82440EX chipset to support
the PCI/ISA and Green standards, and to provide the Host/AGP bridge. The
82371EB chipset integrates all system control functions such as ACPI
(Advanced Configuration and Power Interface). The ACPI provides more
Energy Saving Features for the OSPM(OS Direct Power Management)
function. The Intel®82371EB chipset also improves the IDE transfer rate by
supporting Ultra DMA/33 IDE that transfers data at the rate of 33MB/s.
The mainboard also supports the System Hardware Monitor Controller as an
optional function. This function includes: CPU /power supply/chassis fan
revolution detect, CPU/system voltage monitor, and system temperature
monitor.
Chapter 1
INTRODUCTION

CHAPTER 1 INTRODUCTION
1.1 Mainboard Features
1-2
CPU
lSlot 1 for Intel®Pentium®II/CeleronTM processor.
lSupports233MHz,266MHz,300MHz,and333MHz.
Chipset
lIntel®82440EXchipset.
ClockGenerator
l66.6MHz clock is supported.
MainMemory
lSupports four memory banks using two 168-pin unbuffered DIMM
sockets .
lSupportsamaximummemorysizeof 256MB for EDO/SDRAM.
lSupports 3.3v Extended Data Output (EDO) and SDRAM DIMM.
Slots
lTwo 32-bit Master PCI Bus slots and two 16-bit ISA bus slots (wherein
one is shared).
lSupports 3.3v/5v PCI bus Interface.
On-BoardIDE
lAn IDE controller on the Intel®82371EB PCI Chipsetprovides IDE HDD/
CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 1 serial port (COMA) + 1 serial connector (COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports
- 1 IrDA connector for SIR.

CHAPTER 1 INTRODUCTION
1-3
VGA
lATI®3D RAGE PRO
-Running on AGP BUS.
-Onboard 8MB SDRAM.
-3D Acceleration.
Sound
lYAMAHA®YMF740
-PCI2.1compliant
-AC97/98 specification compliant
- 3D audio effects.
- 32-voice XG wavetable synthesizer
- Direct Sound Hardware Accelerator
- Direct Music Hardware Accelerator
-Full-Duplex stereo
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lMICROATXFormFactor: 24.4cm(L)x 19cm(W) x 4 layers PCB
Mounting
l6 mounting holes.
SystemHardwareMonitor(optional)
lCPU/Power Supply/Chassis Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystem Voltage Detect
lDisplay Actual Current Voltage

CHAPTER 1 INTRODUCTION
1.2 Mainboard Layout
MS-6140
1-4
PCI SLOT 2
PCI SLOT 1
ISA SLOT 2
ATX
Power Supply
FW82443EX
SLOT 1
DIMM 1
Top: mouse
Bottom:
keyboard
Top:Port1
USB
DIMM 2
IDE2
Bottom:
Port2
IDE1
FDD
ATI3D
RAGEPRO
FW82371AB
JMODEM1
YAMAYA
YMF740
J8
SFAN1
JFP1
JGS1
JBAT1
JWOL1
BIOS
JCD1
COM 2
CFAN1
J1
JSW1
JP1
JFAN1
PSFAN1
IR1 BATT
+
Top: LPT
Bottom:
COMA
VGAPort
Top: Midi/
GamePort
Bottom:
Line-In
Line-Out
Mic
TELE1
4
ISA SLOT 1
1
JLIN1

CHAPTER 2 HARDWARE INSTALLATION
2-1
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with Intel®Pentium®II processor. The mainboard
uses a CPU Slot called Slot 1 for easy CPU installation and a jumper switch
(JP1) to set the proper speed for the CPU. The CPU should always have a
Heat Sink and a cooling fan attached to prevent overheating.

CHAPTER 2 HARDWARE INSTALLATION
2-2
2.1-1 CPU Installation Procedures
A. OEM Pentium®II Processor Installation Procedures
Different kinds of Pentium®II processor that is currently used: the OEM
version, the Boxed version, and CeleronTM. OEM Pentium®II Processor has
no Heat Sink, Fan and Heat Sink Support, the Boxed Pentium®II Processor
is provided with Heat Sink w/ fan and Heat Sink Support, while the
CeleronTM processor is a plain processor card without cover or heatsink..
Required Things:
Pentium®IIprocessor- Processor.
*RetentionMechanism(RM)- Plastic Guide that holds the S.E.C.Catridge
in the Slot 1 connector.
*RetentionMechanismAttachMount(RMAM)-Bolt/Bridgeassemblies
inserted up through the bottom of the
motherboard. RM secures to RMAM ( 2
RMAM required per RM ).
*Heat Sink SupportBase (HSSBASE) - Plastic support bar mounted to
the mainboard under the ATX heatsink.
(One leg is always bigger than the other one)
Processor
Lock
Retention
Mechanism
Pentium®II
Processor
Heat Sink
W/Fan
Notch Hole
Heat Sink
Support Base Heat Sink
Support Pin
Heat Sink
Support
Top Bar

CHAPTER 2 HARDWARE INSTALLATION
2-3
*HeatSink Support Pin(HSSPIN) - Plastic pins inserted through the
HSSBASE to secure it to the mainboard (2
required per Assembly).
*Heat Sink Support Top Bar(HSSTOP) - Plastic bar that clips onto the
HSSBASE through the fins on the ATX
heatsink.
**Heat Sink w/ fan - Heat Sink that can be attached to the Pentium®II
processorwith metal clip.

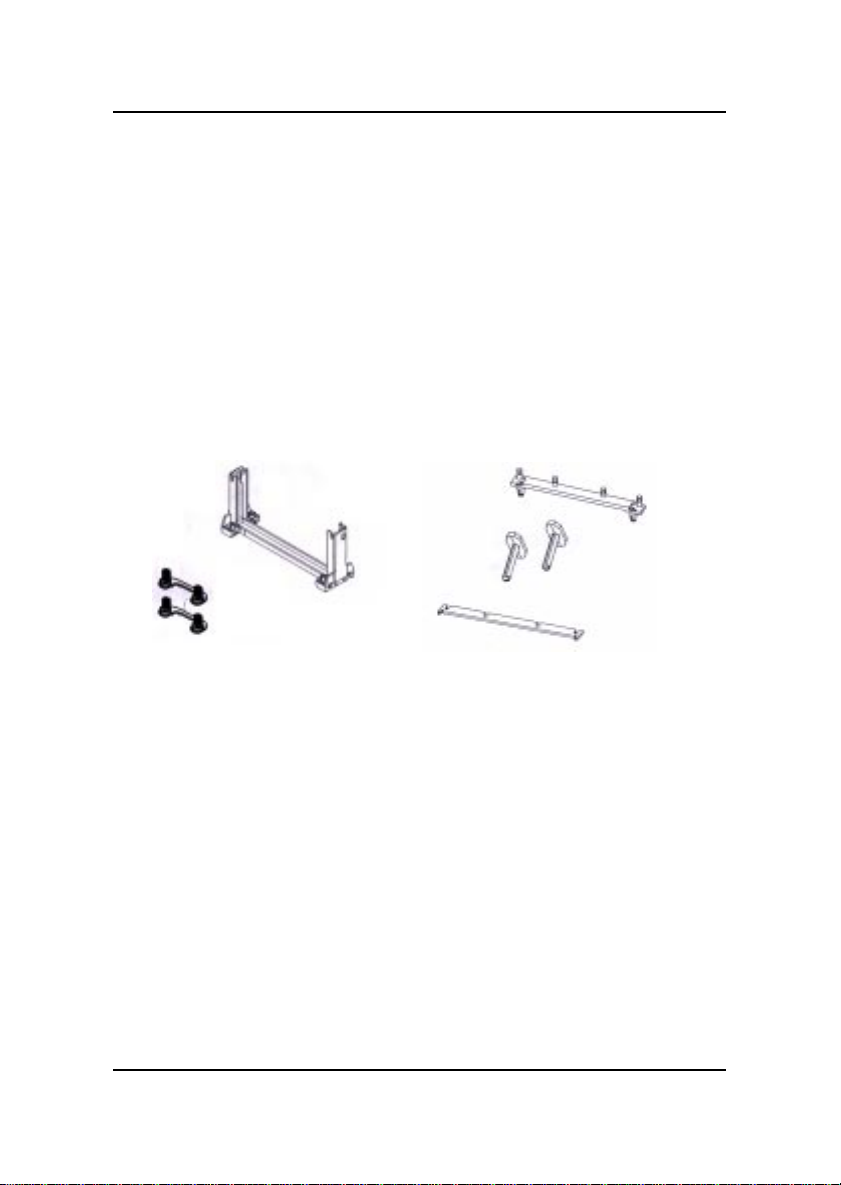

Note:* Provided by MSI mainboard.
** Provided by Special request.
RM
HSSPIN
HSSTOP
HSSBASE
RMAM

CHAPTER 2 HARDWARE INSTALLATION

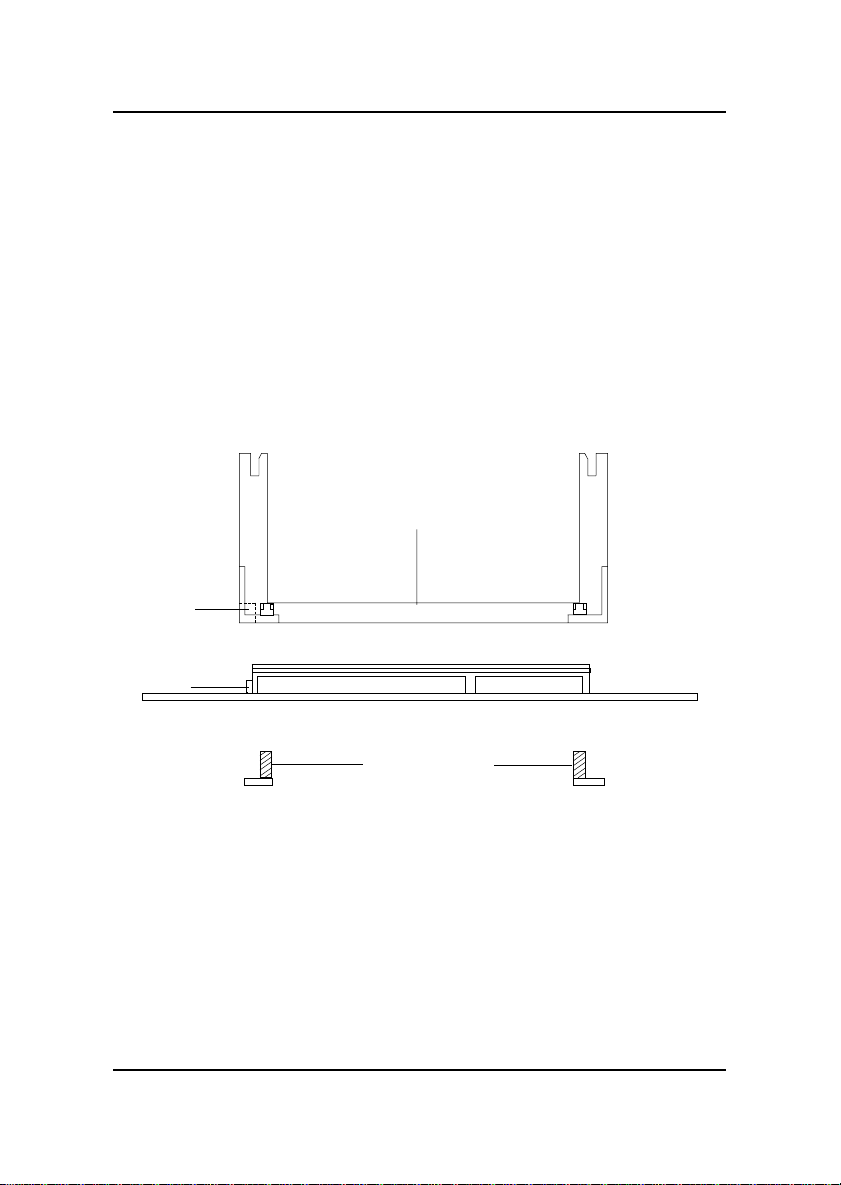

2-4
SLOT1
Retention
Mechanism
êê
Key
êê
Retention
Mechanism
Attach Mount
Notch
Key

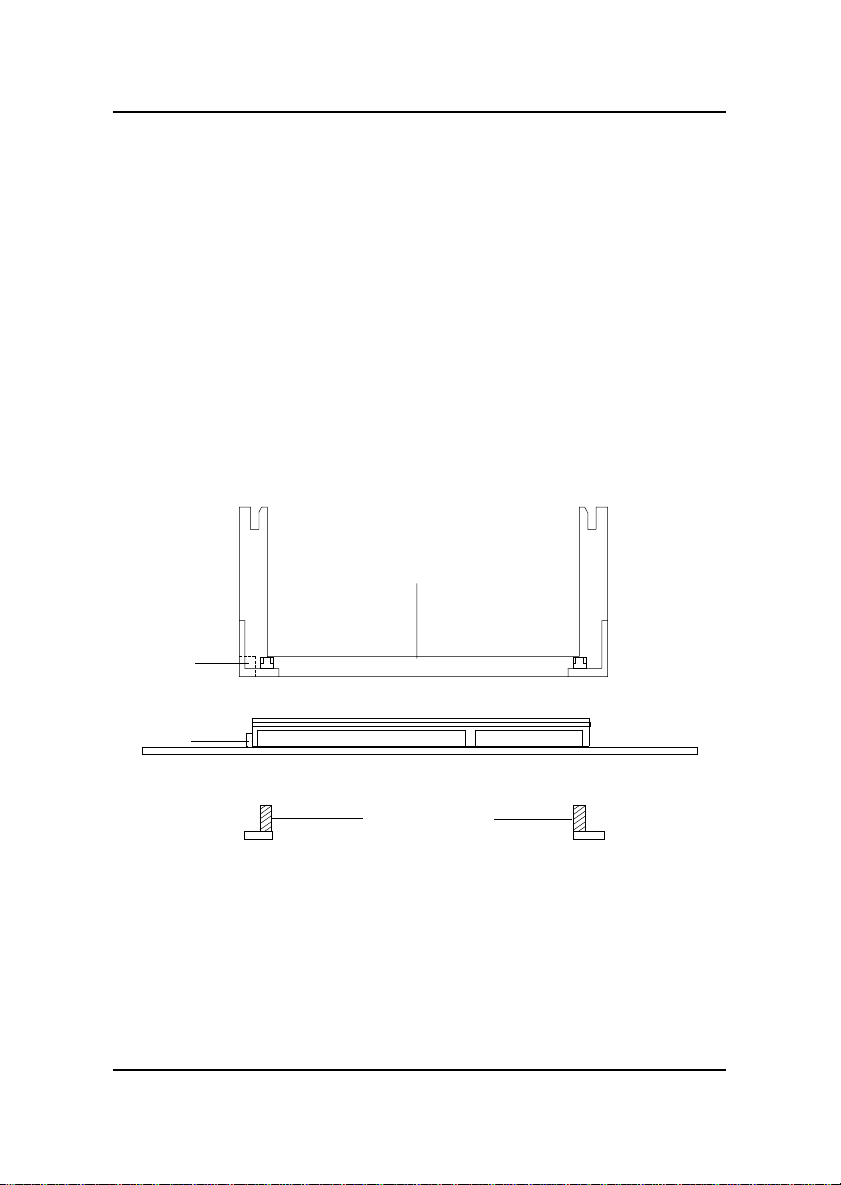

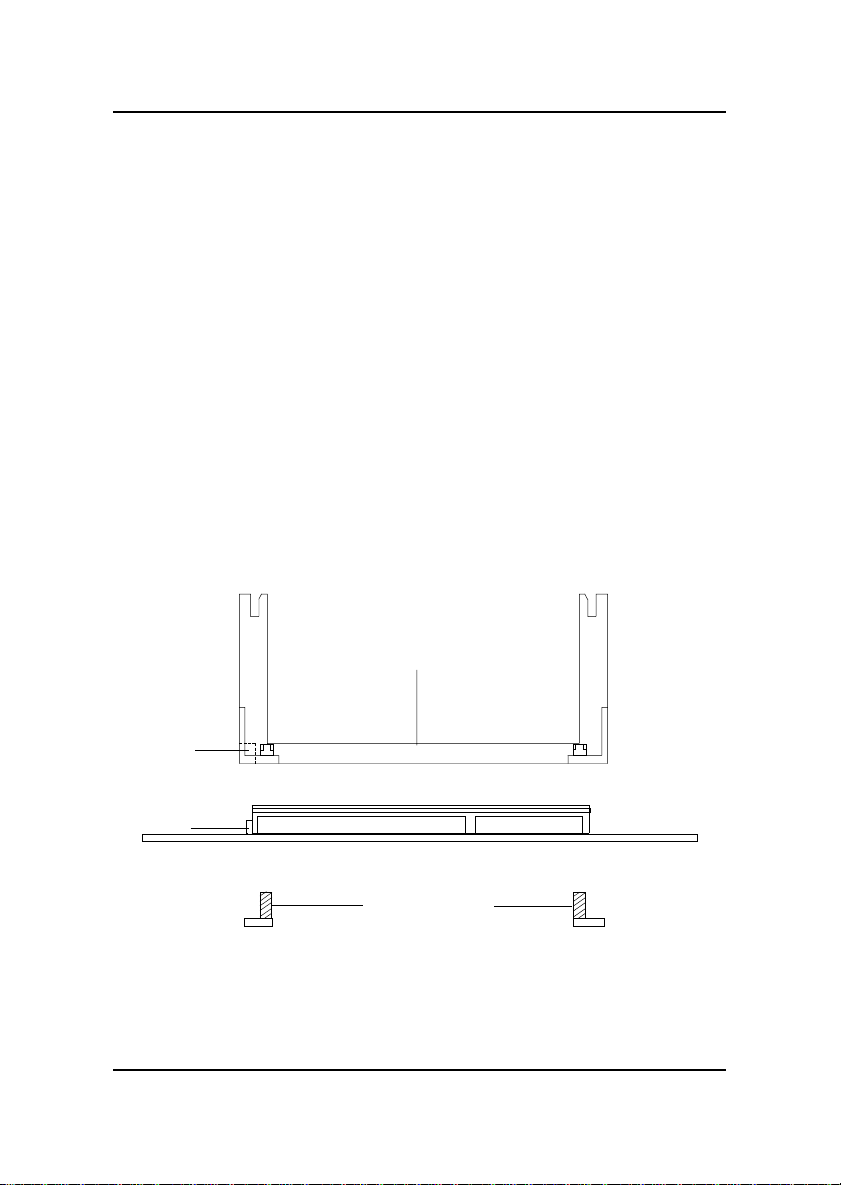

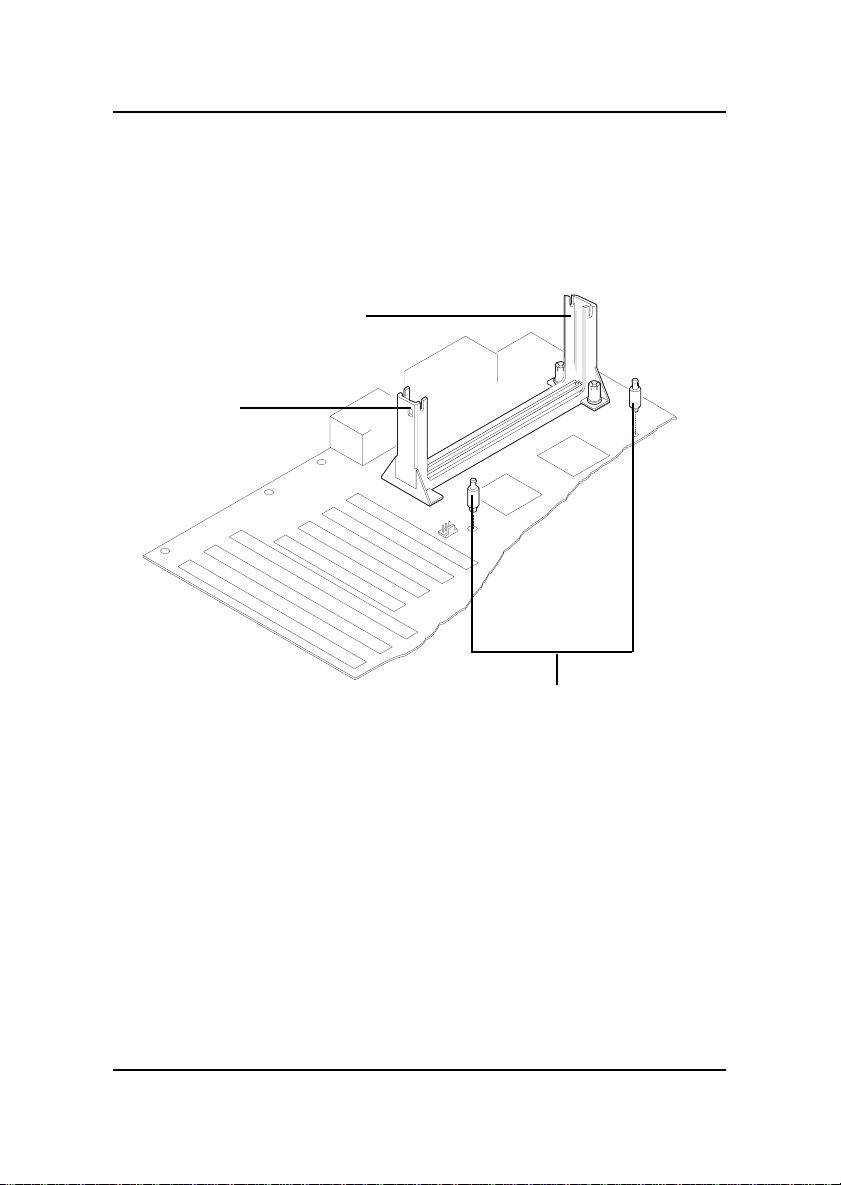

Step 1: Insert the Retention Mechanism Attach Mount at the bottom
of the mainboard.
Step 2: Install the Retention Mechanism.
Look for the key on Slot 1, and match it with the Notch Key on the
Retention Mechanism for proper direction. Then, attach the
Retention Mechanism to the Retention Mechanism Attach Mount.
Use a Screwdriver to secure the Retention Mechanism.

CHAPTER 2 HARDWARE INSTALLATION
2-5
Step 3: Install the Heat Sink Support Base.
Look for the Two holes across Slot 1, and match it with the Two legs
of the Heat Sink Support Base for the proper direction. Take note
that one hole/leg is bigger than the other. The Four top pins of the
Heat Sink Support Base should also be oriented towards Slot 1.
Push the Heat Sink Support Base onto the mainboard, until you hear
a click sound. Check for a perfect fit.
Step 4: Install the Heat Sink Support Pin.
Push the Heat Sink Support Pins onto the two holes of the Heat Sink
Support Base. Check for a perfect fit. These pins are used to secure
the Heat Sink Support Base.
Heat Sink
Support Base
Heat Sink
Support Pin
Leg
pins

CHAPTER 2 HARDWARE INSTALLATION
2-6

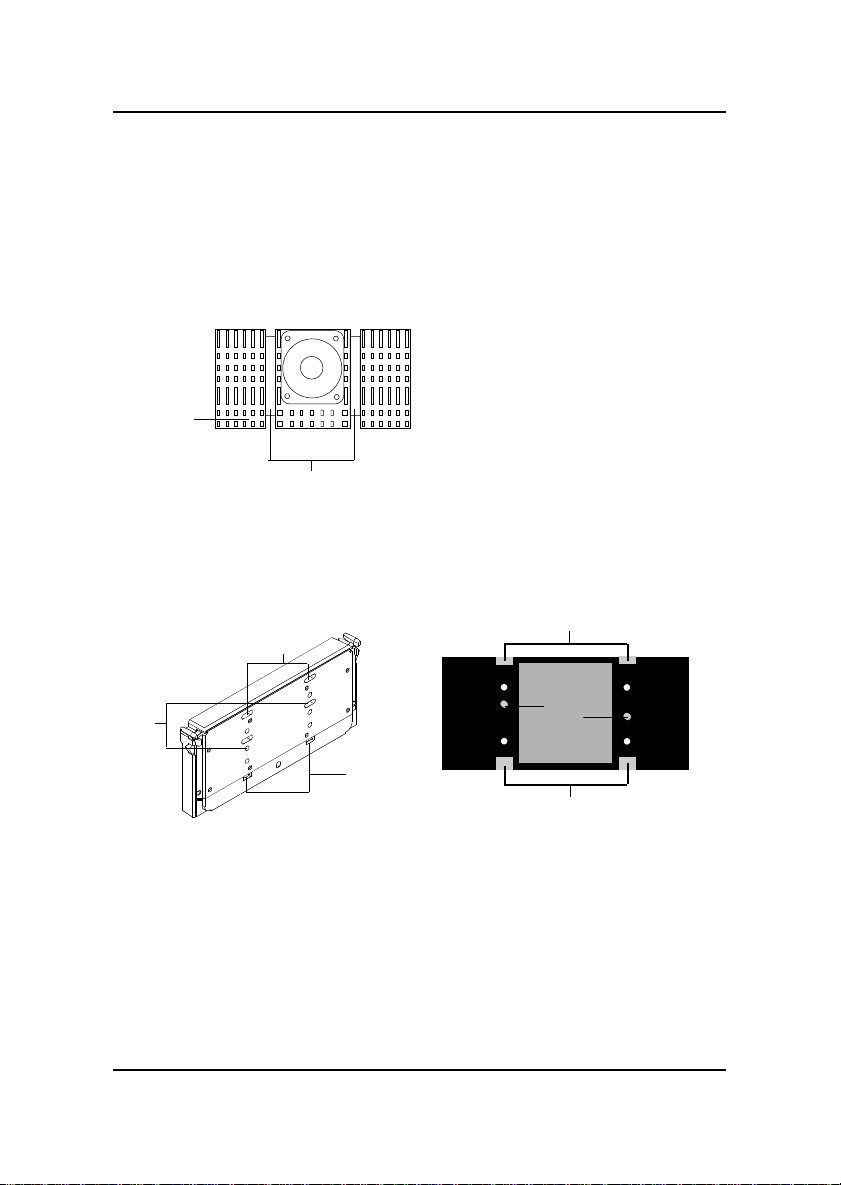

S.E.C. Cartridge - Thermal
P
Isometric View
Step 5: Install the Heat Sink with Fan to the Processor.
Push down the metal clips, so that they are in line with the back of
the Heat Sink. Be careful, so as not detach the metal clips from the
HeatSink.
In case the metal clips are detached from the Heat Sink, re-attach
them. Look for the arrow on the metal clip. This arrow should be
pointing down and aligned with the Heat Sink Support Base Holder.
Attach the Heat Sink to the processor.
- Look at the back of the Heat Sink and take note of the 2 secure
posts. Insert these 2 Secure posts to the 2 secure holes on the
back of the processor.
- Align the ears of the metal clips with the clip holders on the back of
the processor. Use a screw driver to push the metal clips onto the
clip holders. Check for a perfect fit.
Pentium®II Processor (Back)
â
Thearrow
shouldbe
pointing
down.
Metal Clips
Heat Sink w/ Fan
Metal Clips Ear
Metal Clips Ear
Secure
Posts
Heat Sink w/ Fan(Back)
HeatSink
BaseHolder
Secure
holes
Clip Holder
Clip Holder

CHAPTER 2 HARDWARE INSTALLATION
2-7

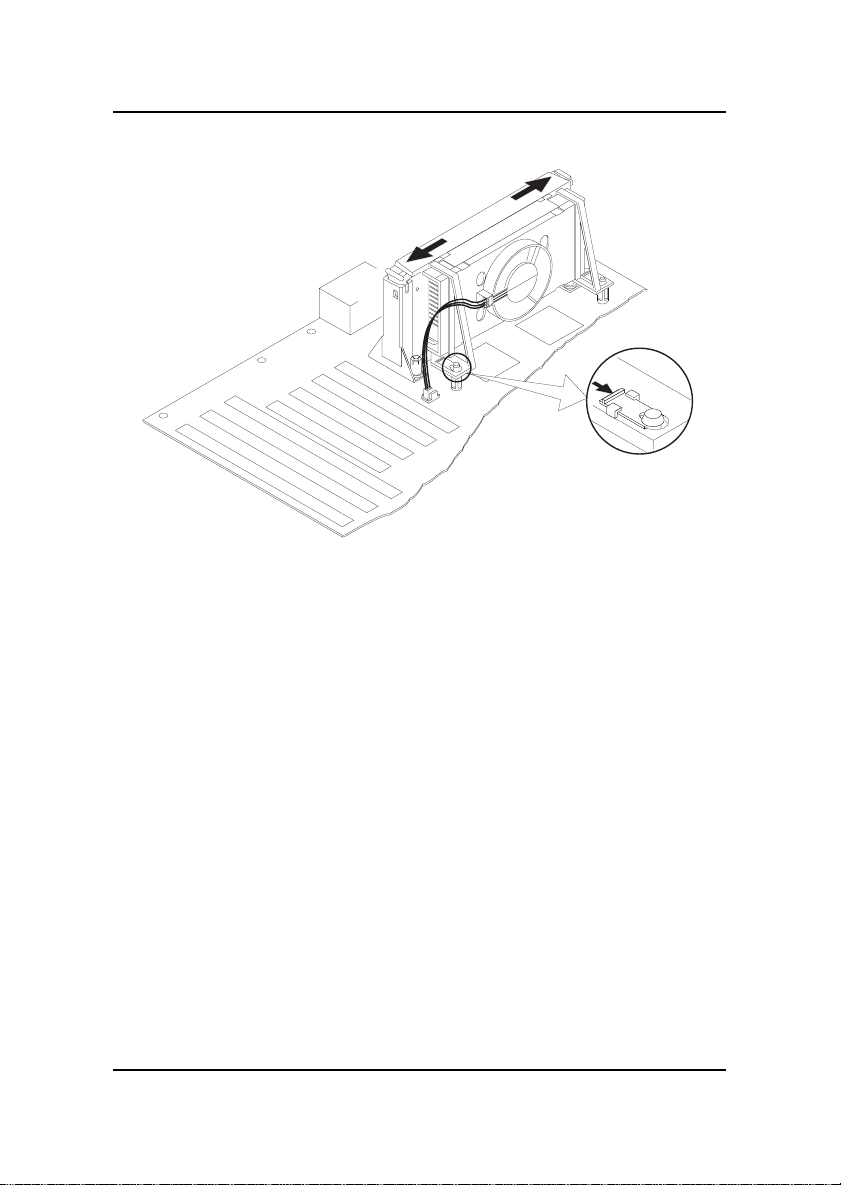

Step 6: Install the Processor.
Unlock the Processor by pushing in the Processor Locks.
Insert the Processor like inserting a PCI or an ISA card.
Step 7: Lock the Processor Locks.
Secure the CPU by pulling the Processor Locks out.
èç
çè

CHAPTER 2 HARDWARE INSTALLATION
2-8

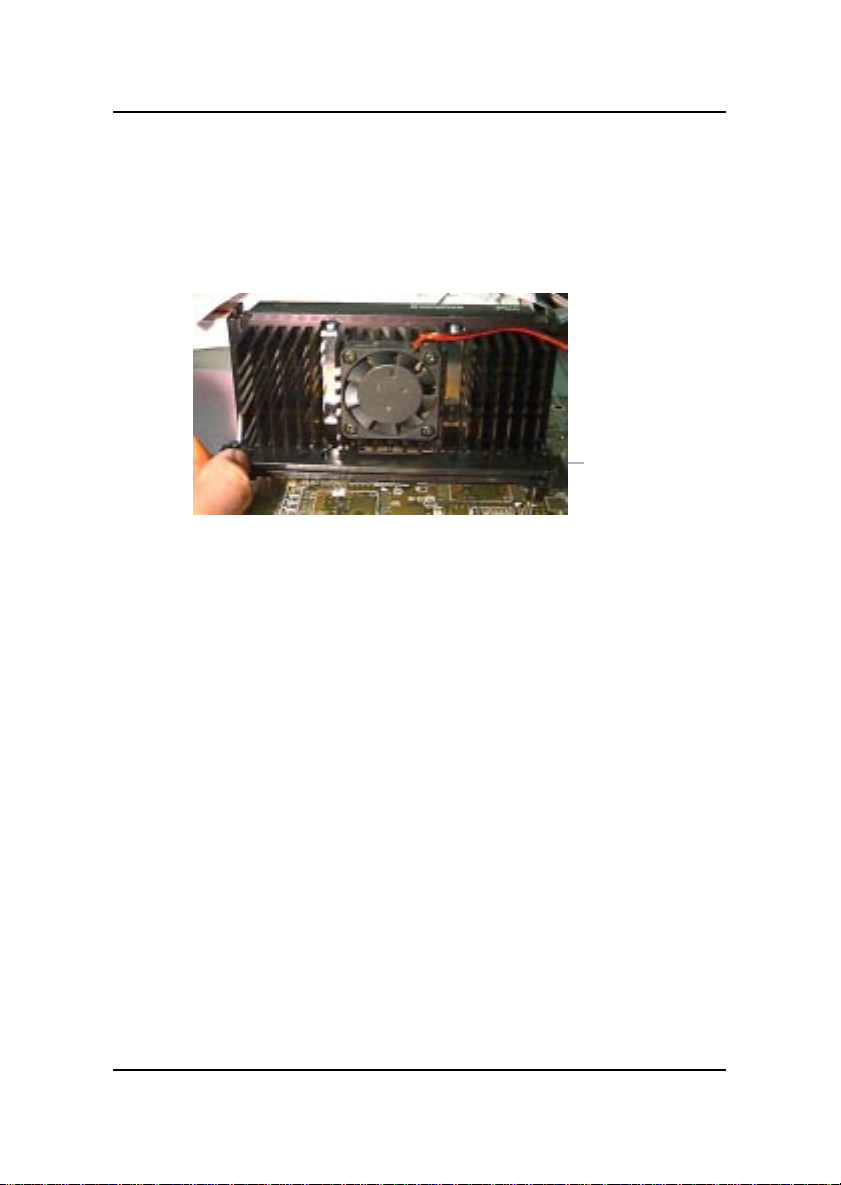

Step 8: Install the Heat Sink Support Top Bar.
Push the Heat Sink Support Top Bar to the Heat Sink Support Base,
Until you hear a “click” sound. Check for a perfect fit.
The installation is now complete.
Heatsink
Support Top
Bar

CHAPTER 2 HARDWARE INSTALLATION
2-9
B. Boxed Pentium®II Processor Installation Procedures
The Boxed Pentium®II Processor has a built- in Fan and Heat Sink. It also
has a Heat Sink Support. So if you’re going to use a Boxed PentiumTM II
Processor, all you need is the Retention Mechanism.
SLOT1
Retention
Mechanism
êê
Key
êê
Retention
Mechanism
Attach Mount
Notch
Key
Step 1: Insert the Retention Mechanism Attach Mount at the bottom
of the mainboard.
Step 2: Install the Retention Mechanism.
Look for the key on Slot 1, and match it with the Notch Key on the
Retention Mechanism for proper direction. Then, attach the
Retention Mechanism to the Retention Mechanism Attach Mount.
Use a Screwdriver to secure the Retention Mechanism.

CHAPTER 2 HARDWARE INSTALLATION
2-10
Step 3: Install the Heat Sink Support Base.
Look for the 2 holes across Slot 1, and match it with the 2 Heat Sink
Support Base. Take note that one hole/base is bigger than the other.
Push the Heat Sink Support Base onto the mainboard, until you hear
a click sound. Check for a perfect fit.
PC-3742
Retention
Mechanism
Notch
Hole
HeatSink
Support Base

CHAPTER 2 HARDWARE INSTALLATION
2-11
PC-3743
HeatSink
Support Lock
Intel®Boxed
Pentium®II
Processor
Step 4: Install the Heat Sink Support.
Attach the 2 Heat Sink Supports to the sides of the Processor. These
Heat Sink Supports will fit in any direction, so be sure that the Heat
Sink Support Locks are oriented outwards for the proper direction.
HeatSink
Support

CHAPTER 2 HARDWARE INSTALLATION
2-12
PC-3744
Processor
Lock
Heatsink
Support
Lock
Step 5: Unlock the Processor Locks and Heat Sink Support Locks.
Push in the Processor Locks. Open the Heat Sink Support Locks.
Step 6: Insert the Processor like inserting a PCI or an ISA card.

CHAPTER 2 HARDWARE INSTALLATION
2-13
PC-3745
Step 7: Lock the Processor Locks and Heat Sink Support Locks
Secure the CPU by pushing out the Processor Locks. Close the Heat
Sink Support Locks.
The installation is now complete.

CHAPTER 2 HARDWARE INSTALLATION
2-14
SLOT1
Retention
Mechanism
êê
Key
êê
Retention
Mechanism
Attach Mount
Notch
Key
Step 1: Insert the Retention Mechanism Attach Mount at the bottom
of the mainboard.
Step 2: Install the Retention Mechanism.
Look for the key on Slot 1, and match it with the Notch Key on the
Retention Mechanism for proper direction. Then, attach the
Retention Mechanism to the Retention Mechanism Attach Mount.
Use a Screwdriver to secure the Retention Mechanism.
C. OEM CeleronTM Processor Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION
2-15
Step 3: Install the MSI Heat Sink (optional) to the Processor.
Push down the plastic clips, so that they are in line with the hole on
the processor. Check for perfect fit.
Step 4: Install the Processor.
Insert the Processor like inserting a PCI or an ISA card.
Step 5: Lock the Processor
Lock the processor by putting the Retention Cap provided. Take
note of the two plastic lock at the side of the Retention Cap. This
two plastic lock should be aligned properly into the Retention
Mechanism notch hole.
êê
Retention Cap
ê
Heat Sink
CeleronTM
processor
ê
plastic Clip
Plastic
Lock
Notch
Hole Notch
Hole
The instruction procedure may
vary depending on the Heat Sink
that you’re using.

CHAPTER 2 HARDWARE INSTALLATION
2-16
ProcedurefordetachingtheRetention Cap:
To remove the Retention Cap, you need a Screw Driver (0.3 cm) tip.
- Insert the screw driver into the retention cap notch hole.
- Push the retention cap plastic cap inward.
- Pull the retention cap upward.

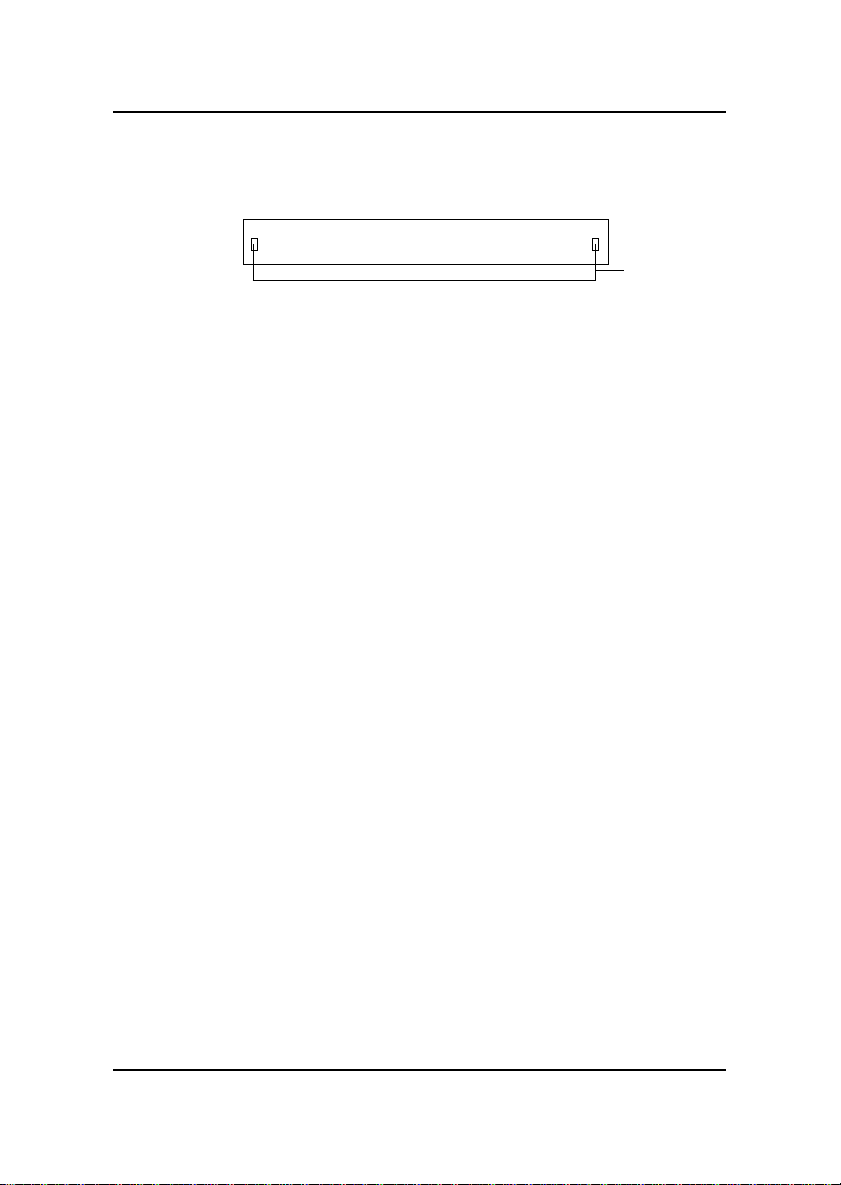

Retention Cap
(Top View)
Notch
Hole
