MSI MPG Z390I GAMING EDGE AC User manual

1
Quick Start
DDR4 Memory
Graphics Card
SATA Hard Disk Drive SATA DVD Drive
Phillips Screwdriver
Chassis
Power Supply Unit
A Package of Screws
Thermal Paste
Quick Start
Thank you for purchasing the MSI®MPG Z390I GAMING EDGE AC motherboard.
This Quick Start section provides demonstration diagrams about how to install your
computer. Some of the installations also provide video demonstrations. Please link to
the URL to watch it with the web browser on your phone or tablet. You may have even
link to the URL by scanning the QR code.
Preparing Tools and Components
Intel®LGA 1151 CPU
CPU Fan

2Quick Start
https://youtu.be/4ce91YC3Oww
Installing a Processor
1
2
3
6
45
7
8
9

3
Quick Start
Installing DDR4 memory
http://youtu.be/T03aDrJPyQs
1
2
2
3

4Quick Start
Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
210
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

5
Quick Start
Installing the Motherboard
1
2

6Quick Start

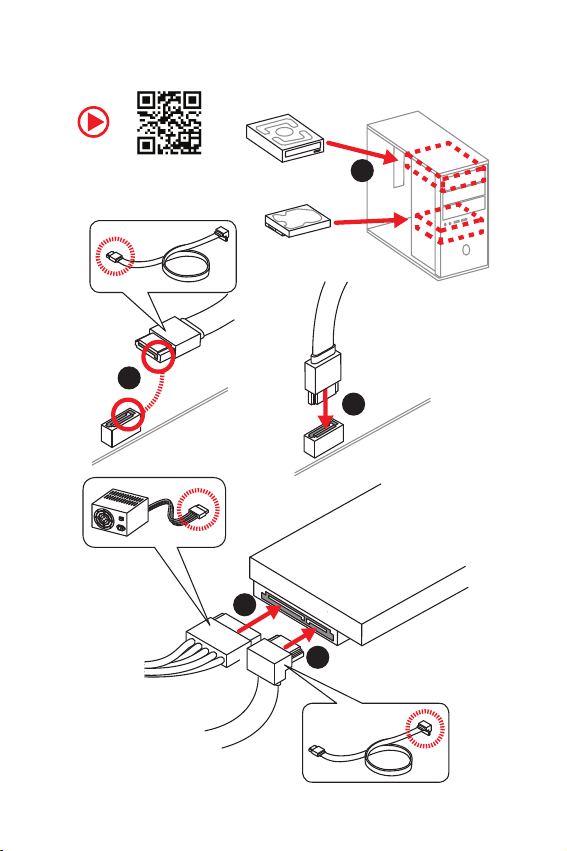

Installing SATA Drives
http://youtu.be/RZsMpqxythc
1
2
3
4
5

7
Quick Start
1
Installing a Graphics Card
http://youtu.be/mG0GZpr9w_A
2
3
4
5
6

8Quick Start
Connecting Peripheral Devices

9
Quick Start

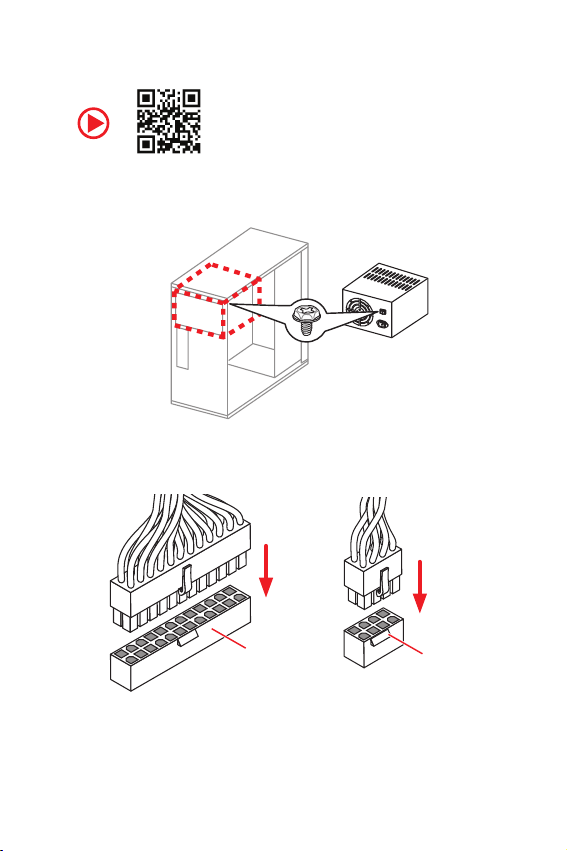

Connecting the Power Connectors
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

10 Quick Start
Power On
1
4
2
3

11
Contents
Contents
Quick Start ............................................................................................................. 1
Preparing Tools and Components.......................................................................... 1
Installing a Processor............................................................................................. 2
Installing DDR4 memory ........................................................................................ 3
Connecting the Front Panel Header....................................................................... 4
Installing the Motherboard..................................................................................... 5
Installing SATA Drives............................................................................................. 6
Installing a Graphics Card ...................................................................................... 7
Connecting Peripheral Devices.............................................................................. 8
Connecting the Power Connectors......................................................................... 9
Power On............................................................................................................... 10
Safety Information............................................................................................... 13
Specifications....................................................................................................... 14
Package contents ................................................................................................ 19
Block Diagram .................................................................................................... 20
Rear I/O Panel ..................................................................................................... 21
LAN Port LED Status Table................................................................................... 21
Audio Ports Configuration.................................................................................... 21
Realtek Audio Console ......................................................................................... 22
Overview of Components .................................................................................... 25
CPU Socket ........................................................................................................... 27
DIMM Slots............................................................................................................ 28
PCI_E1: PCIe Expansion Slot................................................................................ 29
SATA1~4: SATA 6Gb/s Connectors ....................................................................... 29
M2_1~2: M.2 Slots (Key M) ................................................................................... 30
JFP1, JFP2: Front Panel Connectors ................................................................... 31
JTPM1: TPM Module Connector........................................................................... 31
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 32
JUSB1: USB 2.0 Connector .................................................................................. 33
JUSB2: USB 3.1 Gen1 Connector ......................................................................... 33
CPU_FAN1, PUMP_FAN1, SYS_FAN1: Fan Connectors....................................... 34
JAUD1: Front Audio Connector ............................................................................ 35
JCI1: Chassis Intrusion Connector....................................................................... 35
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 36
EZ Debug LED....................................................................................................... 36
JRGB1: RGB LED connector................................................................................. 37

12 Contents
Installing OS, Drivers & Utilities ......................................................................... 38
Installing Windows®10......................................................................................... 38
Installing Drivers .................................................................................................. 38
Installing Utilities ................................................................................................. 38
MYSTIC LIGHT...................................................................................................... 39
Device LED effect control screen ......................................................................... 39
BIOS Setup ........................................................................................................... 42
Entering BIOS Setup............................................................................................. 42
Resetting BIOS...................................................................................................... 43
Updating BIOS....................................................................................................... 43
EZ Mode ................................................................................................................ 44
Advanced Mode .................................................................................................... 46
SETTINGS.............................................................................................................. 47
Advanced............................................................................................................... 47
Boot....................................................................................................................... 53
Security................................................................................................................. 54
Save & Exit............................................................................................................ 55
OC.......................................................................................................................... 56
M-FLASH .............................................................................................................. 62
OC PROFILE .......................................................................................................... 63
HARDWARE MONITOR.......................................................................................... 64
RAID Configuration.............................................................................................. 65
Enabling Intel®Rapid Storage Technology........................................................... 65
Creating RAID Volume ......................................................................................... 66
Removing a RAID Volume .................................................................................... 67
Resetting Disks to Non-RAID............................................................................... 68
Rebuilding RAID Array.......................................................................................... 69
Installing RAID Driver........................................................................................... 70
Installing Intel®Rapid Storage Technology Software.......................................... 70
Intel®Optane™ Memory Configuration .............................................................. 71
System Requirements ......................................................................................... 71
Installing the Intel®Optane™ memory ................................................................ 71
Removing the Intel®Optane™ memory ............................................................... 73
Troubleshooting .................................................................................................. 74
Regulatory Notices .............................................................................................. 75

13
Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on the
PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place anything
over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60oC (140oF), it may damage
the motherboard.

14 Specifications
Specifications
CPU
Supports 9th/ 8th Gen Intel®Core™ / Pentium®Gold /
Celeron®processors for LGA 1151 socket
* Please go to www.intel.com for more compatibility information.
Chipset Intel®Z390 Chipset
Memory
y2x DDR4 memory slots, support up to 32GB*
ySupports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/
4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/
3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/
3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/
2400/ 2133 MHz*
ySupports Dual-Channel mode
ySupports non-ECC, un-buffered memory
ySupports Intel®Extreme Memory Profile (XMP)
* Please refer www.msi.com for more information on compatible memory.
Expansion Slot y1x PCIe 3.0 x16 slot
Onboard Graphics
y1x DisplayPort, supports a maximum resolution of
4096x2304@60Hz
y1x HDMI™ port, supports a maximum resolution of
4096x2160@24Hz
Storage
Intel®Z390 Chipset
y4x SATA 6Gb/s ports*
y2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2260/
2280 storage devices*
M2_2 supports up to PCIe 3.0 x4, 2260/ 2280 storage
devices
Intel®Optane™ Memory Ready**
* The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.
** Before using Intel®Optane™ memory modules, please ensure that you have
updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel®Z390 Chipset
ySupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
ySupports RAID 0, RAID 1 for M.2 PCIe storage devices
LAN y1x Realtek®8111H Gigabit LAN controller
Continued on next page

15
Specifications
Continued from previous page
Wireless LAN &
Bluetooth®
Intel®Wireless-AC 9462 card
ySupports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz
up to 433 Mbps
ySupports Bluetooth®2.1, 2.1+EDR, 3.0, 4.0, 5
USB
yIntel®Z390 Chipset
2x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A
ports on the back panel
4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A
ports on the back panel, 2 ports available through the
internal USB 3.1 connector)
4x USB 2.0 (High-speed USB) ports (2 Type-A ports on
the back panel, 2 ports available through the internal
USB 2.0 connector)
Audio
yRealtek®ALC892 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Back Panel
Connectors
y2x USB 2.0 Type-A ports
y1x DisplayPort
y1x HDMI port
y2x USB 3.1 Gen1 Type-A ports
y1x LAN (RJ45) port
y2x USB 3.1 Gen2 Type-A ports
y5x audio jacks
y1x Optical S/PDIF OUT connector
Continued on next page

16 Specifications
Continued from previous page
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y4x SATA 6Gb/s connectors
y2x M.2 slots
y1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1
Gen1 ports)
y1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
y1x 4-pin CPU fan connector
y1x 4-pin Water Pump connector
y1x 4-pin system fan connector
y1x Front panel audio connector
y2x System panel connectors
y1x Chassis Intrusion connector
y1x 4-pin RGB LED connector
y1x Clear CMOS jumper
y1x TPM module connector
I/O Controller NUVOTON NCT6797 Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yMini-ITX Form Factor
y6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
BIOS Features
y1x 128 Mb flash
yUEFI AMI BIOS
yACPI 6.1, SMBIOS 2.8
yMulti-language
Continued on next page

17
Specifications
Continued from previous page
Software
yDrivers
yDRAGON CENTER
yMYSTIC LIGHT
yOpen Broadcaster Software (OBS)
yCPU-Z MSI GAMING
yMSI App Player (BlueStacks)
yIntel®Extreme Tuning Utility
yGoogle Chrome™ ,Google Toolbar, Google Drive
yNorton™ Internet Security Solution
Dragon Center
Features
yGAME OPTIMIZATION
yOC Performance
yHardware Monitor
yEyerest
yLive Update
Please refer to http://download.msi.
com/manual/mb/DRAGONCENTER2.
pdf for more details.
Continued on next page

18 Specifications
Continued from previous page
Special Features
yAudio
Audio Boost
yNetwork
Intel Wi-Fi AC
yStorage
Twin Turbo M.2
yFan
GAMING Fan Control
yLED
Mystic Light Extension(RGB)
Mystic Light SYNC
EZ DEBUG LED
yProtection
PCI-E Steel Armor
yPerformance
DDR4 Boost
GAME Boost
INTEL Turbo USB 3.1 Gen 2
CORE Boost
yVR
VR Ready
yGamer Experience
GAMING HOTKEY
GAMING MOUSE Control
APP Player
yBIOS
Click BIOS 5

19
Package contents
Package contents
Please check the contents of your motherboard package. It should contain:
Motherboard MPG Z390I GAMING EDGE AC
Cable SATA 6Gb/s Cables 2
RGB LED Extension 80cm 1
Accessories
Antenna Set 1
M.2 Screw 2
I/O Shield 1
Case Badge 1
Product Registration Card 1
Application DVD Driver DVD 1
Documentation User Manual 1
Quick Installation Guide 1
Important
If any of the above items are damaged or missing, please contact your retailer.

20 Block Diagram
Block Diagram
(Rear + Front)
2 Channel DDR4 Memory
2x USB 3.1 Gen2
PCIE Bus
DMI 3.0
PCH
Processor
NV6797
Super I/O
Realtek
ALC892
4x USB 3.1 Gen1
4x USB 2.0
Realtek
8111H
Audio Jacks
4x SATA 6Gb/s
2x M.2
HDMI DisplayPort
PCIe Bus
1x M.2
(E Key for Intel CNVi module only)
