MSI MS-6334 User manual

CHAPTER 1 INTRODUCTION
1-1
The MS-6334 Micro-ATX S5 mainboard is a high-performance
computer mainboard based on Intel®815 chipset. The MS-6334 is optimized
to support the Intel®Pentium®III (FC-PGA) processor for high-end busi-
ness/personal desktop markets.
The Intel®815 chipset integrates a Display Cache SDRAM control-
ler that supports a 32-bit 133MHz SDRAM array for enhanced integrated 3D
graphics performance. It is a highly-flexible chipset which is designed to
extend the basic graphics/multimedia PC platform up to the mainstream
performance desktop platform.
The Intel®815 chipset implements the host address, control, and
data bus interfaces within a single device. It takes advantage of the
pipelined addressing capability of the processor to improve the overall
system performance. In addition, the chipset also integrates a system
memory controller that supports a 64-bit 100/133 MHz SDRAM array.
The Intel®82801AA (ICH) chipset is a highly integrated
multifunctional I/O Controller Hub that provides the interface to the PCI Bus
and integrates many of the functions needed in today’s PC platforms. It
communicates with the host controller over a dedicated hub interface and
provides added flexibility in designing cost-effective system solutions.
Chapter 1
INTRODUCTION

CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSupport Socket 370 for Intel®CeleronTM/Pentium III(FC-PGA)processor
lSupport500MHz,550MHz,600MHz,633MHz,667MHzandupto9XX
Chipset
lIntel®815chipset.(544BGA)
-AGP4x/2x/1xuniversalslot
-Support66/100/133MHzFSB
lIntel®ICH chipset.
-AC’97 Controller Integrated
- 2 full IDE channels, up to ATA66
- Low pin count interface for Winbond SIO
MainMemory
lSupports up to 3 double sided DIMMs at 100 MHZ system memory bus.
lSupports up to 2 double sided or 3 single sided DIMMs at 133MHz
system memory bus.
lSupport 32 to 512MB using 16/64/128/256Mbit technology.
Slots
lOneCNR(CommunicationNetworkRiser).
lOneAGP(Accelerated Graphics Port) 4x/2x/1x slot.
lThree PCI 2.2 32-bit Master PCI Bus slots.
lSupport 3.3v/5v PCI bus Interface.
On-BoardIDE
lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66 operation modes.
lCan connect up to four IDE devices.

CHAPTER 1 INTRODUCTION
1-3
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with 360K,720K, 1.2M,
1.44M and 2.88Mbytes.
-2 serial port(COMA + COMB--header)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (Rear * 2/Front * 2)
-1VGAport
-1Line-In/Line-Out/Mic-In/GamePort
Video
lGMCHchip integrated
l2D/3DGraphics
lIntel®D.V.M Technology
lFlexibleAGP In-Line Memory Module(AIMM) (optional)
lOneAGP slot for external AGP card
Audio
lICH chip integrated
lSigmatel9721
-AC972.1 Compliant.
- Support 2 Channel Audio
lCreative®CT5880. (Optional)
-PCI2.2compliant
-PC98/99 specification compliant
- 3D audio effects.
- 32-voice XG wavetable synthesizer
- Direct Sound Hardware Accelerator
- Direct Music Hardware Accelerator
-Full-Duplex stereo
- Support SPDIF connector

CHAPTER 1 INTRODUCTION
1-4
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lMicro-ATX Form Factor
Mounting
l6 mounting holes.

CHAPTER 1 INTRODUCTION
1-5

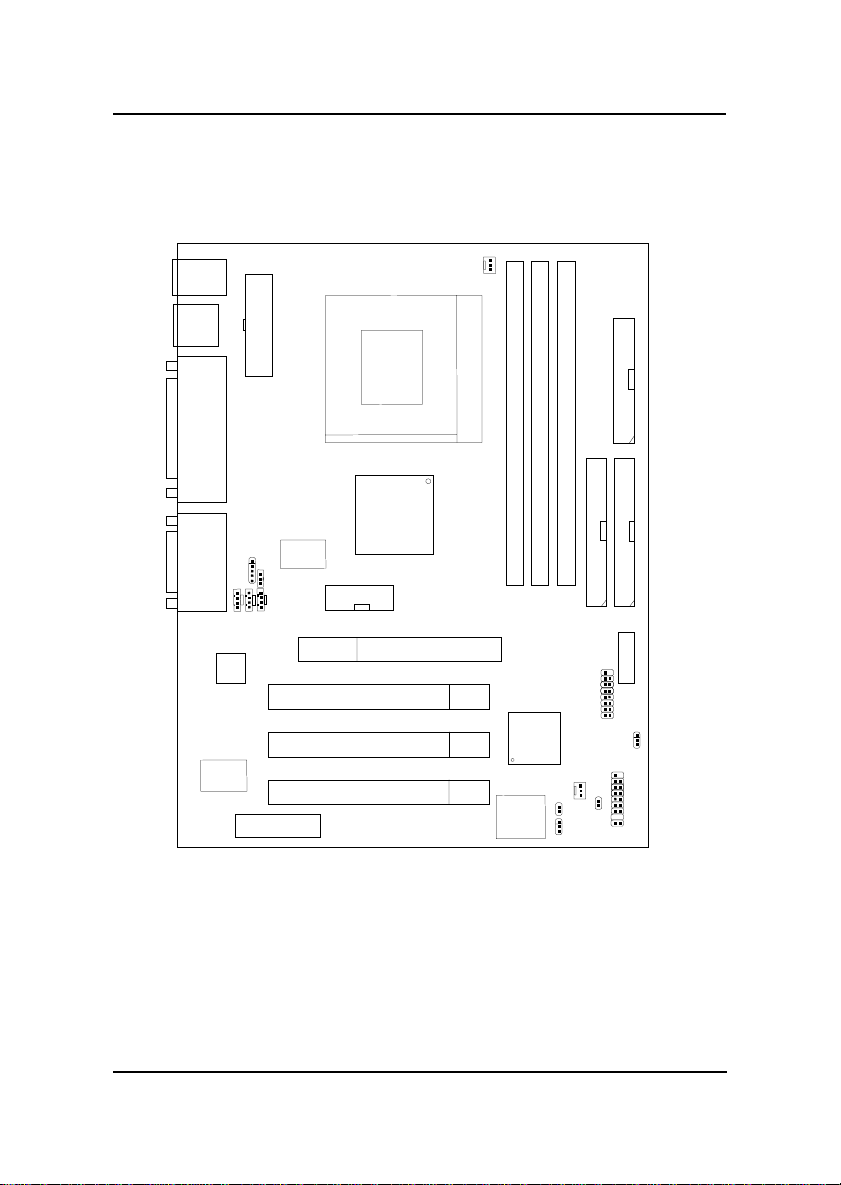

1.2 Mainboard Layout
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel
815
Chipset
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
IDE2
Bottom:
Port2
IDE1 FDD
JIR1
Intel
FW82801AA
CD_IN
AUX_IN
CPUFAN
SYSFAN
Top:LPT
Bottom:
COMA/
VGA
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
MS-6334 Micro-ATX S5 Mainboard
MDM_IN
JGS1
BIOS
AGP Slot
BATT+
DIMM 1
Creative
CT5880
J6
JGL1
DIMM 3
COM B
JWOL1
JMDM1
JBAT1
JP4
Winbond
W83627HF-AW
JUSB1
CNR
PCI SLOT 3
CODEC

CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operateswith Intel®CeleronTM/Pentium®III (FC-PGA)
processor. The mainboard uses a CPU socket called Socket 370 for easy
CPU installation. The CPU should always have a Heat Sink and a cooling
fan attached to prevent overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin1
2.1-1 CPU Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup.
If CPUClock = 100MHz
Core/Bus ratio = 7
then CPU core speed = Host Clock xCore/Bus ratio
= 700MHz
2.1-2 CPU Core Speed Derivation Procedure

CHAPTER 2 HARDWARE INSTALLATION
2-3

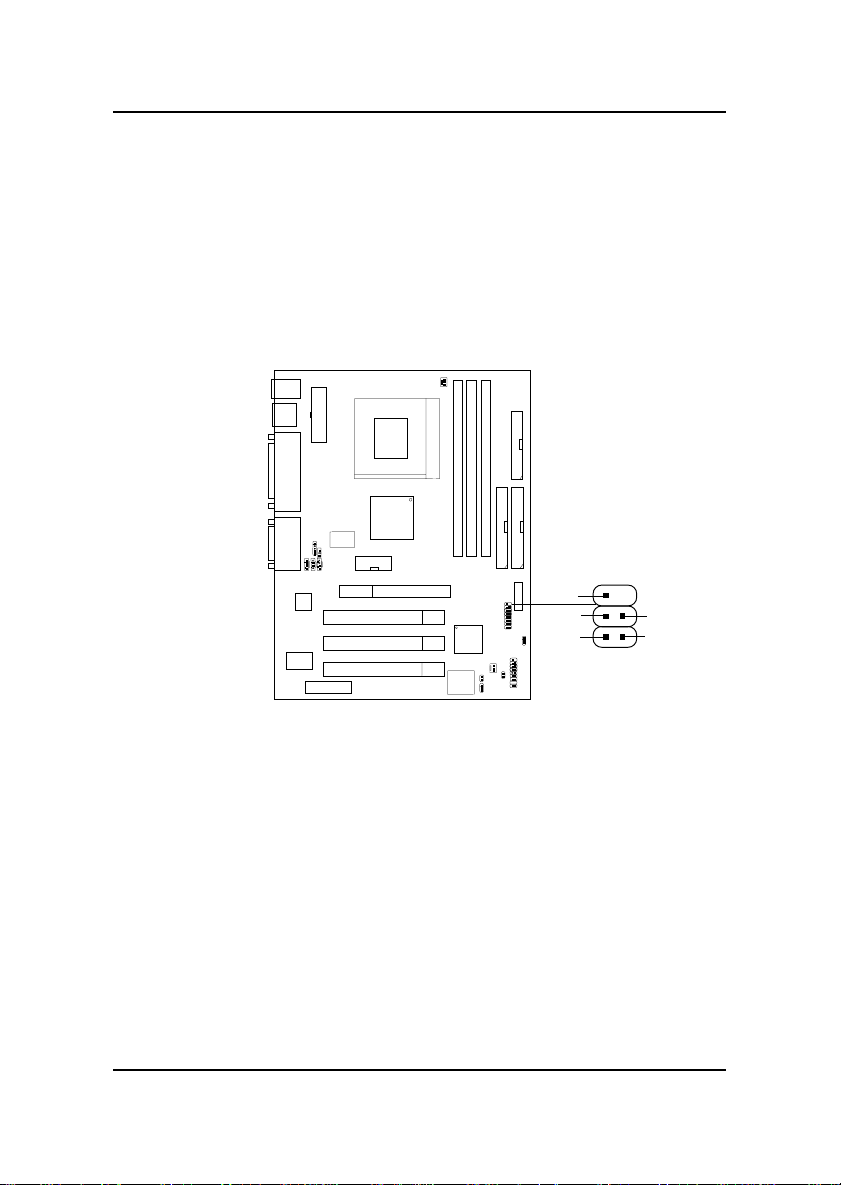

2.1-3 Fan Power Connectors: CPUFAN & SYSFAN
These connector support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
CPUFAN
CPUFAN: ProcessorFan
SYSFAN: SystemFan
+12V
GND
SENSOR
SYSFAN
+12V
GND
SENSOR

CHAPTER 2 HARDWARE INSTALLATION
2-4

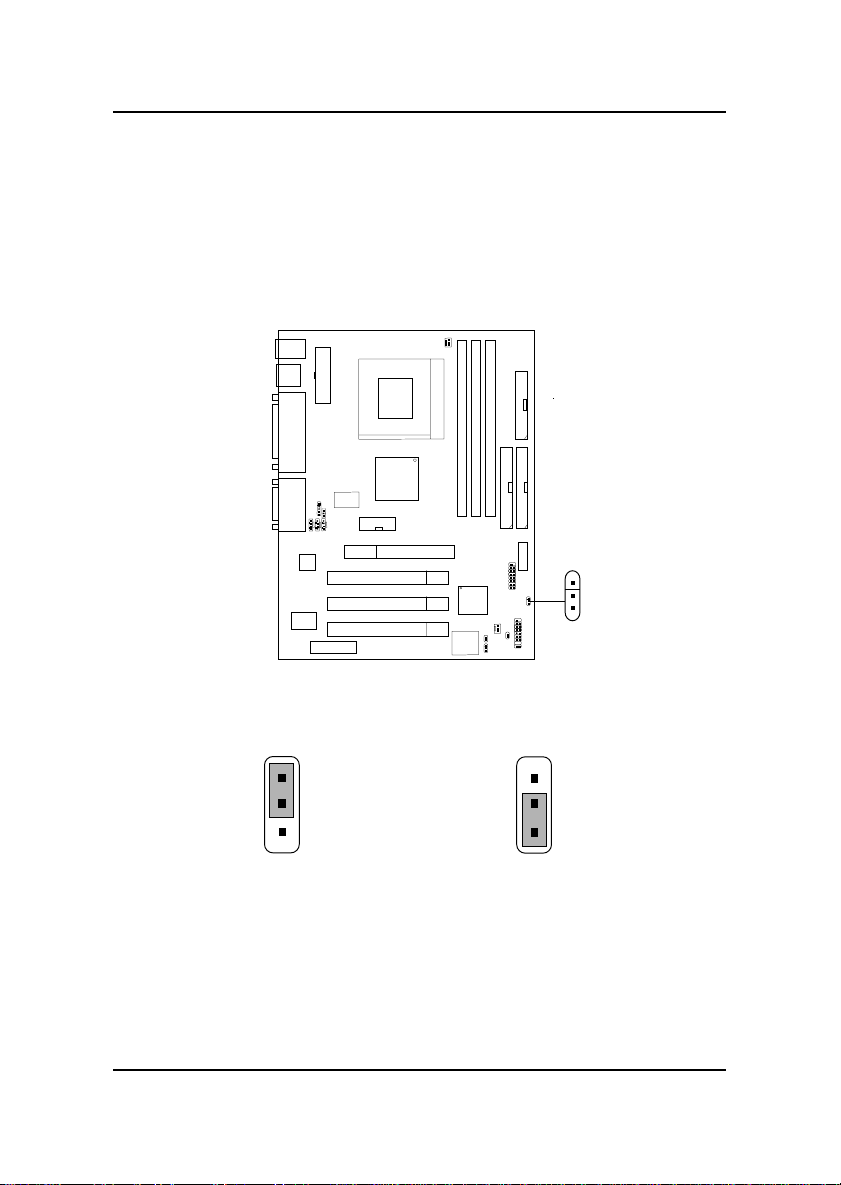

2.2 Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT1
1
3

CHAPTER 2 HARDWARE INSTALLATION
2-5

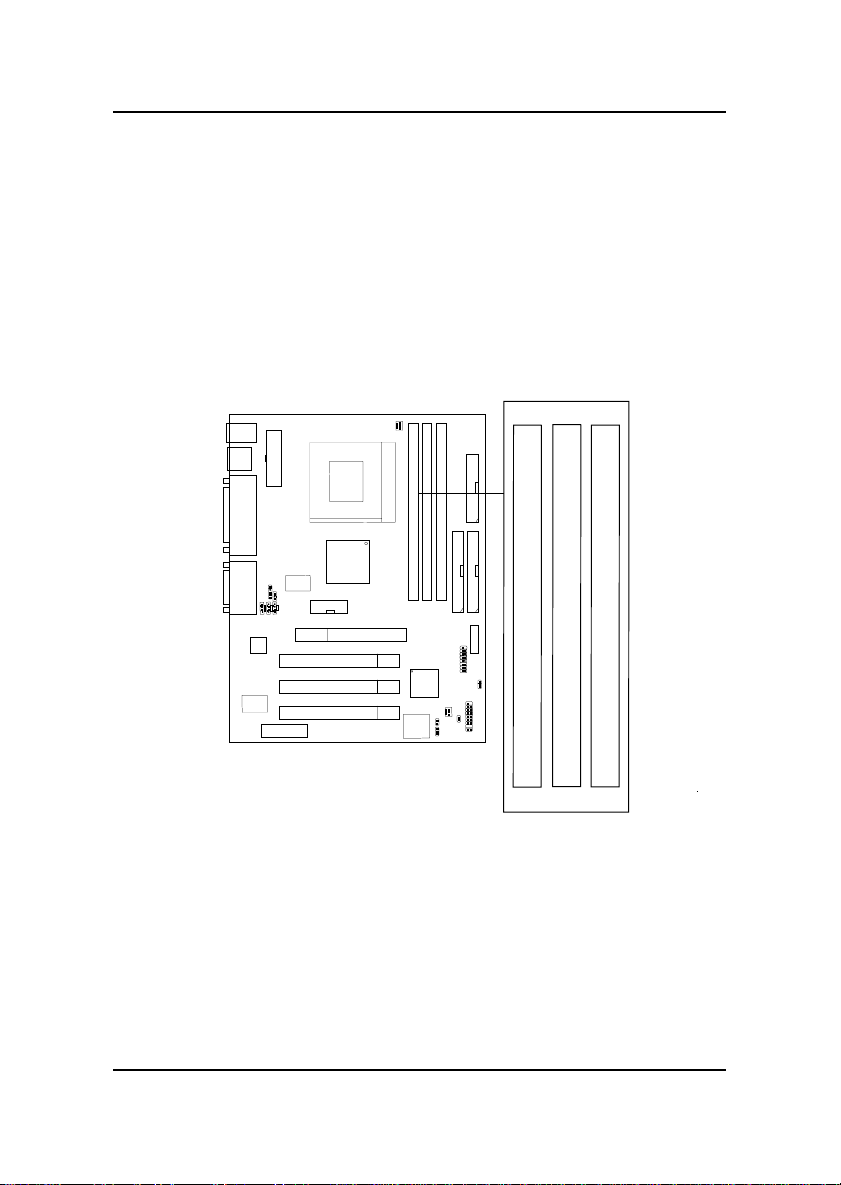

2.3 Memory Installation
2.3-1 Memory Bank Configuration
The mainboard supports a maximum memory size 512MB: It provides three
168-pin unbufferedDIMMs (Double In-Line Memory Module) sockets. It
supports 8 MB to 128 Mbytes DIMM memory module.
DIMM1(Bank0+Bank1)
DIMM2(Bank2+Bank3)
DIMM3(Bank4+Bank5)

CHAPTER 2 HARDWARE INSTALLATION
2-6
A. HowtoinstallaDIMMModule
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically
close.
Single Sided DIMM
Double Sided DIMM
VOLTDRAM
2.3-2 Memory Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION
2-7
1. Supports only SDRAM DIMM.
2. To operate properly, at least one 168-pin DIMM module must be in-
stalled.
3. This mainboard supports Table Free memory, so memory can be installed
on DIMM1, DIMM2, DIMM3 in any order.
4. Supports 3.3 volt DIMM.
5. The DRAM addressing and the size supported by the mainboard is
shown at the next page.
2.3-3 Memory Population Rules
16M 1Mx16 ASYM 11 8 8MBx4 16MBx8
2Mx8 ASYM 11 9 16MBx8 32MBx16
4Mx4 ASYM 11 10 32MB 64MB
64M 2Mx32 ASYM 11 9 32MBx2 64MBx4
2Mx32 ASYM 12 8 16MBx2 32MBx4
4Mx16 ASYM 11 10 32MB 64MB
4Mx16 ASYM 13 8 32MB 64MB
8Mx8 ASYM 13 9 64MB 128MB
16Mx4 ASYM 13 10 128MB 256MB
64M 2Mx32 ASYM 12 8 16MB 32MB
4Mx16 ASYM 13 8 32MB 64MB
8Mx8 ASYM 13 9 64MB 128MB
16Mx4 ASYM 13 10 128MB 256MB
256M 32Mx8 ASYM 14 9 256MB 512MB
DRAM
Tech.
DRAM
Density &
Width
DRAM
Addressing Address Size MB/DIMM
Row Column Single
Side(S) Double
Side(D)
no.
pcs. no. pcs.
Table 2.3-1 SDRAM Memory Addressing

CHAPTER 2 HARDWARE INSTALLATION
2-8

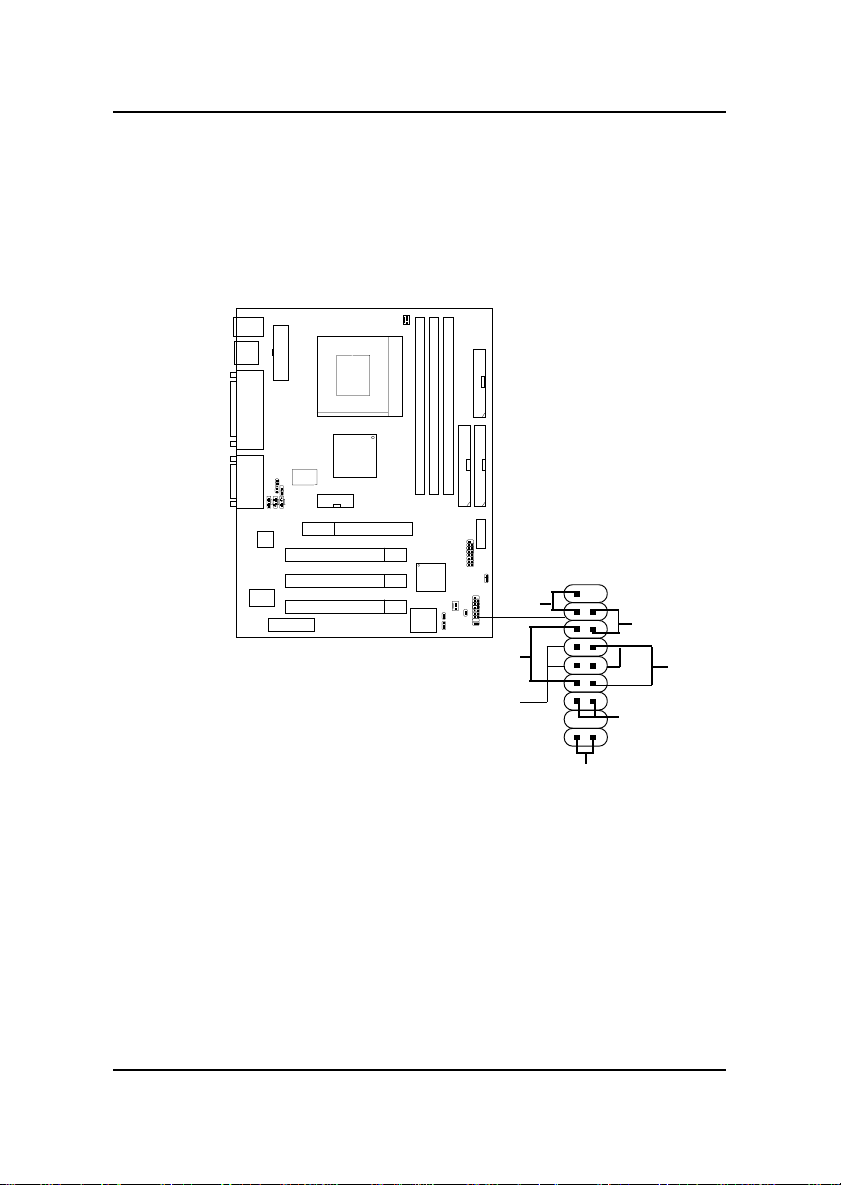

2.4 Case Connector: J6
TheKeylock, Power Switch,Reset Switch, Power LED, Speaker, and HDD
LED are all connected to the JFP1 connector block.
J6
Power
Switch
Power LED
+
Reset
Switch
HDD
LED
+
Speaker
Buzzer
(short
pin)
14
15
Keylock (Reserved)
Dual
Color
LED
Single
Color
LED

CHAPTER 2 HARDWARE INSTALLATION
2-9
2.4-1 Power Switch
Connect to a 2-pin push button switch.
2.4-2 Reset Switch
Reset switch is used to reboot the system rather than turning the power ON/
OFF. Avoid rebooting while the HDD LED is lit. You can connect the Reset
switch from the system case to this pin.
2.4-3 Power LED
The Power LED is lit while the system power is on. Connect the Power LED
from the system case to this pin. There are two types of LED that you can
use:3-pin single color LED or 2-pin dual colorLED(ACPI request).
a. 3 pin single color LED connect to pin 4, 5, & 6. This LED will lit
when the system is on.
b. 2 pin dual color LED connect to pin 5 & 6.
GREENColor: Indicate the system is in full on mode.
ORANGEColor: Indicate the system is in suspend mode.
2.4-4 Speaker
Speaker from the system case is connected to this pin.
Ifon-board Buzzer is available:
Shortpin14-15: On-board Buzzer Enabled.
Openpin14-15: On-board Buzzer Disabled.
2.4-5 HDD LED
HDD LED shows the activity of a hard disk drive. Avoid turning the power
off while the HDD led is lit. You can connect the HDD LED from the system
case to this pin.
2.4-6 Keylock
Keylock allows you to disable the keyboard for security purposes. You can
connect the keylock to this pin.

CHAPTER 2 HARDWARE INSTALLATION
2-10
2.5 Floppy Disk Connector: FDD
The mainboard also provides a standard floppy disk connector FDD that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
FDD
1

CHAPTER 2 HARDWARE INSTALLATION
2-11
2.6 Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA/66 Controller
that provides PIO mode 0~4, Bus Master, and Ultra DMA/33/66 function. It
has two HDD connectors IDE1 (primary) and IDE2 (secondary). You can
connect up to four hard disk drives, CD-ROM, 120MB Floppy and other
devices to IDE1 and IDE2. These connectors support the provided IDE
hard disk cable.
IDE1(PrimaryIDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.
IDE2(SecondaryIDEConnector)
IDE2 can also connect a Master and a Slave drive.
Primary IDE Connector
Secondary IDE Connector
11

CHAPTER 2 HARDWARE INSTALLATION
2-12
2.7 Power Supply
2.7-1 ATX 20-pin Power Connector: JWR1
This connector supports the power button on-board. Using the ATX power
supply, functions such as Modem Ring Wake-Up and Soft Power Off are
supported by this mainboard. This power connector supports instant power
on function which means that system will boot up instantly when the power
connector is inserted on the board.
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
PINDEFINITION
Warning: Since the mainboard has the instant power on function, make
sure that all components are installed properly before inserting the power
connector to ensure that no damage will be done.
ATX
Power Connector
11
20 10
1

CHAPTER 2 HARDWARE INSTALLATION
2-13
2.8 IrDA Infrared Module Connector: JIR1
The mainboard provides one infrared (JIR1) connector for IR modules. This
connector is for optional wireless transmitting and receiving infrared module.
You must configure the setting through the BIOS setup to use the IR
function.
VCC
CIRRX
IRRX
GND IRTX
JIR1

CHAPTER 2 HARDWARE INSTALLATION
2-14
2.9 Serial Port Connectors: COM A
The mainboard has a 9-pin male DIN connector for serial port COM A. This
port is a 16550A high speed communication port that send/receive 16 bytes
FIFOs. You can attach a mouse or a modem cable directly into this connec-
tor.
PIN SIGNAL
1DCD(Data Carry Detect)
2SIN(Serial In or Receive Data)
3SOUT(Serial Out or Transmit Data)
4DTR(DataTerminal Ready)
5GND
6DSR(Data Set Ready)
7RTS(Request To Send)
8CTS(Clear To Send)
9RI(RingIndicate)
PIN DEFINITION
1 2 3 4 5
6 7 8 9
COM A
Serial Port (9-pin Male)

CHAPTER 2 HARDWARE INSTALLATION
2-15
2.10 Parallel Port Connector: LPT1
The mainboard provides a 25 pin female centronic connector for LPT. A
parallel port is a standard printer port that also supports Enhanced Parallel
Port(EPP) and Extended capabilities Parallel Port(ECP). See connector and
pin definition below:
PIN SIGNAL PIN SIGNAL
1 STROBE 14 AUTOFEED#
2 DATA0 15 ERR#
3 DATA1 16 INIT#
4 DATA2 17 SLIN#
5 DATA3 18 GND
6 DATA4 19 GND
7 DATA5 20 GND
8 DATA6 21 GND
9 DATA7 22 GND
10 ACK# 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SELECT
PIN DEFINITION
LPT 1
13
Parallel Port (25-pin Female)
1
25 14
