MSI MS-6558/G User manual

i
Version 1.0
G52-MA00491
MS-6558/G (v1.X) Micro ATX Mainboard
MSI
MICRO-STAR INTERNATIONAL

ii
Micro-Star International MS-6558/G
Tested to comply
with FCC Standard
For Home or Office Use
Manual Rev: 1.0
Release Date: Nov. 2001
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.

iii
Edition
Nov. 2001
Copyright Notice
The material in this document is the intellectual property of MICRO-
STAR INTERNATIONAL. We take every care in the preparation
of this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we re-
serve the right to make changes without notice.
Trademarks
All trademarks used in this manual are the property of their respective
owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 95/98/2000 and Windows NT are registered trademarks of Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision Revision History Date
V1.0 First release Nov. 2001

iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always Unplug the Power Cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged
zLiquid has penetrated into the equipment
zThe equipment has been exposed to moisture
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged
zIf the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED,STORAGETEMPERATUREABOVE600
C(1400F),IT
MAY DAMAGE THE EQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

v
CONTENTS
Chapter 1. Getting Started ........................................................................ 1-1
Mainboard Specification ...................................................................... 1-2
Mainboard Layout ............................................................................... 1-4
Quick Components Guide .................................................................... 1-5
Chapter 2. Hardware Setup ....................................................................... 2-1
Central Processing Unit: CPU .............................................................. 2-2
CPU Installation Procedures ......................................................... 2-2
Installing the CPU Fan .................................................................. 2-3
CPU Core Speed Derivation Procedure ......................................... 2-4
Memory ................................................................................................ 2-5
Introduction to DDR SDRAM ....................................................... 2-5
DDR Module Combination ............................................................ 2-6
Installing DDR Modules ............................................................... 2-6
Power Supply ....................................................................................... 2-7
ATX 20-Pin Power Connector: JWR1 ............................................ 2-7
ATX 12V Power Connector: JPW1 ................................................ 2-7
Back Panel ............................................................................................ 2-8
Mouse Connector: JKBMS1 ......................................................... 2-8
Keyboard Connector: JKBMS1 ..................................................... 2-9
USB Connectors ............................................................................ 2-9
Serial Port Connector: COM A & COM B ................................... 2-10
VGA DB 15 Pin Connector .......................................................... 2-10
Joystick/Midi Connectors ........................................................... 2-11
Audio Port Connectors ............................................................... 2-11
LAN Jack (RJ-45) ......................................................................... 2-11
Parallel Port Connector: LPT1 ...................................................... 2-12
Connectors ......................................................................................... 2-13
Floppy Disk Drive Connector: FDD1 ........................................... 2-13

vi
Chassis Intrusion Switch Connector: J8 ...................................... 2-13
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-14
CD-In Connector: JCD1 ............................................................... 2-15
Aux Line-In Connector: JAUX1 .................................................. 2-15
Modem-In Connector: JMD1 ....................................................... 2-15
Fan Power Connectors: CPUFA/SYSFA ...................................... 2-16
Front Panel Connector: JFP1 or JFP2 ........................................... 2-17
Front Panel Audio Connector: JAUD1 ........................................ 2-18
Front USB Connectors: JUSB1 or JUSB2 .................................... 2-20
IrDA Infrared Module Header: JIR1 ............................................ 2-21
Jumpers .............................................................................................. 2-22
Clear CMOS Jumper: JBAT1 ........................................................ 2-22
Slots ................................................................................................... 2-23
AGP (Accelerated Graphics Port) Slot ......................................... 2-23
PCI Slots ...................................................................................... 2-23
CNR (Communication Network Riser) ......................................... 2-23
PCI Interrupt Request Routing .................................................... 2-24
Chapter 3. BIOS Setup .............................................................................. 3-1
Entering Setup ...................................................................................... 3-2
Control Keys ................................................................................. 3-2
Getting Help .................................................................................. 3-3
The Main Menu ................................................................................... 3-4
Standard CMOS Features .................................................................... 3-6
Advanced BIOS Features .................................................................... 3-8
Advanced Chipset Features ............................................................... 3-12
Integrated Peripherals ........................................................................ 3-14
Power Management Setup ................................................................. 3-19
PNP/PCI Configurations ..................................................................... 3-23
PC Health Status ................................................................................ 3-25

vii
Frequency/Voltage Control ................................................................ 3-26
Load Fail-Safe/Optimized Defaults ..................................................... 3-28
Set Supervisor/User Password ........................................................... 3-29
Glossary .................................................................................................... G-1

Getting Started
1-1
Chapter 1. Getting Started

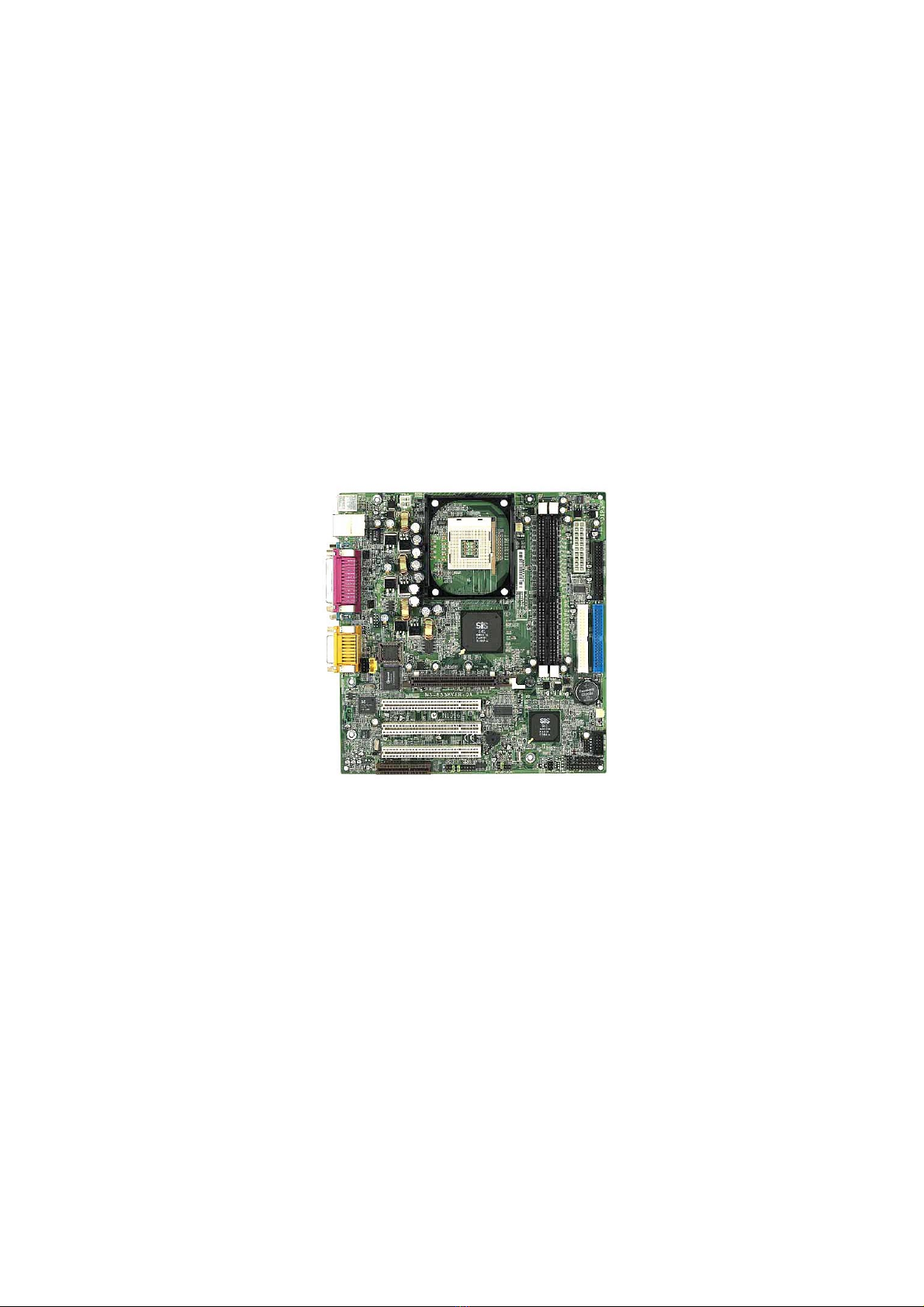

Thank you for purchasing the MS-6558/G v1.X Micro ATX mainboard.
The MS-6558/G consists of two superior computer mainboards: MS-6558 &
MS-6558G. The MS-6558 is based on SiS645 HMAL & the MS-6558G is based
on SiS650 IGUI HMAL for optimal system efficiency. Designed to fit the ad-
vanced Intel®Pentium®4 processors in the 478 pin package, the MS-6558/G
delivers a high performance and professional desktop platform solution.
1
Getting Started
TOPICS
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5

Chapter 1
1-2
CPU
Supports Intel®Pentium®4 processors in the 478 pin package.
Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz and up.
Chipset
SiS®645/650 HMAL/IGUI HMAL (702-pin BGA)
- High performance host interface (400MHz).
- 64 bit performance DDR333/DDR 266/PC 133 memory controller.
- Integrated A.G.P compliant target/66MHz Host-to-PCI bridge.
- High throughput SiS HyperZip connect to SiS 961 HyperZip Media I/O.
- Dedicated isochronous response queue.
- High performance 2D/3D and video accelerator (SiS650 only).
- Complete TV-Out/Digital Flat Panel solution and MPEG-2/1 video decoder
(SiS650 only).
SiS®961 HyperZip Media I/O (371-pin BGA)
- High performance HyperZip connect to SiS series NB.
- Integrated multi-threaded I/O link ensures concurrency of up/down data
transfer.
- Integrated HyperZip connect to PCI bridge.
- Dual IDE Master/Slave controller.
- Integrated USB host controller Fast Ethernet MAC controller.
- Integrated audio controller with AC97 interface.
- Advanced power management and PC2001 compliance.
- Integrated RTC and DMA interrupt and keyboard controller.
- Integrated PCI to LPC bridge.
MainMemory
Supports four memory banks using two 184-pin unbuffered DDR DIMM.
Supports up to 2GB memory size.
Supports 2.5v DDR SDRAM.
Slots
One AGP (Accelerated Graphics Port) 4X slot (1.5V only).
Three PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).
One CNR (Communication Network Riser) slot.
Mainboard Specification

Getting Started
1-3
On-BoardIDE
An IDE controller on the SiS961 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA100/66/33 operation modes.
Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial ports (COM A + COM B).
- 1 parallel port supports SPP/EPP/ECP mode.
- 4 USB ports (Rear * 2/ Front * 2).
- 1 IrDA connector for SIR.
- 1 RJ-45 LAN jack (optional).
- 1 audio/game port.
- 1 VGA port (for SiS 650 only).
Audio
AC97 link controller integrated in SiS 961.
2-channel software audio codec RealTek ALC201A/202A.
- Compliance with AC97 v2.2 Spec.
- Meet PC2001 audio performance requirement.
LAN (optional)
PCI local bus single-chip Fast Ethernet Controller, RealTek RTL8100L/BL.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v2.2/PC99 standard.
- Supports Wake-On-LAN and remote wake-up.
- Supports ACPI power management.
BIOS
2Mb Award/AMI BIOS with PnP, ACPI, SMBIOS 2.3, Green and Boot Block.
Provides DMI2.0, WfM2.0, WOL, WOR, chassis intrusion, and SMBus for
system management.
Dimension
Micro ATX Form Factor: 9.6” x 9.1”.
Mounting
6 mounting holes.

Chapter 1
1-4
ATX
PowerSupply
JFP2
(optional)
JUSB2
(optional)
SYSFA
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE2
JAUX1
CPUFA
JCOM2
(optional)
Winbond
W83697HF
JMD1
Codec
JCD1
RealTek
RTL8100L
Top :
Parallel Port
Bottom:
COM A
COM B
(or optional
VGA port)
Top: LAN Jack
Bottom: USB ports
(optional)
JPW1
Top :
Game port
Bottom:
Line-Out
Line-In
Mic
CNR
Top : mo use
Bottom: keyboard
JAUD1 JIR1
JBAT1 J8
AGP Slot
BATT
+
SiS
961
SiS
645/650
BIOS
JUSB1
(optional)
JFP1
(optional)
DDR1
DDR2
Mainboard Layout
MS-6558/G v1.X Micro ATX Mainboard

Getting Started
1-5
Quick Components Guide
Component Function Reference
JWR1/JPW1 ATX power connectors See p. 2-7
JKBMS1 Mouse/keyboard connector See p. 2-8
USB Connectors Connecting to USB devices See p. 2-9
COM A & COM B Serial port connector See p. 2-10
VGA DB 15 Pin Connecting to VGA monitor See p. 2-10
LAN Jack (optional) Connecting to LAN devices See p. 2-11
LPT1 Parallel port connector See p. 2-12
FDD1 Floppy disk drive connector See p. 2-13
J8 Chassis intrusion switch connector See p. 2-13
IDE1~ IDE2 Hard disk connectors See p. 2-14
JCD1/JAUX1/JMD1 CD/AUX/Modem-in connectors See p. 2-15
CPUFA/SYSFA Fan power connectors See p. 2-16
JFP1/JFP2 Front panel connectors See p. 2-17
JAUD1 Front panel audio connector See p. 2-18
JUSB1/JUSB2 USB front connector See p. 2-20
JIR1 IrDA infrared module connector See p. 2-21
JBAT1 Clear CMOS jumper See p. 2-22
AGP Slot Connecting to AGP cards See p. 2-23
PCI Slots Connecting to expansion cards See p. 2-23
CNR Slot Connecting to expansion cards See p. 2-23

Hardware Setup
2-1
Chapter 2. Hardware Setup
TOPICS
Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7
Back Panel 2-8
Connectors 2-13
Jumpers 2-22
Slots 2-23
2
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

Chapter 2
2-2
Central Processing Unit: CPU
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2. Look for the dot/cut edge. The
dot/cut edge should point to-
wards the lever pivot. The
CPU will only fit in the correct
orientation.
3. Hold the CPU down firmly,
and then close the lever to
complete the installation.
CPUInstallationProcedures
Open Lever
Dot / Cut edge
Sliding
Plate
Close
Lever
The mainboard supports Intel®Pentium®4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sinkandacoolingfanattachedonthetoptopreventoverheating. Ifyoudonot
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.
Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.
WARNING!

Hardware Setup
2-3
Installingthe CPU Fan
As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly important. To dissi-
pate heat, you need to attach the CPU cooling fan and heatsink on top of the
CPU. Follow the instructions below to install the Heatsink/Fan:
2. Position the heatsink onto the reten-
tion mechanism.
1. Locate the CPU and its retention
mechanism on the motherboard.
3. Mount the fan on top of the heatsink.
Press down the fan until its four clips
get wedged in the holes of the reten-
tion mechanism.
4. Press the two levers down to fasten
the fan. Each lever can be pressed
down in only ONE direction.
retention mechanism
levers

Chapter 2
2-4
CPU Core Speed Derivation Procedure
If CPUClock = 100MHz
Core/Bus ratio = 14
then CPU core speed = Host Clock x Core/Bus ratio
= 100MHzx14
= 1.4GHz
5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector
on the board.
fan power cable
Overclocking
This motherboard is designed to support overclocking.
However, please make sure your components are able to
tolerate such abnormal setting, while doing overclocking.
Any attempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks
caused by inadequate operation or beyond product
specifications.
WARNING!

Hardware Setup
2-5
Memory
The mainboard provides 2 slots for 184-pin, 2.5V DDR DIMM with 4
memory banks. You can install DDR200/PC1600 or DDR266/PC2100 DDR
SDRAM modules on the DDR DIMM slots (DDR 1~2). To operate properly, at
least one DIMM module must be installed.
Introduction to DDR SDRAM
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod-
ules rather than 168-pin DIMM modules used by SDR SDRAM. Two types of
DDRareavailableatthetimeofwriting:PC1600&PC2100.PC1600DDRSDRAM
running at 100MHz will produce about 1.6GB/s memory bandwidth. PC2100
running at 133MHz will produce 2.1GB/s memory bandwidth. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta-
tions and servers.
DDR1
DDR2

Chapter 2
2-6
You can install either single sided or double sided 184-pin DDR DIMM
modules into DDR DIMM slots to meet your needs. Different from the SDR
DIMM, the DDR DIMM has only one notch on the center of module. The
number of pins on either side of the breaks are different. The module will only
fit in the right orientation.
You can install memory modules in any combination as follows:
Slot Memory Module Total Memory
Slot 1
(Bank 0 & Bank 1) 64MB, 128MB,
256MB, 512MB, 1GB 64MB~1GB
Slot 2
(Bank 2 & Bank 3) 64MB, 128MB,
256MB, 512MB, 1GB 64MB~1GB
Maximum System Memory Supported 64MB~2GB
DDR Module Combination
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The module
will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in.
3. The plastic clip at each side of the DIMM slot will automatically close.
Volt notch

Hardware Setup
2-7
Power Supply
ATX 20-Pin Power Connector: JWR1
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plugs of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector. The power connector supports
instant power on function which means that system will boot up immediately
when the power supply connector is inserted on the board.
The mainboard supports ATX power supply for the power system. Be-
fore inserting the power supply connector, always make sure that all compo-
nents are installed properly to ensure that no damage will be caused.
ATX12VPowerConnector: JPW1
This 12V power connector is used to provide power to the CPU.
JWR1
10
1
20
11
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
JPW1 Pin Definition PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
JWR1 Pin Definition
JPW1
1 2
3 4

Chapter 2
2-8
The Back Panel provides the following connectors:
Back Panel
Mouse Connector: JKBMS1
The mainboard provides a standard PS/2®mouse mini DIN connector for
attaching a PS/2®mouse. You can plug a PS/2®mouse directly into this
connector. The connector location and pin assignments are as follows:
Mouse
Keyboard USB
Parallel
COM A COM B
(or optional
VGA port)
L-out L-in MIC
Midi/Joystick
PIN SIGNAL DESCRIPTION
1 MouseDATA MouseDATA
2 NC Noconnection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC Noconnection
Pin Definition
PS/2 Mouse (6-pin Female)
21
3
4
5
6
LAN
(optional)
Table of contents
Other MSI Motherboard manuals

MSI
MSI P45 Neo Series User manual

MSI
MSI MS-6566E User manual

MSI
MSI 7C56-002R User manual

MSI
MSI MS-6378 Instruction manual

MSI
MSI MS-5156 User manual

MSI
MSI X370 GAMING PLUS User manual

MSI
MSI DKA790GX Series User manual

MSI
MSI KA780G Series User manual

MSI
MSI Z270 KRAIT GAMING User manual

MSI
MSI MS-6167 User manual

MSI
MSI K9N6PGM2-V2 - Motherboard - Micro ATX User manual

MSI
MSI MS-7360 User manual

MSI
MSI EFINITY Series User manual

MSI
MSI Z370 GAMING PRO CARBON User manual

MSI
MSI G52-73501X1 User manual

MSI
MSI Big Bang-Fuzion MS-7582 User manual

MSI
MSI Z87-G43 Series User manual

MSI
MSI KM2M Combo User manual

MSI
MSI 870A-G54 series User manual

MSI
MSI MS-6117 User manual
