MSI X299 RAIDER User manual

I
Quick Start
Quick Start
Thank you for purchasing the MSI®X299 RAIDER motherboard. This
Quick Start section provides demonstration diagrams about how to
install your computer. Some of the installations also provide video
demonstrations. Please link to the URL to watch it with the web
browser on your phone or tablet. You may have even link to the URL
by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI®X299 RAIDER Motherboard gewählt
haben. Dieser Abschnitt der Kurzanleitung bietet eine Demo zur
Installation Ihres Computers. Manche Installationen bieten auch
die Videodemonstrationen. Klicken Sie auf die URL, um diese
Videoanleitung mit Ihrem Browser auf Ihrem Handy oder Table
anzusehen. Oder scannen Sie auch den QR Code mit Ihrem Handy,
um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI®X299 RAIDER. Ce manuel
fournit une rapide présentation avec des illustrations explicatives
qui vous aideront à assembler votre ordinateur. Des tutoriels vidéo
sont disponibles pour certaines étapes. Cliquez sur le lien fourni
pour regarder la vidéo sur votre téléphone ou votre tablette. Vous
pouvez également accéder au lien en scannant le QR code qui lui est
associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI®X299
RAIDER. Вэтом разделе представлена информация, которая
поможет вам при сборке комьютера. Для некоторых
этапов сборки имеются видеоинструкции. Для просмотра
видео, необходимо открыть соответствующую ссылку в
веб-браузере на вашем телефоне или планшете. Вы также
можете выполнить переход по ссылке, путем сканирования
QR-кода.

II Quick Start

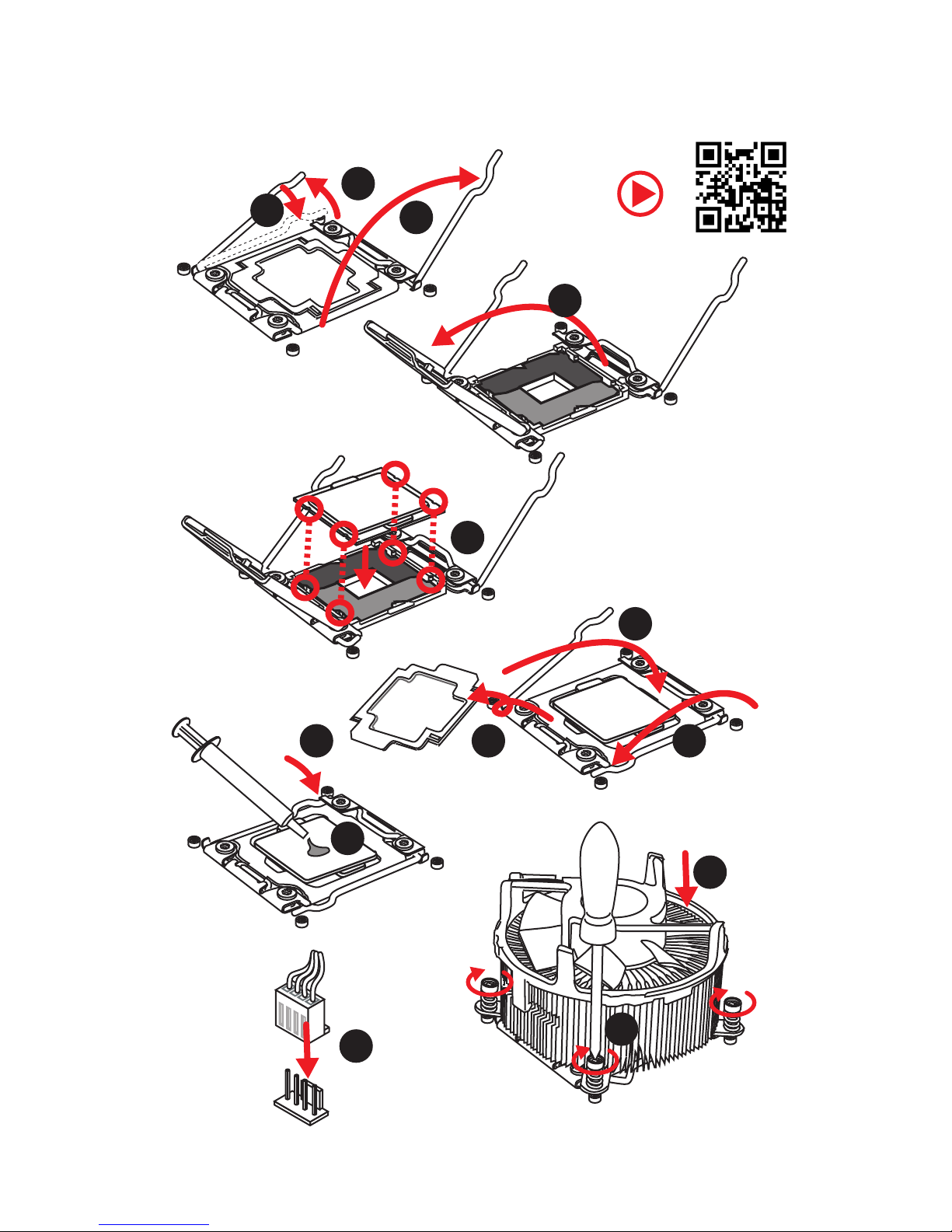

Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора
1
2
3
6
4
5
789
https://youtu.be/ecdkLMmkya4
10
11
12
13

III
Quick Start
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
http://youtu.be/T03aDrJPyQs
1
2
2
3
DIMMC1

IV Quick Start
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

V
Quick Start

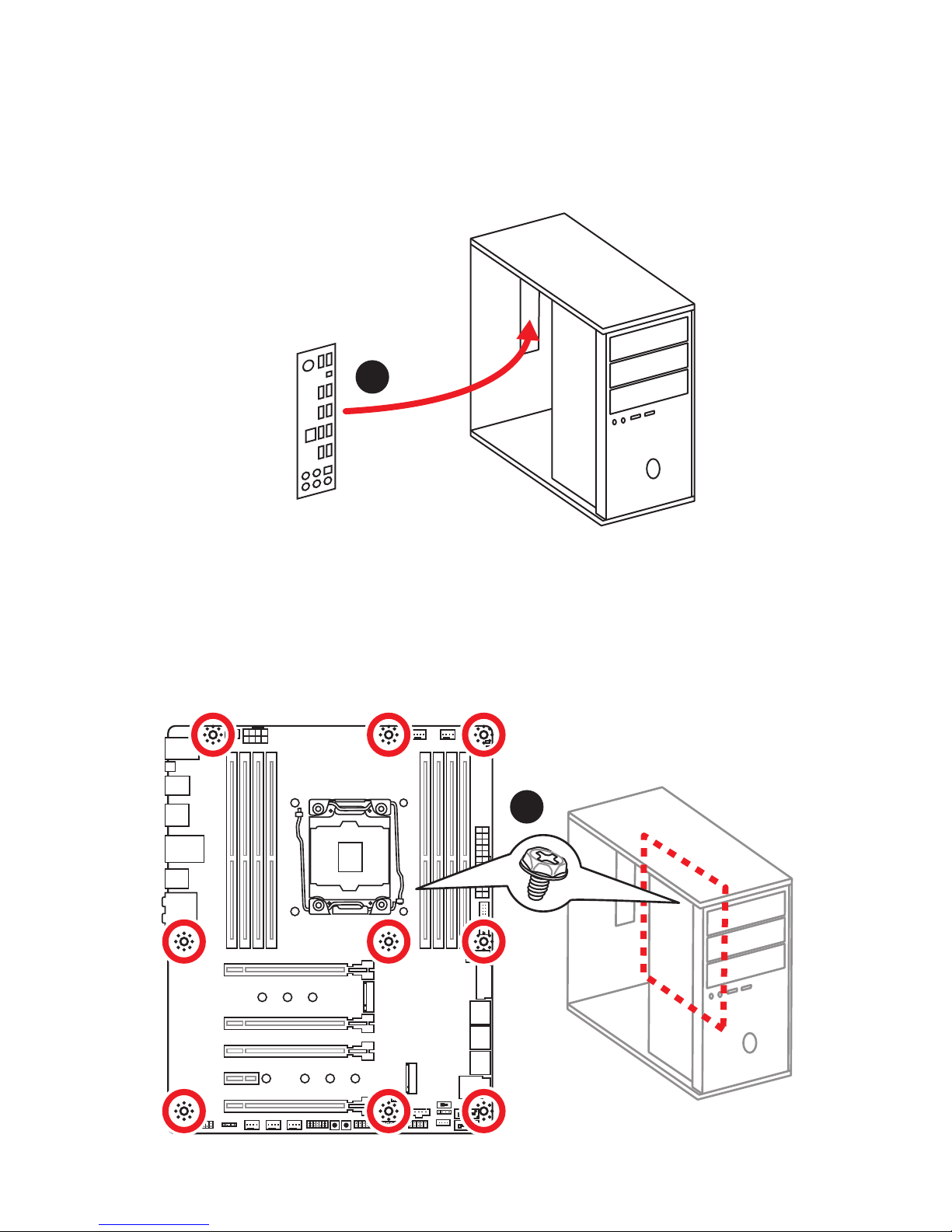

Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
1
2

VI Quick Start
1
23
4
5

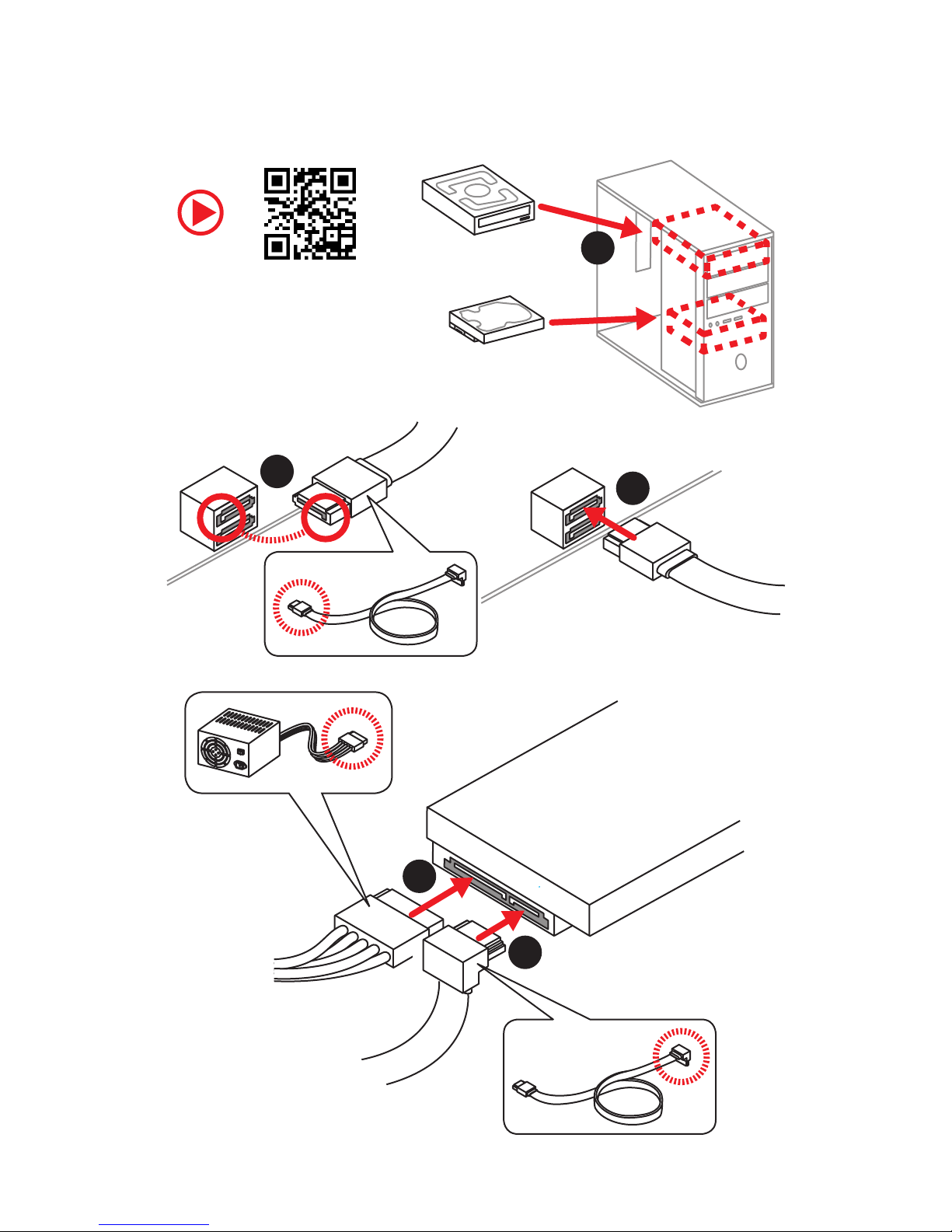

Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA
http://youtu.be/RZsMpqxythc

VII
Quick Start
1
2
3
4
5
6

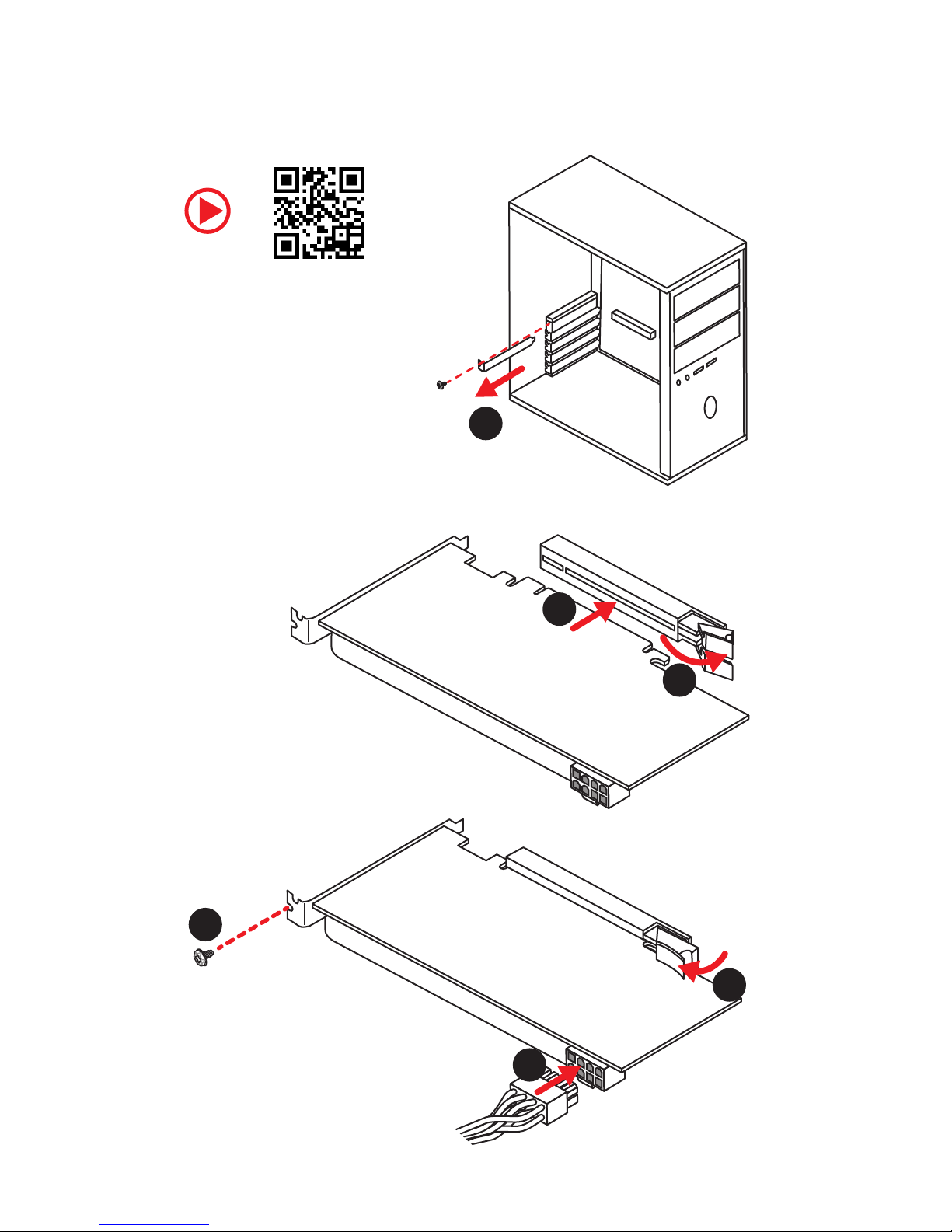

Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты
http://youtu.be/mG0GZpr9w_A

VIII Quick Start
Connecting Peripheral Devices/ Peripheriegeräte/
Connecter un périphérique anschliessen/ Подключение
периферийных устройств

IX
Quick Start

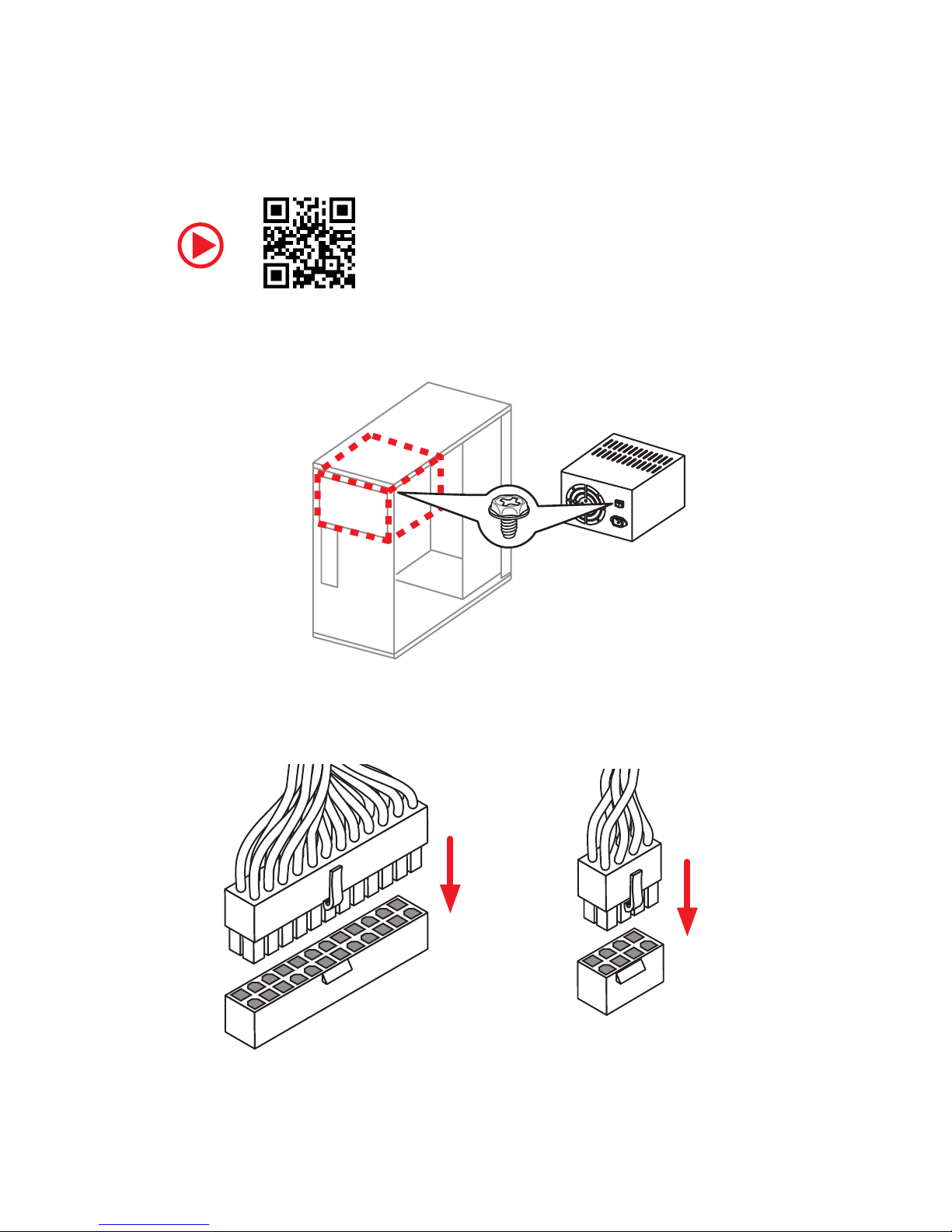

Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
http://youtu.be/gkDYyR_83I4
ATX_PWR1 CPU_PWR1

XQuick Start
1
4
2
3
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания

1
Contents
Contents
Safety Information................................................................................................. 3
Specifications......................................................................................................... 4

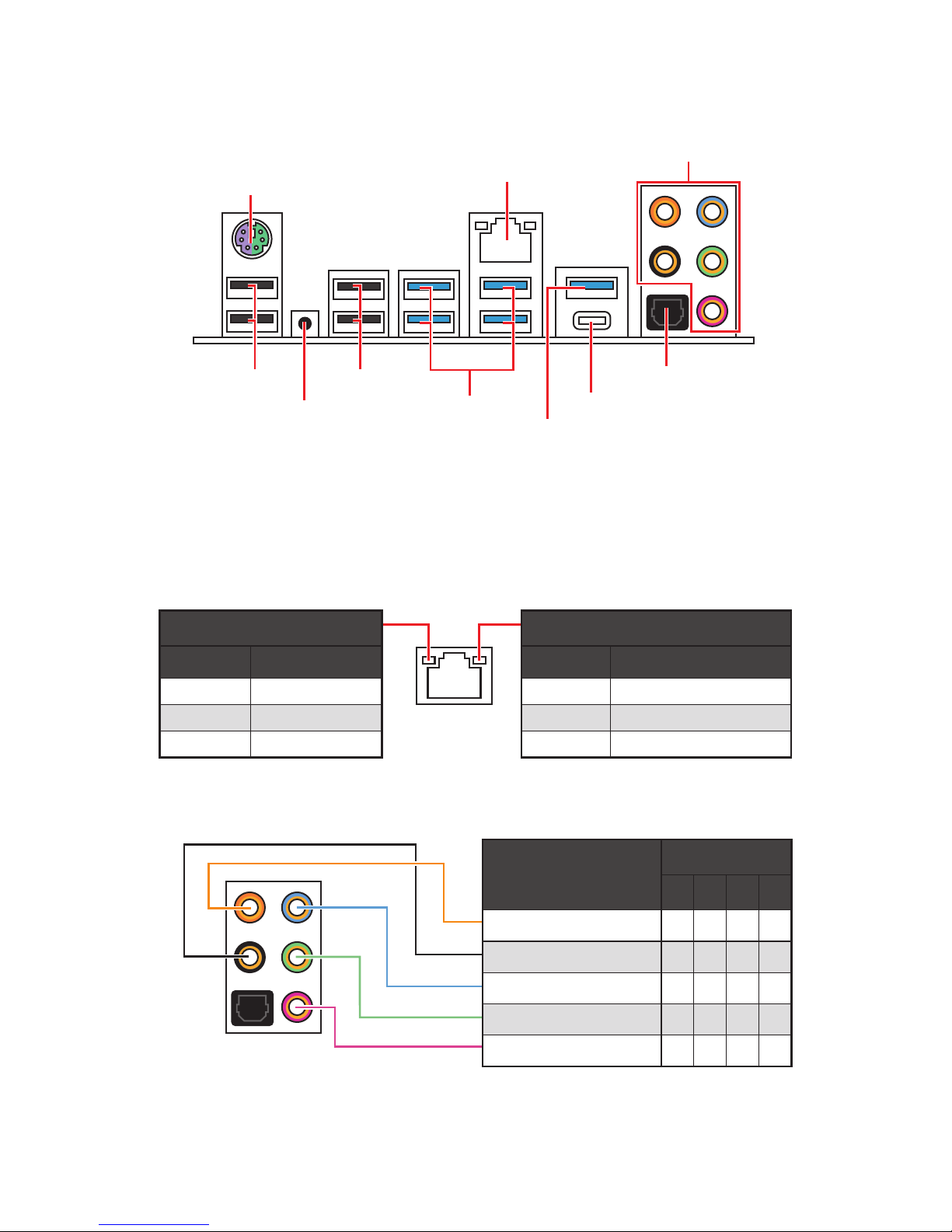

Rear I/O Panel ....................................................................................................... 9
LAN Port LED Status Table..................................................................................... 9
Audio Ports Configuration...................................................................................... 9

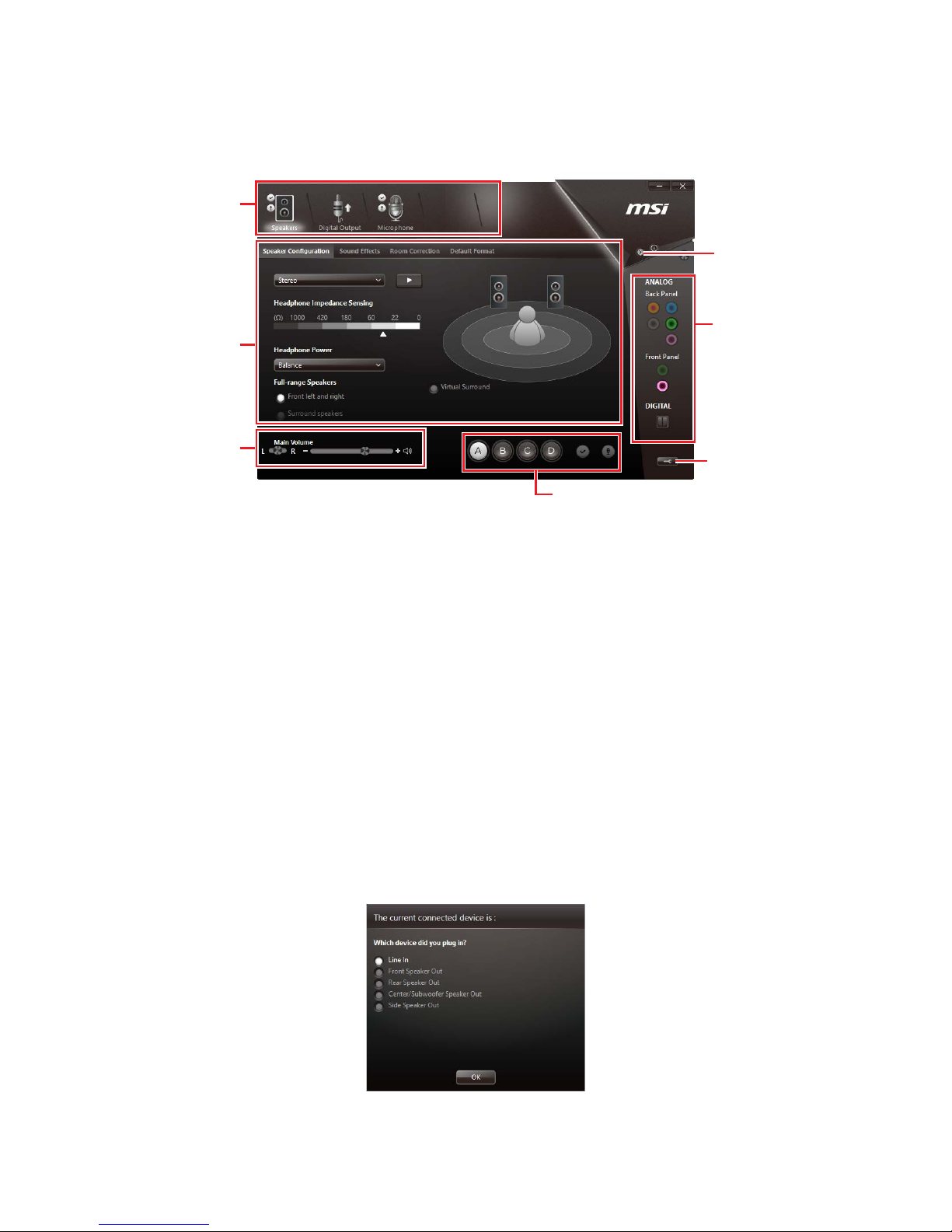

Realtek HD Audio Manager .................................................................................. 10
Overview of Components .................................................................................... 12
CPU Socket ........................................................................................................... 13
DIMM Slots............................................................................................................ 14
PCI_E1~5: PCIe Expansion Slots.......................................................................... 17
PCIe slots bandwidth table................................................................................... 17
U2_1: U.2 Connector............................................................................................. 20
M2_1~2: M.2 Slots (Key M) ................................................................................... 21
SATA1~8: SATA 6Gb/s Connectors ....................................................................... 22
JFP1, JFP2: Front Panel Connectors................................................................... 23
CPU_PWR1, ATX_PWR1: Power Connectors ....................................................... 24
VRAID1: Virtual RAID on CPU Connector............................................................. 24
JUSB1~2: USB 2.0 Connectors............................................................................. 25
JUSB3~4: USB 3.1 Gen1 Connectors ................................................................... 25
JUSB5: USB 3.1 Gen2 Type-C Connector............................................................. 26
CPU_FAN1, PUMP_FAN1, SYS_FAN1~4: Fan Connectors................................... 27
JTBT1: Thunderbolt Add-on Card Connector ...................................................... 27
JAUD1: Front Audio Connector ............................................................................ 28
JCI1: Chassis Intrusion Connector....................................................................... 28
JTPM1: TPM Module Connector........................................................................... 29
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 29
BIOS_SW1: Multi-BIOS Switch............................................................................. 30
POWER1, RESET1: Power Button, Reset Button ................................................. 31
JLED1: RGB LED connector ................................................................................. 31
Onboard LEDs...................................................................................................... 32
EZ Debug LED....................................................................................................... 32
XMP LED ............................................................................................................... 32
BIOS Setup........................................................................................................... 33
Entering BIOS Setup............................................................................................. 33
Resetting BIOS...................................................................................................... 34
Updating BIOS....................................................................................................... 34
EZ Mode ................................................................................................................ 35

2Contents
Advanced Mode .................................................................................................... 37
OC Menu................................................................................................................ 38
Software Description........................................................................................... 44
Installing Windows®10......................................................................................... 44
Installing Drivers .................................................................................................. 44
Installing Utilities ................................................................................................. 44

3
Safety Information
Safety Information
yThe components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
yEnsure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
yHold the motherboard by the edges to avoid touching sensitive components.
yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
yStore the motherboard in an electrostatic shielding container or on an anti-static pad
whenever the motherboard is not installed.
yBefore turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
yDo not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
yIf you need help during any installation step, please consult a certified computer
technician.
yAlways turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
yKeep this user guide for future reference.
yKeep this motherboard away from humidity.
yMake sure that your electrical outlet provides the same voltage as is indicated on the
PSU, before connecting the PSU to the electrical outlet.
yPlace the power cord such a way that people can not step on it. Do not place anything
over the power cord.
yAll cautions and warnings on the motherboard should be noted.
yIf any of the following situations arises, get the motherboard checked by service
personnel:
Liquid has penetrated into the computer.
The motherboard has been exposed to moisture.
The motherboard does not work well or you can not get it work according to user
guide.
The motherboard has been dropped and damaged.
The motherboard has obvious sign of breakage.
yDo not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4Specifications
Specifications
CPU Supports Intel®Core™ X-Series Processor Family for
LGA2066 Socket
Chipset Intel® X299 Chipset
Memory
y8x DDR4 memory slots, support up to 128GB*
yQuad channel memory architecture with the CPU that
supports up to 4-channels DDR4**
Support DDR4 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/
3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/
3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667/ 2400/
2133 MHz*
yDual channel memory architecture with the CPU that
supports up to 2-channels DDR4**
Support DDR4 4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/
4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/
3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/
3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667/ 2400/
2133 MHz*
ySupports Intel®Extreme Memory Profile (XMP)
* For the latest information about memory, please visit http://www.msi.com
** Please refer the DIMM Slots section for more details.
Expansion Slots
y4x PCIe 3.0 x16 slots
Support x16/x16/x8 mode with the 44-lane CPU.*
Support x16/x8/x4 modes with the 28-lane CPU.*
Support x8/x8/x0, x8/x4/x4 modes with the 16-lane
CPU.*
y1x PCIe 3.0 x1 slot
* Please refer to page 17 for PCIe 3.0 bandwidth table.
Multi-GPU ySupports NVIDIA®SLI™Technology
ySupports AMD®CrossFire™Technology
LAN 1x Intel I219-V Gigabit LAN controller
Continued on next page

5
Specifications
Continued from previous page
Storage
Intel®X299 Chipset
y8x SATA 6Gb/s ports*
y2x M.2 slots (Key M)*
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280 storage devices
M2_2 slot supports 2242/ 2260 /2280/ 22110 storage
devices
Intel®Optane™ Memory Ready for all M.2 slots **
y1x U.2 port ***
Supports PCIe 3.0 x4 NVMe storage
ySupports Intel®Smart Response Technology ****
* M.2 slots and SATA ports share the same bandwidth. Please refer to page 22
for U.2, M.2 & SATA combination table.
** Please refer to the Intel®Optane™ Memory Configuration Guide on MSI
website.
*** PCI_E2 shares bandwidth with U2_1. If you install a PCI_E2 device, the U2_1
will be disabled.
**** The functions will be supported depend on the CPU.
RAID
Intel®X299 Chipset
ySupports RAID 0, RAID1, RAID 5 and RAID 10 for SATA
storage devices
ySupports RAID 0 and RAID1 for M.2 PCIe storage devices*
* M.2 PCIe RAID volume can be created with M.2/Optane Genie.
USB
yIntel®X299 Chipset
8x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A
ports on the back panel, 4 ports available through the
internal USB connectors)
5x USB 2.0 (High-speed USB) ports (4 Type-A ports on
the back panel, 1 port available through the internal USB
connector)
yASMedia®ASM3142 Chipset
2x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1
Type-A port and 1 Type-C port on the back panel)
1x USB 3.1 Gen2 Type-C port internal USB connector
yUSB 2.0 Hub GL850G
3x USB 2.0 (High-speed USB) ports available through
the internal USB connectors.
Continued on next page

6Specifications
Continued from previous page
Back Panel
Connectors
y1x PS/2 keyboard/ mouse combo port
y1x Clear CMOS button
y4x USB 2.0 Type-A ports
y4x USB 3.1 Gen1 Type-A ports
y1x LAN (RJ45) port
y1x USB 3.1 Gen2 Type-A port
y1x USB 3.1 Gen2 Type-C port
y5x OFC audio jacks
y1x Optical S/PDIF OUT connector
Internal Connectors
y1x 24-pin ATX main power connector
y1x 8-pin ATX 12V power connector
y8x SATA 6Gb/s connectors
y2x USB 2.0 connectors (supports additional 4 USB 2.0
ports)
y2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1
Gen1 ports)
y1x USB 3.1 Gen2 Type-C port
y1x 4-pin CPU fan connector
y1x 4-pin Water Pump connector
y4x 4-pin system fan connectors
y2x Front panel connectors
y1x Front panel audio connector
y1x LED extension connector
y1x TPM module connector
y1x Virtual RAID on CPU connector
y1x Thunderbolt add-on card connector
Internal Buttons y1x Power button
y1x Reset button
Jumper y1x Clear CMOS jumper
y1x Chassis Intrusion connector
Continued on next page

7
Specifications
Continued from previous page
Audio
yRealtek®ALC1220 Codec
y7.1-Channel High Definition Audio
ySupports S/PDIF output
I/O Controller NUVOTON NCT6795 Controller Chip
Hardware Monitor
yCPU/System temperature detection
yCPU/System fan speed detection
yCPU/System fan speed control
Form Factor yATX Form Factor
y12 in. x 9.6 in. (30.5 cm x 24.3 cm)
BIOS Features
y2x 128 Mb flash
yUEFI AMI BIOS
yACPI 6.0, SM BIOS 3.0
yMulti-language
Software
yDrivers
yAPP MANAGER
yCOMMAND CENTER
yLIVE UPDATE 6
ySMART TOOL
yX-BOOST
ySUPER CHARGER
yMYSTIC LIGHT
yRAMDISK
yNETWORK MANAGER
yDPC LATENCY TUNER
yFAST BOOST
yCPU-Z MSI GAMING
yIntel Extreme Tuning Utility
yNorton™ Internet Security Solution
yGoogle Chrome™ ,Google Toolbar, Google Drive
Continued on next page

8Specifications
Continued from previous page
Special Features
yAudio
Audio Boost 4
yNetwork
Intel LAN with Network Manager
yStorage
Turbo U.2
Twin Turbo M.2
yFan
Pump Fan
Smart Fan Control
yLED
Mystic Light Extension
Mystic light SYNC
EZ DEBUG LED
yProtection
PCI-E Steel Armor
U.2 Steel Armor
yPerformance
Multi GPU – SLI Technology
Multi GPU – CrossFire Technology
DDR4 Boost
OC Engine(Clock gen)
USB with type A+C
Lightning USB with ASM3142
Front Lightning USB 3.1 Gen2 type C
yStability
Military Class 6
7000+ Quality Test
yBIOS
Click BIOS 5
Dual BIOS
yCertification
Quadro SLI Ready
Quadro Ready

9
Rear I/O Panel
Rear I/O Panel
Audio Ports
Optical S/PDIF-Out
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports Channel
2468
Center/ Subwoofer Out ● ●
Rear Speaker Out ●●●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ●●●●
Mic In
(●: connected, Blank: empty)
yClear CMOS button - Power off your computer. Press and hold the Clear CMOS
button for about 5-10 seconds to reset BIOS to default values.
PS/2
Clear CMOS Button
USB 2.0USB 2.0
LAN
USB 3.1 Gen1
USB 3.1 Gen2 Type-A
USB 3.1 Gen2 Type-C

10 Rear I/O Panel
Jack Status
Device
Selection
Connector
Settings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on the icon to launch.
yDevice Selection - allows you to select a audio output source to change the related
options. The check sign indicates the devices as default.
yApplication Enhancement - the array of options will provide you a complete guidance
of anticipated sound effect for both output and input device.
yMain Volume - controls the volume or balance the right/left side of the speakers that
you plugged in front or rear panel by adjust the bar.
yProfiles - toggles between profiles.
yAdvanced Settings - provides the mechanism to deal with 2 independent audio
streams.
yJack Status - depicts all render and capture devices currently connected with your
computer.
yConnector Settings - configures the connection settings.
Auto popup dialog
When you plug into a device at an audio jack, a dialogue window will pop up asking you
which device is current connected.
Each jack corresponds to its default setting as shown on the next page.
