MSI MS-7010 User manual

1-1
Getting Started
Chapter 1. Getting
Started
Thank you for purchasing the MS-7010 v1.X Micro ATX
mainboard. The MS-7010 is based on VIA®K8T800 North
Bridge & VT8237 South Bridge and provides eight USB 2.0
ports for high-speed data transmission, C-Media 9761 audio
codec for 6-channel audio output, and a SPDIF interface for
digital audio transmission. Designed to fit the advanced AMD®
Athlon64processors, the MS-7010 delivers a high performance
and professional desktop platform solution.
Getting Started

1-2
MS-7010 M-ATX Mainboard
Mainboard Specifications
CPU
hSupports 64-bit AMD®Athlon64 processor (Socket 754)
hSupports up to 3200+, 3400+, or higher CPU
Chipset
hVIA®K8T800 chipset
- HyperTransportTM connection to AMD Athlon64 processor
- 8 or 16 bit control/address/data transfer both directions
- 800/600/400/200 MHz “Double Data Rate” operation both direction
- AGP v3.0 compliant with 8x transfer mode
hVIA®VT8237chipset
- Integrated Faster Ethernet LPC
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
-ACPI
- Supports 2 Serial ATA ports
- Supports 8 USB2.0 ports
MainMemory
hSupports DDR266/333/400 DDR SDRAM for two 184-pin DDR DIMMs
hSupportsamaximummemorysizeof2GB
Slots
hOne (Accelerated Graphics Port) AGP slot
- AGP 3.0 specification compliant(1.5Vfor2X/4X/8X)
hThree 32-bit Master 3.3v/5v PCI Bus slots
hOne mini PCI slot
On-Board IDE
hAn IDE controller on the VIA®VT8237 chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes
hCan connect up to 4 IDE devices
hSerial ATA/150 controller integrated by VT8237
- Up ot 150MB/s transfer rate
- Can connect up to 2 serial ATA devices

1-3
Getting Started
IEEE1394 (Optional)
hSupports up to 2 * 1394 ports (up to 400Mbps transfer rate)
hControlled by VIA VT6307 chipset
On-BoardPeripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 1 serial port (COMA)
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB ports (Rear * 4/Front * 4)
- 2 IEEE 1394 ports (Rear * 1/Front * 1)
- 1 audio port
-1 RJ-45LAN jack
Audio
hC-Media 9761 6-channel software audio codec
- Compliance with AC97 v2.3 Spec
- Meet PC2001 audio performance requirement
LAN
hVIA®VT6103EthernetController
- Integrated Fast Ethernet MAC and PHY in one chip
- Supports 10Mbps & 100Mbps
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hMicro ATX Form Factor: 24.5 cm (L) x 24.5 cm (W)
Mounting
h6 mounting holes

1-4
MS-7010 M-ATX Mainboard
Mainboard Layout
MS-7010 v1.X Micro ATX Mainboard
BATT
+
DDR1
DDR2
JAUDIO1
JAUDIO2
JWR1
JBAT1
MINIPCI1
BIOS
PCI Slot 3
PCI Slot 2
PCI Slot 1
IDE1
FDD1
IDE2
CFAN1
AGPSlot
J3
JPW1
Codec
JVIDEO1 JF_W1
VIA
VT6307
VIA
VT6103
Winbond
83697THF
JUSB1 JUSB2
JF_P1
VIA
K8T800
Top: LAN Jack
Bottom: USB Ports
Top: 1394 Port
Bottom: USB Ports
Top: Mouse
Bottom: Keyboard
T:
M:
B: Line-Out
Line-Out
Line-Out
T: Mic
B: Line-In
VIA
VT8237
VIA
K8T800
SATA1
SATA2

2-1
Hardware Setup
Chapter 2. Hardware
Setup
This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the jump-
ers on the mainboard. Also, it provides the instructions on con-
necting the peripheral devices, such as the mouse, keyboard,
etc.
While doing the installation, be careful in holding the com-
ponents and follow the installation procedures.
Hardware Setup

2-2
MS-7010 M-ATX Mainboard
Quick Components Guide
BATT
+
BIOS
VIA
VT8237
JF_W1,p.2-16
J3, p.2-15
DDR DIMMs, p.2-9
CPU, p.2-3
Back Panel
I/O, p.2-12
CFAN1, p.2-15
FDD1, p.2-13
JUSB1/2, p.2-16
JPW1, p.2-11
AGP Slot, p.2-19
JVIDEO1, p.2-14
PCI Slots,p.2-19
IDE1/2, p.2-13
Mini PCI, p.2-19
SATA1/2,p.2-17
JF_P1, p.2-15
JBAT1, p.2-19
JWR1, p.2-11
JAUDIO2, p.2-14
JAUDIO1, p.2-14

2-3
Hardware Setup
Central Processing Unit: CPU
The mainboard supports AMD®Athlon64 processor. The mainboard
uses a CPU socket called Socket-754 for easy CPU installation. When you are
installing the CPU, make sure the CPU has a heat sink and a cooling fan
attached on the top to prevent overheating. If you do not have the heat sink
and cooling fan, contact your dealer to purchase and install them before turn-
ing on the computer.
MSI Reminds You...
Overheating
Overheating will seriously damage the CPU and system, always
make sure the cooling fan can work properly to protect the CPU
from overheating.
Replacing the CPU
While replacing the CPU, always turn off the ATX power supply
or unplug the power supply’s power cord from grounded outlet
first to ensure the safety of CPU.

2-4
MS-7010 M-ATX Mainboard
CPU Installation Procedures for Socket 754
1. Please turn off the power and
unplug the power cord before
installing the CPU.
2. Pull the lever sideways away
from the socket. Make sure
to raise the lever up to a 90-
degree angle.
3. Look for the gold arrow. The
gold arrow should point to-
wards the lever pivot. The
CPU can only fit in the cor-
rect orientation.
4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation pro-
cedures may cause permanent
damages to your mainboard.
5. Press the CPU down firmly
into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your fingers pressing
tightly on top of the CPU to
make sure the CPU is prop-
erly and completely embed-
ded into the socket.
OpenLever
90 degree
Sliding
Plate
Gold
arrow
Gold
arrow
Gold
arrow
C orrect
CPU
placem ent
Incorrect
CPU
placem ent
X
O
Close
Lever
Press
dow n
th e C P U

2-5
Hardware Setup
Installing AMD Athlon64 CPU Cooler Set
When you are installing the CPU, make sure the CPU has a heat sink
and a cooling fan attached on the top to prevent overheating. If you do not
have the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.

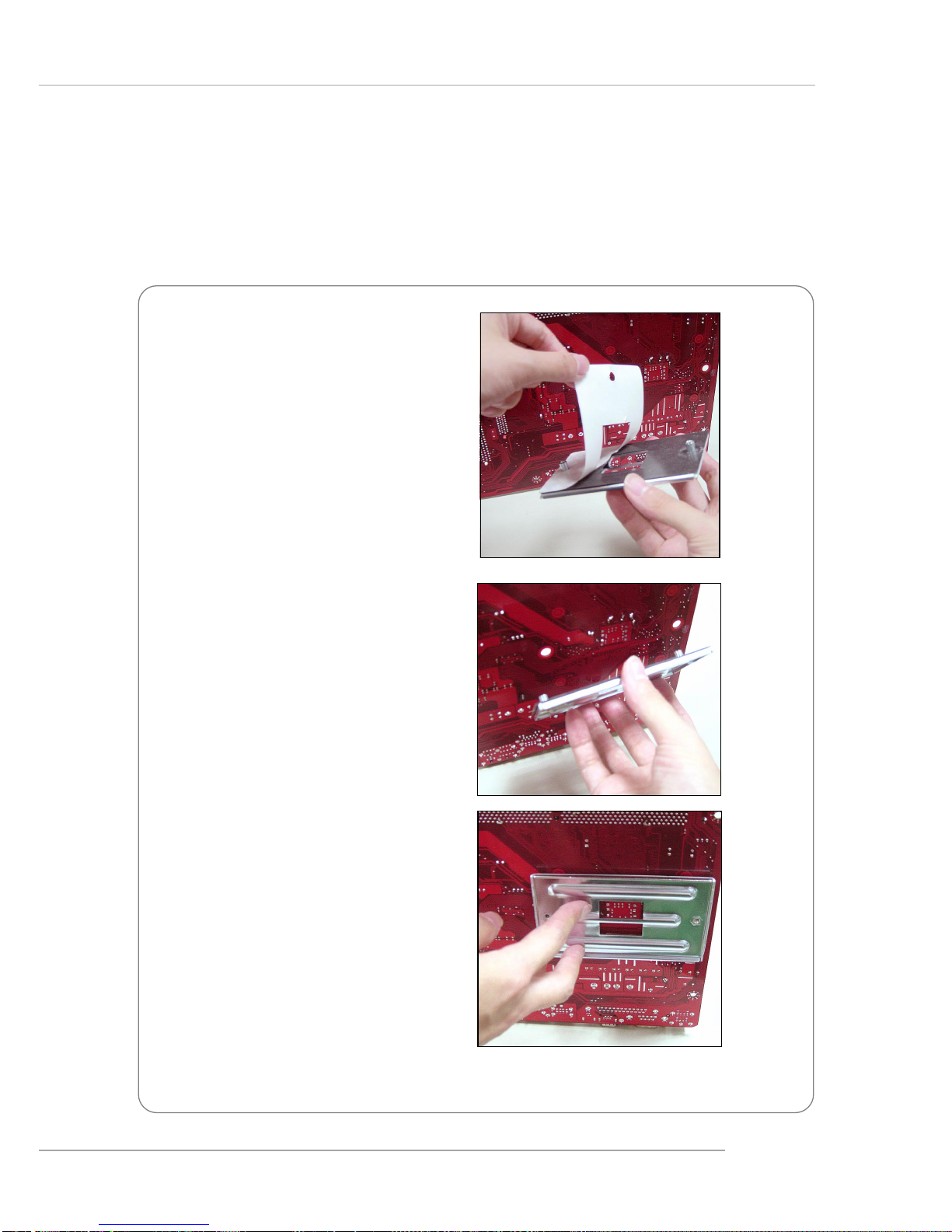

1. Detach the shield of the
backplate’s paster.
2. Turn over the mainboard, and
install the backplate to the
proper position.

2-6
MS-7010 M-ATX Mainboard
3. Turn over the mainboard
again, and place the
mainboard on the flat surface.
Locate the two screw holes of
the mainboard.
4. Align the retention mechanism
and the backplate.
Fix the retention mechanism
and the backplate with two
screws.
5. Position the cooling set onto
the retention mechanism.
Hook one end of the clip to
hook first.
retention mechanism

2-7
Hardware Setup
6. Press down the other end of
the clip to fasten the cooling set
on the top of the retention
mechanism.
7. Locate the Fix Lever, Saftey
Hook and the Fixed Bolt.
Lift up the intensive fixed lever.
Safety Hook
Fixed Bolt
Fixed Lever
MSI Reminds You...
Mainboard photos shown in this section are for demonstration
of the installation of AMD Athlon 64 CPU Cooler Set only. The
appearance of your mainboard may vary depending on the
model you purchase.

2-8
MS-7010 M-ATX Mainboard
8. Fastened down the lever.
9. Make sure the safety hook
completely clasps the fixed bolt
of the retention mechanism.
MSI Reminds You...
While disconnecting the Safety Hook from the fixed bolt, it
is necessary to keep an eye on your fingers, because once
the Safety Hook is disconnected from the fixed bolt, the fixed
lever will spring back instantly.

2-9
Hardware Setup
Memory
The mainboard provides 2 slots for 184-pin DDR SDRAM DIMM
(Double In-Line Memory Module) modules and supports the memory size up
to 2GB. You can install PC3200/DDR400, PC2700/DDR333, PC2100/
DDR266 or PC1600/DDR200 unbuffered DIMM modules on the DDR DIMM
slots (DDR 1~2).
DDR DIMM Slots
(DDR 1~2)
Introduction to DDR SDRAM
DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod-
ules rather than 168-pin DIMM modules used by SDR SDRAM. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta-
tions and servers.
*Please Refer to <www.msi.com.tw>
for the latest qualified memory list to
ensure the system stability.

2-10
MS-7010 M-ATX Mainboard
Installing DDR Modules
1. The DDR DIMM has only one notch on the center of module. The mod-
ule will only fit in the right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then
push it in until the golden finger of the memory module is deeply inserted
in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
MSI Reminds You...
You can barely see the golden finger if the module is properly
inserted in the socket.
Volt Notch
DDR DIMM Population Rules
Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double-
sided modules to meet your own needs.
Memory modules can be installed in any combination as follows:
S: Single Side D: Double Side
Slot Memory Module
DIMM 1 (Bank 0 & 1) S/D
DIMM 2 (Bank 2 & 3) S/D
Maximum System Memory Supported 64MB~2GB

2-11
Hardware Setup
Power Supply
The mainboard supports ATX power supply for the power system. Be-
fore inserting the power supply connector, always make sure that all compo-
nents are installed properly to ensure that no damage will be caused.
ATX 20-Pin Power Connector: JWR1
This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
JWR1 Pin Definition
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
JPW1 Pin Definition
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
MSI Reminds You...
Power supply of 300 (and up) watt is highly recommended for sys-
tem stability.
JWR1
10
1
20
11
JPW1
1
3
42

2-12
MS-7010 M-ATX Mainboard
Back Panel
Mouse Parallel
USB Ports
IEEE 1394
Keyboard
Mic-In
L-Out L-In
LAN
COM A SPDIF Out
PIN SIGNAL
1 PWR
2 GND
3 TPB-
4 TPB+
5 TPA-
6 TPA+
1
2
3
4
5
6
IEEE 1394 Port
RJ-45 LAN Jack
PIN SIGNAL PIN SIGNAL
1 TDP 5 NC
2 TDN 6 RDN
3 RDP 7 NC
4 NC 8 NC
8 1
USB Ports
1 2 3 4 PIN SIGNAL
1 VCC
2 -Data
3 +Data
4 GND
Mouse/Keyboard Connector
Pin1
Mouse/KBD
DATA
Pin2 NC
Pin3 GNDPin4 VCC
Pin5
Mouse/KBD
Clock
Pin6 NC
SPDIF In
L-Out
L-Out
Serial Port
PIN SIGNAL
1 DCD
2 SIN
3 SOUT
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9RI
1 2 3 4 5
6 7 8 9

2-13
Hardware Setup
Connectors
FDD1
The mainboard provides connectors to connect to FDD, IDE HDD, case,
modem, LAN, USB ports, and CPU/system fans.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/
100/133 controller that provides PIO mode 0~4, Bus Master, and Ultra
DMA33/66/100/133 function. You can connect up to four hard disk drives,
CD-ROM, 120MB Floppy (reserved for future BIOS) and other devices. These
connectors support the provided IDE hard disk cable.
MSI Reminds You...
If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for
jumper setting instructions.
IDE2IDE1
IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.
IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.

2-14
MS-7010 M-ATX Mainboard
Front Panel Audio Connector: JAUDIO1
The JAUDIO1 front panel audio connector allows you to connect to the
front panel audio and is compliant with Intel®Front Panel I/O Connectivity
Design Guide.
PIN SIGNAL DESCRIPTION
1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel
Pin Definition
MSI Reminds You...
If you don’t want to connect to the front audio
header, pins 5 & 6, 9 & 10 have to be jumpered
in order to have signal output directed to the
rear audio ports. Otherwise, the Line-Out con-
nector on the back panel will not function.
CD-In Connector: JAUDIO2
The connector is for CD-ROM audio connector.
Audio Connector: JVIDEO1
This connector allows you to connect to a TV Tuner Card.
JAUDIO2
GND
RL
JVIDEO1
G
N
D
VIDEO-L
VIDEO-R
JAUDIO1
1
2
9
10
1
2
9
10

2-15
Hardware Setup
JF_P1
1
8Reset
HDD_LED
PWR_LED
PS-ON
Front Panel Connector: JF_P1
The mainboard provides one front panel connector for electrical con-
nection to the front panel switches and LEDs.
Fan Power Connector: CFAN1
The CFAN1 (processor fan) supports system cooling fan with +12V. It
supports three-pin head connector. When connecting the wire to the connector,
always take note that the red wire is the positive and should be connected to
the +12V, the black wire is Ground and should be connected to GND.
Joystick/Game Connector: J3 (Optional)
You can connect a joystick or game pad to this connector.
CFAN1
Sensor
+12V
GND
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.
Pin Description Pin Description
1 FVCC5 (power) 2 Key pin
3 RXD 4 GP4
5 GP5 6 GP6
7 GP7 8 GP2
9 GP1 10 GP0
11 GP3 12 TXD
J3 Pin Definition
J3
1
11
2
12

2-16
MS-7010 M-ATX Mainboard
IEEE 1394 Connector: JF_W1
The mainboard provides one IEEE1394 pin header that allows you to
connect IEEE 1394 ports via an external IEEE1394 bracket.
Front USB Connectors: JUSB1/JUSB2
The mainboard provides two USB 2.0 pin headers JUSB1 & JUSB2 that
are compliant with Intel®I/O Connectivity Design Guide. USB 2.0 technol-
ogy increases data transfer rate up to a maximum throughput of 480Mbps,
which is 40 times faster than USB 1.1, and is ideal for connecting high-speed
USB interface peripherals such as USB HDD, digital cameras, MP3 players,
printers, modems and the like.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
PIN SIGNAL PIN SIGNAL
1 USBPWR 2 USBPWR
3 USBP4- 4 USBP5-
5 USBP4+ 6 USBP5+
7 GND 8 GND
9 NC 10 USBOC
Pin Definition
JF_W1
1
92
10
JUSB1/2
19 2
10
