1
Introduction
Thank you for choosing the 845GVM2-V Series (MS-7120 v1.X) micro ATX mainboard. The
845GVM2-V Series is based on Intel ® 845GV GMCH & ICH4 chipsets for optimal system
efficiency. Designed to fit the advanced Intel ® Pentium ® 4 Willamette / Northwood / Prescott /
Prescott Celeron processors in 478 pin package, the 845GVM2-V Series delivers a high
performance and professional desktop platform solution.
Layout
BATT
+
ICH4
D
D
R
2
D
D
R
1
CPUFAN1
CD_IN1
JFP2 JFP1
JBAT1
JUSB1
JAUDIO1
JCOM2
CONN1
SYSFAN1
PCI 2
PCI 1
I
D
E
1
I
D
E
2
Oben: Parallel Port
Unten:
COM 1
VGA Port
Oben: Maus
Untem: Tastatur
Oben: LAN
Unten: USB
Ports
USB
Ports
Codec
JPW1
O: Line-In
M:
U: Mic
Line-Out
FDD 1
W
i
n
b
o
n
d
W
8
3
6
2
7
H
F
BIOS
AGR
RTL8101L
Intel 845GV
CNR 1

2
Specifications
CPU
zSupports Intel ® Pentium 4 Willamette / Northwood / Prescott / Prescott Celeron (Socket 478)
processor up to 3.06GHz.
zSupports FSB 533MHz/400MHz.
(For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipset
zIntel ® 845GV GMCH chipset (760 mBGA)
- Multiplexed AGP and Intel ® DVO port Interface.
- Integrated 3D/2D graphic core (Core frequency= 200 MHz, 350 MHz integrated 24-bit
RAMDAC).
- Supports PC2700/2100 (DDR333/266) technology.
- Supports FSB 400 MHz/533 MHz
zIntel ® ICH4 chipset. (421 BGA)
- AC’97 Controller Integrated.
- 6 ports Hi-Speed USB 2.0 controller, 480Mb/sec.
- Supports both ACPI and legacy APM power management.
- Legacy free supported.
Main Memory
zSupports two memory banks using two 184-pin unbuffered DDR200/266/333 DIMMs.
zMax memory size is 2GB without ECC (1GB/slot).
zSupports 2.5V DDR DIMM.
(For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Slots
zOne AGR (Advance Graphics Riser) slot for compatible AGP VGA cards.
zTwo PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
zOne CNR (Communication Network Riser) slot.
On-Board IDE
zAn IDE controller on the Intel ® ICH4 Chipset provides IDE HDD/CD-ROM with PIO, Bus
Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices.

3
zDual IDE controllers integrated in ICH4.
zCan connect up to four IDE devices.
On-Board Peripherals
zOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 2 serial ports (COM 1+JCOM2).
- 1 parallel port supports SPP/EPP/ECP mode.
- 6 USB 2.0 ports (Rear * 4/ Front * 2).
- 1 audio (Line-In/Line-Out/Mic) port.
- 1 RJ45 LAN jack.
Audio
zAC97 link controller integrated in ICH4.
z6 channels S/W audio codec (Realtek ALC 655 codec): compliance with AC97 2.2 Spec and
meets PC2001 audio performance requirement.
LAN (Optional)
zPCI local bus single-chip Fast Ethernet Controller, RealTek RTL8101L.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v2.2 and PC99 standard.
- Supports ACPI Power Management.
BIOS
zACPI, SMBIOS 2.3, Green and Boot Block.
zProvides DMI 2.0, WFM 2.0, WOL and SMBus for system management.
Dimension
zMicro-ATX Form Factor: 24.4 cm (L) x 19 cm (W).
Mounting
z6 mounting holes.

4
(Optional)
Rear Panel
The back panel provides the following connectors:
Ke
y
board
USB Ports
Mouse
COM
p
ort
V
GA port
Parallel Port
Line In
Line Out
Mic In
LAN
USB Port
s
Hardware Setup
This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as
how to setup the jumpers on the mainboard. It also provides the instructions on connecting the
peripheral devices, such as the mouse, keyboard, etc. While doing the installation, be careful in
holding the components and follow the installation procedures.
Central Processing Unit: CPU
The mainboard supports Intel Pentium 4 Willamette / Northwood / Prescott / Prescott Celeron
processor (FSB 400MHz/533MHz) in the 478 pin package. The mainboard uses a CPU socket
called PGA478 for easy CPU installation. When you are installing the CPU, make sure the CPU
has a heat sink and a cooling fan attached on the top to prevent overheating. If you do not find
the heat sink and cooling fan, contact your dealer to purchase and install them before turning on
the computer. (For the latest information about CPU, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Example of CPU Core Speed Derivation Procedure
If CPU Clock = 133MHz
Core/Bus ratio = 23
then CPU core speed = Host Clock x Core/Bus ratio
= 133MHz x 23
=3.06GHz

5
Memory Speed/CPU FSB Support Matrix
Memory
FSB
DDR 200 DDR 266 DDR 333
400 MHz OK OK Down to 266
533 MHz OK OK OK
CPU Installation Procedures for Socket 478
1. Please turn off the power and unplug the power cord before installing the CPU.
2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a
90-degree angle.
3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can
only fit in the correct orientation.
4. If the CPU is correctly installed, the pins should be completely embedded into the socket
and can not be seen. Please note that any violation of the correct installation procedures
may cause permanent damages to your mainboard.
5. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to
move while the lever is being closed, always close the lever with your fingers pressing
tightly on top of the CPU to make sure the CPU is properly and completely embedded into
the socket.
Installing the CPU Fan
As processor technology pushes to faster speeds and higher performance, thermal management
becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and
heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:
1. Locate the CPU and its retention mechanism on the motherboard.
2. Position the heatsink onto the retention mechanism.
3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in
the holes of the retention mechanism.
4. Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE
direction.

6
5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector on
the board.
MSI Reminds You...
Overheating…
Overheating will seriously damage the CPU and system, always make sure the cooling fan can
work properly to protect the CPU from overheating.
Replacing the CPU…
While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s
power cord from grounded outlet first to ensure the safety of CPU.
Memory
The mainboard provides two 184-pin unbuffered DDR200/DDR266/DDR333 DDR SDRAM, and
supports the memory size up to 2GB. To operate properly, at least one DIMM module must be
installed. (For the updated supporting memory modules, please visit
http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Install at least one DIMM module on the slots. Memory modules can be installed on the slots in
any order. You can install either single- or double-sided modules to meet your own needs.
Installing DDR Modules:
1. The DDR DIMM has only one notch on the center of module. The module will only fit in the
right orientation.
2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the socket.
3. The plastic clip at each side of the DIMM slot will automatically close.
NotchVol
t

7
Power Supply
The mainboard supports ATX power supply for the power system. Before inserting the power
supply connector, always make sure that all components are installed properly to ensure that no
damage will be caused. A 300W or above power supply is suggested.
ATX 20-Pin Power Connector: CONN1
This connector allows you to connect to an ATX power supply.
To connect to the ATX power supply, make sure the plug of the
power supply is inserted in the proper orientation and the pins
are aligned. Then push down the power supply firmly into the
connector.
ATX 12V Power Connector: JPW1
This 12V power connector is used to provide power to the CPU.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports 360K, 720K, 1.2M,
1.44M and 2.88M floppy disk types.
CD-In Connector: CD_IN1
The connector is for CD-ROM audio connector.
Fan Power Connectors: CPUFAN1/SYSFAN1
The CPUFAN1 (processor fan) and SYSFAN1 (system fan)
support system cooling fan with +12V. They support three-pin or
four-pin head connector. When connecting the wire to the
11
3.3V3.3V
-12V
GND
PW_O
K
5V_SB
12V
PS_ON
2
0
1
1
0
GND
GND
GND
-5V
5V
5V
3.3V
GND
5V
GND
GND
5V
1
3
2
4
GND
GND
12 V 12 V
GN
D
L
R
+12V
G
ND
SENSOR
GND
+12V
SENSOR
CONTROL
CPUFAN1 SYSFAN1

8
connectors, always take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND.
MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.

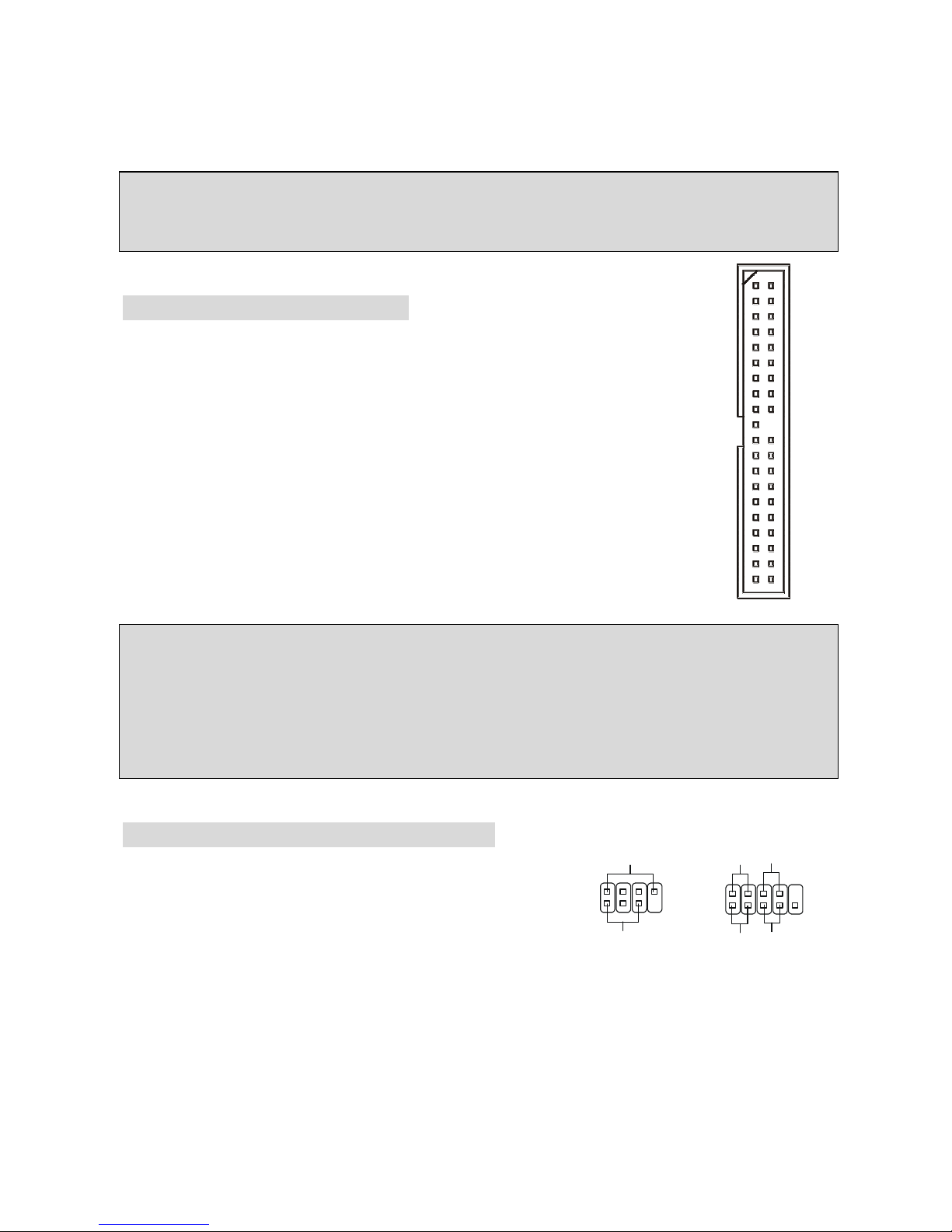

IDE Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100
function. You can connect up to four hard disk drives, CD-ROM, 120MB Floppy
and other devices.
The first hard drive should always be connected to IDE1. IDE1 can connect a
Master and a Slave drive. You must configure second hard drive to Slave mode by
setting the jumper accordingly. IDE2 can also connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second drive to Slave mode by
setting its jumper. Refer to the hard disk documentation supplied by hard disk vendors for jumper
setting instructions.
Front Panel Connectors: JFP1 & JFP2
The mainboard provides two front panel connectors for
electrical connection to the front panel switches and LEDs.
JFP1 is compliant with Intel Front Panel I/O Connectivity
DesignGuide.
HDD
LED
Power
LED
Reset
Switch
Power
Switch
19
210
JFP1
Power
LED
Speaker
17
28
JFP2

9

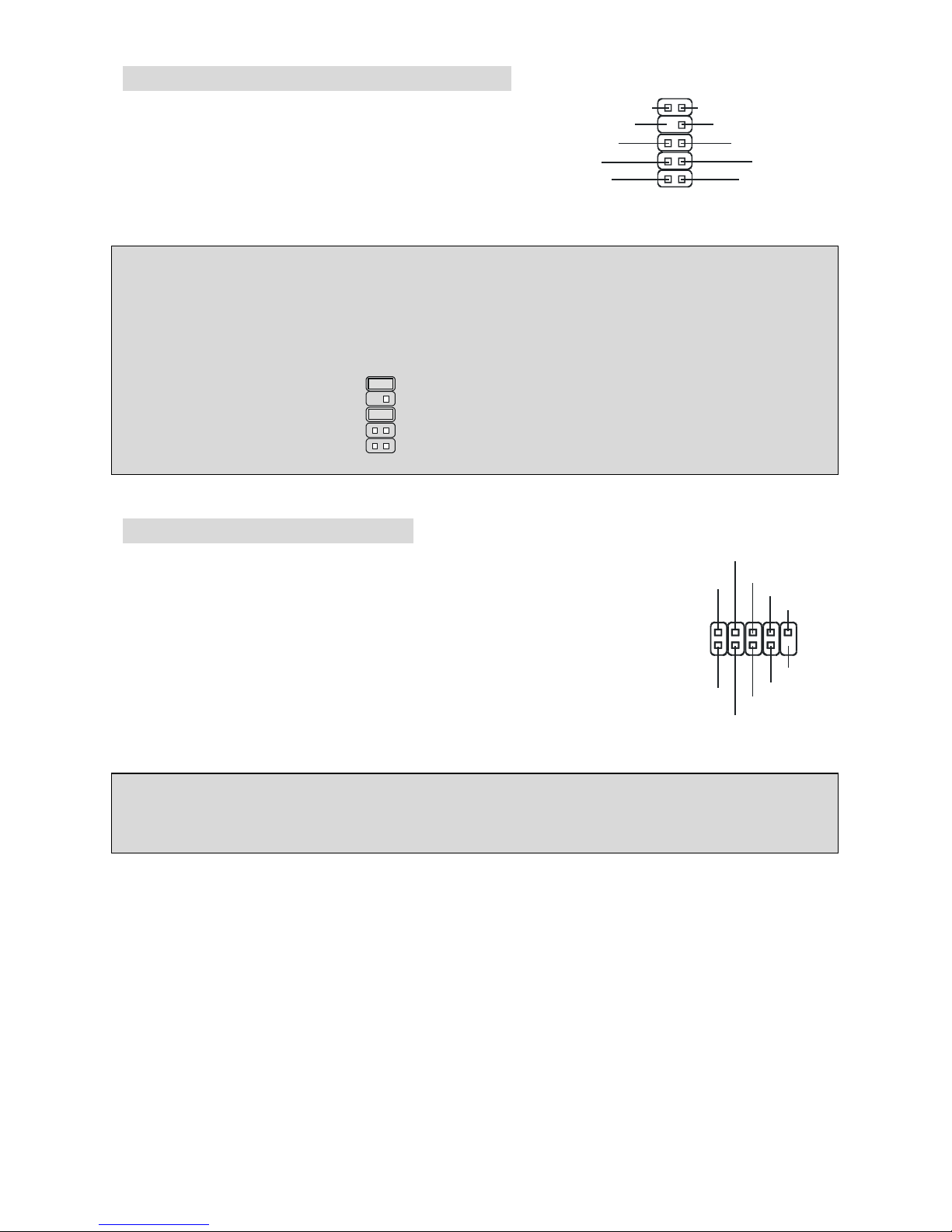

Front Panel Audio Connector: JAUDIO1
The front panel audio connector allows you to connect
to the front panel audio and is compliant with Intel ®
Front Panel I/O Connectivity Design Guide.
MSI Reminds You...
If you do not want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in
order to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on
the back panel will not function. 12
910
Front USB Connector: JUSB1
The mainboard provides one standard USB 2.0 pin header JUSB1. USB 2.0
technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting
high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly, or it may cause some damage.
1
2
910
A
UD_MIC
A
UD_MIC_BIA
S
AUD_GND
AUD_VCC
AUD_FPOUT_R
AUD_RET_L AUD_FPOUT_L
AUD_RET_R
NC
KEY
1
2
9
1
0
GND
NC
KEY
GND
VCC
VCC
US
B
0
-
USB1-
USB0+
USB1+

10
Serial Port Connector: JCOM2
The mainboard offers another serial port JCOM2. It is 16550A high speed
communication port that sends/receives 16 bytes FIFOs. The MSI JCOM2
cable is optional.
PIN SIGNAL DESCRIPTION PIN SIGNAL DESCRIPTION
1
3
5
7
9
DCD
SOUT
GND
RTS
RI
Data Carry Detect
Receive Data Transmit
Data
Request To Send Ring
Indicate
2
4
6
8
10
SIN
DTR
DSR
CTS
X
Serial in or receive data
Serial out or transmit data
Data Set Ready
Clear To Send
X
Clear CMOS Jumper: JBAT1
There is a CMOS RAM on board that has a power
supply from external battery to keep the system
configuration data. With the CMOS RAM, the system can automatically boot OS every time it is
turned on. If you want to clear the system configuration data, use the JBAT1 (Clear CMOS
Jumper) to clear data. Follow the instructions below to clear the data:
MSI Reminds You...
You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position.
Avoid clearing the CMOS while the system is on; it will damage the mainboard.

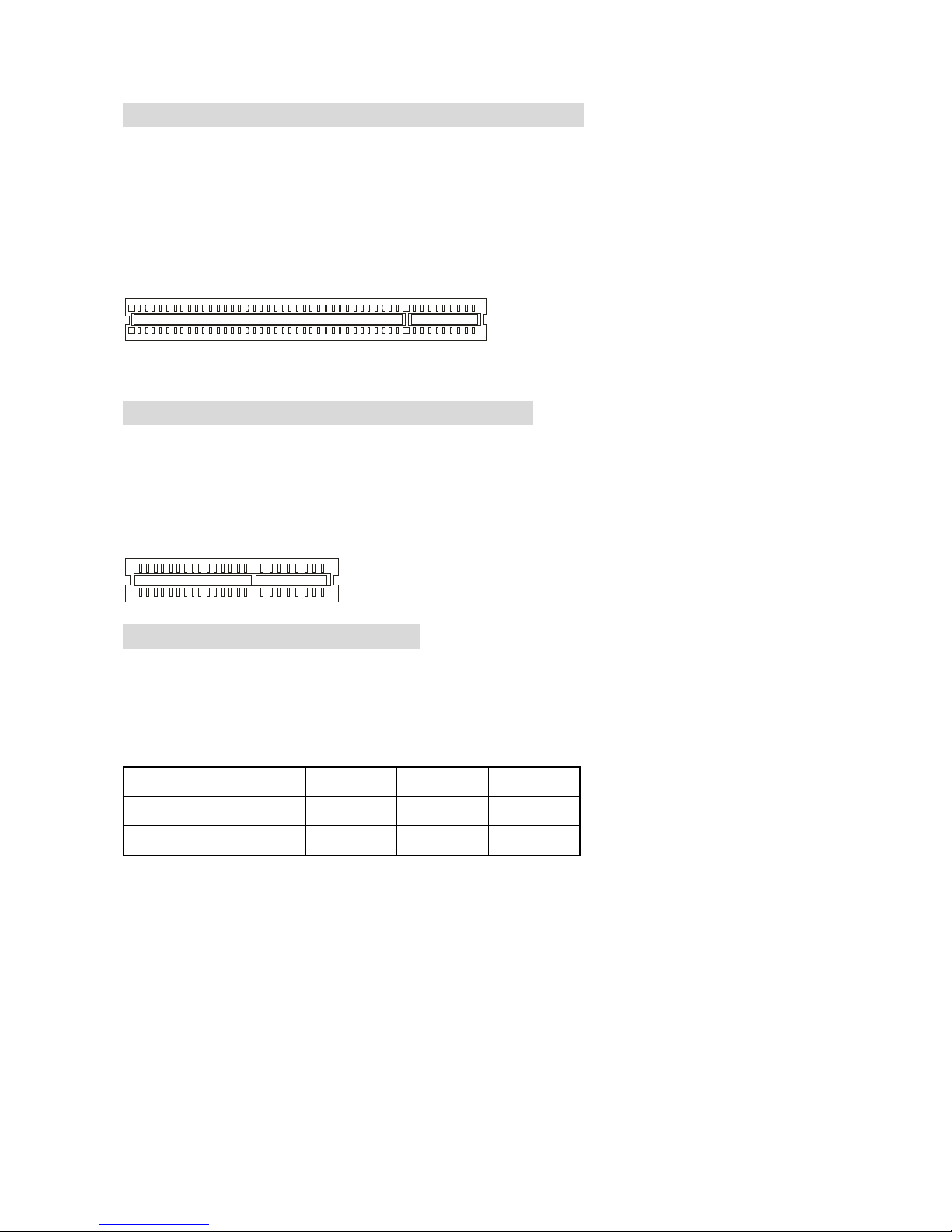

AGR (Accelerated Graphics Riser) Slot
The AGR (Advance Graphics Riser) slot is a special design that only supports compatible AGP
VGA cards.
1
9
2
10
Keep Data
(Default)
Clear Data
13
13
1

11
MSI Reminds you…
If you want to install an add-on VGA card when you first use the mainboard…
1. Insert the add-on VGA card and connect the monitor cable on it.
2. Boot and Install the OS (includes the chipset driver) and add-on VGA card driver.
3. Install the on-board VGA driver.
4. Right-click the desktop. Choose Properties/Display Properties/Settings. Make sure that
“Extend my Windows desktop onto this monitor” is not checked.
If you want to install an add-on VGA card in the existing OS sometime later…
1. Remove the on-board VGA driver.
2. Turn off the system. Insert the add-on VGA card.
3. Connect the monitor cable to add-on VGA connector.
4. Boot and install the add-on VGA card driver
5. Install the on-board VGA driver.
6. Right-click the desktop. Choose Properties/Display Properties/Settings. Make sure that
“Extend my Windows desktop onto this monitor” is not checked.
Compatible VGA Card List
MS-7120
No.
VGA CARD
Vender
Model name VGA Chip VGA Memory
Result Driver Ver.
1 Alvatron FX5700U GeForce FX5700 Ultra 128MB/DDR SDRAM Pass 6.6.8.1
2 ATI Fire GL 8800 Fire GL 8800 128MB/SDRAM Pass 6.12.10.3056
3 ATI Radeon 9800 XT Radeon 9800 XT 256MB/DDR SDRAM Pass 6.14.10.6458
4 GAINWARD GFX 5900 Ultra GeForce 4 FX 5900 U 256MB/DDR SDRAM Pass 6.14.10.6681
5 Gigabyte GV-R9200 Radeon 9200 128MB/DDR SDRAM Pass 6.14.10.6458
6 Gigabyte GV-N57L128D GeForce FX5700LE 128MB/DDR SDRAM Pass 6.14.10.6681
7 Leadtek Winfast A360LE TD GeForce FX5700LE 128MB/DDR SDRAM Pass 6.14.10.6681
8 Leadtek Winfast A400GT TDH GeForce 6800GT 256MB/DDR SDRAM Pass 6.14.10.6681
9 MSI MS-8863 GeForce 4 MX 460 64MB/SDRAM Pass 6.14.10.2958
10 MSI MS-8907 GeForce FX 5200 64MB/DDR SDRAM Pass 6.14.10.6681
11 MSI MS-8911 GeForce FX 5200 128MB/DDR SDRAM Pass 6.14.10.6681
12 MSI MS-8919 GeForce FX 5200 128MB/DDR SDRAM Pass 6.14.10.6681
13 MSI MS-8923 GeForce FX 5200 Ultra 128MB/DDR SDRAM Pass 6.14.10.6681
14 MSI MS-8929 GeForce FX 5900 128MB/DDR SDRAM Pass 6.14.10.6681

12
15 MSI MS-8931 GeForce FX 5600 Ultra 128MB/DDR SDRAM Pass 6.14.10.6681
16 MSI MS-8936 GeForce4 MX4000 64MB/DDR SDRAM Pass 6.14.10.6681
17 MSI MS-8936 GeForce FX5500 128MB/DDR SDRAM Pass 6.14.10.6681
18 MSI MS-8946 GeForce FX 5950 Ultra 256MB/DDR SDRAM Pass 6.14.10.6681
19 MSI MS-8959 GeForce FX5700LE 128MB/DDR SDRAM Pass 6.14.10.6681
20 MSI MS-8975 Nvidia GeForce 6800 128MB/DDR SDRAM Pass 6.14.10.6681
21 Unika FX5200 SP5208 GeForce FX5200 64MB/DDR SDRAM Pass 6.14.10.6681
22 MSI MS-8952 ATI Radeon 9250 128MB/DDR SDRAM pass 6.14.10.6458
23 Power Color R92U-LC3 Radeon 9250 128MB/DDR SDRAM pass 6.14.10.6458
24 Power Color RV6DE-NB3 Radeon 7000 64MB/DDR SDRAM pass 6.13.10.6153
25 ATI Radeon LE Radeon LE DDR 32MB/DDR SGRAM pass 6.13.10.6153
26 ATI Radeon 7500 LE Radeon DDR 64MB/SDRAM pass 6.13.10.6153
27 ATI Fire GL 8700 Fire GL 8700 64MB/DDR SDRAM pass 6.12.10.3051
28 ATI Radeon 9000 Pro Radeon DDR 64MB/DDR SDRAM pass 6.14.10.6458
29 ATI Radeon 9500 Radeon 9500 64MB/DDR SDRAM pass 6.14.10.6458
30 ATI Radeon 9700 Radeon 9700 128MB/DDR SDRAM pass 6.14.10.6458
31 ASUS AGP-V7700 Deluxe GeForce 2 GTS 32MB/DDR SGRAM pass 2.9.5.8
32 ASUS V8440 GeForce 4 Ti 4400 128MB/SDRAM pass 2.9.5.8
33 ASUS V8460 Ultra GeForce 4 Ti 4600 128MB/SDRAM pass 2.5.9.8
34 Creative 3D Blaster 5 RX9700 Pro Radeon 9700 128MB/SGRAM pass 6.14.10.6458
35 ELSA Gladiac 517 SV GeForce 4 MX420 64MB/SDRAM pass 2.9.5.8
36 ELSA Gladiac 528 Ultra GeForce 4 Ti 4200 128MB/DDR SDRAM pass 6.6.8.1
37 GAINWARD GeForce 4 MX460 64MB/DDR pass 2.9.5.8
38 GAINWARD GeForce 4 MX440T 64MB/SDRAM pass 2.9.5.8
39 GAINWARD GeForce 4 MX440 64MB/DDR SDRAM pass 6.6.8.1
40 Leadtek Winfast GeForce3 Titanium 500 TD 64MB/SDRAM pass 2.9.5.8
41 Leadtek Winfast A170 TH GeForce 4 MX 420 64MB/SDRAM pass 2.9.5.8

13
42 Leadtek Winfast A250 TD GeForce 4 4400 Ti 128MB/SDRAM pass 2.9.5.8
43 MSI MS-8806 Nvidia RIVA TNT2 32MB/SDRAM pass 6.6.8.1
44 MSI MS-8831 GeForce GTS Pro 64MB/SDRAM pass 2.9.5.8
45 MSI MS-8847 GeForce 4 MX 440 64MB/DDR SDRAM pass 6.6.8.1
46 MSI MS-8851 GeForce 3 Ti 200 64MB/SDRAM pass 2.9.5.8
47 MSI MS-8852 GeForce 2 MX 100/200 32MB/SDRAM pass 2.9.5.8
48 MSI MS-8860 GeForce 4 MX 440 64MB/SDRAM pass 2.9.5.8
49 MSI MS-8861 GeForce 4 MX 440 64MB/SDRAM pass 2.9.5.8
50 MSI MS-8870 GForce 4 Ti 4200 64MB/DDR SDRAM pass 2.9.5.8
51 MSI MS-8872 GeForce 4 Ti 4600 128MB/DDR SDRAM pass 2.9.5.8
52 MSI MS-8879 GeForce 4 Ti 4200 64MB/DDR SDRAM pass 2.9.5.8
53 MSI MS-8883 GeForce 4 MX 460 128MB/DDR SDRAM pass 2.9.5.8
54 MSI MS-8888 GeForce 4 MX 440 64MB/DDR SDRAM pass 2.9.5.8
55 MSI MS-8889 GeForce 4 Ti 4200 128MB/DDR SDRAM pass 6.6.8.1
56 MSI MS-8890 GeForce 4 MX 440 64MB/DDR SDRAM pass 6.6.8.1
57 MSI MS-8891 GeForce 4 MX 440 128MB/DDR SDRAM pass 6.6.8.1
58 MSI MS-8894 GeForce 4 Ti 4200 128MB/DDR SDRAM pass 6.6.8.1
59 MSI MS-8895 GeForce 4 MX 440 64MB/DDR SDRAM pass 6.6.8.1
60 MSI MS-8900 GeForce 4 Ti 4800 SE 128MB/DDR SDRAM pass 6.6.8.1
61 MSI MS-8904 GeForce FX 5800 128MB/DDR SDRAM pass 6.6.8.1
62 MSI MS-8948 GeForce FX 5700 128MB/DDR SDRAM pass 6.6.8.1
63 NS GF4 MX440 GeForce 4 MX 440 64MB/DDR SDRAM pass 2.9.5.8
64 Pixel View MVGA-NBG25GA GeForce 4 Ti 4200 128MB/SDRAM pass 6.6.8.1
65 Triplex Xabre Pro 64MB/SDRAM pass 6.13.10.3080
66 Triplex Millennium Silver GeForce 4 MX 440 64MB/DDR pass 6.6.8.1
67 Triplex SIS Sabre 600 Ultra 64MB/DDR SDRAM pass 6.13.10.3080
68 VINIX VINIX VX-3340 XABRE400 64MB/DDR SDRAM pass 6.13.10.3080
Please visit http://www.msi.com.tw/program/products/mainboard/mbd_index.php for updated

14
information.
PCI (Peripheral Component Interconnect) Slots
The PCI slots allow you to insert the expansion cards to meet your needs. When adding or
removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read
the documentation for the expansion card to make any necessary hardware or software settings
for the expansion card, such as jumpers, switches or BIOS configuration.
CNR (Communication Network Riser) Slot
The CNR slot allows you to insert the CNR expansion cards. CNR is a specially designed
network, audio, or modem riser card for ATX family motherboards. Its main processing is done
through software and controlled by the motherboard chipset.
PCI Interrupt Request Routing
The IRQ, abbreviation of interrupt request line and pronounced I-R-Q, are hardware lines over
which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically
connected to the PCI bus INT A# ~ INT D# pins as follows:
Order1 Order2 Order3 Order4
PCI Slot 1 INT B# INT C# INT D# INT A#
PCI Slot 2 INT C# INT D# INT A# INT B#

15
BIOS Setup

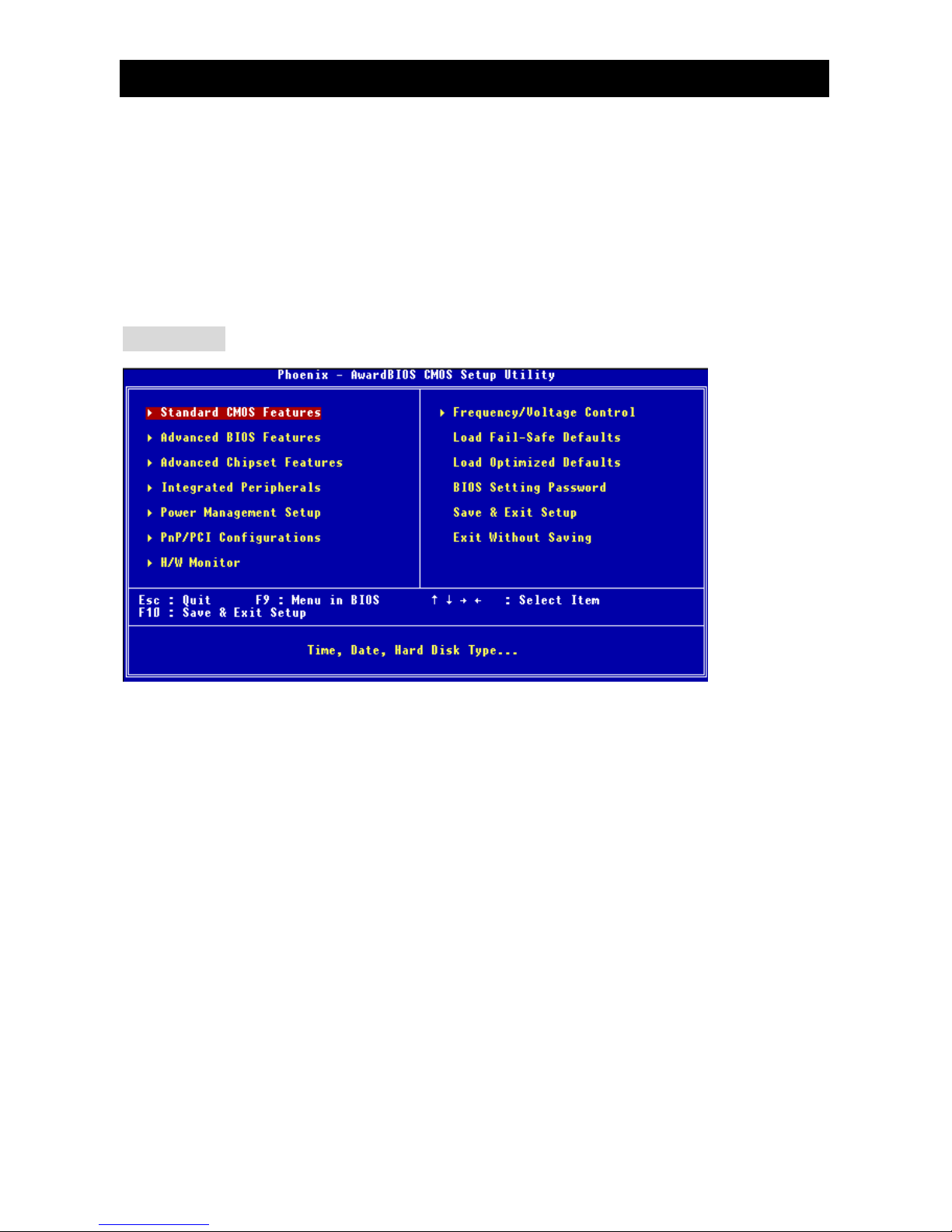

Power on the computer and the system will start POST (Power On Self Test) process. When the
message below appears on the screen, press <DEL> key to enter Setup.
If the message disappears before you respond and you still wish to enter Setup, restart the
system by turning it OFF and On or pressing the RESET button. You may also restart the system
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.
Main Page
Standard CMOS Features
Use this menu for basic system configurations, such as time, date etc.
Advanced BIOS Features
Use this menu to setup the items of Award special enhanced features.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system
performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PNP/PCI Configurations
This entry appears if your system supports PnP/PCI.
H/W Monitor
This entry shows the status of your CPU, fan, warning for overall system status.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.

16
Load Fail-Safe Defaults
Use this menu to load the BIOS values for the best system performance, but the system stability
may be affected.
Load Optimized Defaults
Use this menu to load the default values set by the mainboard manufacturer specifically for
optimal performance of the mainboard.
BIOS Setting Password
Use this menu to set BIOS setting Password.
Save & Exit Setup
Save changes to CMOS and exit setup.
Exit Without Saving
Abandon all changes and exit setup.
