Quick Start
Quick Start
Thank you for purchasing the MSI® MPG X570S CARBON MAX WIFI
motherboard. This Quick Start section provides demonstration
diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the
URL to watch it with the web browser on your phone or tablet. You
may have even link to the URL by scanning the QR code.
Kurzanleitung
Danke, dass Sie das MSI® MPG X570S CARBON MAX WIFI
Motherboard gewählt haben. Dieser Abschnitt der Kurzanleitung
bietet eine Demo zur Installation Ihres Computers. Manche
Installationen bieten auch die Videodemonstrationen. Klicken Sie
auf die URL, um diese Videoanleitung mit Ihrem Browser auf Ihrem
Handy oder Table anzusehen. Oder scannen Sie auch den QR Code
mit Ihrem Handy, um die URL zu öffnen.
Présentation rapide
Merci d’avoir choisi la carte mère MSI® MPG X570S CARBON
MAX WIFI. Ce manuel fournit une rapide présentation avec des
illustrations explicatives qui vous aideront à assembler votre
ordinateur. Des tutoriels vidéo sont disponibles pour certaines
étapes. Cliquez sur le lien fourni pour regarder la vidéo sur votre
téléphone ou votre tablette. Vous pouvez également accéder au lien
en scannant le QR code qui lui est associé.
Быстрый старт
Благодарим вас за покупку материнской платы MSI® MPG X570S
CARBON MAX WIFI. В этом разделе представлена информация,
которая поможет вам при сборке комьютера. Для некоторых
этапов сборки имеются видеоинструкции. Для просмотра видео,
необходимо открыть соответствующую ссылку в веб-браузере
на вашем телефоне или планшете. Вы также можете выполнить
переход по ссылке, путем сканирования QR-кода.

II Quick Start
1
2
3
6
4
5
7
8
9
Youtube
https://youtu.be/Xv89nhFk1vc
CPU_FAN1
⚽
Installing a Processor/ Installation des Prozessors/ Installer un
processeur/ Установка процессора

III
Quick Start
1
23
⚠
Important
If you are installing the screw-type CPU heatsink, please follow the figure below to
remove the retention module first and then install the heatsink.
Wenn Sie einen CPU-Kühler mit Schraubenbefestigung einsetzen, folgen Sie bitte
den Anweisungen unten um das Retention-Modul zu entfernen und den Kühler zu
installieren.
Si vous voulez installer un ventirad pour processeur à vis, veuillez suivre les
instructions ci-dessous pour d’abord retirer le module de rétention puis installer le
ventirad.




IV Quick Start
http://youtu.be/T03aDrJPyQs
Youtube
⚽
Installing DDR4 memory/ Installation des DDR4-Speichers/
Installer une mémoire DDR4/ Установка памяти DDR4
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2

V
Quick Start
http://youtu.be/DPELIdVNZUI
Youtube
HDD LED
RESET SW
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
⚽
Connecting the Front Panel Header/ Anschließen der
Frontpanel-Stiftleiste/ Connecter un connecteur du panneau
avant/ Подключение разъемов передней панели

VI Quick Start
Installing the Motherboard/ Installation des Motherboards/
Installer la carte mère/ Установка материнской платы
BAT1
2
Torque:
3 kgf·cm*
*3 kgf·cm
= 0.3 N·m
= 2.6 lbf·in
1
https://youtu.be/wWI6Qt51Wnc
⚽
Youtube

VII
Quick Start
http://youtu.be/gkDYyR_83I4
Youtube
ATX_PWR1 CPU_PWR1
⚽
Connecting the Power Connectors/ Stromanschlüsse
anschliessen/ Connecter les câbles du module d’alimentation/
Подключение разъемов питания
CPU_PWR2

VIII Quick Start
http://youtu.be/RZsMpqxythc
Youtube
1
23
4
5
⚽
Installing SATA Drives/ Installation der SATA-Laufwerke/
Installer le disque dur SATA/ Установка дисков SATA

IX
Quick Start
http://youtu.be/mG0GZpr9w_A
Youtube
1
2
3
4
5
6
⚽
Installing a Graphics Card/ Einbau der Grafikkarte/ Installer
une carte graphique/ Установка дискретной видеокарты

XQuick Start

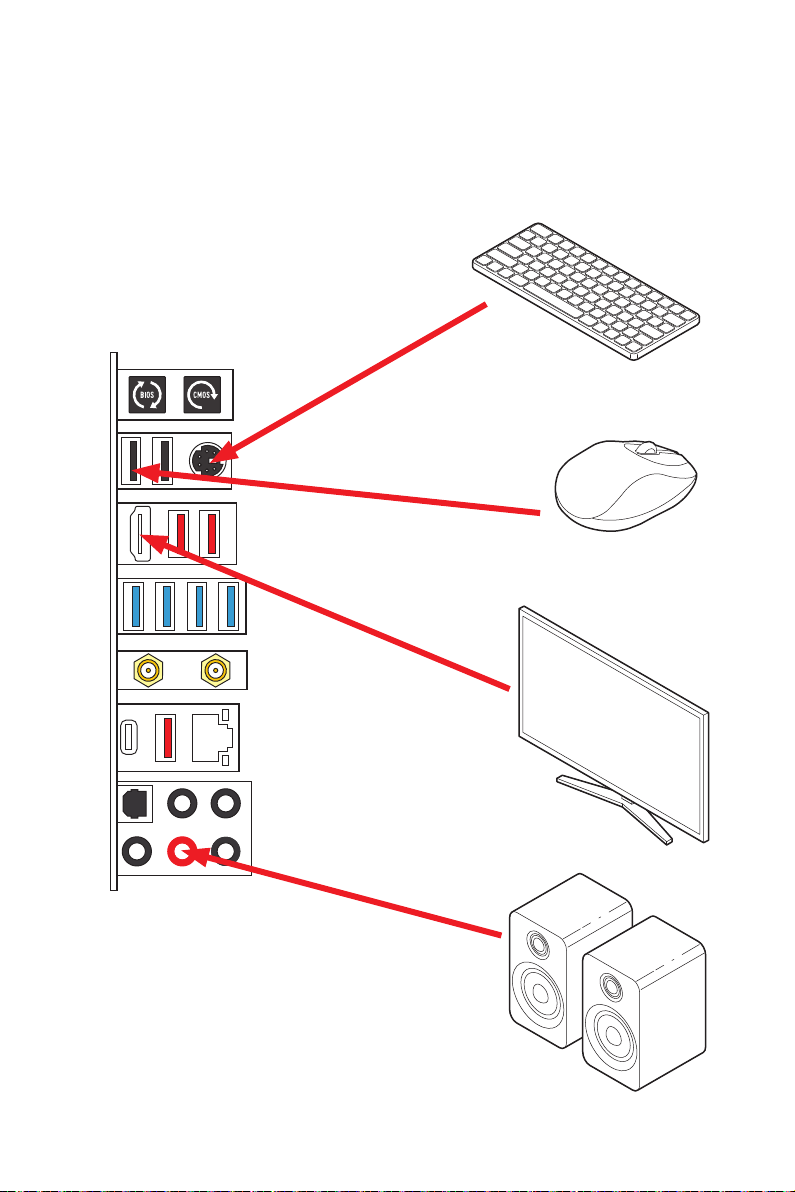

Connecting Peripheral Devices/ Peripheriegeräte/ Connecter
un périphérique anschliessen/ Подключение периферийных
устройств
Processor with integrated graphics

XI
Quick Start
4
3
12
Power On/ Einschalten/ Mettre sous-tension/ Включение
питания

XII Quick Start
NOTE

1
Contents
Contents
Safety Information................................................................................................. 3
Case stand-off notification ..................................................................................... 4
Avoid collision notification...................................................................................... 4
Specifications......................................................................................................... 5
Package contents ................................................................................................ 13
Rear I/O Panel ..................................................................................................... 14
LAN Port LED Status Table .................................................................................. 14
Audio Ports Configuration.................................................................................... 14
Realtek Audio Console ......................................................................................... 15
Installing Antennas............................................................................................... 17
Overview of Components .................................................................................... 18
CPU Socket ........................................................................................................... 19
DIMM Slots............................................................................................................ 20
PCI_E1~4: PCIe Expansion Slots.......................................................................... 21
M2_1~4: M.2 Slots (Key M) ................................................................................... 22
SATA1~8: SATA 6Gb/s Connectors....................................................................... 24
JFP1, JFP2: Front Panel Connectors................................................................... 24
CPU_PWR1~2, ATX_PWR1: Power Connectors................................................... 25
CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors.................................. 26
JUSB4~5: USB 2.0 Connectors............................................................................. 27
JUSB2~3: USB 3.2 Gen 1 5Gbps Connectors ....................................................... 27
JUSB1: USB 3.2 Gen 2 10Gbps Type-C Connector............................................... 28
JAUD1: Front Audio Connector ............................................................................ 28
JCI1: Chassis Intrusion Connector....................................................................... 29
T_SEN1: Thermal Sensor Connectors................................................................. 29
JDASH1 : Tuning Controller connector................................................................ 30
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 30
JRGB1: RGB LED connectors............................................................................... 31
JRAINBOW1~2: Addressable RGB LED connectors ............................................ 32
JCORSAIR1: CORSAIR Connector ........................................................................ 33

2Contents
Onboard LEDs...................................................................................................... 34
EZ Debug LED....................................................................................................... 34
JPWRLED1: LED power input............................................................................... 34
LED_SW1: EZ LED Control................................................................................... 34
Debug Code LED................................................................................................... 35
Hexadecimal Character Table.............................................................................. 35
Boot Phases.......................................................................................................... 35
Debug Code LED Table......................................................................................... 35
Installing OS, Drivers & MSI Center.................................................................... 40
Installing Windows® 10......................................................................................... 40
Installing Drivers .................................................................................................. 40
MSI Center............................................................................................................ 40
UEFI BIOS............................................................................................................. 41
BIOS Setup........................................................................................................... 42
Entering BIOS Setup............................................................................................. 42
BIOS User Guide ................................................................................................... 42
Resetting BIOS...................................................................................................... 43
Updating BIOS....................................................................................................... 43

3
Safety Information
Safety Information
∙The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
∙Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
∙Hold the motherboard by the edges to avoid touching sensitive components.
∙It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is
not available, discharge yourself of static electricity by touching another metal object
before handling the motherboard.
∙Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
∙Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
∙Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
∙If you need help during any installation step, please consult a certified computer
technician.
∙Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
∙Keep this user guide for future reference.
∙Keep this motherboard away from humidity.
∙Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
∙Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
∙All cautions and warnings on the motherboard should be noted.
∙If any of the following situations arises, get the motherboard checked by service
personnel:
▪Liquid has penetrated into the computer.
▪The motherboard has been exposed to moisture.
▪The motherboard does not work well or you can not get it work according to user
guide.
▪The motherboard has been dropped and damaged.
▪The motherboard has obvious sign of breakage.
∙Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

4Contents
Case stand-off notification
To prevent damage to the motherboard, any unnecessary mounting stand-off between
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being
scratched.

5
Specifications
Specifications
CPU
∙Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000
G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000
G-Series desktop processors*
∙Supports Socket AM4
* Please go to msi.com to get the newest support status as new processors are
released.
Chipset AMD X570 Chipset
Memory
∙4x DDR4 memory slots, support up to 128GB
∙Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/
3200 MHz by JEDEC*
∙Max overclocking frequency by A-XMP OC mode:
▪For Ryzen™ 5000 G-Series & 4000 G-Series
processors
▫1DPC 1R Max speed up to 5300 MHz
▫1DPC 2R Max speed up to 4266 MHz
▫2DPC 1R Max speed up to 4400 MHz
▫2DPC 2R Max speed up to 3600 MHz
▪For Ryzen™ 5000 Series & 3000 Series processors
▫1DPC 1R Max speed up to 5100 MHz
▫1DPC 2R Max speed up to 4000 MHz
▫2DPC 1R Max speed up to 4000 MHz
▫2DPC 2R Max speed up to 3600 MHz
∙Supports Dual-Channel mode
∙Supports non-ECC, un-buffered memory
*Please refer to msi.com for more information on compatible memory.
Continued on next page

6Specifications
Continued from previous page
Expansion Slot
∙Supports PCIe 4.0 / PCIe 3.0
▪PCIe 4.0 is available only on AMD Ryzen™ 5000 Series
and 3000 Series desktop processors
∙1x PCIe x16 slot (From processor)
▪PCI_E1 supports PCIe 4.0/ 3.0 x16
▪PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen™ 3000 G-
and 2000 G- series desktop processors
∙1x PCIe x16 slot (From X570 chipset)
▪PCI_E4* supports PCIe 4.0/ 3.0 x4
∙2x PCIe 3.0 x1 slots (From X570 chipset)
* The PCI_E4 slot will be unavailable, when installing M.2 SSD into the M2_4
slot.
Onboard Graphics
∙1x HDMI 2.1 port, supports a maximum resolution of 4K
60Hz*/**
* Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Multi-GPU Supports AMD CrossFire™ Technology
LAN 1x Realtek® 8125B 2.5Gbps LAN Controller
Wireless LAN &
Bluetooth®
Intel® Wi-Fi 6E AX210
∙The Wireless module is pre-installed in the M.2 (Key-E)
slot
∙Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*
(160MHz) up to 2.4Gbps
∙Supports 802.11 a/ b/ g/ n/ ac/ ax
∙Supports Bluetooth® 5.2**, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in
WIN10 21H1.
** Bluetooth 5.2 will be ready in WIN10 21H1.
Continued on next page

7
Specifications
Continued from previous page
Storage
∙8x SATA 6Gb/s ports (from AMD X570 Chipset)
∙4x M.2 slots (Key M)
▪Support PCIe 4.0 / PCIe 3.0
▪PCIe 4.0 is available only on AMD Ryzen™ 5000 Series
and 3000 Series desktop processors
▪M2_1 slot (from Processor)
▫Supports 2242/ 2260/2280/22110 storage devices
▫Supports up to SATA 6Gb/s
▪M2_2, M2_3* and M2_4 slots (from AMD X570 Chipset)
▫M2_2 & M2_4 slots support 2242/ 2260/ 2280
storage devices
▫M2_3 slot supports 2242/ 2260/2280/22110 storage
devices
▫M2_2 & M2_3 slots support up to SATA 6Gb/s
* SATA5-6 will be unavailable when installing SATA SSD in the M2_3 slot;
SATA5-8 will be unavailable when installing PCIe SSD in the M2_3 slot.
RAID ∙Supports RAID 0, RAID 1 and RAID 10
Audio
∙Realtek® ALC4080 Codec
▪7.1-Channel High Definition Audio
▪Supports S/PDIF output
I/O Controller NUVOTON NCT6687D-R Controller Chip
Hardware Monitor
∙CPU/ System/ Chipset temperature detection
∙CPU/ System/ Pump fan speed detection
∙CPU/ System/ Pump fan speed control
Continued on next page

8Specifications
Continued from previous page
USB
AMD X570 Chipset
∙1x USB 3.2 Gen 2 10Gbps port (1 Type-C internal
connector)
∙4x USB 3.2 Gen 1 5Gbps Type-A ports available through
the internal connectors
∙2x USB 2.0 Type-A ports on the back panel
Asmedia® 1074 Chipset
∙4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
GL850G Hub
∙4x USB 2.0 Type-A ports available through the internal
connectors
AMD Processor
∙4x USB 3.2 Gen 2 10Gbps ports on the back panel (3
Type-A & 1 Type-C ports)
Back Panel
Connectors
∙1x Clear CMOS Button
∙1x Flash BIOS Button
∙1x PS/2 keyboard/ mouse combo port
∙2x USB 2.0 ports
∙3x USB 3.2 Gen 2 10Gbps Type-A ports
∙1x HDMI port
∙4x USB 3.2 Gen1 5Gbps Type-A ports
∙2x Wi-Fi Antenna connectors
∙1x LAN(RJ45) port
∙1x USB 3.2 Gen 2 10Gbps Type-C port
∙5x audio jacks
∙1x Optical S/PDIF Out connector
Continued on next page
