MSI PRO X670-P WIFI User manual

PRO X670-P WIFI
Motherboard
User Guide
Benutzerhandbuch
Manuel d’utilisation
Руководство пользователя
取扱説明書
사용 명서
使用手冊
使用手册

1
Contents
Quick Start..................................................................................................................... 3
Specifications.............................................................................................................. 16
Special Features......................................................................................................... 20
Package Contents ...................................................................................................... 21
Back Panel Connectors ............................................................................................. 22
LAN Port LED Status Table .................................................................................. 23
Audio Jacks Connection ....................................................................................... 23
Installing Antennas............................................................................................... 25
Overview of Components........................................................................................... 26
CPU Socket ........................................................................................................... 27
DIMM Slots............................................................................................................ 28
PCI_E1~4: PCIe Expansion Slots.......................................................................... 29
M2_1~4: M.2 Slots (Key M) ................................................................................... 30
SATA_P3,P4,A1,A2,S3,S4: SATA 6Gb/s Connectors............................................. 33
JDASH1 : Tuning Controller connector................................................................ 33
JAUD1: Front Audio Connector ............................................................................ 34
JFP1, JFP2: Front Panel Connectors................................................................... 34
CPU_PWR1~2, ATX_PWR1: Power Connectors................................................... 35
JCI1: Chassis Intrusion Connector....................................................................... 36
JUSB1: USB 3.2 Gen 2 10Gbps Type-C front panel Connector............................ 37
JUSB2~3: USB 3.2 Gen 1 Connector .................................................................... 37
JUSB4~5: USB 2.0 Connectors............................................................................. 38
JOCFS1: Safe Boot Jumper.................................................................................. 38
CPU_FAN1, PUMP_FAN1, SYS_FAN1~6: Fan Connectors.................................. 39
JBAT1: Clear CMOS (Reset BIOS) Jumper........................................................... 40
BAT1: CMOS Battery............................................................................................. 41
JRGB1~2: RGB LED connectors........................................................................... 42
JARGB_V2_1~2: A-RAINBOW V2 (ARGB Gen2) LED connectors......................... 43
Onboard LEDs............................................................................................................. 45
EZ Debug LED....................................................................................................... 45
Installing OS, Drivers & MSI Center.......................................................................... 46
Installing Drivers with MSI Driver Utility Installer............................................... 47
English

2
MSI Center............................................................................................................ 49
UEFI BIOS.................................................................................................................... 50
BIOS Setup............................................................................................................ 51
Resetting BIOS...................................................................................................... 52
Updating BIOS....................................................................................................... 52

3
Quick Start
Thank you for purchasing a new motherboard from MSI®. This Quick Start section
provides demonstration diagrams about how to install your computer. Some of the
installations also provide video demonstrations. Please link to the URL to watch it
with the web browser on your phone or tablet. You may have even link to the URL by
scanning the QR code.

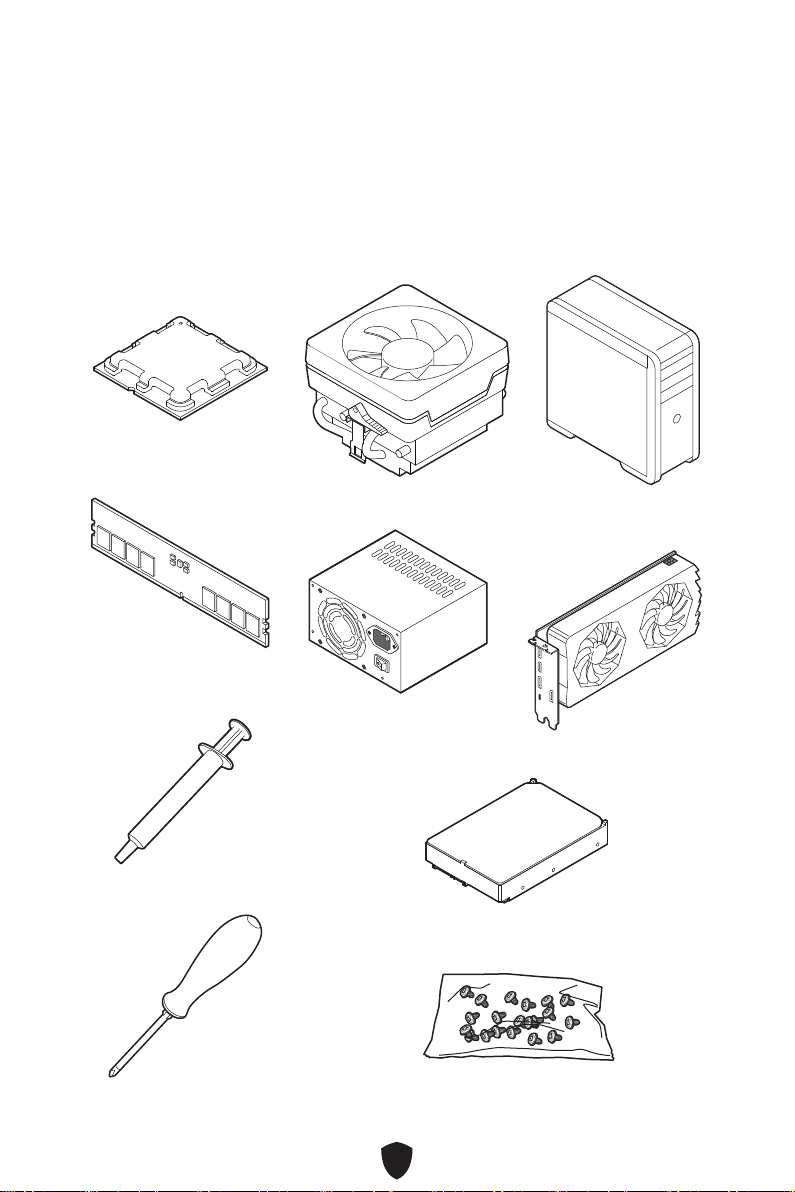

Preparing Tools and Components
DDR5 Memory
Graphics Card
SATA Hard Disk Drive
Phillips Screwdriver
Chassis
Power Supply Unit
A Package of Screws
Thermal Paste
AMD® AM5 CPU
AM5 CPU Fan

4
Safety Information
∙The components included in this package are prone to damage from electrostatic
discharge (ESD). Please adhere to the following instructions to ensure successful
computer assembly.
∙Ensure that all components are securely connected. Loose connections may cause
the computer to not recognize a component or fail to start.
∙Hold the motherboard by the edges to avoid touching sensitive components.
∙It is recommended to wear an electrostatic discharge (ESD) wrist strap when
handling the motherboard to prevent electrostatic damage. If an ESD wrist strap
is not available, discharge yourself of static electricity by touching another metal
object before handling the motherboard.
∙Store the motherboard in an electrostatic shielding container or on an anti-static
pad whenever the motherboard is not installed.
∙Before turning on the computer, ensure that there are no loose screws or metal
components on the motherboard or anywhere within the computer case.
∙Do not boot the computer before installation is completed. This could cause
permanent damage to the components as well as injury to the user.
∙If you need help during any installation step, please consult a certified computer
technician.
∙Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing any computer component.
∙Keep this user guide for future reference.
∙Keep this motherboard away from humidity.
∙Make sure that your electrical outlet provides the same voltage as is indicated on
the PSU, before connecting the PSU to the electrical outlet.
∙Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.
∙All cautions and warnings on the motherboard should be noted.
∙If any of the following situations arises, get the motherboard checked by service
personnel:
• Liquid has penetrated into the computer.
• The motherboard has been exposed to moisture.
• The motherboard does not work well or you can not get it work according to user
guide.
• The motherboard has been dropped and damaged.
• The motherboard has obvious sign of breakage.
∙Do not leave this motherboard in an environment above 60°C (140°F), it may damage
the motherboard.

5
Case stand-off notification
To prevent damage to the motherboard, any unnecessary mounting stand-off between
the motherboard circuits and the computer case is prohibited. The Case standoff keep
out zone signs will be marked on the backside of motherboard (as shown below) to
serve as a warning to user.
Avoid collision notification
Protective paint is printed around each screw hole to prevent parts from being
scratched.

6
Installing a Processor
⚽
11
22
33
6644
55
77
88
1111
99
1010
∙https://youtu.be/cltgIYiGtWY

7
⚠

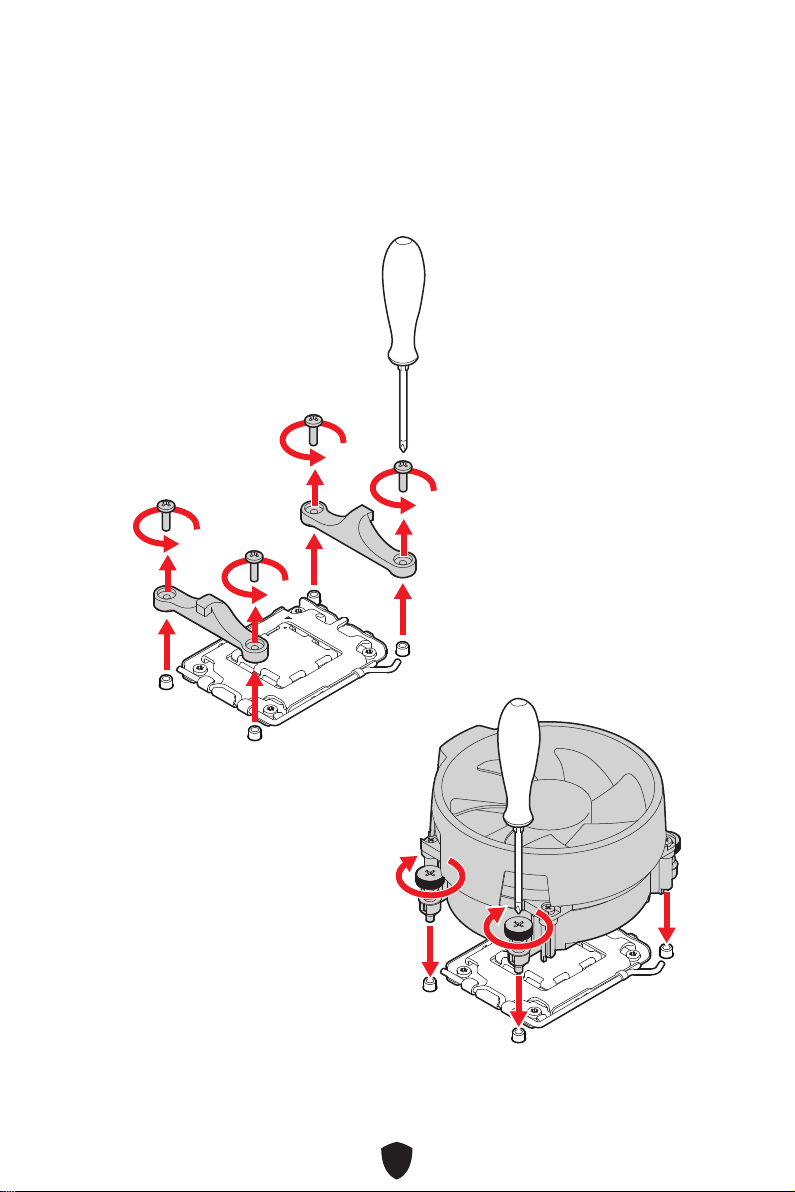

Important
If you are installing the screw-type CPU heatsink, please follow the figure below to
remove the retention module first and then install the heatsink.

8
Installing DDR5 memory
DIMMA2 DIMMA2
DIMMB2
DIMMA1
DIMMA2
DIMMB1
DIMMB2
∙https://youtu.be/XiNmkDNZcZk
⚽

9
HDD LED
RESET SW
Connecting the Front Panel Header
∙http://youtu.be/DPELIdVNZUI
JFP1
HDD LED HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
⚽
1
2 10
9
Power LED
Reserved
Power Switch
JFP1
Reset SwitchHDD LED

10
Installing the Motherboard
11
∙https://youtu.be/wWI6Qt51Wnc
⚽
Torque:
3 kgf·cm*
*3 kgf·cm
= 0.3 N·m
= 2.6 lbf·in
22

11
Connecting the Power Connectors
∙http://youtu.be/gkDYyR_83I4
ATX_PWR1
CPU_PWR1
⚽
CPU_PWR2

12
Installing SATA Drives
∙http://youtu.be/RZsMpqxythc 11
2233
44
55
⚽

13
Installing a Graphics Card
∙http://youtu.be/mG0GZpr9w_A
⚽
11
22
33
44
55
66

14

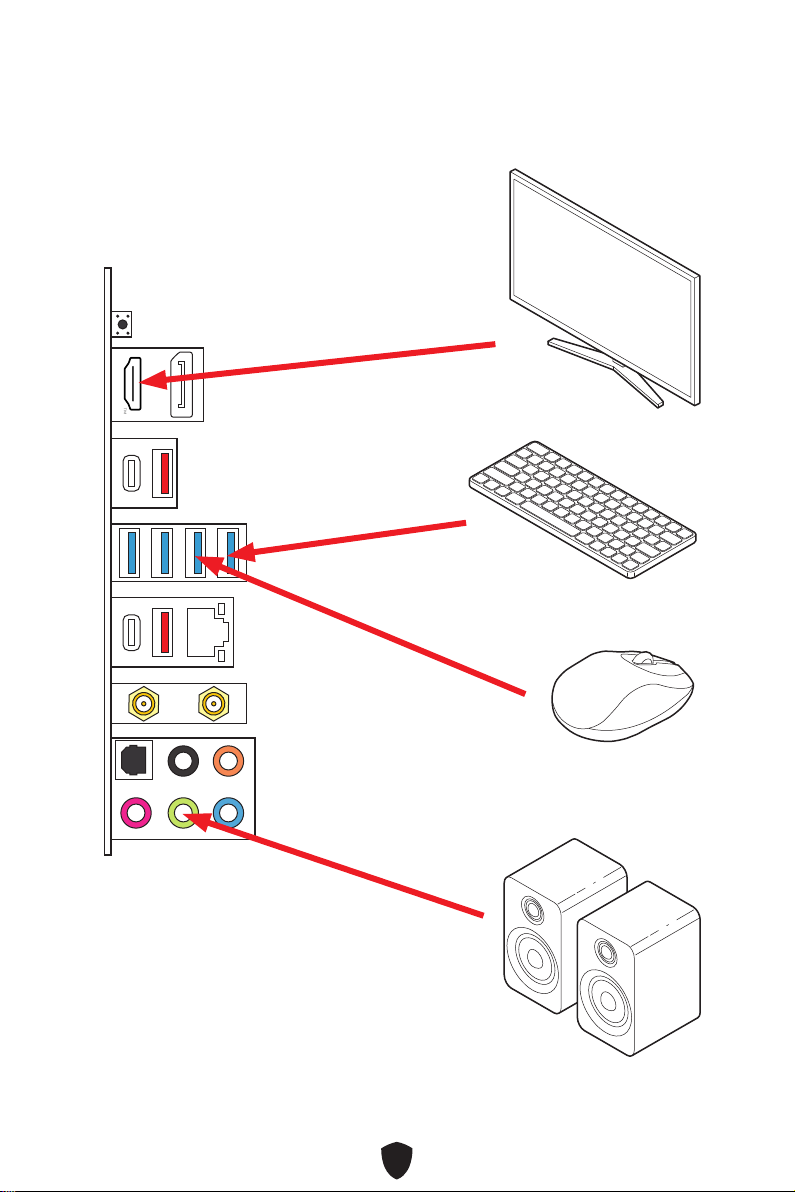

Connecting Peripheral Devices

15
Power On
44
33
1122

16
Specifications
CPU
∙Supports AMD Ryzen™ 7000 series Desktop Processors*
∙Processor socket AM5
* Please go to www.msi.com to get the newest support status as new
processors are released.
Chipset AMD X670 Chipset
Memory
∙4x DDR5 memory slots, supporting up to 128GB*
∙Supports 4 DIMMs, Dual Channel DDR5-6600+ (OC)
∙Supports Dual channel memory architecture
∙Supports non-ECC, un-buffered memory
∙Supports ECC UDIMM memory (non-ECC mode)
* Please refer to www.msi.com for more information on compatible memory
Expansion Slots
∙3x PCIe x16 slots
• Supports x16/x4/x2
• PCI_E1 & PCI_E3 slots (From CPU)
• PCI_E1 supports up to PCIe 4.0 x16
• PCI_E3 supports up to PCIe 4.0 x4
• PCI_E4* (From X670 chipset)
• Supports up to PCIe 4.0 x2
∙1x PCIe x1 slot
• PCI_E2 slot (From X670 chipset)
• PCI_E2 supports up to PCIe 3.0 x1
* PCI_E4 & M2_4 share the bandwidth. The PCI_E4 slot will be unavailable
when installing devices into the M2_4 slot.
Onboard Graphics
∙1x HDMI™ 2.1 port with FRL, supports a maximum
resolution of 4K 120Hz*/ **
∙1x DisplayPort 1.4 port, supports a maximum resolution
of 4K 60Hz*/ **
∙1x DisplayPort over USB-C port with HBR3, supports a
maximum resolution of 4K 120Hz*/ **
*Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
SATA Ports
∙6x SATA 6Gb/s ports (From X670 chipset)
• SATA_P3_P4/ SATA_S3_S4 (From X670 chipset)
• SATA_A1_A2 (From ASM1061)
Continued on next column

17
Continued from previous column
M.2 SSD Slots
∙4x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4
• Supports 2280/ 22110 storage devices
• M2_2, M2_3 & M2_4 slots (From X670 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/ 2280 storage devices
* PCI_E4 & M2_4 share the bandwidth. The PCI_E4 slot will be unavailable
when installing devices into the M2_4 slot.
RAID
∙Supports RAID 0, RAID 1 and RAID 10 for SATA storage
devices*
∙Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe
storage devices
* SATA_A1 & SATA_A2 do not support RAID function.
Audio
Realtek® ALC4080 Codec
∙7.1-Channel High Definition Audio
∙Supports S/PDIF output
LAN 1x Realtek 8125B 2.5Gbps LAN controllers
Wireless LAN &
Bluetooth®
AMD® Wi-Fi RZ616
∙The Wireless module is pre-installed in the M.2 (Key-E)
slot
∙Supports MU-MIMO TX/RX
∙Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in
2.4GHz/ 5GHz or 6GHz* bands
∙Supports 802.11a/ b/ g/ n/ ac/ ax
∙Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in
Windows 10 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 21H1 and Windows 11.
Power Connectors ∙1x 24-pin ATX main power connector
∙2x 8-pin EPS 12V power connectors
Continued on next column

18
Continued from previous column
Internal USB
Connectors
AMD® X670 Chipset
∙1x USB 3.2 Gen 2 10Gbps Type-C front panel connector
∙2x USB 3.2 Gen 1 5Gbps connectors
• Supports additional 4 USB 3.2 Gen 1 5Gbps ports
∙2x USB 2.0 connectors
• Supports additional 4 USB 2.0 ports
Fan Connectors
∙1x 4-pin CPU fan connector
∙1x 4-pin water-pump fan connector
∙6x 4-pin System fan connectors
System Connectors
∙1x Front panel audio connector
∙2x System panel connectors
∙1x Chassis Intrusion connector
∙1x Tuning Controller connector
Jumpers ∙1x Clear CMOS jumper
LED Features
∙2x 4-pin RGB LED connector
∙2x 3-pin ARGB_V2 LED connectors
∙4x EZ Debug LED
Back Panel
Connectors
∙1x Flash BIOS button
∙1x DisplayPort
∙1x HDMI™ port
∙2x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU & X670
chipset)
∙1x USB 3.2 Gen 2 10Gbps Type-C port (From CPU) with
DisplayPort Alt Mode
∙1x USB 3.2 Gen 2x2 20Gbps Type-C port (From X670
chipset)
∙4x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU & X670
chipset)
∙1x LAN (RJ45) jacks
∙2x Wi-Fi Antenna connectors
∙5x audio jacks
∙1x Optical S/PDIF Out connector
Continued on next column
Other manuals for PRO X670-P WIFI
1
Table of contents
Other MSI Motherboard manuals

MSI
MSI MS-7015 User manual

MSI
MSI H170M-A PRO User manual

MSI
MSI 845 Pro User manual

MSI
MSI Wind Board D510 Series User manual

MSI
MSI G45TM-E53 Series User manual

MSI
MSI MS-7267 User manual

MSI
MSI MS-7751 (v1.x) User manual

MSI
MSI A88XI AC User manual

MSI
MSI A68HM-P33 Series User manual

MSI
MSI B360M BAZOOKA PLUS User manual

MSI
MSI B350M GAMING PRO User manual

MSI
MSI 880GMA-E53 Series User manual

MSI
MSI 845E Neo-V User manual

MSI
MSI 760GM-P25 User manual

MSI
MSI 880GM-E43 Series User manual

MSI
MSI MS-9892 User manual

MSI
MSI MS-9642 User manual

MSI
MSI MEG Z490 ACE User manual

MSI
MSI MS-7320 User manual

MSI
MSI B85M-E33 V2 User manual
