Manual MSR BudgetLine Data Loggers
Reusable PDF data loggers for temperature and humidity.
MSR83
MSR84
MSR64
MSR63

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 2
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
This quick start guide will help you to configure data loggers and generate PDF/Excel/CSV reports of recorded readings from it.
Index
Index ................................................................................................................................................................................................................................................. 2
Introduction....................................................................................................................................................................................................................................... 3
Requirements ................................................................................................................................................................................................................................... 4
Connect Data Logger ....................................................................................................................................................................................................................... 4
Configuring Data Logger .................................................................................................................................................................................................................. 5
START Data Loggers MSR63, MSR64 ............................................................................................................................................................................................ 7
START Data Loggers MSR83, MSR84 ............................................................................................................................................................................................ 8
Precautions for Sender .................................................................................................................................................................................................................. 10
Precautions for Receiver ................................................................................................................................................................................................................ 11
STOP Data Logger ......................................................................................................................................................................................................................... 12
Report Generation .......................................................................................................................................................................................................................... 12
Process Report – PDF / EXCEL / CSV Format ............................................................................................................................................................................. 13
Report Analysis .............................................................................................................................................................................................................................. 14
Contact Us:..................................................................................................................................................................................................................................... 15

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 3
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
Introduction
MSR63 temperature data logger (-30…+70 ⁰C)
MSR83 temperature data logger (-30…+70 ⁰C)
MSR64 temperature & humidity data logger (-30…+70 ⁰C | 0…98 % RH) MSR84 temperature & humidity data logger (-30…+70 ⁰C | 0…98 % RH)
MSR BudgetLine: reusable low-cost data loggers for transport and storage
Reusable PDF data loggers for cost-effective monitoring of temperature and humidity values during transport and storage.
Features:
 high measuring accuracy, DIN12830 / 21 CFR Part 1- compliant
 secured START and STOP buttons
 clear status and alarm LEDs, battery indicator
 6-point calibration certificate included
 fast data transfer and evaluation on PC
 auto generated PDF report | Excel | CSV | email
 low battery indication
 battery life approx. 1 year, replaceable battery
MSR64
MSR63
MSR83
MSR84

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 4
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
Requirements
To use the MSR BudgetLine data loggers, you will require a PC with an active USB port. PC requirements: Windows 10.
Connect Data Logger
MSR BudgetLine data loggers are available with integrated USB 2.0 A-Type plug. Hence, no additional hardware or cable is required to connect the logger
with a PC. Note:The logger will be STOPPED automatically after 10 seconds when connected with a PC. You can also STOP the logger manually by pressing
the STOP button continuously for 5 seconds until the Red LED is on.
Open Data Logger USB drive «PDF_Logger» that contains soft copy of the Quick Start Guide Calibration Certificate «CXXXXXXXXXX.pdf» and
«UI4Report» – to get a report of recorded readings in PDF / Excel / CSV formats.

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 5
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
Configuring Data Logger
Connect the data logger to the PC, open the data logger folder «PDF_LOGGER», double-click on UI4Report and
click on Configuration window at the top on top
Enter User Description, Logger Interval, Start After (delay start time), Alarm Limit, Alarm Delay Time, Alarm Type, Temperature Unit, Time Zone, Device
Password (optional), User Email (optional) and click on Configure.
By configuring the data logger the last recorded readings saved in its internal memory will be erased automatically. Click Yes to continue.

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 6
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
New data is loaded in the device. Please validate
data in configuration screen before removing the
device. Click OK.
Verify the set parameters and click Close or
Print to get a printout of the confirmation window.
Just after disconnecting the data logger, the green and the red LED will start flickering and then the green LED will be ON for a second indicating the
configuration of the logger has completed successfully.
Check if configuration is completed successfully:
MSR BudgetLine loggers with display will continuously indicate current reading only (START | STOP | RUN | OKAY will not be shown on the display).
Press «START» button on the data logger once; twice blinking of the green LED will indicate that the configuration is completed successfully.
Note: FailSafe Logging will be automatically started after the configuration of the data logger. This helps the receiver to get recorded readings
from the logger even if the sender forgets to press the START button while activating the data logger.

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 7
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
START Data Loggers MSR63, MSR64
Check the status of the logger:
Press the START button once and check the LED indication:
LED Indication
green LED flashes twice
green LED flashes once
green LED flashes once
red LED flashes once
red LED flashes twice
yellow LED flashes twice
Data Logger Status
waiting to START (press START button for 5 seconds to START)
STARTED (in delay start mode)
recording – OK (no alarm condition)
recording – alarm condition
STOPPED
low battery
START the data logger:
Keep the START button pressed continuously for 5 seconds until the green LED flashes, followed by a flashing of the red and green LED»s. Once the red
and green LED»s stop flashing you may check the status by pressing the START button again for once which will flash the green LED for once confirming the
MSR data logger has been started successfully.
Note: Do not use the data logger if no LED is ON or if the red LED flashes twice after pressing the START button. Replace the battery if the yellow
LED flashes twice. Avoid using the logger without battery replacement.
LED
INDICATION
LED
INDICATION
TAMPERPROOF &
ROBUST CASE
2.0 A-TYPE
USB CONNECTION
T
AMPERPROOF
&
ROBUST CASE
2.0
A-T
YPE
USB CONNECTION

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 8
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
START Data Loggers MSR83, MSR84
Check the status of the data logger: During recording [RUN] & Stop [STOP] mode, press the START button once to view MIN | MAX | AVERAGE values.
Display Indication:

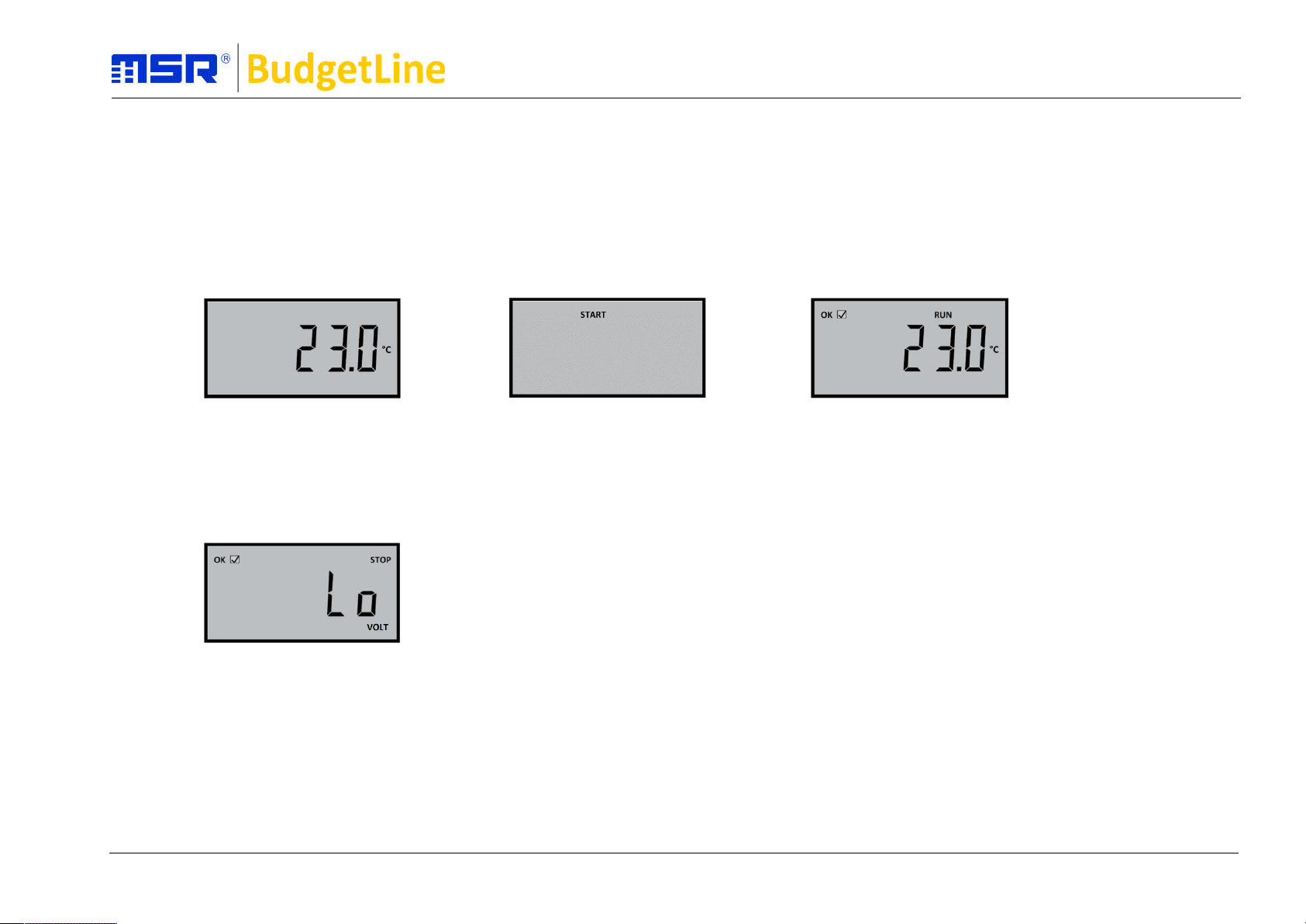

LCD Indication
Only Current Reading
START
RUN
STOP
OK
NOT OK
Lo VOLT
Data Logger Status
not started
waiting to START recording (in delay start mode)
started recording
recording is stopped
no alarm condition
LO | HI alarm condition
low battery
START the data logger:
Initially, the current reading will be shown on the display before starting the data logger. Keep the START button pressed continuously for 5 seconds to start
the logger. The green LED and the red LED will start flickering confirming the logger has been started successfully. The display will indicate START until the
delay start time is over. After completion of the delay start time, the display will indicate RUN and the current reading confirming logger has been started
successfully.
Note: Do not use the data logger if START is not shown on the display or if the LED is not ON after pressing the START button for 5 seconds.
«Lo VOLT» on the display indicates low battery. Avoid using logger without battery replacement.
LED
INDICATION
T
AMPERPROOF
&
ROBUST CASE
2.0
A-T
YPE
USB
C
ONNECTION

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 9
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
Multi-Function
LCD Display
Waiting to START
Press START button continuously
for 5 seconds to start logger.
Logger is STARTED
Logger is waiting till
delay start time is completed.
Logger is in recording mode Logger is in STOP mode
Press STOP button continuously
for 5 seconds to stop the logger.
Low & High Alarm Condition High Alarm Condition Low Alarm Condition OK – No Alarm Condition
Average Maximum Minimum
Low Battery Indication
Avoid using the logger
without battery
replacement.
Min/Max/Avg Values
During recording or Stop
Mode, press START button
once to view all values.
Logger
Status
Alarm
Status

© MSR Electronics GmbH, 2020-03-09. Alle Rechte vorbehalten. 10
MSR Electronics GmbH • Mettlenstrasse 6 • CH-8472 Seuzach • Switzerland
Phone. [phone] • [e-mail] • www.msr.ch • www.datalogger.shop
Precautions for Sender
 Store the data logger in a cool and dry place.
 Don’texpose the data logger to direct sunlight and avoid condensation forming inside the unit.
 A little pre-cooling is advisable in case of lower temperature application.
 Don’t use the data logger if START is not shown on the display or if the LED is not ON after pressing the START button for 5 seconds.
Waiting to START
Press START button continuously
for 5 seconds to start the logger.
Logger is STARTED
Logger is waiting till
delay start time is completed.
Logger is in recording mode
 «Lo VOLT» on display / yellow LED flashes indicates low battery. Avoid using the data logger without battery replacement.
 Record the complete details (serial number of data logger, start data & time) prior to starting the logger.
 Place the data logger as close to the application as possible.
 Never allow the data logger to remain loose, especially during transit.
 Frequent rattling may reset the logger.
 Clearly mark the box containing the loggers so that it is easily identified at the end of the measurement period
