OPERATOR’S MANUAL

Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

769-100 40

07. 0 8 .14

Single-Stage Snow Thrower

Customer Support

Please do

NOT

return the unit to the retailer from which it was purchased, without first contacting Customer Support.

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of

this machine, you can seek help from the experts. Choose from the options below:

◊ Visit our web at www.mtdcanada.ca

◊ Locate your nearest dealer from Customer Support: 1-800-668-1238

◊ Contact MTD CANADA • P.O. Box 1386 • 97 Kent Avenue • Kitchener, Ontario, Canada • N2G 4J1

To The Owner 1

Safe Operation Practices ........................................ 3

Assembly & Set-Up .................................................. 7

Controls.................................................................... 9

Operation................................................................10

Maintenance & Adjustment .................................11

Service .....................................................................13

Troubleshooting.....................................................15

Replacement Parts.................................................16

Warranty .................................................................17

Table of Contents

Thank you for purchasing your new equipment. It was carefully

engineered to provide excellent performance when properly

operated and maintained.

Please read this entire manual prior to operating the equipment.

It instructs you how to safely and easily set up, operate and

maintain your machine. Please be sure that you, and any other

persons who will operate the machine, carefully follow the

recommended safety practices at all times. Failure to do so could

result in personal injury or property damage.

All information in this manual is relative to the most recent

product information available at the time of printing. Review

this manual frequently to familiarize yourself with the machine,

its features and operation. Please be aware that this Operator’s

Manual may cover a range of product specifications for

various models. Characteristics and features discussed and/or

illustrated in this manual may not be applicable to all models.

The manufacturer reserves the right to change product

specifications, designs and equipment without notice and

without incurring obligation.

If you have any problems or questions concerning the machine,

phone your local service dealer or contact us directly. Customer

Support telephone numbers, website address and mailing

address can be found on this page. We want to ensure your

complete satisfaction at all times.

Throughout this manual, all references to right and left side of the

machine are observed from the operating position.

The engine manufacturer is responsible for all engine-related

issues with regards to performance, power-rating, specifications,

warranty and service. Please refer to the engine manufacturer’s

Owner’s/Operator’s Manual, packed separately with your

machine, for more information.

Thank You

Record Product Information

Before setting up and operating your new equipment, please

locate the model plate on the equipment and record the

information in the provided area to the right. You can locate the

model plate by standing at the operator’s position and looking

down at the rear of the frame. This information will be necessary,

should you seek technical support via our web site, Customer

Support Department, or with a local authorized service dealer.

Model NuMber

Serial NuMber

Important Safe Operation Practices 2

Training

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to

assemble and operate. Keep this manual in a safe place for

future and regular reference and for ordering replacement

parts.

2. Be familiar with all controls and their proper operation.

Know how to stop the machine and disengage them

quickly.

3. Never allow children under 14 years of age to operate this

machine. Children 14 and over should read and understand

the instructions and safe operation practices in this manual

and on the machine and be trained and supervised by an

adult.

4. Never allow adults to operate this machine without proper

instruction.

5. Thrown objects can cause serious personal injury. Plan

your snow-throwing pattern to avoid discharge of material

toward roads, bystanders and the like.

6. Keep bystanders, pets and children at least 75 feet from the

machine while it is in operation. Stop machine if anyone

enters the area.

7. Exercise caution to avoid slipping or falling, especially

when operating in reverse.

Preparation

Thoroughly inspect the area where the equipment is to be used.

Remove all doormats, newspapers, sleds, boards, wires and other

foreign objects, which could be tripped over or thrown by the

auger/impeller.

1. Always wear safety glasses or eye shields during operation

and while performing an adjustment or repair to protect

your eyes. Thrown objects which ricochet can cause serious

injury to the eyes.

2. Do not operate without wearing adequate winter outer

garments. Do not wear jewelry, long scarves or other loose

clothing, which could become entangled in moving parts.

Wear footwear which will improve footing on slippery

surfaces.

3. Use a grounded three-wire extension cord and receptacle

for all machines with electric start engines.

4. Disengage all control levers before starting the engine.

5. Never attempt to make any adjustments while engine is

running, except where specifically recommended in the

operator’s manual.

6. Let engine and machine adjust to outdoor temperature

before starting to clear snow.

WARNING! This symbol points out important safety instructions which, if not followed,

could endanger the personal safety and/or property of yourself and others. Read and follow

all instructions in this manual before attempting to operate this machine. Failure to comply

with these instructions may result in personal injury.

When you see this symbol. HEED ITS WARNING!

DANGER: This machine was built to be operated according to the safe operation practices in

this manual. As with any type of power equipment, carelessness or error on the part of the

operator can result in serious injury. This machine is capable of amputating fingers, hands,

toes and feet and throwing foreign objects. Failure to observe the following safety

instructions could result in serious injury or death.

CALIFORNIA PROPOSITION 65

WARNING! Engine Exhaust, some of its constituents, and certain vehicle components

contain or emit chemicals known to State of California to cause cancer and birth defects

or other reproductive harm.

4Section 2 — important Safe operation practiceS

Safe Handling of Gasoline

To avoid personal injury or property damage use extreme care

in handling gasoline. Gasoline is extremely flammable and the

vapors are explosive. Serious personal injury can occur when

gasoline is spilled on yourself or your clothes which can ignite.

Wash your skin and change clothes immediately.

a. Use only an approved gasoline container.

b. Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

c. Never fuel machine indoors.

d. Never remove gas cap or add fuel while the engine is

hot or running.

e. Allow engine to cool at least two minutes before

refueling.

f. Never over fill fuel tank. Fill tank to no more than ½

inch below bottom of filler neck to provide space for

fuel expansion.

g. Replace gasoline cap and tighten securely.

h. If gasoline is spilled, wipe it off the engine and

equipment. Move machine to another area. Wait 5

minutes before starting the engine.

i. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

(e.g. furnace, water heater, space heater, clothes

dryer etc.).

j. Allow machine to cool at least 5 minutes before

storing.

k. Never fill containers inside a vehicle or on a truck

or trailer bed with a plastic liner. Always place

containers on the ground away from your vehicle

before filling.

l. If possible, remove gas-powered equipment from

the truck or trailer and refuel it on the ground. If this

is not possible, then refuel such equipment on a

trailer with a portable container, rather than from a

gasoline dispenser nozzle.

m. Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times until fueling is

complete. Do not use a nozzle lock-open device.

Operation

1. Do not put hands or feet near rotating parts, in the auger/

impeller housing or chute assembly. Contact with the

rotating parts can amputate hands and feet.

2. The auger/impeller control lever is a safety device. Never

bypass its operation. Doing so makes the machine unsafe

and may cause personal injury.

3. The control levers must operate easily in both directions

and automatically return to the disengaged position when

released.

4. Never operate with a missing or damaged chute assembly.

Keep all safety devices in place and working.

5. Never run an engine indoors or in a poorly ventilated area.

Engine exhaust contains carbon monoxide, an odorless

and deadly gas.

6. Do not operate machine while under the influence of

alcohol or drugs.

7. Muffler and engine become hot and can cause a burn. Do

not touch. Keep children away.

8. Exercise extreme caution when operating on or crossing

gravel surfaces. Stay alert for hidden hazards or traffic.

9. Exercise caution when changing direction and while

operating on slopes.

10. Plan your snow-throwing pattern to avoid discharge

towards windows, walls, cars etc. Thus, avoiding possible

property damage or personal injury caused by a ricochet.

11. Never direct discharge at children, bystanders and pets or

allow anyone in front of the machine.

12. Do not overload machine capacity by attempting to clear

snow at too fast of a rate.

13. Never operate this machine without good visibility or light.

Always be sure of your footing and keep a firm hold on the

handles. Walk, never run.

14. Disengage power to the auger/impeller when transporting

or not in use.

15. Never operate machine at high transport speeds on

slippery surfaces. Look down and behind and use care

when backing up.

16. If the machine should start to vibrate abnormally, stop

the engine, disconnect the spark plug wire and ground it

against the engine. Inspect thoroughly for damage. Repair

any damage before starting and operating.

17. Disengage all control levers and stop engine before you

leave the operating position (behind the handles). Wait

until the auger/impeller comes to a complete stop before

unclogging the chute assembly, making any adjustments,

or inspections.

18. Never put your hand in the discharge or collector openings.

Do not unclog chute assembly while engine is running.

Shut off engine and remain behind handles until all moving

parts have stopped before unclogging.

19. Use only attachments and accessories approved by the

manufacturer (e.g. wheel weights, tire chains, cabs etc.).

20. When starting engine, pull cord slowly until resistance

is felt, then pull rapidly. Rapid retraction of starter cord

(kickback) will pull hand and arm toward engine faster than

you can let go. Broken bones, fractures, bruises or sprains

could result.

21. If situations occur which are not covered in this manual, use

care and good judgment. Contact Customer Support for

assistance and the name of your nearest servicing dealer.

5Section 2 — important Safe operation practiceS

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge

chute is the most common cause of injury associated with snow

throwers. Never use your hand to clean out the discharge chute.

To clear the chute:

1. SHUT THE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have

stopped rotating.

3. Always use a clean-out tool, not your hands.

Maintenance & Storage

1. Never tamper with safety devices. Check their proper

operation regularly. Refer to the maintenance and

adjustment sections of this manual.

2. Before cleaning, repairing, or inspecting machine

disengage all control levers and stop the engine. Wait until

the auger/impeller come to a complete stop. Disconnect

the spark plug wire and ground against the engine to

prevent unintended starting.

3. Check bolts and screws for proper tightness at frequent

intervals to keep the machine in safe working condition.

Also, visually inspect machine for any damage.

4. Do not change the engine governor setting or over-speed

the engine. The governor controls the maximum safe

operating speed of the engine.

5. Snow thrower shave plates and skid shoes are subject to

wear and damage. For your safety protection, frequently

check all components and replace with original equipment

manufacturer’s (OEM) parts only. “Use of parts which do

not meet the original equipment specifications may lead to

improper performance and compromise safety!”

6. Check control levers periodically to verify they engage

and disengage properly and adjust, if necessary. Refer

to the adjustment section in this operator’s manual for

instructions.

7. Maintain or replace safety and instruction labels, as

necessary.

8. Observe proper disposal laws and regulations for gas, oil,

etc. to protect the environment.

9. Prior to storing, run machine a few minutes to clear snow

from machine and prevent freeze up of auger/impeller.

10. Never store the machine or fuel container inside where

there is an open flame, spark or pilot light such as a water

heater, furnace, clothes dryer etc.

11. Always refer to the operator’s manual for proper

instructions on off-season storage.

12. Check fuel line, tank, cap, and fittings frequently for cracks

or leaks. Replace if necessary.

13. Do not crank engine with spark plug removed.

14. According to the Consumer Products Safety Commission

(CPSC) and the U.S. Environmental Protection Agency (EPA),

this product has an Average Useful Life of seven (7) years,

or 60 hours of operation. At the end of the Average Useful

Life have the machine inspected annually by an authorized

service dealer to ensure that all mechanical and safety

systems are working properly and not worn excessively.

Failure to do so can result in accidents, injuries or death.

Do not modify engine

To avoid serious injury or death, do not modify engine in any

way. Tampering with the governor setting can lead to a runaway

engine and cause it to operate at unsafe speeds. Never tamper

with factory setting of engine governor.

Notice Regarding Emissions

Engines which are certified to comply with California and federal

EPA emission regulations for SORE (Small Off Road Equipment)

are certified to operate on regular unleaded gasoline, and

may include the following emission control systems: Engine

Modification (EM), Oxidizing Catalyst (OC), Secondary Air

Injection (SAI) and Three Way Catalyst (TWC) if so equipped.

Spark Arrestor

WARNING! This machine is equipped with an

internal combustion engine and should not be used

on or near any unimproved forest-covered, brush

covered or grass-covered land unless the engine’s

exhaust system is equipped with a spark arrester

meeting applicable local or state laws (if any).

If a spark arrestor is used, it should be maintained in effective

working order by the operator.

A spark arrestor for the muffler is available through your nearest

engine authorized service dealer.

6Section 2 — important Safe operation practiceS

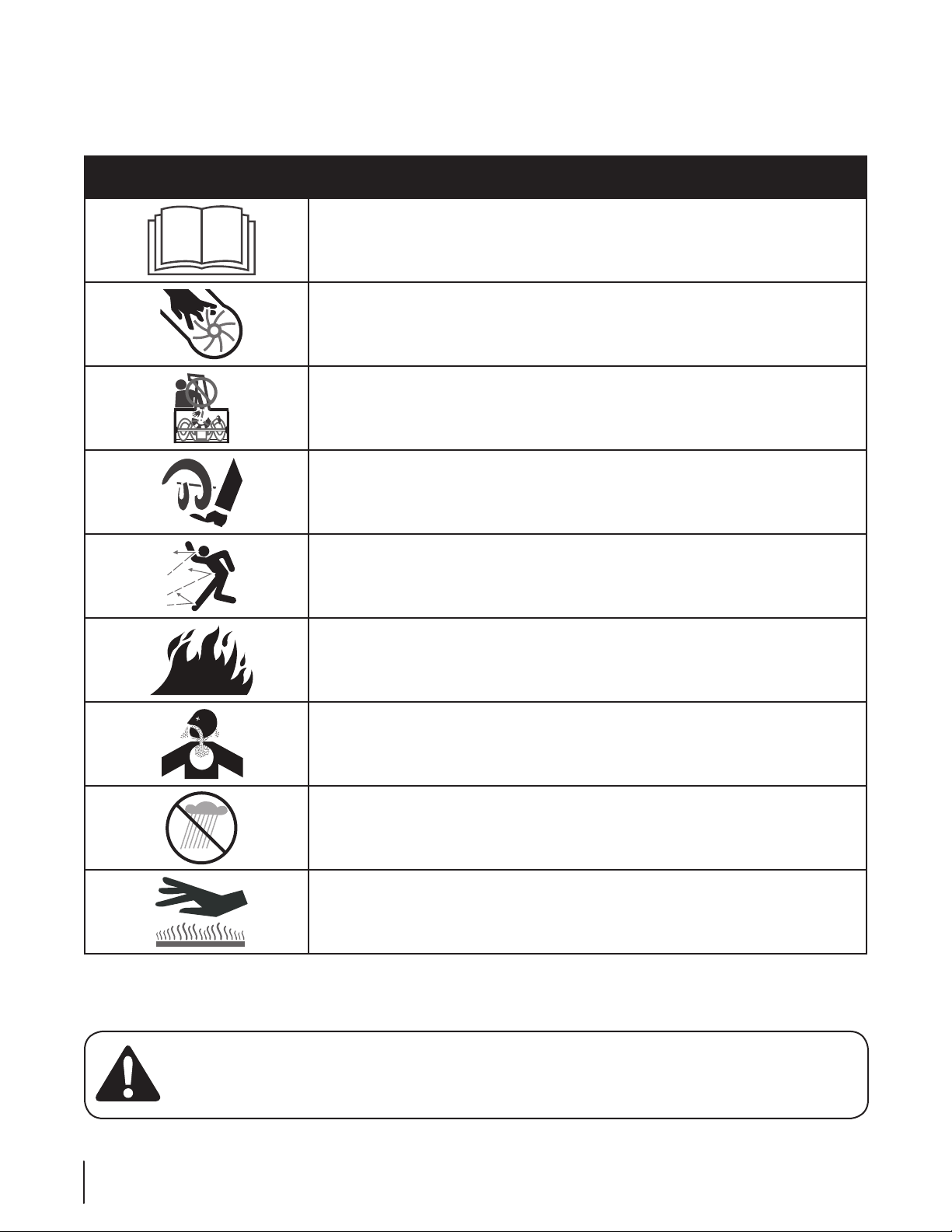

Safety Symbols

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the

machine before attempting to assemble and operate.

Symbol Description

READ THE OPERATOR’S MANUAL(S)

Read, understand, and follow all instructions in the manual(s) before attempting to

assemble and operate

WARNING— ROTATING BLADES

Keep hands out of inlet and discharge openings while machine is running. There are rotating

blades inside

WARNING— ROTATING BLADES

Keep hands out of inlet and discharge openings while machine is running. There are rotating

blades inside

WARNING— ROTATING AUGER

Do not put hands or feet near rotating parts, in the auger/impeller housing or chute

assembly. Contact with the rotating parts can amputate hands and feet.

WARNING—THROWN OBJECTS

This machine may pick up and throw and objects which can cause serious personal injury.

WARNING—GASOLINE IS FLAMMABLE

Allow the engine to cool at least two minutes before refueling.

WARNING— CARBON MONOXIDE

Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

WARNING— ELECTRICAL SHOCK

Do not use the engine’s electric starter in the rain

WARNING— HOT SURFACE

Engine parts, especially the muffler, become extremely hot during operation. Allow engine

and muffler to cool before touching.

WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and

follow the warnings and instructions in this manual and on the machine.

SAVE THESE INSTRUCTIONS!

Assembly & Set-Up 3

Contents of Carton

• One Snow Thrower • One 20 oz. Bottle 5W-30 Oil • Two Ignition Keys

• One Chute Assembly • One Snow Thrower Operator’s Manual • One Engine Operator’s Manual

NOTE: This Operator’s Manual covers several models. Snow

thrower features may vary by model. Not all features in this

manual are applicable to all snow thrower models and the snow

thrower depicted may differ from yours.

NOTE: All references to the left or right side of the snow thrower

are from the operator’s position. Any exceptions will be noted.

Assembly

Positioning the Upper Handle

1. Remove the wing knob and carriage bolt from the top of

the lower handle. See Fig. 3-1. It is not necessary to remove

the shoulder screw and flange lock nut below the wing

knob and carriage bolt.

2. Pivot the upper handle into the operating position. Be sure

not to pinch any of the cables in the process. See Fig. 3-2.

3. Tighten the previously removed hardware to secure the

handle in place. See. Fig. 3-2.

Installing the Chute

1. Place the chute handle on the lower chute as shown in Fig.

3-3. Be certain that the handle is aligned in the channel on

the chute and the tabs snap into place.

Wing Knob

Carriage Bolts

Figure 3-1

Figure 3-2

Channel

Tab

Figure 3-3

8Section 3— ASSembly & Set-Up

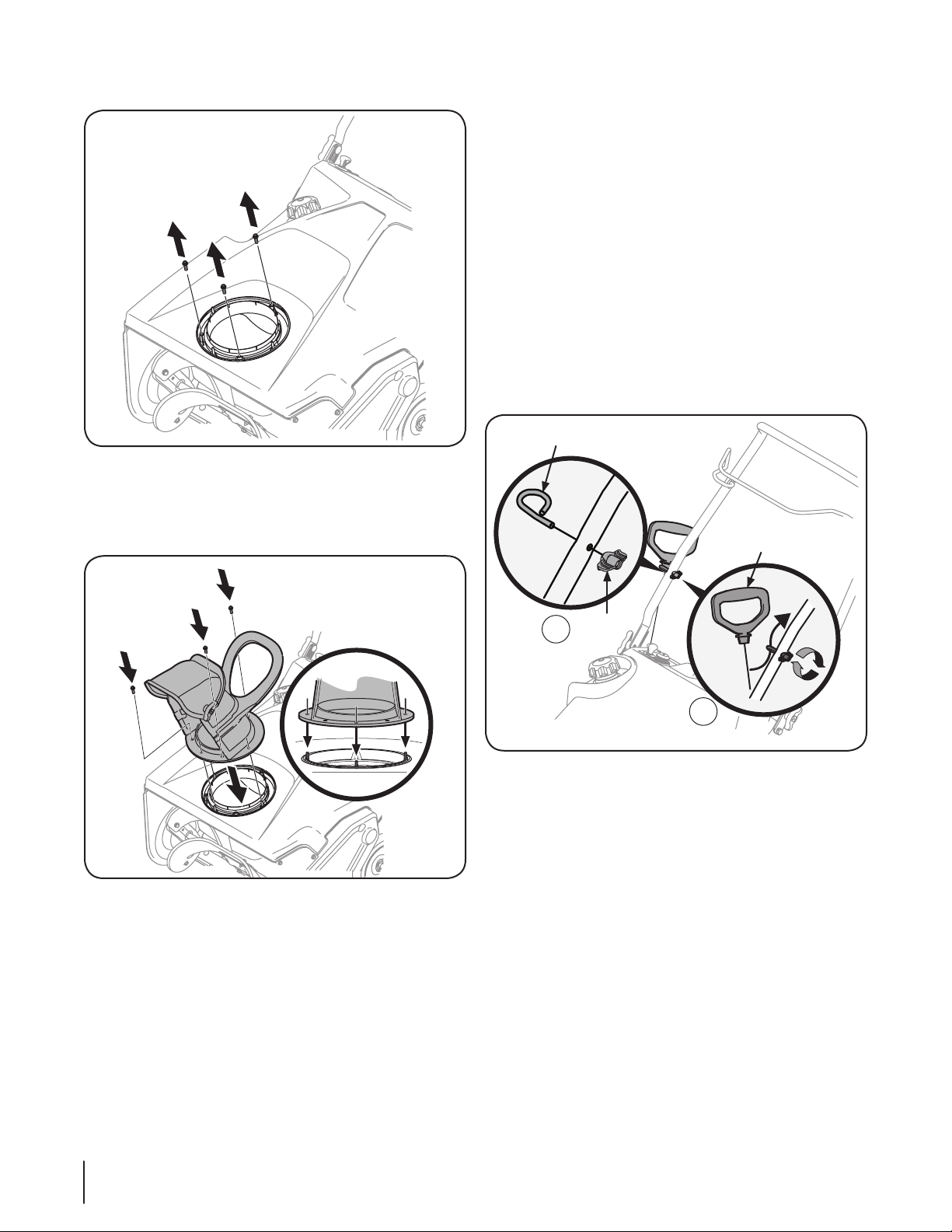

2. Remove the hex washer screws in the chute base. See Fig. 3-4.

3. Align the holes in the chute base with the holes in the

lower chute and secure with the previously removed hex

washer screws. See Fig. 3-5.

Installing the Recoil Starter Handle

On some models it may be necessary to install the recoil starter

handle. If your handle is not pre-installed follow the directions

below to install it.

1. Remove the eye bolt and handle knob from the manual

bag.

2. Place the eye bolt and handle knob on the upper handle as

shown in Fig. 3-6. Do not fully tighten the hardware until

instructed to do so.

NOTE: The opening of the eye bolt should face toward the

back of the snow thrower.

3. Slowly pull the recoil starter handle up towards the eye

bolt.

4. Slip the recoil starter rope into the eye bolt from the back

of the snow thrower. See Fig. 3-6.

5. Securely tighten the eye bolt and handle knob.

Figure 3-5

Figure 3-6

Figure 3-4

Eye Bolt

Handle

Knob

Recoil Starter

Handle

Set-Up

Adding Fuel & Oil

Refer to the Engine Operator’s Manual packed with your snow

thrower for information on adding fuel and oil.

Controls & Features 4

Chute Assembly

Shave Plate

Auger

Control Handle

Auger Control

Recoil Starter Handle

Figure 4-1

NOTE: This Operator’s Manual covers several models. Snow

thrower features may vary by model. Not all features in this

manual are applicable to all snow thrower models and the snow

thrower depicted may differ from yours.

Engine Controls

See the Engine Operator’s Manual for the location and function

of the controls on the engine.

Auger

When engaged, the auger rotation draws snow into the auger

housing and throws it out the discharge chute. Rubber paddles

on the auger also aid in propelling the snow thrower as they

come in contact with the pavement.

Auger Control

Located on the upper handle, the auger control is used to

engage and disengage drive to the auger. Squeeze the control

against the upper handle to engage the auger; release it to

disengage.

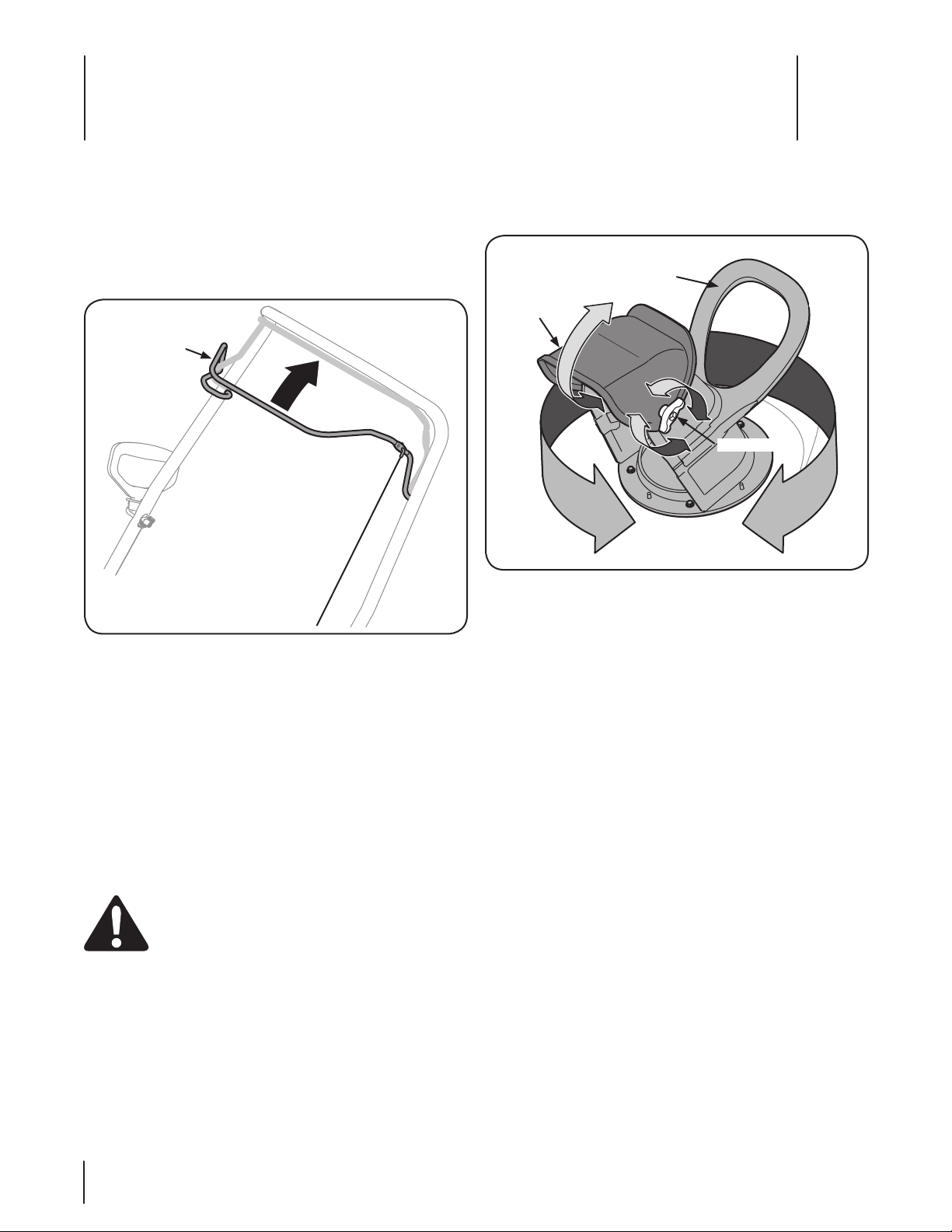

Chute Assembly

Rotate the discharge chute to the left or right using the chute

handle. The pitch of the discharge chute controls the angle at

which the snow is thrown. Loosen the wing knob on the side of

the discharge chute before pivoting the discharge chute upward

or downward. Retighten the knob once the desired position has

been achieved.

Shave Plate

The shave plate maintains contact with the pavement as

the snow thrower is propelled, allowing snow close to the

pavement’s surface to be discharged.

Recoil Starter Handle

The recoil starter handle is used to manually start the engine.

Operation 5

NOTE: Refer to the Engine Operator’s Manual for instruction on

starting, stopping and operating the engine.

Engaging the Auger

1. To engage the auger and start throwing snow, squeeze the

auger control against the handle. Release to stop the auger.

See Fig. 5-1.

Engaging the Drive

Lift up slightly on the handle to allow the rubber paddles on the

auger to contact the pavement and propel the snow thrower

forward. Pushing downward on the handle will raise the auger

off the ground and stop the forward motion.

NOTE: Excessive upward pressure on the handle will result

in premature wear on the rubber auger blades which will

not be covered by the warranty.

Clearing a Clogged Discharge Chute

WARNING! Never use your hands to clear a

clogged chute assembly. Shut off engine and remain

behind handles until all moving parts have stopped

before using a clean-out tool to clear the chute

assembly.

Hand contact with the rotating impeller inside the discharge

chute is the most common cause of injury associated with snow

throwers. Never use your hand to clean out the discharge chute.

To clear the chute:

1. SHUT THE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have

stopped rotating.

3. Always use a clean-out tool, not your hands.

Chute Assembly

The pitch of the chute assembly controls the angle at which the

snow is thrown.

1. Loosen the wing knob found on the left side of the chute

assembly and pivot the upper chute upward or downward

to the desired pitch. Retighten the wing knob before

operating the snow thrower.

2. Position the chute assembly opening by using the chute

handle to throw the snow in the desired direction. See Fig.

3-3.

Auger

Control

Handle

Figure 5-1

Chute Handle

Chute

Assembly

Wing Nut

Figure 5-2

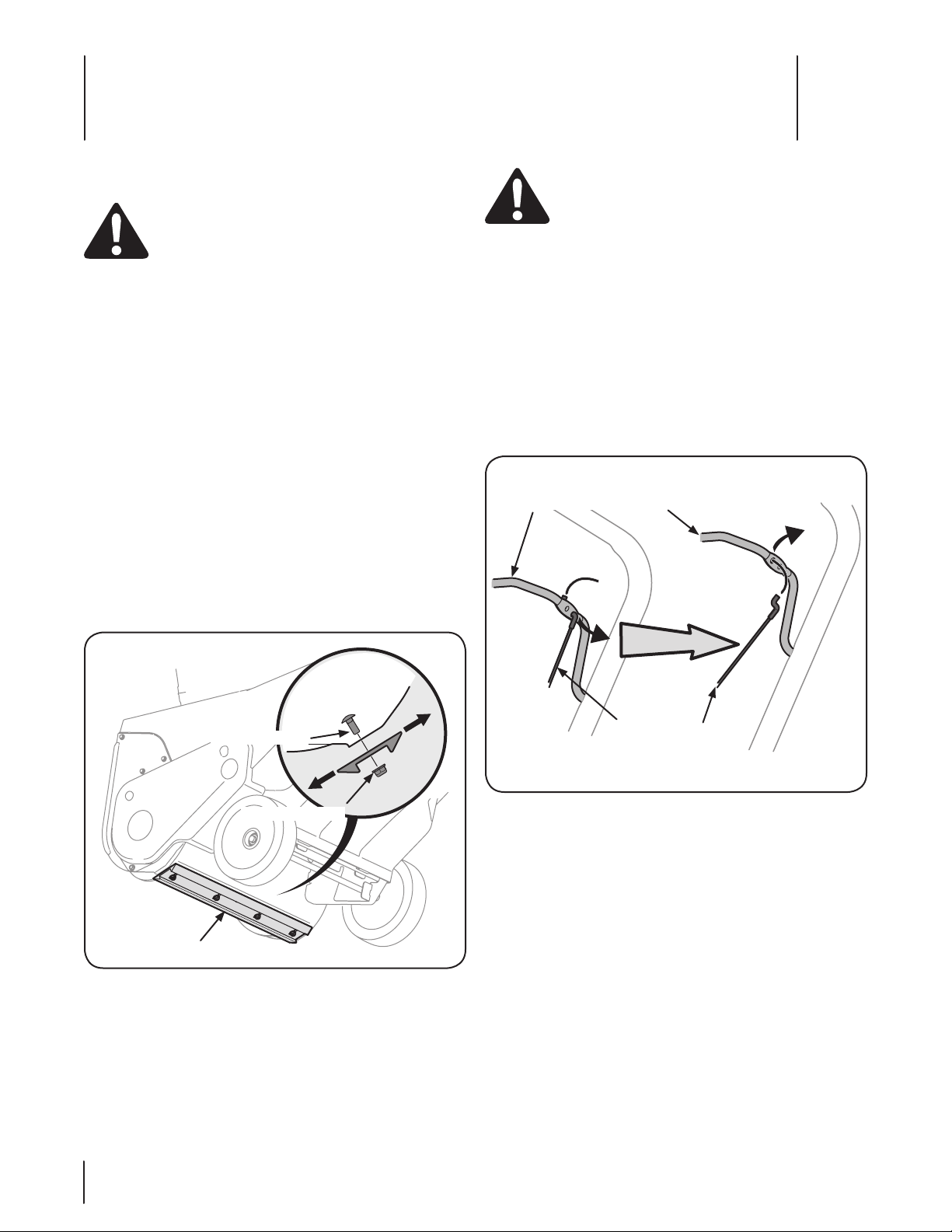

Maintenance & Adjustments 6

Adjustments

WARNING! Before servicing, repairing or

inspecting the snow thrower, disengage the auger

control. Stop the engine and remove the key to

prevent unintended starting.

Shave Plate

To check the adjustment of the shave plate, place the machine

on a level surface. The wheels, shave plate and auger should all

contact the level surface. Note that if the shave plate is adjusted

too high, snow may blow under the housing. If the shave plate

wears out excessively, or the snow thrower does not self-propel,

the shave plate may be too low and needs to be adjusted.

NOTE: On new snow throwers or machines with a new shave

plate installed, the auger may be slightly off the ground.

To adjust the shave plate proceed as follows:

1. Drain the gas from the snow thrower by running the

engine until it is empty.

2. Pull the recoil starter handle until resistance is felt. Then tip

the snow thrower back until it rests on the handles.

3. Loosen the four flange lock nuts and carriage bolts which

secure the shave plate to the housing. See Fig. 6-1. Move

the shave plate to the desired position and retighten the

nuts and bolts securely.

4. Tip the snow thrower back to the operating position and pull

the starter handle a few times to see if it is difficult to pull.

5. If the starter is difficult to pull, remove the spark plug and

pull the handle several times to ensure that any oil trapped

in the head is removed.

CAUTION: Oil may come out of the spark plug

hole when it is removed and the starter handle is

pulled.

6. Inspect the spark plug. If it is wet, clean off any oil before

re-installing.

Control Cable

As a result of both the control cable and the auger drive belt

stretching due to wear, periodic adjustments may be necessary.

If the auger seems to hesitate when rotating, proceed as follows:

The upper hole in the control handle provides for an adjustment

in cable tension. To adjust, disconnect the end of control cable

from the bottom hole in the control handle and reinsert it in the

upper hole. Insert the cable from the outside as shown in Fig. 6-2.

Test the snow thrower to see if there is a noticeable difference. If after

the adjustment to the control cable the auger still hesitates when

rotating, see the Service section for instructions on replacing the belt.

Chute Assembly

Refer to the Operation section for instructions on adjusting the

chute assembly.

Figure 6-1

Reversible Shave Plate

Side View

Carriage Screw

Flange Lock Nut

Auger Control Handle

Control Cable

Figure 6-2

12 Section 6 — Maintenance & adjuStMentS

Maintenance

Lubrication

Lubricate the pivot points on the control handle and the

extension spring at the end of the control cable with a light

oil once every season and before the snow thrower is put into

storage at the end of the season.

Engine

Refer to the Engine Operators manual packed separately with

your snow thrower for maintenance and adjustment information

on your engine.

Off-Season Storage

If the snow thrower will not be used for 30 days or longer, follow

the instructions below.

1. Store the equipment in a clean, dry area.

2. If storing the snow thrower in an unventilated area,

rustproof the machine using a light oil or silicone to coat

the snow thrower.

3. Clean the exterior of the engine and the snow thrower.

4. Lubricate pivot points on control handle and extension

spring at end of control cable with a light oil.

Service 7

Replacing Belt

1. Run the snow thrower until the fuel tank is empty.

2. Pull the recoil starter handle until resistance is felt. Then tip

the snow thrower back until it rests on the handles.

3. Slide a board up through the auger and through the chute

to secure the auger in place.

4. Remove the belt cover by removing the three hex washer

screws and one hex lock screw that secure it to the frame.

See Fig. 7-1.

5. Remove the flange nut that secures the auger pulley to the

auger shaft. See Fig. 7-2.

6. Remove the auger pulley and the belt.

To replace the belt follow these instructions and refer to Fig. 7-3:

NOTE: Installing the belt and belt cover may be easier if the

auger control is squeezed against the upper handle.

1. Route the belt around the drive pulley and under the idler

pulley. See Fig. 7-3.

2. Route the end of the belt around the auger pulley and slide

the pulley back on to the auger shaft. It may be necessary

to push down on the idler pulley to get the auger pulley

under the belt keeper.

3. Replace the flange nut and tighten securely.

4. Reinstall the belt cover removed earlier.

5. Remove the board from the auger and chute.

Hex Washer Screw

Hex Lock Screw

Figure 7-1

Figure 7-2

Flange Nut

Auger Pulley

Auger Shaft

Auger Pulley

Belt Keeper

Idler Pulley

Flange Nut

Drive Pulley

Figure 7-3

14 Section 7— Service

Replacing Auger Paddles

The snow thrower auger’s rubber paddles are subject to wear

and should be replaced if any signs of excessive wear are present.

CAUTION: Do NOT allow the auger’s rubber

paddles to wear to the point where portions of the

metal auger itself can come in contact with the

pavement. Doing so can result in serious damage to

your snow thrower.

To change the rubber paddles, proceed as follows:

1. Run the snow thrower until the fuel tank is empty.

2. Pull the recoil starter handle until resistance is felt. Then tip

the snow thrower back until it rests on the handles.

3. Remove the existing rubber paddles by unthreading the hex

washer screws which secure them to the auger. See Fig. 7-4.

NOTE: The auger paddles should be replaced one-at-a-time

so that the auger still attached can be used as an example for

positioning and re-installing the new auger.

4. Secure the replacement rubber paddles to the auger using

the hardware removed earlier.

Hex Washer Screw

Auger Paddle

Figure 7-4

Replacing Shave Plate

The shave plate is attached to the bottom of the auger housing

and is subject to wear. It should be checked periodically. There

are two wearing edges and the shave plate can be reversed.

1. Run the snow thrower until the fuel tank is empty.

2. Pull the recoil starter handle until resistance is felt. Then tip

the snow thrower back until it rests on the handles.

3. Remove the four carriage bolts and flange lock nuts which

attach it to the snow thrower housing. See Fig. 7-5.

4. Install the new shave plate, making sure the heads of the

carriage bolts are on the inside of the housing.

5. Tip the snow thrower back to the operating position and pull

the starter handle a few times to see if it is difficult to pull.

6. If the starter is difficult to pull, remove the spark plug and

pull the handle several times to ensure that any oil trapped

in the head is removed.

CAUTION: Oil may come out of the spark plug hole

when it is removed and the starter handle is pulled.

7. Inspect the spark plug. If it is wet, clean off any oil before

re-installing.

8. Adjust the shave plate as instructed in the Maintenance &

Adjustments section.

9. Tighten securely once adjusted.

Engine

Refer to the Engine Operators manual packed separately with

your snow thrower for service information for your engine.

Reversible Shave Plate

Side View

Carriage Screw

Flange Lock Nut

Figure 7-5

Troubleshooting 8

Problem Cause Remedy

Loss of power 1. Spark plug wire loose.

2. Vent in gas cap plugged.

1. Firmly connect spark plug wire.

2. Clear vent.

Excessive vibration 1. Loose parts or damaged auger. 1. Stop engine immediately and disconnect

spark plug wire. Check for possible damage.

Tighten all bolts and nuts. Repair as needed.

If the problem persists, take snow thrower to

an authorized service dealer.

Snow thrower fails to self-

propel

1. Auger control cable out of adjustment.

2. Auger drive belt loose or damaged.

1. Adjust auger control cable as shown in

Maintenance & Adjustments section.

2. Replace auger drive belt.

Augers continue to rotate 1. Auger control cable out of adjustment. 1. Adjust auger control cable as shown in

Maintenance & Adjustments section.

Unit fails to discharge snow 1. Chute assembly clogged.

2. Foreign object lodged in auger.

3. Auger control cable out of adjustment.

4. Auger belt loose or damaged.

1. Stop engine and disconnect spark plug wire.

Clean chute and inside of auger housing with

clean-out tool or stick.

2. Stop engine immediately and disconnect the

spark plug wire. Remove object from auger.

3. Adjust auger control cable.

4. Replace auger belt.

Replacement Parts 9

NOTE: Download a complete Parts Manual, refer to customer support on page 2. Be sure to have your model number and serial

number ready. Refer to page 2 for more information regarding locating your model and serial numbers.

Component Part Number and Description

731-08171 Shave Plate

954-04050A Belt V-Type

753-06469 Rubber Auger Paddle Kit (Includes 2

paddles and 12 hex washer screws)

731-05632 Key

946-04782 Clutch Cable

734-04063A Wheel Assembly, 7” (2M1 & 2S1)

734-04585 Wheel Assembly, 8” (2T5)

05.10.11

THREE YEAR LIMITED WARRANTY

The limited warranty set forth below is given by MTD Products Limited with respect to new merchandise purchased and used in Canada and/

or its territories and possessions (either entity respectively, “MTD”).

MTD warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period

of three (3) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be

defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance

with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident,

improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from

the installation or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void

your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of pur-

chase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels,

seats, snow thrower skid shoes, friction wheels, shave plates, auger spiral rubber, tires, engine oil, air filters and spark plugs.

Lifetime Warranty on Polymer Snow Discharge Chute: If your product is a snow thrower equipped with a polymer snow discharge chute

(the “Snow Chute”), and the Snow Chute fails, breaks, or malfunctions, the manufacturer will repair or replace the Snow Chute at no cost as

long as it is still owned by the original purchaser (or the original person for whom this product was purchased as a gift). Control mechanisms

attached to the Snow Chute, such as cables and control linkages, are covered under the other terms of this limited warranty, but are not

covered by this paragraph (or beyond the normal applicable warranty period). Except as specifically modified by this paragraph, all of the

other terms, limitations, and conditions set forth in this document shall continue to apply to the Snow Chute.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate

the dealer in your area;

In the U.S.A.: Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-330-

220-4683 or log on to our Web site at www.mtdproducts.com.

In Canada: Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.

This limited warranty does not provide coverage in the following cases:

a. The engine or component parts thereof. These items may carry a separate manufacturer’s warranty. Refer to applicable manufac-

turer’s warranty for terms and conditions. The Powermore engine is not excluded under this agreement.

b. Log splitter pumps, valves, and cylinders have a separate one-year warranty.

c. Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck

adjustments, and normal deterioration of the exterior finish due to use or exposure.

d. Service completed by someone other than an authorized service dealer.

e. MTD does not extend any warranty for products sold or exported outside of Canada, including possessions and territories.

f. Replacement parts that are not genuine MTD parts.

g. Transportation charges and service calls.

h. If products are used commercially. (MTD may separately offer Limited Commercial Warranties on certain select products. Ask your

dealer or retailer for details or contact MTD Service for more information.)

No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the ap-

plicable period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral,

except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind

MTD. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.

The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD shall not be liable for

incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn

care services or for rental expenses to temporarily replace a warranted product.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied

warranty lasts, so the above exclusions or limitations may not apply to you.

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of

the product shall void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others

and their property arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.

HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights

that vary in different jurisdictions.

IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683

MTD Products Ltd., P. O. BOX 1386, KITCHENER, ON N2G 4J1; Phone: 1-800-668-1238

Notes

GARANTIE LIMITÉE DE TROIS ANS

La garantie limitée qui est énoncée ci-dessous est offerte par MTD Products Limited, pour toutes les marchandises achetées et utilisées au Canada et/

ou ses territoires (l’une ou l’autre entité respectivement appelée « MTD »).

« MTD » garantit que ce produit (à l’exception des pièces à usure normale énumérées ci-dessous)est exempt de tout vice de matière et de fabrication

pour une durée de trois (3) ans à compter de la date de l’achat initial et s’engage à réparer ou à remplacer, gratuitement et à son choix, toute pièce qui

s’avère défectueuse en raison d’un vice de matière ou de fabrication. Cette garantie limitée n’est applicable que si ce produit a été utilisé et entretenu

conformément aux instructions de la notice d’utilisation qui l’accompagne. De plus, le produit ne doit pas avoir fait l’objet d’un emploi incorrect ou

abusif, d’une utilisation à des fins commerciales, d’une négligence, d’un accident, d’un entretien incorrect, d’une modification, d’un acte de vandal-

isme, d’un vol, d’un incendie, d’une inondation ou de tout autre dégât causé par tout incident ou désastre naturel. Les dégâts causés par l’installation

ou l’utilisation d’une pièce, d’un accessoire ou d’un équipement annexe, dont l’emploi avec le produit faisant l’objet de la notice d’utilisation n’est pas

homologué par MTD, rendront la garantie nulle et non avenue.

Les pièces ou composants à usure normale sont garantis exempts de tout vice de matière et de fabrication pour une période de 30 jours à compter

de la date d’achat. Les pièces et composants à usure normale comprennent, sans s’y limiter, les batteries, courroies, lames, adaptateurs de lame, sacs

à herbe, roues du plateau de coupe des tondeuses à siège, sièges, patins de souffleuses, roues de frottement, lames de raclage, le caoutchouc de la

tarière et pneus l’huile à moteur, les filtres à air et bougies.

Garantie limitée de la goulotte d’éjection en polymère : Si le matériel en question est une souffleuse à neige équipée d’une goulotte d’éjection

en polymère (la “goulotte”) et que celle-ci présente une défaillance, se brise ou ne fonctionne pas correctement, le fabricant s’engage à réparer

ou à remplacer cette goulotte gratuitement si elle est toujours la propriété de l’acheteur initial (ou si le propriétaire initial l’a reçue en cadeau). Les

commandes installées sur la goulotte, c’est-à-dire les câbles et timoneries de commande, sont couvertes par d’autres clauses de cette garantie limitée.

Elle ne sont toutefois pas couvertes par ce paragraphe (ni au-delà de la période normale de la garantie). Toutes les autres clauses, restrictions et condi-

tions énoncées dans ce document continueront à s’appliquer à la goulotte, à moins de modifications expresses mentionnées dans ce paragraphe.

POUR FAIRE HONORER LA GARANTIE : Présentez UNE PREUVE D’ACHAT à la station technique agréée de votre localité. Pour localiser une station

technique agréée ou un concessionnaire dans votre région :

Aux États-Unis : Consultez les Pages Jaunes ou adressez-vous à MTD LLC, P.O. Box 361131, Cleveland, Ohio 44136-0019 ou appelez le 1-800-800-7310

ou le 1-330-220-4683. Vous pouvez aussi visiter notre site web au www.mtdproducts.com

Au Canada : Adressez-vous à MTD Products Limited, Kitchener, Ontario, N2G 4J1 ou appelez le 1-800-668-1238 ou visitez notre site web au www.

mtdcanada.com

Cette garantie limitée ne couvre pas:

a. Le moteur ou ses composants. Ces articles peuvent être couverts par une garantie séparée du fabricant. Consultez la garantie du fabricant

quant aux conditions. Le moteur Powermore à soupapes en tête n’est pas exclus aux termes de cette garantie.

b. Les pompes, soupapes et pistons des fendeuses à bois sont couverts par une garantie séparée d’un an.

c. Les articles d’entretien courant tels que les lubrifiants, filtres, aiguisages de lame et révisions, les réglages de frein, de l’embrayage ou du

plateau de coupe et la détérioration normale de la finition du fait de l’utilisation de la machine ou de son exposition aux intempéries.

d. L’entretien ou les réparations effectués par quiconque autre qu’une station technique agréée.

e. MTD ne garantit pas les produits vendus ou exportés du Canada, de ses possessions et territoires.

f. Les pièces de rechange si elles ne sont pas des pièces MTD authentiques.

g. Les frais de transport des machines et de déplacement des techniciens.

h. Les produits utilisés dans un but commercial. (Certains produits peuvent être accompagnés d’une garantie limitée MTD séparée pour usage

commercial. Renseignez-vous auprès du concessionnaire ou détaillant pour plus de détails ou adressez-vous directement au service après-

vente de MTD.)

Aucune garantie tacite, y compris toute garantie tacite de qualité marchande ou d’adaptabilité dans un but particulier, ne s’applique aux

pièces identifiées ci-dessus après la période de vigueur de la garantie écrite expresse. Aucune autre garantie expresse, qu’elle soit verbale

ou écrite, à l’exception des stipulations ci-dessus, offerte par toute personne ou entité (y compris un concessionnaire/revendeur), pour tout

produit, n’engage MTD. Pendant la période de garantie, la réparation ou le remplacement du produit ci-dessus constitue le recours exclusif

à la disposition du client.

Les stipulations énoncées dans cette garantie offrent le seul recours à la suite de la vente. MTD ne peut être tenue responsable pour toute

perte ou tout dommage accessoire ou immatériel comprenant, sans s’y limiter, les frais de remplacement ou de substitution des services

d’entretien des pelouses ou les frais de location pour remplacer temporairement un article sous garantie.

Certaines juridictions ne permettent pas l’inclusion ou la restriction des dommages accessoires ou immatériels ou une limite à la durée de la garantie
