19"
REAR DISCHARGE
ELECTRIC
ROTARY MOWER
Model Number
182-387B000
0(P
IMPORTANT!
Record the Model No. and Mfg. Code which
appear on your unit in the space below. You
must have these numbers, along with the date
of purchase, in order to receive warranty or ser¬
vice.
Important:
Read Safety Rulps and Instructions Carefully
FORM NO. 770-8093G
(R920220)

i
IMPORTANT
SAFE OPERATION PRACTICES
▲
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH. IF NOT FOLLOWED. COULD ENDANGER THE PERSONAL
SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE
ATTEMPTING TO OPERATE YOUR ELECTRIC LAWN MCWER. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN
PERSONAL INJURY. WHEN YOU SEE THIS SYMBOL— A HEED ITS WARNING.
A
Your electric lawn mower wi s built to be operated according to the rules for safe operation in this manu-
DANGER' al. As with any type of powi r equipment, careiessness or error on the part of the operator can result in
serious injury. If you violate my of these rules, you may cause serious injury to yourself or others.
TRAINING
1. Read this owner’s manual carefully in its entirety before a tempting to
assemble or operate this machine. Be completely familiar v ith the con¬
trols and the proper use of this machine before operating it. Keep this
manual in a safe place for future and regular reference and for ordering
replacement parts.
2. Your rotary mower is a precision piece of power equipmen, not a play¬
thing. Therefore, exercise extreme caution at all times.
3. Never allow children to operate a power mower. Only persons well
acquainted with these rules of safe operation should be alitwed to use
your mower.
4. No one should operate this unit while intoxicated or while aking medi¬
cation that impairs the senses or reactions.
5. Keep the area of operation clear of all persons, particular! i small chil¬
dren and pets. Stop motor when they are in the vicinity of mur mower.
Although the area of operation should be completely cleared of foreign
objects, an object may have been overlooked and could bt accidentally
thrown by the mower in any direction and cause serious pe rsonai injury
to the operator or any others allowed in the area.
PREPARATION
1. Thoroughly inspect the area where the equipment is to be used.
Remove all stones, sticks, wire, bones and other foreign (bjects which
could be picked up and thrown by the mower in any (irection and
cause serious personal injury to the operator or any othe's allowed in
the area.
2. Always wear safety glasses or eye shields during opera ;ion or while
performing an adjustment or repair, to protect eyes rom foreign
objects that may be thrown from the machine in any direct on.
3. Dress properly. Wear sturdy, rough-soled work shoes. Nt ver operate a
unit in barefeet, sandals or sneakers. Do not wear loose clothing or
jewelry. They can be caught in moving parts. Use of rubb tr gloves and
footwear is recommended when working outdoors.
4. Never attempt to make a wheel or cutting height adjustn ent while the
motor is running.
5. Mow only in daylight or in good artificial light.
6. Avoid Dangerous Environment—Never operate the equ pment in the
rain or in damp wet locations. Always be sure of your f toting. A slip
and fall can cause serious personal injury. Keep a firm ho d on the han¬
dle and walk, never run. Do not over-reach—keep footing and balance
at all times.
7. Warning—To reduce the risk of electric shock hazard, usi; only with an
extension cord suitable for outdoor use. Use only UL app oved outdoor
extension cords of adequate gauge (minimum 16 gauge ricommended)
which accept the lawn mower’s plug. Extension cords a e available at
your nearest authorized service center or dealer.
8. Cord sets—Make sure your cord set is in good condition. When using a
cord set, be sure to use one heavy enough to carry th( current your
lawn mower will draw. For lengths less than 50 feet, No. 16 AWG cord
set should be used. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. (NOTE: Tabit below shows
the correct size to use depending on cord length and narr epiate ampere
rating. If in doubt, use the next heavier gauge. The sme Her the gauge
number the heavier the cord.)
Required Cord Gauge
Motor
Amp
Rating
Cord Length in Feet
25 50 100 150
Wire Gauge
10-12
16 16 14 12
9. If extension cord is damaged in any manner while plugged in, pull
extension cord from wall receptacle.
10. To prevent disconnection of extension cord from mower during opera¬
tion, be sure to use the cord restraint provided or make a knot as
shown in the illustration below.
Extension Appliance
Cord Cord
11. Fuses—The mower should be operated on a 15 or 20 AMP circuit. If
difficulty in starting is experienced with a standard 15 AMP fuse or cir¬
cuit breaker, contact your nearest authorized service location. Do not
use a higher rated fuse without consulting your power company.

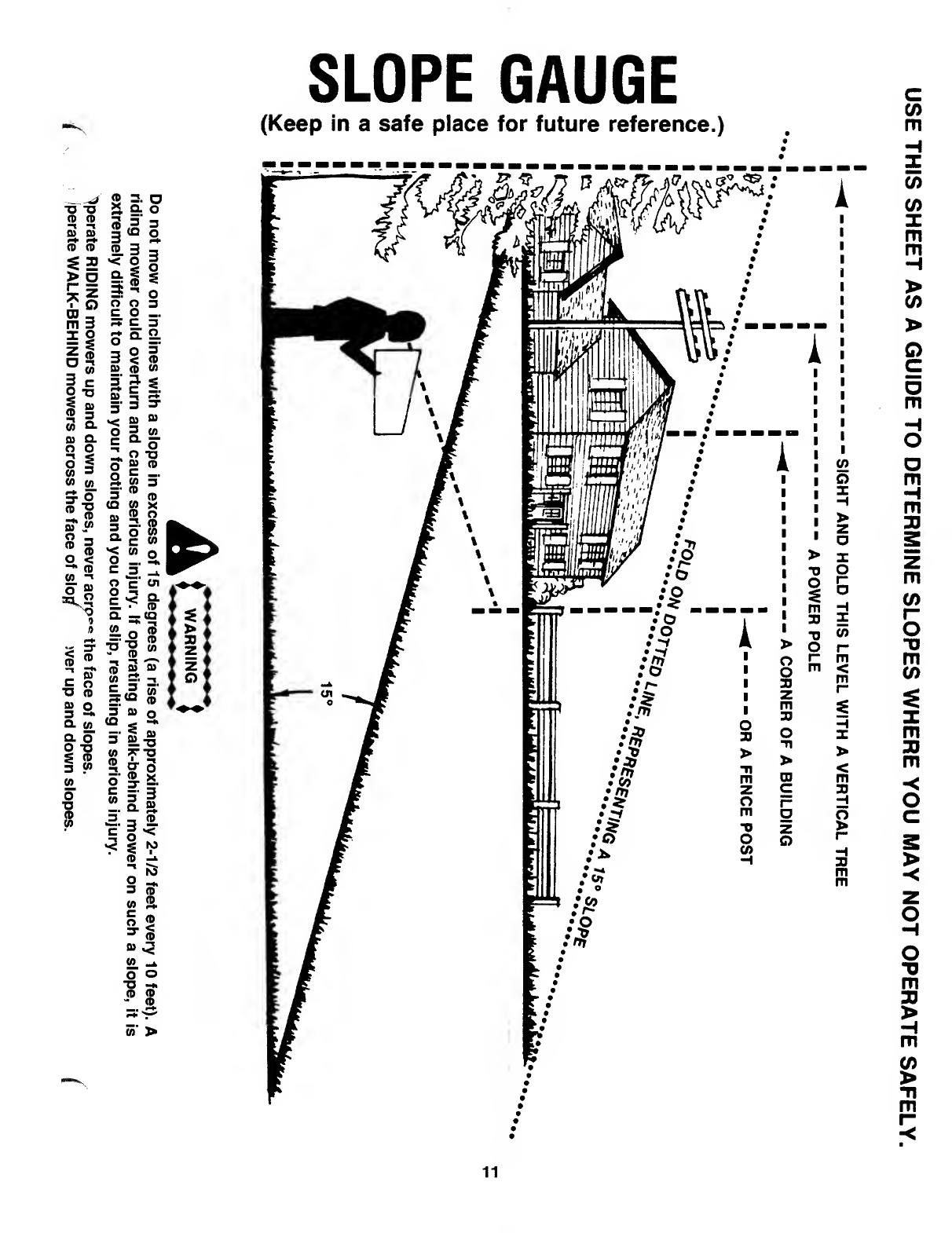

12. For your safety, use the slope gauge included as part of this manual to
measure slopes before operating this unit on a sloped or hilly area. If
the slope is greater than 15° as shown on the slope gauge, do not oper¬
ate this unit on that area or serious injury could result.
2 .
4.
OPERATION
k 1. Avoid accidental starting. Do not pull plugged-in lawn mower with fin-
■ ger on switch. Be sure switch is off when plugging in.
Do not abuse cord—never pull lawn mower by cord or yank it to dis¬
connect from receptacle. Keep cord from heat, oil, and sharp edges.
Do not put hands or feet near or under rotating parts. Keep clear of the
discharge opening at all times as the rotating blade can cause injury.
Stop the motor when you leave the mower and before crossing gravel
drives, walks or roads.
5. After striking a foreign object, shut off the motor, make absolutely sure
the blade and all moving parts have completely stopped, disconnect the
power cord to prevent accidental starting, then thoroughly inspect the
mower for any damage. Such damage must be repaired before restart¬
ing and operating the mower.
If the equipment should start to vibrate abnormally, stop the motor and
check immediately for the cause. Vibration is generally a warning of
trouble.
7. Stop the motor, unplug the power cord, and wait for the blade and r
moving parts to stop before cleaning or unclogging, repairing ^
inspecting the mower. The cutting blade continues to rotate for a few
seconds after the motor is shut off.
6 .
2

SAFE OPERATION PRACTICES (Continued)
8. Do not force lawn mower. It will do the job better and safer at the rate 3. Keep blade sharp.
for which it was designed. Use right appliance—Do not use lawn 4. Use identical replacement blades only. Replace damaged cord,
mower for any job except that for which it is intended. 5. To reduce fire hazard, keep the motor free of grass, leaves, or excessive
9. Mow across the face of slopes, never up-and-down. Never cut grass by grease.
pulling mower toward you. Exercise extreme caution when operating 6. Store idle lawn mower indoors when not in use. Allow motor to cool
mower on uneven terrain or changing direction on slopes. Do not mow before storing in any enclosure. Lawn mower should be stored indoors
excessively steep slopes. Always be sure of your footing. A slip and fall in dry, high or locked-up place, out of reach of children,
can cause serious personal injury. 7. Maintain lawn mower with care. Keep blade sharp and clean for best
10. Never operate mower without proper guards, plates or other safety pro- and safest performance. Follow Instructions for lubricating and
tective devices in place. changing accessories.
11. The hlade/motor control on this mower is installed to minimize the 8. Check the grass catcher bag frequently for wear or deterioration,
risk of blade contact injury and is required by federal regulations. Do Replace a worn or damaged bag immediately. Be sure replacement bag
not under any circumstances attempt to defeat the function of the meets original equipment specifications
blade/motor control.
12. To avoid electric shock hazard, never push mower over cord. Do not
mow around the lawn in circles. Always travel back and forth across the
lawn, beginning at the point nearest the electric outlet to which the
extension cord is connected. This will keep the cord on the mowed area
of the lawn and out of the way.
13. Do not operate mower after it has been dropped or damaged in any
manner. Return mower to nearest authorized service location.
14. The use of accessory attachments not recommended by the mower
manufacturer may cause hazards.
15. Do not operate this mower with the chute door open, unless the com¬
plete grass catcher is properly mounted on the mower.
MAINTENANCE AND STORAGE
1. Warning—Disconnect power cord from electrical outlet before per¬
forming any maintenance or service on mower.
DOUBLE INSULATED LAWN MOWER
^DOUBLE INSULATION IS A CONCEPT IN SAFETY IN ELECTRIC LAWN
MOWERS, WHICH ELIMINATES THE NEED FOR THE USUAL THREE WIRE
GROUNDED POWER CORD AND GROUNDED SUPPLY SYSTEM. WHEREV¬
ER THERE IS ELECTRIC CURRENT IN THE MOWER, THERE ARE TWO
COMPLETE SETS OF INSUUTION TO PROTECT THE USER. ALL EXPOSED
METAL PARTS ARE ISOLATED FROM THE INTERNAL METAL MOTOR
COMPONENTS WITH PROTECTING INSULATION.
tMPORTANT— SERVICING OF A LAWN MOWER WITH DOUBLE INSULA¬
TION REQUIRES EXTREME CARE AND KNOWLEDGE OF THE SYSTEM AND
SHOULD BE PERFORMED ONLY BY A QUALIFIED SERVICE TECHNICIAN
FOR SERVICE WE SUGGEST YOU RETURN THE LAWN MOWER TO YOUR
NEAREST AUTHORIZED SERVICE DEALER FOR REPAIR. ALWAYS USE
ORIGINAL FACTORY REPLACEMENT PARTS WHEN SERVICING.
2. Check the blade and motor mounting bolts at frequent intervals for
proper tightness. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
3

ASSEMBLY INSTRUCTIONS
TO REMOVE MOWER FROM CARTON
Remove the carton inserts. Lift the mower from the carton,
or cut the corners of the carton and roll the mower out.
Make certain all parts and literature have been removed
from the carton before the carton is discarded.
HOW TO SET-UP YOUR MOWER
1. Pull up and back on the lower handle. Pivot the upper
handle up to raise the handle into the operating posi¬
tion. See figure 1.
2. The upper handle may be adjusted to three different
height positions. To select desired position, align one of
the three marks on the top of the lower handle insula¬
tors with the mark on the upper handle insulators.
Tighten the hand knobs.
3. Remove the hairpin clips from the outer hole in the weld
pins on the handle mounting brackets. Place the hairpin
clips in the inner hole.
NOTE: The outer hole in the weld pin is for storage. The
hairpin clip must be placed in the inner hole for operation.
ASSEMBLING THE GRASS CATCHER
NOTE: Make certain the grass bag is turned right side out
before assembling (warning label will be on the outside).
1. Join the rear frame and front frame assembly as shown
-in figure 2A. Push frames together as far as they will
go.
2. Place bag over frame (black plastic side is the bottom
of bag) so the handle is outside the bag. Slip openings
in the side of the plastic channel on bag over the hooks
on the grass catcher frame.
NOTE: It may be necessary to pull the edge of the fabric
away from the plastic channel in order to see the opening.
3. Secure bag to frame by working the plastic channels on
bag over frame as shown in figure 2B. All of the plastic
channels except center top of bag attach from the out¬
side of bag. Center top of bag attaches from the inside
of bag.
AHACHING GRASS CATCHER TO MOWER
Lift the rear discharge door on the mower. Place the hooks
on the grass catcher into the slots in the handle bracket
- ♦ -assemblies. See figure 3. Release the rear discharge door.
To remove the grass catcher, lift the rear discharge door on
the mower. Lift the grass catcher up, out of the slots in the
handle bracket assemblies. Release the rear discharge
door.
A WARNING: Never operate the mower unless
the hooks on the grass catcher are seated in
the slots on the handle bracket assemblies,
and the rear discharge door rests firmly
against the top of the grass catcher
4

OPERATION
Keep hands and feet away from the chute area on mowing
deck. See figure 4.
The operation of any lawn mower can result in foreign
objects being thrown into the eyes, which can result in
severe eye damage. Always wear safety
glasses or eye shields. We recommend
wide vision safety mask for over specta¬
cles or standard safety glasses.
FORESIGHT IS BET'EB
THAN NO SIGHT
NOTE: The wheels on your unit are set in a low cutting
height position for shipping purposes. For best results, raise
the cutting position until it is determined which height is best
for your lawn. See cutting height adjustment
MOTOR/BLADE CONTROL
A WARNING: This control mechanism is a safe¬
ty device. Never attempt to bypass its opera¬
tions.
The motor/blade control is located on the upper handle of
the mower. See figure 5. The motor/blade control handle
engages and disengages the motor and blade.
AC power plug (one blade of the plug is wider than the other),
which will fit into the plug on the extension cord only one way.
See figure 5, inset. If unable to make a full connection, try
reversing the plug on the extension cord. Should the plugs
still fail to fit, contact your service dealer for assistance. Do
not defeat the safety purpose of the polarized plug.
Connection to the Electric Power Source
Plug the extension cord into any convenient 110-120 volt 60
cycle A.C. outlet or receptacle for your source of power.
This outlet may be located either out-of-doors or indoors. If
an inside receptacle is used, the extension cord can be
taken out either through the doorway or a window. To avoid
blowing fuses, pick an outlet that is not overloaded. Your
mower will operate satisfactorily on a circuit that is fused for
15 amperes. Do not use oversize fuses without consulting
your power company.
FIGURE 5.
CORD CONNECTION
WARNING: Use only UL approved outdoor
extension cord (minimum 16 gauge recom¬
mended).
Cord Restraint
Attach extension cord (not provided with unit) to the cord
restraint as follows. Form a small loop in the extension cord.
Allow enough excess cord to make the connection to the
motor/blade control (approximately 20 inches). Slip the loop
through the slot on the bottom of the cord restraint, and up
over the tab, to prevent disconnection from the motor/blade
control during operation. Keep the cord restraint as close to
the motor/blade control as possible. See figure 5.
Connection to the Motor/Blade Control
To attach extension cord to the mower, swing open the
spring-loaded plug retainer located beneath the motor/blade
control. Connect the plug on the extension cord fully onto the
plug on the mower. The mower is equipped with a polarized
TO START MOTOR AND ENGAGE BLADE
standing behind the unit, lift the motor/blade control handle
with the left forefinger, then pull handle up and hold it
against the upper handle with right hand. See figure 6.
FIGURE 6.
5

TO STOP MOTOR ANO BLADE
1. Release the motor/blade control handle to s :op the
engine and blade. (A high pitched noise will result,
which is the result of deceleration of the electric motor.
Sparking at the top of motor is also normal during
deceleration.)
A WARNING: The blade continues to rota te for a
few seconds after the motor is shut off. If
motor does not come to an immedia :e stop
when the motor/blade control handle is
reieased, contact an authorized service loca¬
tion.
2. Disconnect the power source to prevent accidental
starting while equipment is unattended.
USING YOUR ROTARY MOWER
WARNING: Do not operate this mow jr with
the chute door open, unless the conplete
grass catcher is properly mounted on the
mower.
Be sure that lawn is clear of stones, sticks, wires, jr other
objects which could damage lawn mower or engin 3. Such
objects could be accidentally thrown by the mowe • in any
direction and cause serious personal injury to the i )perator
and others.
To prevent electric shock, do not operate the mower in
damp or wet locations.
Never mow around the lawn in circles. Always travel back
and forth across the lawn, beginning at the point ner rest the
electric outlet where cord is connected. See figure 7. Cut
grass moving away from the outlet so the cord lies ii i the cut
portion of the lawn, out of the way.
T = Obsl acles
FIGURE 7.—Mowing Procedure
Do not allow extension cord to wrap
around trees, shrubs or other obstacles.
When picking up the extension cord, wind
the cord in a series of equal loops on
each side of your hand to prevent
snarling. See illustration at right.
To cut heavy grass, reduce walking speed to allow more
effective cut and proper discharge of the clippings. For best
results, always cut off one-third or less of the total ength of
the grass. The average lawn should be approximately 1-1/2
to 2 inches during the cool season, and over 2 inches dur¬
ing hot months. For a healthier and better looking lawn, cut
more often and after moderate growth. The lawn should be
cut in the fall as long as there is growth.
A WARNING: If you strike a foreign object, stop
the motor. Disconnect the power source, thor¬
oughly inspect the mower for any damage,
and repair the damage before restarting and
operating the mower. Extensive vibration of
the mower during operation is an indication of
damage. The unit should be promptly inspect¬
ed and repaired.
CUniNG HEIGHT ADJUSTMENT
WARNING: Do not at any time make any
adjustment to lawn mower without first stop¬
ping motor and disconnecting the power
source.
A height adjustment lever at each wheel provides cutting
height adjustment. Each adjuster has nine height positions.
Height of cut will be changed when the lever is moved from
one position to another. Simply depress the lever towards
wheel and move wheel and lever assembly to desired posi¬
tion. See figure 8. All wheels must be placed in the same
relative position. For rough or uneven lawns, move the
wheels to a position which will give a higher cutting height.
FIGURE 8.
MAINTENANCE
A WARNING: Always stop motor and discon¬
nect the power source before cleaning, lubri¬
cating or performing any repairs or mainte¬
nance on lawn mower.
LUBRICATION
Wheels —Wheels require no lubrication. However, if the
wheels are removed for any reason, lubricate the surface of
the axle and the inner surface of the wheel with light oil. A 4
oz. plastic bottle of light oil lubricant is available. Order part
number 737-0170. Engine oil may also be used.
6

CUniNG BLADE
WARNING: Always protect hands by wearing
heavy gloves and/or wrapping cutting edges
with newspapers or other materials when per¬
forming any blade maintenance. Be certain to
disconnect the power supply.
Remove the bolt and bell washer which hold the blade and
adapter to the motor shaft. Remove the blade and adapter
from the shaft. If the blade or blade adapter needs replac¬
ing, remove the two small bolts, lock washers and nuts
which hold the blade to the adapter.
A WARNING: Periodically inspect the blade
adapter for cracks, especially if you strike a
foreign object. Replace when necessary.
When sharpening the blade, follow the original angle of
grind as a guide. It is extremely important that each cut¬
ting edge receives an equal amount of grinding to prevent
an unbalanced blade. An unbalanced blade will cause
excessive vibration when rotating at high speeds, may
cause damage to the mower and could break, causing per¬
sonal injury.
It is recommended that the blade always be removed from
the adapter for the best test of balance.
The blade can be tested by balancing it on a round shaft
screwdriver. Remove metal from the heavy side until it bal¬
ances evenly.
Before reassembling the blade and the blade adapter to the
unit, lubricate the motor shaft and the inner surface of the
blade adapter with light oil. Lubricating the bolt holes, bolts
and inner surface of the nuts with light oil is also recom¬
mended. A 4 oz. plastic bottle of light oil lubricant is avail¬
able. Order part number 737-0170. Engine oil may also be
used.
When replacing the blade, be sure to install the blade with
the side of the blade marked “Bottom” (or with part number)
facing the ground when the mower is in the operating posi¬
tion.
Blade Mounting Torque
All blade bolts: 450 in. lbs. min., 600 in. lbs. max.
To insure safe operation of your unit, all nuts and bolts must
be checked periodically for correct tightness.
DECK
Remove any buildup of grass and leaves on or around the
motor cover (do not use water). Wipe mower clean with a
dry cloth occasionally.
The underside of mower deck should be cleaned after each
use as grass clippings, leaves, dirt and other matter will
accumulate. This accumulation of grass clippings, etc., is
undesirable as it will promote rust and corrosion.
Disconnect the power source. Tilt the mower forward or on
its side and scrape clean with a suitable tool.
A WARNING: To reduce the risk of electric
shock, do not expose to water.
OFF-SEASON STORAGE
1. Make certain motor/blade control switch is in OFF posi¬
tion and power supply is disconnected.
2. Clean mower as instructed in previous section.
3. Wipe extension cord to remove any foreign substance
such as oil or stains. Replace extension cord if cut or
damaged in any way.
4. Wind cord as shown on page 6.
5. Store mower indoors, in a cool, dry place, out of reach
of children. Do not cover lawn mower with a solid plas¬
tic sheet. Trapping moisture around the mower will pro¬
mote rust and corrosion.
OPTIONAL MULCHING KIT
_ AVAILABLE _
Mulching Kit model 190-099 is available as optional equip¬
ment for the mower shown in this manual. The special high
lift mulching blade and baffles will pulverize the grass clip¬
pings, making it unnecessary to bag the grass.
NOTE: The use of any accessory on this Rotary Mower other than those manufactured by the mower manufacturer is not
recommended.
A WARNING: DO NOT operate the mower without the entire grass catcher or rear discharge door in place.
DO NOT operate the mower without the protective shield on the rear of the deck in place.
NOTE: Under normal usage bag material is subject to wear and should be checked periodically. Be sure any replacement
bag complies with the mower manufacturer’s recommendations.
7

Model 387B

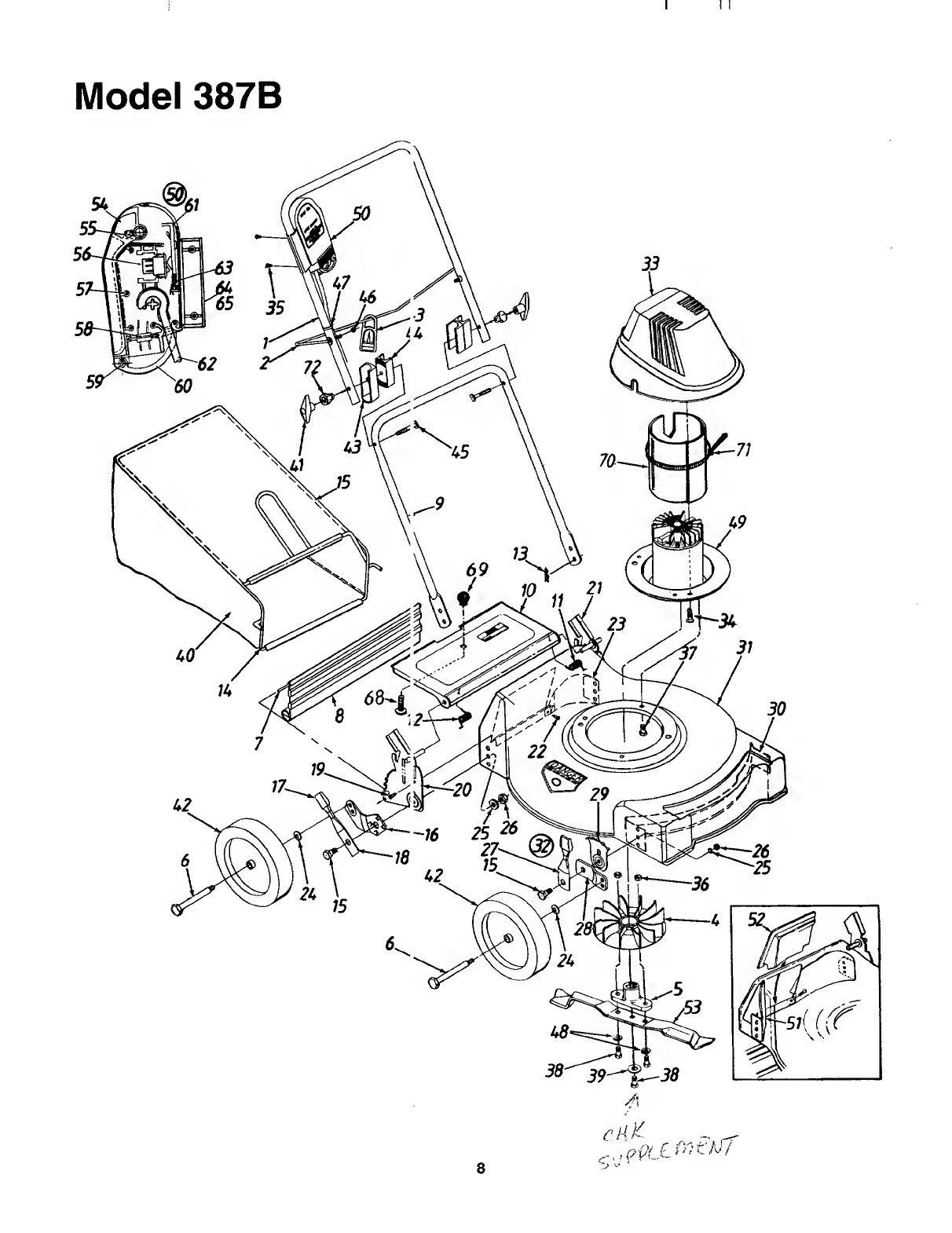

PARTS LIST FOR MODEL 387B ROTARY MOWER
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
1
749-0883 N
Upper Handle
35
710-1150
2
747-0790
Cord Control Rod
36
712-0241
3
725-1590
Strain Relief—Cord
37
710-1006
4
731-1270
N Fan
5
748-0356
Blade Adapter
38
710-0191
6
738-0102
Axle Bolt
39
736-0452
7
732-0712
N
Rear Flap Wire
40
764-0446
8
731-1261 N
Rear Flap
41
720-0241
9
749-0885 N
Lower Handle
42
634-0020
10
782-7025 N
Chute Door
43
731-1268
11
732-0677
Door Spring—L.H.
44
731-1267
12
732-0678
Door Spring—R.H.
45
710-0450
13
714-0104
Hairpin Clip
46
712-0324
14
764-0326
Front Catcher Frame
47
726-0303
15
738-0507B
Shid. Bolt .5" Dia. x .434"
48
736-0169
16
14765
Pivot Bar—R.H.
49
818-60013
14766
Pivot Bar—L.H. (Not Shown)
50
624-0032
17
720-0190
Spring Lever Knob
51
782-5004
18
732-0417A
Spring Lever
52
782-5007
19
710-0892
Hex L-Wash. Hd. AB-Tap Scr.
53
742-0519 /
1/4 X .62" Lg.
742-0577
20
682-0514
N
Handle Brkt. Ass’y.—R.H.
54
731-1210
21
682-0513 N
Handle Brkt. Ass’y.—L.H.
55
732-0679
22
710-1017
Torx. Mach. AB-Tap Scr. 1/4 x
56
725-1565
.62" Lg.
57
710-1147
23
782-5026
N
Rear Baffle
58
729-0304
24
736-0105
Bell-Wash. .38" I.D. x .88" O.D.
59
732-0680
25
736-0356
Bell-Wash. .39" I.D. x 1.38" O.D.
60
731-1211
26
712-0798
Hex Nut 3/8-16 Thd,*
61
731-1198
27
14832
Spring Lever Ass’y. w/Knob
62
624-0053
28
15262B
Pivot Bar
63
732-0681
29
15261A
Height Adj. Plate
64
731-1208
30
782-5025
N
Front Baffle
65
731-1209
31
782-0054
N
19" Deck
32
14578
Height Adj. Ass’y. Comp.—R.H.
68
710-0192
14579
Height Adj. Ass’y. Comp.—L.H.
69
720-0275
(Not Shown)
70
721-0311
33
731-1263
N
Motor Cover
71
726-0209
34
710-1128
Scr. #10-16 X. 75" Lg.
72
731-1388
CODE
N
N
N
N
N
N
N
N
N
N
N
DESCRIPTION
N
Self-Tap. Scr. #7x1" Lg.
Hex Nut 3/8-24 Thd.
Hex L-Wash. TT-Tap Scr. 3/8-16
X .75" Lg.
Hex Bolt 3/8-24 X 1.25" Lg.
Bell-Wash. .396" I.D. x 1.14"
Grass Bag
Plastic Knob
Wheel Ass’y. Comp.
Upper Handle Insulator
Lower Handle Insulator
Carriage Bolt 5/16-18 x 3" Lg.
Hex Top L-Nut 1/4-20 Thd.
Cable Tie
L-Wash. 3/8" I.D.*
Motor, Cord & Switch Ass’y.
Cord & Switch Ass’y. Comp.
Mulching Baffle—R.R. (Optional)
Mulching Baffle Plug (Optional)
19" Blade
19" Mulching Blade (Optional)
Handle—Switch Actuator
Spring—Switch Handle
Switch
Screw #6-32 x .5" Lg.
Plug Ass’y.
Retainer Plug Spring
Retainer Plug
Latch
Cord Ass’y. (Incl. Ref. #58)
Spring Latch
Housing—Upper Half
Housing—Lower Half (Not
Shown)
Truss Scr. #10-24 x .38" Lq.
Knob
Insulator
Cable Tie
Insulator Knob
'For faster service obtain standard nuts, boits and washers locally.
If these items cannot be obtained locally, order by part number
and size as shown on parts list.
CODE: N notates a new part (not previousiy existing).
NOTE: Specifications subject to change without
notice or obligation.
A WARNING: The motor is an important part of the
doubie insuiated system. To avoid the possibiiity
of aiteration or damage to the system, it is rec¬
ommended that service be performed at a facto¬
ry authorized service location.
A WARNING: Insulators are safety components. It
is very important that all parts be reassembled in
positions shown.
9

Do
not
mow
on
inclines
with
a
slope
in
excess
of
15
degrees
(a
rise
of
approximately
2-1/2
feet
every
10
feet).
A
riding
mower
could
overturn
and
cause
serious
injury.
If
operating
a
walk-behind
mower
on
such
a
slope,
it
is
extremely
difficult
to
maintain
your
footing
and
you
could
slip,
resulting
in
serious
injury.
Operate
RIDING
mowers
up
and
down
slopes,
never
acrp*'®
the
face
of
slopes,
jperate
WALK-BEHIND
mowers
across
the
face
of
slo|/^
sver
up
and
down
slopes.

FOR REPL ACEMENT PARTS, CONTACT:
SERVICE DEPARTMENT • P.O. BOX 360900 • CLEVELAND, OHIO 44136
