MTD Series 080 User manual

PRINTED IN U.S.A. MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1
OPERATOR’S MANUAL
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY BEFORE OPERATING EQUIPMENT.
Safety • Setup • Adjustments • Operation • Maintenance • Troubleshooting • Parts Lists • Warranty
12/12/07
772C0794B
22” Rotary Mower — Model Series 080

2
Finding and Recording Model Number
Table of Contents
BEFORE YOU START ASSEMBLING
YOUR NEW EQUIPMENT,
please locate the model plate on the equipment and copy the
model number and the serial number to the sample model
plate provided to the right. You can locate the model plate by
standing at the operating position and looking down at the rear
of the machine.
This Operator’s Manual is an important part of your new equipment. It will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Please do NOT return the unit to the retailer from which it was purchased,
without first contacting Customer Support.
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit,
you can seek help from the experts. Choose from the options below:
1. Visit www.mtdcanada.ca for many useful suggestions, click on Customer Support button.
2. Call a Customer Support Representative at 1-800-668-1238.
3. The engine manufacturer is responsible for all engine-related issues in terms of performance, power-rating, specifications,
warranty, and service. Depending on the engine manufacturer, more information is included in this publication or packed
separately with this product.
Please have your unit’s model number and serial number ready when you call. See previous section to locate this information.
You will be asked to enter the serial number in order to process your call.
-4$02/$5#43,)-)4%$
+)4#(%.%2/..'*

8888888888 88888888888
-ODEL.UMBER
.UM£RODEMODÞLE
3ERIAL.UMBER
.UM£RODES£RIE
WWWMTDCANADACOM
Slope Gauge........................................................ 3
Safe Operation Practices................................... 4
Set-Up & Adjustments........................................ 6
Operation............................................................. 8
Maintenance & Off-Season Storage................ 10
Trouble Shooting .............................................. 12
Warranty ............................................................ 13

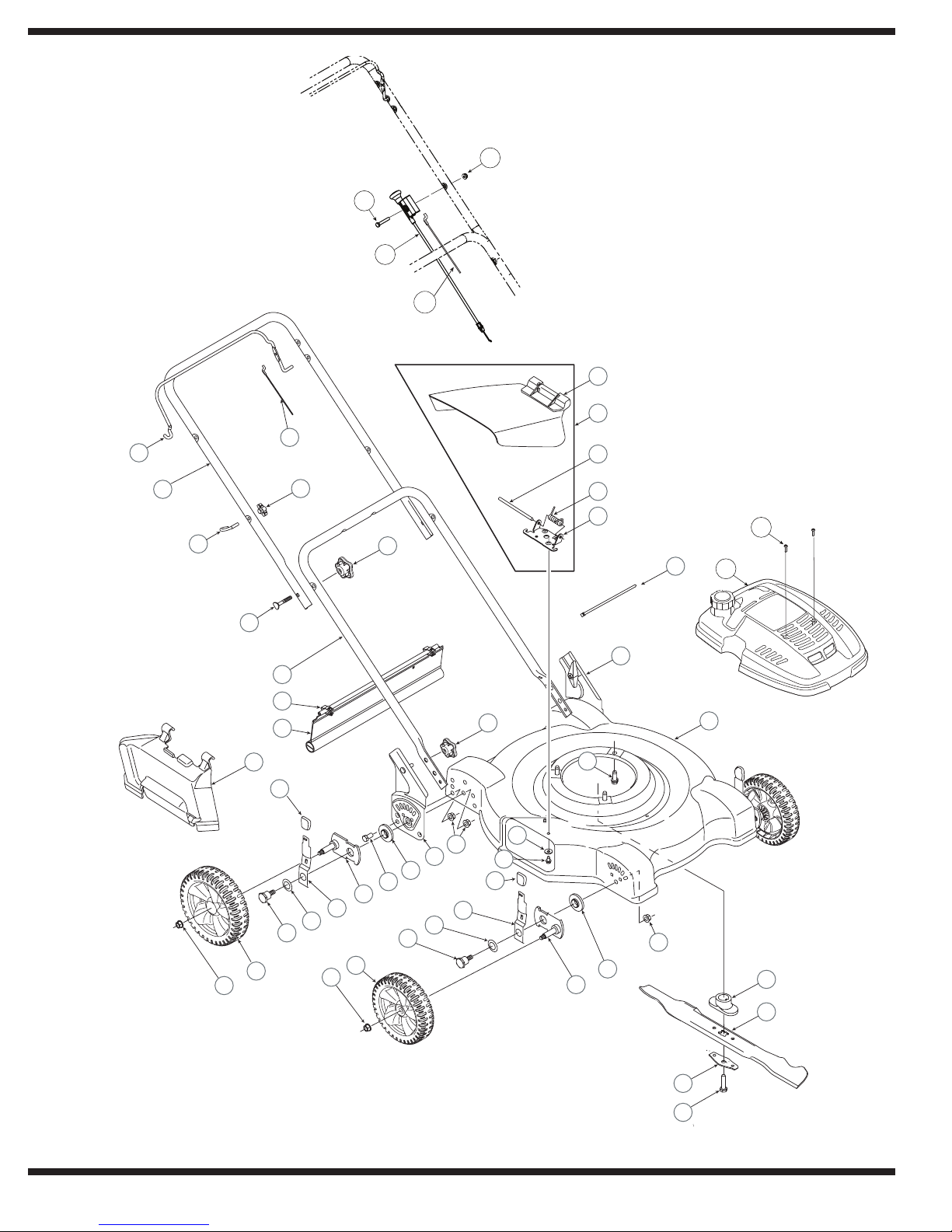

Illustrated Parts Lists....................................... 14

3
1
Slope
Gauge
WARNING
Do not mow on inclines
with a slope in excess
of 15 degrees (a rise
of approximately
2-1/2 feet every 10
feet). A riding mower
could overturn and
cause serious injury.
If operating a walk-
behind mower on such
a slope, it is extremely
difficult to maintain your
footing and you could
slip, resulting in serious
injury.
Operate RIDING
mowers up and down
slopes, never across
the face of slopes.
Operate
WALK-BEHIND
mowers across the
face of slopes, never
up and down slopes.

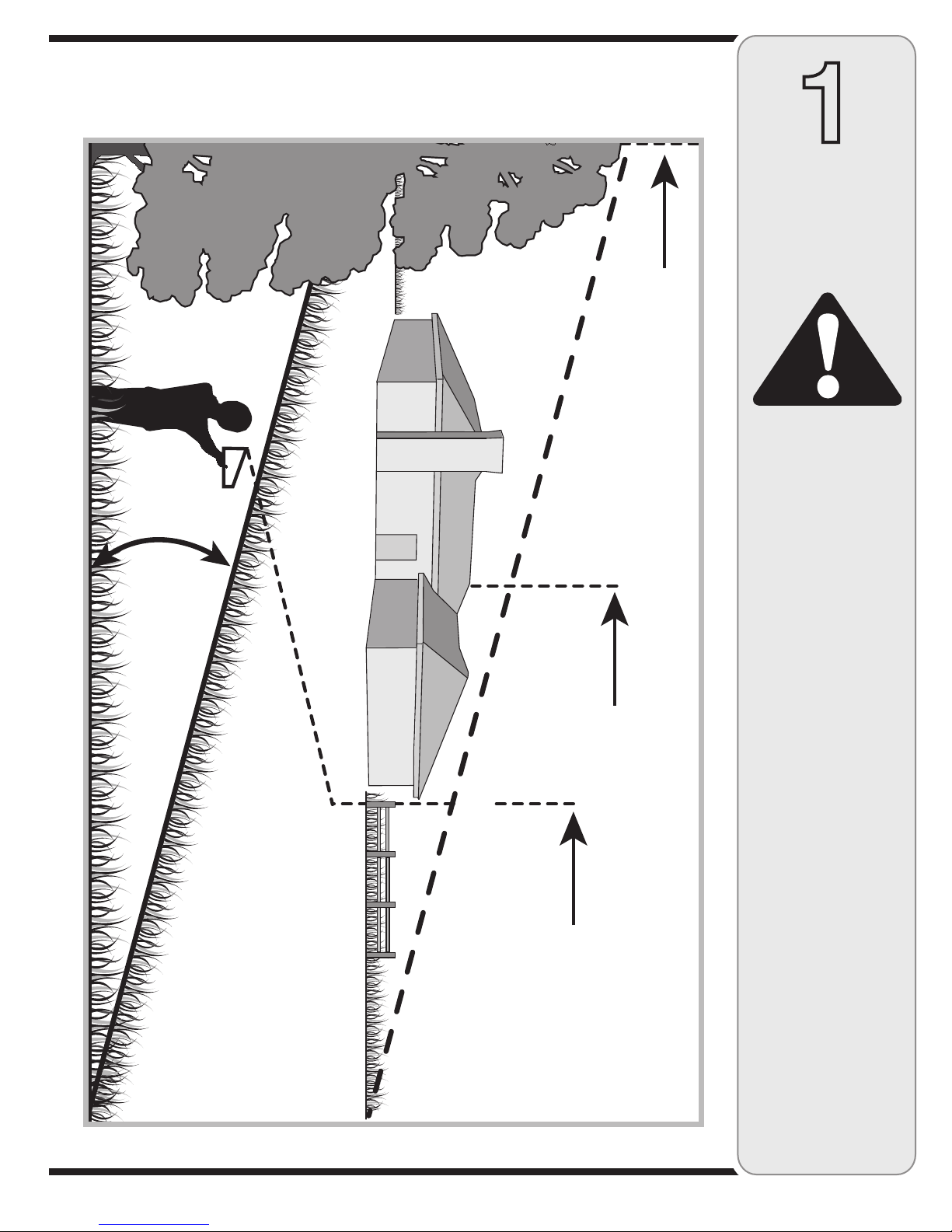

Sight and hold this level with a vertical tree...
or a corner of a building...
or a fence post
Fold along dotted line (represents a 15° slope)
15°
Use this page as a guide to determine slopes where you may not operate safely. Do not operate
your lawn mower on such slopes.

4
2
Safe
Operation
Practices
General Operation
1. Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand, and
follow all instructions on the machine and in the manual(s)
before operation. Keep this manual in a safe place for future
and regular reference and for ordering replacement parts.
2. Be completely familiar with the controls and the proper use of
this machine before operating it.
3. This machine is a precision piece of power equipment, not a
plaything. Therefore, exercise extreme caution at all times.
Your unit has been designed to perform one job: to mow grass.
Do not use it for any other purpose.
4. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the instructions in this manual and should be
trained and supervised by a adult.
5. Only responsible individuals who are familiar with these rules
of safe operation should be allowed to use this machine.
6. Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys and other
foreign objects which could be tripped over or picked up
and thrown by the blade. Thrown objects can cause serious
personal injury.
7. Plan your mowing pattern to avoid discharge of material toward
roads, sidewalks, bystanders and the like. Also, avoid discharg-
ing material against a wall or obstruction which may cause
discharged material to ricochet back toward the operator.
8. To help avoid blade contact or a thrown object injury, stay
in the operator zone behind the handles and keep children,
bystanders, helpers and pets at least 75 feet from the mower
while it is in operation. Stop machine if anyone enters the area.
9. Always wear safety glasses or safety goggles during operation
and while performing an adjustment or repair to protect your eyes.
Thrown objects which ricochet can cause serious injury to the
eyes.
10. Wear sturdy, rough-soled work shoes and close-fitting slacks
and shirts. Shirts and pants that cover the arms and legs
and steel-toed shoes are recommended. Never operate this
machine in bare feet, sandals, slippery or light weight (e.g.
canvas) shoes.
11. Do not put hands or feet near rotating parts or under the cutting
deck. Contact with the blade can amputate hands and feet.
12. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
13. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping. Do
not hold on to the mower if you are falling; release the handle
immediately.
14. Never pull the mower back toward you while you are walking. If
you must back the mower away from a wall or obstruction first
look down and behind to avoid tripping and then follow these
steps:
a. Step back from the mower to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way toward you.
d. Repeat these steps as needed.
15. Do not operate the mower while under the influence of alcohol or
drugs.
16. Do not engage the self-propelled mechanism on units so
equipped while starting engine.
17. The blade control handle is a safety device. Never attempt
to bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through contact with
the rotating blade. The blade control handle must operate easily
in both directions and automatically return to the disengaged
position when released.
18. Never operate the mower in wet grass. Always be sure of your
footing. A slip and fall can cause serious personal injury. If you
feel you are losing your footing, release the blade control handle
immediately and the blade will stop rotating within three seconds.
19. Mow only in daylight or in good artificial light. Walk, never run.
20. Stop the blade when crossing gravel drives, walks or roads.
21. If the equipment should start to vibrate abnormally, stop the
engine and check immediately for the cause. Vibration is gener-
ally a warning of trouble.
22. Shut the engine off and wait until the blade comes to a complete
stop before removing the grass catcher or unclogging the chute.
The cutting blade continues to rotate for a few seconds after the
engine is shut off. Never place any part of the body in the blade
area until you are sure the blade has stopped rotating.
23. Never operate mower without proper trail shield, discharge cover,
grass catcher, blade control handle or other safety protective
devices in place and working. Never operate mower with
damaged safety devices. Failure to do so, can result in personal
injury.
24. Muffler and engine become hot and can cause a burn. Do not
touch.
25. Never attempt to make a wheel or cutting height adjustment while
the engine is running.
26. Only use parts and accessories made for this machine by the
manufacturer. Failure to do so can result in personal injury.
27. When starting engine, pull cord slowly until resistance is felt, then
pull rapidly. Rapid retraction of starter cord (kickback) will pull
hand and arm toward engine faster than you can let go. Broken
bones, fractures, bruises or sprains could result.
28. If situations occur which are not covered in this manual, use care
and good judgment. Call customer assistance for the name of
your nearest servicing dealer.
Slope Operation
Slopes are a major factor related to slip and fall accidents which can
result in severe injury. Operation on slopes requires extra caution.
If you feel uneasy on a slope, do not mow it. For your safety, use
the slope gauge included as part of this manual to measure slopes
before operating this unit on a sloped or hilly area. If the slope is
greater than 15 degrees, do not mow it.
Do:
1. Mow across the face of slopes; never up and down. Exercise
extreme caution when changing direction on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps which can
cause you to slip or trip. Tall grass can hide obstacles.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain
or emit chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this
manual before at-
tempting to operate
this machine. Failure
to comply with these
instructions may result
in personal injury. When
you see this symbol.
HEED ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with
any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This
machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.

5
3. Always be sure of your footing. A slip and fall can cause serious
personal injury. If you feel you are losing your balance, release
the blade control handle immediately, and the blade will stop
rotating within 3 seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you could
lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on the slope
gauge.
3. Do not mow on wet grass. Unstable footing could cause slipping.
Children
Tragic accidents can occur if the operator is not alert to the presence
of children. Children are often attracted to the mower and the mowing
activity. They do not understand the dangers. Never assume that
children will remain where you last saw them.
1. Keep children out of the mowing area and under the watchful
care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and down for
small children.
4. Use extreme care when approaching blind corners, doorways,
shrubs, trees, or other objects that may obscure your vision of a
child who may run into the mower.
5. Keep children away from hot or running engines. They can suffer
burns from a hot muffler.
6. Never allow children under 14 years old to operate a power
mower. Children 14 years old and over should read and under-
stand the operation instructions and safety rules in this manual
and should be trained and supervised by a parent.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
2. Use only an approved gasoline container.
3. Never fill containers inside a vehicle or on a truck or trailer bed
with a plastic liner. Always place containers on the ground away
from your vehicle before filling.
4. Remove gas-powered equipment from the truck or trailer and
refuel it on the ground. If this is not possible, then refuel such
equipment on a trailer with a portable container, rather than from
a gasoline dispenser nozzle.
5. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do not
use a nozzle lock-open device.
6 Extinguish all cigarettes, cigars, pipes and other sources of
ignition.
7. Never fuel machine indoors because flammable vapors will
accumulate in the area.
8. Never remove gas cap or add fuel while the engine is hot or run-
ning. Allow engine to cool at least two minutes before refueling.
9. Never over fill fuel tank. Fill tank to no more than ½ inch below
bottom of filler neck to provide for fuel expansion.
10. Replace gasoline cap and tighten securely.
11. If gasoline is spilled, wipe it off the engine and equipment. Move
unit to another area. Wait 5 minutes before starting the engine.
12. Never store the machine or fuel container near an open flame,
spark or pilot light as on a water heater, space heater, furnace,
clothes dryer or other gas appliances.
13. To reduce fire hazard, keep mower free of grass, leaves, or
other debris build-up. Clean up oil or fuel spillage and remove
any fuel soaked debris.
14. Allow a mower to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless and
deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the
blade and all moving parts have stopped. Disconnect the spark
plug wire and ground against the engine to prevent unintended
starting.
3. Check the blade and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade for
damage (e.g., bent, cracked, worn) Replace blade with the
original equipment manufacture’s (O.E.M.) blade only, listed
in this manual. “Use of parts which do not meet the original
equipment specifications may lead to improper performance
and compromise safety!”
4. Mower blades are sharp and can cut. Wrap the blade or wear
gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the equipment
is in safe working condition.
6. Never tamper with safety devices. Check their proper operation
regularly.
7. After striking a foreign object, stop the engine, disconnect the
spark plug wire and ground against the engine. Thoroughly
inspect the mower for any damage. Repair the damage before
starting and operating the mower.
8. Never attempt to make a wheel or cutting height adjustment
while the engine is running.
9. Grass catcher components, discharge cover, and trail shield
are subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately with
original equipment manufacturer’s (O.E.M.) parts only, listed
in this manual. “Use of parts which do not meet the original
equipment specifications may lead to improper performance
and compromise safety!”
10. Do not change the engine governor setting or overspeed the
engine. The governor controls the maximum safe operating
speed of the engine.
11. Check fuel line, tank, cap, and fittings frequently for cracks or
leaks. Replace if necessary.
12. Do not crank engine with spark plug removed.
13. Maintain or replace safety labels, as necessary.
14. Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
Do not modify engine
To avoid serious injury or death, do not modify engine in any way.
Tampering with the governor setting can lead to a runaway engine
and cause it to operate at unsafe speeds. Never tamper with
factory setting of engine governor.
Average Useful Life
According to the Consumer Products Safety Commission (CPSC)
and the U.S. Environmental Protection Agency (EPA), this product
has an Average Useful Life of seven (7) years, or 60 hours of
operation. At the end of the Average Useful Life, buy a new
machine or have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety systems
are working properly and not worn excessively. Failure to do so can
result in accidents, injuries or death.
2
Safe
Operation
Practices
WARNING
This machine is equipped
with an internal combus-
tion engine and should
not be used on or near
any unimproved forest-
covered, brushcovered or
grass-covered land unless
the engine’s exhaust
system is equipped with a
spark arrester meeting ap-
plicable local or provincial
laws (if any).
If a spark arrester is used,
it should be maintained in
effective working order by
the operator.
A spark arrester for the muf-
fler is available through your
nearest engine authorized
service dealer.
Notice regarding Emis-
sions
Engines which are certified
to comply with California
and federal EPA emission
regulations for SORE (Small
Off Road Equipment) are
certified to operate on regu-
lar unleaded gasoline, and
may include the following
emission control systems:
Engine Modification (EM)
and Three Way Catalyst
(TWC) if so equipped.

6
WARNING: Disconnect and
ground the spark plug wire as
instructed in the separate engine
manual.
1. The chute deflector on your mower may be held in an
upright position by a block for shipping purposes only.
This shipping block must be removed and discarded
before the mower is put into operation. See Figure 1.
a. Pull the chute deflector up towards engine.
b. Remove the block and carefully lower the chute into
operating position, keeping fingers out of the way.
2. Perform the following sequence for handle setup:
a. Pull up and back on the upper handle to raise the
handle from position A into the operating position
B. See Figure 2.
b. Make sure the carriage bolt is seated properly in
the handle. Tighten knobs securing upper handle to
the lower handle.
3. If satisfied with height of handle, tighten knobs at
the ends of the lower handle shown in Figure 3. For
convenience of operating, you may adjust the handle
height as follows:
a. Remove the knobs shown in Figure 3 and remove
the lower handle.
b. Position each handle bracket stud into the top hole
in the lower handle. See Figure 3 inset.
c. Tighten the knobs.
4. Insert post on cable ties into holes provided on the
lower handle. Pull cable tie tight and trim excess. See
Figure 4.
Figure 3
Figure 2
Figure 1
Figure 4
"
!
3
Setup and
Adjustments
Your mower is shipped
with the handle in the
higher height position.
NOTE: Each end of
the lower handle must
be placed in the same
relative position.
IMPORTANT
This unit is shipped
WITHOUT GASOLINE
or OIL. After assem-
bly, service engine
with gasoline and
oil as instructed in
the separate engine
manual packed with
your unit.
NOTE: This owner’s
manual covers
various models of
lawnmowers. The
units illustrated may
vary slightly from
your unit. Follow only
those instructions
which pertain to your
model lawnmower.
A
B

7
NOTE: All wheels must
be in the same height
of cut.
NOTE: When cutting in
heavy or moist grass,
the rear of the lawn-
mower may be raised
higher to allow better
discharge of the grass.
3
Setup and
Adjustments
Figure 7

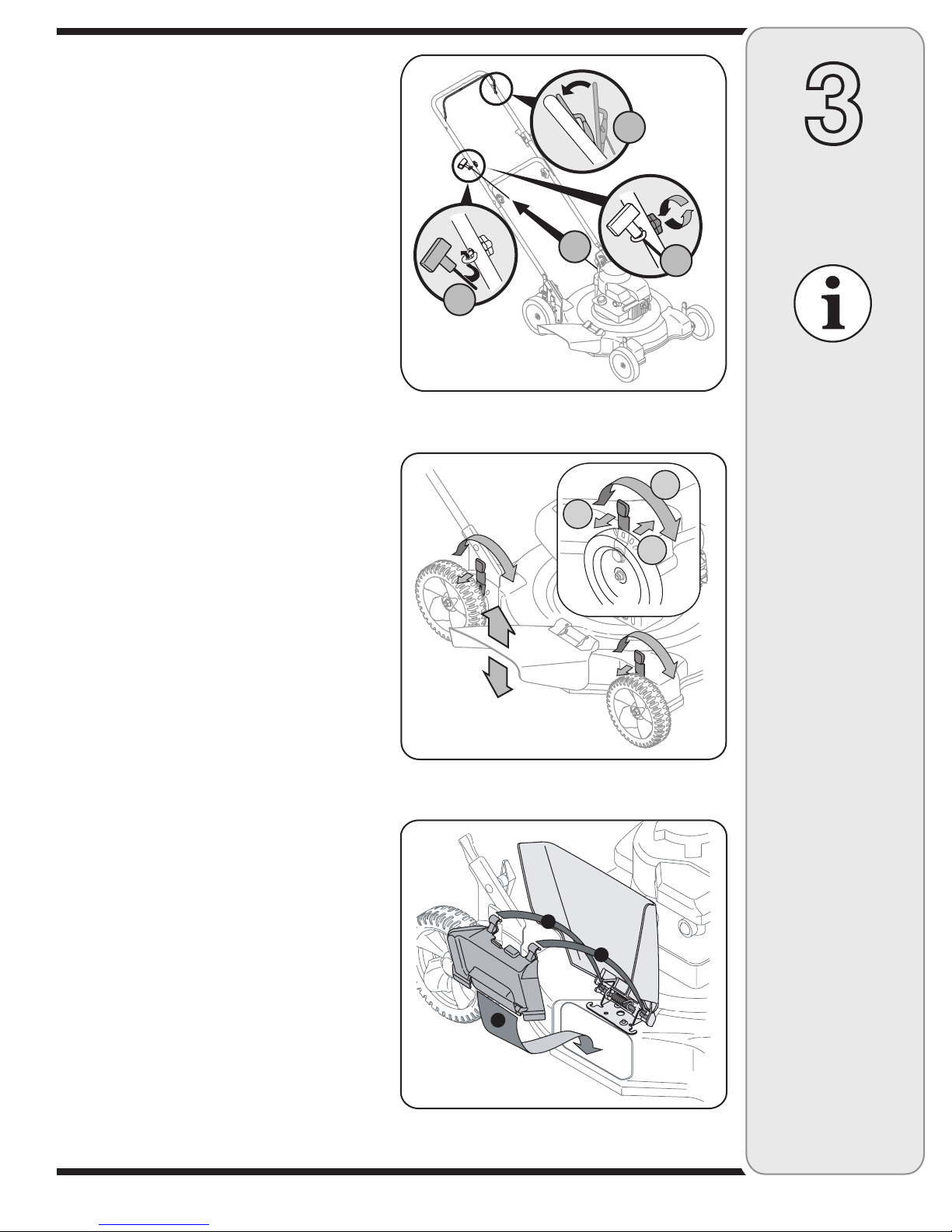

5. Rope guide Setup as follows, see Figure 5:
a. Hold the blade control against the upper handle.
Position A.
b. Slowly pull starter rope out of engine. Position B.
c. Slip starter rope into the rope guide.
d. Tighten rope guide wing nut. Position C.
Figure 6
Figure 5
"
!
"
!
"
#
7. If your mower is equipped with an optional mulching
baffle, install it as shown in Figure 7.
a. Lift up and hold the side-discharge chute deflector
and insert bottom lip of the mulching baffle inside
the chute opening.
b. Push the hooks on the top of the baffle until they
snap over the hinge on the discharge chute.
Release the chute deflector.
NOTE: When you wish to mow instead of mulch,
simply raise the chute deflector, grasp the handle on the
mulching baffle and lift upward to remove the baffle. It is
not necessary to remove the mulching blade.
6. Each wheel has a height adjustment lever to change
the cutting height of the mower. To change the height
of cut, squeeze adjuster lever toward the wheel,
moving up or down to selected height. See Figure 6.
A
C
D
B

8
4
Operating
Your Lawn
Mower

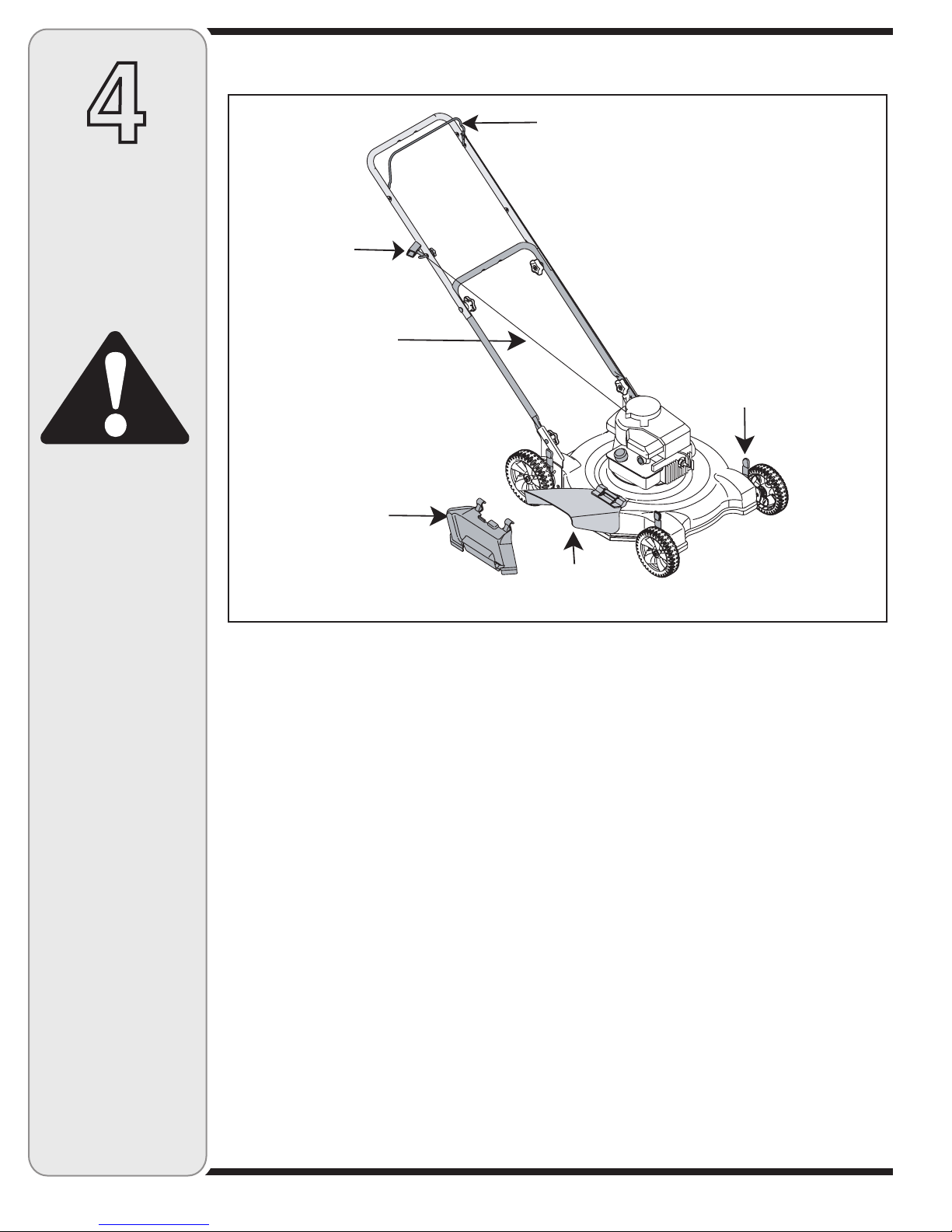

NOTE: The units illustrated may vary slightly from your
unit.
Blade Control Handle
The blade control handle is located on the upper handle
of the mower. See Figure 8. The blade control handle
must be depressed in order to operate the unit. Release
the blade control handle to stop the engine and blade.
Recoil Starter
The recoil starter is attached to the right upper handle.
Stand behind the unit and pull the recoil starter rope to
start the unit.
Mulching Baffle (If so equipped)
The mulching baffle is used to recirculate grass clip-
pings back to the lawn. Attach it as instructed on page 7
of this manual.
Cutting Height Adjustment Levers
(If so equipped)
One adjustment lever is located on each wheel and is
used to adjust the cutting height. All four levers have to
be at the same relative position to ensure uniform cut.
Know Your Lawn Mower
Before Starting
1. Service the engine with gasoline and oil as instructed
in the separate engine manual.
2. Attach spark plug wire to spark plug. If unit is
equipped with a rubber boot over the end of the spark
plug wire, make certain the metal loop on the end of
the spark plug wire (inside the rubber boot) is fastened
securely over the metal tip on the spark plug.
To Start Engine
1. Prime or choke engine as instructed in the separate
engine manual packed with your unit.
2. Standing behind the unit, depress the blade control
handle and hold it against the upper handle as shown
in Figure 9.
3. Grasp the starter handle as shown and pull slowly until
resistance is felt, then pull rapidly to start engine and
avoid kickback. Return it slowly to the rope guide.
WARNING
Figure 8
Recoil
Starter
Starter
Rope
Blade Control
Mulching
Baffle
(if equipped)
Chute
Deflector
Cutting Height
Adjustment Lever
(if equipped)
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
This blade control
mechanism is a
safety device. Never
attempt to bypass its
operations.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.

9
4
Operating
Your Lawn
Mower
WARNING
The operation of any
lawn mower can result
in foreign objects
being thrown into
the eyes, which can
damage your eyes
severely. Always wear
safety glasses while
operating the mower,
or while performing
any adjustments or
repairs on it.
Be sure no one other
than the operator is
standing near the lawn
mower while starting
engine or operating
mower. Never run
engine indoors or
in enclosed, poorly
ventilated areas. En-
gine exhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands, feet,
hair and loose clothing
away from any moving
parts on engine and
lawn mower.
Figure 9
To Stop Engine
1. Release the blade control handle to stop the engine
and blade.
WARNING: The blade continues
to rotate for a few seconds after
the engine is shut off.
2. Disconnect and ground the spark plug wire as
instructed in the separate engine manual to prevent
accidental starting while equipment is unattended.
Using Your Lawn Mower
Be sure the lawn is clear of stones, sticks, wire, or other
objects which could damage the lawn mower or the
engine. Such objects could be accidently thrown by the
mower in any direction and cause serious personal injury
to the operator and others.
WARNING: If you strike a foreign
object, stop the engine. Remove
wire from the spark plug, thor-
oughly inspect the mower for any
damage, and repair the damage
before restarting and operating
the mower. Extensive vibration
of the mower during operation is
an indication of damage. The unit
should be promptly inspected
and repaired.
Operating Tips
1. For best results and effective mulching, do not cut wet
grass.
2. New grass, thick grass, or wet grass may require a
narrower cut.
3. For a healthier lawn, never cut off more than one-third
of the total length of the grass.
4. Your lawn should be cut in the fall as long as there
is growth.
5. Adjust ground speed according to condition of lawn.
6. If the grass has been allowed to grow in excess of 4
inches, mulching is not recommended. Mow using
the side discharge to reduce the grass height to 3-1/4
inches or less before mulching.

10
5
WARNING
Always stop engine,
disconnect spark
plug, and ground
against engine before
cleaning, lubricating
or doing any kind of
maintenance on your
machine.

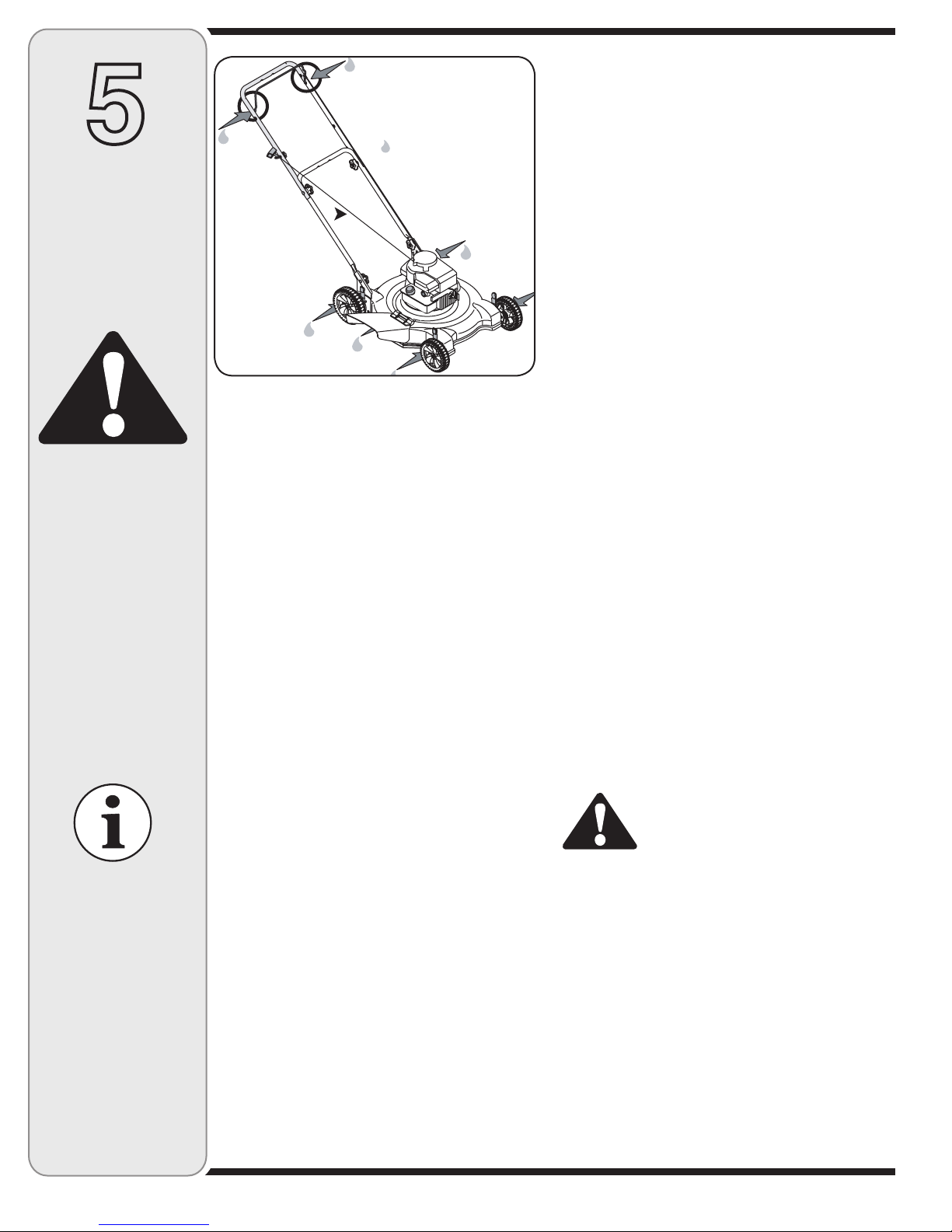

Figure 10
General Recommendations
1. Always observe safety rules when performing
any maintenance.
2. The warranty on this lawn mower does not cover
items that have been subjected to operator abuse
or negligence. To receive full value from warranty,
operator must maintain the lawn mower as
instructed here.
3. Changing of engine-governed speed will void
engine warranty.
4. All adjustments should be checked at least once
each season.
5. Periodically check all fasteners and make sure these
are tight.
Lubrication
1. Lubricate the pivot points on the blade control handle
at least once a season with light oil. The blade
control must operate freely in both directions. See
Figure 10.
2. If your mower is equipped with ball bearing wheels,
lubricate at least once a season with a light oil, all
other types require no lubrication. However, if the
wheels are removed for any reason, lubricate the
surface of the axle bolt and the inner surface of the
wheel with light automotive oil.
3. Lubricate the torsion spring and pivot point periodi-
cally with light oil to prevent rust. See Figure 10.
4. Follow the accompanying engine manual for lubrica-
tion schedule and instruction.
Lubricate these
points before
reassembly
Engine
1. Refer to the separate engine manual for engine
maintenance instructions.
2. Maintain engine oil as instructed in the separate
engine manual packed with your unit. Read and follow
instructions carefully.
3. Under normal conditions service air cleaner as
instructed in the separate engine manual packed with
your unit. Clean every few hours under extremely
dusty conditions. Poor engine performance and
flooding usually indicates that the air cleaner should be
serviced.
4. The spark plug should be cleaned and the gap reset
once a season. Spark plug replacement is recom-
mended at the start of each mowing season; check
engine manual for correct plug type and gap specifica-
tions.
NOTE: This spark ignition system meets all require-
ments of the Canadian Interference-Causing Equipment
Regulations.
5. Clean the engine regularly with a cloth or brush.
Keep the cooling system (blower housing area) clean
to permit proper air circulation which is essential to
engine performance and life. Be certain to remove all
grass, dirt and combustible debris from muffler area.
Deck
The underside of the mower deck should be cleaned after
each use to prevent a buildup of grass clippings, leaves,
dirt or other matter. If this debris is allowed to accumulate,
it will invite rust and corrosion, and may prevent proper
mulching.
The deck may be cleaned by tilting the mower and scrap-
ing clean with a suitable tool (make certain the spark plug
wire is disconnected).
Blade Care
WARNING: When removing the
cutting blade for sharpening or
replacement, protect your hands
with a pair of heavy gloves or use
a heavy rag to hold the blade.
Periodically inspect the blade adapter for cracks, especial-
ly if you strike a foreign object. Replace when necessary.
Follow the steps below for blade service:
1. Disconnect spark plug wire from spark plug.
2. Tip mower as specified in separate engine manual. If
it does not specify turn mower on its side making sure
that the air filter and the carburetor are up.
3. Remove the bolt and the blade bell support which
hold the blade and the blade adapter to the engine
crankshaft. See Figure 11.
We do not recommend
the use of pressure
washers or garden
hose to clean your
unit. These may cause
damage to electrical
components, spindles,
pulleys, bearings, or
the engine. The use
of water will result in
shortened life and
reduce serviceability.
Maintenance

11
5
WARNING
When removing
the cutting blade
for sharpening or
replacement, protect
your hands with a
pair of heavy gloves
or use a heavy rag to
hold the blade.
An unbalanced blade
will cause excessive
vibration when rotat-
ing at high speeds. It
may cause damage
to mower, and could
break causing per-
sonal injury.

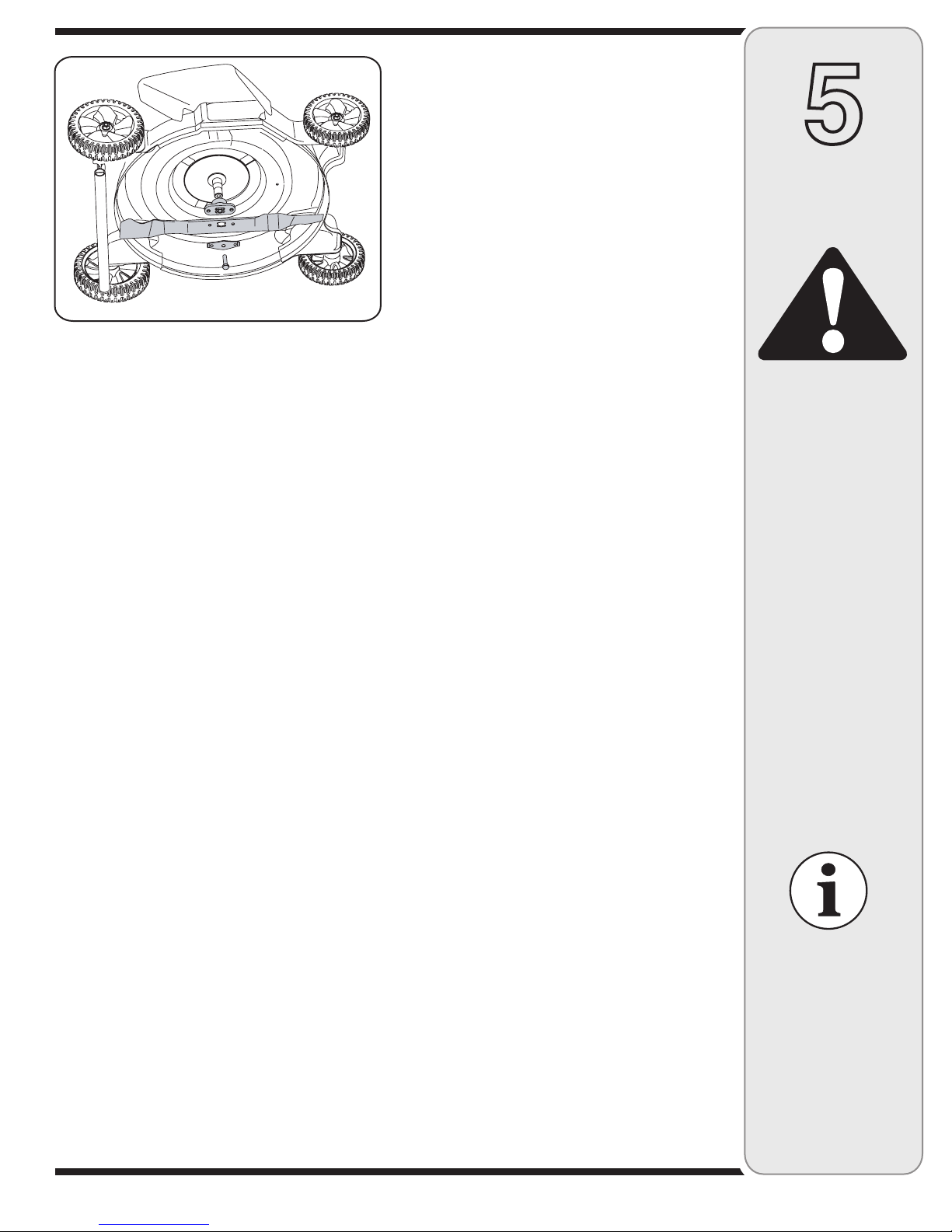

Figure 11
4. Remove blade and adapter from the crankshaft.
5. The blade may be resharpened by removing it and
either grinding or filing the cutting edge keeping as
close to the original bevel as possible. Do not attempt
to sharpen the blade while it is still on the mower.
6. It is extremely important that each cutting edge
receives an equal amount of grinding to prevent an
unbalanced blade.
NOTE: Improper blade balance will result in excessive
vibration causing eventual damage to the engine and
mower. Be sure to carefully balance blade after sharpen-
ing. Possible damage resulting from blade unbalance
condition is not the responsibility of the manufacturer.
NOTE: Always remove blade from the adapter for testing
balance.
7. The blade can be tested for balance by balancing it
on a round shaft screwdriver. Remove metal from the
heavy side until it balances evenly.
8. Before reassembling the blade and the blade adapter
to the unit, lubricate the engine crankshaft and the
inner surface of the blade adapter with light oil.
9. Install the blade adapter on the crankshaft with the
“star” away from the engine. See Figure 11. Place
the blade with the side marked “bottom” (or with part
number) facing away from the adapter. Align the
blade bell support over the blade with the tabs in the
holes of the blade and insert the hex bolt.
10.Tighten the hex bolt to the torque listed below:
Blade Mounting Torque
Center Bolt 450 in. lb. min., 600 in.lb. max.
To insure safe operation of your unit, ALL nuts and bolts
must be checked periodically for correct tightness.
Cutting grass in sandy
soil condition causes
abrasive wear to the
blade.
Off-Season Storage
The following steps should be taken to prepare your lawn
mower for storage.
1. Clean and lubricate mower thoroughly as described in
the lubrication instructions.
2. We do not recommend the use of a pressure washer
or garden hose to clean your unit.
3. Refer to engine manual for correct engine
storage instructions.
4. Coat mower’s cutting blade with chassis grease to
prevent rusting.
5. Store mower in a dry, clean area. Do not store next to
corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment in
a poorly ventilated or metal storage shed, care should
be taken to rust-proof the equipment. Using a light oil or
silicone, coat the equipment, especially cables and all
moving parts of your lawn mower before storage.
Maintenance

12
For repairs beyond
the minor adjust-
ments listed here,
contact an autho-
rized service dealer.
6
Trouble
Shooting
CauseProblem Remedy
Engine fails to start 1. Blade control handle disengaged.
2. Spark plug wire disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not primed.
5. Faulty spark plug.
6. Blocked fuel line.
7. Engine flooding.
1. Engage blade control handle.
2. Connect wire to spark plug.
3. Fill tank with clean, fresh gasoline.
4. Refer to engine manual.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Wait a few minutes to restart, but do not
prime.
Engine runs erratic 1. Connect and tighten spark
plug wire.
2. Clean fuel line; fill tank with clean, fresh
gasoline.
3. Clear vent.
4. Drain fuel tank and carburetor. Refill with
fresh fuel.
5. Refer to engine manual.
6. Refer to engine manual.
1. Spark plug wire loose.
2. Blocked fuel line or stale fuel.
3. Gas cap vent plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Carburetor out of adjustment.
Engine overheats 1. Fill crankcase with proper oil.
2. Refer to the engine manual packed with
your unit.
3. Remove blower housing and clean.
4. Refer to engine manual.
1. Engine oil level low.
2. Dirty air filter.
3. Air flow restricted.
4. Carburetor not adjusted properly.
Occasional skip
(hesitates) at high speed
1. Adjust gap to .030”. Refer to engine
manual.
2. Refer to engine manual.
1. Spark plug gap too close.
2. Carburetor idle mixture adjustment
improperly set.
Idles poorly 1. Reset gap to .030” or replace spark plug.
Refer to engine manual.
2. Refer to engine manual.
3. Refer to engine manual.
1. Spark plug fouled, faulty or gap too
wide.
2. Carburetor improperly adjusted.
3. Dirty air cleaner.
1. Cutting Blade loose or unbalanced.
2. Bent cutting blade.
1. Tighten blade and adapter. Balance blade
2. Replace blade.
Excessive vibration
1. Wheels not positioned correctly.
2. Dull blade.
Uneven cut 1. Place all four wheels in same height
position.
2. Sharpen or replace blade.
1. Wet grass.
2. Excessive high grass.
3. Dull blade.
1. Do not mow when grass is wet;
wait until later to cut.
2. Mow once at a high cutting height, then
mow again at desired height or make a
narrower cutting path.
3. Sharpen or replace blade.
Mower will not mulch
grass

13
7
Warranty
Failure to comply
with suggested
maintenance
and lubrication
specifications
will void
warranty.
TWO YEAR LIMITED WARRANTY
The limited warranty set forth below is given by MTD Products Limited with respect to new merchandise purchased and
used in Canada and/or its territories and possessions (either entity respectively, “MTD”).
MTD warrants this product (excluding its normal wear parts as described below) against defects in material and
workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair
or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall
only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with
the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the
installation or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered by
this manual will void your warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days
from the date of purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades,
blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, friction wheels, shave plates, auger
spiral rubber, tires engine oil, air filters and spark plugs.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local
authorized service dealer. To locate the dealer in your area contact MTD Products Limited, Kitchener, ON N2G 4J1, or
call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a separate manufacturer’s warranty. Refer to
applicable manufacturer’s warranty for terms and conditions. The Powermore engine is not excluded under this
agreement.
b. Log splitter pumps, valves, and cylinders have a separate one-year warranty.
c. Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch
adjustments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.
d. Service completed by someone other than an authorized service dealer.
e. MTD does not extend any warranty for products sold or exported outside of Canada, including possessions and
territories.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. If Products are used commercially. (MTD may separately offer Limited Commercial Warranties on certain select
products. Ask your dealer or retailer for details or contact MTD Service for more information.)
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose,
applies after the applicable period of express written warranty above as to the parts as identified. No other
express warranty, whether written or oral, except as mentioned above, given by any person or entity, including
a dealer or retailer, with respect to any product, shall bind MTD. During the period of the warranty, the exclu-
sive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD
shall not be liable for incidental or consequential loss or damage including, without limitation, expenses
incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a
warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty. You assume the risk and liability for loss, damage, or
injury to you and your property and/or to others and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was
purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you
may also have other rights that vary in different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
MTD Products Ltd., P. O. BOX 1386, KITCHENER, ON N2G 4J1; Phone: [phone].06

14
10
36
39
13
12
38
2
19
17
3
14
17
26
9
7
832
6
29
31 30
29
6
25
14
24
14
32
14
737
4
5
18
1
23
35
22
20
21
15
34
33
28
11
40
40
42
41
44
43
45
OHV
46

15
8
Parts List
For parts and/or
accessories refer to
customer support on
page 2.
Adressez-vous au
«Service après-vente»
à la page 2 pour ce qui
concerne les pièces
et/ou accessoires.
REF PART
NO. NO.
N° DE N° DE
RÉF PIÈCE DESCRIPTION DESCRIPTION
1 17032A Chute Hinge Charnière de déflecteur
2 17098 Hinge Clip Attache
3 682-3064 Handle Bracket Assembly RH Support de guidon CD
4 682-3065 Handle Bracket Assembly LH Support de guidon CG
5 687-02048 Deck Assembly 22" Plateau de coupe de 22 po
6 687-02051 Lever Ass'y (includes ref. #17) Ensemble de levier (comprend le réf. 17)
7 687-02342 Pivot Arm Bras de pivot
8 710-0216 Hex Cap Screw 3/8-16 x .75 Vis à chapeau à six pans de 3/8-16 x 0,75
9 710-0599 Hex Wash S-Tapp Scr 1/4-20 x .50 Vis autotaraudeuse à rondelle hex. de
1/4-20 x 0,5
10 710-0654A Hex Wash HD Tap Scr 3/8-16 x .88 Vis autotaraudée 3/8-16 x 0,88
11 710-1044 Hex Screw 3/8-24 x 1.5" Lg. (Gr. 8) Vis à tête hex. 3/8-24 x 1,50 po de lg (Qual. 8)
12 710-1174 Carriage Bolt 5/16-18 x 2.0 Boulon ordinaire 5/16-18 x 2,0
13 710-1205 Rope Guide Bolt Boulon de guidage de cordon
14 712-04065 Flanged Lock Nut 3/8-16 Écrou de blocage 3/8-16
15 720-0279 Knob - ERS Guide 1/4-20 Bouton - 1/4-20
17 720-0426 Knob Bouton
18 725-0157 Cable Tie Attache-câble
19 731-04019 Trail Shield Abattant de protection arrière
20 631-04045 Mulching Baffle Déflecteur de déchiquetage
21 731-1034B Side Dis. Chute Ass’y Déflecteur latéral complet
22 731-1035B Chute Deflector Déflecteur latéral
23 732-1014 Torsion Spring Ressort de torsion
24 734-01987 Rear Wheel 8 x 1.8 Spoke Bar Grey Roue arrière 8 x 1,8 Spoke Bar Gris
25 734-01988 Front Wheel 7 x 1.8 Spoke Bar Grey Roue avant 7 x 1,8 Spoke Bar Gris
26 736-0270 Cup. Wash. .265 ID x .75 OD x .062 Rondelle creuse 0,265 DI x 0,75 DE x 0,062
28 736-0524B Blade Bell Support Support de lame
29 736-0741 Cupped Washer.760 x 1.25 Rondelle creuse 0,760 x 1,25
30 738-1172 Shoulder Screw Vis à épaulement
31 738-1173 Shoulder Screw Vis à épaulement
32 741-04242 Height Adjuster Bearing Roulement
33 742-0642A Blade 22" Lame 22 po
742-0742A Mulching Blade 22" Lame déchiqueteuse 22 po
34 746-0957 Blade Control Cable 37.25" Lg. Câble de la commande 37,25 po de lg.
35 747-0710 Hinge Pin Axe fixe
36 747-1161A Blade Control Handle Poignée de commande de la lame
37 748-0376C Blade Adapter No. 6 x 1.19 Adaptateur de la lame no. 6 x 1,19
38 749-04037 Lower Handle Guidon inférieur
39 749-1092A Upper Handle Guidon supérieur
40 720-04072 Knob - Star 5/16-18 Bouton - étoile 5/16-18
41 731-05889 Shroud Capot
42 710-04577 Screw (w/inserts in engine for shroud) Vis
710-04744 Screw (w/o inserts in engine for shroud) Vis
43 710-0606 Hex Cap Screw1/4-20 x 1.5" Lg. Vis à tête hex. 1/4-20 x 1,5 po de lg.
44 712-04064 Flange Locknut 1/4-20 Écrou de blocage 1/4-20
45 687-04295A Choke Cable Ass'y 40.25" Lg. Câble de la volet 40,25 po de lg
(w/OHV Engine) (avec OHV moteur)
46 746-04300 ERS Cable Control 52.0 Câble de la commande 52,0 po de lg
(w/OHV Engine) (avec OHV moteur)
11A-080
12.12.07

10
1P65 (139cc) and/et 1P70 (173cc)
Engines/Moteurs
7
6
11
10
8
12
5
4
14
21
29
1
3
2
9
20
27
13
26
25
24
22
23
16
28
17
17
15
18
19

11
Ref.
No./
Réf.
139 cc
Part No./
No. de
pièce
173 cc
Part No./
No. de
pièce
Description
Désignation
1. 951-10337 951-10368 Fuel Tank Réservoir d’essence
2. 951-10336 951-10369 Flywheel Shroud Déflecteur à volant
3. 951-10335 951-10335 Rubber Fuel Tank Mounting
Washer
Rondelle de montage du réservoir en
caoutchouc
4. 951-10334 951-10334 Oil Filler Tube Assembly Tube du filtre à huile
5. 951-10333 951-10333 Dipstick Assembly Jauge à huile
6. 951-10406 951-10413 Cylinder Head Complete Culasse
7. 951-10407 951-10414 Short Block Assembly Bloc moteur embiellé
8. 951-10320 951-10321 Stop Switch and Brake Assembly Commutateur d’arrêt et frein
9. 951-10319 951-10319 Recoil Spring and Pulley Assembly Ressort du lanceur et poulie
10. 951-10314 951-10344 Push Rod Kit Tige de culbuteur
11. 951-10313 951-10345 Valve Kit Ensemble à soupape
12. 951-10370 951-10370 Oil Drain Plug and Washer
Assembly
Orifice de vidange de l’huile et rondelle
13. 951-10367 951-10366 Ignition Coil Bobine d’allumage
14. 951-10309 951-10310 Carburetor Assembly Carburateur
15. 951-10307 951-10307 Flywheel Key Clavette du volant
16. 951-10405 951-10412 Air Cleaner Housing Assembly
Complete
Habitacle du filtre à air
17. 951-10304 951-10342 Muffler Stud Assembly Support du silencieux
18. 951-10363 951-10364 Fuel Line Kit – Inc. hoses, clamps
& filter
Conduite de carburant (avec boyaux,
colliers et filtre)
19. 951-10358 951-10358 Fuel Filter Filtre à carburant
20. 951-10300 951-10300 Fuel Cap Assembly Bouchon d’essence
21. 951-10299 951-10299 Recoil Starter Assembly Démarreur à lanceur
22. 951-10298 951-10298 Air Cleaner Kit Filtre à air
23. 951-10297 951-10297 Air Cleaner Thumb Screw Vis de serrage à main du filtre à air
24. 951-10404 951-10411 Muffler Guard Dispositif de protection du silencieux
25. 951-10403 951-10403 Muffler Silencieux
26. 951-10402 951-10402 Muffler Gasket /Heat Shield Joint du silencieux et bouclier thermique
27. 951-10293 951-10387 Governor Return Spring Ressort de retour du régulateur
28. 951-10292 951-10292 Spark Plug Bougie
– 952Z1P65 952Z1P70 Engine – Complete Moteur – complet
– 951-10325 951-10326 Carburetor Kit – Major Ensemble du carburateur – majeur
– 951-10322 951-10323 Carburetor Kit – Minor Ensemble du carburateur – mineur
– 951-10409 951-10416 Gasket Kit – Complete Ensemble de joints – complet
– 951-10410 951-10417 Gasket Kit – External Ensemble de joints – externes
– 951-10351 Spark Arrestor Pare-étincelles
NOTE: Parts illustrated without an identification number are non repairable.
REMARQUE : Les pièces illustrées sans identification numérique ne sont pas des éléments réparables.
For parts and/or
accessories refer to
customer support on
page 2.
Adressez-vous au
«Service après-vente»
à la page 2 pour ce qui
concerne les pièces
et/ou accessoires.
5
Parts List
Pièces
détachées

Tondeuse Rotative de 22 po - Séries 080
IMPRIMÉ AUX ÉTATS-UNIS MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO
Sécurité * Montage * Réglages * Fonctionnement * Entretien
Dépannage * Listes des pièces détachées * Garantie
NOTICE D’UTILISATION
IMPORTANT:
LISEZ ATTENTIVEMENT LES RÈGLES DE SÉCURITÉ ET LES
INSTRUCTIONS AVANT DE METTRE EN MARCHE LA MACHINE.
12/12/07
772C0794B

2
Table des matières
Cette notice d’utilisation est une pièce importante de votre nouvel équipement. Elle vous fournit les renseignements
nécessaires à l’assemblage, à la préparation et à l’entretien de votre machine. Veuillez donc la lire attentivement et
vous assurer de bien comprendre toutes les instructions.
Pour trouver le numéro de modèle
AVANT DE PROCÉDER À L’ASSEMBLAGE DE VOTRE
NOUVEL ÉQUIPEMENT,
localiser la plaque signalétique sur l’équipement, et recopier
le numéro de modèle et le numéro de série sur le modèle
de plaque signalétique fourni sur la droite. Pour localiser la
plaque signalétique, placez-vous derrière la machine à la
poste de conduite et regardez à l’arrière de la machine.
Inclinomètre ........................................................ 3
Important consignes de sécurité ...................... 4
Instructions de montage et réglages................ 6
Utilisation ............................................................ 8
Entretien et Remisage hors saison................. 10
Dépannage ........................................................ 12
Garantie............................................................. 13
Pièces détachées (voir la page 14
de la version anglaise de cette notice
d’utilisation).
-4$02/$5#43,)-)4%$
+)4#(%.%2/..'*

8888888888 88888888888
-ODEL.UMBER
.UM£RODEMODÞLE
3ERIAL.UMBER
.UM£RODES£RIE
WWWMTDCANADACOM
Service après-vente
Si l’assemblage de cette machine vous pose des problèmes ou pour toute question concernant les commandes, le fonc-
tionnement ou l’entretien de la machine, les spécialistes sont à votre disposition. Choisissez l’une des options ci-dessous:
1. Visitez le site www.mtdcanada.ca où vous trouverez de nombreuses suggestions utiles.
2. Appelez un agent du service après-vente au 1-800-668-1238.
3. Le fabricant du moteur est responsable de tout aspect lié à celui-ci, y compris la performance, la puissance nominale, les
caractéristiques, la garantie et le service. De plus amples renseignements se trouvent, en fonction du fabricant, soit dans
cette notice d’utilisation soit dans celle qui est emballée séparément avec le produit.
Préparez vos numéros de modèle et de série avant de téléphoner. Veuillez lire le chapitre précédent pour déterminer
l’emplacement de ces numéros. On vous demandera d’enregistrer le numéro de série avant de pouvoir poursuivre votre consul-
tation.
Veuillez NE PAS retourner la machine au détaillant qui vous l’à vendue,
sans vous adresser d’abord au service après vente.

3
1
Inclinomètre
Ne vous tondez pas sur
des pentes supérieures
à 15° (soit une déclivité
de 2-1/2 pi par 10 pi).
Un tracteur à siège
risque en effet de
se retourner et son
conducteur peut être
gravement blessé. Il est
également difficile de
conserver un bon appui
en marchant derrière la
tondeuse. Vous risquez
de glisser et de vous
blesser.
Utilisez les tracteurs À
SIÈGE parallèlement
à la pente, jamais en
travers.
Utilisez les tracteurs À
POUSSER perpendicu-
lairement à la pente,
jamais parallèlement.
15°
Visez et alignez avec un arbre...
ou un poteau de clôture
le coin d’un bâtiment...
o
Pliez sur le pointillé, qui représente une déclivité de 15
Server-vous de cet inclinomètre pour déterminer les pentes sur lesquelles il serait dangereux de
travailler. N’utillisez pas cette tondeuse sur de telles pentes.
AVERTISSEMENT
