Multi PSI Multi-160 User manual

Operator's manual
Battery fogger
Model : Multi-160
www.multibiolab.com
Certied
equipment
Downloadable manual:
Dow
nt
:

2 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
For the user :
Thank you for choosing our portative sprayer fogger. Before you use this equipment, please read the instruction
manual carefully and strictly abide by the safety regulations to prevent accidents and unnecessary losses. We
hope that you can use the equipment safely, reasonably, and efficiently to maintain the best running state, so as
to improve the efficiency of the machine and also help extend the service life of the equipment.
The warranty service and repair of this product can be contacted by the special dealer :
Multi BioLab (Multi PSI).
We are committed to the continuous optimization and improvement of product design. If there is a slight
discrepancy between this manual and the parameters of the product, we will not inform you.
Good reading.

3 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Contents
Parameter ...............................................................................................................................................................5
Working principle ..................................................................................................................................................5
Features ...................................................................................................................................................................5
Fields of application ...............................................................................................................................................6
Component identification ......................................................................................................................................7
Operating instructions .........................................................................................................................................10
Troubleshooting ...................................................................................................................................................17
Parts list ................................................................................................................................................................18

4 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Important safety information
1. Before using the sprayer, make sure the battery is fully charged and the filter cotton is in the filter cotton
is not blocked ;;
2. Do not use special working liquid. When adding liquid, be careful not to exceed the maximum capacity
to avoid the outflow of the liquid.;
3. In order to ensure the atomization effect, the factory has limited the motor speed range, do not open
without changing. The use of water soluble liquid requires no impurities to prevent the blockage of the
pipeline;
4. The power should be cut off immediately if any of the following happens during the use : the sprayer
gets wet or gets water inside ; The fan suddenly stopped running ; The fan sound changes obviously ;
Liquid leakage in small tank ; The fan does not turn when the fan is started and other conditions that may
cause danger obviously;
5. Work must wear overalls, protective masks;
6. A small amount of clean water should be added to the small tank after the completion of spraying liquid
to prevent the liquid blocking or corrosion of the nozzle. After use, the power should be cut off in time
to clean the small tank. When handling pesticides, the safety instructions provided by the pesticides
manufacturer should be followed. The machine should be placed in a save position to avoid being wet,
knocked against or touched by children;
7. Do not use the machine in the rain, equipment should be used away from flammable, explosive, high
temperature places ; Do not frequently switch the machine, so as not to damage the motor;
8. In case of failure, the power must be cut off, please professional repair ; It is strictly prohibited for non-
professional personnel to disassemble, should ask professional maintenance point maintenance
personnel to repair, remember not to repair without authorization, not without authorization to change
the original product on the « leakage protection plug type power cord », so as to avoid danger.

5 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Parameter
Model
Parameter Multi-160
Rated Power 120W
Battery 18 VDC
Battery capacity 2000 mAH
Frequency 50/60 Hz
Duration of a single job 20 minutes
Rated speed 30 000 RPM
Tank capacity 800 ml
Air flow 160/min
Product flow 100-200 ml/min
Particle size 40μm
Effective range 200-250mm
Viscosity 8-12s
Dimension 295mm x 195mm x 285mm
Working principle
The fogger uses a high-power, high-speed DC brushless motor to rotate the wind blades to generate a high-
speed rotary cutting airflow. At the same time, the solution is pressurized to a carefully designed nozzle and
high-speed airflow confluence at a certain flow rate (adjustable). Rotary cutting airflow and the special structure
of the nozzle break the solution into very small mist particles, and the appearance is water mist, so that the
solution mist particles have a strong dispersion, uniformity, and no dead ends in the space. The spraying area is
larger and the space floats for a longer time, so that the solution can fully play its role, and the effective drug can
play a sufficient role in killing bacteria and disinfecting the air.
Features
 The product adopts HDPE of the fuselage, and the nozzle adopts PP, which has the advantages of
lightweight, acid and alkali resistance, corrosion resistance, easy cleaning, and easy carrying. The
reasonable and compact structure is beautiful and generous, and it is more lightweight and flexible when
working;

6 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
 The product adopts the principle of the air flow atomization to spray the solution at high speed and
extremely fine mist particles, replacing the traditional artificial immune method, which greatly improves
the work efficiency;
 Evenly and quickly administer by spray to maintain the best efficacy and achieve the goal of
comprehension elimination of immunity;
 Unique hose nozzle design, the angle can be arbitrarily swayed, instant switching, efficient and
convenient; high power, high speed aerosol, low labor intensity, high application, efficiency, saving
solution;
 Equipped with a liquid solution check device to effectively prevent the liquid solution from flowing back
in the off state, which can be adapted to different occasions and uses; one-button switch, easy to turn on
and off the power, high-capacity lithium battery, light weight;;
 The droplet density is large and the spray time is short, which can be well absorbed by the application.
Application areas
 Disinfection, poultry vaccine, Parasite control; Air purification, anti-virus; Coronavirus-2019
elimination.
 Disinfection, sterilization, pest control, air purification, antivirus, disease prevention, prevention of
epidemics in hospitals, schools, hotels, residences, warehouses, factories, etc.
 Spray disinfection and immunity for poultry farms, veterinary hospitals, pet hospitals, animal health
centers, entry-exit inspection and quarantine office, customs, etc.

7 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Component identification
Multi-160
Nozzle cap
Ventilation holes
Component release button
Trigger
Flow control knob
Rubber handle
Li-Ion battery
800ml solution container
Length control
knob

8 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Explosive view
Multi-160

9 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
1 ST2.9*10SCRE 18 O-ring 35 Lock catch
2 Rear cover 19 22 Needle spring 36 Microswitch
3 Cotton filter 20 Needle set 37 Battery pack
4 Right cover 21 Gun 38 Battery pack pin
5 Switch plunger spring 22 Pipette 39 Left cover
6 Switch plunger 23 Cup-ring 40 Gun-ring
7 Right side cover 24 Suction pipe splint 41 Stpper
8 ST3.5*10SCRE 25 Container 800ml 42 Motor cover
9 Big nut 26 Ꝋ3 flat gasket 43 550 motor
10 Spray ball 27 Short pin 44 Wind mill
11 Spray nozzle 28 Ajdusting knob 45 M4*8SCRE
12 Barge board 29 Trigger 46 Motor gasket
13 Nozzle seal 30 Spray a knob 47 Wind leaf
14 Needle 31 Left side cover 48 Wind cover
15 Needle insert 32 O-ring 49 Damping ring
16 Needle seat 33 Atomization circle 50 Funnel
17 Bowl seals 34 Vent spring 51 Pin

10 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Operating instruction

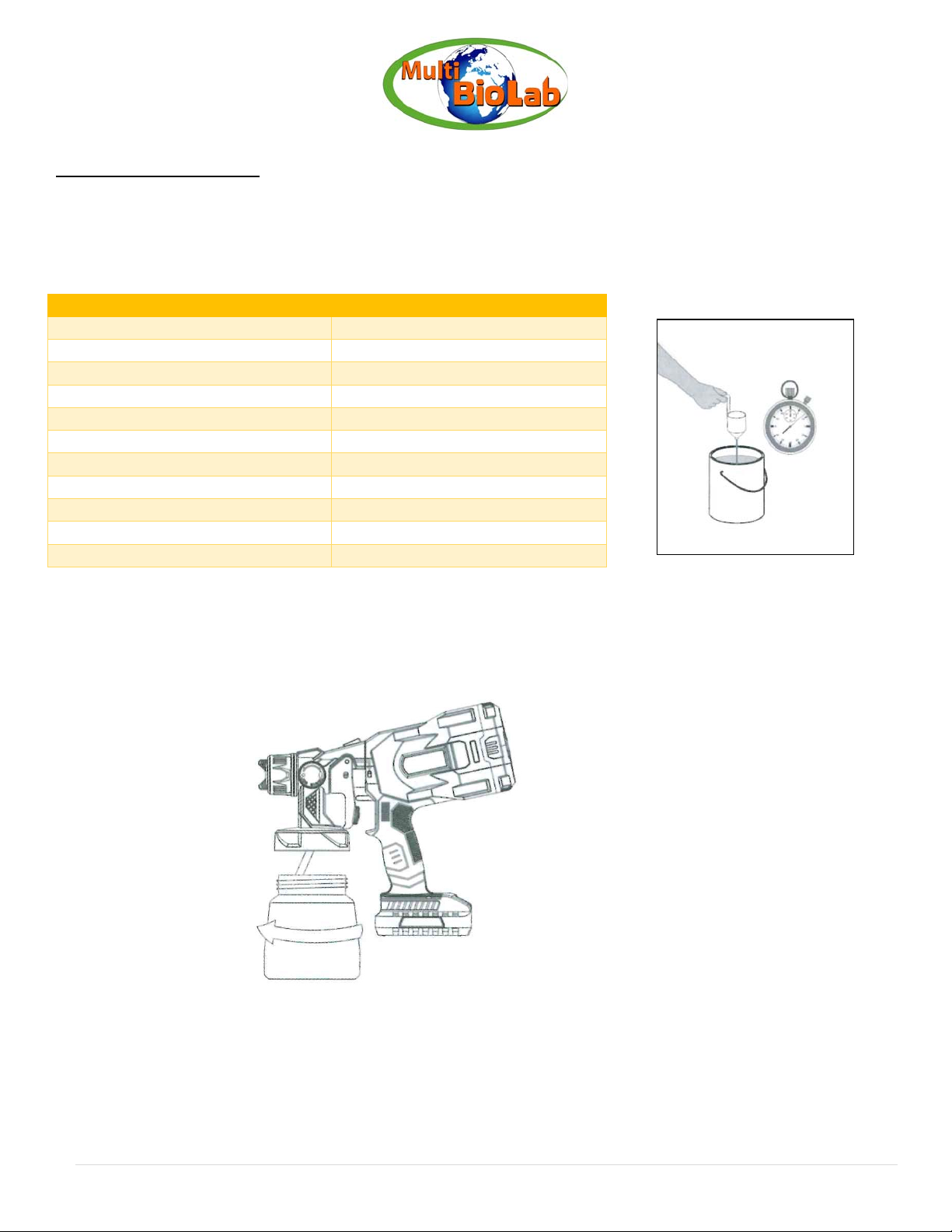

Before use the Multi-160 spray gun, material preparation is the first stage:
Please refer to the thinning chart and picture.
Material Run out Time (seconde)
Multi BioLab Disinfectant No thinning required
Oil enamel 25-60
Oil based primer 30-60
Oil stain No thinning required
Clear sealer No thinning required
Polyurethane No thinning required
Varnish 20-60
Lacquer sanding sealer 25-35
Lacquer 25-35
Automotive finishes 20-40
Latex 45-90
1. Unscrew the container from the Multi-160 spray gun.

11 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
2. Adjust the suction tube.
a. If spray in an upward direction, the angled end of the suction tube should be pointing toward the
rear of the gun ;
b. If spray in a downward direction, the angled end of the suction tube should be pointing toward
the front of the gun.
3. Pour material into container, make sure not to exceed 800ml.
Suction tube
Suction tube
800 ml

12 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
4. Remove the motor.
a. Hold the gun with your hand and press the latch in the direction of the arrow;
b. At the same time, hold the motor handle with your hand and rotate it counter clockwise 90º;
c. Pull out to remove the motor from the gun.
5. Connect gun body with motor.
a. Hold the gun with your hand to align the slot on the gun with the slot on the motor and insert it
(as shown in the figure);
b. Hold the motor handle with your hand, rotate the right hand clockwise 90º;
c. When the gun and host are parallel, it is locked.
6. Adjust the needle adjusting screw to meet your requirement.
a. Adjust the screw to left to decrease solution volume, lower solution thickness;
b. Adjust the screw to right to increase solution volume, increase solution thickness.
a)
Adjustion screw

13 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
7. Spray length adjustment: Turn this knob to adjust the round shape from vertical to horizontal.
Adjust the required length according to the spraying environment, reduce waste and save material.
a. The counterclockwise rotation shortens the length, and when it rotates to the stop position, it is
sprayed with the largest circle.
b. Adjust the screw to right to increase solution volume, increase solution thickness.
Length control knob

14 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.

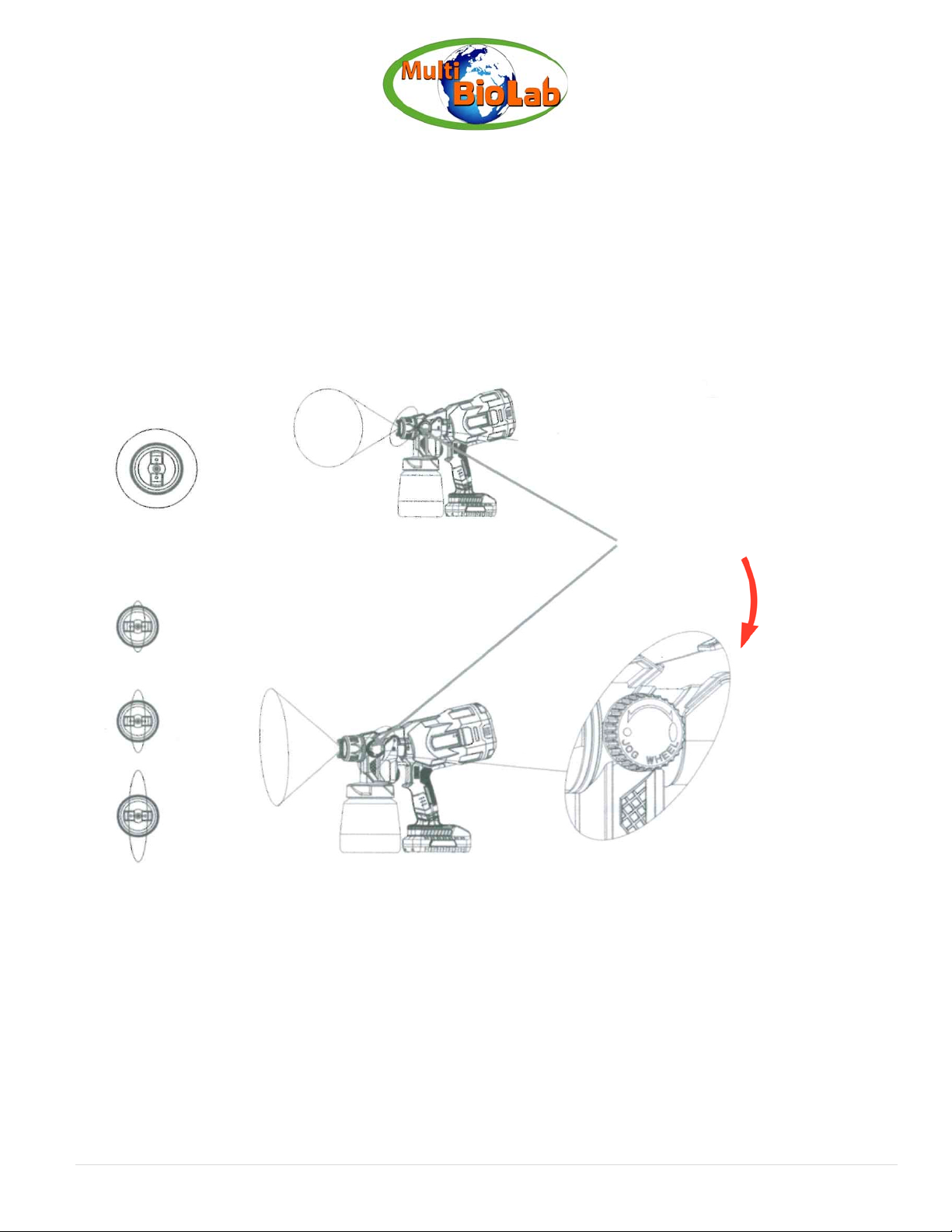

8. Adjusting spray patterns
a. The gun psray patterns can be changed from a horizontal oval fan pattern to a round.
b. Detailed pattern to a vertical fan pattern by adjusting the nozzle
Horizontal 90º Circular 45º Vertical 180º
Spray angle adjustment
Flow control knob

15 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
9. Open the power switch, pull trigger, the solution will spray from the nozzle.

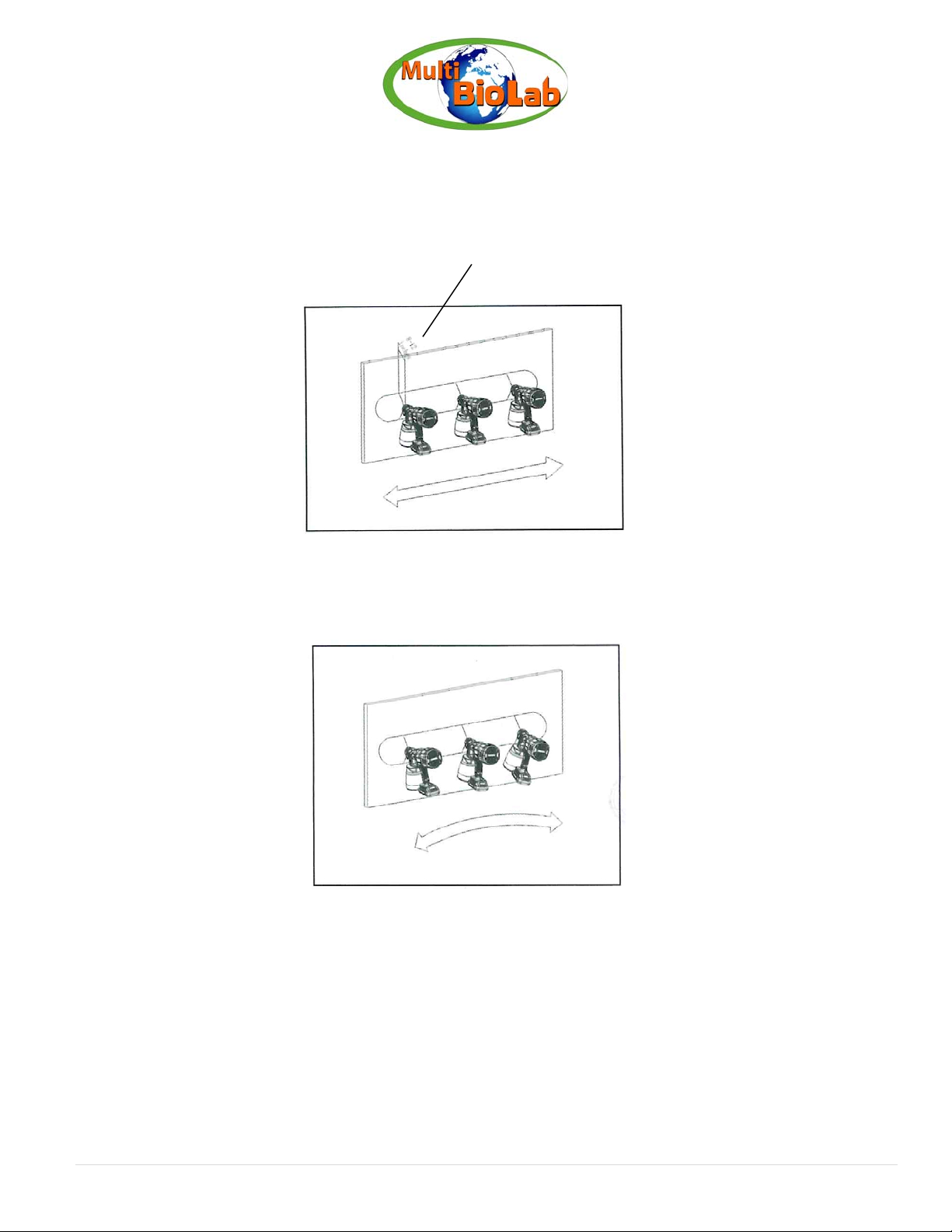

How to spray properly ?
Even coat throughout
Correct :
Incorrect :
Keep stroke smooth and
at even speed.
Range
8 to 12 inches
Do not flex wrist while
spraying

16 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Replace nozzle and needle ?
When disassembling the nozzle, please pull the trigger first, then press and remove the nozzle.
a. As shown in the figure, rotate to remove the needle.
b. As shown in the figure, rotate to set up the needle.

17 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Troubleshooting
Problem Cause Solution
Little or no material flow 1. Nozzle clogged
2. Suction tube clogged
3. Material volume setting turn too
far to the right
4. Suction tube loose
5. Material is too thick
6. Container is loose
1. Clean
2. Clean
3. Turn to the left
4. Insert
5. Check viscosity
6. Tighten the container
Material leaking 1. Nozzle loose
2. Nozzle worn
3. Nozzle seal worn
4. Material build-up on spray pattern
dial and nozzle
1. Tighten
2. Replace
3. Replace
4. Clean
Atomization is too coarse 1. Viscosity of material too high
2. Matrial volume too large
3. Nozzle clogged
4. Too little pressure build-up in
container
1. Thin
2. Turn to the right
3. Clean
4. Tighten container
Spray jet pulsates 1. Material in container running out
2. Material is too thick
1. Refill
2. Check viscosity
Pattern runs or sags 1. Applying too much material 1. Adjust material flow or increase
movement of spray gun
Too much over-spray 1. Gun too far from spray object
2. Too much material applied
1. Reduce distance
2. Turn material volume setting to
right
Pattern is very light and splotchy 1. Moving the spray gun too fast 1. Adjust material flow or decrease
movement of spray gun
Large cloud of material 1. Gun too close to surface 1. Move gun away from surface and
reduce material flow
Warning
 Keep your workplace clean and tidy, never use the tool in hazardous areas that contain flammable
liquids, gasses or dusts.
 Only use paints, solvents or other materials with a flash point of 73ºF (22ºC) or highter..
 Never point the spray gun at other person or animal. In the event of an injury, seek immediate medical
attention.
 Always read the material manufacturer’s thinning instructions before use.
 You must clean the spray gun thoroughly after each use.
 Do not pull the power cord to move this tool.

18 | Droit d’auteur Multi PSI. Toutes les informations contenues dans ce document sont sujettes à
modification sans préavis. Copyright Multi PSI. All information contained herein is subject to change
without notice.
Parts list
No. Description Quantity
1 Big nut for nozzle 1
2 Spray ball 1
3 Nozzle 1
4 Gun body 1
5 Motor 1
6 Container 800ml 1
7 18vdc Battery 1
8 Charger 1
9 Tool 1
1 2
3
4
6
5
7
8
9
