The Multi-Voice Radio MVR900 System
provides advanced full duplex
communication.
MVR900 Users Guide
Rev 1.1
5/3/2012
MVR900
Multi-Voice Radio LLC.
266E 900S Mapleton, UT 84664
(885) 685-8487 • [email protected]
www.multivoiceradio.com
Product Description
The Multi-Voice Radio combines conference communication with wireless radio. This full duplex system allows hands
free communication on a secure signal for up to 8 people. Additional units may be added as listen only or push to talk
devices.
Specifications
Required Accessory
The MVR900 requires a headset for operation. The headset requirements are: an electret microphone with Impedance
between 1KΩ and 5 KΩ, a speaker with impedance between 8 Ωand 50Ω, a hirose HR30-6P-6S71 connector. To see the
available headsets visit our website at www.multivoiceradio.com

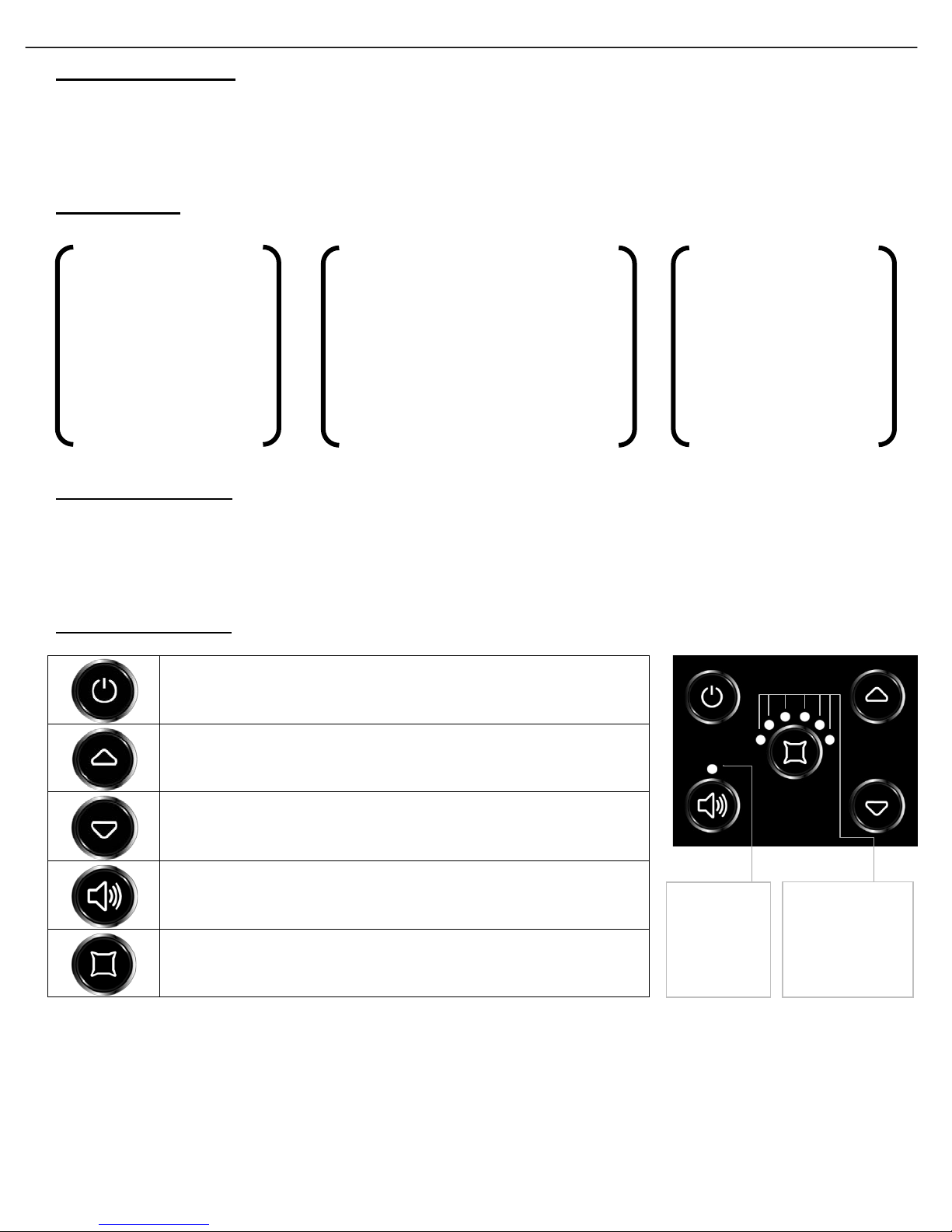

Keypad Description
Power ON/OFF
Hold the button for 3 seconds to turn the device ON.
Hold the button for 3 seconds to turn the device OFF.
Volume UP
Volume DOWN
Mute
Press to toggle the microphone off and on. When the device is in
the optional PPT mode the button becomes the ppt activation.
Channel / Sync
Press switch between 6 channels. This button also acts as the sync
button during setup.
Measurements
Length: 5.2 in
Height: 3.0 in
Width: 1.0 in
Antenna: 1.3 In
Weight: 10.9 oz
Signal
Frequency: 902-928 MHz
Maximum Output Power: 500mW
Range: Up To 3/4 Mile Line of Sight
Frequency Hopping Spread Spectrum
Proprietary Encryption
Battery
14 Hour Operation
Rechargeable
Lithium-Ion
6000 mAh
Mute LED:
Indicates
the mute is
toggled ON
Channel LED:
Indicates what
channel the
user is on.
Rev 1.1
5/3/2012
MVR900
Multi-Voice Radio LLC.
266E 900S Mapleton, UT 84664
(885) 685-8487 • [email protected]
www.multivoiceradio.com
Operating Modes
Setup
Leave all devices off. Choose one device as the master. On this device hold the channel/sync button down. After a few
seconds the LEDs will turn on, this indicates the master is in sync mode. Continue to hold the channel/sync button.
After the master is in sync mode with the LEDs on, take each additional device within 10 feet of the master and hold the
channel/sync button down until the lights start to flash. Release the button.
After all additional devices have finished the procedure above. Release the button on the master device.
To Enable Push to Talk mode. After the radio is on, press and hold the mute button and the up arrow button at the same
time until the LEDs turn off. To return to Full duplex mode, press and hold the mute button and the down arrow button
at the same time until the LEDs turn off.
Operation
To turn on the device press and hold the Power button until a LED turns on. The devices will remember the group it was
synchronized too and connect to the group automatically. Adjust volume to a comfortable level.
The setup process will need to be redone if the following situations occur: The master is not turned on or missing from
the group, a device needs to be removed from the group, a device needs to be added to the group.
No part of this document may be reproduced or transmitted (in electronic or paper version, photocopy) without Multi-Voice Radio LLC. consent.
This document is subject to change without notice. All trademarks mentioned in this guide are the property of their respective owner.
Full Duplex (Primary)
Microphone is always on.
User can communicate hands free.
Each radio with this mode takes 1 of 8
available communication slots.
Push To Talk (Optional)
User must push a button to activate microphone. This option
needs at least one slot to be unused. The number of unused slots
determines the number of PTT users that can talk at the same
time. Unlimited number of radios can have this configuration.
Table of contents
