MultiChoice 50645 User manual

Contents
Unpacking ............................................. 2
Safety ................................................. 2
Preface ................................................ 2
Digital Satellite Services ................................. 2
Conditional Access ..................................... 3
Smart Card ............................................. 3
Inserting the Smart Card ............................. 3
The Digital Satellite Decoder (DSD) ........................ 4
Display ................................................ 4
Front Panel Keys ........................................ 4
Rear Panel Connections ................................... 4
Remote Control Unit .................................... 5
Replacing Batteries in the RCU ............................. 5
Getting Started ......................................... 6
Installation of the satellite dish and cabling to the decoder ......... 6
Installation Indemnity ................................ 6
Setting-up the System .................................... 6
Switching on the Decoder at the Mains ........................ 6
Tuning your TV .......................................... 6
Adding a Modem ......................................... 7
Standby and Normal Modes ................................ 7
Optional Decoder Connections .............................. 8
Introduction ....................................... 8
Hints to Quality TV System Configurations ............... 8
Satellite Decoder, M-Net Decoder, TV (using SCART or RF
Interfaces) ........................................ 8
Decoder, TV (SCART or RF Interfaces), Hi-Fi ............ 9
Decoder, VCR, TV ,Hi-Fi ............................ 10
Decoder, VCR, TV, Hi-Fi (using RCA Connectors) ....... 11
Two Satellite Decoders, TV, (using AUX SCART
and RF Interfaces) ................................. 12
RCU UHF Button Selection Functions ............ 12
Bouquet Selection ..................................... 13
Selecting Specific Services ............................... 13
Selecting Services Directly ........................... 13
Stepping through Services ........................... 13
Stepping using the RCU ....................... 13
Stepping using the Decoder Front Panel Keys ...... 13
Selecting Specific Services from the EPG ............... 13
Selecting Services from the Information Bar ............. 13
Controlling the Show ................................... 14
Volume Control using the RCU Keys ................... 14
Volume Control using the Decoder Keys ................ 14
Mute ............................................ 14
Displaying Subtitles or Teletext ....................... 14
Subtitles .................................... 14
Teletext .................................... 14
Clock ........................................... 14
Selecting Soundtracks .............................. 15
Power Reset ...................................... 15
Signal Source Selection ............................. 15
Open TV Electronic Programme Guide .................... 15
Using the EPG ......................................... 15
Now/Next EPG .................................... 15
Extended EPG .................................... 16
Theme Search .................................... 16
Open TV Information Bar ................................ 17
Reminders ............................................ 17
Parental Blocking ...................................... 17
Menu Navigation Route ................................. 18
Using Menus .......................................... 19
Soundtrack Options ..................................... 19
Parental Guidance ...................................... 19
Setting the Parental Level ............................ 19
Changing the Parental Pin Code ...................... 20
Information Box Display Period ............................. 20
Organising Service ...................................... 20
Sort TV Services .................................. 20
Reset TV Services ................................. 21
Sort Audio Services ................................ 21
Reset Audio Services ............................... 21
Full Rescan ...................................... 21
Mail Messages ......................................... 21
Advanced Options ...................................... 21
Change Dish Installation ............................ 21
LNB Configuration ............................ 21
Set LNB Power ......................... 21
LNB Setup ............................. 22
Signal Setup Alternatives ....................... 22
Tune DSD .................................. 22
Reset to Factory Defaults ...................... 22
Loop Through Mode ........................... 22
Signal Detection ................................... 22
Information ....................................... 22
DSD Status ................................. 22
CA Status .................................. 23
Loader Status ............................... 23
TV Installation .................................... 23
TV Type .................................... 23
Aspect Ratio ................................ 23
UHF Tuning ................................. 23
Scart Source ................................ 23
Scart Video Output ........................... 23
Change Modem Settings (if fitted) ..................... 24
Local Time ....................................... 24
DSD Upgrade ..................................... 24
Troubleshooting ....................................... 25
Specifications ......................................... 28
Multichoice DSTV Hotlines .............................. 29
Installation Settings .................................... 29
Notes ................................................ 30
WARRANTY .......................................... 31

DSD 660 OPERATING INSTRUCTIONS 3
UNPACKING
Ensure that the following items are included with the Digital Satellite
Decoder (DSD):
1 x Remote Control Unit (RCU)
2 x AAA Batteries
1 x Flylead
1 x Mains Cable
1 x User Manual (Operating Instructions)
SAFETY
This decoder exceeds International Safety Standards. Please read the
following recommended safety precautions carefully.
MAINS SUPPLY: 210-250 V AC 50 Hz ONLY.
LIQUIDS: Keep liquids away from the decoder.
CLEANING: Before cleaning, disconnect the decoder from the wall socket.
Use a cloth lightly dampened with water (no solvents) to clean the exterior.
VENTILATION: Do not block the decoder ventilation holes. Ensure that
free airflow is maintained around the decoder. NEVER stand the decoder
on soft furnishings or carpets. Do not use or store the decoder where it is
exposed to direct sunlight, or near a heater. Never stack other electronic
equipment on top of the decoder.
ATTACHMENTS:Do not use any attachment that is not recommended by
the manufacturer, as it may cause a hazard or damage the equipment.
CONNECTION TO THE SATELLITE DISH LOW NOISE BLOCK (LNB):
The LNB connector cable has a voltage on its centre core. It is therefore
recommended that the decoder is disconnected from the mains power
before connecting or disconnecting this cable. FAILURE TO DO SO
COULD DAMAGE THE LNB.
SERVICING: Do not attempt to service this product yourself. Any attempt
to do so will make the warranty invalid. Refer all servicing to a qualified
service agent.
LIGHTNING:If the decoder is installed in an area subject to intense
lightning activity, protection devices for the decoder mains connector and
modem telephone line are essential. The individual manufacturer’s
instructions for safeguarding other equipment, such as TV set, Hi-Fi, etc.,
connected to the decoder, must also be followed during lightning storms.
EARTHING: The earth of the LNB cable MUST BE DIRECTLY
CONNECTED to the system earth for the satellite dish. The earthing
system must comply with local regulations.
Refer to the Installation Indemnity on page 6.
PREFACE
The digital satellite decoder introduces exciting new technology. This
manual provides full information on how to use the decoder and enjoy
the benefits of all its features.
The decoder is easy to use, even for those users unfamiliar with, or
intimidated by, modern technology. The more advanced and more
complex features can be avoided until you become comfortable with the
basic operation of the system.
The manual provides:
#Important safety precautions; please study them.
#Overview material; read only those parts that interest you. It is
not necessary to study the manual from cover to cover before
using the decoder.
#Step-by-step instructions on how to use the decoder and its
advanced features.
#Step-by-step instructions on how to install the decoder and
connect it to basic sound and TV systems. It is beyond the scope
of this manual to include all of the possible configurations or
installation procedures.
#Troubleshooting guide to assist you if you have difficulty with
operating the decoder correctly, or if technical problems occur.
Theoperationofthedecodercanbeupgradedusingover-the-airsignals
(typicallyinthemorning).Thismanualandthemenusdownloadedinthe
decoder are therefore subject to change at any time.
This document and the information contained herein are the subject of
copyright and intellectual property rights under international convention.
All rights are reserved. No part of this document may be reproduced,
stored in a retrieval system or transmitted in any form by any means,
electronic, mechanical or optical, in a whole or in part, without the prior
written permission of UEC Commercial (Pty) Ltd, the Manufacturer.
DIGITAL SATELLITE SERVICES
The decoder has been designed to receive and process digital signals
from the PanAmSat 4, Astra and EutelSat satellites. The satellites act
as mirrors in the transmission process, beaming the Service Provider’s
signals back to your satellite dish. Compared to conventional TV
(analogue), digital technology presents higher quality pictures, sound
comparable to that of a CD, and many more services.
Satellite technology also enables excellent reception of satellite TV
services in remote rural areas where good quality terrestrial reception
has never before been possible.
Theterm“Services”isusedinsteadof“Channels”becausecompressed
digital TV and audio technology efficiently uses available bandwidth,
allowing several services to use the bandwidth of one channel.
In addition to the digital TV and audio signals, satellite signals also
contain data that the decoder extracts, processes and stores. This
provides up-to-date text information on the content and status of the
various services at the touch of a button. Convenient facilities are also
provided to manipulate received data in order to customise viewing and
listening preferences.
Due to the nature of compressed digital TV, many more features will
become available in the near future.

4OPERATING INSTRUCTIONS DSD 660
CONDITIONAL ACCESS
Although some satellite TV and audio services are free to air, most TV and
audio services are only available on a subscription basis and can only be
enjoyed via the conditional access components. These are the removable
Smart Card and a built-in conditional access process already fitted into the
system.
Smart Card
You should have purchased a Smart Card from the dealer when you
purchased the decoder. The Smart Card looks similar to a credit card and
is inserted into the slot behind the right-hand front flap of the decoder.
Avalid Smart Card entitles you to view and listen to all the services you
choosetosubscribeto.Fulldetailsofsubscriptionoptionsaresuppliedwith
the card.
Your subscription details are stored in the Smart Card.
Inserting the Smart Card
The Smart Card is the key to unlocking the decoder. The decoder will not
decode scrambled TV or audio services if the card is not inserted or is
incorrectly inserted.
Inserting the Smart Card into the decoder allows instant access to all the
services you subscribe to.
The Smart Card is not required for access to menus.
The Smart Card, which is supplied separately and forms part of your
subscription,isupdatedover-the-airwhenyoursubscriptiondetailschange,
for instance, each time you purchase additional products (details regarding
these products will be announced in the future).
To insert the Smart Card, follow the instructions carefully.
1Open the right hand flap on the front of the decoder (see figure)
Swing the flap downwards to expose the card slot to the right of
the row of keys.
2Hold the Smart Card horizontally with the logo on top and the
three arrows pointed towards the front of the card. Insert the card
fully into the slot.
NOTE: Observe the buttons on the front of the decoder,
asthesecanbeusedasanalternativeinterfaceto
the decoder, for certain functions, in place of the
Remote Control Unit (RCU).

DSD 660 OPERATING INSTRUCTIONS 5
YGRYGRYGRYGRYGR
Green dot
DSD in
Standby
mode
Service No.17
selected Green light -
Audio services
selected
Rotating bar.
Searching for
service
information
Three flashing
bars and red
light. Service not
found, or signal of
inferior quality
YGRYGRYGRYGRYGR
Download in
Progress
Steady yellow
light
Green Dot
flashes when
RCU keys are
pressed
Yellow light
Mail message
waiting
Red light
Error indication Menu selected
THE DIGITAL SATELLITE DECODER
(DSD)
The DSD combines a high quality MPEG-2 and DVB compliant satellite
receiver, with a sophisticated decoder in one package. The DSD provides all
that you need to exploit the exciting new satellite services that are now
available.
DISPLAY
REAR PANEL CONNECTIONS
FRONT PANEL KEYS
Key Description
Switches the decoder between normal and
standby modes.
TV / +Switches between TV and Audio services.
P/V Switches between programme selection and
volume control.
ªSelects next service on list or increases volume
level.
«Selects previous service on list or decreases
volume level.
and
TV / +
When pressed simultaneously, reset the operation
of the decoder.

6OPERATING INSTRUCTIONS DSD 660
?
Remote Control Unit (RCU)
Easy, quick and effortless use of the decoder is possible using the Remote
Control Unit and the on-screen displays.
RCU
Keys Description
Switches the decoder between normal and standby
modes.
ALT Used to toggle between current and last services
UHF Toggles between VCR, AU1, TV and IRD input
sources when pressed once and released. When
pressed, held for 5 seconds, then released, displays
the UHF tuning channel. Press once to remove the
tuning channel.
Displays the local time on the screeen for 5 seconds
or removes the local time display from the screen.
iDisplays the programme information bar on the
screen. When pressed twice displays the extended
event information screen.
MENU Displays the Main Menu options on the TV screen.
TV
GUIDE Displays a list of the available Electronic
Programme Guides (EPG) on the TV screen.
Cursor keys - used to step through programmes,
browse, move the highlight and move through
values in menus.
EXIT Press to go to the previous menu, exit the menu
system when in the main menu, or exit the EPG or
Information Bar.
OK Selects a programme when in the Electronic
Programme Guide and selects highlighted options
or values in menus. Saves any changed settings in
menus.
P+ P- Cycles up or down through the available services.
V+ V- Adjusts the volume up or down.
Keypad Keys 0-9-select either a TV or audio service, or
used to key in numbers in menus (e.g., parental and
installation PIN codes).
+Selects audio services.
TV Displays Bouquet Selection menu on TV, or when in
Audio Services, returns to TV services.
Displays the soundtrack information bar for 5
seconds.
Mute.
Switches the display of subtitles or teletext (where
Replacing Batteries in the RCU
The RCU is powered by two AAA size batteries. The life of the batteries
is about one year. Replace the batteries as required, but note the
following:
a. Insert the new batteries with their polarities (+ and -) aligned
correctly.
b. If you do not intend to use the RCU for long periods of time,
remove the batteries and store them in a cool, dry place.
c. Remove and dispose of used batteries immediately.
d. Do not use used and new batteries together. Never use an
alkaline battery with a manganese battery.
Load the batteries as follows:
1Insert small screwdriver blade or fingernail into slot in battery
compartment lid. Press lid downwards, then lift off.
2Insertthebatterieswiththeirpolaritiesaligned,asindicatedinside
the battery compartment.
3Replace lid.

DSD 660 OPERATING INSTRUCTIONS 7
GETTING STARTED
NOTE:Unless absolutely necessary, do not change
installation, connections or decoder setup, or
carry out any retuning on a working system. If
changes are made, note all changed settings in
the table on page 29.
Installation of the satellite dish and cabling to the
DSD
Installation procedures for satellite dishes and cabling to DSDs are
outside the scope of this manual. Please refer to the manuals provided
with your satellite dish and associated equipment if you decide to do the
installation yourself.
Installation Indemnity
1For the decoder to operate, it is required to correctly install and
align a satellite dish and a Low Noise Block (LNB) converter.
2Each and every INSTALLER acts as an independent contractor
and is not a servant, sub-contractor or agent of the manufacturer.
The manufacturer is, therefore, not liable for any loss or damage
of any nature whatsoever caused by the conduct of the installer,
including but not limited to:
a. Any direct, indirect or consequential damages of any
nature or any loss of profit or other special damages of any
nature which the USER may suffer as a result of any
breach by the INSTALLER of any of its obligations to the
USER.
b. Any loss or damage to any property of the user or any third
party, situated on the USER’s premises even if loss or
damage arises out of any part of the INSTALLER.
3The manufacturer does not directly or indirectly warrant or
guarantee or make any representations whatsoever with regard
to any equipment, including, but not limited to any dish, LNB, or
cabling, used by the INSTALLER.
4Subject to any express warrant or guarantee given by the
manufacturer, in writing, the manufacturer does not:
a. Give any warranty or guarantee or make any
representation whatever in respect of any work carried out
by the INSTALLER.
b. Accept any liability for any latent or other defect in any
work carried out by the INSTALLER.
Setting-up the System
1Install and align satellite dish (installer).
2Connect the decoder to the TV set (either SCART to SCART or
RF OUT on the decoder to RF IN on the TV). (See Optional
Decoder Connections.)

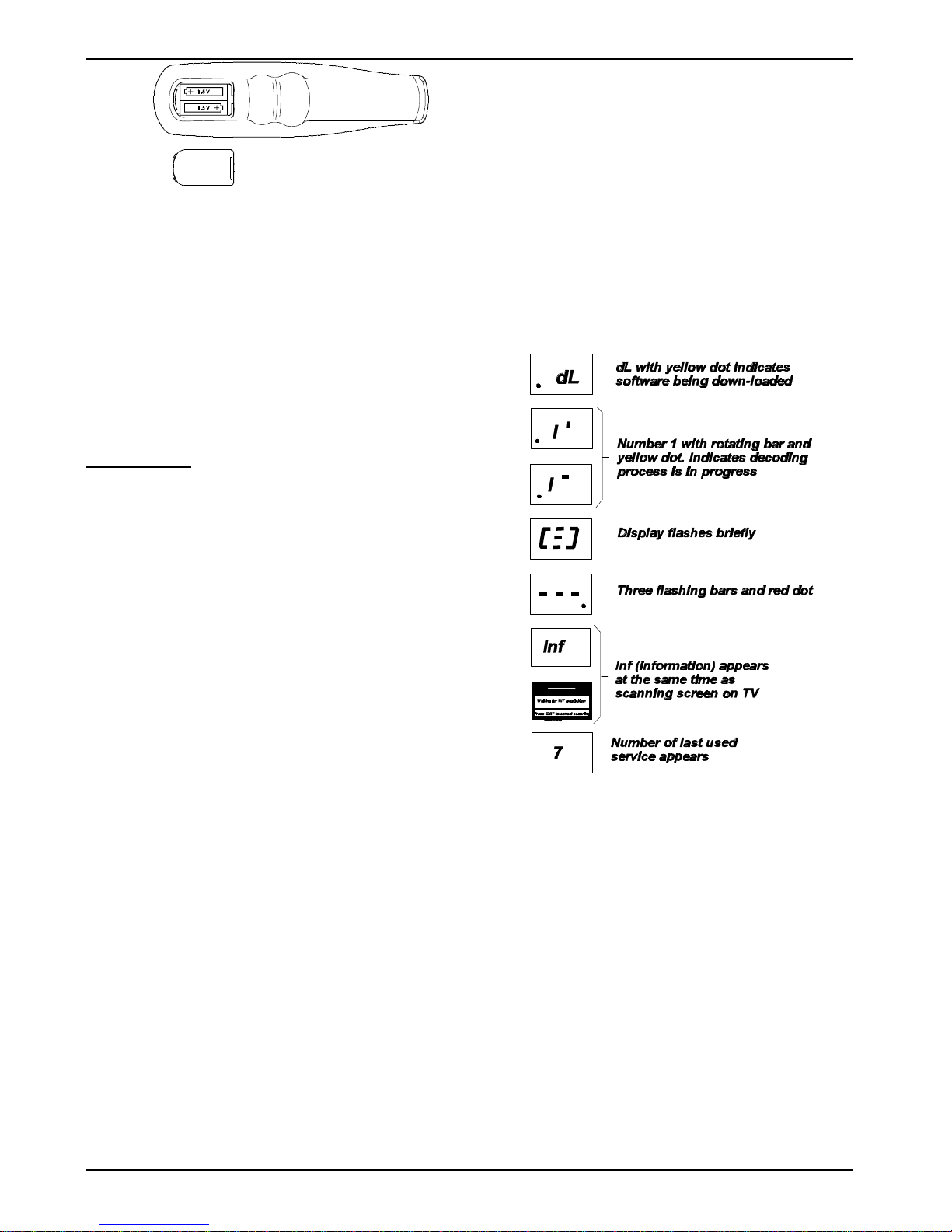

Switching on the Decoder at the Mains
When you switch on the decoder at the mains, it goes through a power-
up sequence, then attempts to find a signal at the specific factory-set
frequency. During this process, various indications are displayed on the
decoder display and TV, as shown in the following sequence of
drawings:
NOTE: If the TV is not tuned to the channel chosen to view the
satellite services, the sequence is still the same, but the
TV will not display the scanning screen. To tune the TV
to the decoder services, tune the TV as per Tuning Your
TV.
If your TV has been tuned to accept the decoder services, but
your smart card has not been inserted into the decoder, an
error message will appear on your TV screen.
Ifyourdecoderwasinstandbymodeatmainspowerswitchoff,
the decoder will display a green dot when mains power is
restored. Press On/Off symbol to restore signal.
Tuning your TV
If your TV is not tuned to the decoder viewing channel, you will not be able
to view the satellite services. Your VCR, decoder and TV can also interfere
with each other unless they are tuned in correctly. The output of the decoder
can be tuned over the whole UHF band using the following recommended
method (refer to the following figures):
1Connect the satellite dish and terrestrial antenna (installer).
2Connect the installation as shown (if VCR installed).
3Switch on the TV and select an unused channel to use with your
VCR.
4Switch on your VCR, then set its test signal to ON (see VCR
instruction manual).

8OPERATING INSTRUCTIONS DSD 660
5Tune the TV to the test signal from the VCR. Switch off the VCR
test signal.
6On the TV, select any unused channel on which you wish to view
your satellite programmes. Once selected, all your satellite
services will be viewed on this channel, selection of the service
being made using the RCU.
7Press and hold UHF on the RCU for approx. 5 seconds until
UHF is displayed on the decoder display. Tune your TV set to
receive the decoder test signal display (see following figure).
A Channel number (initially 46) will be displayed on the decoder
front panel display.
Press UHF on the RCU to remove the test signal.
Check that any noise from the decoder does not interfere with
signals received on the VCR.
Check all tuned channels on the TV for interference.
8If any interference is noticed, change the UHF channel number
as follows:
Press and hold UHF on the RCU to display UHF on the decoder
display and the UHF test screen on the TV.
Change the channel number to 2 more or 2 less than the existing
number (44 or 48) by pressing =or <twice on the RCU. Press
OK to save. The following will happen as soon as =or <is
pressed:
a. The TV display is lost because the TV is not tuned to the
new channel.
b. The new channel number is displayed on the front panel
of the decoder.
On the TV, retune the channel allocated to the decoder until the
decoder test pattern is clearly visible.
Repeat step 8 until interference on all channels is eliminated.
NOTE: After changes have been made, the decoder must not be
switched off for at least 3 minutes to allow for the new
setting to be saved.
If interference is still present, it is recommended that good quality
screened cables (preferably double screened) are used for
interconnecting all other equipments to the decoder.
Adding a Modem
Many exciting interactive features will be available in the future (Impulse Pay
Per View, Video on Demand, etc.). The decoder is ready for these features
as it can accommodate an optional built-in modem. A modem port for
connection to your telephone line via an external (faster) modem is provided
on the rear panel.
Standby and Normal Modes
The decoder does not have a mains power on/off switch and it is
recommended that, for normal viewing, it remains connected to the mains
after installation.
When the decoder is not in use, it should be switched to the standby
mode using the symbol on the front panel or on the RCU.
The standby mode is indicated by a constant small green dot on the right of
the decoder display panel. To use the decoder after the initial installation:
1Switch on the TV and any other equipment included in the system.
2Select the channel on the TV that you have allocated for viewing the
satellite services.
3If the decoder is in the standby mode, press on either the
RCU or decoder front panel, to return to the normal viewing mode. A
service number will be displayed on the front panel indicator.
4Press TV on the RCU. A Bouquet selection box is then displayed on
theTVscreen(seepage13).Selectthebouquetyouhavesubscribed
to (e.g., DSTV), then press OK.
5If you wish to select the Audio Services, press the +key on the RCU,
or +on the decoder front panel. If subscribed to, an audio service will
be heard, and the audio programme information box will be displayed
on the TV. A green indicator on the front panel display is illuminated
while the decoder is in the Audio Services mode.
Some audio services are free-to-air and do not require a subscription.
TV Services are restored by pressing TV on the RCU, or TV on
the decoder front panel.
NOTE: When switching from normal to standby then back to
normal, the decoder automatically returns to the
previously selected service.
If a SCART VCR is connected, it is not necessary to
take the decoder out of standby to view VCR play back.
6The decoder is set up to the local default settings by the
manufacturer. If it becomes necessary to change the installation
parameters consult your local installer.
The decoder is now ready for normal use.

DSD 660 OPERATING INSTRUCTIONS 9
Optional Decoder Connections
Introduction
There are several ways of connecting the decoder to an existing
entertainment system.
The following more common examples enable you to view satellite
services and terrestrial channels, record and playback from a VCR and
listen to CD quality stereo sound on a Hi-Fi.
Consult your local installer for assistance in setting up an audio/video
configuration best suited to your requirements.
Hints to Quality TV System Configurations
#Where possible, connect cables via audio/video outputs/inputs
(SCART or RCA) instead of RF connectors.
#Use an appropriate, correctly installed satellite dish system.
#Ensure that the system is properly earthed and protected against
lightning.
#Use high quality stereo TV and Hi-Fi equipment.
#Use high quality screened cables.
NOTE: When Video and Audio Inputs/Outputs are used, it may
be necessary to select a Video mode on the VCR and TV
in place of a TV mode.
Satellite Decoder, M-Net Decoder, VCR, TV (using SCART or RF
Interface)
If several TV sets are used domestically, different TV programmes cannot
be viewed separately on each TV using just your satellite decoder. It may
therefore be desired to use your existing M-Net decoder in conjunction with
your satellite decoder.
NOTE: As the LNB carries a small voltage from the decoder on its
centre connector, it is recommended that the decoder is
switched off at the mains before connecting or
disconnecting the LNB.
1If an M-Net decoder is used, connect the terrestrial antenna
connector to the RF IN socket on the M-Net decoder. If an M-net
decoder is not used, connect the terrestrial antenna connector to the
RF IN socket on the satellite decoder.
2If a VCR is included in the installation, this is connected into the
system as per the diagram.
The following instruction applies if your TV has a SCART connector.
3Using a SCART-to-SCART cable (not supplied), connect the
TV SCART socket on the decoder to the SCART socket on the TV.
The following instruction applies if your TV does not have a SCART
connector.
4Use the supplied flylead to connect the RF OUT socket on the
decoder to the RF IN socket on the TV.
5Connect the coaxial cable connector from the LNB on the satellite
dish into the socket marked LNB IN on the decoder. The connector
on the coaxial cable should be turned until it is finger tight.

10 OPERATING INSTRUCTIONS DSD 660
Decoder, TV (SCART or RF Interfaces), Hi-Fi
NOTE: It is recommended that you switch off the mains
supply to the decoder before connecting or
disconnecting the LNB connector.
1Connect the terrestrial antenna connector to the RF IN socket on
the decoder.
2Connect a flylead between the variable stereo sound outputs on
the decoder and the audio inputs on the Hi-Fi.
3Connect the coaxial cable connector from the LNB on the satellite
dish into the connector marked LNB IN on the decoder. The
connector on the coaxial cable to the decoder should be finger
tight.
4Using a SCART-to-SCART cable (not supplied), connect the
TV SCART socket on the decoder to the SCART socket on the TV.
5If the TV does not have a SCART socket, use the supplied flylead to
connect the RF OUT connector on the decoder to the RF IN
connector on the TV.

DSD 660 OPERATING INSTRUCTIONS 11
Decoder, VCR , TV, Hi-Fi
NOTE: It is recommended that you switch off the mains
supply to the decoder before connecting or
disconnecting the LNB.
1Connect the terrestrial antenna connector to the RF IN socket on
the decoder.
Follow Steps 2 to 4 if you are not using SCART connectors
2Usingthesuppliedflylead,connecttheRFOUTconnectoronthe
decoder to the RF IN connector on the VCR.
3Using the flylead supplied with the VCR, connect RF OUT on the
VCR to the RF IN on the TV
.
4Connect the coaxial cable from the satellite dish to the LNB IN
connector on the decoder. Tighten the connector finger tight.
Follow Steps 5 and 6 if you are using SCART connectors.
5Using a SCART-to-SCART cable (not supplied), connect the TV
SCART connector on the decoder to the SCART socket on the TV.
6Using another SCART cable, connect the VCR SCART on the
decoder to the SCART on the VCR.
7Connect the VARIABLE LEFT and RIGHT HI-FI AUDIO OUT
connectors on the decoder to the LEFT and RIGHT AUDIO INPUT
connectors on the Hi-Fi.
8Switch power on to the decoder.
9Set the TV and VCR Scart Source and TV and VCR Scart Video
Output using the TV Installation menu. See page 23.

12 OPERATING INSTRUCTIONS DSD 660
Decoder, VCR, TV, Hi-Fi (using RCA Connectors)
NOTE: It is recommended that you switch off the mains
supply to the decoder before connecting or
disconnecting the LNB.
1Connect the terrestrial antenna to the RF IN socket on the
decoder.
2Using the supplied flylead , connect the RF OUT on the decoder
to the RF IN on the VCR.
3Using the flylead supplied with the VCR, connect the RF OUT
on the VCR to the RF IN on the TV.
4Connect the coaxial cable connector from the LNB on the satellite
dish into the socket marked LNB IN on the decoder. Tighten the
connector finger tight.
5If the TV and VCR have AV connectors, connect as shown in the
diagram.
6Connect the VIDEO OUT connector on the decoder to the VIDEO IN
connector on the VCR.
7Connect the MONO AUDIO socket on the decoder to the AUDIO IN
socket on the VCR.
NOTE: If your VCR has a stereo audio input,connect the
FIXED stereo audio outputs from the decoder to the
VCR stereo audio connector.
8Switch the power on to the decoder.

DSD 660 OPERATING INSTRUCTIONS 13
Two Satellite Decoders, TV (using AUX SCART and RF Interfaces)
The AUX SCART connector has audio, video (RGB) and composite
video input connections that can be used to connect a second analogue
or digital receiver. If a second receiver is connected, signals from
selected sources are automatically routed internally in the decoder to the
TV SCART connector.
NOTE: It is recommended that you switch off the mains
supply to the decoder before connecting or
disconnecting the LNB
1Connect the terrestrial antenna connector to the RF IN socket on
the decoder.
2Using a SCART-to-SCART cable (not supplied), connect the
TV SCART socket on the decoder to the SCART socket on the
TV.
3If the TV does not have a SCART connector, use the supplied
flylead to connect the RF OUT socket of the decoder to the RF IN
socket on the TV.
4Connect the coaxial cable connector from the LNB on the satellite
dish into the socket marked LNB IN on the decoder. The
connector on the coaxial cable should be turned until it is finger
tight.
5On the first decoder, connect a second RF cable with F-type
connectors (not supplied), from the LNB OUT connector to LNB IN
connector on the second decoder.
6Connect a second SCART to SCART connector between the AUX
SCART connector on the decoder and the TV SCART on the second
decoder.
RCU UHF Button Selection Functions
Pressing UHF on the RCU with the second decoder connected and
operating, selects the TV viewing source in the sequence VCR, AU1, TV
and IRD. If AU1 is selected, the satellite picture is routed to the TV and VCR
from the second decoder.
If a second satellite decoder is being used, consult the installer as to the
menu setup requirements.

14 OPERATING INSTRUCTIONS DSD 660

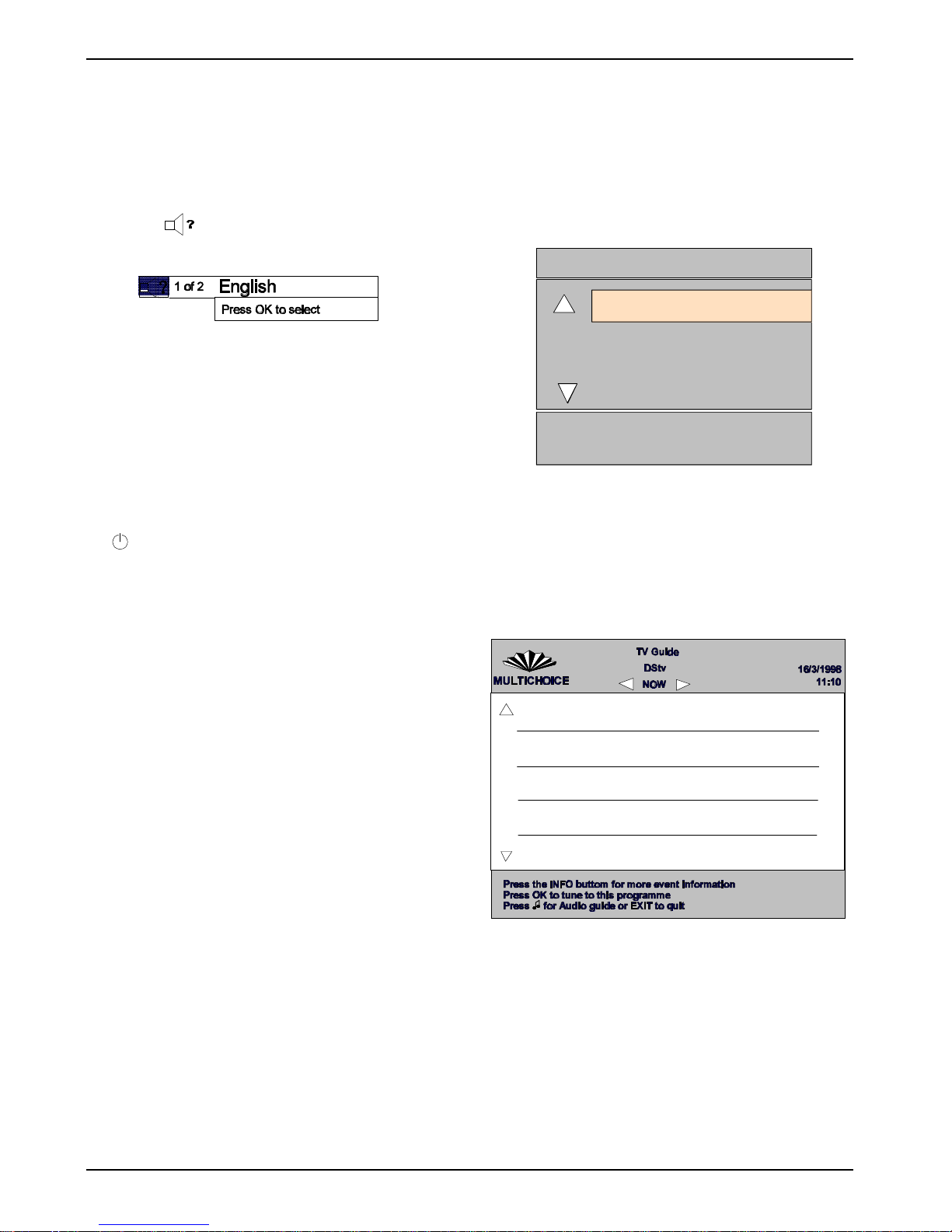

Bouquet Selection
The TV services are transmitted in subscribed packages called
BOUQUETS, each bouquet containing a series of services. The
decoder has provision for several bouquets, any of which can be
selected by pressing TV on the RCU, highlighting the required bouquet
using the up/down arrows on the RCU , then following the on-screen
instructions. If a selected bouquet is not subscribed to, a message “E38
Service is not currently running” will appear on the TV screen.
When a subscribed to bouquet is selected, the services in that bouquet
will be listed numerically in the Electronic Programme Guide (see page
15).
Selecting Specific Services
Specific TV or Audio Services can be selected, either:
#Directly
#By stepping through services
#By using the Open TV Electronic Programme Guide (EPG), or
#By using the Open TV Information Bar.
Selecting Services Directly
Services can only be selected directly using the RCU. To select a
specific service, do the following:
1To select an audio service, press +on the RCU. Press TV to
restore TV services.
2PressthenumberoftherequiredserviceontheRCU’snumerical
keypad.
The specific service will be heard/displayed after a few moments
accompanied by an information box at the bottom of the TV
screen with details of the selected service.
NOTE: Toselectservicesrequiringtwo-digitnumbers,i.e.,
10-99, press the first digit, then the second digit
without pausing.
TIP:When the key for the first digit is pressed on the RCU, the
corresponding number is displayed on the left of the front panel
numerical display on the decoder. After a few moments, the
number moves to the right. The second digit of two digit numbers
must be keyed in before this move takes place.
Stepping through Services
Stepping through services is possible using either the RCU or decoder
front panel keys.
Stepping using the RCU
To step through services using the RCU, do the following:
1Select the type of service required, TV or audio (+).
2Press P+ to step to the next service or P - to step to the previous
service in the list of available services.
After pressing P+ or P -, an information box is displayed at the bottom
of the TV screen with details of the service. After a few seconds, the
relevant service is displayed/heard.
3If required, continue stepping by pressing P+ or P - until you find the
service you prefer. It is not necessary to wait for services to be
displayed/heard before stepping to the next or previous service.
If you decide to watch or listen to a service you have stepped to, wait
for the service to be displayed/heard. The information box will
disappear after a short while or can be removed immediately by
pressing EXIT.
NOTE: When you reach the last available service in the list
and press P+ you are returned to the first service in the
list.
TIP:Use the convenient selecting and sorting facilities to personalise the
services list. After using these facilities, your favourite services will be
in your order of preference. Refer to page 20.
Stepping using the Decoder Front Panel Keys
To step and select a specific service using the decoder front panel keys, do
the following:
1Select the type of service required, by pressing TV +to switch
between TV services and audio services. Selection of the audio
service is indicated by a green indicator on the front panel display.
2Press >(up) to step to the next service or ?(down) to step to the
previous service in the list of available services.
After pressing >or ?,an information box is displayed at the bottom
of the TV screen with details of the service. After a few seconds the
relevant service is displayed/heard.
3Continue stepping, by pressing >or ?until you find the service you
prefer. It is not necessary to wait for services to be displayed/heard
before stepping to the next or previous service.
To view/listen to any service you have stepped to, wait for the service
to be displayed/heard. The information box will disappear after a short
while.
NOTE: When you reach the last service in the list, pressing >
returns you to the first service in the list. The >and
?symbols have dual functions and cannot be used for
stepping while the volume control box is displayed on
the screen. This box is displayed when setting the
volume, see page 14.
Selecting Specific Services from the EPG
NOTE: For a description of the Electronic Programme Guide
(EPG) refer to page 15.
Selecting Services from the Information Bar
NOTE: A description of the Information Bar is on page 17.

DSD 660 OPERATING INSTRUCTIONS 15
Controlling the Show
Volume Control using the RCU Keys
NOTE: It is recommended that you first select a terrestrial
channel, then set the volume on the TV to a
comfortable listening level.
To change the volume level on the decoder, select your satellite service,
then press V+ to increase the volume level or V- to reduce the volume
level. The following is displayed on the TV screen when adjusting
volume:
The volume level is depicted by the length of the highlight bar.
NOTE: The Fixed Stereo Sound Outputs (Left and Right)
cannot be controlled with the volume control keys
on the RCU or on the front panel.
Volume Control using the Decoder Keys
To change the volume level, press P/V on the decoder. The following is
displayed for a brief time:
While the volume control window is displayed, press and release >or
?respectively to increase or reduce the volume level in separate steps.
The change in volume level is depicted by the changing length of the
highlight bar.
NOTE: TheVariableStereoSoundOutputs(LeftandRight)
canbecontrolledusingthevolumecontrolkeyson
the RCU or on the front panel.
Mute
To mute the audio do the following:
1Press on the RCU. The following window is displayed for
3 seconds and the audio muted:
2To restore the audio press again. The audio is
restored at the previous level and the volume control window
displayed for 3 seconds.
3Adjust the volume level using V+ and V-.
NOTE: The mute function is disabled when the FIXED
STEREO audio outputs (Left and Right) on the
decoder are used. This ensures a fixed volume
level for recording purposes. The VARIABLE
STEREO audio outputs (Left and Right) of the
decoder can, however, be muted.
Displaying Subtitles or Teletext
Subtitles
If subtitles are available, they are normally displayed on the screen as part
of the program.
To remove a subtitle do the following:
1Press symbol on the RCU. A box is displayed on
the TV screen as follows:
NOTE: If subtitles are not available, a “No subtitling” window
is displayed for 5 seconds. Press EXIT if required.
2To restore the subtitles, press again. The following box is
displayed
Teletext
Some services (e.g., CNN) have a teletext service. This can be selected as
follows:
1With the service selected, i.e., CNN, press symbol twice on
the RCU. The following box is displayed:
If teletext is not available, a “No teletext” window is displayed for 5
seconds. If other languages are available keep pressing the symbol
until the language is selected.
2To make the teletext transparent press the symbol again.
3To page up or down, press P+ or P- on the RCU. To change to a
distant page, select the page number on the RCU keypad, then press
OK
4To clear the teletext , press EXIT on the RCU.
Clock
To view the time do the following:
1Press on the RCU. The date and time are displayed for
a few seconds. If required press EXIT to clear.

16 OPERATING INSTRUCTIONS DSD 660
Services
Now/Next EPG
Extended EPG
Theme Search
Press OK to select
Press EXIT to cancel
5 Jupiter Moon 12:30 - 13:00
SciFi Space School Fam
20 Striptease 11:05 - 13:05
TMMC Drama 18
21 Blue River 11:30 - 13:00
Hall Drama Fam
22 The Picture of Dorian Gray 12:30 - 14:20
Drama Fam
30 Motorsport Magazine 13:00 - 14:00
SS Reports Fam
Selecting Soundtracks
Available soundtracks, included with programmes, can be heard and
selected at any time while watching a programme.
NOTE: Preferred soundtrack languages for automatic
selection can be set using the menu system. Refer
to Soundtrack Options (page 19).
To listen to and select available soundtracks, do the following:
1Press on the RCU. The current soundtrack
language is displayed as follows:
Pressing OK selects the option listed.
2Press the symbol again. If there are additional soundtracks
available, the next soundtrack option is listed in the window.
Continue pressing to cycle through all the available soundtracks.
3Press OK to select a soundtrack language. The soundtrack
window is displayed and the new soundtrack is heard.
Power Reset
Should your TV picture freeze, it is possible to reset the decoder without
unplugging it from the power supply. Simultaneously press then release
the and TV/+buttons on the decoder front panel.
Signal Source Selection
Switching between signal source devices is automatic by using the UHF
button on the RCU. To select between the available signal sources, a
single press-release of the UHF button in normal running mode (i.e., not
in menu or EPG) switches to the next source. This is an override
selection in that it will switch to VCR even if a VCR is not playing.
The signal source is indicated on the decoder front panel display. The
available options are:
!Decoder (IRD): This allows you to use your satellite
services and switches any other device (VCR, second
decoder) to Off or Standby.
!VCR: This allows you to view a program on the VCR.
Press Play on the VCR to view.
!AUX (AU1): This allows you to use the services of a
second decoder. The LNB polarisation must be the
same for both decoders.
!TV (tv): This allows you to use the terrestrial TV
channels.
OPENTVELECTRONICPROGRAMME
GUIDE
The decoder stores up-to-date information, received over the air, of all
the currently subscribed to TV Services and on-air Audio Services, as
well as the next and extended programmes scheduled for each TV and
Audio service. The information for each programme includes, where
appropriate:
#The service number and name
#Title of the programme
#Censorship classification of the programme
#Brief information on the programme
#Start and finish times of the current programme
#Reminders
#Impulse Pay Per View symbol (when available)
Using the EPG
1On the RCU, press TV GUIDE. An on-screen menu is displayed as
follows:
NOTE: When pressing any of the arrow controls on the RCU,
the colour of the displayed arrow in the EPG screens
darkens to indicate activity.
Now/Next EPG
Selecting Now/Next EPG displays a programme guide, as shown in the
following diagram, that provides short text descriptions of the TV and audio
programmes contained in the selected bouquet, as well as the next
programmes scheduled for each TV and audio service.
NOTE: TV programmes are not displayed and audio not heard
while the EPG screen is displayed.
2Use the cursor keys >or ?to scroll up or down the list, as only five
events are shown on the screen. When the last event is highlighted
and you press ?, five new events are displayed and the highlight is
put at the top of the list. This also works for scrolling up.
The list is continuous, so after the last service the Guide starts
displaying service 1 again.
The current programmes are listed when NOW is selected and the
programmes to follow are listed when NEXT is selected.
3To move between the NOW or NEXT programmes, press =or <
on the RCU.

DSD 660 OPERATING INSTRUCTIONS 17
MULTICHOICE
DStv
(1) MNet
Today
P- P+ 16/3/1998
11:10
10:30 Egoli - Plek van Goud
Daaglikse Reeke Fam
11:02 The New Age
Dramatic Comedy 18
13:00 The Warehouse
Product Info Fam
14:30 Teletubbies
Series Fam
14:58 Bananas in Pyjamas
Adventure Fam
Press the INFO buttom for more event information
Press OK to tune to (1) MNet
Press EXIT to quit
MULTICHOICE
DStv
Theme Search Setup 16/3/1998
11:10
Press OK to start the search
Press EXIT to quit
Select the day Today
Select the time of day Whole Day
Select the theme Movies
Select the subtheme Action
4Select the highlighted programme to view/hear by pressing OK.
NEXT programmes cannot be viewed before their start time.
When attempting to view them the following screen is displayed:
Pressing OK sets a programme reminder and a clock symbol
appears under the programme time, indicating a reminder. To
remove the reminder press OK again; the clock symbol
disappears.
5Additional information on the programme is displayed when ion
the RCU is pressed with a service on the the EPG selected.
Press EXIT to return to the EPG.
6Press +on the RCU to enter the Audio guide. The Audio guide
behaves exactly the same as the TV guide. Pressing TV on the
RCU takes you back to the TV guide.
7Press OK to return to normal viewing/listening.
8In all programme guides, additional information on the
programmes is displayed when ion the RCU is pressed while the
EPG is displayed and the programme highlighted.
Extended EPG
SelectingExtendedEPGprovidesaguideastotoday’sprogrammesandthe
next 7 days, as per the following diagram:
Pressing <on the RCU, selects the TV guide for tomorrow’s programmes.
Pressing and holding the <button pages through each day’s programme
until the end of the 8 days.
Pressing and holding the =button, returns you to today’s programme guide.
Theme Search
Selecting Theme Search allows you to search for a particular type of
programme, as shown in the following diagram:
Scrolling down using the ?button transfers the highlight and left and right
arrows to the selected box. Pressing the arrows selects various options.

18 OPERATING INSTRUCTIONS DSD 660
MULTICHOICE
DStv
Today - Whole Day 16/3/1998
11:10
Press the INFO button for more event information
Press OK to tune to (22)TNT
Press EXIT to return to the setup screen
Action
13:05 Press TV Guide, then ifor more info
15:05 Action (20) TMMC 18
02:00 The Gypsy Moths
04:00 Action, (22) TNT Fam
50 Science Frontiers 15:00 - 16:00
Disc Science Fam
Making a selection in the sub-theme box, then pressing OK presents a
display as per the following diagram:
OPEN TV INFORMATION BAR
AtanytimewhilstwatchingTVservicesorlisteningtoradioservices,the
viewer can obtain information about the current programme and
select available programmes via the Information Bar.
1Press ion the RCU. The following window is displayed:
2Use the cursor keys >or ?to scroll up or down through titles
on other services, whilst simultaneously watching the current
service. The current programmes are listed when NOW is
selected and the programmes to follow are listed when NEXT is
highlighted.
Pressing iwiththeInformationBardisplayed,providesadditional
information on the programme.
The local time will also be displayed on the TV when the
Information Bar is displayed.
3Move between the NOW or NEXT programmes by pressing <
or =on the RCU.
4With NEXT selected, an Information Bar appears that displays
the next programme. Pressing OK sets the reminder and a clock
symbol appears in the Information Box. Pressing OK again
removes the reminder.
NEXT programmes cannot be viewed before their start time.
To exit the Information Box, press EXIT.
5Whenviewingaprogramme,totunetoanotherprogrammepress
the numbered keys on the RCU. The Information Bar will be
displayed for X seconds (see Information Box Display Period,
page 20).
REMINDERS
The procedure for setting and removing a reminder has already been
detailed.
Refer to Open TV Electronic Programme Guide page 15 or Open TV
Information Bar page 17. At the right time a reminder message pops up. If
you intend to watch the booked programme, press OK on the RCU which
tunes the decoder to the new service. Otherwise press EXIT to remove the
message, while remaining tuned to the original service.
PARENTAL BLOCKING
When the user has selected a service where there is a parentally blocked
programme,a“key”symbolisdisplayedintheInformationBar(bottomright).
ThemessageabovetheInformationBarindicatesthattheusershouldpress
OK to unblock the programme.
1Press OK. A screen requiring the Parental PIN code is displayed.
2Enter your Parental PIN code using the keypad. Refer to Parental
Guidance Options page 19. The programme is then unblocked.
NOTE: The default Parental PIN code is 1234.

DSD 660 OPERATING INSTRUCTIONS 19
Soundtrack Options
Parental Guidance
Information Box Display Period
Organising Services
Mail Messages
Advanced Options
Press and to select option
Press OK to confirm option
Main Menu
Parental Guidance Censorship Classification
Change PIN
PIN Code
Change PIN Code- Old/New
Display Period (seconds)
Reset TV Services
Sort Audio Services
Full Rescan
Mail Messages Mail Message Box
Change Dish
Installation LNB Configuration
Tune DSD
Signal Detection
Information DSD Status
TV Type
TV Installation
Change Modem Settings
Local Time
DSD Upgrade
Aspect Ratio
UHF Tuning
SCART Source
SCART Video
Output
Loop-Through Mode
Current Order List
Relocate
Current Order List
Relocate
Coarse Tune
Fine Tune
PIN Code for
Installation
PIN Code for
Installation
Reset Audio Services
Information Box Display Period
Soundtrack Options Soundtrack Options
Advanced Options
Signal Setup
Sort TV Services
Current Order List
Reset to Factory
Defaults
Loader Status
CA Status
Organising Services
MENU NAVIGATION ROUTE
NOTE: The menu structure is occasionally upgraded over the
air by the Service Provider and may differ slightly from
that shown in these instructions.

20 OPERATING INSTRUCTIONS DSD 660
Parental Guidance
Censorship Classification
Press and to select option
Press OK to confirm selection
Change PIN
USING MENUS
To use the Menu system:
1Ensure that the decoder is not in standby mode by
pressing , if necessary.

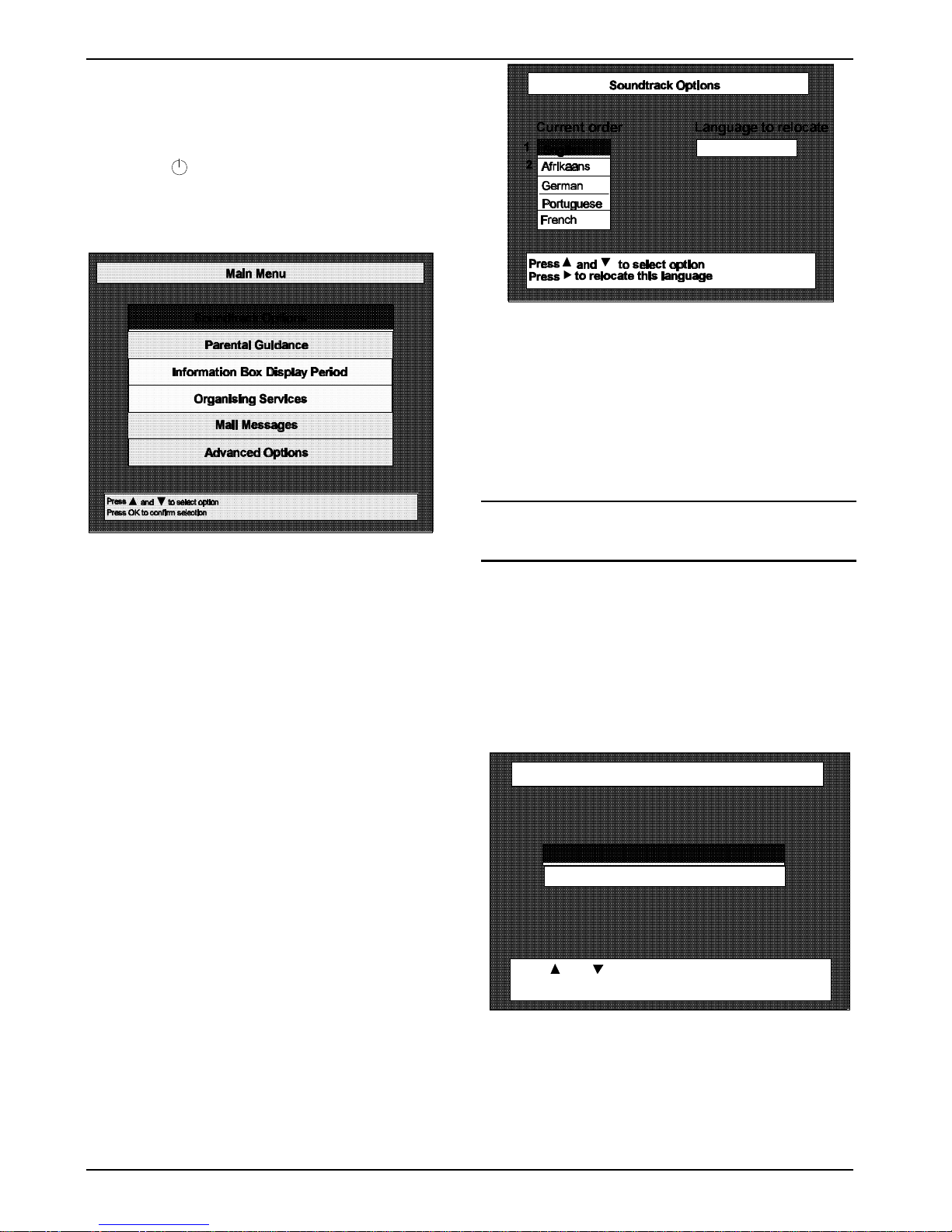

2Press MENU on the RCU. The following Main Menu is displayed,
which provides access to all other menus as shown in the
following figure:
All the menus are navigated as follows:
1Use >or ?buttons to scroll the highlighted bar up or down in
a (sub)menu or a vertical list box.
2Select a highlighted menu option and go one level lower within the
menu hierarchy by pressing OK on the RCU. This applies to the
Main Menu screen and all submenu screens.
In screens where parameters can be set, OK is used to save the
settings.
3Use EXIT to return to the preceding menu (go one level higher
within the menu hierarchy).
In screens where the parameters can be set, EXIT is used to
cancel any settings that may have been entered without saving.
4Use =and <buttons to change the value of an input field
having preprogrammed values.
5Use MENU to exit all menus and return to the TV or audio
programme.
6Use numbered buttons to enter numerical values.
Soundtrack Options
Soundtrack Options allows users to set the programme language of the
decoder, where one is available.
To select the text language of your choice do the following:
1Press MENU on the RCU.
The Main Menu options list is displayed.
NOTE: On initial selection of the Main Menu, the default
setting is for Soundtrack Options.
2Press OK to select Soundtrack Options. The following option list
is displayed:
3On the RCU, press >or ?arrows to highlight the preferred
language that you wish to relocate from the list.
4Press <to move the highlighted language option into the relocation
window.
NOTE: Only two languages can be relocated into positions 1 and 2.
5Press OK to confirm your selection.
Parental Guidance
The decoder includes a Parental Guidance facility to control viewing of age
restricted programmes. Access to this facility is controlled via the Parental
PIN code.
TIP:The PIN is set at the factory to 1 2 3 4. If you intend to use the
Parental Guidance facility, please change the PIN as soon as
possible. Remember to keep a note of your new PIN in a secure
place. To unblock an event refer to page 17.
Parental Guidance can only be applied to scrambled programmes.
Setting the Parental Level
1Press MENU on the RCU.
The Main Menu options list is displayed.
2On the RCU, press ?to highlight Parental Guidance
The Parental Guidance screen is then displayed with the Censorship
Classification option highlighted
3Press OK.
ASecurity Check screen is displayed, in which the Parental PIN
must be entered using the RCU.
4On entering the correct PIN, a Parental Guidance submenu is
displayed, which is organised as follows:
NOTE: If the incorrect PIN is entered, the previous menu
(Security Check) is again displayed.
