OPERATION MANUAL
Revision #3 (10/06/08)
DRY PRIME PUMP
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
P/N 17567
MP150SDLTE (6-inch, High Flow, Deutz F3L914, Electric Brakes)
MP150SDLTS (6-inch, High Flow, Deutz F3L914, Surge Brakes)
MP150SDLSM (6-inch, High Flow, Deutz F3L914, Skid Mount)
MP200DLTE (8-inch, High Flow, Deutz F3L914, Electric Brakes)
MP200DLTS (8-inch, High Flow, Deutz F3L914, Surge Brakes)
MP200DLSM (8-inch, High Flow, Deutz F3L914, Skid Mount)
MP200SDLTE (8-inch, High Flow, Deutz F4L914, Electric Brakes)
MP200DLST (8-inch, High Flow, Deutz F4L914, Surge Brakes)
MP200SDLSM (8-inch, High Flow, Deutz F4L914, Skid Mount)

PAGE 2 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
Diesel engine exhaust and some of

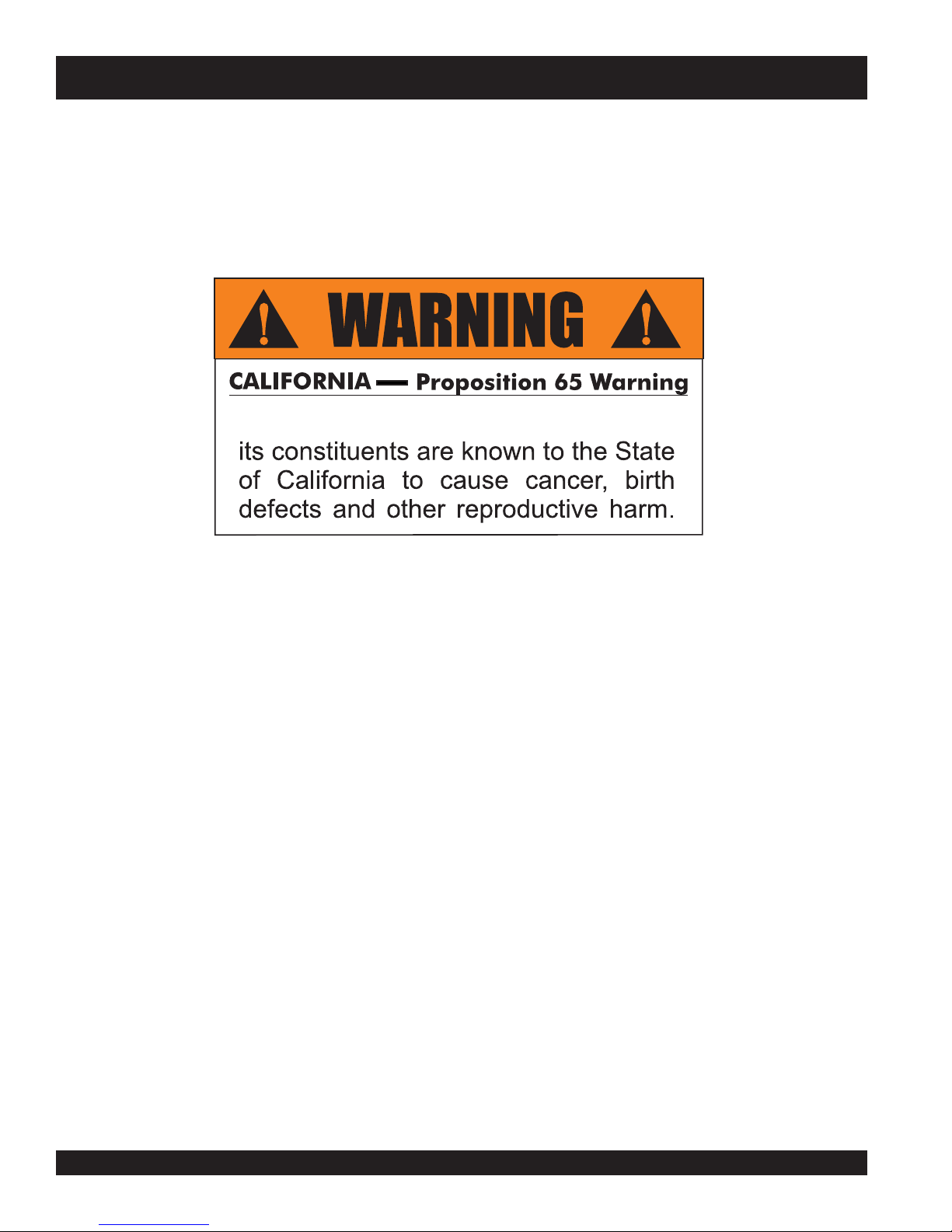

PROPOSITION 65 WARNING

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 3
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect that could cause a crash or could cause injury or
death, you should immediately inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying Multiquip at 1-800-421-1244.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a recall and remedy campaign. However,
NHTSA cannot become involved in individual problems between you, your dealer, or
Multiquip.
To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153), go to http://www.nhtsa.dot.gov; or write to:
Administrator
NHTSA
1200 New Jersey Avenue S.E.
Washington, DC 20590
You can also obtain information about motor vehicle safety from http://www.safecar.gov.
REPORTING SAFETY DEFECTS

PAGE 4 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
TRAINING CHECKLIST
This checklist will lists some of the minimum requirements for machine maintenance and operation. Please feel free to detach it and
make copies. Use this checklist whenever a new operator is to be trained or it can be used as a review for more experienced
operator’s.
Operator _________________________________________ Trainee __________________________________________
COMMENTS:
TRAINING CHECKLIST
TSILKCEHCGNINIART
.ON NOITPIRCSED ?KO ETAD
1 .yletelpmoclaunaMs’rotarepOdaeR
2liodnaenignefognikcehc,stnenopmocfonoitacol,tuoyalenihcaM
.slevel
3 .erudecorpgnileufer,metsysleuF
4 .erudecorpgnimirppmuP
5 .serudecorppotsycnegremE
6 .erudecorppu-tratsenignE
7 )liabgnitfil(enihcamfognitfiL
8 ).ctesesu,tfil(snoitacilppapmuP
9 .tnemecalpreniartsnoitcuS
01 .snoitcennocesoH
11 .tnemecalppmuP
21 .senilediugytefasreliarT
31 .senilediuggnihtolcevitcetorP
41 .erudecorptsetmuucaV
51 .egarotsdnatropsnartenihcaM
61 .erudecorpytivacpmuptuonaelC

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 5
DAILY PRE-OPERATION CHECKLIST
COMMENTS:
DAILY PRE-OPERATION CHECKLIST
SILKCEHCNOITAREPO-ERPYLIAD T
1 .levellioenignekcehC
2 .)leufnaelcrofdna(levelleufkcehC
3 .wolfriagniloocdnasnifgniloockcehC
4 .renaelcriaenignekcehC
5 .snoitcennocelbacdnayrettabenignekcehC
6 .)etulovdnarellepmi(roiretnipmupkcehC
7 .liolaespmupmuucavkcehC
8 .liognisuohgniraebkcehC
9 .laespmupkcehC
01 .skcarcrofgnisacpmupkcehC
11 .ssenthgitrofstungulleehwreliartkcehC
21 .sgniraebleehwreliartkcehC
31 .llabdnahctihreliartkcehC
41 .)dnatskcaj(erawdrahdnasgnirpsreliartkcehC
51 .erusserperitreliartkcehC
61 .sthgilreliartkcehC

PAGE 6 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
TABLE OF CONTENTS
Specification and part number
are subject to change without
notice.
Multiquip Dry Prime
Diesel Powered Trash Pump
California Proposition 65 Warning ............................. 2
Reporting Safety Defects .......................................... 3
Training Checklist ...................................................... 4
Daily Pre-Operation Checklist ................................... 5
Table Of Contents ..................................................... 6
Safety Message Alert Symbols .............................. 8-9
Rules For Safe Operation .................................. 10-12
Pump Dimensions ................................................... 13
Trailer Dimensions .................................................. 14
Pump Specifications ................................................ 15
Engine Specifications .............................................. 16
General Information ................................................ 17
Pump Components ............................................ 18-19
Engine Components ............................................... 20
Engine Control Box Components............................ 21
Pumping Application ............................................... 22
Towing Application .................................................. 23
Setup ....................................................................... 24
Setup ....................................................................... 25
Operation ........................................................... 26-27
Maintenance (Pump) .............................................. 28
Maintenance (Engine) ........................................ 29-30
Maintenance (Trailer) ......................................... 31-34
Trailer Safety Guidelines .................................... 35-44
Tire Safety .......................................................... 45-50
Trailer Lights Wiring Diagram .................................. 51
Nameplate and Decals............................................ 52
Troubleshooting (Pump).......................................... 53
Troubleshooting (Engine) ................................... 54-55
Trailer Brakes (Hydraulic) ....................................... 56
Trailer Brakes (Electric) ........................................... 56
Terms and Conditions Of Sale — Parts .................. 57
NOTE

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 7
NOTES

PAGE 8 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)

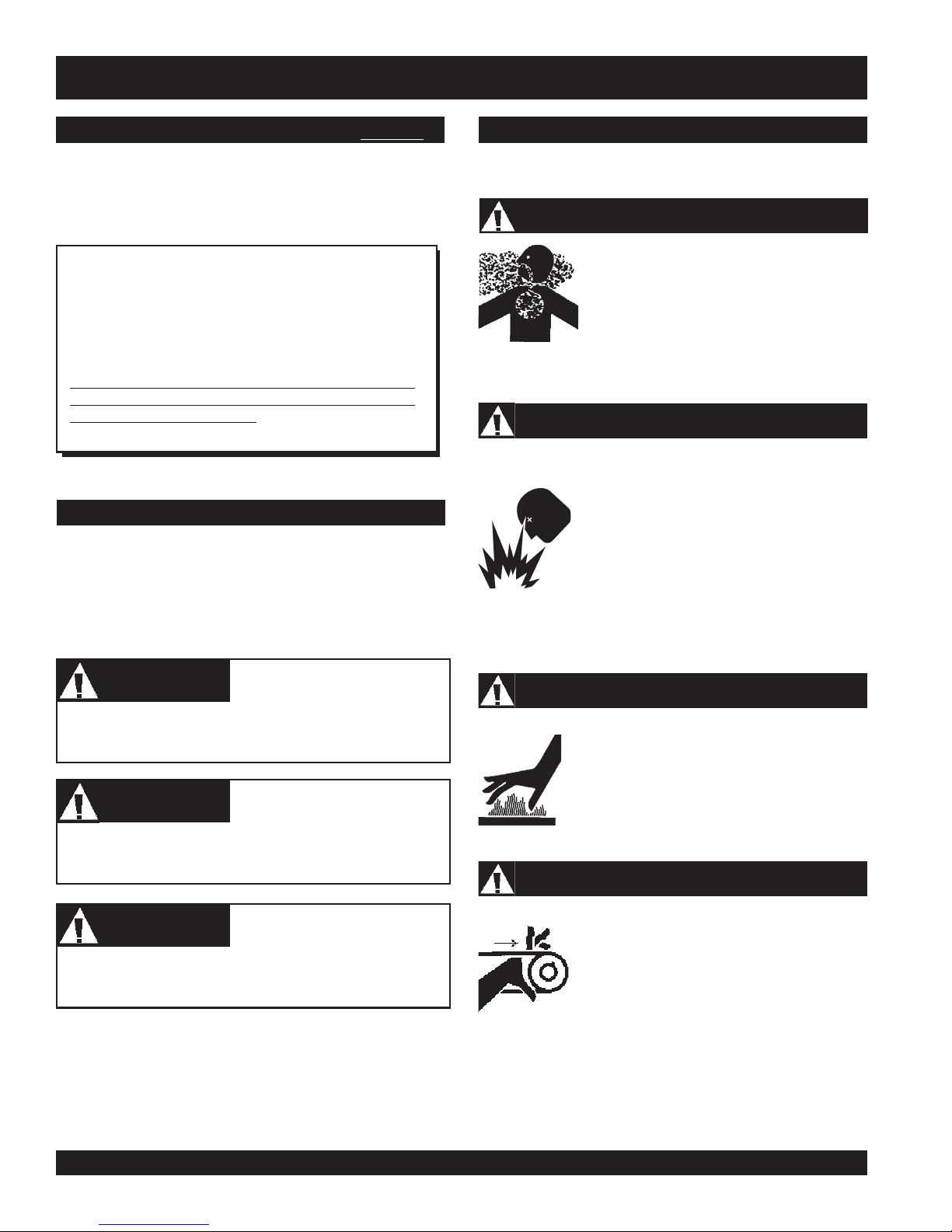

SAFETY MESSAGE ALERT SYMBOLS
Safety precautions should be followed at all times when
operating this equipment. Failure to read and understand the
Safety Messages and Operating Instructions could result in
injury to yourself and others.
FOR YOUR SAFETY AND THE SAFETY OF OTHERS!
This Owner's Manual has been developed to provide
complete instructions for the safe and efficient operation
of the Multiquip Model
Dry Prime Pump . Refer to the
engine manufacturer's instructions for data relative to its
safe operation.
Before using this trash pump, ensure that the
operating individual has read and understood all
instructions in this manual.
NOTE
SAFETY MESSAGE ALERT SYMBOLS
The three (3) Safety Messages shown below will inform you
about potential hazards that could injure you or others. The
Safety Messages specifically address the level of exposure to
the operator, and are preceded by one of three words: DANGER,
WARNING, or CAUTION.
HAZARD SYMBOLS
Engine exhaust gases contain poisonous
carbon monoxide. This gas is colorless and
odorless, and can cause death if inhaled.
NEVER operate this equipment in a confined
area or enclosed structure that does not
provide ample free flow air.
Potential hazards associated with the
Dry Prime Trash Pump
operation will be referenced with Hazard Symbols which appear
throughout this manual, and will be referenced in conjunction
with Safety Message Alert Symbols.
DIESEL fuel is extremely flammable, and its
vapors can cause an explosion if ignited. DO
NOT start the engine near spilled fuel or
combustible fluids. DO NOT fill the fuel tank
while the engine is running or hot. DO NOT
overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or
sparks from the ignition system. Store fuel in
approved containers, in well-ventilated areas
and away from sparks and flames. NEVER
use fuel as a cleaning agent.
Explosive Fuel
Lethal Exhaust Gases
Burn Hazards
Engine components can generate extreme heat.
To prevent burns, DO NOT touch these areas
while the engine is running or immediately after
operations. Never operate the engine with heat
shields or heat guards removed.
Rotating Parts
NEVER operate equipment with covers, or
guards removed. Keep fingers, hands, hair and
clothing away from all moving parts to prevent
injury.
You WILL be KILLED or SERIOUSLY injured if you DO
NOT follow directions.
You CAN be KILLED or SERIOUSLY injured if you DO
NOT follow directions.
You CAN be INJURED if you DO NOT follow directions.
CAUTION
DANGERDANGER
DANGERDANGER
DANGER
WARNINGWARNING
WARNINGWARNING
WARNING
CAUTIONCAUTION
CAUTIONCAUTION
CAUTION

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 9

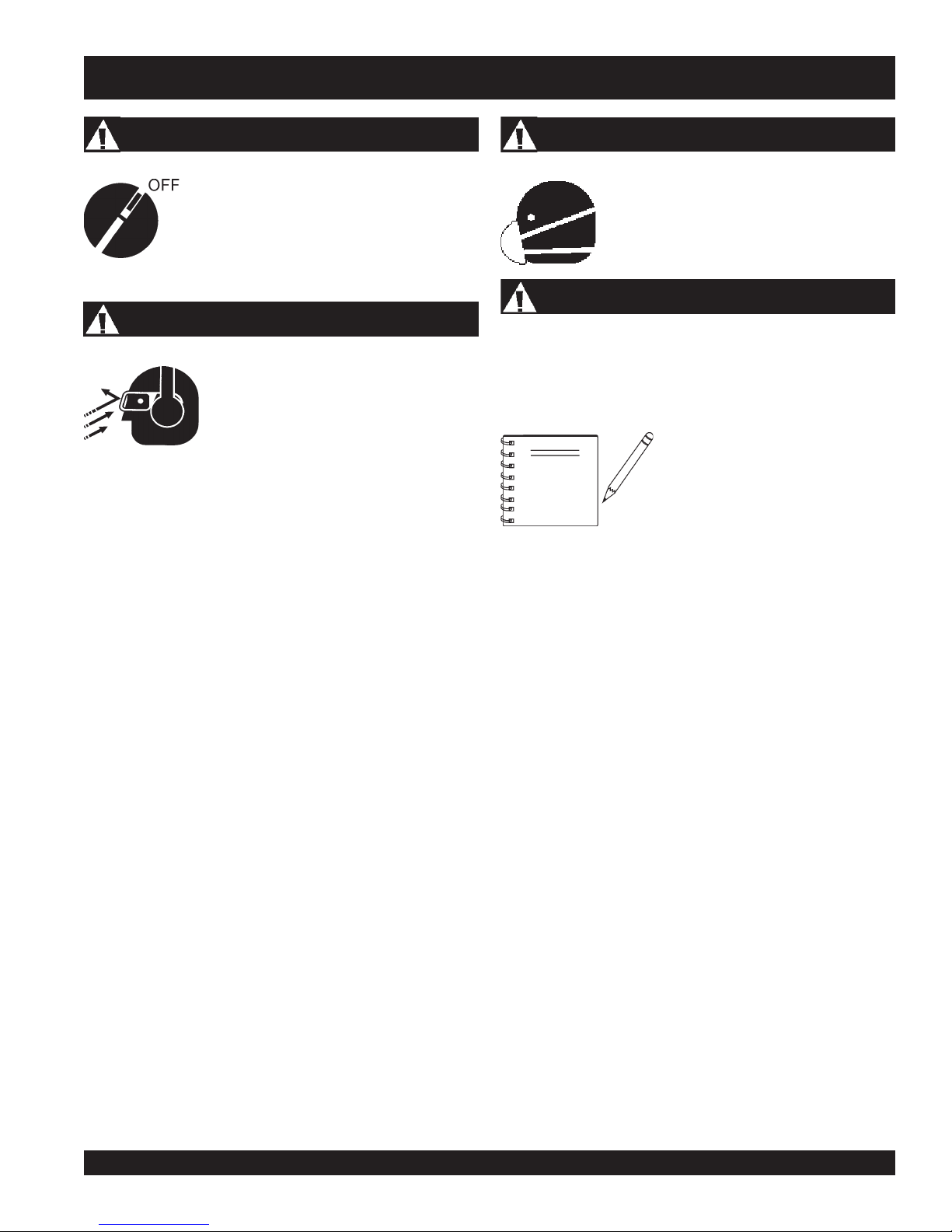

Accidental Starting
SAFETY MESSAGE ALERT SYMBOLS
ALWAYS place the engine ON/OFF switch in
the OFF position. Close the vandal cover door
on the engine control box. Lock the door by
placing a pad lock on the door hasp when the
machine is not in use.
Respiratory Hazard
ALWAYS wear approved respiratory
protection.
Equipment Damage Messages
Other important messages are provided throughout this manual
to help prevent damage to your pump, other property, or the
surrounding environment.
This pump, other property, or the
surrounding environment could be
damaged if you do not follow
instructions.
ALWAYS wear approved eye and hearing
protection.
Sight and Hearing Hazard
NOTE

PAGE 10 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)

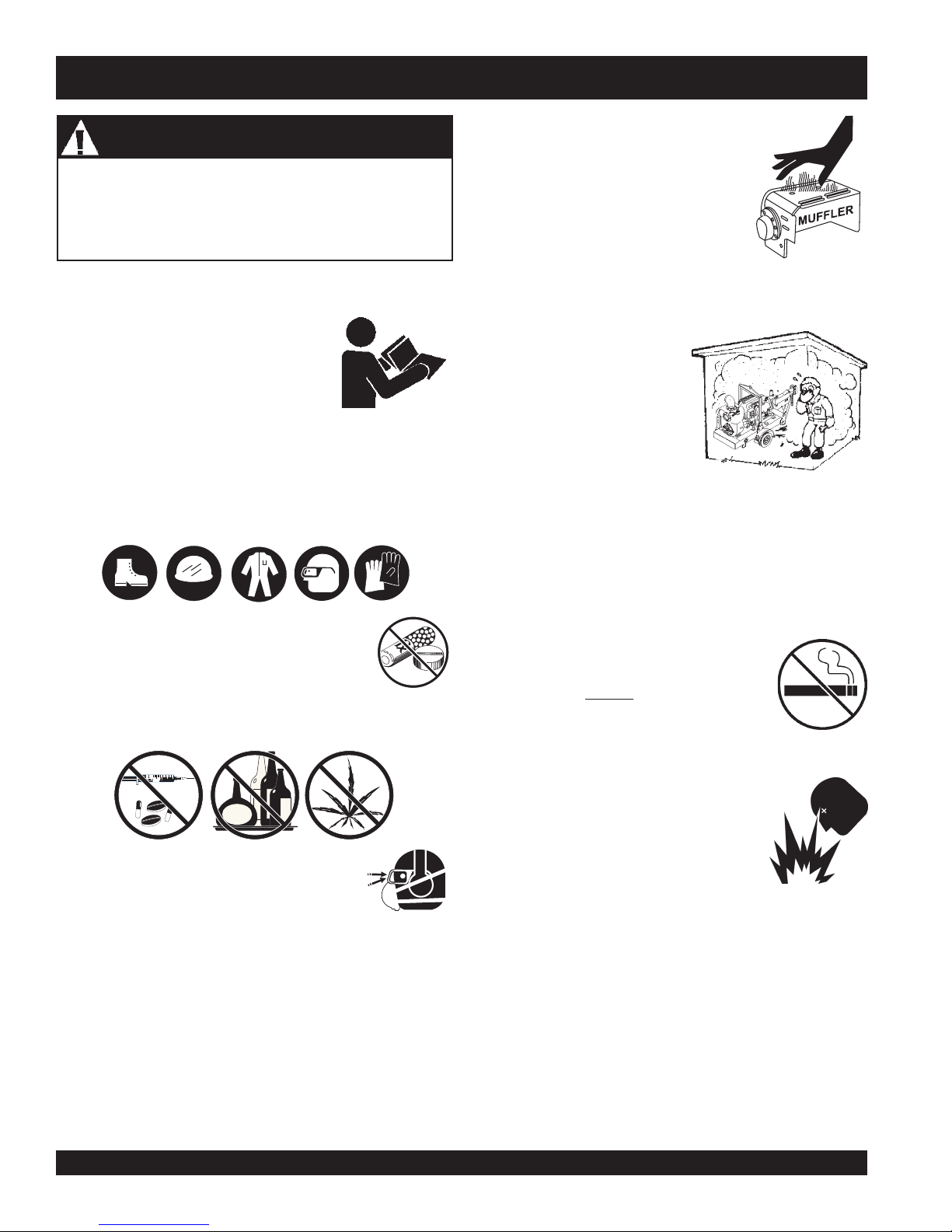

RULES FOR SAFE OPERATION
The following safety guidelines should always be used when
operating the Dry Prime Pump :
GENERAL SAFETY
■ DO NOT operate or service this
equipment before reading this entire
manual.
■ This equipment should not be operated by persons under
18 years of age.
■ NEVER operate this equipment without proper protective
clothing, shatterproof glasses, steel-toed boots and other
protective devices required by the job.
■ High Temperatures – Allow the
engine to cool before adding fuel or
performing service and maintenance
functions. Contact with
hot! components can cause serious
burns.
■ The air-cooled diesel engine
of this pump requires an
adequate free flow of cooling
air.
NEVER operate the
pump in any enclosed or
narrow area where free flow
of the air is restricted. If the
air flow is restricted it will
cause serious damage to the pump or engine and may
cause injury to people. Remember the engine gives off
DEADLY carbon monoxide gas.
■ ALWAYS refuel in a well-ventilated area, away from
sparks and open flames.
■ ALWAYS use extreme caution when
working with flammable liquids. When
refueling, stop the engine and allow it to
cool. DO NOT smoke around or near the
machine. Fire or explosion could result
from fuel vapors, or if fuel is spilled on a
hot engine.
DANGERDANGER
DANGERDANGER
DANGER
Failure to follow instructions in this manual may lead to
serious injury or even death! This equipment is to be
operated by trained and qualified personnel only! This
equipment is for industrial use only.
■ NEVER operate this equipment under the influence of
drugs or alcohol .
Read this manual!
■ NEVER touch the hot exhaust
manifold, muffler or cylinder. Allow
these parts to cool before servicing
engine or pump.
■ ALWAYS wear proper respiratory (mask),
hearing and eye protection equipment when
operating the pump.
■ Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
■ Manufacture does not assume responsibility for any
accident due to equipment modifications.
■ NEVER use accessories or attachments, which are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
■ NEVER operate this equipment when not
feeling well due to fatigue, illness or taking
medicine.
■ Topping-off to filler port is dangerous, as it tends to spill
fuel.
■ Stop the engine when leaving the pump unattended.
■ Block the unit when leaving or when using on a slope.
■ NEVER operate the pump in an
explosive atmosphere or near
combustible materials. An explosion or
fire could result causing severe bodily
harm or even death.

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 11
Maintenance Safety
■ NEVER lubricate components or attempt service on a running
machine.
■ ALWAYS allow the machine a proper amount of time to cool
before servicing.
■ Keep the machinery in proper running condition.
■ Fix damage to the machine immediately and always replace
broken parts.
■ Dispose of hazardous waste properly. Examples of potentially
hazardous waste are used motor oil, fuel and fuel filters.
■ DO NOT use food or plastic containers to dispose of
hazardous waste.
■ DO NOT pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
RULES FOR SAFE OPERATION
■ NEVER pump volatile, flammable or low flash point fluids.
These fluids could ignite or explode.
■ NEVER pump corrosive chemicals or water containing toxic
substances. These fluids could create serious health and
environmental hazards. Contact local authorities for
assistance.
■ NEVER open the volute cover during operation or start the
pump with the cover off. The rotating impeller inside the pump
can cut or sever objects caught in it.
■ NEVER block or restrict flow from discharge hose. Remove
kinks from discharge line before starting pump. Operation
with a blocked discharge line can cause water inside pump to
overheat.
■ NEVER run engine without air cleaner. Severe engine damage
may occur.
■ ALWAYS read, understand, and follow procedures in
Operator’s Manual before attempting to operate equipment.
■ ALWAYS be sure the operator is familiar with proper safety
precautions and operations techniques before using pump.
■ ALWAYS store equipment properly when it is not being used.
Equipment should be stored in a clean, dry location out of the
reach of children.
■ Refer to the Engine Owner's Manual for engine technical
questions or information.
■ In winter, drain water from pump housing to prevent freezing.
■ ALWAYS make sure pump is correctly secured to the trailer.
Check all supports attaching the pump to the trailer and make
sure they are tight.
■ ALWAYS make sure that the pump's trailer is placed on solid
level ground so that it cannot slide or shift around, endangering
workers. Deploy jack stands for stabilization. Place blocks
under the trailer's bumper to make it level (prevents tipping),
and use a chocked block underneath the wheels to prevent
rolling. Also keep the immediate area free of bystanders.
■ HighTemperatures – Allow the engine to cool before adding
fuel or performing service and maintenance functions. Contact
with
hot components can cause serious burns.
Add 1000 lbs. (454 kg.) to the
operating weight for a full tank of
fuel, 140 gallons (530 liters).
NOTE
■ In emergencies always know the location of the
nearest phone or keep a phone on the job site .
Also know the phone numbers of the nearest
ambulance , doctor and fire department . This
information will be invaluable in the case of an
emergency.
Lifting
■ The pump has an operating weight of 3180 lbs. (1,442 kg) or
more . Use lifting equipment with a rated capacity of at least
14,000 lbs. (6,350 kg). Remove suction & discharge hoses/
pipes before lifting.
EMERGENCIES
■ ALWAYS know the location of the nearest fire
extinguisher and first aid kit.

PAGE 12 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
RULES FOR SAFE OPERATION
Battery
The battery contains acids that can cause injury to the eyes and
skin. To avoid eye irritation,
always wear safety glasses or face
shielding. Use well-insulated gloves when picking up the battery.
Use the following guidelines when handling the battery.
■ DO NOT drop the battery. Any impact to the battery may
cause it to explode.
■ DO NOT expose the battery to open flames,
sparks, lit cigarettes etc. The battery
contains combustible gases and liquids. If
these gases and liquids come in contact
with a flame or spark an explosion can occur.
■ ALWAYS keep the battery charged. If the
battery is not charged, a buildup of
combustible gas will occur.
■ ALWAYS keep battery cables in good working condition.
Repair or replace all worn cables.
■ ALWAYS disconnect the negative battery terminal before
performing service on the equipment.
■ Inadequate battery connections may cause poor starting
of the trowel, and create other malfunctions.
■ ALWAYS recharge the battery in a vented air environment
to avoid risk of a dangerous concentration of combustible
gases.
■ DO NOT charge battery if frozen. Battery can explode. When
frozen, warm battery to at least 61°F (16°C).
■ If the battery liquid (dilute sulfuric acid) comes in contact with
clothing or skin , rinse skin or clothing immediately with
plenty of water.
■ If the battery liquid (dilute sulfuric acid) comes in contact with
your
eyes , rinse eyes immediately with plenty of water, then
contact the nearest doctor or hospital and seek medical
attention.

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 13
PUMP DIMENSIONS
Figure 1. Pump Dimensions
SNOISNEMIDPMUP.3ELBAT
ECNEREFER
RETTEL NOITPIRCSED SNOISNEMID )MM(SEHCNI
ATHGIEH SEHCNI74
)MM8.3911(
BHTDIW SEHCN
I5.84
)MM79.1321(
CHTPED SEHCNI6.54
)MM41.8511(
A
BC

PAGE 14 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
TRAILER DIMENSIONS
Figure 2. Trailer Dimensions
SNOISNEMIDRELIART.2ELBAT
ECNEREFER
RETTEL NOITPIRCSED SNOISNEMID )MM(SEHCNI
ATHGIEH SEHCNI35.58
)MM43.2712(
BHTD
IW SEHCNI37.27
)MM43.7481(
CHTGNEL
)dednetxEeugnoT(
SEHCNI65.141
)MM66.5953(
DHTGNELGNIPPIHS SEHCNI49
)MM6.7832
(
ETHGIEHNOITCUSDBT
FTHGIEHEGRAHCSIDDBT
GEGNARDNATHGIEHHCTIHDBT

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 15
SPECIFICATIONS
SOUND MEASUREMENTS
The required sound specifications, per Appendix 1, paragraph 1.7.4.f of the EC-Machine
Regulations, are defined as follows:
The sound pressure level at the operator's location (L) = 87 dB (A)
The sound power level (L) = 97 dB (A)
These sound values are determined according to ISO 3744 for the sound power level (L)
and ISO 6081 for the sound pressure level (L) at the operator's location.
The sound measurements were obtained with the unit operation on pavement at nominal
speed.
SNOITACIFICEPSPMUP.1ELBAT
ledoMMSLDS051PMETLDS051PMSTLDS051PMMSLD002PMETLD002PMSTLD002PMMSLDS002PMETLDS002PMSTLDS002PM
gnipmuPmumixaM
ytic
apaC
MPG0052
m4.9(
3
).nim/
MPG0052
m4.9(
3
).nim/
MPG0052
m4.9(
3
).nim/
MPG0072
m2.01(
3
).nim/
MPG0072
m2.01(
3
).nim/
MPG0072
m2.01(
3
).nim/
MPG0053
m2.31(
3
).nim/
MPG0053
m2.31(
3
).nim/
MPG0053
m2.31(
3
).nim/
tfiLnoitcuSmumixaM .tf03
)sretem1.9(
.tf03
)sretem1.9(
.tf03
)sretem1.9(
.tf52
)sretem8.7(
.tf52
)sretem8
.7(
.tf52
)sretem8.7(
.tf52
)sretem8.7(
.tf52
)sretem8.7(
.tf52
)sretem8.7(
daeHlatoTmumixaM .tf221
)sretem73(
.t
f221
)sretem73(
.tf221
)sretem73(
.tf221
)sretem73(
.tf221
)sretem73(
.tf221
)sretem73(
.tf531
)sretem14(
.tf531
)
sretem14(
.tf531
)sretem14(
sdiloSmumixaM .ni2.3
)mm2.18(
.ni2.3
)mm2.18(
.ni2.3
)mm2.18(
.ni2.3
)mm2.18(
.ni2.3
)
mm2.18(
.ni2.3
)mm2.18(
.ni6.3
)mm4.19(
.ni6.3
)mm4.19(
.ni6.3
)mm4.19(
PH PH34
)Wk23(
PH34
)Wk23(
PH34
)Wk23(
PH34
)W
k23(
PH34
)Wk23(
PH34
)Wk23(
PH06
)Wk84(
PH06
)Wk84(
PH06
)Wk84(
MPRmpr0081mpr0081mpr0081mpr0081mpr0081mpr0081mpr0081mpr
0081mpr0081
erusserPdnuoSABd47ABd47ABd47ABd47ABd47ABd47ABd67ABd67ABd67
emiTnuRsruoh65sruoh65sruoh65sruoh65sruoh65sruoh6
5sruoh14sruoh14sruoh14
)detnuoMdikS(thgieW .sbl0573
).gk0071(
.sbl0093
).gk9671(
.sbl0093
).gk9671(
.sbl0083
).gk
3271(
.sbl0593
).gk1971(
.sbl0593
).gk1971(
.sbl0693
).gk6971(
.sbl0114
).gk3681(
.sbl0114
).gk3681(
enignEdeloo
C-riA ztueD
419L3F
ztueD
419L3F
ztueD
419L3F
ztueD
419L3F
ztueD
419L3F
ztueD
419L3F
ztueD
419L4F
ztueD
419L4F
ztueD
419
L4F
yticapaCleuF lag521
)sretil574(
lag521
)sretil574(
lag521
)sretil574(
lag521
)sretil574(
lag521
)sretil574(
l
ag521
)sretil574(
lag521
)sretil574(
lag521
)sretil574(
lag521
)sretil574(

PAGE 16 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
SPECIFICATIONS (ENGINE)
SNOITACIFICEPSENIGNE.4ELBAT
ekaMenignEztueDztueD
ledoMenignE419L3F419L4F
epyTenignEdelooCriAdelooCriA
srednilyC
fOrebmuN34
/eroBekortS ni2.5/4
mm231/201
ni2.5/4
mm231/201
tnemecalpsiD ni-uc5.791
)cc6323(
ni-uc3.362
)cc4134(
gnEP
Heni)Wk8.92(PH04)Wk8.83(PH25
yticapaCliO)sretil6.9(lag35.2)sretil0.31(lag34.3
epyTleuFleseiDleseiD
yticapaCkna
TleuF
1
)sretil235(lag041)sretil235(lag041
)detnuoMdikS(thgieW .sbl75.256
)gk692(
.sbl82.008
)gk363(
dohteMgnitratStr
atScirtcelEtratScirtcelE
.reliartfotrapsiknatleuF)1

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 17
GENERAL INFORMATION
The Multiquip Dry Prime pump is a prime dry and prime-
assist pump that can handle dewatering, sewer bypass, and
wellpoint applications.
The Dry Prime pump uses a vacuum pump to remove the
air. This becomes important in certain applications such as
long suction hose runs or multiple suction points (such as
wellpoints). In these cases, high volumes of air enters into
the pump. Dry Prime uses direct-drive vacuum pump to
efficiently remove very large volumes of air quickly to obtain
the priming necessary for these special applications. Dry
Prime is very useful when you have to move a lot of water
fast.
Impeller
The Dry Prime impeller has a patented design to eliminate
cavitation. It is a 2-blade spiral, smooth flow, open, non-clog
impeller, designed to handle up to 3.2-inch solids.The impeller
pulls water directly into the pump from the priming tank,
reducing friction losses, and then pushes it out the volute
discharge. This design does not cause turbulence normally
found in centrifugal pumps.
Wear Plate
In conjunction with the impeller, the wear plate gives a perfect
match for great pump performance and durability. The wear
plate can be fully adjusted up to .6 inch (15mm) for wear.
Priming System
The vacuum system is innovative, simple, yet rugged and
dependable. I uses direct drive which means no belt failure
and with only one moving part, means no maintenance. It
uses liquid-ring design with a closed water system. Separate
oil bath lubrication for the seal and bearings with oil reservoir,
can run dry without damage. It operates quietly with no
pollution or unwanted discharge noise.
Float and Backflush (Priming Tank)
The priming tank float is a one-piece welded construction,
rubber valve seat, self-aligning rubber hinge. This design
increases reliability. The backflush valve allows for cleaning
of the suction strainer or wellpoint headswhile the engine is
running.
Fuel Tank Frame and Trackbar System
Run time is up to 72 hours with the Dry Prime’s fuel tank,
good for continuous running for those long-term jobs.There
are two corner fuel drains to check condition of fuel. The
TrackBar system allows for the easy addition of jack stands,
fenders, axle, lifting bail, and other options. This allows for
fast and easy positioning of the jack stands on the job site
to fit the application, or to add subtract jack stands as
required.The removable, retractable towing tongue minimizes
storage requirements.
Volute
The pump volute has an external inspection cover to inspect
or clear the impeller. The pump shaft bearings and
mechanical seal are run in independent oil baths for low
maintenance.
LOFA Engine Control Panel
Vandal protected panel that provides engine status and shut-
downs in the event of low oil pressure, high engine heat,
and alternator belt breakage. Optional auto-start module with
floats can be added for automatic start-stop of pump engine
and pumping operation.

PAGE 18 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
Figure 3-A. Pump
Components
PUMP COMPONENTS
Figure 3-A shows the location of the components of the Dry
Prime pump. The function of each component or control is
described below:
1. Rear Fuel Tank Drain Plugs – Remove either plug to
drain fuel.
2. Primary Tank Drain Valve – Open valve to drain water
from priming tank. In freezing weather conditions water
inside priming pump should always be drained.
3. License Plate Light – ALWAYS make sure light is
working correctly before towing at night.
4. Rear Tail Lights – Before towing make sure both tail-
lights are working correctly and are properly connected
to the towing vehicle brake light system.
5. Inlet Port – Attach suction hose to this port. ALWAYS
make sure suction hose is securely attached.
6. Priming System Tank Fill Reservoir – Used to fill
inner priming tank and vacuum system.
7. Priming System Drain Valve – Open valve to drain in
water priming tank.
8. Impeller/Volute – The impeller is a two-blade sprial
open impeller connected to a drive shaft, when rotated
creates a partial vacuum, drawing fluid through the pump
creating suction.The volute houses the impeller.
9. Bearing/Seal Sight Glasses – Use these sight glasses
to determine if oil is present. Oil must be
visible midway
at the slight glasses.
10. Pump Driveshaft Access Panel – Remove this panel
to gain access to the pump driveshaft (gear) or second
vacuum pump.
11. Tires – This pump uses XX-inch X-ply tires. Replace with
only recommended type tires. Replace defective or worn
tires immediately.
12. Fuel Cap –Remove to visually inspect fuell level and
to refill fuel tank. Refuel using only recommended types
of diesel fuel (see Deutz Manual). DO NOT top off fuel
and wipe up any spilled fuel immediately.
13. Jackstand – Use jack stands to level and stabilize
pump. ALWAYS make sure jack stands are deployed
before operating pump.
14. Tie Downs –When transporting of the pump is required,
use these tie-downs (4) to secure the pump.
15. Front Fuel Tank Drain Plug –Remove either plugs to
drain fuel.
1
2
3
1
4
4
5
6
7
8
9
10
11
12
13
14
14
15
13

DRY PRIME PUMP — OPERATION AND PARTS MANUAL — REV. #3 (10/06/08) — PAGE 19
PUMP COMPONENTS

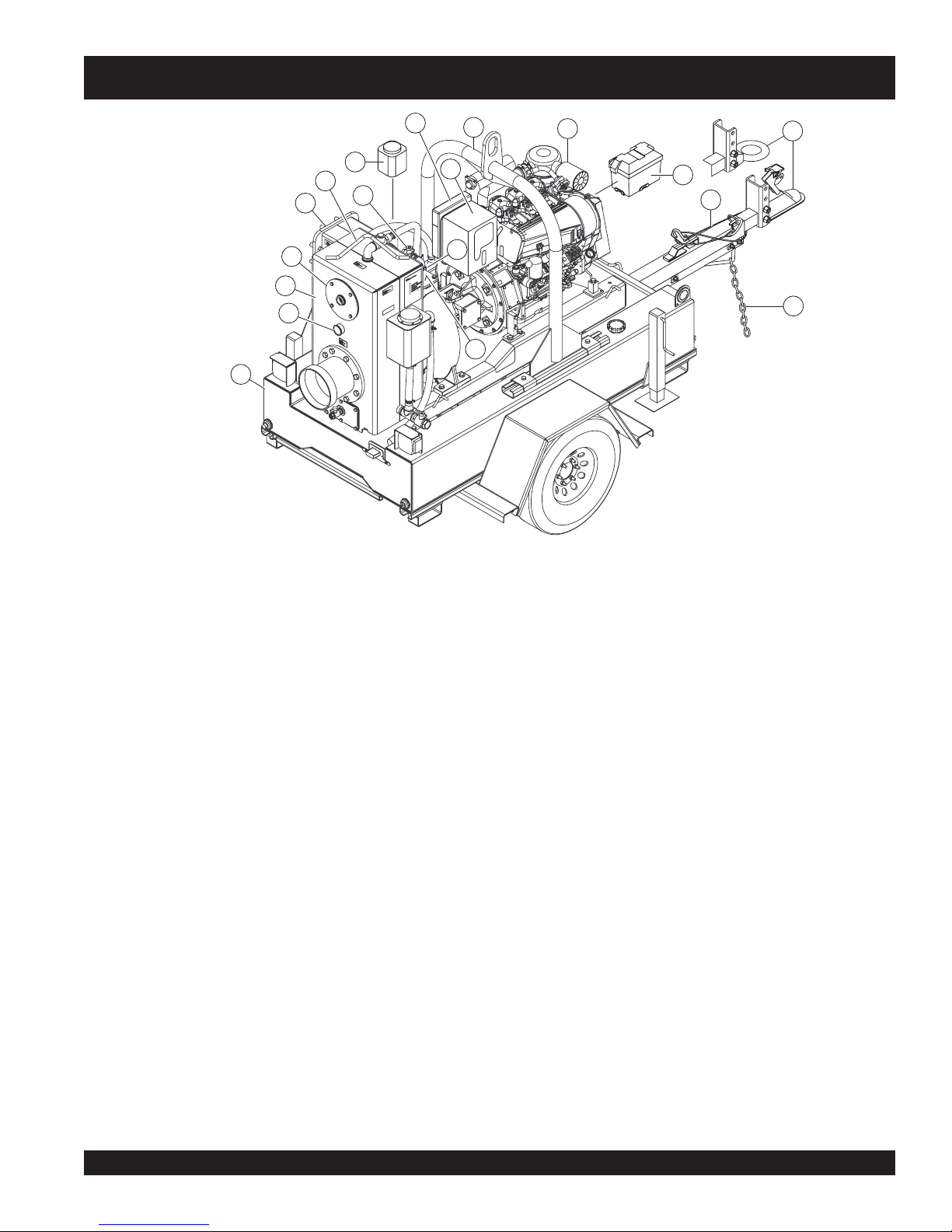

Figure 3-B. Pump
Components
Figure 3-B shows the location of the more components of
the Dry Prime pump, The function of each component or
control is described below:
16. Safety Chain – ALWAYS attach safety chain to the
towing vehicle. NEVER tow the pump with the safety
chain unattached! See towing section of this manual.
17. Towing Coupler/Ring – Attach this coupler to the towing
vehicle. Use only the specified ball diameter as indicated
on your coupler (2-5/16). Use of any other ball diameter
will create an extremely dangerous condition which can
result in separation of the coupler and ball or ball failure. A
3-inch tow ring is also available as an option.
18. Ajustable Tow Tongue – Tow tongue is adjustable by
removing locking pin to adjust tongue length then
reinserting pin to lock tongue in place.
19. Battery – Unit uses a +12VDC wet battery Group 31.
20. Engine – These pumps are equipped with either a
Deutz F3L914 or F4L914 three or four cylinder air-
cooled diesel engine.
21. Skid Lifting Bail –When lifting of the pump skid is required,
attach a strap or chain of adequate lifting capacity to lift the
skid.
22. Engine Control Box – Vandal proof (lockable) engine
control box displaying engine guages, tachometer,
tempertature, battery voltage, hour meter, oil pressure
and ignition switch.
23. Document Box – Contains all documentation relating
to the pump or engine.
24. Vacuum Pump Mechanical Seal Oil Reservoir – Oil
level should always be maintained to the FULL level
marked on the bottle.
25. Backflush Valve – Open valve to backflush wellpoints
or to clean suction strainer.
26. Priming Tank Lifting Bail – When removing of the
priming tank is required, attach a strap or chain of adequate
lifting capacity to lift vacuum pump.
27. Pump Discharge – Attach discharge hose to this port.
ALWAYS make sure discharge hose is securely
attached.
28. Float Valve – Regulates and controls vacuum level
during pump operation. Consist of self-aligning
reinforced rubber hinge that doubles as a seal and a
one piece welded float assembly.
29. Priming Tank – Vacuum system that creates a vacuum
in the outer priming tank, drawing water in. Water drawn
into the outer priming tank then flows into the volute,
priming the pump.
30. Vacuum Gauge – Vacuum gauge for priming system.
Monitors air discharge. Required when troubleshooting.
31. Fuel Tank – Holds 140 gallons (530 liters) of diesel
fuel
32. Volute Inspection Cover – Remove this cover to
inspect or clear the impeller.
33. Vacuum Pump – This unit uses a direct-drive 60 CFM
vacuum pump to remove large volumes of air to obtain
priming for the pump.
16
17
18
19
20
21
24
23
22
25
26
27
28
29
30
31
32
33

PAGE 20 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
ENGINE COMPONENTS
Figure 4 illustrates the location of the basic components for the
Deutz Model F3L914 and F4L914 Engines.The function of each
component is described below:
1. Starter Motor/Solenoid – NEVER
allow concrete or any
foreign debris to come in contact with the starter motor/
solenoid.
2. Alternator – (not shown) Provides power to the electrical
system. Replace with only manufactures recommended
type alternator.
3. Muffler/Guard – DO NOT
touch the muffler when engine
is running.The muffler can become extremely hot, causing
severe burns. NEVER run the pump with the muffler guard
removed.
4. Engine – Air-cooled, 4-stroke, 3 or 4 cylinder diesel
engine. See Table 2 for detailed specifications.
5. Engine Throttle Lever – Controls the speed of the
engine. For load conditions (pumping water) ALWAYS
run the engine at
full speed .
6. Fuel Filter – Replace or clean the fuel pump or fuel filter as
specified in the maintenance section of this manual.
7. Air Cleaner – Prevents dirt and other debris from entering
the fuel system. Remove wing-nut on top of air filter
cannister to gain access to filter element. Replace with only
manufactures recommended type air cleaner.
8. V-Belts – ALWAYS make sure that V-belts are properly
tensioned. Loose or defective V-belts can adversely affect
the performance of the pump.
9. Cooling Fan Blades – Make sure that the blades of the
cooling fan are not
bent or broken . A damaged fan blade
can cause the engine to run hot and overheat.
10. Oil Filler Port Cap – Remove this cap to add engine oil to
the crankcase. Fill with recommended type oil as specified
in the maintenance section of this manual.
11. Crankcase Drain Plug – Remove this plug to drain engine
oil from the crankcase. Replace with recommended engine
oil as specified in the maintenance section of this manual.
12. Dipstick – Remove this dipstick to determine if engine oil
is low. Maintain oil level at the "H "marking on the dipstick.
NEVER run engine with low oil.
12. Oil Filter – Replace oil filter as recommended in the
maintenance section of this manual.
Figure 4. Basic Engine Components
2
1
36
5
10
11
7
4
12
9
13
8
