MULTIQUIP QP3TB User manual

OPERATION MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
MODEL QP3TB
TRASH PUMP
(VANGUARD 19L2 10.0 HP GASOLINE ENGINE)
Revision #0 (12/08/22)
To find the latest revision of this publication or
associated parts manual, visit our website at:
www.multiquip.com

PAGE 2 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)

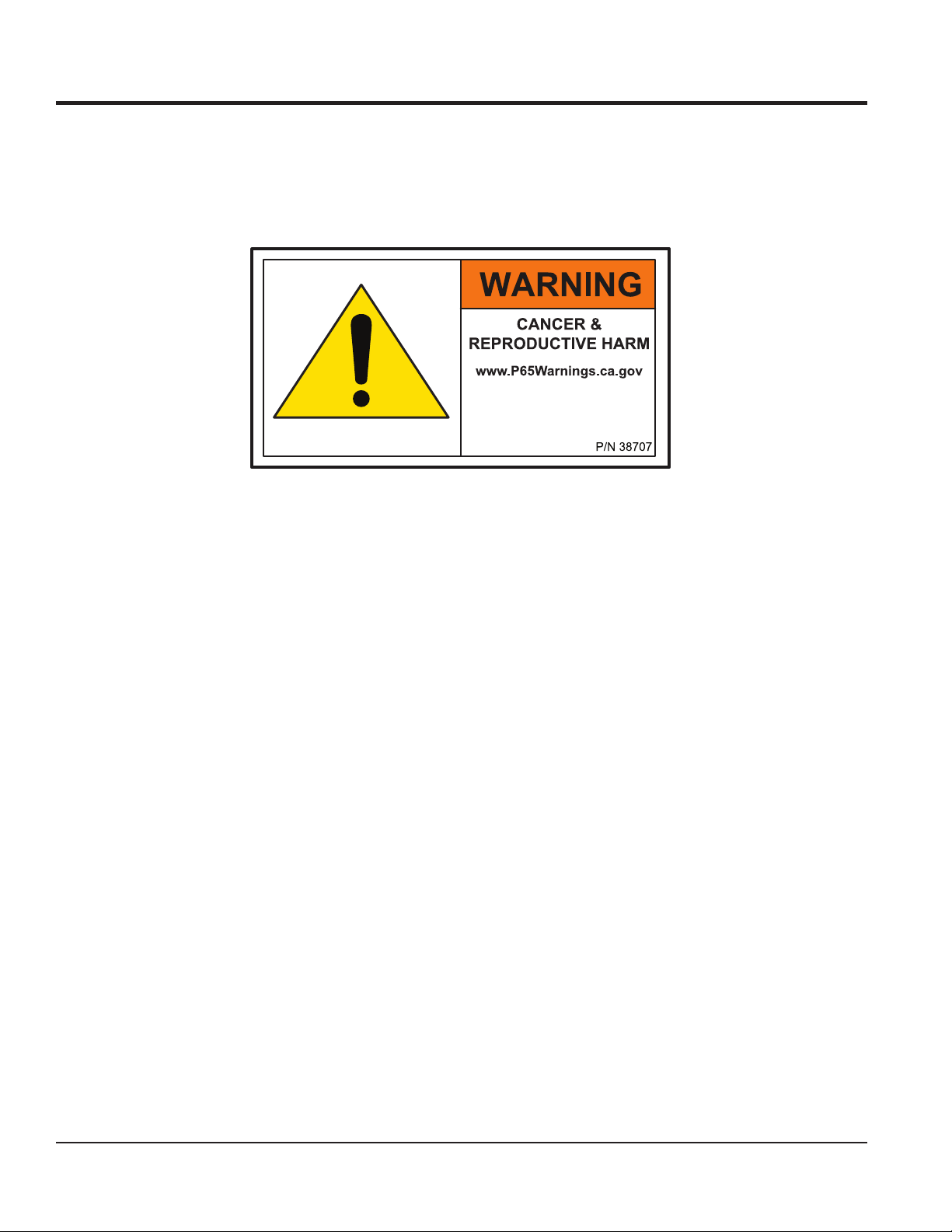

PROPOSITION 65 WARNING

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 3
TABLE OF CONTENTS
QP3TB Trash Pump
Proposition 65 Warning ........................................... 2
Table of Contents..................................................... 3
Safety Information ............................................... 4–8
Specifications .................................................... 9–10
General Information............................................... 11
Components (Pump) ....................................... 12–13
Components (Engine)............................................ 14
Inspection .............................................................. 15
Setup ..................................................................... 16
Operation......................................................... 17–19
Maintenance (Engine) ..................................... 20–22
Maintenance (Pump) ....................................... 24–26
Troubleshooting (Engine)....................................... 27
Troubleshooting (Pump) ........................................ 28
NOTICE
Specifications are subject to change without notice.

PAGE 4 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.

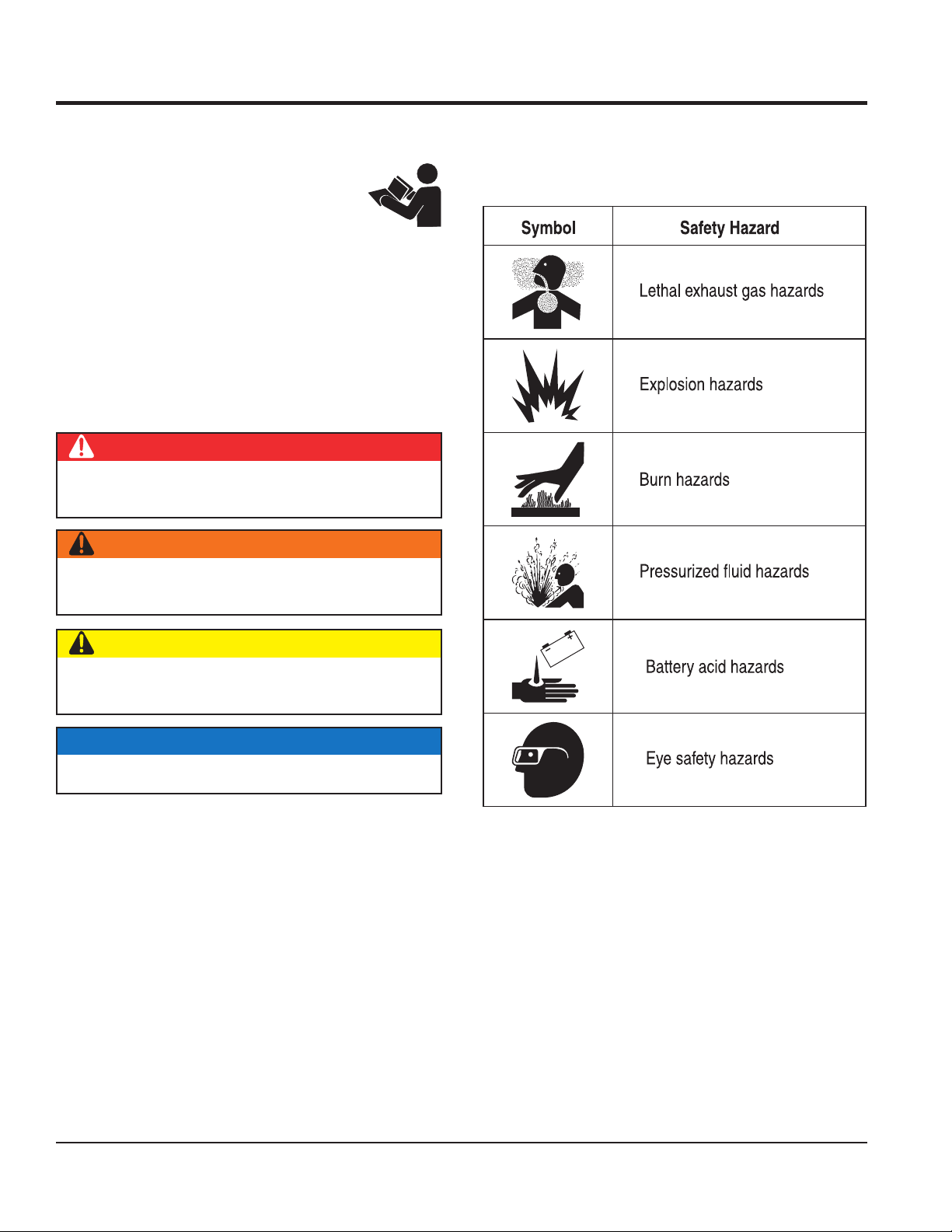

SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others.The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
DANGER
,WARNING,CAUTION or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 5
SAFETY INFORMATION
GENERAL SAFETY
CAUTION

NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots or other protective
devices required by the job or city and state regulations.

NEVER operate this equipment when not
feeling well due to fatigue, illness, or when
on medication.

NEVER operate this equipment under the influence of
drugs or alcohol.
NOTICE

This equipment should only be operated by trained and
qualified personnel 18 years of age and older.

Whenever necessary, replace nameplate, operation, and
safety decals when they become difficult to read.

Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.

NEVER use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to the user may result.

ALWAYS know the location of the nearest
fire extinguisher.

ALWAYS know the location of the nearest
first aid kit.

ALWAYS know the location of the nearest phone or keep
a phone on the job site. Also, know the phone numbers
of the nearest ambulance,doctor,and fire department.
This information will be invaluable in the case of an
emergency.
PUMP SAFETY
DANGER
NEVER
pump volatile, explosive, flammable, or low flash
point fluids. These fluids could ignite or explode.

The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.

The engine of this equipment requires an adequate free
flow of cooling air. NEVER
operate this equipment in any
enclosed or narrow area
where the free flow of air is
restricted. If the air flow is
restricted it will cause injury
to people and property and
serious damage to the
equipment or engine.
NEVER operate the equipment in an explosive
atmosphere or near combustible materials.An
explosion or fire could result, causing severe
bodily harm or even death.
WARNING
NEVER
pump corrosive chemicals or water containing
toxic substances. These fluids could create serious
health and environmental hazards. Contact local
authorities for assistance.
NEVER open the priming plug when the
pump is hot. Hot water inside could be
pressurized much like the radiator of an
automobile. Allow the pump to cool to
the touch before loosening the plug. The
possibility exists of scalding, resulting in
severe bodily harm.
NEVER disconnect any emergency or safety devices
.
These devices are intended for operator safety.
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
DANGEROUS
GAS FUMES

PAGE 6 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
SAFETY INFORMATION
CAUTION

NEVER lubricate components or attempt service on a
running machine.

NEVER block or restrict flow from a discharge hose.
Remove kinks from the discharge line before starting
the pump. Operation with a blocked discharge line can
cause water inside the pump to overheat.
NOTICE

ALWAYS fill the pump casing with water before starting
the engine. Failure to maintain water inside the pump
housing will cause severe damage to the pump and
mechanical seal.

In winter, drain water from the pump housing to prevent
freezing.

NEVER start the pump with the clean-out cover removed.
The rotating impeller inside the pump can cut or sever
objects caught in it. Before starting the pump, check that
the clean-out cover is securely fastened.

ALWAYS keep the machine in proper running condition.

ALWAYS ensure the pump is on level ground before use.

Fix damage to the machine and replace any broken
parts immediately.

ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
ENGINE SAFETY
WARNING
NEVER
operate the engine with heat shields or
guards removed.
DO NOT remove the engine oil drain plug
while the engine is hot. Hot oil will gush
out of the oil tank and severely scald any
persons in the general area of the pump.
CAUTION
NEVER touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to cool
before servicing the equipment.
NOTICE
NEVER
run the engine without an air filter or with a dirty
air filter. Severe engine damage may occur. Service the
air filter frequently to prevent engine malfunction.
NEVER tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 7
SAFETY INFORMATION
FUEL SAFETY
DANGER

DO NOT add fuel to equipment if it is placed inside a
truck bed with plastic liner. Possibility exists of explosion
or fire due to static electricity.

DO NOT start the engine near spilled fuel or combustible
fluids. Fuel is extremely flammable and its vapors can
cause an explosion if ignited.

ALWAYS refuel in a well-ventilated area, away from
sparks and open flames.

ALWAYS use extreme caution when working with
flammable liquids.

DO NOT fill the fuel tank while the engine is running
or hot.

DO NOT overfill the fuel tank, as spilled fuel can ignite
if it comes into contact with hot engine parts or sparks
from the ignition system.

Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and flames.

NEVER use fuel as a cleaning agent.

DO NOT smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
BATTERY SAFETY (ELECTRIC START ONLY)
DANGER
DO NOT
drop the battery. There is a possibility that the
battery will explode.
DO NOT expose the battery to open flames,
sparks, cigarettes, etc.The battery contains
combustible gases and liquids. If these
gases or liquids come into contact with a
flame or spark, an explosion could occur.
WARNING
ALWAYS wear safety glasses when
handling the battery to avoid eye irritation.
The battery contains acids that can cause
injury to the eyes and skin.
Use well-insulated gloves when picking up
the battery.
ALWAYS
keep the battery charged. If the battery is not
charged, combustible gas will build up.
DO NOT
charge the battery if frozen. Battery can explode.
When frozen, warm the battery to at least 61°F (16°C).
ALWAYS
recharge the battery in a well-ventilated
environment to avoid the risk of a dangerous concentration
of combustible gases.
If the battery liquid (dilute sulfuric acid)
comes into contact with clothing or skin,
rinse skin or clothing immediately with
plenty of water.

If the battery liquid (dilute sulfuric acid) comes into
contact with eyes
, rinse eyes immediately with plenty
of water and contact the nearest doctor or hospital to
seek medical attention.
CAUTION
ALWAYS disconnect the
NEGATIVE battery terminal
before performing service on the equipment.
ALWAYS
keep battery cables in good working condition.
Repair or replace all worn cables.

PAGE 8 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
TRANSPORTING SAFETY
CAUTION

NEVER allow any person or animal to stand underneath
the equipment while lifting.
NOTICE

Before lifting, make sure that the equipment parts (hook
and vibration insulator) are not damaged and screws are
not loose or missing.

Always make sure the crane or lifting device has
been properly secured to the lifting bail (hook) of the
equipment.

ALWAYS shut down the engine before transporting.

NEVER lift the equipment while the engine is running.

Tighten the fuel tank cap securely and close the fuel
cock to prevent fuel from spilling.

Use adequate lifting cable (wire or rope) of sufficient
strength.

Use a one-point suspension hook and lift straight upwards.

DO NOT lift the machine to unnecessary heights.

ALWAYS tie down equipment during transport by
securing the equipment with rope.
ENVIRONMENTAL SAFETY
NOTICE
Dispose of hazardous waste properly.
Examples of potentially hazardous waste
are used motor oil, fuel, and fuel filters.
DO NOT
use food or plastic containers to dispose of
hazardous waste.
DO NOT
pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
SAFETY INFORMATION

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 9
SPECIFICATIONS
Figure 1. QP3TB Dimensions
Table 1. Pump Specifications
Model QP3TB
Type Trash Pump
Suction Size 3.0 in. (76 mm)
Discharge Size 3.0 in. (76 mm)
Maximum Pumping Capacity 396 gallons/minute
(1,500 liters/minute)
Maximum Solids Diameter 1.50 in. (38 mm)
Maximum Suction Lift 25 ft. (7.6 m)
Maximum Head 95 ft. (29.0 m)
Maximum Pressure 41 psi (283 kPa)
Dry Net Weight 144 lb. (65.5 kg)
A
B
C
Table 2. QP3TB Dimensions
Reference
Letter
Dimension
in. (mm)
A 22.0 (559)
B 20.6 (522)
C 27.9 (708)

PAGE 10 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
SPECIFICATIONS
Figure 2. QP3TB Performance Curve
Table 3. Engine Specifications
Model Vanguard 19L2
Type Air-cooled, four-stroke, single-cylinder, OHV,
horizontal shaft, gasoline engine
Bore × Stroke 3.12 in. × 2.44 in. (79 mm × 62 mm)
Displacement 305 cc (18.61 cu. in.)
Gross Power 10.0 hp (7.5 kW) @ 3,600 rpm
Fuel Tank Capacity Approx. 0.9 gallons (3.6 liters)
Fuel Type Unleaded automobile gasoline
Lube Oil Capacity 0.85 quarts (0.80 liters)
Speed Control Method Centrifugal flyweight type
Starting Method Recoil start
Dimensions
(L × W × H)
15.8 × 16.6 × 15.9 in.
(401 × 422 × 404 mm)
Dry Net Weight 57.0 lb. (25.9 kg)
0
0
1
1
0
0
2
2
0
0
3
3
0
0
4
4
0
0
5
5
0
0
6
6
0
0
7
7
0
0
8
8
0
0
9
9
0
0
1
1
0
0
0
0
0
0
5
5
0
0
1
1
0
0
0
0
1
1
5
5
0
0
2
2
0
0
0
0
2
2
5
5
0
0
3
3
0
0
0
0
3
3
5
5
0
0
4
4
0
0
0
0
S
S
u
u
c
c
t
t
i
i
o
o
n
n
L
L
i
i
n
n
e
e
:
:
3
3
i
i
n
n
c
c
h
h
D
D
i
i
s
s
c
c
h
h
a
a
r
r
g
g
e
e
L
L
i
i
n
n
e
e
:
:
3
3
i
i
n
n
c
c
h
h
TTOOTTAALLHHEEAADD
F
F
T
T
.
METERS
500
1000
1500
5
10
15
20
25
30
0
3.3 FT
23.3 FT 16.7 FT
10 FT
U.S. GALLONS
PER MINUTE
LITERS
PER MINUTE

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 11
ELEVATION
The elevation at which the pump is operated impacts its
performance. Due to decreased atmospheric pressure at
higher altitudes, the pump’s priming ability is reduced as
elevation increases.
Pumps generally lose one foot of priming ability for every
1,000 feet (305 meters) of elevation above sea level.
For example, in Flagstaff, Arizona, where the elevation is
approximately 7,000 feet (2,134 meters) above sea level, a
pump with a suction lift of 25 feet (7.6 meters) at sea level
will have a suction lift of only 18 feet (5.5 meters).
Table 4 shows the difference in suction lift at various
elevations.
Table 5 shows the loss of performance as elevation
increases.
ACCESSORIES
Multiquip offers a complete line of fittings, hoses, and
couplers for various pump applications. Contact the
Multiquip Parts Department for more information.
Table 4. Suction Lift At Various Elevations
Altitude in Feet
(Meters) Suction Lift in Feet (Meters)
Sea level 10 (3.0) 15 (4.6) 20 (6.1) 25 (7.6)
2,000 (609.6) 8.8 (2.7) 13.2 (4.0) 17.6 (5.4) 22 (6.7)
4,000 (1,219.2) 7.8 (2.4) 11.7 (3.6) 15.6 (4.8) 19.5 (5.9)
6,000 (1,828.8) 6.9 (2.1) 10.4 (3.2) 13.8 (4.2) 17.3 (5.3)
8,000 (2,438.4) 6.2 (1.9) 9.3 (2.8) 12.4 (3.8) 15.5 (4.7)
10,000 (3,048) 5.7 (1.7) 8.6 (2.6) 11.4 (3.5) 14.3 (4.4)
Table 5. Performance Loss At Various Elevations
Altitude in Feet
(Meters) Discharge Flow Discharge Head
Sea level 100% 100%
2,000 (609.6) 97% 95%
4,000 (1,219.2) 95% 91%
6,000 (1,828.8) 93% 87%
8,000 (2,438.4) 91% 83%
10,000 (3,048) 88% 78%
GENERAL INFORMATION
The QP3TB series trash pump is a self-priming pump
powered by a 10.0-horsepower, air-cooled, four-stroke,
single-cylinder, Vanguard gasoline engine. The pump’s
suction and discharge ports are three inches in diameter,
enabling a discharge rate of approximately 396 gallons per
minute (gpm) / 1,500 liters per minute (lpm).
TRASH PUMPS
Trash pumps derive their name from their ability to handle
a greater amount of solid debris than standard centrifugal
pumps. Trash pumps are unlikely to clog, as they can
handle water containing 25% solids by weight, and can
accomodate solids up to one-half the size of the discharge
opening. If the pump does become clogged, it can be
disassembled quickly without the use of tools to allow for
debris removal.
PUMP PRIMING
The pump is self-priming, therefore the pump casing
must be filled with water before the pump is operated.
The engine drives a rotating impeller that creates a partial
vacuum (low pressure) within the pump. The reduced
internal air pressure causes water to flow continuously into
the pump through the suction line, and the centrifugal force
of the impeller expels the water from the pump through the
discharge ports.
NEVER attempt to operate the pump without filling the
casing with water first.
SUCTION LIFT
The QP3TB trash pump has a maximum suction lift of
25 feet (7.6 meters) at sea level. To obtain the optimum
suction lift, ALWAYS place the pump as close to the water
as possible and use the shortest possible suction line.

PAGE 12 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
COMPONENTS (PUMP)
Figure 3 shows a typical QP3TB trash pump application.
The main pump components are listed below.
Figure 3. Pump Components
8
9
11
3
4
2
1
1
10
5
5
6
7

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 13
1. Discharge Ports (2) — Three-inch, male, NPT-threaded,
left- and right-side discharge ports accommodate
threaded hoses or pipes. Quick-connect hoses will
fit onto the discharge ports with an optional coupler
(P/N A300A). Contact the Multiquip Parts Department
to order.
2. Suction Port — The three-inch, male, NPT-threaded
suction port accommodates a threaded or quick-connect
hose. An optional coupler (P/N A300A) is available for
quick-connect coupling. Contact the Multiquip Parts
Department to order.
3. Fill Cap — Remove the fill cap to add water to the
pump. The pump casing must be filled with water
prior to operation! After the initial prime, a sufficient
amount of water will be retained in the casing so that
the operator will not need to re-prime later.
4. Engine — A 10.0-horsepower, air-cooled, four-stroke,
single-cylinder, Vanguard gasoline engine. Refer to
the Components (Engine) section of this manual for
more information.
5. Discharge Hoses (2) — Discharge hoses are usually
collapsible (thin-walled) hoses. However, if thin-walled
discharge hoses are not available, rigid suction hoses
may be substituted. MAKE SURE hoses lay flat and
remain unkinked. Quick-connect hoses will fit onto the
discharge ports with an optional coupler (P/N A300A).
Contact the Multiquip Parts Department to order.
6. Locking Knobs (4) — Loosen the locking knobs to
open the clean-out cover and gain access to the casing
cavity. Turn the knobs counterclockwise to loosen.
7. Drain Plug — Remove the drain plug to drain water
from the pump casing after usage and for storage,
remove this plug and drain all water from the pump
casing.
8. Clean-Out Cover — Opens to allow removal of debris
from inside the pump. To open the cover, loosen the
four locking knobs, grip the cover handles, and turn the
cover counterclockwise. Once the cover is clear of the
four knob fasteners, pull it outward to open.
WARNING
NEVER remove the fill cap while the pump is hot.
Pressurized water inside can cause serious injury.
9. Clean-Out Cover Handles (2) — After loosening
the four locking knobs, grip the handles and turn
counterclockwise to open the clean-out cover.
10. Suction Hose — Suction hoses are commonly
reinforced with rigid PVC helix and are specifically
designed to prevent collapse during operation. Use
recommended suction hoses only. MAKE SURE the
suction hose remains unkinked. A quick-connect hose
will fit onto the suction port with an optional coupler
(P/N A300A). Contact the Multiquip Parts Department
to order.
11. Strainer — ALWAYS attach the strainer to the bottom
end of the suction hose to prevent large objects and
debris from entering the pump. Position the strainer so
that it remains completely underwater.
NOTICE
Running the pump for sustained periods with the
strainer above the water surface can damage the pump.
COMPONENTS (PUMP)

PAGE 14 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
COMPONENTS (ENGINE)

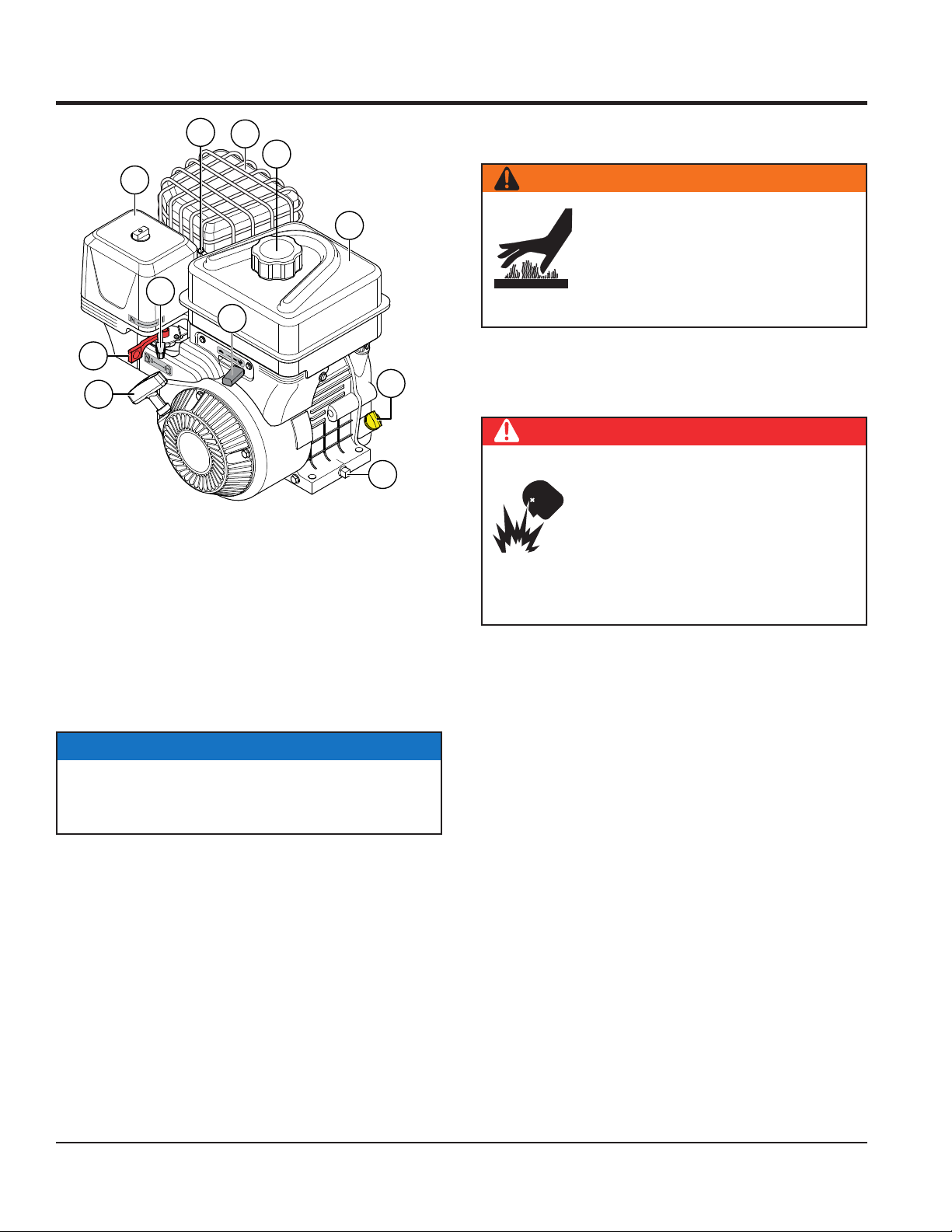

Figure 4. Basic Engine Components
INITIAL SERVICING
The engine (Figure 4) must be checked for proper
lubrication and filled with fuel prior to operation. Refer to
the manufacturer’s engine manual for detailed operation
and service instructions.
1. Air Cleaner — Prevents dirt and other debris from
entering the fuel system.
2. Spark Plug — Provides spark to the ignition system.
Set the spark plug gap according to the engine
manufacturer’s instructions, and clean the spark plug
once a week.
1
23
4
5
6
7
8
9
10
11
NOTICE
Operating the engine without an air filter, or with a
damaged or worn air filter in need of replacement, will
allow dirt to enter the engine, causing rapid engine wear.
3. Muffler — Reduces noise and emissions. DO NOT
touch the muffler while it is hot.
4. Fuel Filler Cap — Remove to add unleaded gasoline to
the fuel tank. Make sure the cap is tightened securely.
DO NOT overfill.
5. Fuel Tank — Holds up to 0.9 gallons (3.6 liters) of
unleaded gasoline.
6. Engine Oil Dipstick / Oil Filler Cap — Remove to
determine if engine oil is low. Add engine oil through
this port as recommended in Table 6.
7. Oil Drain Bolt (2) — Remove to drain oil from the
engine crankcase.
8. Recoil Starter — Manual starting mechanism. Pull
the starter grip slowly until resistance is felt, then pull
briskly and smoothly to start the engine.
9. Fuel Valve Lever — OPEN to let fuel flow, CLOSE to
stop the flow of fuel.
10. Choke Lever — Aids in starting a cold engine or
starting in cold weather conditions.The choke enriches
the fuel mixture.
11. Throttle Lever — Adjusts engine speed (RPM).
WARNING
Engine components can generate
extreme heat.To prevent burns, DO NOT
touch these areas while the engine is
running or immediately after operating.
DO NOT operate the engine with the
muffler removed.
DANGER
NEVER fill the fuel tank while the engine
is running or hot. In the event of a fuel
spill, DO NOT start the engine until all
fuel residue has been wiped up and the
area surrounding the engine is dry. Fuel
is extremely flammable and can ignite if
it comes into contact with hot engine parts
or sparks from the ignition system.

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 15
INSPECTION
BEFORE STARTING
1. Read the safety instructions at the beginning of this
manual.
2. Clean the pump, particularly the engine cooling air
inlet. Remove all dirt and dust.
3. Inspect the air cleaner for dirt and dust. If the air cleaner
is dirty, replace the filter with a new one as required.
4. Inspect the carburetor for external dirt and dust. Clean
with dry compressed air as needed.
5. Inspect all fastening nuts and bolts for tightness.
ENGINE OIL CHECK
1. Place the pump on secure, level ground with the
engine OFF.
2. Remove the dipstick (Figure 5) from the engine oil
filler hole and wipe it clean.
Figure 5. Engine Oil Dipstick
3. Insert and remove the dipstick without screwing it into
the filler neck. Check the oil level shown on the dipstick.
4. If the oil level is low (Figure 6), fill to the edge of the
oil filler hole with the recommended oil type (Table 6).
Maximum oil capacity is 0.85 quarts (0.80 liters).
CAUTION
DO NOT attempt to operate the pump
until the Safety Information, General
Information, and Inspection sections
of this manual have been thoroughly
read and understood.
DIPSTICK
Figure 6. Engine Oil Dipstick (Oil Level)
FUEL CHECK
Remove the fuel filler cap and inspect the fuel level in
the tank. If fuel is low, replenish with 87 octane or higher
unleaded gasoline. Maximum fuel capacity is 0.9 gallons
(3.6 liters).
UPPER LIMIT
LOWER LIMIT
Table 6. Recommended Oil Viscosity Grades
AMBIENT TEMPERATURE
–20
–20 –10 0 10 20 30 40°C–30
0 20 40 60 80 100°F
SAE 30
SAE 5W-30
SAE 10W-30
SAE SYNTHETIC 5W-30
VANGUARD SYNTHETIC 15W-50
DANGER
Motor fuels are highly flammable and
can be dangerous if mishandled. DO NOT
smoke while refueling. DO NOT attempt to
refuel while the engine is running or hot!
WARNING
ALWAYS use a strainer for filtration while refueling.
NEVER top off fuel. ALWAYS wipe up any spilled fuel
immediately.

PAGE 16 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
SETUP
Pump performance (flow, head, velocity and pressure) is
determined by multiple factors, including operating altitude,
suction lift, the length and diameter of the hoses, friction
loss, the specific gravity and temperature of the fluid being
pumped, and total discharge head. Set up the pump as
follows to achieve optimal pump performance.
1. Place the pump on a solid, level operating surface as
close as possible to the water source.The most critical
factor for successful pump operation is the total suction
lift, which should not exceed 25 feet (7.6 meters) at sea
level. See Figure 7.
2. Initialize self-priming of the pump by removing the fill
cap and filling the pump casing with water.
3. Check for water leakage between the pump and the
engine, which may indicate that the seal inside the
pump is worn or damaged. Continued operation of the
pump in this condition is not recommended, and can
cause severe water damage to the engine.
NOTICE
THE PUMP CASING MUST BE FILLED WITHWATER
PRIOR TO OPERATION. Self-priming of the pump will
not take place unless the pump casing is filled with
water.
NOTICE
This pump uses a water-cooled mechanical seal
to prevent water from seeping into the engine. The
passage of water through the pump casing lubricates
the seal and prevents it from overheating. NEVER
operate the pump without water in the casing, as this
can damage the mechanical seal.
4. Connect suitable hoses to the suction and discharge
ports. MAKE SURE the hoses are tightly secured to
their respective ports, have O-rings in place, and are
free of any kinks, cracks, gouges, or holes. Using two
hose clamps to secure the suction hose to the suction
port is recommended.
5. MAKE SURE the strainer is clean and securely
attached to the water end of the suction hose. Position
the strainer so it will remain completely underwater,
but is not buried in any underlying sand or silt.
6. MAKE SURE the discharge hoses lay as straight as
possible and remain unrestricted. Remove any twists,
kinks, or sharp bends which may impede the flow of
water.
NOTICE
Suction and discharge hoses are available from
Multiquip. Contact your local MQ dealer for more
information.
NOTICE
Sustained pump operation with the strainer above the
water surface can damage the pump.
NOTICE
Discharge hoses are usually collapsible (thin-walled)
hoses. However, if thin-walled discharge hoses are
not available, rigid suction hoses may be substituted.
PVC pipe or concrete pipe can also be connected to
the discharge ports.
Figure 7. Pump Setup

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 17

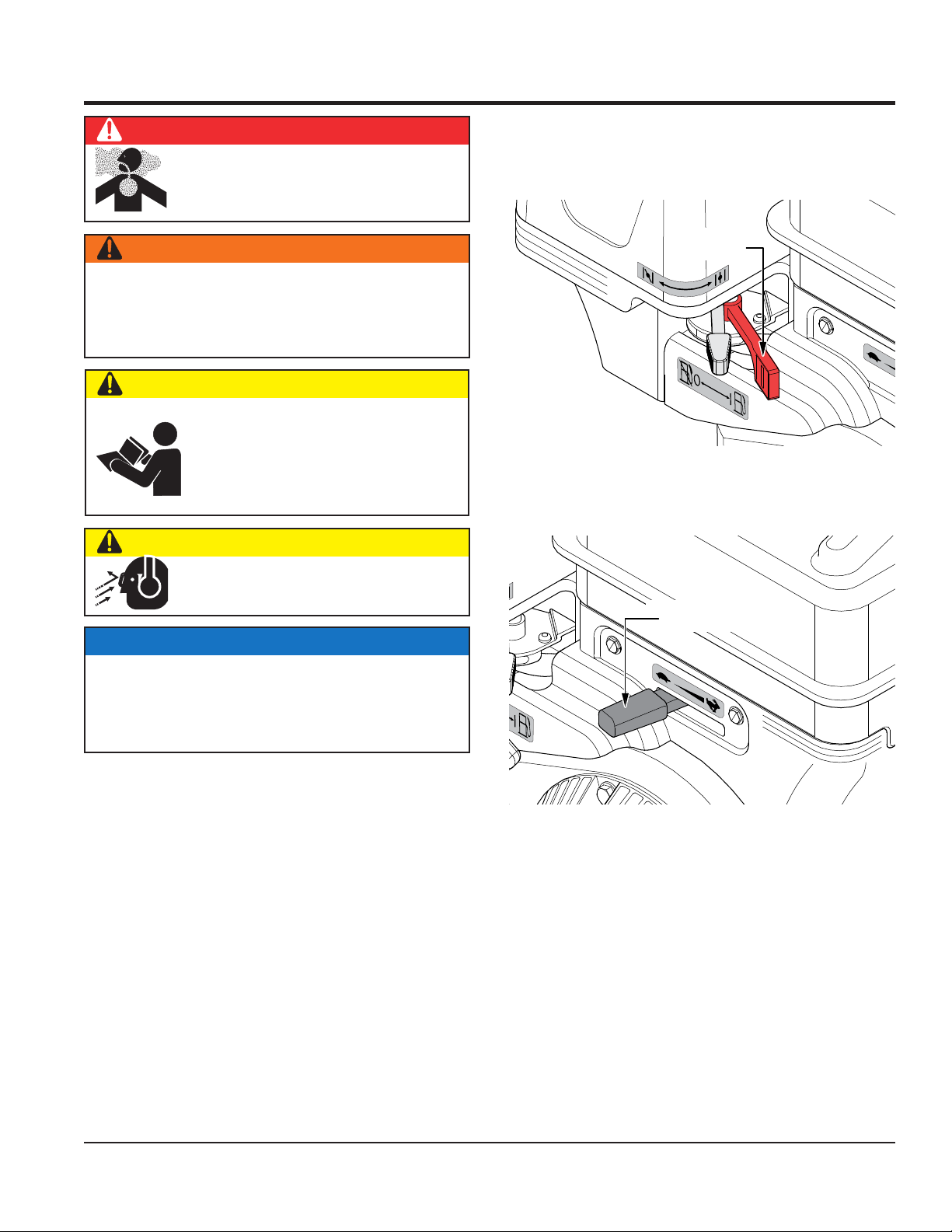

OPERATION
DANGER
NEVER operate the pump in a confined
area or enclosed structure that does not
provide an ample free flow of air.
WARNING
NEVER pump flammable fluids, corrosive chemicals,
or fluids containing toxic substances. These fluids can
create potentially dangerous health and environmental
hazards. Contact local authorities for assistance.
CAUTION
DO NOT attempt to operate the
pump until the Safety Information,
General Information, and Inspection
sections of this manual have been
thoroughly read and understood.
CAUTION
ALWAYS wear approved eye and hearing
protection while operating the pump.
NOTICE
NEVER attempt to start the engine unless the pump
has first been primed with water. Severe damage will
occur to the pump’s mechanical seal if the pump has
not been primed.
STARTING THE ENGINE
1. Place the engine fuel valve lever (Figure 8) in the
ON position.
Figure 8. Engine Fuel Valve Lever (ON)
2. Place the engine throttle lever (Figure 9) in the IDLE
position.
Figure 9. Throttle Lever (Idle)
FUEL VALVE
LEVER
THROTTLE
LEVER

PAGE 18 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
OPERATION
3. If starting a cold engine, place the engine choke lever
in the CLOSED position (Figure 10).
Figure 10. Choke Lever (Closed)
4. If starting a warm engine, place the engine choke
lever in the OPEN position (Figure 11).
Figure 11. Choke Lever (Open)
5. Slowly pull the starter grip (Figure 12) until resistance
is felt, then pull briskly and smoothly to start the engine.
Gently return the starter grip to its original position.
Figure 12. Starter Grip
6. If the engine has started, slowly return the choke lever
to the OPEN position (Figure 11) as the engine warms.
If the engine has not started, repeat steps 1–5.
CHOKE
LEVER
CHOKE
LEVER
STARTER
GRIP
7. Run the engine at idle for several minutes and check
for any abnormal conditions such as extreme vibration,
loose components, or fluid leaks.
8. To begin pumping, place the engine throttle lever
(Figure 13) in the RUN position.
Figure 13. Throttle Lever (Run)
THROTTLE
LEVER
WARNING
Water must always be flowing through the pump
casing while the engine is running. Loss of flow may
be the result of a loss of prime, restricted water flow,
or a dead-head situation. Please note that in such a
condition, water in the pump can reach temperatures
of 150–200°F in 15–20 minutes. This can cause
serious burns if this hot water comes into contact with
unprotected skin.
Before touching or opening the fill plug or drain plug,
first turn off the engine and allow the pump casing to
cool to the touch, then open the pump carefully. Be
cautious of any built-up water pressure.
CAUTION
ALWAYS run the engine at full speed while pumping.

QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)— PAGE 19
OPERATION
STOPPING THE ENGINE
Normal Shutdown
1. Place the engine throttle lever in the IDLE position
(Figure 14), and run the engine for three minutes at
low speed.
Figure 14. Throttle Lever (Idle)
2. After the engine has cooled, place the fuel valve lever
in the OFF position (Figure 15).
Figure 15. Engine Fuel Valve Lever (OFF)
THROTTLE
LEVER
FUEL VALVE
LEVER
NOTICE
When transporting the pump, ALWAYS place the
engine fuel valve lever in the OFF position.
Emergency Shutdown
Move the engine fuel valve lever quickly to the OFF
position (Figure 15).

PAGE 20 — QP3TB TRASH PUMP • OPERATION MANUAL — REV. #0 (12/08/22)
ENGINE MAINTENANCE
Perform engine maintenance procedures according to Table 7 below:
Table 7. Engine Maintenance Schedule
Description(2) Operation First 5
Hours
Every 8
Hours or
Daily
Every 25
Hours or
Annually
Every 50
Hours or
Annually
Annually
Engine Oil Check X
Change X X
Area Around
Muffler and
Controls
Clean X
Finger Guard Clean X
Spark Plug Replace X
Muffler and
Spark Arrester Check X
Air Filter and
Pre-Cleaner
Clean X(1)
Replace X
Air Cooling
System Clean X(1)
Valve
Clearance Check/Adjust X
Debris Strainer Clean/
Replace X
(1) In dusty conditions or when airborne debris is present, clean more often.
(2) For commercial use, log hours of operation to determine proper maintenance intervals.
MAINTENANCE (ENGINE)
