MULTIQUIP ST3020B1 Guide
OPERATION AND PARTS MANUAL
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
MODEL ST3020B1/ST3020BCUL
SUBMERSIBLE PUMPS
Revision #2 (10/28/10)
www.discount-equipment.com
Discount-Equipment.com
Discount-Equipment.com is your online resource for commercial and industrial
quality parts and equipment sales.
Locations:
Florida (West Palm Beach): 561-964-4949
Outside Florida TOLL FREE: 877-690-3101
Need parts? Check out our website at www.discount-equipment.com
Can’t find what you need?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and fill out
the request form.
Please have the machine model and serial number available in order to help us get
you the correct parts. One of our experienced staff members will get back to you with
a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mayco, Toro/Stone,
Diamond Products, Magnum, Airman, Mustang, Power Blanket, Nifty Lift, Atlas Copco,
Chicago Pneumatic, Allmand Brothers, Essick, Miller Spreader, Skyjack, Lull, Skytrak,
Tsurumi, Husquvarna/Target, Whiteman-Concrete/Mortar, Stow-Concrete/Mortar, Baldor,
Wacker, Sakai, Snorkel, Upright, Mi-T-M, Sullair, Neal, Basic, Dynapac, MBW, Weber,
Bartell, Bennar Newman, Haulotte, Ditch Runner, Blaw-Knox, Himoinsa, Best, Buddy,
Crown, Edco, Wyco, Bomag, Laymor, Terremite, Barreto, EZ Trench, Takeuchi, Basic, Bil-
Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer,
Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump,
Giant,AMida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,
Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, Small Line, Wanco, Yanmar
Discount-Equipment.com
TABLE OF CONTENTS
Multiquip ST3020B1/BCUL
Submersible Pump
Table Of Contents.................................................... 2
Parts Ordering Procedures...................................... 3
Safety Information ................................................ 4-7
Dimensions.............................................................. 8
Specifications .......................................................... 9

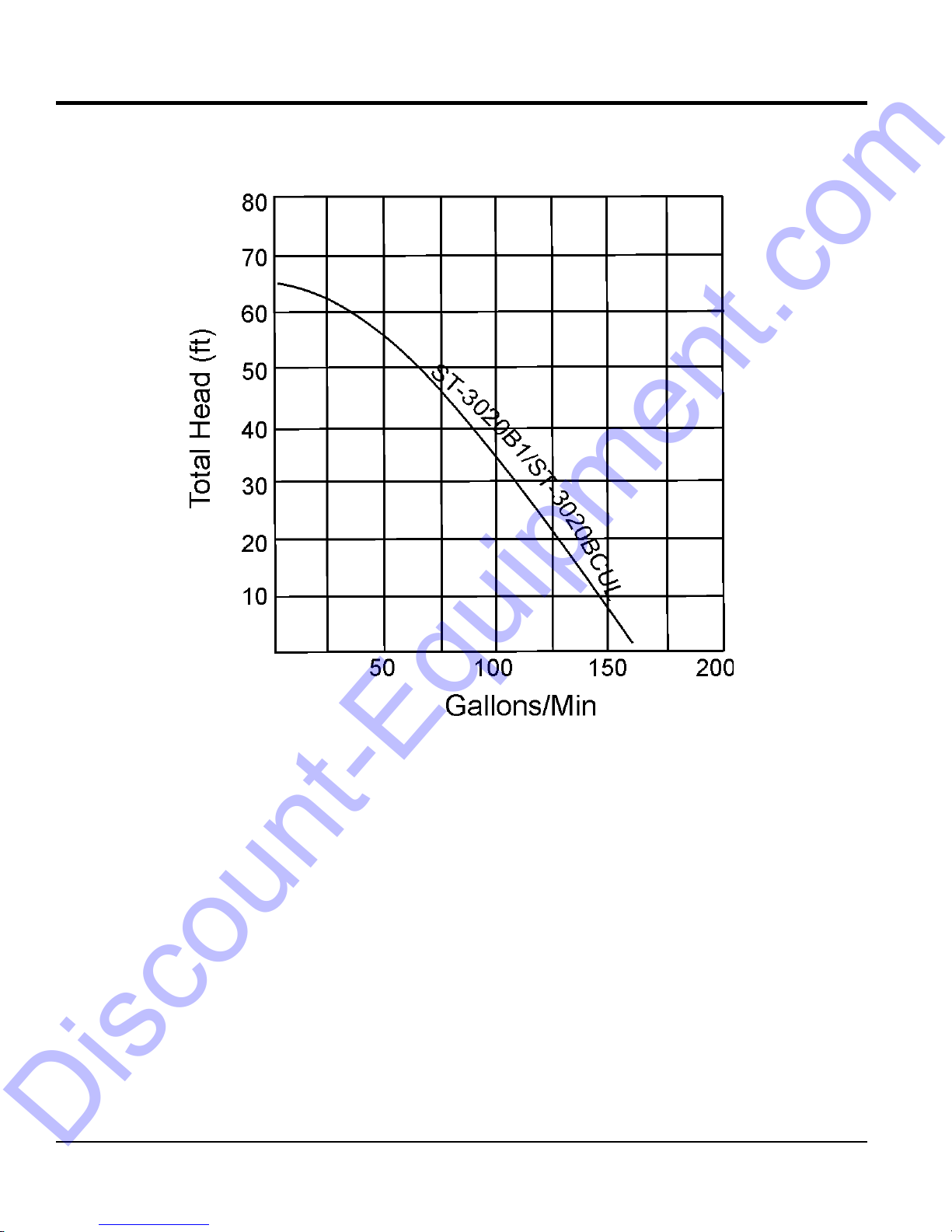

Performance Curve................................................ 10
General Information............................................... 11

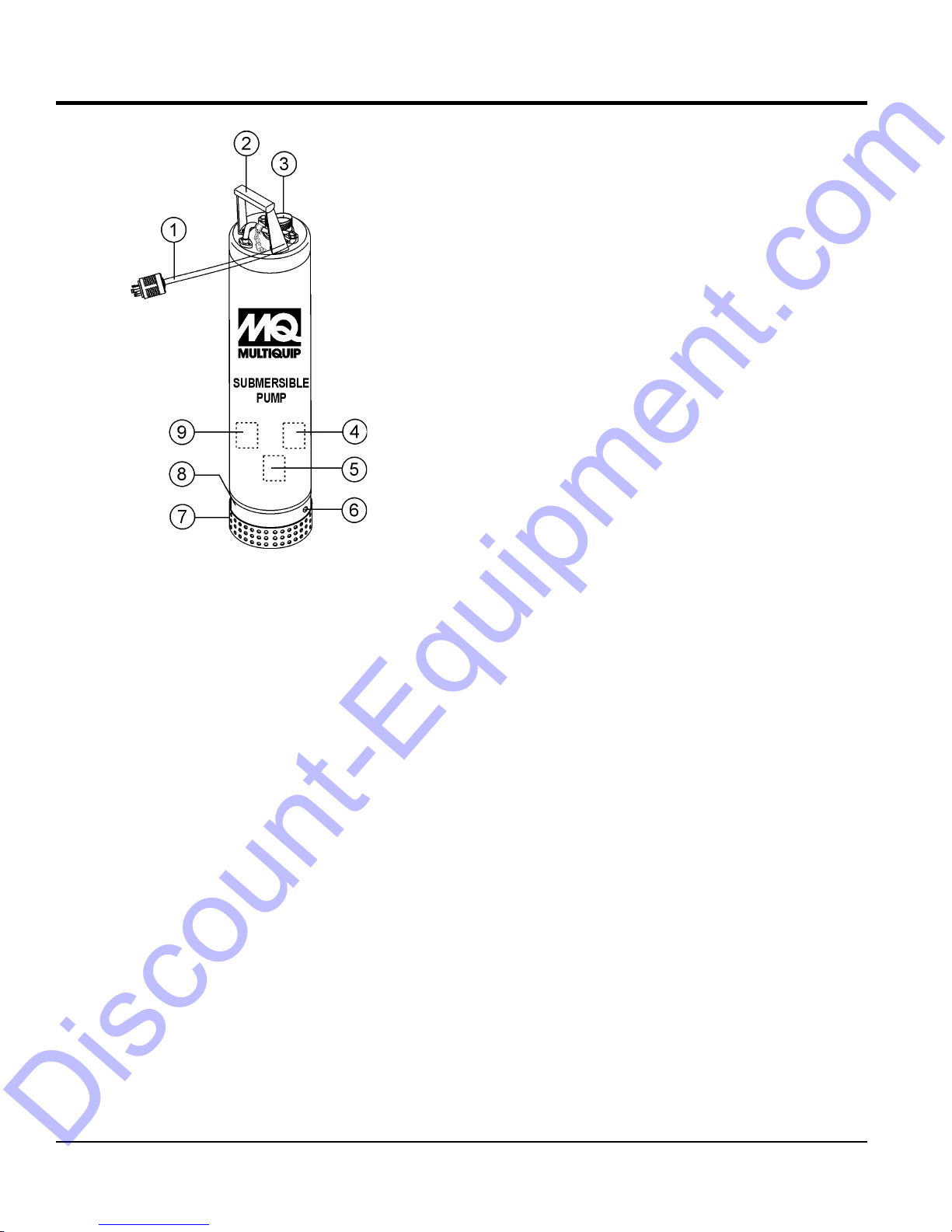

Components .......................................................... 12
Direct Power Operation ......................................... 13
Float Switches .................................................. 14-15
Float Switches (CB6 Control Box) ......................... 16
Float Switches (CB200 Control Box Old Style) ..... 17
Float Switches (CB200 Control Box New Style).... 18
Operation.......................................................... 19-24
Maintenance..................................................... 24-26
Troubleshooting ..................................................... 27
CB6 Wiring Diagram.............................................. 28
CB200 Wiring Diagram.......................................... 29
Explanation of Code in Remarks Column.............. 30
Suggested Spare Parts ......................................... 31
Component Drawings
Pump Assembly................................................ 32-33
Motor Assembly. ............................................... 34-35
Terms And Conditions Of Sale — Parts ................ 36
NOTICE
Specifications and part numbers are subject to change
without notice.
Discount-Equipment.com
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
The four safety messages shown below will inform you
about potential hazards that could injure you or others.The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
or
Indicates a hazardous situation which, if not avoided,
result in or
Indicates a hazardous situation which, if not avoided,
result in or
Indicates a hazardous situation which, if not avoided,
result in or
NOTICE
Addresses practices not related to personal injury.
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
Burn hazards
Symbol Safety Hazard
Electric shock hazards
Rotating parts hazards
Pressurized fluid hazards
Discount-Equipment.com
SAFETY INFORMATION
operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
Avoid wearing jewelry or loose fitting clothes that may
snag on the controls or moving parts as this can cause
serious injury.
operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
operate this equipment under the
influence of drugs or alcohol.
clear the work area of any debris, tools, etc.
that would constitute a hazard while the equipment is
in operation.
No one other than the operator is to be in the working
area when the equipment is in operation.
use the equipment for any purpose other than
its intended purposes or applications.
NOTICE
This equipment should only be operated by trained and
qualified personnel 18 years of age and older.
Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
know the location of the nearest
know the location of the nearest
first aid kit.
know the location of the nearest phone or
keep
a phone on the job site.
Also, know the phone numbers
of the nearest ambulance, doctor and
fire department.
This information will be invaluable in the case of an
emergency.
Discount-Equipment.com
SAFETY INFORMATION
operate the equipment in an explosive
atmosphere or near combustible materials.An
explosion or fire could result causing severe
bodily harm or even death.
Accidental starting can cause severe injury
or death. place the ON/OFF
switch in the OFF position.
place hands or fingers inside
pump when pump is running.
disconnect any emergency or
safety devices. These devices are intended for operator
safety. Disconnection of these devices can cause severe
injury, bodily harm or even death. Disconnection of any
of these devices will void all warranties.
Risk of Electric Shock - This pump has not been
investigated for use in swimming pool or marine areas.
restrict the flow of the discharge hose as it may
cause the pump to overheat.
Be careful of discharge hose whipping under pressure.
check pump oil level only when pump is cool.
Expansion due to heat may cause hot oil to spray from
the oil plug when the oil plug is removed. The possibility
of severe scalding may exist.
NOTICE
place the pump in an upright position on a
platform before using.The platform will prevent the pump
from burrowing itself on soft sand or mud.
operate pump on its side.
allow the pump to freeze in water.
leave an open pump chamber unattended.
keep the machine in proper running condition.
attempt to thaw out a frozen pump by using
a torch or other source of flame. Application of heat in
this manner may heat the oil in the seal cavity above the
critical point, causing pump damage.
pump water with a temperature greater than
104°F.
pump liquids containing acid or alkali.
check strainer before pumping. Make sure
strainer is not clogged. Remove any large objects, dirt
or debris from the strainer to prevent clogging.
use a large basket strainer when pumping
water that contains large debris.
flush pump (clean) after use when pumping
water concentrated with heavy debris.It is very important
to always flush the pump before turning it off to prevent
clogging.
Fix damage to machine and replace any broken parts
immediately.
store equipment properly when it is not being
used.Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
lubricate components or attempt service on a
running machine.
run pump dry.
allow the machine a proper amount of time to
cool before servicing.
Keep machine in proper running condition.
The electrical voltage required to operate
pump can cause severe injury or even death
through physical contact with live circuits.
disconnect electrical power from
pump before performing maintenance on
pump.
To reduce the risk of electric shock, connect only to a
circuit protected by a Ground-Fault Circuit-Interrupter
(GFCI).
Discount-Equipment.com
SAFETY INFORMATION
NOTICE
make certain that the voltage supplied to the
pump is correct. Always read the pump’s nameplate to
determine what the power requirements are.
Power Cord/Cable Safety
let power cords or cables lay in water.
stand in water while AC power cord is connected
to a live power source.
use damaged or worn cables or cords. Inspect
for cuts in the insulation.
grab or touch a live power
cord or cable with wet hands. The
possibility exists of electrical shock,
electrocution or death.
Make sure power cables are securely connected to the
motor's output receptacles. Incorrect connections may
cause electrical shock and damage to the motor.
attempt to use the power cord as a lifting or
lowering device for the pump.
NOTICE
make certain that proper power or extension
cord has been selected for the job. See Cable Selection
Chart in this manual.
Grounding Safety
make sure pump is grounded.
use gas piping as an electrical ground.
make sure that electrical circuits are properly
grounded to a suitable earth ground (ground rod) per
the National Electrical Code (NEC) and local codes
before operating generator. Severe injury or death by
electrocution can result from operating an ungrounded
motor.
have a qualified electrician perform the control
box installation. The possibility exists of electrical shock
or electrocution.
NOTICE
mount control box in a vertical position
protected from harsh environmental elements.
When raising or lowering of the pump is required, always
attach an adequate rope or lifting device to the correct
lifting point (handle) on the pump.
NOTICE
lift machine to unnecessary heights.
lift the equipment while the electric motor is
running.
NOTICE
shut down pump before transporting.
tie down equipment during transport by
securing the equipment with rope.
CE
pour waste or oil directly onto
the ground, down a drain or into any water
source.
Contact your country's Department of Public
Works or recycling agency in your area and arrange for
proper disposal of any electrical components, waste or
oil associated with this equipment.
When the life cycle of this equipment is over it is
recommended that the pump casing and all other metal
parts be sent to a recycling center
Metal recycling involves the collection of metal from
discarded products and its transformation into raw
materials to use in manufacturing a new product.
Recyclers and manufacturers alike promote the process
of recycling metal. Using a metal recycling center
promotes energy cost savings.
Discount-Equipment.com
DIMENSIONS
2.0 in
(50 mm)
2.9 in
(75 mm)
3.3 in
(83 mm)
21.6 in
(548 mm)
24.8 in
(631 mm)
6.3 in
(160 mm)
27.9 in
(708 mm)
6.7 in
(170 mm)
6.9 in
(176 mm)
NPT3
NEMA L6-20P PLUG
590.6 in
(15000 mm)
0.9 in
(23 mm)
Figure 1. ST3020B1/BCUL Pump Dimensions
Discount-Equipment.com
SPECIFICATIONS
1. – Upon start-up, the pump "kicks" in the opposite direction of motor rotation. The correct rotation is
counterclockwise (CCW) as viewed from the impeller end of the pump.
2. – Use ISO VG32 oil grade. Fill oil cavity 75% to 85% full (allow air space for expansion).
3. - Control box (Table 2) may be required for certain pumping applications.
Table 1. Specifications
Model ST3020B1/BCUL
Type Centrifugal Submersible Pump
Impeller Cast Ductile Iron
Suction & Discharge Size 3 in. (76 mm)
Maximum Pumping Capacity 145 gallons/minute (548 liters/minute)
Max Head 66 ft. (20.1 meters)
Power 2 HP (1.5 kW)
Voltage Phase 1Ø 230 V
Starting Amps 52.2 A
Running Amps 10.5 A
Control Box Required See Note 3
Temperature Range 32°F ~ 86°F (0°C ~ 30°C)
Thermal Overload Protection YES
Rotation CCW (See Note 1)
Mechanical Seal Oil Capacity 18 in3(300 cc) (See Note 2)
Power Cable Length 50 ft (approx.15 m)
Dry Net weight 67 lb (31 kg)
Table 2.
Model UL/CSA
Listed
Protection
Capability
CB6 230 VAC, 60 Hz Single Phase YES NO YES
CB200 230 VAC, 60 Hz Single Phase YES YES YES
Discount-Equipment.com
PERFORMANCE CURVE
Figure 2. Pump Performance Curve
Discount-Equipment.com
GENERAL INFORMATION
The Multiquip Model ST3020B1 and ST3020BCUL
submersible pumps are designed to pump water and
is used for the draining (dewatering) of well casings
construction sites, coffer dams, manholes, transformer
vaults and excavations.
It's slim design (only 6.7 inches in diameter) allows it to fit
easily inside 8-inch casings and eliminates the need for
larger, more costly casings. The pump is powered by a
2-HP, 230-volt, single-phase motor for easy starting with a
6,000-watt generator.
This rugged submersible pump is loaded with features
such as:
- automatically
shuts off the motor should it reach an unsafe operating
temperature.
- provides and
convenient and safe location to attach a lifting device.
- provides added safety
in the event the operator should try lifting the pump from
the electrical cord.
- provides easy
maintenance and lower repair costs.
- provides positive
lubrication if the pump should be left running dry. This
helps prevent damage in the event the pump is run dry
for short periods of time.
- for abrasion resistance
and extended life.The high-chrome ductile iron material
minimizes wear.
- simplifies maintenance
If the pump was used to pump water containing mud, silt,
use clean water to flush out the pump after each use.
allow the pump to run dry for an extended period
of time, as this will damage the pump. During maintenance,
dry running is permissible but only for a few seconds.
lift the pump by its electrical power cord. ALWAYS
lift the pump by its carrying handle or attach a rope to the
carrying handle.
A pump fully submerged in liquid will not freeze, unless
the liquid freezes. allow a partially submerged
pump to freeze. The expansion of water freezing in the
volute may crack the pump, causing expensive repairs. If
there is any danger of the pump being subjected to freezing
temperatures, Lift the pump from water and allow it to drain
thoroughly.
If the pump jams or the pump rotor locks for any reason,
disconnect the pump from the power source immediately.
Allowing the pump motor to cycle and under an
overload condition can burn out the motor.
When replacement of nuts and bolts is required, use only
recommended parts as referenced in the parts section of
this manual. This pump uses metric threads. use
English measurement threads.
Discount-Equipment.com
COMPONENTS
Figure 3. Submersible Pump Components
Figures 3 shows the location of the basic components, for
the ST3020B1/BCUL submersible pump. Listed below is
a brief explanation of each component.
1. AC Power Cable – This unit is supplied with a 50-ft.
(approximately 15 meters) AC power cable with a
NEMA L6-20P grounding-type plug. Always check
the cable for signs of wear. use a defective
power cable.
2. – Always carry the submersible pump
by its handle. carry the pump by its power cord.
Carrying or lifting the pump by the power cord will cause
undue stress on the cord and can ultimately dislodge
the cord from the pump.
3. – Connect a 3-inch hose to this port.
Remember to adequately support the discharge hose
to avoid stress on the pump.
4. – This pump is
equipped with a thermal overload protection device
that will shut down the motor in the event of high
operating temperatures. The motor will automatically
restart once the temperature returns to an acceptable
operating temperature.
5. Mechanical Seal – The hydraulic oil in the pump cavity
is designed to provide cooling for the pump seal. This
allows the pump to run dry for a limited period of time.
6. – Remove this plug to check
and add lubrication oil (ISO VG32 grade) to the oil
cavity. This oil protects the mechanical seal. Oil cavity
should be full enough to cover seal spring.
7. Strainer Base – This strainer base is made of electro-
coated steel which is resistant to hardware corrosion.
pump large objects or debris with this pump.
This pump is for pumping water only. For dewatering
purposes, always place the strainer base on a platform.
8. – Impellers are constructed of ductile
iron to minimize wear and prolong service life.
9. Electric Motor – These submersible pumps utilize a
60 Hz, single-phase, 230 VAC, 2 HP electric motor.
Consult with a licensed electrician before connecting
motor to a power source and control boxes. Observe
all city and local safety codes.
Discount-Equipment.com
DIRECT POWER OPERATION
The ST3020B1/BCUL submersible pumps can be configured to operate by direct power (Figure 4) or connected to a
control box (Figures 9, 10 and 11) utilizing float switches. When the pump is connected directly to a 1Ø, 230 VAC, 60 Hz
power source via the L6-20P plug located at the end of the power cord, the pump will operate soon as power is applied. It
is suggested that a quick disconnect switch be installed as a means of turning the power on and off.
When operating the pump using direct power (no control box) the pump must be monitored at all times. Failure to monitor
the pump during operation could lead to severe pump damage should the pump encounter problems such as a stuck
impeller or not fully immersed in water.

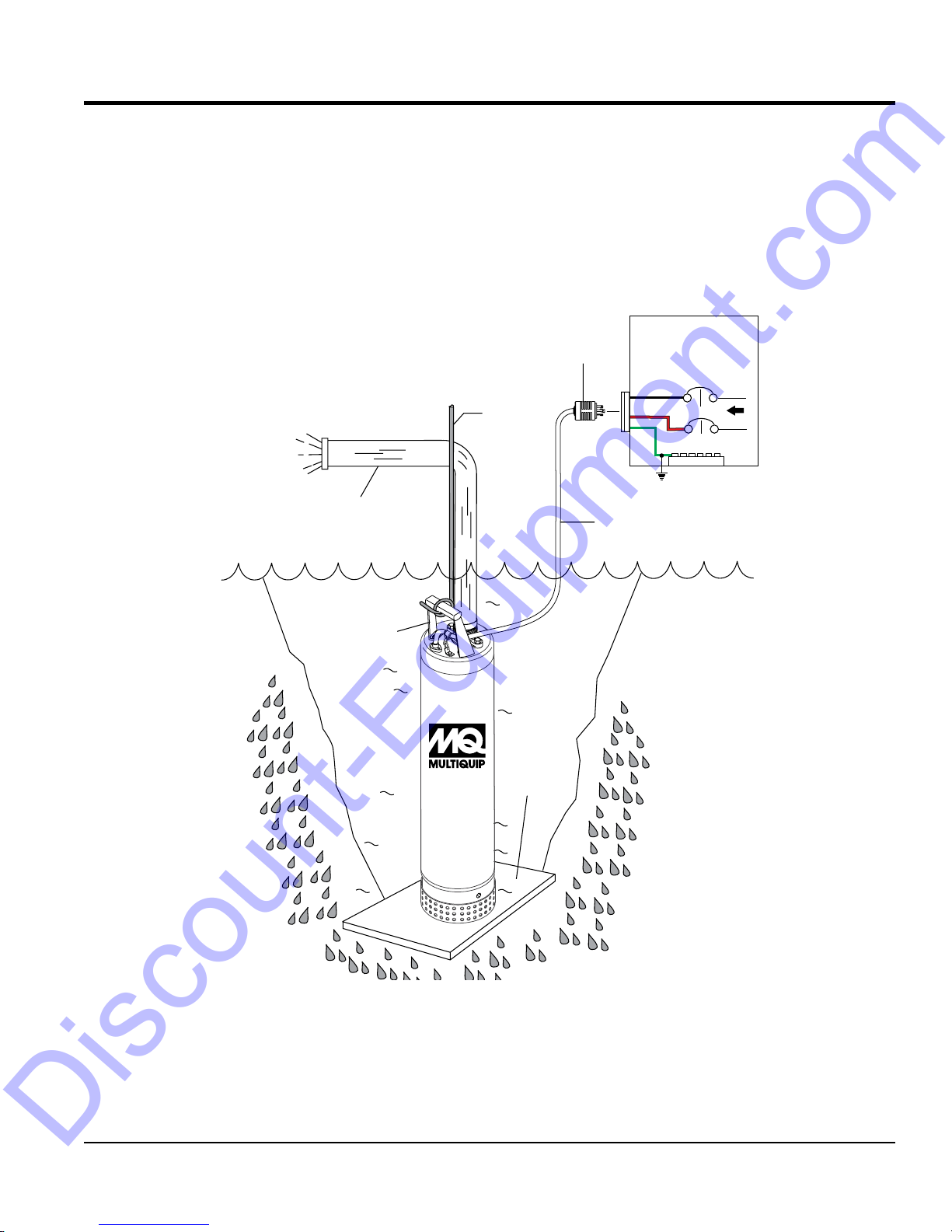

Figure 4. Direct Power Application.
LIFTING
ROPE
3-INCH
DISCHARGE
HOSE
SUPPORT
PLATFORM
CARRYING
HANDLE
SUBMERSIBLE
PUMP
POWER
CORD
NEMA
L6-20P PLUG
GREEN
BLACK
EXTERNAL
1Ø 230VAC, 60 Hz
POWER SOURCE
CIRCUIT
BREAKER
L1
L2
RED
GND. BUS
Discount-Equipment.com
FLOAT SWITCHES
Mechanically activated float switches offer a reliable low
current control for dewatering applications.
The mechanical float switch control will turn ON (close)
when the float tips 45° above -horizontal, indicating a high
level, and turns OFF (open) when the float switch drops45°
below horizontal.Reference Figure 6 and Figure 7. Maximum
pumping range is 120 degrees. See Figure 5 below.

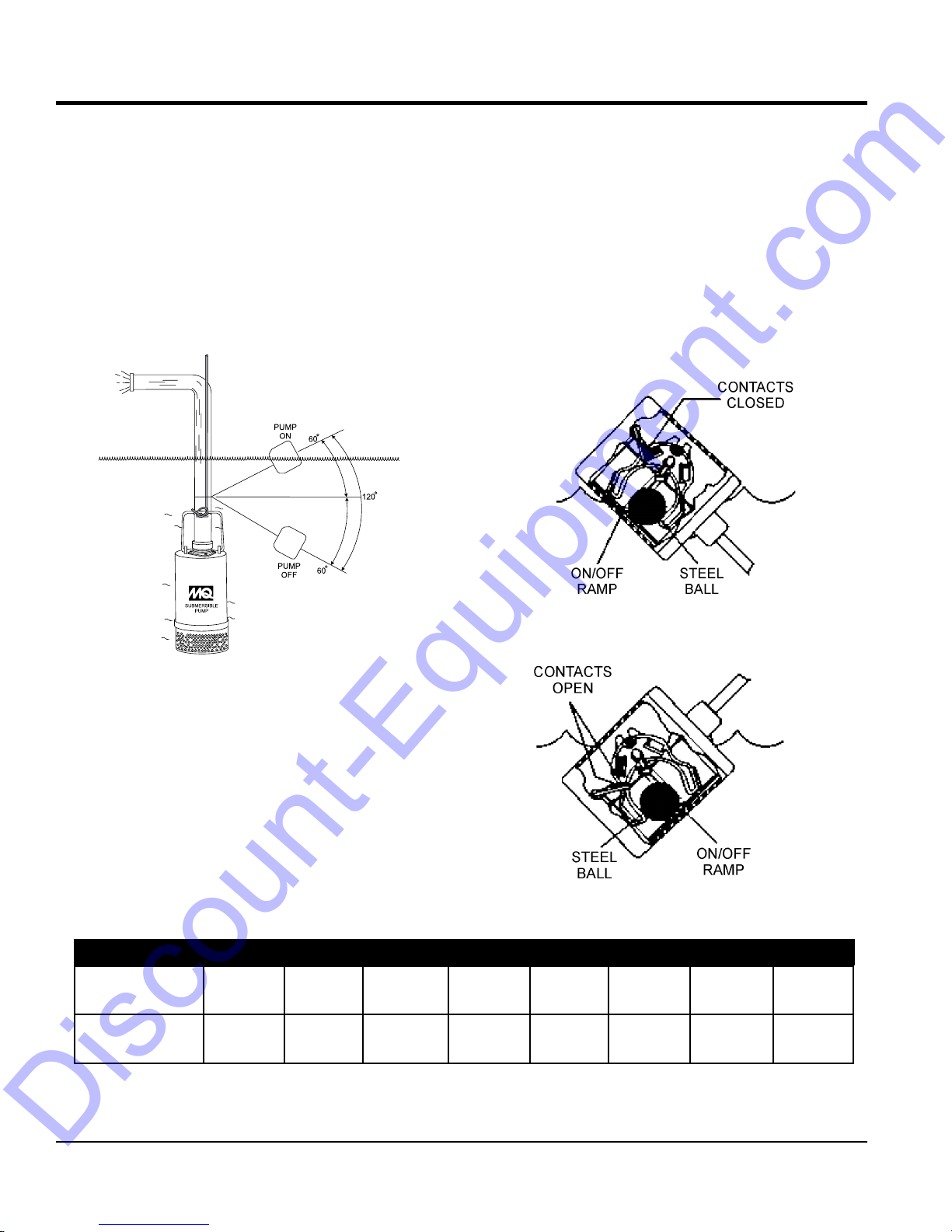

Figure 5. Pumping Range (Float Switch)
The pumping range of the pump is determined by the float
switch tether cord. Use Table 3 as guide line to determine
your required pumping range. Pumping ranges are based
on non-turbulent conditions. Range may vary due to water
temperature and cord shape. Please note as the tether
length increases, so does the variance of the pumping
range.
Table 3.
Tether Length 2 in.
5.08 cm.
4 in.
10.16 cm.
6 in.
15.24 cm.
8 in.
20.32 cm.
10 in.
25.4 cm.
12 in.
30.48 cm.
14 in.
35.56 cm.
16 in.
40.46 cm.
6 in.
15.24 cm.
10 in.
25.4 cm.
14 in.
35.56 cm.
18 in.
45.72 cm.
22 in.
55.88 cm.
27 in.
68.58 cm.
31 in.
78.74 cm.
35 in.
88.9 cm.
Float switch housings are constructed of high-impact,
corrosion resistant polypropylene with mechanically
activated, snap action contacts.
Suitable for most liquid environments.
Hermetically sealed.
Thick-walled non-corrosive PVC plastic enclosure.
Pressure tested to 30 ft. (9 meters).
Standard SJO, 16-gauge, 2 conductor cord (20 ft./6.09 m).
Figure 6. Float Switch (Closed)
Figure 7. Float Switch (Open)
Discount-Equipment.com
For unattended operation of the submersible pump two Model SW1WOPA float switches will be required. These float
switches have bare wires on one end of the cable for direct connection to either the CB6 or CB200 Control Boxes. The
illustration below is an example of using two single float switches in a typical dewatering application.
FLOAT SWITCHES
1. Determine the required cord tether length as shown
in Figure 5 and Table 3.
2. Place the cord into the clamp as shown in Figure 8.
3. Secure the clamp to the discharge hose as shown in
Figure 8. install cord under hose clamp.
4. Using a screwdriver, tighten the hose clamp.
over- tighten. Make sure the float cord is not allowed
to touch the excess hose clamp band during operation.
SUBMERSIBLE
PUMP
PUMP
POWER
PLUG
PUMPING
RANGE
SINGLE
FLOAT SWITCH
APPLICATION
MODEL SW1WOPA
3.5 in. (9 cm.)
MINIMUM
TETHER
LENGTH
PUMP
ON
PUMP
OFF
CONTROL
BOX
GREEN
BLACK
EXTERNAL
1Ø 230VAC, 60 Hz
POWER SOURCE
CIRCUIT
BREAKER
L1
L2
RED
GND. BUS
DISCHARGE
HOSE
Figure 8. Single Float Switch (2) Application Diagram
NOTICE
Single float switch, Model SW1A has a pumping range
between 5.5~18 in. (14~46 cm.). Dual float switch has
a pumping range between 1~ 48 in (2.54~122 cm.)
Discount-Equipment.com
FLOAT SWITCHES (CONTROL BOX)

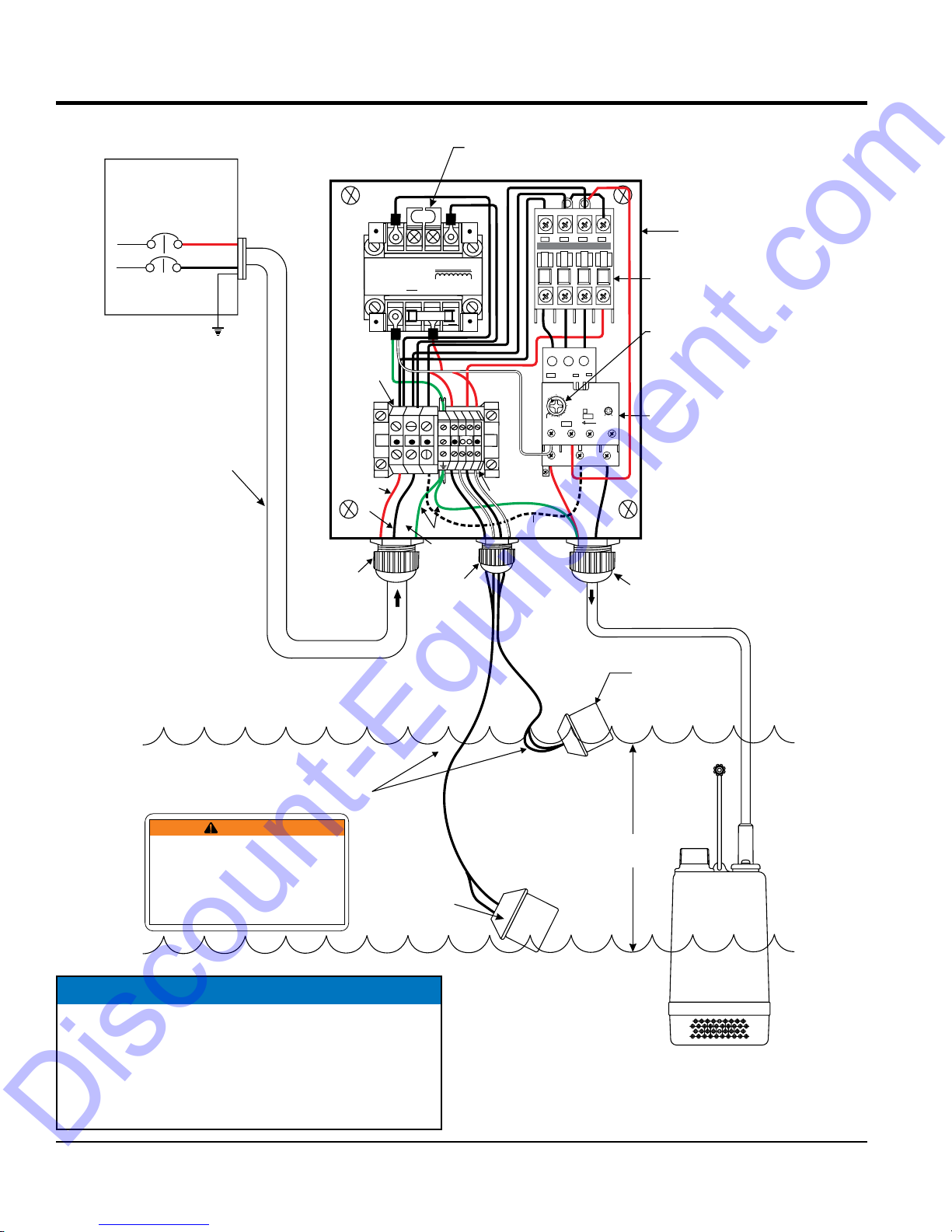

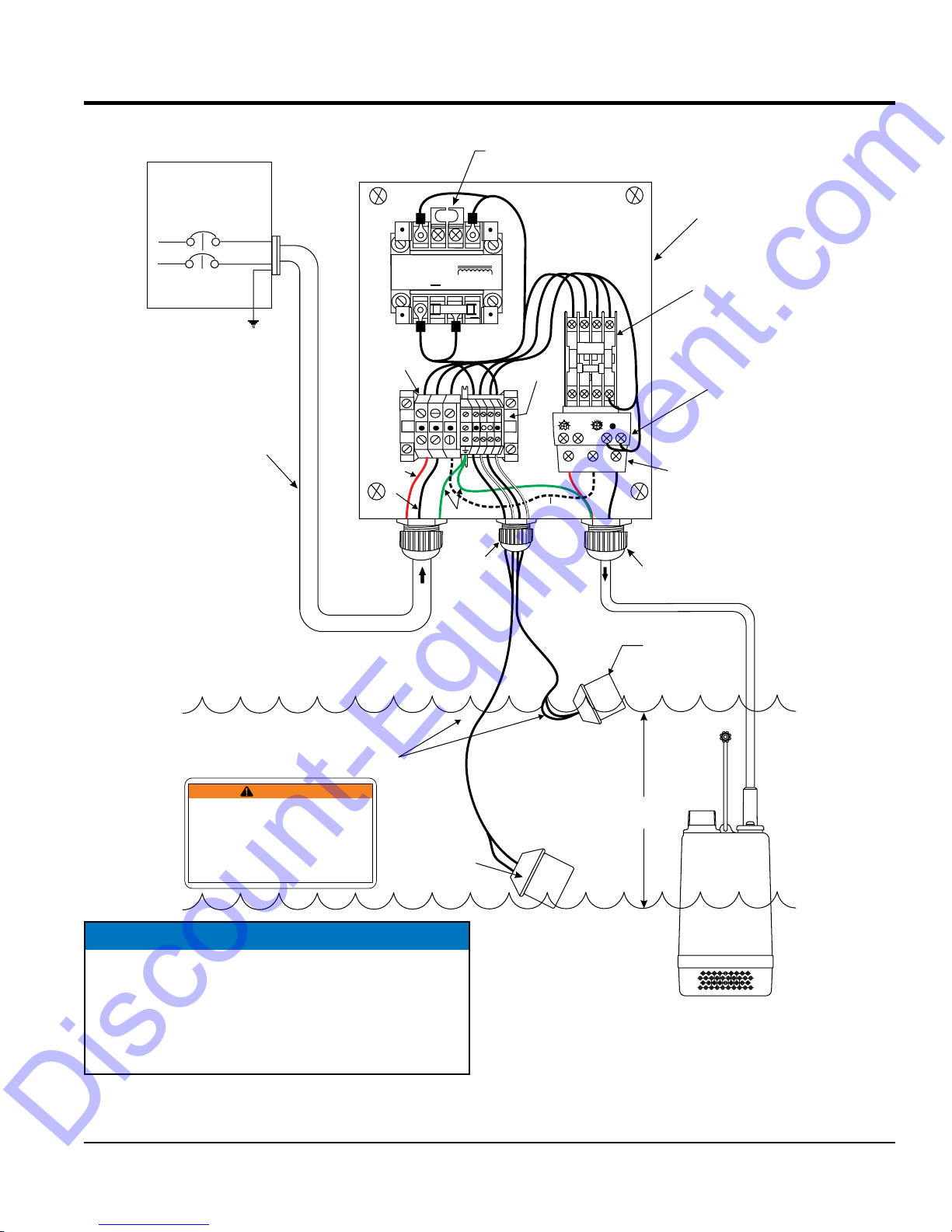

For special remote pumping applications of the submersible pump, a control box (Models CB6 or CB200) is required.These
water resistant control boxes provides watertight housing and glands to prevent water from leaking into the box, and a float
switch interface. Both control boxes will require the use of two SW-1WOPA float switches, no plug, bare wires for direct
connection to the control box. See Figures 9, 10 and 11 for control box connections.

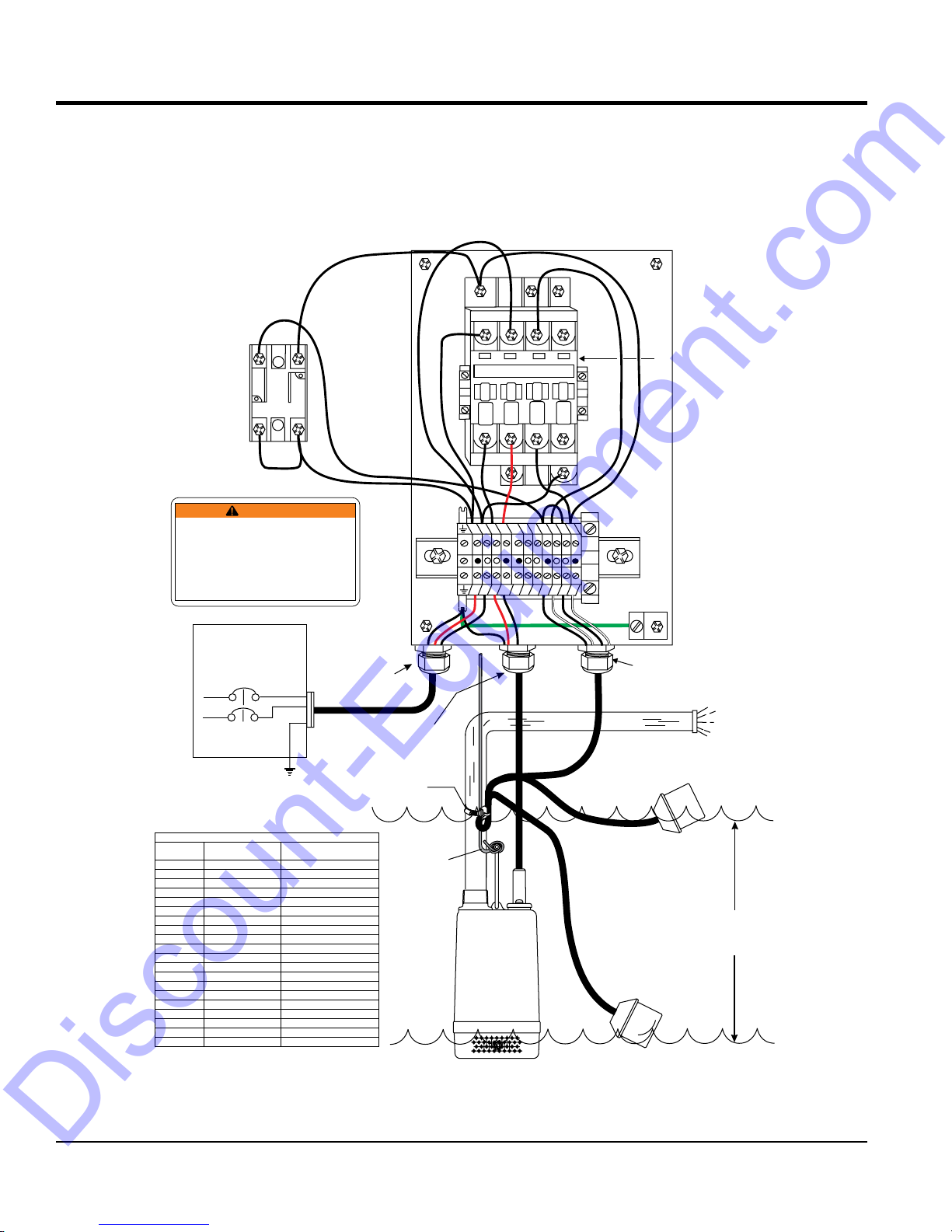

Figure 9. CB6 Control Box Dual Float Switch Application Diagram
SINGLE-PHASE
230 VAC INPUT
POWER CABLE
EXTERNAL SINGLE-PHASE
(230 VOLT)
POWER SOURCE
CIRCUIT
BREAKER
BLACK
WHITE
L1
L2
GREEN
GROUND
SUBMERSIBLE
PUMP
START FLOAT
SWITCH. CONNECT
TO TERMINALS 1 AND 2
STOP FLOAT
SWITCH. CONNECT
TO TERMINALS 3 AND 4
PUMPING
RANGE
SECURE FLOAT SWITCH
WIRES TO PUMP
DISCHARGE HOSE
FLOAT
SWITCH
INPUTS
R S U V V Y Y 1 2 3 4
2T1 4T2 6T3 14NO
ABB
A16-30-10
1L1 3L2 5L3 13NO
R S U V V Y Y 1 2 3 4
24 12
1123
A1
A2
LIFTING
ROPE
TB1
MANUAL/AUTO
SWITCH
SINGLE-PHASE
230 VAC OUTPUT
POWER CABLE
TO PUMP
GROUND
A
B
SW-1
CONTACTOR
WARNING
CONTROL BOX INSTALLATION IS TO BE
PERFORMED BY A LICENSED ELECTRICIAN
OR QUALIFIED PERSONNEL.
THE POSSIBILITY OF ELECTRICAL SHOCK
OR ELECTROCUTION EXISTS, WHICH COULD
CAUSE SEVERE BODILY HARM EVEN DEATH!.
TB1 REFERENCE CHART
TERMINAL
NO.
DESTINATION WIRE COLOR SIZE
TB1-A1 STOP FLOAT SW BLACK 14 AWG
TB1-A2 STOP FLOAT SW WHITE 14 AWG
TB1-A3 START FLOAT SW BLACK 14 AWG
TB1-A4 START FLOAT SW WHITE 14 AWG
TB1-AR 230 VAC LINE RED 14 AWG
TB1-AS 230 VAC LINE BLACK 14 AWG
TB1-GND GROUND GREEN 14 AWG
TB1-AU PUMP MOTOR RED 14 AWG
TB1-BU CONTACTOR 2T1 BLACK 14 AWG
TB1-AV PUMP MOTOR BLACK 14 AWG
TB1-BV CONTACTOR 4T2 RED 14 AWG
TB1-BR CONTACTOR 1L1 BLACK 14 AWG
TB1-BR SW1-11 BLACK 14 AWG
TB1-BS CONTACTOR 3L2 BLACK 14 AWG
TB1-BS COIL A2 BLACK 14 AWG
TB1-B1 SW1-24 BLACK 14 AWG
TB1-B1 TB1-B3 BLACK 14 AWG
TB1-B2 CONTACTOR 5L3 BLACK 14 AWG
TB1-B4 CONTACTOR 6T3 BLACK 14 AWG
TB1-B4 COIL A1 BLACK 14 AWG
SINGLE
FLOAT SWITCH
APPLICATION
MODEL SW1WOPA
Discount-Equipment.com
Figure 10. CB200 Control Box (Old Style)
Dual Float Switch Application Diagram
CLASS
AUTO HAND
30
20
10
30
20
10
FLC (A)
16
12
6.4
7
810
STOP
RESET
24 6
1 2 3 4
1 2 3 4
FUSE
L1 L2 L3
L1 L2 L3
X2 XF X1
H4 H2 H3 H1
110
115
120
X1
GREEN
RED
BLACK
EXTERNAL
(230 V )
POWER SOURCE
1Ø
AC
CIRCUIT
BREAKER
RED
BLACK
L1
L2
GREEN
GROUND
SUBMERSIBLE
PUMP
BLACK
RED
START FLOAT
SWITCH. CONNECT
TO TERMINALS 1 AND 2
STOP FLOAT
SWITCH. CONNECT
TO TERMINALS 3 AND 4
PUMPING
RANGE
SECURE FLOAT SWITCH
WIRES TO PUMP
DISCHARGE HOSE
MOUNT CONTROL
BOX IN AN UPRIGHT
VERTICAL POSITION
AS SHOWN.
FLOAT
SWITCH
INPUTS
FLOAT SWITCH
TERMINAL BLOCK
AC POWER
TERMINAL BLOCK
ELECTRONIC OVERLOAD
MODULE TERMINAL BLOCK
MTE
CONTACTOR
WARNING
CONTROL BOX INSTALLATION IS TO BE
PERFORMED BY A LICENSED ELECTRICIAN
OR QUALIFIED PERSONNEL.
THE POSSIBILITY OF ELECTRICAL SHOCK
OR ELECTROCUTION EXISTS, WHICH COULD
CAUSE SEVERE BODILY HARM EVEN DEATH!.
POWER INPUT CABLE
TO CONTROL BOX
POWER INPUT
TO CTRL BX.
TERMINAL BD. 1Ø 230 VAC
POWER OUTPUT
TO PUMP
NOTE:
REFER TO OPERATION MANUAL
FOR THE CORRECT SETTING OF
THE ELECTRONIC OVERLOAD UNI
T.
JUMPER
WIRE
CHECK JUMPER SETTINGS ON
TRANSFORMER, REFERENCE
CB200 WIRING DIAGRAM. 230 VAC
CONFIGURATION SHOWN.
NOTE:
TB1 B
A
B
SINGLE
FLOAT SWITCH
APPLICATION
MODEL SW1WOPA
NOTICE
For correct wiring to pump motor (1Ø, 230 VAC), add
a 16 AWG. jumper wire approximately 5-inches in
length between the input terminal block marked L3 and
terminal 4 on the electronic overload unit. Reference
CB200 wiring diagram (old style)
FLOAT SWITCHES (CONTROL BOX)
Discount-Equipment.com
1 2 3 4
1 2 3 4
FUSE
L1 L2 L3
L1 L2 L3
X2 XF X1
H4 H2 H3 H1
110
115
120
X1
GREEN
BLACK
RED
1Ø 230 VAC
POWER OUTPUT
TO PUMP
EXTERNAL
1Ø 230VAC, 60 Hz
3Ø 230/460 VAC, 60 Hz
POWER SOURCE
CIRCUIT
BREAKER
RED
BLACK
L1
L2
GREEN
GROUND
SUBMERSIBLE
PUMP
BLACK
RED
START FLOAT
SWITCH. CONNECT
TO TERMINALS 1 AND 2
STOP FLOAT
SWITCH. CONNECT
TO TERMINALS 3 AND 4
PUMPING
RANGE
SECURE FLOAT SWITCH
WIRES TO PUMP
DISCHARGE HOSE
MOUNT CONTROL
BOX IN AN UPRIGHT
VERTICAL POSITION
AS SHOWN.
FLOAT
SWITCH
INPUTS
AC POWER
TERMINAL
BLOCK
ELECTRONIC OVERLOAD
UNIT TERMINAL BLOCK
NOTE:
REFER TO OPERATION MANUAL
FOR THE CORRECT SETTING OF
THE ELECTRONIC OVERLOAD UNI
T.
CONTACTOR
WARNING
CONTROL BOX INSTALLATION IS TO BE
PERFORMED BY A LICENSED ELECTRICIAN
OR QUALIFIED PERSONNEL.
THE POSSIBILITY OF ELECTRICAL SHOCK
OR ELECTROCUTION EXISTS, WHICH COULD
CAUSE SEVERE BODILY HARM EVEN DEATH!.
CHECK JUMPER SETTINGS ON
TRANSFORMER, REFERENCE
CB200 WIRING DIAGRAM. 230 VAC
CONFIGURATION SHOWN.
NOTE:
95 96 97 98
ON
TEST
STOP
8
10
12
18A
RESET
MAN
AUTO
E 16 DU
TRIP CLASS 10
4 T2
NC NO
6 T3
2 T1
ABB
1L1 3L2 5L3
POWER INPUT
TO CTRL BX.
TERMINAL BD.
POWER INPUT CABLE
TO CONTROL BOX
1L1 3L2 5L3 13NO
2T1 4T2 6T3 14NO
ABB A16-30-10
A1 A2
FLOAT SWITCH
TERMINAL BLOCK
WHITE
JUMPER
WIRE
SINGLE
FLOAT SWITCH
APPLICATION
MODEL SW1WOPA
TB1
A
B
NOTICE
For correct wiring to pump motor (1Ø, 230 VAC), add
a 16 AWG. jumper wire approximately 5-inches in
length between the input terminal block marked L3 and
terminal 4 on the electronic overload unit. Reference
CB200 wiring diagram (new style)
Figure 11. CB200 Control Box (New Style)
Dual Float Switch Application Diagram
FLOAT SWITCHES (CONTROL BOX)
Discount-Equipment.com
1. Connect a 3-inch hose to the discharge port on the
pump as shown in Figure 8. Make sure that hose is
attached correctly to the discharge port.
1. Attach a suitable lifting cable (rope) to the carrying
handle (Figure 12) on the pump and lower the pump
into place. For applications where there is an excessive
amount of mud, grit or silt, the use of a support platform
is desirable.When pumping water from swimming pool
type applications where there is little or no debris, the
support platform is not required.

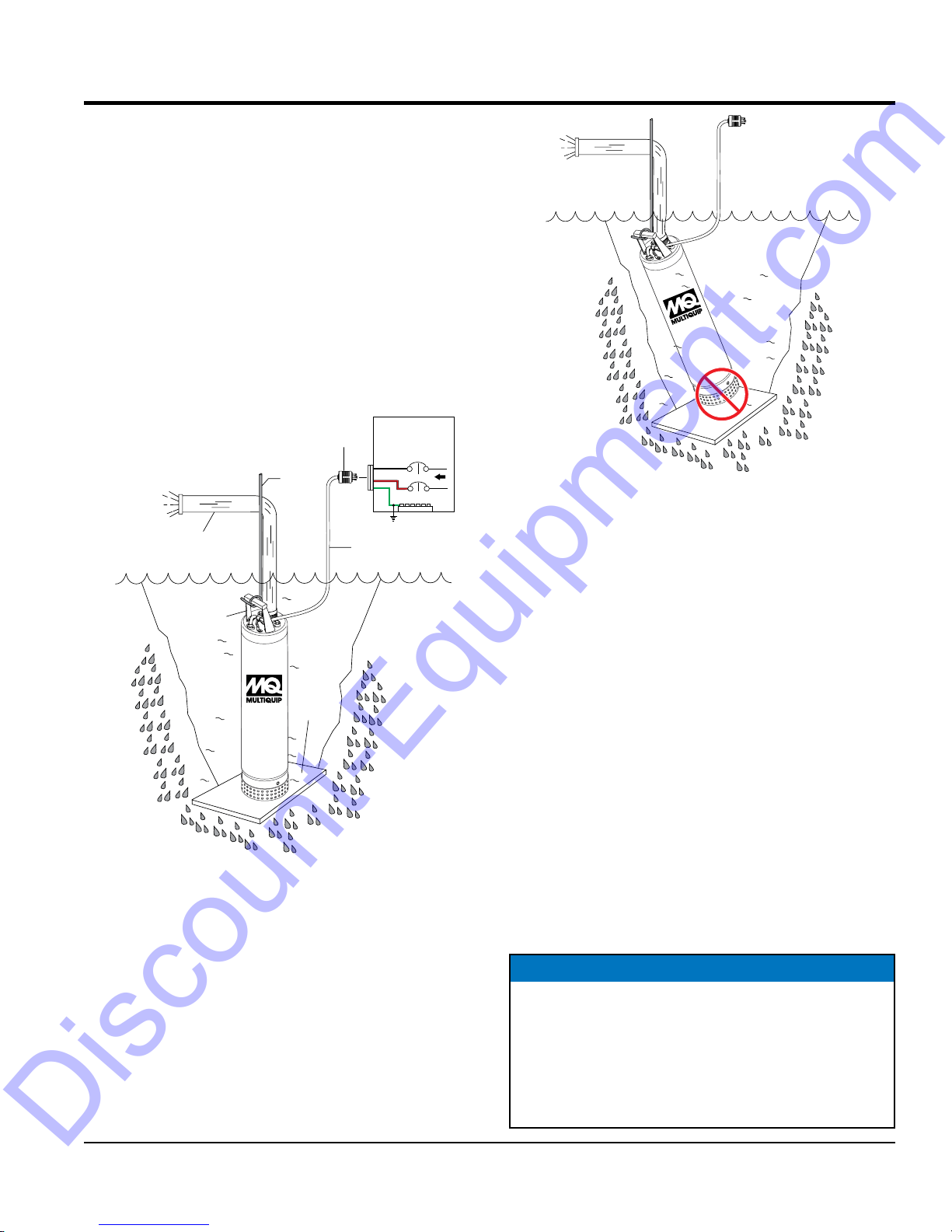

Figure 12. Submersible Pump
Upright Position (Correct)
2. Make sure the pump is always placed in an upright
position (Figure 12), and not tilted (Figure 13). Never
position the pump directly on a soft, loose bottom.
Remember to attain maximum pumping capacity and
prevent excessive wear. Position the pump so it will not
burrow itself into sand or clay.
LIFTING
ROPE
3-INCH
DISCHARGE
HOSE
SUPPORT
PLATFORM
CARRYING
HANDLE
SUBMERSIBLE
PUMP
POWER
CORD
NEMA
L6-20P PLUG
GREEN
BLACK
EXTERNAL
1Ø 230VAC, 60 Hz
POWER SOURCE
CIRCUIT
BREAKER
L1
L2
RED
GND. BUS
OPERATION
Figure 13. Submersible Pump
Tilted Position (Incorrect)
1. Make sure circuit breaker supplying power to pump
motor is in the position.
2. Insert the L6-20P power cable plug (Figure 12) into
the appropriate power source receptacle. The correct
source voltage for this pump is 230 VAC, 60 Hz, single-
phase.
3. If all of the pump's electrical requirements have been
met, place the circuit breaker or power ON/OFF switch
in the position.
4. Wait a few seconds and water should begin to flow
from the discharge hose.
5. If water is not flowing from the discharge hose or not
flowing freely after a few minutes, place the circuit
breaker or ON/OFF switch in the position and
check the system for leaks.
SUBMERSIBLE
PUMP
NOTICE
When connecting the pump directly to a power source
(no control box), it is recommended that personnel
monitor the pump while in operation. Severe pump
damage can occur if left unattended.
For unattended operation Multiquip recommends the
use of either the CB6 or CB200 control box.
Discount-Equipment.com
OPERATION
The following procedure outlines the steps for connecting
the pump to a control box.
Mount the control box in an upright vertical position.
Make sure the control box is securely fastened to a flat
surface, that is free of dust, dirt, moisture or any elements
that may contaminate or erode the electronic components
of the control box.
The ST3020B1 and SB3020BCUL
submersible pumps are also designed
to work with a control box. This control
box contains the necessary electronics
(float switch connections) to operate the
pump. Remember this control box contains hazardous
voltages. Disconnect all sources of power before
installing or servicing. There exists the possibility of
electrocution, electric shock or burn, which can cause
severe bodily harm or even death!
When installing the control box, the
possibility exists of electrical shock,
electrocution and possibly death!
have untrained personnel perform the
installation. have qualified
service personnel (licensed electrician) perform the
installation.
Explosion or Fire Hazard exists if this pump
is used with flammable liquids. use
this pump with flammable liquids.
install this pump in hazardous locations as
defined by the National Electrical Code,
ANSI/NFPA 70.
The ST3020B1/BCUL submersible pump requires 1Ø, 230
VAC, 60 Hz, power for normal operation.
If you cannot determine what your pump's power
requirements are, look at the vendor supplied identification
name tag attached to the pump or contact Multiquip's
service department.
When routing the 230 VAC, 60 Hz., single phase power via
a power cord to the control box, use the correct
wire size. Please refer to Table 4 to determine the correct
wire size. Incorrect wire size can adversely affect the
performance of the pump and may ultimately burn-out the
pump motor.
NOTICE
Applying incorrect power (voltage or voltage phase)
to the submersible pump can cause severe damage
to the pump motor. Please make sure that the correct
voltage and phase are connected to the pump motor
at all times.
Table 4. Power Cord Length
and Wire Size
AMPS
6 16 AWG 16 AWG 14 AWG
8 16 AWG 14 AWG 12 AWG
10 16 AWG 14 AWG 12 AWG
12 14 AWG 14 AWG 12 AWG
14 14 AWG 12 AWG 10 AWG
16 12 AWG 12 AWG 10 AWG
Discount-Equipment.com
This manual suits for next models
1
Table of contents
Other MULTIQUIP Water Pump manuals
MULTIQUIP
MULTIQUIP YELLOW SUBMARINE Guide
MULTIQUIP
MULTIQUIP MAYCO LS400 Guide
MULTIQUIP
MULTIQUIP LITTLE SUB Guide
MULTIQUIP
MULTIQUIP MAYCO Series User manual
MULTIQUIP
MULTIQUIP MAYCO LS300P User manual
MULTIQUIP
MULTIQUIP MQ41TDH Guide
MULTIQUIP
MULTIQUIP ST-45HRM Application guide
MULTIQUIP
MULTIQUIP ST-3050D Guide
MULTIQUIP
MULTIQUIP st41230 Guide
MULTIQUIP
MULTIQUIP QP402B User manual
MULTIQUIP
MULTIQUIP QP303H Guide
MULTIQUIP
MULTIQUIP QP3TZ Guide
MULTIQUIP
MULTIQUIP QP2TB User manual
MULTIQUIP
MULTIQUIP ST2037F Guide
MULTIQUIP
MULTIQUIP QP3TB User manual
MULTIQUIP
MULTIQUIP QP3TZ Guide
MULTIQUIP
MULTIQUIP QP4TB User manual
MULTIQUIP
MULTIQUIP QP205SLT User manual
MULTIQUIP
MULTIQUIP QP-3TE Guide
MULTIQUIP
MULTIQUIP QP2H User manual
Popular Water Pump manuals by other brands
T.I.P.
T.I.P. SubGarden 6000 AUT Translation of original operating instructions
Wilo
Wilo Atmos GIGA-I Installation and operating instructions
Wilo
Wilo Helix2.0-VE Installation and operating instructions
TELLARINI POMPE
TELLARINI POMPE EEM Series User and maintenance manual
Samoa
Samoa PUMPMASTER 6 Parts and technical service guide
KRAL
KRAL Series C operating instructions
Watson-Marlow
Watson-Marlow 323E user manual
Calpeda
Calpeda MPSU Series operating instructions
Pentair
Pentair HYDROMATIC 118 Installation and service manual
Roughneck
Roughneck 24925 owner's manual
Taco Comfort Solutions
Taco Comfort Solutions Hot-LinkPlus HLPE-1 instruction sheet
Bühler technologies
Bühler technologies BFP Series Installation and operation instructions
