mundoclima H6M Series Installation instructions

CL20440 to CL20457
MULTI INVERTER SERIE H6M
www.mundoclima.com English
Thank you very muchfor purchasing our products.
Please read thismanual carefully beforeinstalling
and using the unit.
manual
Installation and owner's

 
OWNERS MANUAL .................................................................................................... 14
Safety precautions ........................................................................................................ 4
Description and operating instructions .........................................................................16
INSTALLATION MANUAL ............................................................................................ 3
Indoor unit installation ................................................................................................... 5
Outdoor unit installation ................................................................................................ 6
Refrigerant pipe connection .......................................................................................... 8

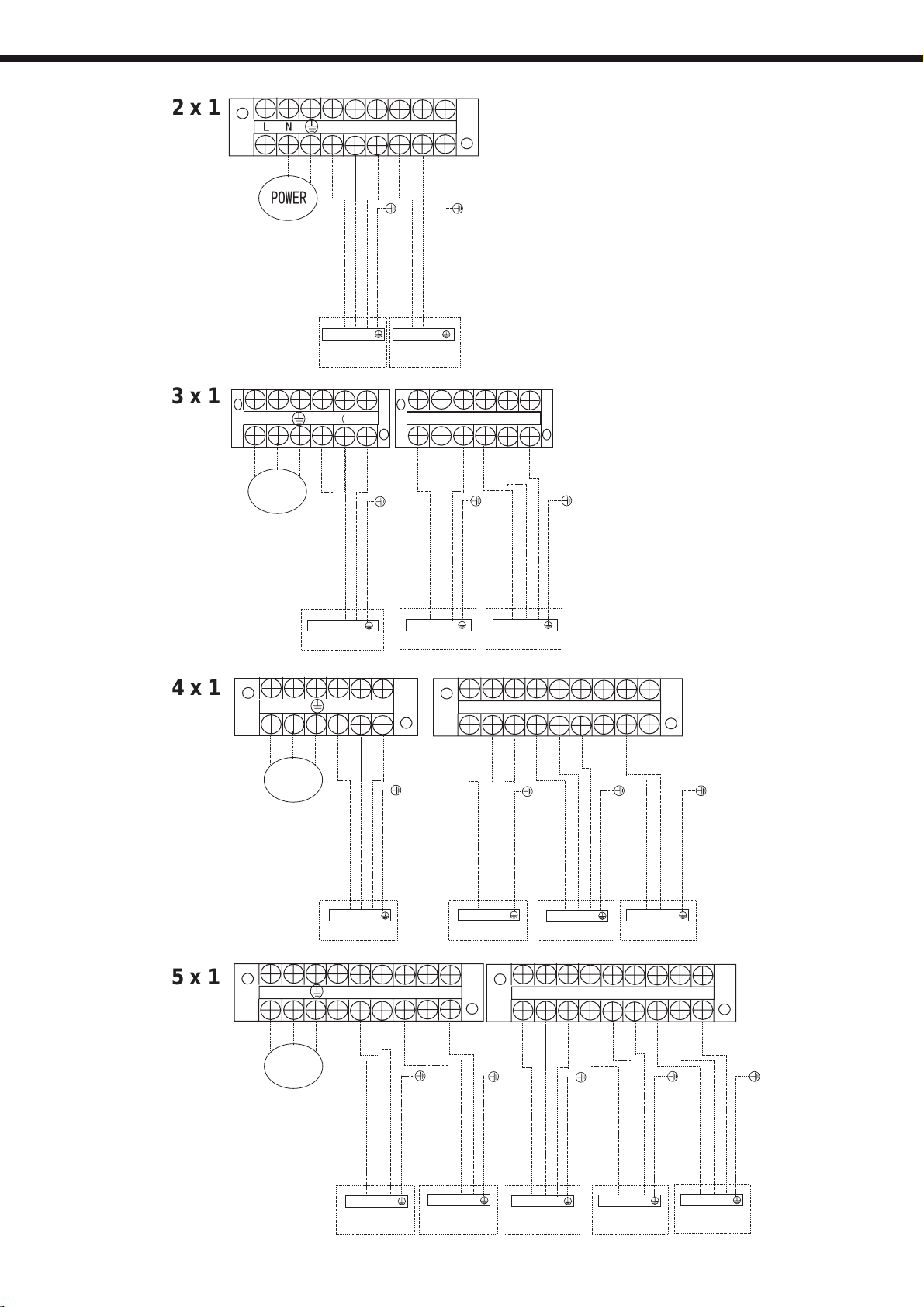

Electrical installation .....................................................................................................10
Drain joint installation ...................................................................................................12
Start up and performance testing .................................................................................12
Safety precautions .......................................................................................................15
Troubleshooting ........................................................................................................... 22

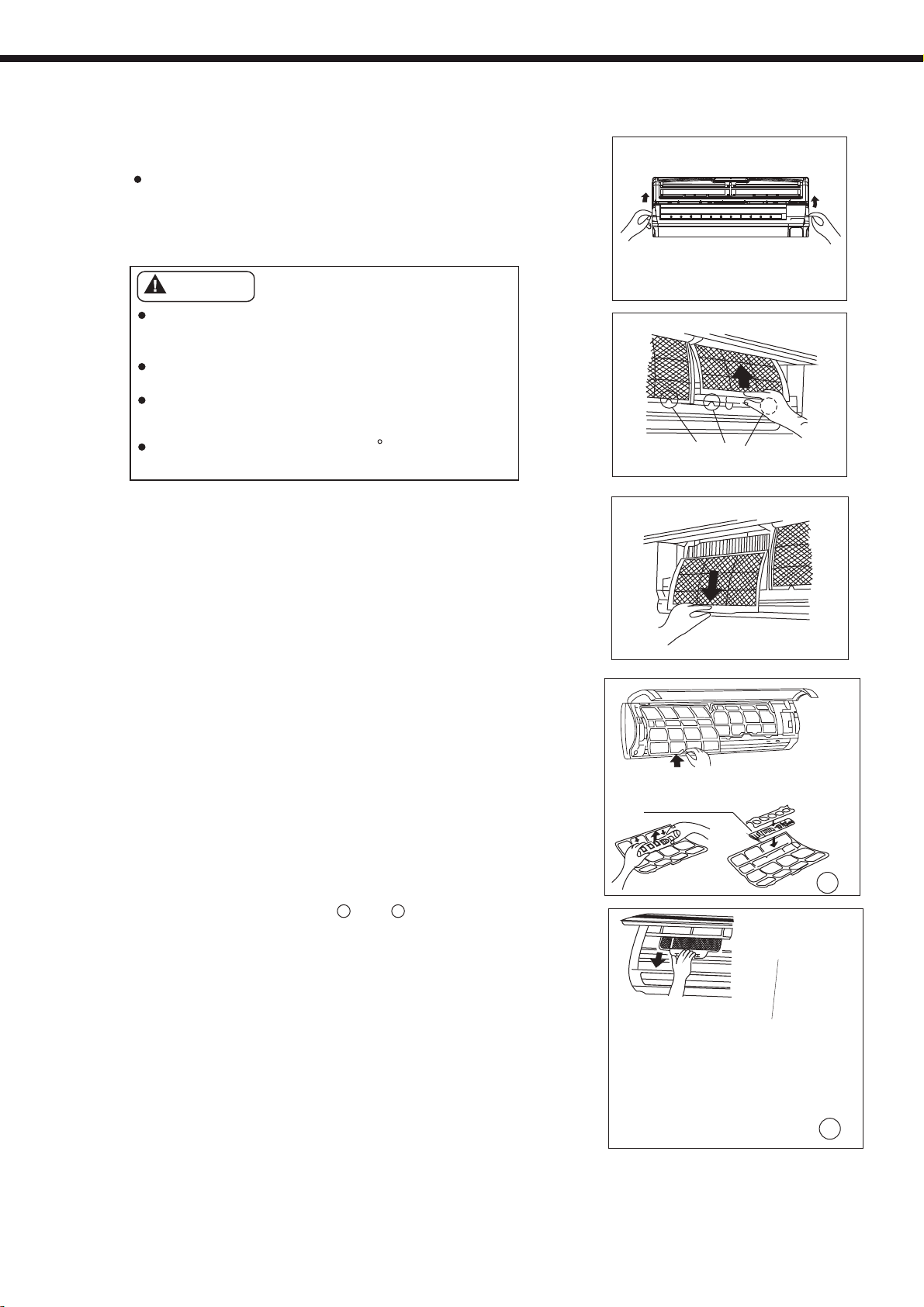

Care and maintenance ................................................................................................ 20
REMOTE CONTROLLER ............................................................................................ 25
2
Disposal ....................................................................................................................... 24
CONTENT
Thank you for selectiong super quality Air Conditiones. To ensure satisfactory operation for many ears to come,
this manual should be read carefully before the installation and before using the air conditioner. After reading,
store it a safe place. Please refer to the manual for questions on use or in the event that any irregularities occur.
This Air Conditioner should be used for hosehold use.
This unit must be installed by a professional according RD 795/2010, RD 1027/2007 and RD 238/2013.
The power supply must be SINGLE-PHASE (one phase (L) and one neutral (N)) with his grounded power (GND)
and his manual switch. Any breach of these specifications involve a breach of the warranty conditions provided by
the manufacturer.
In line with the company's policy of continual product improvement, the aesthetic and dimensional characteristics,
technical data and accessories of this appliance may be changed without notice.
IMPORTANT
WARNING
NOTE
Read this manual carefully before installind or operating you new air conditioning unit. Make sure to save this
manual for future reference.
ATTENTION
Function of automatic wiring/piping correction .............................................................13

3
Before using your air conditioner, please read
this manual carefully and keep it for future reference..
INVERTER SPLIT-TYPE
ROOM AIR CONDITIONER
The design and specifications are subject to
change without prior notice for
product improvement. Consult with the sales
agency or manufacturer for details.
Read This Manual:
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly.
Just a little preventative care on your part can save you
a great deal of time and money over the life of your air
conditioner.
You'll find manyanswers to common problems in the
chart of troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need to call for
service.
INSTALLATION MANUAL

SAFETY PRECAUTIONS
1. Safety precautions
4
WARNING
Read the follow SAFETY PRECAUTIONS carefully before installation.
Electrical work must be installed by a licensed electrician. Be sure to use the correct rating
of the power plug and main circuit for the model to be installed.
Incorrect installation due to ignoring of the instruction will cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
The items to be followed are classified by the symbols:
Symbol with background white denotes item that is PROHIBITED from doing.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
1) Engage dealer or specialist for installation. If installation done by the user is defective, it will cause water
leakage, electrical shock fire.
2) Install according to this installation instructions strictly. If installation is defective, it will cause water
leakage, electrical shock fire.
3) Use the attached accessories parts and specified parts for installation. otherwise, it will cause the set to fall,
water leakage, electrical shock fire.
4) Install at a strong and firm location which is able to withstand the set s weight. If the strength is not enough
or installation is not properly done, the set will drop and cause injury.
,
5) For electrical work, follow the local national wiring standard, regulation and this installation instructions. An
independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defect found
in electrical work, it will cause electrical shock fire.
6) Use the specified cable and connect tightly and clamp the cable so that no external force will be acted on
the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection.
7) Wiring routing must be properly arranged so that control board cover is fixed properly. If control board cover
is not fixed perfectly, it will cause heat-up at connection point of terminal, fire or electrical shock.
8) When carrying out piping connection, take care not to let air substances other than the specified
refrigerant go into refrigeration cycle. Otherwise, it will cause lower capacity, abnormal high pressure
in the refrigeration cycle, explosion and injury.
9) Do not modify the length of the power supply cord or use of extension cord, and do not share the
single outlet with other electrical appliances. Otherwise, it will cause fire or electrical shock.
CAUTION
1) This equipment must be earthed and installed with earth leakage current breaker. It may cause electrical
shock if grounding is not perfect.
2) Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and
accumulates at surrounding of the unit, it may cause fire.
3) Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water
may enter the room and damage the furniture.

INDOOR UNIT INSTALLATION
2. Indoor unit installation
5
1)
Fit the installation plate horizontally on structural parts of the wall with spaces
arround the installation plate.
2)
If the wall is made of brick, concrete or like, drill five or eight 5mm diameter holes
in the wall. Insert Clip anchor for appropiates mounting screws.
1. Determine hole positions according to left and right
side of the installation plate. The hole center is obtained
by measuring the distance as shown in the diagram above.
2. Dirll the piping plate hole with φ65mm hole-core drill.
3. Drill the piping hole at either the right or the left and the
hole should be slightly slanted to the outdoor side.
4. Always take steps to protect the pipe when drilling metal
grid, metal plate or the like.
Wall
Indoor
Outdoor
5-7mm
Fit the installation plate
Drill a hole in the w all
Agujero lado
izquierdo 65 mm Agujero lado derecho
65 mm
Dimensiones
unidad interior
717 mm
63 mm
302 mm
27 mm
11mm(0.43in)
63 mm
237 mm
412 mm
107 mm 137 mm 117 mm
39 mm
128 mm
Agujero lado
derecho 65mm
964 mm
262 mm
481.6 mm
256.6 mm
44 mm
256.6 mm
111 mm
262.2 mm
29.2 mm
325 mm
48 mm
48 mm
Agujero lado
izquierdo 65 mm
Agujero lado
derecho
65 mm
Dimensiones
unidad interior
805 mm
302 mm
27 mm
53 mm
224.6 mm
427.9 mm
128 mm 112 mm 113 mm
39 mm
163 mm
Agujero
lado derecho 65 mm
1106 mm
598.4 mm319.5 mm
227.8 mm
53.7 mm
227.8 mm 319.5 mm
189.4 mm
342 mm
45 mm
45 mm
MUPR-12-H6M
MUPR-09-H6M
MUPR-18-H6M
MUPR-24-H6M
53 mm
Dimensiones
unidad interior
Dimensiones
unidad interior
Agujero lado
izquierdo 65 mm
Agujero lado
izquierdo 65 mm

6
INDOOR AND OUTDOOR UNIT INSTALLATION
Do not block water flow by a rise.
Do not put the end of
drain hose into water.
1. Run the drain hose sloping downward.
Do not install the drain hose as
illustrated in Fig.7.
2. When connecting extension drain hose,
insulate the connecting part of extension
drain hose with a shield pipe, do not let
the drain hose slack.
1. For the left-hand and right-hand piping,
remove the pipe cover from the side
panel.
2. For the rear-right-hand and rear-left-hand
piping, install the piping as shown in Fig.10.
3. Fix the end of the connective pipe. (Refer
to Tightening Connection in REFRIGERANT
PIPING CONNECTION)
Right-hand piping
Left-hand piping
Rear-right piping
Rear-left piping
Fig.8
Fig.9 Fig.10
Bundle the tubing, connecting cable, and drain
hose with tape securely, evenly as shown in
Fig.11.
Because the condensed water from rear of the
indoor unit is gathered in ponding box and is
piped out of room. Do not put anything else in
the box.
Indoor unit
Connective
pipe
Pipe room
Ponding box
Wrapping belt
Connective
cable
Drain hose
.
.
.
..
.
.
.
.
.
.
.
.
.
.
.
.
.
..
.
.
..
.
.
.
.
.
. .
.
Fig.11
Connect the indoor unit first, then the
outdoor unit.
Do not allow the piping to let out from
the back of the indoor unit.
Be careful not to let the drain hose slack.
Heat insulated both of the auxiliary piping.
Be sure that the drain hose is located at
the lowest side of the bundle. Locating
at the upper side can cause drain pan
to overflow inside the unit.
Never intercross nor intertwist the power
wire with any other wiring.
Run the drain hose sloped downward to
drain out the condensed water smoothly.
Connective pipe and drainage installation
Connective pipe installation
Piping and w rapping
Caution
3. Outdoor unit installation
Install the outdoor unit on a rigid base to prevent increasing noise level and vibration.
Determine the air outlet direction where the discharged air is not blocked. In the case that
the installation place is exposed to strong wind such as a seaside, make sure the fan operating
properly by putting the unit lengthwise along the wall or using a dust or shield plates.
Specially in windy area, install the unit to prevent the admission of wind. If need suspending
installation, the installation bracket should
accord with technique requirement in the
installation bracket diagram.
The installation wall should be solid brick, concrete or the same intensity construction, or
actions to reinforce, damping supporting should be taken. The connection between bracket and
wall, bracket and the air conditioner should be firm, stable and reliable.
Be sure there is no obstacle which block radiating air.

Dimensions
7
Space for installation and maintenance
> 60 cm
> 60 cm
> 30 cm
> 30 cm
> 200 cm
OUTDOOR UNIT INSTALLATION
Model Unit: mm
W D H W1 A B
MUEX-14-H6.2 800 333 554 860 514 340
MUEX-18-H6.2 800 333 554 860 514 340
MUEX-21-H6.3 845 363 702 923 540 350
MUEX-27-H6.3 845 363 702 923 540 350
MUEX-28-H6.4 946 410 810 1034 673 403
MUEX-36-H6.4 946 410 810 1034 673 403
MUEX-42-H6.5 946 410 810 1034 673 403
A
B
D

REFRIGERANT PIPE CONNECTION
8

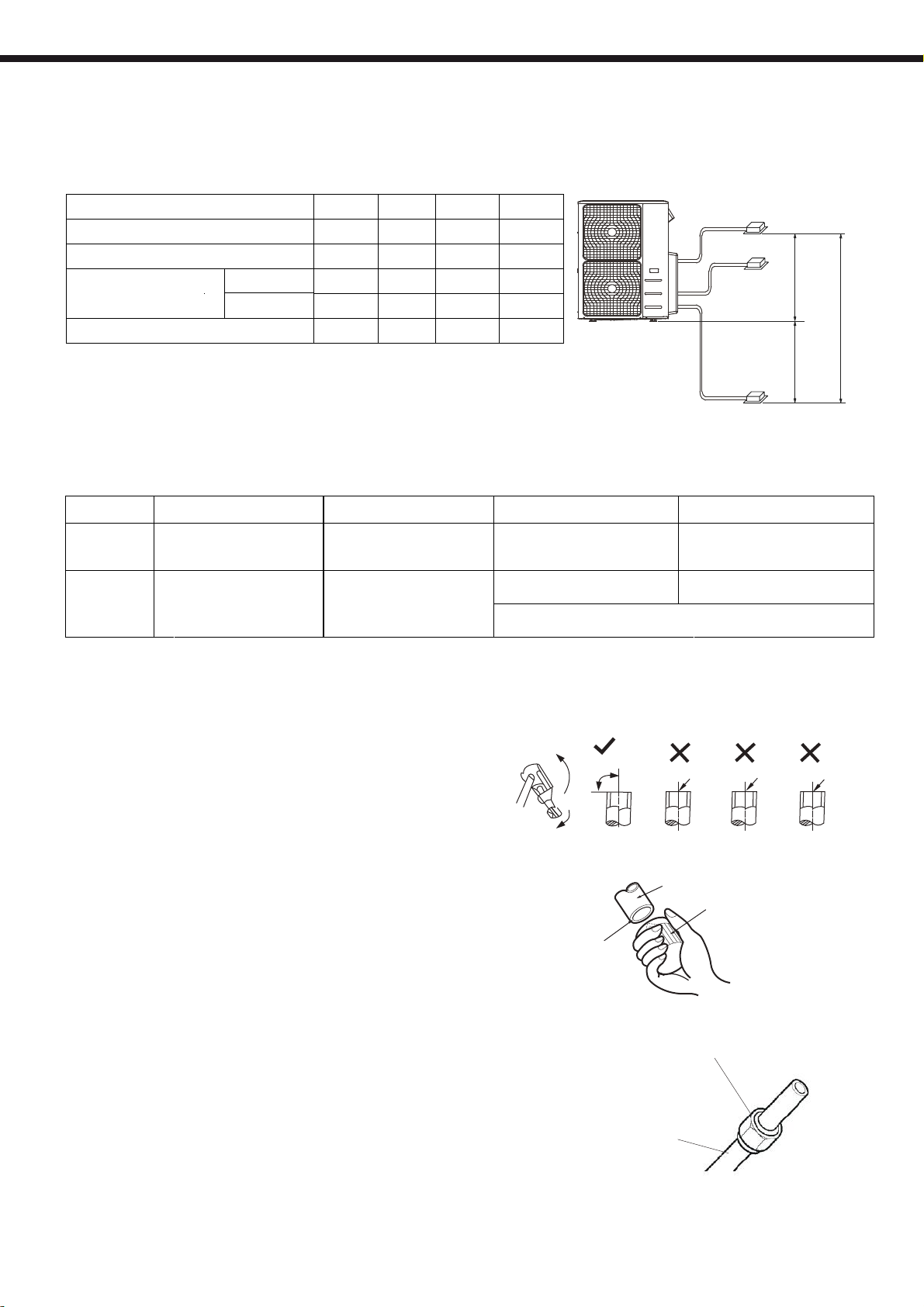

4. Refrigerant pipe connection
Oblique
。
90 Roughness
Burr
Main cause for refrigerant leakage
is due to defect in the flaring work.
Carry out correct flaring work
using the following procedure:
A: Cut the pipes and the cable.
1. Use the piping kit accessory or pipes
purchased locally.
2. Measure the distance between the indoor
and the outdoor unit.
3. Cut the pipes a little longer than the
measured distance.
4. Cut the cable 1.5m longer than the pipe
length.
1. Flaring work
Pipe
Reamer
Point down
Fig.54
Fig.55
B: Burr removal
1. Completely remove all burrs from the cut
cross section of pipe/tube.
2. Put the end of the copper tube/pipe in a
downward direction as you remove burrs in
order to avoid dropping burrs into the tubing.
Flare nut
Copper tube
Fig.56
C: Putting nut on
Remove flare nuts attached to indoor and
outdoor unit, then put them on pipe/tube
having completed burr removal.(not possible
to put them on after flaring work)
Additional charge (R410A)
Max. Length for all rooms (m)
OU higher than IU
OU lower than IU
10 10 10 10
15 15 15 15
UNIT
Max. Length for one indoor unit (m)
Max. height different between
indoor and outdoor unit (m)
Max. height different between indoor units (m)
Before installing, make sure that the height difference, the length of refrigerant pipe and number of bends
between indoor and outdoor units, meet the following specifications.
2 x 1 (H6.2) 3 x 1 (H6.3) 4 x 1 (H6.4) 5 x 1 (H6.5)
30
45
60
75
25
30
35
35
15
15
15
15
10m
15m
15m
Outdoor unit
Indoor unit
Max. height difference
Indoor unit
Indoor unit
2 x 1 (H6.2) 3 x 1 (H6.3) 4 x 1 (H6.4) 5 x 1 (H6.5)
Charged until
(g)
UNIT
Total Liquid Length 1/4":
15 x (Total length - 15) 30 x (total length - 7,5)
15m 30m (Total Liquid Length 1/4")
(Total Liquid Length 1/4") 22,5m 7,5m (Total Liquid Length 3/8") 37,5m (Total Liquid Length 1/4")
Additional
charge
(Total Liquid Length 1/4")
Total Liquid Length 1/4": Total Liquid Length 1/4": Total Liquid Length 1/4":
15 x (Total length - 22,5) 15 x (Total length - 30) 15 x (Total length - 37,5)
Total Liquid Length 3/8":
7,5m (Total Liquid Length 3/8")

9
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"
Fig.57
D: Flaring work
Firmly hold copper pipe in a die in the
dimension shown in the table below.
Outer diam.
(mm)
A(mm)
Max. Min.
6.35 1.3 0.7
9.53
1.6 1.0
12.7
1.8 1.0
12.7
1.8 1.0
Align the center of the pipes.
Sufficiently tighten the flare
nut with fingers, and then tighten
it with a spanner and torque wrench
as shown in Fig.58 & 59
Excessive torque can break nut
depending on installation conditions.
Fig.59
Indoor unit tubing Flare nut Pipings
Fig.58
Outer
diam. Tightening torque(N.cm) Additional tightening
torque(N.cm)
6.35
12.7
9.52
1500
(153kgf.cm) 1600 (163kgf.cm)
3500
(357kgf.cm)
3600
(367kgf.cm)
2500
(255kgf.cm)
2600
(265kgf.cm)
Air and moisture in the refrigerant system have undesirable effects as indicated below:
● Pressure in the system rises.
● Operating current rises.
● Cooling or heating efficiency drops.
● Moisture in the refrigerant circuit may freeze and block capillary tubing.
● Water may lead to corrosion of parts in the refrigeration system.
Therefore, the indoor unit and tubing between the indoor and outdoor unit must be leak tested
and evacuated to remove any noncondensables and moisture from the system.
●Preparation
Check that each tube(both liquid and gas side tubes) between the indoor and outdoor units
have been properly connected and all wiring for the test run has been completed. Remove
the service valve caps from both the gas and the liquid side on the outdoor unit. Note that
both the liquid and the gas side service valves on the outdoor unit are kept closed at this
stage.
●Pipe length and refrigerant amount:
When relocate the unit to another place,
perform evacuation using vacuum pump.
Make sure the refrigerant added into the air
conditioner is liquid form in any case.
Outdoor
unit
Indoor
unit
Refrigerant
Packed valve Half union
Gas side
Liquid side
AC
D
B
Fig.65
Open the valve stem until it hits against the
stopper. Do not try to open it further.
Securely tighten the valve stem cap with a
spanner or the like.
Valve stem cap tightening torque (See
Tightening torque table in previous page ).
Flare nut
Stopper
Cap
Valve body
Valve stem
Fig.66
REFRIGERANT PIPE CONNECTION
Tightening connection
Air purging
Caution
Air purging w ith vacuum pump
Caution in handling the pack ed valve

ELECTRICAL INSTALLATION
5. Electrical installation
10
1. Remove the electrical control board cover
from the outdoor unit by loosening the screw
as shown in figure.
2. Connect the connective cables to the
terminals as identified with their respective
matched numbers on the terminal block of
indoor and outdoor units.
3. Secure the cable onto the control board with
the cord clamp.
4. To prevent the ingress of water, from a loop
of the connective cable as illustrated in the
installation diagram of indoor and outdoor
units.
5. Insulate unused cords (conductors) with
PVC-tape.Process them so they do not
touch any electrical or metal parts.
Screw
Cover
Connect the cable to the outdoor unit
Safety standards
- The supply voltage must be within a range of 90% to 110% of nominal value.
- The thermal circuit breaker and breaker should be 1.5 times the nominal consumption.
- All installation and wiring must comply with local and national average and the installation should
be performed by qualified personnel.
- The minimum section of wiring should be as follows according to consumption.
Model ICP
MUEX-14-H6.2 2 x 2,5 + T mm216 A 2P 30mA
MUEX-18-H6.2 2 x 2,5 + T mm216 A 2P 30mA
MUEX-21-H6.3 2 x 4 + T mm220 A 2P 30mA
MUEX-27-H6.3 2 x 4 + T mm220 A 2P 30mA
MUEX-28-H6.4 2 x 4 + T mm220 A 2P 30mA
MUEX-36-H6.4 2 x 6 + T mm225 A 2P 30mA
MUEX-42-H6.5 2 x 6 + T mm225 A 2P 30mA




Note:
The wall mounted indoor unit has terminal , that can not be connected.
W
Indoor unit connection
2(N)
S
Empty
1(L)
W
L N S T
Differential sw itch
Pow er W ire
a) Wall mounted MUPR-H6M c) Cassette MUCSR-H6M
S
L
L N S T
N
b) Duct MUCR-H6M
S
L(L1)
L N S T
N(2)

11
ELECTRICAL INSTALLATION


























2 x 1
3 x 1
4 x 1
5 x 1
POWER
LNL(A) L(B)
N(A) N(B)
S(A) S(B)
TO A TO B
LNL(A)N(A)S(A)
POWER
L(B) N(B) S(B) L(C) N(C) S(C) L(D) N(D) S(D)
TO B TO C TO A TO D
POWER
LNL(A)N(A)S(A)
L(B)
N(B)
S(B)
L(C) N(C) S(C) L(D) N(D) S(D) L(E) N(E) S(E)
TO B TO C
TO A TO D TO E
MUEX-14-H6.2
MUEX-18-H6.2
W 1(L) 2(N) S W 1(L) 2(N) S
W 1(L) 2(N) S W 1(L) 2(N) S W 1(L) 2(N) S W 1(L) 2(N) S
W 1(L) 2(N) S W 1(L) 2(N) S W 1(L) 2(N) S W 1(L) 2(N) S W 1(L) 2(N) S
MUEX-21-H6.3
MUEX-27-H6.3

TO A
POWER
TO B TO C
LNL(A)N(A)S(A) L(C)N(C)S(C)
L(B)N(B)S(B)
W 1(L) 2(N) S W 1(L) 2(N) S W 1(L) 2(N) S
MUEX-28-H6.4
MUEX-36-H6.4
MUEX-42-H6.5

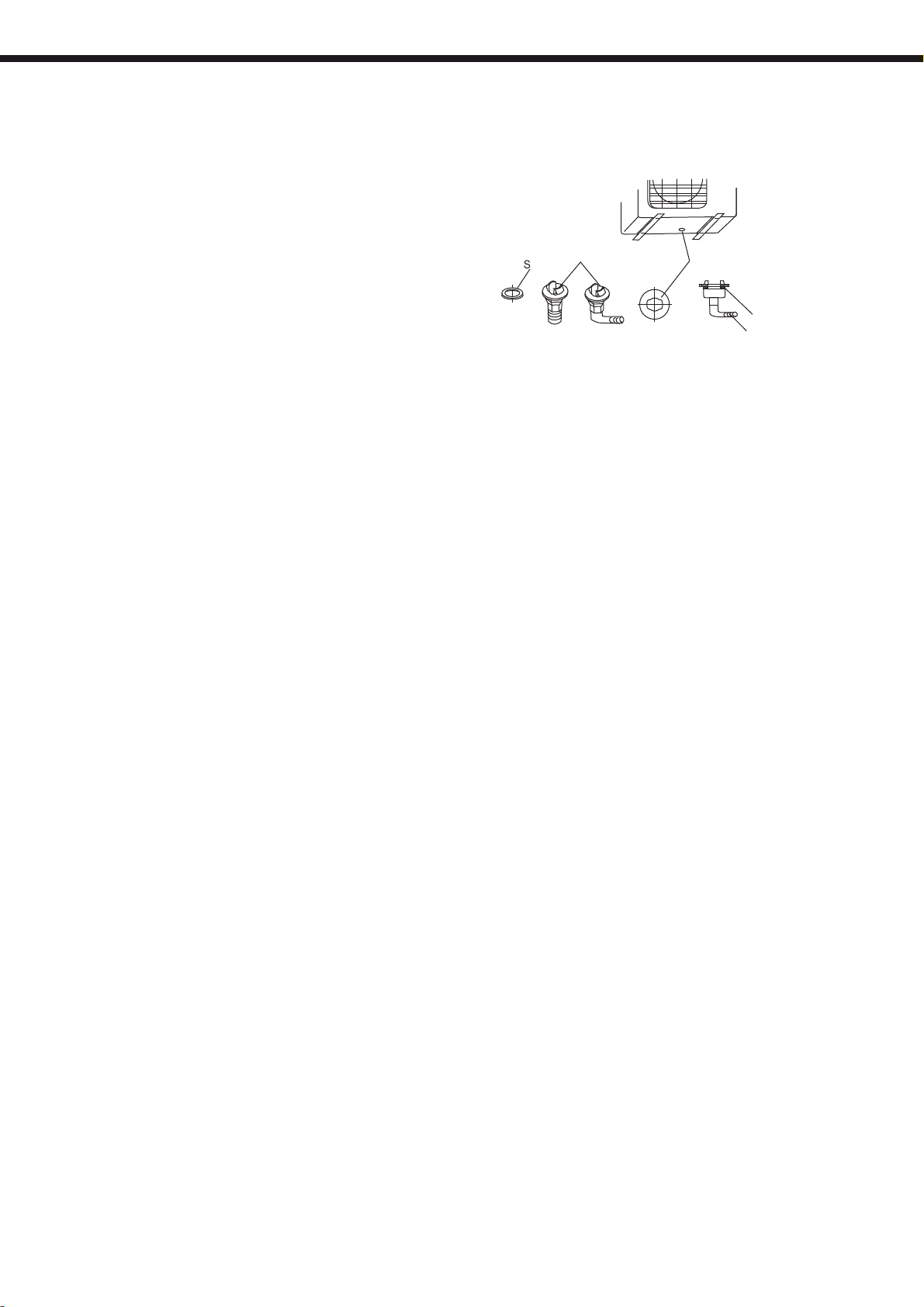

6 . Drain joint installation
12
DRAIN JOINT and

Seal
Drain joint
Base pan hole of
outdoor unit
Seal
Drain pipe
(1) (2)
Fit the seal into the drain joint, then insert the
drain joint into the base pan hole of outdoor unit,
。
rotate 90 to securely assemble them.
Connecting the drain joint with an extension drain
hose (Locally purchased), in case of the water
draining off the outdoor unit during the heating
mode.
NOTE: The drain joint differ from appliance
to appliance.
-
7. Start up and performance testing
Prior check s
Measure the voltage supply and make sure it is within the specified range.
Testing must be performed in all modes of operation.
To operate in cool mode, press the ON/OFF button of the remote controller to place the unit in
-
- cooling mode and select a temperature below room temperature.
To operate in heat mode, press the ON/OFF button of the remote controller to place the unit in
- heating mode and select a temperature above room temperature.
You can also check the manual button. This is used when you do not have the remote controller and
- and is located under the front panel.
START UP AND PERFORMANCE TESTING

13
8. Function of automatic wiring/piping correction
Automatic Wiring/Piping Correction Function:
More recent models now feature automatic correction of wiring/piping errors. Press the "check
switch" on the outdoor unit PCB board for 5 seconds until the LED displays "CE”, indicating that this
function is working, Approximately 5-10 minutes after the switch is pressed, the "CE" disappears,
meaning that the wiring/piping error is corrected and all wiring/piping is properly connected.
How To Activate This Function:
1. Check that outside temperature is above 5℃.
(This function does not work when outside temperature is not above 5℃)
2. Check that the stop valves of the liquid pipe and gas pipe are open.
3. Turn on the breaker and wait at least 2 minutes.
4. Press the check switch on the outdoor PCB board unit LED display "CE".
Correct wiring
Terminal
block
Liquid/
Gas pipe
Outdoor unit
Indoor unit B
Indoor unit A
B
A
B
A
Incorrect wiring
Terminal
block
Liquid/
Gas pipe
Outdoor unit
Indoor unit B
Indoor unit A
B
A
B
A
Incorrect wiring
Terminal
block
Liquid/
Gas pipe
Outdoor unit
Indoor unit B
Indoor unit A
B
A
B
A
Check switch
LED display
AUTOMATIC WIRING/PIPING CORRECTION


14
OWNER´S MANUAL
Before using your air conditioner, please read
this manual carefully and keep it for future reference..
INVERTER SPLIT-TYPE
ROOM AIR CONDITIONER
The design and specifications are subject to
change without prior notice for
product improvement. Consult with the sales
agency or manufacturer for details.
Read This Manual:
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly.
Just a little preventative care on your part can save you
a great deal of time and money over the life of your air
conditioner.
You'll find manyanswers to common problems in the
chart of troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need to call for
service.


15
1. Safety precautions
WARNING
Read the follow SAFETY PRECAUTIONS carefully before installation.
Electrical work must be installed by a licensed electrician. Be sure to use the correct rating
of the power plug and main circuit for the model to be installed.
Incorrect installation due to ignoring of the instruction will cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
The items to be followed are classified by the symbols:
Symbol with background white denotes item that is PROHIBITED from doing.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
1) Engage dealer or specialist for installation. If installation done by the user is defective, it will cause water
leakage, electrical shock fire.
2) Install according to this installation instructions strictly. If installation is defective, it will cause water
leakage, electrical shock fire.
3) Use the attached accessories parts and specified parts for installation. otherwise, it will cause the set to fall,
water leakage, electrical shock fire.
4) Install at a strong and firm location which is able to withstand the set s weight. If the strength is not enough
or installation is not properly done, the set will drop and cause injury.
,
5) For electrical work, follow the local national wiring standard, regulation and this installation instructions. An
independent circuit and single outlet must be used. If electrical circuit capacity is not enough or defect found
in electrical work, it will cause electrical shock fire.
6) Use the specified cable and connect tightly and clamp the cable so that no external force will be acted on
the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the connection.
7) Wiring routing must be properly arranged so that control board cover is fixed properly. If control board cover
is not fixed perfectly, it will cause heat-up at connection point of terminal, fire or electrical shock.
8) When carrying out piping connection, take care not to let air substances other than the specified
refrigerant go into refrigeration cycle. Otherwise, it will cause lower capacity, abnormal high pressure
in the refrigeration cycle, explosion and injury.
9) Do not modify the length of the power supply cord or use of extension cord, and do not share the
single outlet with other electrical appliances. Otherwise, it will cause fire or electrical shock.
CAUTION
1) This equipment must be earthed and installed with earth leakage current breaker. It may cause electrical
shock if grounding is not perfect.
2) Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and
accumulates at surrounding of the unit, it may cause fire.
3) Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water
may enter the room and damage the furniture.
SAFETY PRECAUTIONS

U
V
W
X
Y
Z
Z[
\
]
^
_
`
a
b
c
d
e
f
g
h
c
i
^
a
iij
klm
ndgc
o
g
p
n
q
r
n
e
d
k
j
i
s
ei
k
d
o
gp
^t
f
d
dk
c
q
e
d
l
^i
p
t
jd
df
i
p
ui
oo
c
qedl^ioo
^^^^^^^^gql
^
^kqldacqip
ldtdc^j
iav
t
dc
^cdefd
lgch
l
d
^
^^
^^
^^^t
sqpr
^^^^^^
^^jdk
^^^
^k
qt
fjgm
^^^^^^^^chlwi
DESCRIPTION AND OPERATING INSTRUCTIONS
2. Description and operating instructions
16
Unit C
Unit A
Unit B
1. Front panel
2. Top air intake
3. Air filter(Inside)
4. Air outlet
5. Horizontal air flow louver
6. Vertical air flow louver(Internal)
7. Display panel
8. LED display window
9. Remote controller
10. Manual control button(Behind the front panel)
11. Refrigerant connecting pipe, drain hose and
electric wiring
12. Stop valve
13. Air outlet
Parts
Indoor unit
Outdoor unit
Display
“ ” for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, or SILENCE features are turned on
“ ” for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, or SILENCE features are turned off
“ ” when defrosting
“ ” when anti-cold air feature is turned on
“ ” when unit is self-cleaning
“ ” when freeze protection is turned on
“ ” when WIFI Control feature is activated
(WIFI module is required CL94382)
In Fan mode, the unit will display the room temperature.
In other modes, the unit will display your temperature setting.
a) Wall mounted MUPR-H6M

DESCRIPTION AND OPERATING INSTRUCTIONS
17
1. Air outlet
2. Air inlet
3. Air lter
4. Electric control cabinet
5. Wire controller
6. Drain hose, refrigerant connecting pipe
7. Connective cable
8. Stop valve
9. Fan hood

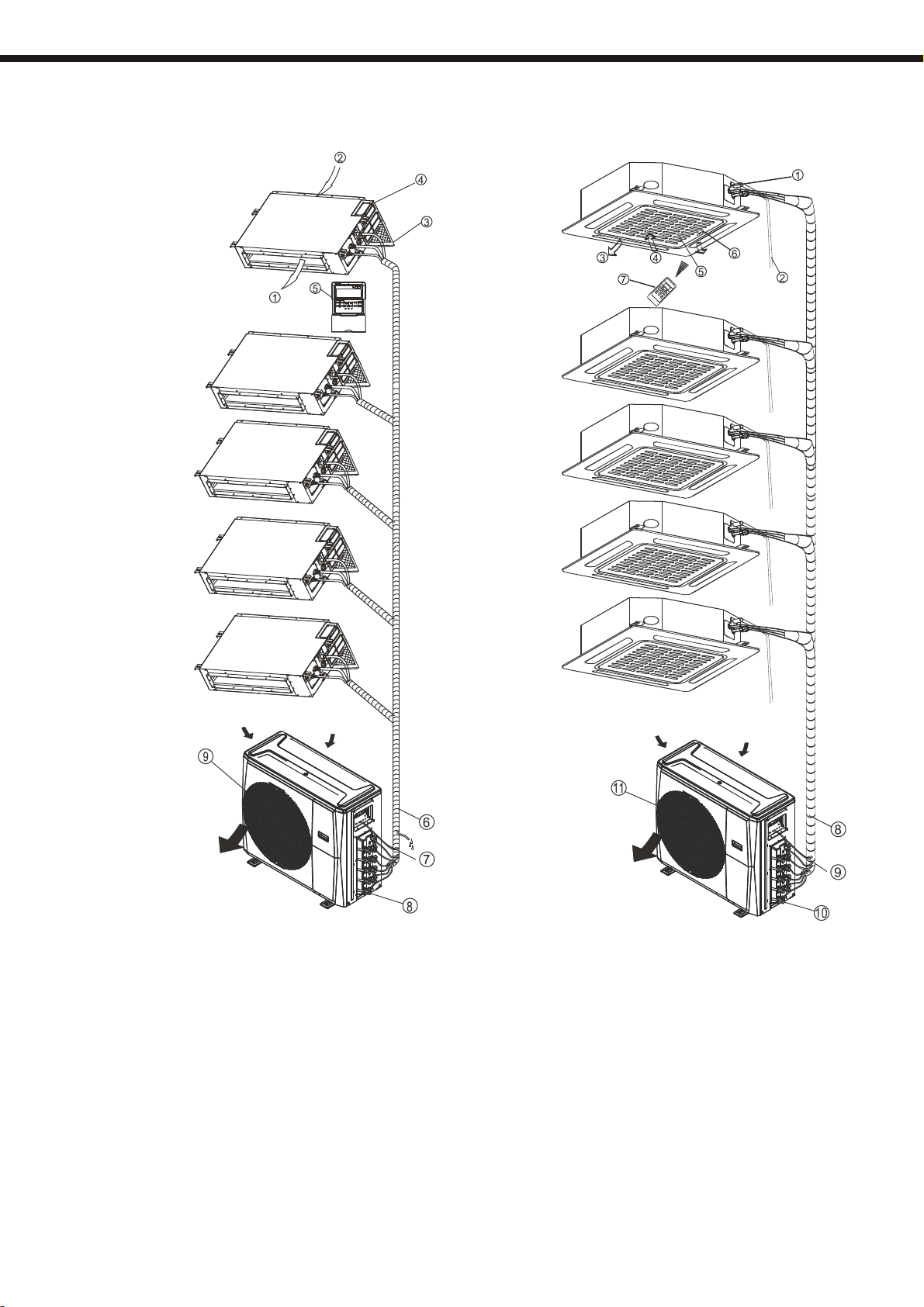

b) Duct MUCR-H6M
1. Drain pump (drain water from indoor unit)
2. Drain hose
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote controller
8. Refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood
Indoor unit
Outdoor unit
Outdoor unit
Indoor unit
c) Cassette MUCSR-H6M
Unit C
Unit A
Unit B
Unit D
Unit E
Unit C
Unit A
Unit B
Unit D
Unit E

18
DESCRIPTION AND OPERATING INSTRUCTIONS
Manual operation can be used temporarily in case you can not find the remote controller or
test running purpose or maintenance necessary.
Open and lift the front panel up will see the
manual control button(see Model A)
For some models, the manual control button is
located at the bottom of the unit(see Model B).
One press of the manual control button will
lead to the forced AUTO operation. If press
the button twice within five seconds, the unit
will operate under forced COOL operation.
Close the panel firmly to its original position.
1
3
2
NOTE: The unit must be turned off before
operating the manual control button. If the
unit is operational, continue pressing the
manual control button until the unit is off.
Mode
Temperature
Room temperature
Outdoor temperature
1. Optimum performance will be achieved within these operating temperatures.If air
conditioner is used outside of the above conditions, certain safety protection features
might come into operation and cause the unit to function abnormally.
2. If the air conditioner operates in a room whose relative humidity is less than 80%
the surface of the air conditioner may attract condensation. Please sets the vertical
air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.
NOTE:
Cooling operation Heating operation Drying operation
17 62
-15 50 5 122
30 86
-15 24
5 76
O O
>17 C(62 F)
O O
0 C~50 C
O O
(32 F~122 F)
Range
Adjust the air flow direction properly otherwise it
might cause discomfort or cause uneven room
temperatures.
Adjust the horizontal/vertical louver using the remote
controller. For some models, the vertical louver can
only be adjusted manually.
Vertical
louver
To set the horizontal/vertical air flow direction
Perform this function while the unit is in operation.
Use the remote controller to adjust the air flow direction.
The vertical/horizontal louver changes 6 degree in angle
for each press, or swing up and down automatically.
Please refer to the REMOTE CONTROLLER OPERATION
MANUAL for details.
,,
,,
Operating temperature
Manual operation
Airflow direction control
Manual Button

19
DESCRIPTION AND OPERATING INSTRUCTIONS
Do not operate the air conditioner for long periods with
the air flow direction set downward in cooling or
dehumidifying mode. Otherwise, condensation may
occur on the surface of the horizontal louver causing
moisture to drop on to the floor or on furnishings.
Do not move the horizontal louver manually unless it is
necessary. Always use the remote controller.
When the air conditioner is started immediately after it
was stopped, the horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver should not be set
too small, as COOLING or HEATING performance may
be impaired due to too restricted air flow area.
Do not operate unit with horizontal louver in closed
position.
When the air conditioner is connected to power (initial
power), the horizontal louver may generate a sound for
10 seconds, this is a normal operation.
CAUTION
Range
For some models, the vertical louver can only be adjusted
manually. Move the deflector rod manually to adjust the air
flow in the direction you prefer.
IMPORTANT:Do not put your fingers into the panel of
blower and suction side.The high-speed fan inside may
cause danger.
AUTO operation
When you set the air conditioner in AUTO mode,
it will automatically select cooling, heating(cooling
/heating models only), or fan only operation
depending on what temperature you have selected
and the room temperature.
The air conditioner will control room temperature
automatically round the temperature point set by
you.
If the AUTO mode is uncomfortable, you can
select desired conditions manually.
SLEEP operation
When you push SLEEP button on remote controller
during cooling, heating(cooling only type without),
or AUTO operation , the air conditioner will
automatically increase (cooling) or decrease
(heating) 1℃ per hour.
The set temperature will be steady 2 hours later.
And the air conditioner will be timer off in 7 hours.
The fan speed will be automatically controlled.
This feature can maintain the most comfortable
temperature and save more energy for you.
DRYING operation
The fan speed will be automatically controlled
under dry operation.
During the dry operation, if the room temperature
O
is lower than 10 C, the compressor stops operation
and restarts until the room temperature is above
O
12 C.
1 hour
1 hour
Set
Temperature
Cooling
1℃
1℃
Heating
SLEEP operation
1℃
1℃
1 hour 1 hour
Set
Temperature
SLEEP operation
7 hours timer off
7 hours timer off
How the air conditioner w ork s

CARE AND MAINTENANCE
3. Care and maintenance
20
A cloth dampened with cold water may be used on
the indoor unit if it is very dirty. Then wipe it with a
dry cloth.
Do not use a chemically treated cloth or duster to
clean the unit.
Do not use benzine, thinner, polishing powder, or
similar solvents for cleaning. These may cause
the plastic surface to crack or deform.
Never use water hotter than 40 C to clean the front
panel, it could cause deformation of discoloration.
CAUTIONS
Turn the system off before cleaning. To clean, wipe
with a soft, dry cloth. Do not use bleach or abrasives.
NOTE: Supply power must be disconnectd before
cleaning the indoor unit.
A clogged air filter reduces the cooling efficiency of
this unit. Please clean the filter once every 2 weeks.
1. Lift the indoor unit panel up to an angle until it
stops with a clicking sound.
2. Take hold of the handle of the air filter and lift it
up slightly to take it out from the filter holder,
then pull it downwards.
3. Remove the Active Carbon & Dust Filter from the
indoor unit.
Clean the it once two weeks.
Clean the it with a vacuum cleaner or water,
then dry it up in cool place.
.
.
Filter Handle
4. Remove the A
Plasma Dust collector/Silver Ion filter /Bio filter /
Vitamin C filter) from its support frame.
(The installation and removing method of the air
freshening filter is different depending on the models,
see the pictures marked and on the left.
Clean the air freshening filter at least once a month,
and replace it every 4-5 months.
Clean it with vacuum cleaner, then dry it in cool place.
5. Install the air freshening filter back into position.
6. Insert the upper portion of air filter back into the unit
taking care that the left and right edges line up
correctly and place filter into position.
ir Freshening Filter(Optional filter:
.
.12
Air freshening
filter
Air freshening filter
1
2
Cleaning the air filter
Cleaning the grille, case and remote controller
