Thank you for choosing air conditoner.Our design is based on the best eff-
iciency and the lowest noise operation and it can keep the room comfortable.
Please read this operating manual carefully before operating the unit and keep it
for consultation.
Structure mechanism and Installation
The Refrigerant 1
Safety operation of flammable refrigerant 22
Precautions 2
Installation 3
Function 7
Operation procedure
8
Power requirement
Notes for installation 6
9
Air direction adjustment
Part identification
9
Remote control operation procedure 10
Introduction for icons on display screen 10
Introduction for buttons on remote controller 11
Remote control panel 15
Care and maintenance
Operation Tips 16
Caution 17
Care and maintenance 19
Troubleshooting guide 20
21
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
R32: 675
After service
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
MUNDOCLIMA MUVR DC inverter window type

Please read this operating manual carefully before operating the unit.
● To realize the function of the air conditioner unit, a special refrigerant circulates
● Compared to common refrigerants, R32 is a nonpolluting refrigerant with no
lower. R32 has got very good thermodynamic features which lead to a really high
’s
- 1 -
WARNING:
Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacture.Should repair be necessary, contact your
nearest authorized Service Centre.
The appliance shall be stored in a room without continuously operating ignition
electric heater.)
Do not pierce or burn.
than 4m .
2
instructions only.
Be aware that refrigerants may not contain an odour.
Read specialist’s manual.
to the material objects for reference.
The Refrigerant
.
leads to explosion
. It can
MUNDOCLIMA MUVR DC inverter window type

- 2 -
electric shock.
Please contact dealer when you need to repair air conditioner.
injury or damage.
sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction.
● Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause
● Do not repair air conditioner by yourself. It may cause electric shock or damage.
● Maintenance must be performed by qualified professionals.Otherwise,it may cause
● The appliance is not to be used by persons (including children) with reduced physical,
● Children being supervised not to play with the appliance.
Please install the devices for short-circuit protection and electrical leakage protection
According to the local safety regulations, use qualified power supply circuit and circuit
when installing the air conditioner.
break.
Working temperature range
※ Operating Temperature Range
Indoor side DB/WB(°C)
Maximum cooling 32/23 43/-
Maximum heating 27/- 24/18
Outdoor side DB/WB(°C)
The operating temperature range (outdoor temperature) for cooling only unit is
16°C~ 43°C; for heat pump unit is -7°C~ 43°C.
Precautions
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Warning
The air conditioner should be installed in accordance with national wiring regulation.
Air Conditioner should be properly grounded. Incorrect grounding may cause electric
shock.
hazard.
Do not spill water on the remote controller, otherwise the remote controller may
be broken.
injury or damage.
personal injury.
● Do not connect air conditioner to multi-purpose socket.Otherwise, it may cause fire
● Do install the air switch. If not, it may cause malfunction.
●
● Do not spray water on air conditioner. It may cause electric shock or malfunction.
● Do not extend fingers or objects into air inlet or air outlet. It may cause personal
● Do not step on air conditioner, or put heavy objects. It may cause damage or
●Do not block air outlet or air inlet. It may cause malfunction.
MUNDOCLIMA MUVR DC inverter window type

- 3 -
Installation
Installation precaution:
Window type conditioner is so valuable and the
improper installation of it will cause a lot of da-
mage! Please associate the professional tech-
nician to install the unit and don’t install it by yourself. Otherwise, we are not
responsible for the damage like this.
Location:
● The condensation water must be drained away conveniently.
● Install air conditioner unit far away from TV set or radio etc. to avoid distur-
bing video or voice.
● In salt and coastal area or place where is near thermal springsand polluted
by sulphurous gas, or other special areas, please contact the seller before
use.
● Avoid other heat sources or direct sun light.
● Avoid a place where is easy for children to touch.
● Don't use the unit in the immediate surroundings of a laundry,a bath,a shower
or a swimming pool.
● For window type air conditioner with remote control, install in a location
where is strong electromagnetic disturbance, you should contact the seller
in advance to avoid the malfunction in use.
How to install:
● Choose a location where there are
no any obstacle surrounding the
unit, and the plug is accessible.
● Prepare the installation hole slig-
htly bigger than unit size.

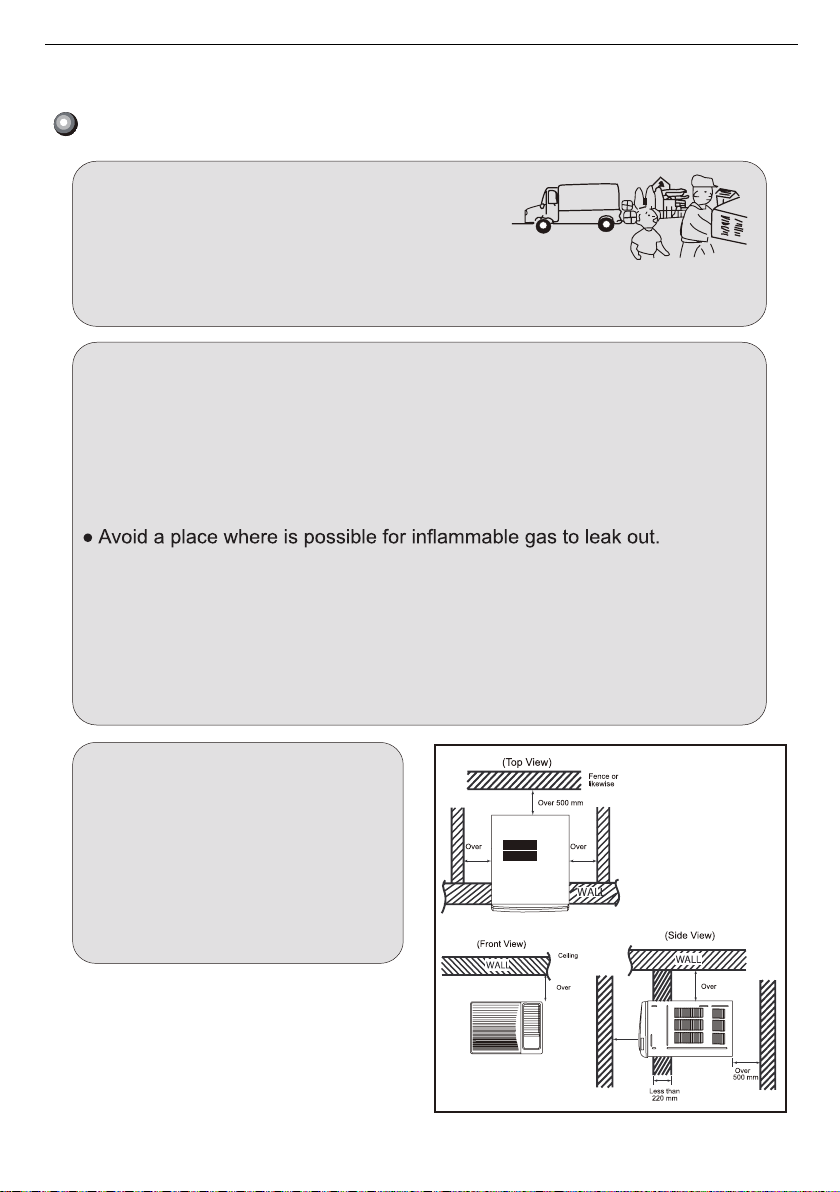

● Choose the installation space ac-
cording to the following diagram.
The distance of obstructions from
window unit inside should be upper
300mm, lower 1500mm, left 500mm,
right 500mm, front 1500mm.
Over
1500 mm
500mm 500mm
300mm
300mm
MUNDOCLIMA MUVR DC inverter window type

- 4 -
Installation procedure:
Remove the sticker from the front panel.1)
3)
Put the unit into the installation hole.2)
Fill up sews in the cabinet with sponge
or foam.
● When installing the unit, it should be sl-
between 6-10mm.) (Shown at right
anted down to the back to avoid the en-
largement of noise or vibration. (Slant
● The installation place should be strong
enough to avoid the enlargement of
noise or vibration.
Installation assistance:

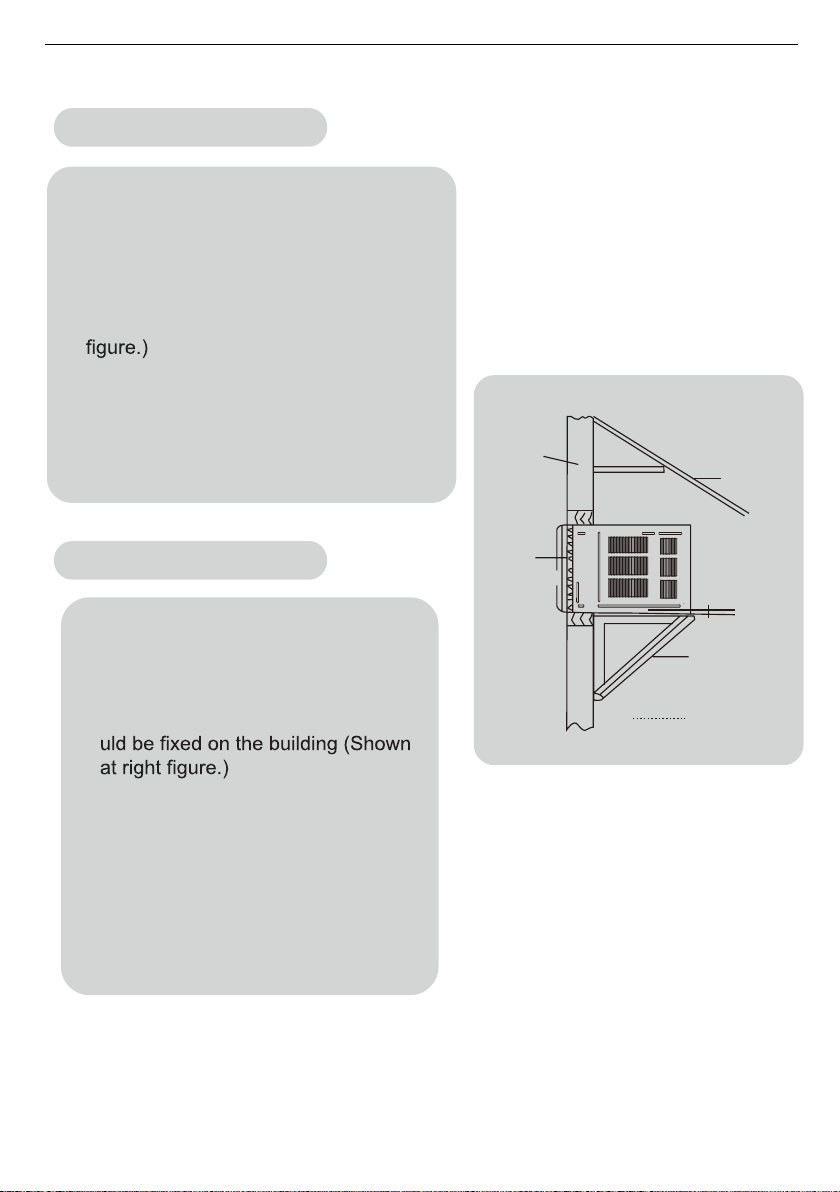

● Use iron support
The installation hole should be stro-
●
ng enough to support the air condit-
ioner.
If it cannot, iron support has to
be used outdoors. Iron support sho-
it block the air inlet at the side grille.
Wall Sunshade
board
Rubber
plate
6~10mm
Support
Horizontal line
Use sunshade board
Air conditioner should avoid anything
to be dropped into it and avoid direct
sunshine. If there is no cover on it,
you should contact the seller for inst-
alling the sunshade board. When in-
stalling the sunshade board, don’t let
MUNDOCLIMA MUVR DC inverter window type

- 5 -
Drain water :
Drain joint and drain hose need to be installed before using. Drain hose is
not included in the products, you need to purchase it locally to satisfy your
particular needs. Use the following procedure to install drain joint and
drain hose.
1. Slide out the chassis from the cabinet.

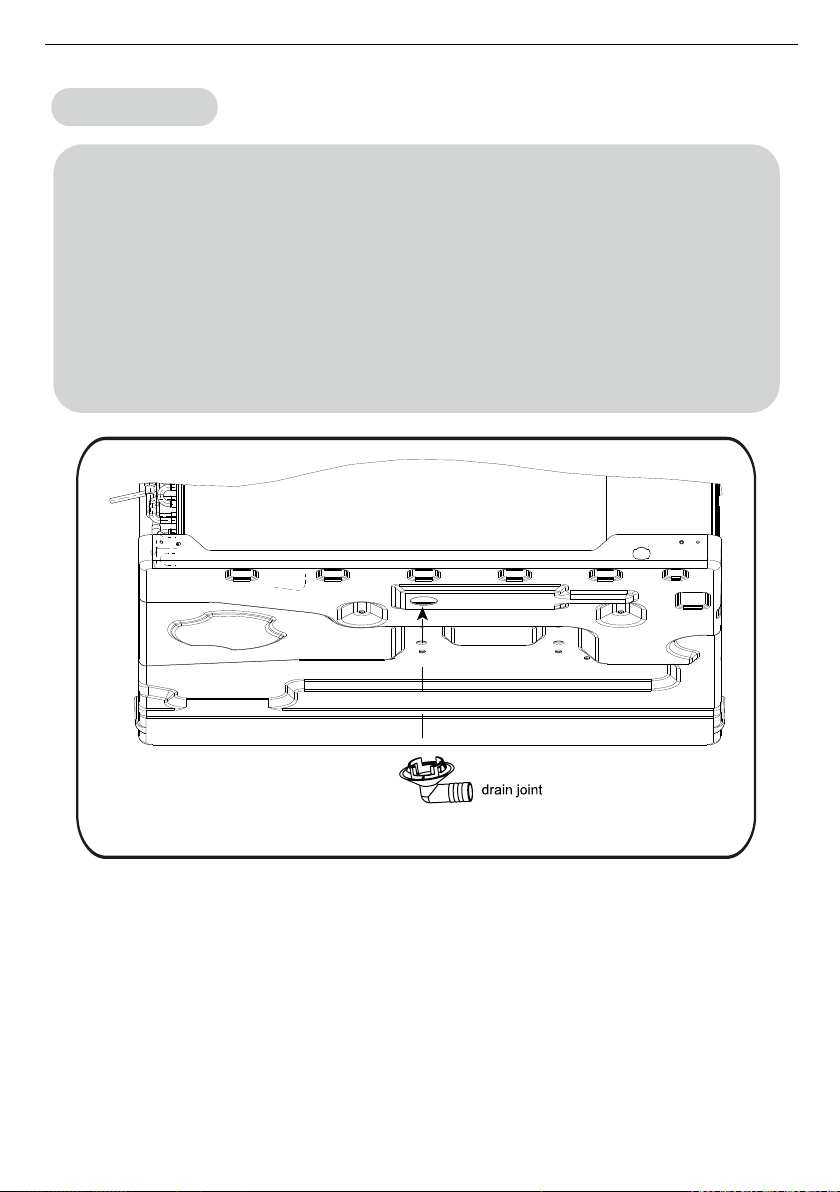

2. Connect the drain joint into the hole on the chassis, as shown in the picture
below.
3. Slide the chassis into its original place.
MUNDOCLIMA MUVR DC inverter window type

- 6 -
Notes for installation
Remove
Noise
Electric wiring
Before removing air conditioner to the other place, you
Then it must be done under the direction of the profe-
ssional technician. In addition, the charge of this must
be paid.
enlargement of noise and vibration.
● Don’t put anything in front of the outlet of the unit
to avoid increasing noise.
● Be sure that hot air or noise will not inconvenience neighbors.
● Please contact the seller as soon as there is strange noise during operation.
● Please use the safety support.
● Must connect with ground reliably.
● The exclusive circuit must be used. But removable socket
can’t be used because poor contact of it can cause over heat
● Don’t pull the power cord strongly.
and leakage current is less than 30mA.
● Connecting method between air conditioners and power cord and intercon-
necting method of each individual element with one another should accord
with wiring diagram on the unit.
● The air conditioner should be installed in accordance with national wiring
regulation.
● An all-pole disconnection switch having a contact separation of at least 3mm
● Air switch (thermal-magnetic breaker) should be installed in the circuit.
● If the supply cord is damaged,it must be replaced by the manufacturer or
●All the electrical work must be done according to the local wiring regulations.
MUNDOCLIMA MUVR DC inverter window type

- 7 -
Function
Introduction
Window type room air conditioners can
regulate the room temperature and dry the
room. It is convenient for your work, study
and life. It can be widely used in residence,
so on.
Room
temp.
Spring Autumn
Winter
Wind
direction
Summer
Cooling in summer
Heating in winter
(Only for heat unit)
Dehumidifying in rainy or
humid season
In hot summer, Air conditioner can
cool down the room air by
transferring heat out.
Without reducing the room temp., air
conditioner can dehumidify and make
the room air dry and comfortable.
Dry
In cold winter, Air conditioner can
heat up room air.
MUNDOCLIMA MUVR DC inverter window type

- 8 -
Power requirement
Rated voltage :
● The electric components will be damaged when
the voltage is too high. If the voltage is too low,
the compressor will vibrate violently to damage
the refrigerant system and easily cause the
compressor and electric components not work.
To ensure the reliable earthing, please do not connect earth
wire to the following places:
Earth wire
Water pipe
The ground must be connected.
● Special socket must be used. Furthermore, the
socket and wiring must conform to the wiring
regulations. And the earthing method must be
reliable.
protection switch of enough power capacity
and air switch with enough space.
220-240V~ 50Hz
MUNDOCLIMA MUVR DC inverter window type

- 9 -
positioning the vane to discharge the air upwards,
downwards or straight out.
Panel outlook picture, just for reference, please take the real unit as standard.
Part identification
MUNDOCLIMA MUVR DC inverter window type
Air direction adjustment
Air
intake
Air outlet
Cabinet
Control
panel
Louver
Air filtertab
Front panel Power
cord
Surface
casing

- 10 -

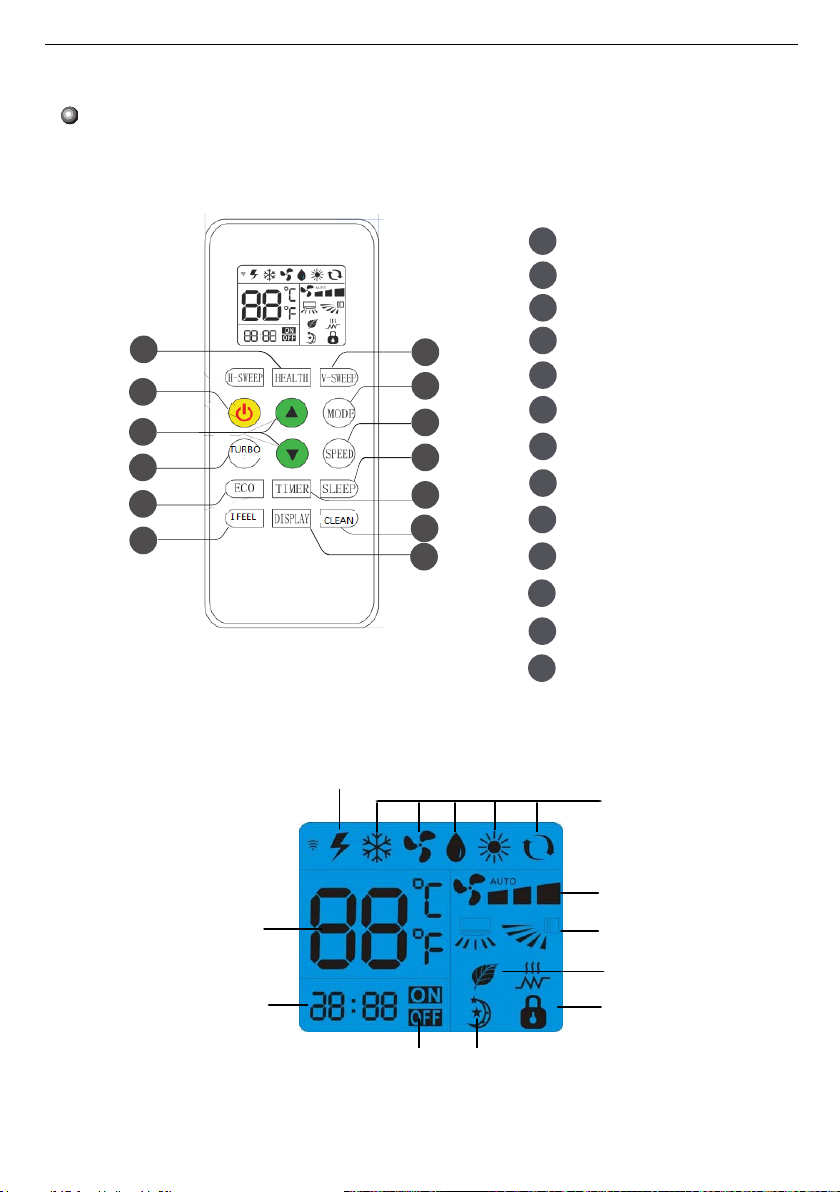

Buttons on remote controller
Introduction for icons on display screen
2
4
6
3
5
7
8
Turbo
Sending signal
Lock
Timer on
Timer off
auto operation
cool operation
dry operation
fan operation
heat operation
Remote control operation procedure
4
3
5
87
10 9
12
6
11
13
2
9
10
SWING button
ON/OFF button
MODE button
+/- button
SPEED button
1
1HEALTH button
SLEEP button
TURBO button
TIMER button
ECO button
11 CLEAN button
12 I FEEL button
13 DISPLAY button
Set temperature
Set time
Set speed
Swing operation
Health
Sleep
MUNDOCLIMA MUVR DC inverter window type

AUTO COOL DRY FAN HEAT
- 11 -
Introduction for buttons on remote controller
Note:
● When power is connected(stand by condition), you can operate the air conditioner
through the remote controller.
● When unit is on, each time you press the button on remote controller, the sending
signal icon " " on the display of remote controller will blink once. If the air con-
ditioner gives out a beep sound, it means the signal has been sent.
● When unit is off, set temperature will be displayed on the remote controller (If the
light of the unit display is turned on, the corresponding icon will be displayed);
When unit is on, it will display the icon of the on-going function.
● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.
1 HEALTH button
Press this button to trun on/OFF health function .
Note:This function is not available for this model.
2 SWING button
Press this button to turn on left & right air swing.
3 ON/OFF button
Press this button to turn unit on/off.
●
When selecting auto mode, air conditioner will operate automatically according to
ambient temperature. Set temperature can't be adjusted and won't be displayed
either. Press SPEED button to adjust fan speed.
●When selecting cool mode, air conditioner will operate under cool mode. Then
press + or - button to adjust set temperature. Press SPEED button to adjust fan speed.
●When selecting dry mode, air conditioner will operate under dry mode. Then press
+ or - button to adjust set temperature. Press SPEED button to adjust fan speed.
●When selecting fan mode, air conditioner will operate in fan mode only. Then
press SPEED button to adjust fan speed.
●When selecting heat mode, air conditioner will operate under heat mode. Then
press + or - button to adjust set temperature. Press SPEED button to adjust fan
speed.
(Cooling only unit can’t receive heating mode signal. )
4 MODE button
Pressing this button once can select your required mode circularly as below (the
corresponding icon " " will be lit up after the mode is selected):
MUNDOCLIMA MUVR DC inverter window type

Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( ),
SPEED 2 ( ) , SPEED 3 ( ) .
- 12-
Introduction for buttons on remote controller
● Pressing + or - button once will increase or decrease set temperature by 1°F(°C).
Hold + or - button for 2s, set temperature on remote controller will change quickly.
Release the button after your required set temperature is reached.
5 + / - button
Note:
● Under Auto speed, air conditioner will select proper fan speed automatically acc-
ording to ambient temperature.
6 SPEED button
Under Cool, Heat ,Dry mode, press this button to turn on Sleep function. Press this
button to cancel Sleep function. Under Fan and Auto mode, this function is unavailable.
7 SLEEP button
Under Cool, Heat mode, press this button to turn on Turbo function. Press this button
to cancel Turbo function. Under Fan, Dry and Auto mode, this function is unavailable.
8 TURBO button
9 TIMER button
●When unit is on, press this button to set Timer Off. Press this button to adjust
the time for Timer Off. Pressing this button to adjust time by one hour to make
24 hours in cycle.when it reach 24 hours,press this button one more time to be
off the timer function.
Hold this button for 2s, set hours on remote controller will change quickly.
●When unit is off, press this button to set Timer On. Press this button to adjust
the time for Timer On. Pressing this button to adjust time by one hour to make
24 hours in cycle.when it reach 24 hours,press this button one more time to be
off the timer function.
Hold this button for 2s, set hours on remote controller will change quickly.
10 ECO button
Under Cool, Heat mode, press this button to turn on energy saving function. Press
this button to cancel energy saving function. Under Fan, Dry and Auto mode, this
function is unavailable.
ECO function can not be used with Turbo at the same time.
MUNDOCLIMA MUVR DC inverter window type

- 13 -
Introduction for buttons on remote controller
Press this button to turn onself-cleaning technology .
Note:This function is not available for this model.
11 CLEAN button
12 I FEEL button
Press this button to turn on I FEEL function .
Note:This function is not available for this model.
13 DISPLAY button
To start or stop DISPLAY when air conditioner is in RUNNIG.
Remarks:
1. Temperature can be set between 16℃~32℃.
2. The function and display of Heat is not available for cooling-only air conditioner.
3.When there is something wrong with the remote controller, please press ‘RESET’ button and
then operate again.
4.HEAT、AUTO function and display are not available for cooling-only type air conditioner.
5.If user want tomake the room air cool or warm quickly ,user can press “turbo” button in cooling or
heating mode,air conditioner will run in power function.If press “turbo” button again, air conditioner
will exit power function.
6.The above illustration of remote controller is only for reference, it may be slightly different from
the actual product you selected.
MUNDOCLIMA MUVR DC inverter window type

- 14 -
Instruction for remote controller
1.The remote controller uses two AAA batteries under normal condition, the batteries l
ast for about 6 months. Please use two new batteries of similar type (pay attention to
the poles in installing).
After replacing the batteries, please use a point object (such as pen tip) to press
“Reset” button.
2.When using remote controller, please point the signal emitter towards indoor unit
receiver; There should be no obstacle between remote controller and indoor unit.
3.Pressing two buttons simultaneously will result wrong operation.
4.Do not use wireless equipment (such as mobile phone) near indoor unit. If
interference occurs
because of this, please switch off the unit, pull out power plug, then plug again and
switch on after a while.
5.There is no direct sunlight to the indoor receiver, or it can not receive signal from
the remote controller.
6.Don’ t cast the remote controller.
7.Don’ t put the remote controller under the sunlight or near the oven.
8.Don’ t sprinkle water or juice on the remote controller, use soft cloth for cleaning if it
occurs.
9.The batteries must be removed from the appliance before it is scrapped and that
they are disposed of safety.
MUNDOCLIMA MUVR DC inverter window type

- 15 -
Note:
Remote control panel
1 ON/OFF BUTTON
Operation starts when pressing this button, and stops
when pressing this button again.
2
FAN SPEED BUTTON
Select the fan speed HIGH, MID, LOW and AUTO in sequence.
3
4 / BUTTON
Press the keypad to increase the set (operating)
temperature of the unit.and Press the keypad to
decrease the set (operating) temperature of the unit. The
temperature setting range is from 16~32℃
TIME BUTTON
Select the time on/off function.
5 SLEEP BUTTON
6
SWING BUTTON
Activate the automatic air swing function.
7 MODE BUTTON
If wireless remote controller is lost, open the surface panel and operate manually.
MODE BUTTON
Select the operation mode, AUTO, HEAT, COOL, FAN,
DRY (for reverse cycle model) or COOL,FAN, DRY
(for cooling only model).
MODE BUTTON
Select the sleep function.
MUNDOCLIMA MUVR DC inverter window type

- 16 -
Operation Tips
Operation for comfort and economy
Do not overcool the room te-
mperature. This is not good
for health and wastes electr-
icity.
Keep blind or curtains closed.
Do not let sunshine enter the
room directly when the air co-
nditioner is in operation.
Keep the room temp. uniform.
Adjust the vertical and horizo-
a uniform temperature in the
room. Air can’t be discharged
to the direction of air-in.
Make sure that the doors and
windows are tightly closed.
Avoid opening doors and wi-
ndows as much as possible
to keep air conditioning in the
room.
duce dehumidifying effects.
once every two weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
When starting the unit, curtains or
windows should be closed to pre-
vent the heat/cool leakage.
MUNDOCLIMA MUVR DC inverter window type

- 17 -
Caution
Operations for safety and health
1) The plug must be accessible after the appliance is positioned.
2) Do not use this appliance in the laundry.
3) If the power cord is damaged, it must be replaced by the manufacture or its
service agent in void of hazard.
Select the most appropriate
temperature. Pay attention to
adjust the temperature to suit
the conditions. Rooms occup-
ied by infants,the elderly, or
the sick should be kept at an
appropriate temperature.
Do not use heating apparatu-
ses in the vicinity. The air co-
nditioner’s plastic parts will
melt if exposed to excessive
heat.
Avoid exposing the body dire-
ctly to a continuous unidirect-
This is not recommended for
health reason.
● Do not pull out the power
cord.
● Damage to the cord may
result in serious electric
shocks
● Do not use the air conditioner
for other purposes except for
cooling the room.
● Do not use the air conditioner
for other purposes such as
dr ying clothes, preserving
foods, or cultivating vegeta-
bles.
● Do not block the air intake
and outlet vents.
This causes lowered perform-
ance and irregular operation.
● Do not insert sticks or other
objects into these vents as it
is dangerous to touch the ele-
ctric components and the fan.
MUNDOCLIMA MUVR DC inverter window type

- 18 -
Always wait at least 3 minutes before
switching the air conditioner on again
after you have switched it off during
cooling or heating.
Always wait at
least 3 minutes.
Inappropriate treatment of the unit involves the risk of severe
damages of people and material. Details to this refrigerant
are found in chapter “refrigerant”.
Appliance shall be installed, operated andstored in a room with
2 .
MUNDOCLIMA MUVR DC inverter window type
