MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book

3
Part 1 - General Information
Part 1
General Information
1Indoor and Outdoor Unit Capacities ...................................................... 4
2External Appearance.............................................................................. 6
3Outdoor Unit Combinations................................................................... 8
4Nomenclature........................................................................................ 9
5Combination Ratio............................................................................... 11
6Selection Procedure............................................................................. 12

4
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
1Indoor and Outdoor Unit Capacities
1.1 Indoor Units
1.1.1 Standard indoor units
Table 1-1.1: Standard indoor unit abbreviation codes
Abbreviation
code Type
Abbreviation
code Type
Q1 One-way Cassette T1 High Static Pressure Duct
Q2 Two-way Cassette G Wall-mounted
Q4C Compact Four-way Cassette DL Ceiling & Floor
Q4 Four-way Cassette F Floor Standing
T2 Medium Static Pressure Duct Z Console
Table 1-1.2: Standard indoor unit capacity range
Capacity Capacity
index Q1 Q2 Q4C Q4 T2 T1 G DL F Z
kW HP
1.8 0.6 18 18 —————————
2.2 0.8 22 22 22 22 —22 —22 —22 22
2.8 1 28 28 28 28 28 28 —28 —28 28
3.6 1.25 36 36 36 36 36 36 —36 36 36 36
4.5 1.6 45 45 45 45 45 45 —45 45 45 45
5.6 2 56 56 56 —56 56 —56 56 56 —
7.1 2.5 71 71 71 —71 71 71 71 71 71 —
8.0 3 80 ———80 80 80 80 80 80 —
9.0 3.2 90 ———90 90 90 90 90 ——
10.0 3.6 100 ———100 ——————
11.2 4 112 ———112 112 112 —112 ——
14.0 5 140 ———140 140 140 —140 ——
16.0 6 160 —————160 —160 ——
20.0 7 200 —————200 ————
25.0 9 250 —————250 ————
28.0 10 280 —————280 ————
40.0 14 400 —————400 ————
45.0 16 450 —————450 ————
56.0 20 560 —————560 ————
1.1.2 Fresh air processing unit
Table 1-1.3: Fresh air processing unit capacity range
Capacity 12.5kW 14kW 20kW 25kW 28kW
Capacity index 125 140 200 250 280

5
Part 1 - General Information
1.2 Outdoor Units
Table 1-1.5: Outdoor unit capacity range
Capacity Model Name Combination Type
8HP MVD-V6X252W/V2GN1 /
10HP MVD-V6X280W/V2GN1 /
12HP MVD-V6X335W/V2GN1 /
14HP MVD-V6X400W/V2GN1 /
16HP MVD-V6X450W/V2GN1 /
18HP MVD-V6X500W/V2GN1 /
20HP MVD-V6X560W/V2GN1 /
22HP MVD-V6X615W/V2GN1 /
24HP MVD-V6X670W/V2GN1 /
26HP MVD-V6X730W/V2GN1 /
28HP MVD-V6X785W/V2GN1 /
30HP MVD-V6X850W/V2GN1 /
32HP MVD-V6X900W/V2GN1 /
34HP MVD-V6X950W/V2GN1 12HP+22HP
36HP MVD-V6X1015W/V2GN1 14HP+22HP
38HP MVD-V6X1065W/V2GN1 16HP+22HP
40HP MVD-V6X1120W/V2GN1 12HP+28HP
42HP MVD-V6X1175W/V2GN1 20HP+22HP
44HP MVD-V6X1230W/V2GN1 22HP+22HP
46HP MVD-V6X1285W/V2GN1 22HP+24HP
48HP MVD-V6X1345W/V2GN1 22HP+26HP
50HP MVD-V6X1400W/V2GN1 22HP+28HP
52HP MVD-V6X1460W/V2GN1 26HP+26HP
54HP MVD-V6X1515W/V2GN1 26HP+28HP
56HP MVD-V6X1570W/V2GN1 28HP+28HP
58HP MVD-V6X1635W/V2GN1 28HP+30HP
60HP MVD-V6X1685W/V2GN1 28HP+32HP
62HP MVD-V6X1750W/V2GN1 30HP+32HP
64HP MVD-V6X1800W/V2GN1 32HP+32HP
66HP MVD-V6X1850W/V2GN1 12HP+22HP+32HP
68HP MVD-V6X1915W/V2GN1 14HP+22HP+32HP
70HP MVD-V6X1965W/V2GN1 16HP+22HP+32HP
72HP MVD-V6X2020W/V2GN1 12HP+28HP+32HP
74HP MVD-V6X2075W/V2GN1 20HP+22HP+32HP
76HP MVD-V6X2130W/V2GN1 22HP+22HP+32HP
78HP MVD-V6X2185W/V2GN1 22HP+24HP+32HP
80HP MVD-V6X2245W/V2GN1 22HP+26HP+32HP
82HP MVD-V6X2300W/V2GN1 22HP+28HP+32HP
84HP MVD-V6X2360W/V2GN1 26HP+26HP+32HP
86HP MVD-V6X2415W/V2GN1 26HP+28HP+32HP
88HP MVD-V6X2470W/V2GN1 28HP+28HP+32HP
90HP MVD-V6X2535W/V2GN1 28HP+30HP+32HP
92HP MVD-V6X2585W/V2GN1 28HP+32HP+32HP
94HP MVD-V6X2650W/V2GN1 30HP+32HP+32HP
96HP MVD-V6X2700W/V2GN1 32HP+32HP+32HP
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.

6
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
2External Appearance
2.1 Indoor Units
2.1.1 Standard indoor units
Table 1-2.1: Standard indoor unit appearance
One-way Cassette Two-way Cassette
Q1 Q2
Compact Four-way Cassette Four-way Cassette
Q4C Q4
Medium Static Pressure Duct High Static Pressure Duct
T2 T1
Wall-mounted Ceiling & Floor
G DL
Floor Standing Console
F Z
2.1.2 Fresh air processing unit
Table 1-2.2: Fresh air processing unit appearance
Fresh Air Processing Unit
FA

7
Part 1 - General Information

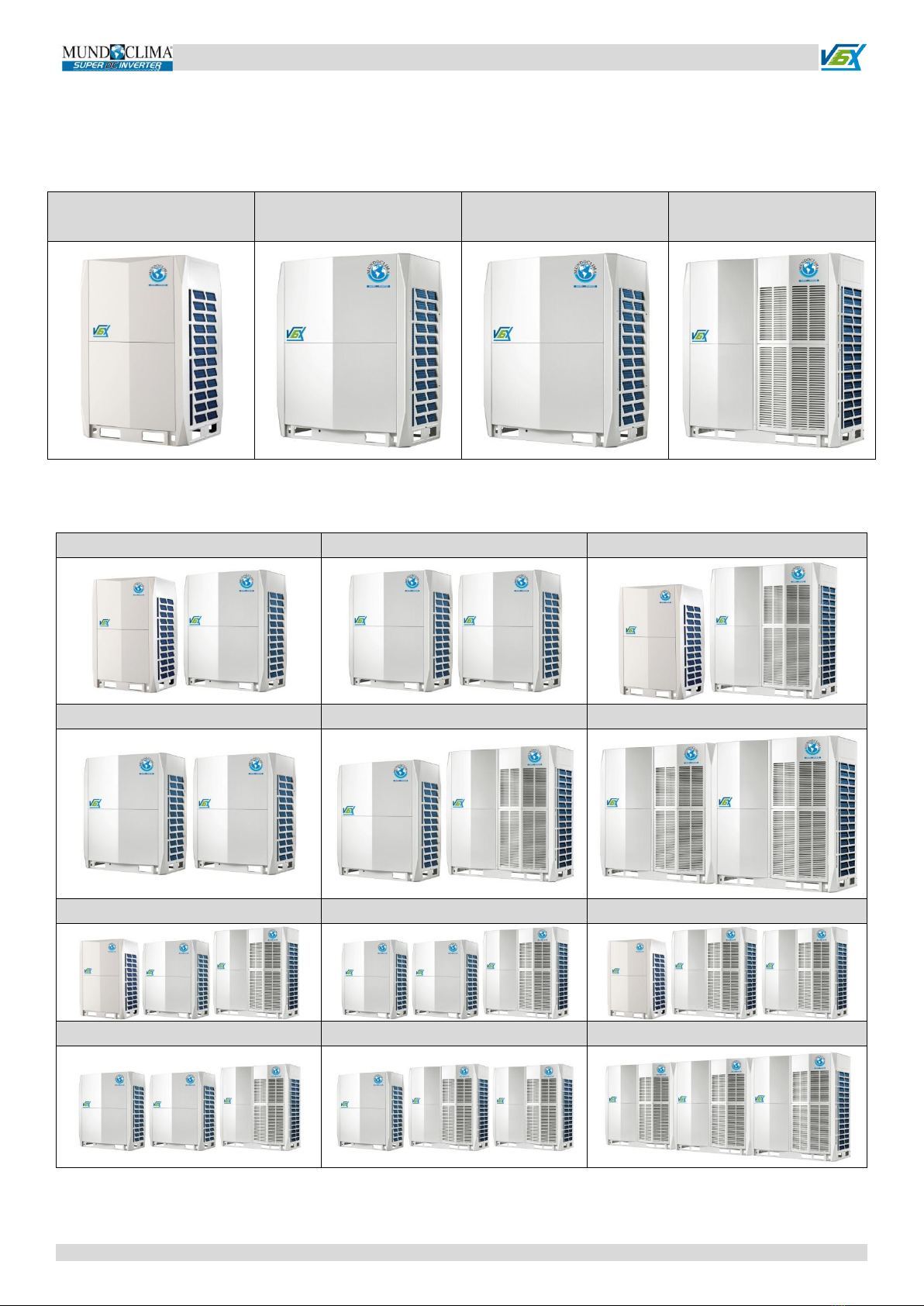

2.2 Outdoor Units
2.2.1 Single units
Table 1-2.4: Single outdoor unit appearance
8/10/12HP
(with single fan)
14/16HP
(with single fan)
18/20/22HP
(with dual fans)
24/26/28/30/32HP
(with dual fans)
2.2.2 Combinations of units
Table 1-2.5: Combination outdoor unit appearance
34HP 36/38HP 40HP
42/44HP 46/48/50HP 52/54/56/58/60/62/64HP
66HP 68/70HP 72HP
74/76HP 78/80/82HP 84/86/88/90/92/94/96HP

8
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
3Outdoor Unit Combinations
Table 1-3.1: Outdoor unit combinations
System capacity Number
of units
Modules1Outdoor branch
joint kit2
kW HP 8 10 12 14 16 18 20 22 24 26 28 30 32
25.2 8 1 ●
—
28.0 10 1
●
33.5 12 1
●
40.0 14 1
●
45.0 16 1
●
50.0 18 1
●
56.0 20 1
●
61.5 22 1
●
67.0 24 1
●
73.0 26 1
●
78.5 28 1
●
85.0 30 1
●
90.0 32 1
●
95.0 34 2
● ●
FQZHW-02N1E
101.5 36 2
● ●
106.5 38 2
● ●
112.0 40 2
● ●
117.5 42 2
●●
123.0 44 2
●●
128.5 46 2
●●
134.5 48 2
● ●
140.0 50 2
● ●
146.0 52 2
●●
151.5 54 2
●●
157.0 56 2
●●
163.5 58 2
●●
168.5 60 2
● ●
175.0 62 2
●●
180.0 64 2
●●
185.0 66 3
● ● ●
FQZHW-03N1E
191.5 68 3
● ● ●
196.5 70 3
● ● ●
202.0 72 3
● ● ●
207.5 74 3
●● ●
213.0 76 3
●● ●
218.5 78 3
●● ●
224.5 80 3
● ● ●
230.0 82 3
● ● ●
236.0 84 3
●● ●
241.5 86 3
●● ●
247.0 88 3
●● ●
253.5 90 3
●●●
258.5 92 3
● ●●
265.0 94 3
●●●
270.0 96 3
●●●
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.
2. For systems with two or more outdoor units, outdoor branch joints (sold separately) are required.

9
Part 1 - General Information
4Nomenclature
4.1 Indoor Units
4.1.1 Standard indoor units
MVD - 22 Q4 D N1
1 2 3 4 5
Legend
No. Code Remarks
1 MVD VRF MUNDOCLIMA
2 22 Capacity index (the capacity in kW multiplied by 10)
3 Q1
Indoor unit type
Q1: One-way Cassette
Q2: Two-way Cassette
Q4C: Compact Four-way Cassette
Q4: Four-way Cassette
T2: Medium Static Pressure Duct
T1: High Static Pressure Duct
FA: Fresh Air Processing Duct
G: Wall-mounted
DL: Ceiling & Floor
F: Floor Standing
Z: Console
4 D Series category (D: DC2 series)
5 N1 Refrigerant type (N1: R410A)

10
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
4.2 Outdoor Units
MVD - V6X 252 W / V2 G N1
1 2 3 4 5 6 7
Legend
No. Code Remarks
1 MVD VRF MUNDOCLIMA
2 V6X The 6th generation VRF
3 252 Capacity index (the capacity in kW multiplied by 10)
4 W Unit category (W: VRF outdoor unit)
5 V2 Type (V2: All DC inverter)
6 G Power supply (G: 3 phase, 380-415V, 50Hz)
7 N1 Refrigerant type (N1: R410A)

11
Part 1 - General Information
5Combination Ratio
Table 1-5.1: Indoor and outdoor unit combination ratio limitations
Type Minimum
combination ratio
Maximum combination ratio
Standard indoor
units only
Fresh air processing
units only
Fresh air processing units and
standard indoor units together
V6X Series outdoor units 50% 130% 100% 100%1
Notes:
1. When fresh air processing units are installed together with standard indoor units, the total capacity of the fresh air processing units must not exceed 30%
of the total capacity of the outdoor units and the combination ratio must not exceed 100%.
Table 1-5.2: Combinations of Indoor and outdoor units
Outdoor unit capacity Sum of capacity indexes of
connected indoor units (standard
indoor units only)
Sum of capacity indexes of connected indoor
units (fresh air processing units and standard
indoor units together)
Maximum number of
connected indoor
units
kW HP Capacity
index
25.2 8 252 126 to 327.6 126 to 252 13
28.0 10 280 140 to 364 140 to 280 16
33.5 12 335 167.5 to 435.5 167.5 to 335 20
40.0 14 400 200 to 520 200 to 400 23
45.0 16 450 225 to 585 225 to 450 26
50.0 18 500 250 to 650 250 to 500 29
56.0 20 560 280 to 728 280 to 560 33
61.5 22 615 307.5 to 799.5 307.5 to 615 36
67.0 24 670 335 to 871 335 to 670 39
73.0 26 730 365 to 949 365 to 730 43
78.5 28 785 392.5 to 1020.5 392.5 to 785 46
85.0 30 850 425 to 1105 425 to 850 50
90.0 32 900 450 to 1170 450 to 900 53
95.0 34 950 475 to 1235 475 to 950 56
101.5 36 1015 507.5 to 1319.5 507.5 to 1015 59
106.5 38 1065 532.5 to 1384.5 532.5 to 1065 63
112.0 40 1120 560 to 1456 560 to 1120
64
117.5 42 1175 587.5 to 1527.5 587.5 to 1175
123.0 44 1230 615 to 1599 615 to 1230
128.5 46 1285 642.5 to 1670.5 642.5 to 1285
134.5 48 1345 672.5 to 1748.5 672.5 to 1345
140.0 50 1400 700 to 1820 700 to 1400
146.0 52 1460 730 to 1898 730 to 1460
151.5 54 1515 757.5 to 1969.5 757.5 to 1515
157.0 56 1570 785 to 2041 785 to 1570
163.5 58 1635 817.5 to 2125.5 817.5 to 1635
168.5 60 1685 842.5 to 2190.5 842.5 to 1685
175.0 62 1750 875 to 2275 875 to 1750
180.0 64 1800 900 to 2340 900 to 1800
185.0 66 1850 925 to 2405 925 to 1850
191.5 68 1915 957.5 to 2489.5 957.5 to 1915
196.5 70 1965 982.5 to 2554.5 982.5 to 1965
202.0 72 2020 1010 to 2626 1010 to 2020
207.5 74 2075 1037.5 to 2697.5 1037.5 to 2075
213.0 76 2130 1065 to 2769 1065 to 2130
218.5 78 2185 1092.5 to 2840.5 1092.5 to 2185
224.5 80 2245 1122.5 to 2918.5 1122.5 to 2245
230.0 82 2300 1150 to 2990 1150 to 2300
236.0 84 2360 1180 to 3068 1180 to 2360
241.5 86 2415 1207.5 to 3139.5 1207.5 to 2415
247.0 88 2470 1235 to 3211 1235 to 2470
253.5 90 2535 1267.5 to 3295.5 1267.5 to 2535
258.5 92 2585 1292.5 to 3360.5 1292.5 to 2585
265.0 94 2650 1325 to 3445 1325 to 2650
270.0 96 2700 1350 to 3510 1350 to 2700
Combination ratio = Sum of capacity indexes of the indoor units
Capacity index of the outdoor units

12
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
6Selection Procedure
6.1 Procedure
Step 1: Establish design conditions
Step 2: Select indoor units
Step 3: Select outdoor units
Notes:
1. If the indoor design temperature falls between two temperatures listed in the indoor unit's capacity table, calculate the corrected capacity by interpolation.
If the indoor unit selection is to be based on total heat load and sensible heat load, select indoor units which satisfy not only the total heat load
requirements of each room but also the sensible heat load requirements of each room. As with total heat capacity, the sensible heat capacity of indoor
units should be corrected for indoor temperature, interpolating where necessary. For the indoor unit capacity tables, refer to the indoor unit technical
manuals.
Yes
Design temperature and humidity (indoor and outdoor)
Required heat load of each room
System peak load
Piping length, level differences
Indoor unit specifications (type and quantity)
Decide indoor unit safety factor
Select indoor unit models ensuring that:
Indoor unit capacity corrected for indoor air temperature WB1≥Required heat load × Indoor unit safety factor
Determine required total heat load on outdoor units
Use the sum of the peak load of each room Use the system peak load
Provisionally select outdoor unit capacity based on combination ratio limitations
Confirm that the number of indoor units connected to the outdoor units is within limitation
Correct cooling and heating capacities of the outdoor units for the following items:
Outdoor air temperature / Indoor air temperature WB / Combination ratio / Piping length, level
difference / Piping heat loss / Frost accumulation (for heating capacity only)
Is corrected outdoor unit capacity ≥Required total heat load on outdoor units?
VRF system selection is complete
No

13
Part 1 - General Information
6.2 Example
The following is a selection example based on total heat load for cooling.

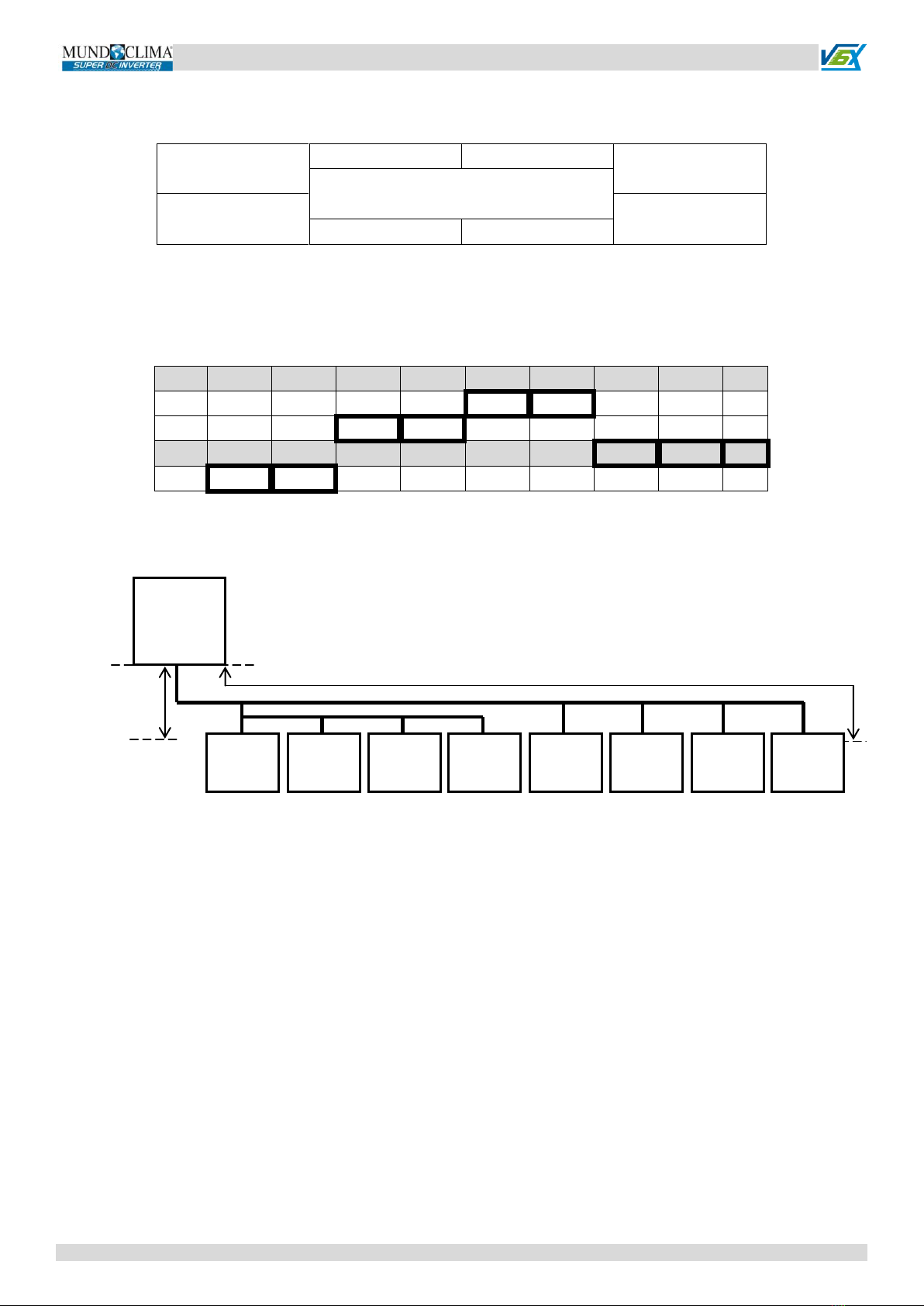

Figure 1-6.1: Room plan
Room A Room H Room G Room F
Room B Room E
Room C Room D
Step 1: Establish design conditions
Indoor air temperature 25°C DB, 18°C WB; outdoor air temperature 33°C DB.
Determine peak load of each room and system peak load. As shown in Table 1-6.1, the system peak load is 50.7kW.
Table 1-6.1: Required heat load of each room (kW)
Time Room A Room B Room C Room D Room E Room F Room G Room H Total
9:00 4.8 4.8 3.0 3.0 9.1 9.0 2.9 2.9 39.5
12:00 6.6 7.1 5.1 5.1 7.4 6.8 4.0 4.0 46.1
14:00 9.0 9.4 4.9 4.9 7.3 6.8 4.2 4.2 50.7
16:00 10.6 10.7 3.9 3.9 6.3 6.2 3.8 3.8 49.2
The maximum piping lengths and level differences in this example are as given in Figure 1-6.2.
Figure 1-6.2: System diagram
Indoor unit type for all rooms: Medium Static Pressure Duct (T2).
Step 2: Select indoor units
In this example, a safety factor is not used (i.e. the safety factor is 1).
Select indoor unit models using the medium static pressure duct cooling capacity table. Each indoor unit's corrected
capacity needs to be greater than or equal to the peak load of the relevant room. The selected indoor units are shown
in Table 1-6.3.
Equivalent length of piping 60m
Level
difference
40m
Outdoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit

14
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
Table 1-6.2: Extract from medium static pressure duct (T2) cooling capacity table
Model Capacity
index
Indoor air temperature
14°C WB 16°C WB 18°C WB 19°C WB 20°C WB 22°C WB 24°C WB
20°C DB 23°C DB 26°C DB 27°C DB 28°C DB 30°C DB 32°C DB
TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC
T2
22 1.5 1.4 1.8 1.5 2.1 1.6 2.2 1.6 2.3 1.7 2.4 1.5 2.4 1.5
28 1.9 1.7 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.1 3.1 2.0 3.1 1.9
36 2.5 2.1 2.9 2.3 3.4 2.5 3.6 2.6 3.8 2.7 4.2 2.8 3.9 2.3
45 3.1 2.6 3.7 2.8 4.2 3.1 4.5 3.2 4.8 3.2 4.9 3.1 5.1 2.9
56 3.9 3.0 4.6 3.3 5.3 3.6 5.6 3.7 5.9 3.8 6.2 3.7 6.2 3.4
71 4.9 3.9 5.8 4.3 6.7 4.7 7.1 4.9 7.5 4.8 7.8 4.6 7.8 4.3
80 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.8 5.2 8.8 4.8
90 6.2 5.3 7.3 5.8 8.4 6.3 9.0 6.4 9.6 6.5 9.9 6.1 9.9 5.7
112 7.7 6.4 9.1 7.1 10.5 7.7 11.2 7.8 11.9 8.1 12.5 7.8 12.5 7.4
140 9.7 7.8 11.3 8.6 13.2 9.6 14.0 9.8 14.8 9.8 15.7 9.7 15.4 8.8
Abbreviations:
TC: Total capacity (kW); SHC: Sensible heat capacity (kW)
Table 1-6.3: Selected indoor units
Room A Room B Room C Room D
Peak heat load (kW) 10.6 10.7 5.1 5.1
Selected indoor unit MVD-140T2DN1 MVD-140T2DN1 MVD-56T2DN1 MVD-56T2DN1
Corrected TC (kW) 13.2 13.2 5.3 5.3
Room E Room F Room G Room H
Peak heat load (kW) 9.1 9.0 4.2 4.2
Selected indoor unit MVD-112T2DN1 MVD-112T2DN1 MVD-45T2DN1 MVD-45T2DN1
Corrected TC (kW) 10.5 10.5 4.2 4.2
Step 3: Select outdoor units
Determine the required total heat load from the indoor units to the outdoor units based on either the sum of the
peak loads of each room or the system peak load. In this example, it is determined based on the system peak load.
Therefore, the required heat load is 50.7kW.
Provisionally select outdoor units using the sum of the capacity indexes (CIs) of the selected indoor units (as shown in
Table 1-6.4), ensuring that the combination ratio is between 50% and 130%. Refer to Table 1-6.5. As the sum of CIs of
the indoor units is 706, outdoor units from 20HP to 50HP are potentially suitable. Start from the smallest, which is the
20HP unit.
Table 1-6.4: Sum of indoor unit capacity indexes
Model Capacity Index No. of units
MVD-140T2DN1 140 2
MVD-112T2DN1 112 2
MVD-56T2DN1 56 2
MVD-45T2DN1 45 2
Sum of CIs 706

15
Part 1 - General Information
Table 1-6.5: Extract from Table 1-5.2 Combinations of Indoor and outdoor units
Outdoor unit capacity Sum of capacity indexes of
connected indoor units (standard
indoor units only)
Maximum number of
connected indoor
units
kW HP Capacity
index
50.0 18 500 250 to 650 29
56.0 20 560 280 to 728 33
61.5 22 615 307.5 to 799.5 36
67.0 24 670 335 to 871 39
73.0 26 730 365 to 949 43
78.5 28 785 392.5 to 1020.5 46
85.0 30 850 425 to 1105 50
90.0 32 900 450 to 1170 53
95.0 34 950 475 to 1235 56
101.5 36 1015 507.5 to 1319.5 59
106.5 38 1065 532.5 to 1384.5 63
112.0 40 1120 560 to 1456
64
117.5 42 1175 587.5 to 1527.5
123.0 44 1230 615 to 1599
128.5 46 1285 642.5 to 1670.5
134.5 48 1345 672.5 to 1748.5
140.0 50 1400 700 to 1820
146.0 52 1460 730 to 1898
The number of connected indoor units is 8 and the maximum number of connected indoor units on the 20HP outdoor
unit is 33, so the number of connected indoor units is within the limitation.
Calculate the corrected capacity of the outdoor units:
a) The sum of the indoor unit CIs is 706 and the CI of the 20HP outdoor unit (MVD-V6X560W/V2GN1) is 560, so the
combination ratio is 706 / 560 = 126%.
b) Using the outdoor units’cooling capacity table, interpolate to obtain the capacity (“B”) corrected for outdoor air
temperature, indoor air temperature, and combination ratio. Refer to Tables 1-6.6 and 1-6.7.
Table 1-6.6: Extract from Table 2-8.7
MVD-V6X560W/V2GN1 cooling capacity
Table 1-6.7: Cooling capacity calculated by
interpolation
CR
Outdoor
air
temp.
(°C DB)
Indoor air temp.
(°C DB / °C WB)
CR
Outdoor
air
temp.
(°C DB)
Indoor air temp.
(°C DB / °C WB)
25.8 / 18.0 25.8 / 18.0
TC PI TC PI
kW kW kW kW
130%
31 61.3 13.55
130%
33 60.4 14.07 33 60.4 14.07
35 59.5 14.62 B = 601
120%
31 60.2 13.12
120%
33 59.3 13.66 33 59.3 13.66
35 58.4 14.18
Notes:
1. 59.3 + (60.4 –59.3) × (126 –120) / (130 –120) = 60.

16
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
c) Find the correction factor for piping length and level difference (“K1”)
Figure 1-6.3: V6X rate of change in cooling capacity
Notes:
1. The horizontal axis shows equivalent length of piping between farthest indoor unit and
first outdoor branch joint; the vertical axis shows the largest level difference between
indoor unit and outdoor unit. For level differences, positive values indicate that the
outdoor unit is above the indoor unit, negative values indicate that the outdoor unit is
below the indoor unit.
d) Calculate the corrected capacity of MVD-V6X560W/V2GN1 (“C”) by using K1:
C = B × K1 = 60 × 0.898 = 53.8kW
The corrected capacity 53.8kW is larger than required total heat load 50.7kW, so selection is complete. (In the event
that the corrected capacity is lower than the required total heat load, Step 3 should be repeated from the point
where the outdoor unit capacity is provisionally selected.)
90
-90
-100
-110
80
-80
70
-70
60
-60
50
-50
40
-40
30
-30
20
-20
10
10
1.0
0.97
0.95
0.92
0.90
0.87
0.85
0.84
0.81 0.80 0.78 0.78 0.77 0.76
1.0
0.97
0.95
0.92
0.90
0.87
0.85
0.84
0.81 0.80 0.78 0.78 0.77
20 30 40 50 60 70 80
K1 = 0.898
90 100 110 120 130 140 150 160 170 180 190
200
-10
0
0

17
Part 2 - Outdoor Unit Engineering Data
Part 2
Outdoor Unit
Engineering Data
1Specifications ...................................................................................... 18
2Dimensions.......................................................................................... 29
3Installation Space Requirements.......................................................... 39
4Piping Diagrams................................................................................... 40
5Wiring Diagrams .................................................................................. 46
6Electrical Characteristics ...................................................................... 49
7Functional Components and Safety Devices......................................... 51
8Capacity Tables .................................................................................... 52
9Operating Limits ................................................................................ 210
10 Sound Levels...................................................................................... 211
11 Accessories........................................................................................ 213

18
MUNDOCLIMA MAXI MVD V6X Series Engineering Data Book
1Specifications
8-14HP
Table 2-1.1: 8-14HP specifications
HP 8 10 12 14
Model name MVD-V6X252W/V2GN1 MVD-V6X280W/V2GN1 MVD-V6X335W/V2GN1 MVD-V6X400W/V2GN1
Power supply V/Ph/Hz 380-415/3/50
Cooling1
Capacity kW 25.2 28.0 33.5 40.0
kBtu/h 86.0 95.5 114.3 136.5
Power input kW 5.93 6.75 8.7 9.9
EER 4.25 4.15 3.85 4.05
Heating2
(rated)
Capacity kW 25.2 28.0 33.5 40.0
kBtu/h 86.0 95.5 114.3 136.5
Power input kW 4.82 5.46 6.6 8.5
COP 5.23 5.13 5.10 4.70
Heating2
(max)
Capacity kW 27.0 31.5 37.5 45.0
kBtu/h 92.1 107.5 128.0 153.5
Power input kW 5.39 6.54 7.88 10.27
COP 5.01 4.82 4.76 4.38
Connected
indoor unit
Total capacity 50-130% of outdoor unit capacity
Maximum quantity 13 16 20 23
Compressor
Type DC inverter
Quantity 1
Oil type FV68H
Start-up method Soft start
Fan
Type Propeller
Motor type DC
Quantity 1
Motor output kW 0.56 0.56 0.56 0.92
Static
pressure Pa 0-20 (default); 20-60 (customized)
Airflow rate m3/h 11000 11000 11000 13000
Drive type Direct
Refrigerant Type R410A
Factory charge kg 11 11 11 13
Pipe
connections3
Liquid pipe mm Φ12.7 Φ15.9 Φ15.9
Gas pipe mm Φ25.4 Φ28.6 Φ31.8
Sound pressure level4dB(A) 58 60 62
Sound power level dB(A) 78 81 85
Net dimensions (W×H×D) mm 990×1635×790 1340×1635×850
Packed dimensions (W×H×D) mm 1090×1805×860 1405×1805×910
Net weight kg 227 277
Gross weight kg 242 304
Ambient
temp.
operation
range
Cooling oC -5 ~ 48
Heating oC -25 ~ 24
Notes:
1. Indoor air temperature 27°C DB, 19°C WB; outdoor air temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor air temperature 20°C DB; outdoor air temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Diameters given are those of the unit's stop valve.
4. Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.

19
Part 2 - Outdoor Unit Engineering Data
16-22HP
Table 2-1.2: 16-22HP specifications
HP 16 18 20 22
Model name MVD-V6X450W/V2GN1 MVD-V6X500W/V2GN1 MVD-V6X560W/V2GN1 MVD-V6X615W/V2GN1
Power supply V/Ph/Hz 380-415/3/50
Cooling1
Capacity kW 45.0 50.0 56.0 61.5
kBtu/h 153.5 170.6 191.1 209.8
Power input kW 12.0 12.5 15.1 18.4
EER 3.75 4.00 3.70 3.35
Heating2
(rated)
Capacity kW 45.0 50.0 56.0 61.5
kBtu/h 153.5 170.6 191.1 209.8
Power input kW 9.8 10.6 12.7 15.0
COP 4.60 4.70 4.40 4.10
Heating2
(max)
Capacity kW 50.0 56.0 63.0 69.0
kBtu/h 170.6 191.1 215.0 235.4
Power input kW 11.76 12.84 15.29 17.78
COP 4.25 4.36 4.12 3.88
Connected
indoor unit
Total capacity 50-130% of outdoor unit capacity
Maximum quantity 26 29 33 36
Compressor
Type DC inverter
Quantity 1 2
Oil type FV68H
Start-up method Soft start
Fan
Type Propeller
Motor type DC
Quantity 1 2
Motor output kW 0.92 0.56×2 0.56×2 0.56×2
Static
pressure Pa 0-20 (default); 20-60 (customized)
Airflow rate m3/h 13000 17000 17000 17000
Drive type Direct
Refrigerant Type R410A
Factory charge kg 13 17 17 17
Pipe
connections3
Liquid pipe mm Φ15.9 Φ19.1
Gas pipe mm Φ31.8 Φ31.8
Sound pressure level4dB(A) 65 66
Sound power level dB(A) 88
Net dimensions (W×H×D) mm 1340×1635×850 1340×1635×825
Packed dimensions (W×H×D) mm 1405×1805×910
Net weight kg 277 348
Gross weight kg 304 368
Ambient
temp.
operation
range
Cooling oC -5 ~ 48
Heating oC -25 ~ 24
Notes:
1. Indoor air temperature 27°C DB, 19°C WB; outdoor air temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor air temperature 20°C DB; outdoor air temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Diameters given are those of the unit's stop valve.
4. Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.
