Mustang 3503 User manual

3503
3703
COMPACT EXCAVATORS
3503 Serial Number Range
Engine Tier I Models: AD00001 to AE01552
Engine Tier II Models: AD01553 to AE02832
Engine Tier III Models: AG00593 and up
3703 Serial Number Range
Engine Tier I Models: AD00001 to AE01553
Engine Tier II Models: AD01554 to AE02799
Engine Tier III Models: AG00580 and up
PARTS MANUAL
PART #918049
®
Revision G - 01/09
Mustang Manufacturing Company, Inc.
®

INTRODUCTION
When ordering service parts, specify the correct
part number, full description, quantity required, the
unit model number and serial number. For your
safety and continued proper operation, use only
genuine MUSTANG service parts.
The model and serial number for this unit are on a
tag located on a panel on the front of the cab.
“Right” and “left” are determined from a position
sitting on the operator’s seat and facing forward.
MUSTANG Manufacturing Company reserves the
right to make changes or improvements in the
design or construction of any part of the unit without
incurring the obligation to install such changes on
any previously delivered units.
Refer to the abbreviations table located on this page
for special parts descriptions. Standard attaching
hardware torque values are also provided near the
back of this manual. Metric torque values shown in
the illustrations are in Newton-meters and are
converted to foot-pounds by multiplying by 0.738.
Specific reference numbers, indicating a complete
assembly, are circled in some illustrations. A small
bag, pictured in some illustrations, indicates a seal
kit (seals, o-rings, etc.). In the exploded view parts
list, additional information may follow the
Reference Number.
Serial number breaks are indicated as follows:
• (SN 999 and before) - indicates serial numbers
up to and including 999.
• (SN 1000 - 2000) - indicates serial numbers
between 1000 and 2000.
• (SN 999 and up) - indicates serial numbers
including 999 and after.
Serial number exceptions and inclusion are
indicated as follows:
• (SN 999 and before except 997) - indicates
serial numbers up to and including 999,
EXCEPT 997.
• (SN 1000 - 2000 except 1996 including 997) -
indicates serial numbers between 1000 and
2000, INCLUDING 997 EXCEPT 1996.
• (SN 2001 and up including 1996) - indicates
serial numbers including 2001 and after,
INCLUDING 1996.
Unless otherwise specified, all cap screws and
bolts are Grade 8.8, cadmium or zinc plated.
NOTE:The following abbreviations may be
used herein:
ASSD............... Assembled
ASSY............... Assembly
AR ................... As Required
CB.................... Carriage Bolt
CP.................... Cotter Pin
CS.................... Cap Screw (Hexagon Head)
CYL................. Cylinder
DIA.................. Diameter
DIN.................. Deutsches Institut für Normung
FHCS............... Flat Head Cap Screw
GR ................... Grade
HB ................... Hex Bolt
HLN................. Hex Lock Nut
HN................... Hex Nut
HP.................... High Pressure
HYD................ Hydraulic
INS .................. Insert
LH.................... Left Hand
LN.................... Lock Nut
LT .................... Left
LW................... Lock Washer
M ..................... Meter or Meters
MM/mm .......... Millimeter
NPT.................. National Pipe Threaded
NSS.................. Not Sold Separately
RH ................... Right Hand
RT.................... Right
SHCS............... Socket Head Cap Screw
SLTD ............... Slotted
SN.................... Serial Number or Slotted Nut
SQ.................... Square
W/.................... With
W/O................. Without
ZO.................... Zinc Oxide
ZY.................... Zinc Yellow

TABLE OF CONTENTS
Printed in U.S.A 1 918049/GP0109
Introduction..................... Inside Front Cover
Table of Contents.........................................1
Decal Locations ...........................................3
Undercarriage, Rubber Track.......................9
Undercarriage, Steel Track (Option)..........16
Track Tensioner, Rubber Track.................24
Track Tensioner, Steel Track (Option)......25
Chassis .......................................................26
Chassis Lubrication....................................28
Counterweight............................................30
Rear Wall and Engine Hood......................31
Valve Cover...............................................32
Dipper Arm, Short .....................................34
Dipper Arm, Long......................................36
Connecting Link ........................................38
Boom..........................................................39
Dozer Blade ...............................................40
Canopy.......................................................41
Cab.............................................................42
Mirrors (Option) ........................................47
Cab/Canopy Sun Visor (Option)................48
Cab Door....................................................49
Cab Front Window.....................................50
Cab Sliding Window..................................51
Cab Windows.............................................52
Cab Interior Floor Trim .............................53
Operator’s Seat (Cab) ................................54
Operator’s Seat (Canopy) ..........................56
Cab Heater .................................................58
Diesel Engine.............................................61
Engine Mounts...........................................64
Cylinder Block...........................................65
Cylinder Head & Valve Cover...................66
Camshaft....................................................69
Crankshaft..................................................72
Crankshaft Seal..........................................75
Oil Pan .......................................................78
Oil Lubrication System..............................81
Fuel Injection Equipment...........................84
Cooling System..........................................87
Air Intake System ......................................89
Intake Manifold..........................................91
Exhaust System..........................................93
Fuel Tank...................................................96
Fuel System................................................99
Hydraulic Oil Pump.................................103
Throttle Lever..........................................104
Cooling System........................................106
Oil Cooler ................................................108
Oil Cooler Hose Installation....................109
Turntable Drive Unit................................110
Turntable Drive Unit Hose Installation ...111
Drive Motor .............................................112
Drive Motor Hose Installation.................114
Hydraulic Oil Tank..................................116
Hydraulic Pump External Parts................117
Hydraulic Pump Internal Parts.................118
Hydraulic Pump Hose Installation...........119
Control Valve...........................................120
Pilot Oil Supply Unit ...............................125
Swivel Joint..............................................126
Joysticks...................................................128
Manifold Block........................................131
Joystick Hose Installation........................132
Travel Pilot Valve....................................134
Travel Pilot Valve Hose Installation........136
Selection Valve........................................138
Reversing Valve (Dozer Blade)...............139
Selection Valve (House Tilt) ...................140
ISO/SAE Valve........................................141
Proportional Valve (Option)....................142
Prop. Valve Hose Installation (Option) ...143
Lock Valve...............................................144
Control Valve Tubes................................146
Boom Cylinder.........................................148
Dipper Arm Cylinder...............................150
Bucket Cylinder.......................................151
Swivel Cylinder .......................................152
Swivel Cylinder Hose Installation...........153
Dozer Blade Cylinder ..............................154
Dozer Blade Cylinder Hose Installation..156
Dozer Blade Cylinder ..............................158
Dozer Blade Cylinder Hose Installation..159
Dozer Blade Operation ............................160
Boom Hoses Installation..........................161
Auxiliary Hydraulics Pedal Operation.....162
Tilt Cylinder.............................................163
Tilt Cylinder Hose Installation ................164

TABLE OF CONTENTS
918049/GP0109 2 Printed in U.S.A
Battery......................................................165
Boom Work Light....................................166
Cab Work Lights (Option).......................167
Rotating Beacon (Option)........................168
Main Wire Harness..................................169
Chassis Wire Harness ..............................170
Engine Wire Harness ...............................171
Armrest Wire Harness .............................172
Proportional Control
Wire Harness (Option).........................174
Radio (Option).........................................175
Tools ........................................................176
Alphabetical Index...................................177
Numerical Index ......................................179

DECAL LOCATIONS
Printed in U.S.A 3 918049/GP0109
GENERAL INFORMATION
Decal location information is provided to assist in
the proper selection and application of new decals,
in the event the original decals become damaged or
the machine is repainted. The listing includes decal
illustration reference number, part number,
description and quantity information. Refer to the
illustrations for appropriate replacement locations.
To ensure proper selection of the correct replace-
ment decals, compare all of the various closeup
location drawings to the machine before starting to
refinish the unit. Then circle each decal shown
(applicable to the machine) while checking off its
part number in the listing. After verifying all the
decals needed for replacement, place any extra
unnecessary decals aside for disposal.
NOTE:
Refer to the SAFETY chapter of the
Operator's Manual for the specific information
provided on the various safety decals furnished
in the decal kit(s).

DECAL LOCATIONS
918049/GP0109 4 Printed in U.S.A
NEW DECAL APPLICATION
Surfaces MUST be free from dirt, dust, grease and
other foreign material before applying the new decal.
To apply, remove the smaller portion of the decal
backing paper and apply this part of the exposed
adhesive backing to the clean surface while maintain-
ing proper position and alignment. Peel the other por-
tion of the backing paper off slowly while applying
hand pressure to smooth out the decal surface.
CAUTION
ALWAYS follow safety precautions on decals.
Replace the decals if they are damaged, or if
the unit is repainted. If repainting, BE SURE all
applicable decals are affixed to the unit.
The Compact Excavator decal kit is as follows:
PAINT NOTICE
Use this list to order paint for refinishing:
167784 4 qts. Construction Yellow (MUSTANG)
167778 4 qts. Light Gray (MUSTANG)
167772 4 qts. Dark Gray (MUSTANG)
167785 6 (12.8 oz. Spray Cans) Yellow (MUSTANG)
167773
6 (12.8 oz. Spray Cans) Dark Gray (MUSTANG)
167779
6 (12.8 oz. Spray Cans) Light Gray (MUSTANG)
Ref.
No. Part
No. Description Qty.
163990 Decal Kit - ME3503 1
163991 Decal Kit - ME3703 1
1 161965 Diesel Fuel 1
2 161966 Hydraulic Oil 1
3 161969 WARNING - Hydraulic Reservoir 1
4 161967 Lubrication 1
5 161986 WARNING - Read Manual 1
6 165906 Glow Plug 1
7 163974 Throttle Speed 1
8 164854 WARNING - Avoid Injury 1
9 161968 Heater Valve (cab models only) 1
10 179730 Bypass Ball Valve 1
11 163978 WARNING - Hot Surface 1
12 163977 WARNING - Entanglement Hazard 1
13 161987 WARNING - Rotating Fan 1
14 161985 WARNING - Keep Away 2
15 163993 Graphic RT 1
16 165907 Graphic LT 1
17 164853 Engine Compartment Latch 1
18 162832 Hydraulics Compartment Latch 1
19 163979 ISO/SAE Valve Position 1
20 203786 3503 Lifting Capacity* 1
203799 3703 Lifting Capacity** 1
21 161981 Lift Point 4
22 161982 Tiedown Point 4
23 161970 Arrow 2
24 163975 WARNING - Avoid Injury 2
25 179704 WARNING - Counterweight 2
26 163973 WARNING - Mandatory Shutdown 1
27 163976 WARNING - Avoid Injury 1
28 162452 Joystick Control RT 1
29 162450 Travel LT 1
30 162451 Travel RT 1
31 162453 Joystick Control LT 1
32 179687 Dozer Blade Control 1
33 165900 Cabin Tilt Control** 4
34 137571 MUSTANG (4.64" x 26.08") 1
35 270244 MUSTANG (3.61" x 20.29")c3
36 164993 ME3503a2
164994 ME3703b2
37 202458 MUSTANG (2.31" x 13") 1
aUsed on ME3503 model only.
bUsed on ME3703 model only.
cTwo used on cab models, three on canopy models.

DECAL LOCATIONS
Printed in U.S.A 5 918049/GP0109
13
2
4
5
689
11 13
12 14 (both sides)
10
7
15
16

DECAL LOCATIONS
918049/GP0109 6 Printed in U.S.A
NOTE:The following is a duplicate listing from
page 4 for conveniently selecting decals from
the appropriate illustrations.
The Compact Excavator decal kit is as follows:
Ref.
No. Part
No. Description Qty.
163990 Decal Kit - ME3503 1
163991 Decal Kit - ME3703 1
1 161965 Diesel Fuel 1
2 161966 Hydraulic Oil 1
3 161969 WARNING - Hydraulic Reservoir 1
4 161967 Lubrication 1
5 161986 WARNING - Read Manual 1
6 165906 Glow Plug 1
7 163974 Throttle Speed 1
8 164854 WARNING - Avoid Injury 1
9 161968 Heater Valve (cab models only) 1
10 179730 Bypass Ball Valve 1
11 163978 WARNING - Hot Surface 1
12 163977 WARNING - Entanglement Hazard 1
13 161987 WARNING - Rotating Fan 1
14 161985 WARNING - Keep Away 2
15 163993 Graphic RT 1
16 165907 Graphic LT 1
17 164853 Engine Compartment Latch 1
18 162832 Hydraulics Compartment Latch 1
19 163979 ISO/SAE Valve Position 1
20 203786 3503 Lifting Capacity* 1
203799 3703 Lifting Capacity** 1
21 161981 Lift Point 4
22 161982 Tiedown Point 4
23 161970 Arrow 2
24 163975 WARNING - Avoid Injury 2
25 179704 WARNING - Counterweight 2
26 163973 WARNING - Mandatory Shutdown 1
27 163976 WARNING - Avoid Injury 1
28 162452 Joystick Control RT 1
29 162450 Travel LT 1
30 162451 Travel RT 1
31 162453 Joystick Control LT 1
32 179687 Dozer Blade Control 1
33 165900 Cabin Tilt Control** 4
34 137571 MUSTANG (4.64" x 26.08") 1
35 270244 MUSTANG (3.61" x 20.29")c3
36 164993 ME3503a2
164994 ME3703b2
37 202458 MUSTANG (2.31" x 13") 1
aUsed on ME3503 model only.
bUsed on ME3703 model only.
cTwo used on cab models, three on canopy models.
Ref.
No. Part
No. Description Qty.

DECAL LOCATIONS
Printed in U.S.A 7 918049/GP0109
17
18
19 21
23
24
25 21
26
27
28 29 30 31 32 33
34
37
35 35
35 36 35 36
(both sides)
20
22 22

NOTES
918049/GP0109 8 Printed in U.S.A

Printed in U.S.A 9 918049/GP0109

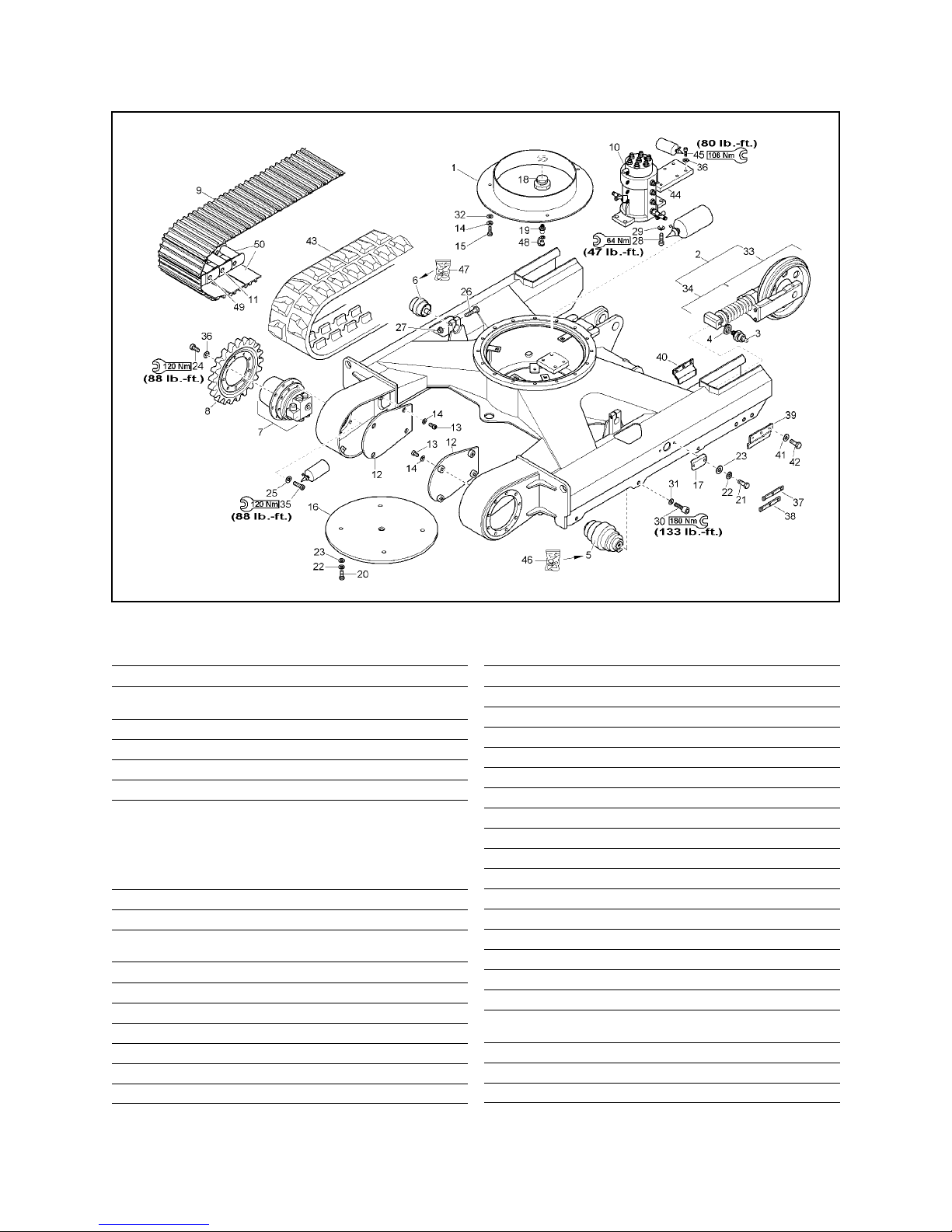

3503 - UNDERCARRIAGE, RUBBER TRACK
1000180966 - (SN AG00593 AND UP)
Ref.
No. Part No. Description Qty.
1 179045 BRACKET 1
2 165605 TRACK TENSIONER COMPLETE
See page 24 for individual components 2
3 203913 NON RETURN VALVE 2
4 178067 RING 2
5 202450 BOTTOM ROLLER 8
6 165124 SUPPORTING ROLLER 2
7 205703 DRIVE MOTOR COMPLETE
See page 112 for individual components 2
8 165604 SPROCKET 2
9 165720 RUBBER TRACK 2
10 207053 SWIVEL JOINT
See page 126 for individual components
1
11 161074 SEAL KIT/SUPPORTING ROLLER 2
12 165600 COVER 2
13 651515 SHCS M8-1.25 X 20 C8.8 ZY DIN912 8
14 163670 LOCKWASHER 11
15 177648 HEX SCREW 3
16 165598 COVER/UNDERCARRIAGE 1
17 162331 COVER/CHAIN TENSIONER 2
18 165119 PLUG 1
19 161412 GREASE ZERK-9MM HEX HEAD 1
20 656006 CS M10-1.5 X 20 C8.8 ZY DIN931 4
21 656090 CS M10-1.5 X 16 C8.8 ZY DIN931 4
22 161669 LOCKWASHER S10 8
23 161640 WASHER/GR A 10.5 8
24 651483 SHCS M12-1.75 X 35 C10.9 ZY
DIN912 18
25 161624 LW SPRING B12 DIN7982 18
26 651489 SHCS M12-1.75 X 65 C10.9 ZY
DIN912 2
27 179793 NUT 2
28 162022 SCREW 4
29 163641 WASHER 4
30 165945 SCREW 16
31 177389 WASHER 16
32 161662 WASHER/GR A 8.4 ZO 3
33 203436 TENSION WHEEL AND SLIDE 2
34 165606 SPRING SET 2
35 656148 FHCS M12-1.75 X 40 C10.9 ZY
DIN7991 18
36 161636 WASHER/NORD-LOCK NL 12 22
37 179046 PLATE 1
38 651480 SHCS M12-1.75 X 30 C10.9 ZY
DIN912 4
39 202449 SEAL KIT/BOTTOM ROLLER 8
40 161422 CAP 1
Ref.
No. Part No. Description Qty.

918049/GP0109 10 Printed in U.S.A

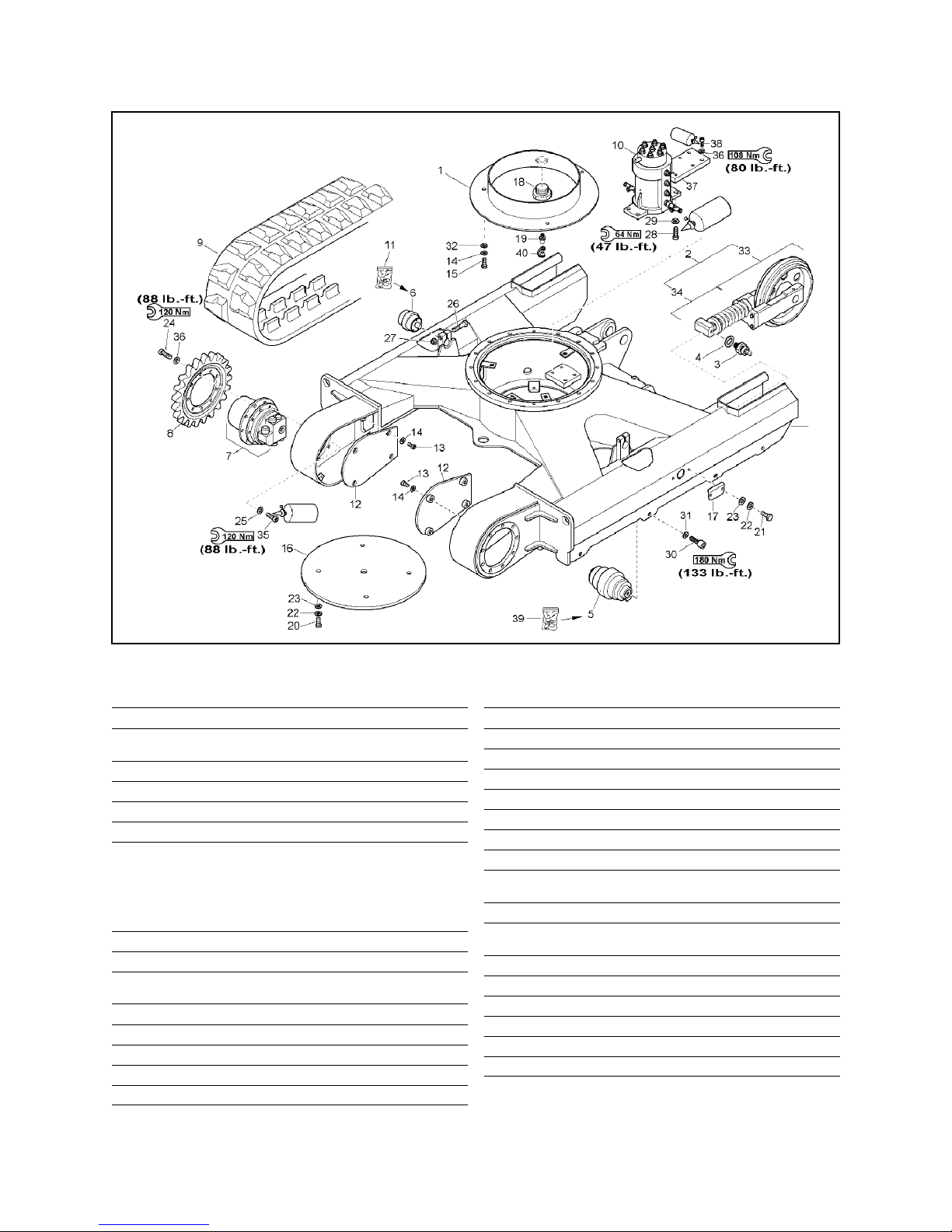

3503 - UNDERCARRIAGE, RUBBER TRACK
1000127201 - (SN AD00001 - AE02832)
Ref.
No. Part No. Description Qty.
1 179045 BRACKET 1
2 165605 TRACK TENSIONER COMPLETE
See page 24 for individual components 2
3 203913 NON RETURN VALVE 2
4 178067 RING 2
5 202450 BOTTOM ROLLER 8
6 165124 SUPPORTING ROLLER 2
7 205703 DRIVE MOTOR COMPLETE
(SN AE01101 - AE02832)
See page 112 for individual components
2
160723 DRIVE MOTOR COMPLETE
(SN AD00001 - AE01100)
See page 113 for individual components
2
8 165604 SPROCKET 2
9 165720 RUBBER TRACK 2
10 207053 SWIVEL JOINT
See page 126 for individual components
1
11 161074 SEAL KIT/SUPPORTING ROLLER 2
12 165600 COVER 2
13 651515 SHCS M8-1.25 X 20 C8.8 ZY DIN912 8
14 163670 LOCKWASHER 11
15 177648 HEX SCREW 3
16 165598 COVER/UNDERCARRIAGE 1
17 162331 COVER/CHAIN TENSIONER 2
18 165119 PLUG 1
19 161412 GREASE ZERK-9MM HEX HEAD 1
20 656006 CS M10-1.5 X 20 C8.8 ZY DIN931 4
21 656090 CS M10-1.5 X 16 C8.8 ZY DIN931 4
22 161669 LOCKWASHER S10 8
23 161640 WASHER/GR A 10.5 8
24 651483 SHCS M12-1.75 X 35 C10.9 ZY
DIN912 18
25 161624 LW SPRING B12 DIN7982 18
26 651489 SHCS M12-1.75 X 65 C10.9 ZY
DIN912 2
27 179793 NUT 2
28 162022 SCREW 4
29 163641 WASHER 4
30 165945 SCREW 16
31 177389 WASHER 16
32 161662 WASHER/GR A 8.4 ZO 3
Ref.
No. Part No. Description Qty.

918049/GP0109 11 Printed in U.S.A
3503 - UNDERCARRIAGE, RUBBER TRACK
1000127201 - (SN AD00001 - AE02832)
Ref.
No. Part No. Description Qty.
33 203436 TENSION WHEEL AND SLIDE 2
34 165606 SPRING SET 2
35 656148 FHCS M12-1.75 X 40 C10.9 ZY
DIN7991 18
36 161636 WASHER/NORD-LOCK NL 12 22
37 179046 PLATE 1
38 651480 SHCS M12-1.75 X 30 C10.9 ZY
DIN912 4
39 202449 SEAL KIT/BOTTOM ROLLER 8
40 161422 CAP 1
Ref.
No. Part No. Description Qty.

918049/GP0109 12 Printed in U.S.A
3703 - UNDERCARRIAGE, RUBBER TRACK
1000181065 - (SN AG00580 AND UP)
Ref.
No. Part No. Description Qty.
1 161074 SEAL KIT/SUPPORTING ROLLER 2
2 165605 TRACK TENSIONER COMPLETE
See page 24 for individual components 2
3 203913 NON RETURN VALVE 2
4 178067 RING 2
5 202450 BOTTOM ROLLER 8
6 165124 SUPPORTING ROLLER 2
7 205703 DRIVE MOTOR COMPLETE
See page 112 for individual components 2
8 165604 SPROCKET 2
9 165720 RUBBER TRACK 2
10 165590 SWIVEL JOINT II
See page 127 for individual components
1
11 179066 BRACKET 1
12 165600 COVER 2
13 651515 SHCS M8-1.25 X 20 C8.8 ZY DIN912 8
14 163670 LOCKWASHER 10
15 161636 WASHER/NORD-LOCK NL 12 18
16 162346 COVER/UNDERCARRIAGE 1
17 162331 COVER/CHAIN TENSIONER 2
18 161638 NUT/GROOVE SLEEVE SECURING 2
19 163651 WASHER 2
20 656006 CS M10-1.5 X 20 C8.8 ZY DIN931 4
21 656090 CS M10-1.5 X 16 C8.8 ZY DIN931 4
22 161669 LOCKWASHER S10 8
23 161640 WASHER/GR A 10.5 8
24 651483 SHCS M12-1.75 X 35 C10.9 ZY
DIN912 18
25 161624 LW SPRING B12 DIN7982 18
26 651489 SHCS M12-1.75 X 65 C10.9 ZY
DIN912 2
27 179793 NUT 2
28 161411 GREASE ZERK-7MM HEX HEAD 3
29 161416 CAP 3
30 165945 SCREW 16
31 177389 WASHER 16
32 656148 FHCS M12-1.75 X 40 C10.9 ZY
DIN7991 18
33 203436 TENSION WHEEL AND SLIDE 2
34 165606 SPRING SET 2
35 165815 BRACKET 2
36 165927 SCREW 4
Ref.
No. Part No. Description Qty.

Printed in U.S.A 13 918049/GP0109
3703 - UNDERCARRIAGE, RUBBER TRACK
1000181065 - (SN AG00580 AND UP)
37 163641 WASHER 4
38 651445 SHSS DP M10-1.50 X 16 C 45H 1
39 160784 TILT CYLINDER
See page 163 for individual components
1
40 160791 PIN 1
41 165811 PIN 1
42 165955 COTTER PIN 1
43 207108 PROTECTING COVER SUPERFLEX
(0.3M) 1
Ref.
No. Part No. Description Qty.
44 162321 TILT CYLINDER GUARD 1
45 651430 CS M8-1.25 X 12 C8.8 ZY DIN931 2
46 656122 CS M12-1.75 X 25 C8.8 ZY DIN931 2
47 160792 PIN 2
48 202449 SEAL KIT/BOTTOM ROLLER 8
Ref.
No. Part No. Description Qty.

918049/GP0109 14 Printed in U.S.A
3703 - UNDERCARRIAGE, RUBBER TRACK
1000127203 - (SN AD00001 - AE02799)
Ref.
No. Part No. Description Qty.
1 161074 SEAL KIT/SUPPORTING ROLLER 2
2 165605 TRACK TENSIONER COMPLETE
See page 24 for individual components 2
3 203913 NON RETURN VALVE 2
4 178067 RING 2
5 202450 BOTTOM ROLLER 8
6 165124 SUPPORTING ROLLER 2
7 205703 DRIVE MOTOR COMPLETE
(SN AE01101 - AE02832)
See page 112 for individual components
2
160723 DRIVE MOTOR COMPLETE
(SN AD00001 - AE0100)
See page 113 for individual components
2
8 165604 SPROCKET 2
9 165720 RUBBER TRACK 2
10 165590 SWIVEL JOINT II
See page 127 for individual components
1
11 179066 BRACKET 1
12 165600 COVER 2
13 651515 SHCS M8-1.25 X 20 C8.8 ZY DIN912 8
14 163670 LOCKWASHER 10
15 161636 WASHER/NORD-LOCK NL 12 18
16 162346 COVER/UNDERCARRIAGE 1
17 162331 COVER/CHAIN TENSIONER 2
18 161638 NUT/GROOVE SLEEVE SECURING 2
19 163651 WASHER 2
20 656006 CS M10-1.5 X 20 C8.8 ZY DIN931 4
21 656090 CS M10-1.5 X 16 C8.8 ZY DIN931 4
22 161669 LOCKWASHER S10 8
23 161640 WASHER/GR A 10.5 8
24 651483 SHCS M12-1.75 X 35 C10.9 ZY
DIN912 18
25 161624 LW SPRING B12 DIN7982 18
26 651489 SHCS M12-1.75 X 65 C10.9 ZY
DIN912 2
27 179793 NUT 2
28 161411 GREASE ZERK-7MM HEX HEAD 3
29 161416 CAP 3
30 165945 SCREW 16
31 177389 WASHER 16
32 656148 FHCS M12-1.75 X 40 C10.9 ZY
DIN7991 18
33 203436 TENSION WHEEL AND SLIDE 2
34 165606 SPRING SET 2
35 165815 BRACKET 2
Ref.
No. Part No. Description Qty.

Printed in U.S.A 15 918049/GP0109
3703 - UNDERCARRIAGE, RUBBER TRACK
1000127203 - (SN AD00001 - AE02799)
36 165927 SCREW 4
37 163641 WASHER 4
38 651445 SHSS DP M10-1.50 X 16 C 45H 1
39 160784 TILT CYLINDER
See page 163 for individual components
1
40 160791 PIN 1
41 165811 PIN 1
42 165955 COTTER PIN 1
Ref.
No. Part No. Description Qty.
43 207108 PROTECTING COVER SUPERFLEX
(0.3M) 1
44 162321 TILT CYLINDER GUARD 1
45 651430 CS M8-1.25 X 12 C8.8 ZY DIN931 2
46 656122 CS M12-1.75 X 25 C8.8 ZY DIN931 2
47 160792 PIN 2
48 202449 SEAL KIT/BOTTOM ROLLER 8
Ref.
No. Part No. Description Qty.

918049/GP0109 16 Printed in U.S.A
3503 - UNDERCARRIAGE, STEEL TRACK (OPTION)
1000180968 - (SN AG00593 AND UP)
Ref.
No. Part No. Description Qty.
1 179045 BRACKET 1
2 178867 TRACK TENSIONER COMPLETE
See page 25 for individual components 2
3 203913 NON RETURN VALVE 2
4 178067 RING 2
5 203570 BOTTOM ROLLER/STEEL TRACK 8
6 165124 SUPPORTING ROLLER 2
7 205703 DRIVE MOTOR COMPLETE
See page 112 for individual components 2
8 165604 SPROCKET 2
9 179048 STEEL TRACK 300MM 2
10 207053 SWIVEL JOINT
See page 126 for individual components
1
11 206109 PIN 2
12 165600 COVER 2
13 651515 SHCS M8-1.25 X 20 C8.8 ZY DIN912 8
14 163670 LOCKWASHER 11
15 177648 HEX SCREW 3
16 165598 COVER/UNDERCARRIAGE 1
17 162331 COVER/CHAIN TENSIONER 2
18 165119 PLUG 1
19 161412 GREASE ZERK-9MM HEX HEAD 1
20 656006 CS M10-1.5 X 20 C8.8 ZY DIN931 4
21 656090 CS M10-1.5 X 16 C8.8 ZY DIN931 4
22 161669 LOCKWASHER S10 8
23 161640 WASHER/GR A 10.5 8
24 651483 SHCS M12-1.75 X 35 C10.9 ZY
DIN912 18
25 161624 LW SPRING B12 DIN7982 18
26 651489
SHCS M12-1.75 X 65 C10.9 ZY DIN912
2
27 179793 NUT 2
28 162022 SCREW 4
29 163641 WASHER 4
30 165945 SCREW 16
31 177389 WASHER 16
32 161662 WASHER/GR A 8.4 ZO 3
33 203436 TENSION WHEEL AND SLIDE 2
34 178871 SPRINGSET 2
35 656148
FHCS M12-1.75 X 40 C10.9 ZY DIN7991
18
36 161636 WASHER/NORD-LOCK NL 12 22
37 179669 BRACKET 1
38 179670 BRACKET 1
39 178862 CHAIN GUARD LT 2
40 178863 CHAIN GUARD RT 2
41 161643 WASHER/ROUND HI-TENS 12
42 651408 CS M12-1.75 X 40 C10.9 ZY DIN931 12
43 179049 STEEL TRACK 2
Ref.
No. Part No. Description Qty.

Printed in U.S.A 17 918049/GP0109
3503 - UNDERCARRIAGE, STEEL TRACK (OPTION)
1000180968 - (SN AG00593 AND UP)
44 179046 PLATE 1
45 651480
SHCS M12-1.75 X 30 C10.9 ZY DIN912
4
46 202449 SEAL KIT/BOTTOM ROLLER 8
47 161074 SEAL KIT/SUPPORTING ROLLER 2
Ref.
No. Part No. Description Qty.
48 161422 CAP 1
49 203557 PIN 84
50 203556 CHAIN LINK 86
Ref.
No. Part No. Description Qty.

918049/GP0109 18 Printed in U.S.A
3503 - UNDERCARRIAGE, STEEL TRACK (OPTION)
1000127202 - (SN AD00001 - AE02832)
Ref.
No. Part No. Description Qty.
1 179045 BRACKET 1
2 178867 TRACK TENSIONER COMPLETE
See page 25 for individual components 2
3 203913 NON RETURN VALVE 2
4 178067 RING 2
5 203570 BOTTOM ROLLER/STEEL TRACK 8
6 165124 SUPPORTING ROLLER 2
7 205703 DRIVE MOTOR COMPLETE
(SN AE01101 - AE02832)
See page 112 for individual components
2
160723 DRIVE MOTOR COMPLETE
(SN AD00001 - AE01100)
See page 113 for individual components
2
8 165604 SPROCKET 2
9 179048 STEEL CHAIN 300MM 2
10 207053 SWIVEL JOINT
See page 126 for individual components
1
11 206109 PIN 2
12 165600 COVER 2
13 651515 SHCS M8-1.25 X 20 C8.8 ZY DIN912 8
14 163670 LOCKWASHER 11
15 177648 HEX SCREW 3
16 165598 COVER/UNDERCARRIAGE 1
17 162331 COVER/CHAIN TENSIONER 2
18 165119 PLUG 1
19 161412 GREASE ZERK-9MM HEX HEAD 1
20 656006 CS M10-1.5 X 20 C8.8 ZY DIN931 4
21 656090 CS M10-1.5 X 16 C8.8 ZY DIN931 4
22 161669 LOCKWASHER S10 8
23 161640 WASHER/GR A 10.5 8
24 651483
SHCS M12-1.75 X 35 C10.9 ZY DIN912
18
25 161624 LW SPRING B12 DIN7982 18
26 651489
SHCS M12-1.75 X 65 C10.9 ZY DIN912
2
27 179793 NUT 2
28 162022 SCREW 4
29 163641 WASHER 4
30 165945 SCREW 16
31 177389 WASHER 16
32 161662 WASHER/GR A 8.4 ZO 3
33 203436 TENSION WHEEL AND SLIDE 2
34 178871 SPRINGSET 2
35 656148 FHCS M12-1.75 X 40 C10.9 ZY
DIN7991 18
36 161636 WASHER/NORD-LOCK NL 12 22
37 179669 BRACKET 1
38 179670 BRACKET 1
Ref.
No. Part No. Description Qty.
This manual suits for next models
1
Table of contents
