Audio Zone Amplifier 100W
Operation Manual
500217

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 2
SAFETY PRECAUTIONS
To insure the best use from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or may burn.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water. Keep the product away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Using supplies or parts not meeting the product’s specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
Install the device in a place with good ventilation to avoid damage due to
overheating.
Unplug the power cord when left unused for a long period of time.
Do not put any heavy items on the unit or on extension cable.
Do not remove the housing of the device as you may be exposed to dangerous
voltage or other hazards.
Information on disposal of devices: do not burn or mix with general household
waste, please treat this device as normal electrical wastes.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Please read this user manual carefully before using this product.

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 3
Contents
Introduction ...............................................................................................................41.
1.1. Introduction to the 500217.............................................................................4
1.2. Features.........................................................................................................4
1.3. Package Content ...........................................................................................5
Specification..............................................................................................................62.
Panel Description......................................................................................................73.
3.1. Front Panel ....................................................................................................7
3.2. Rear Panel.....................................................................................................8
System Connection...................................................................................................94.
4.1. Safety Precautions.........................................................................................9
4.2. System Diagram ............................................................................................9
4.3. Connection Procedure...................................................................................9
4.4 Audio Output Connection.................................................................................10
4.4.1 Stereo output (default): 2x50Watt@8Ω..................................................10
4.4.2 Mono output: 1x100Watt@4Ω...............................................................10
4.5 Loop (Cascade) Connection............................................................................11
4.6 Application.......................................................................................................11
5. System Control.........................................................................................................12
5.1 Front Panel Button Control..............................................................................12
5.2 IR Control ........................................................................................................13
5.3 RS232 Control.................................................................................................14

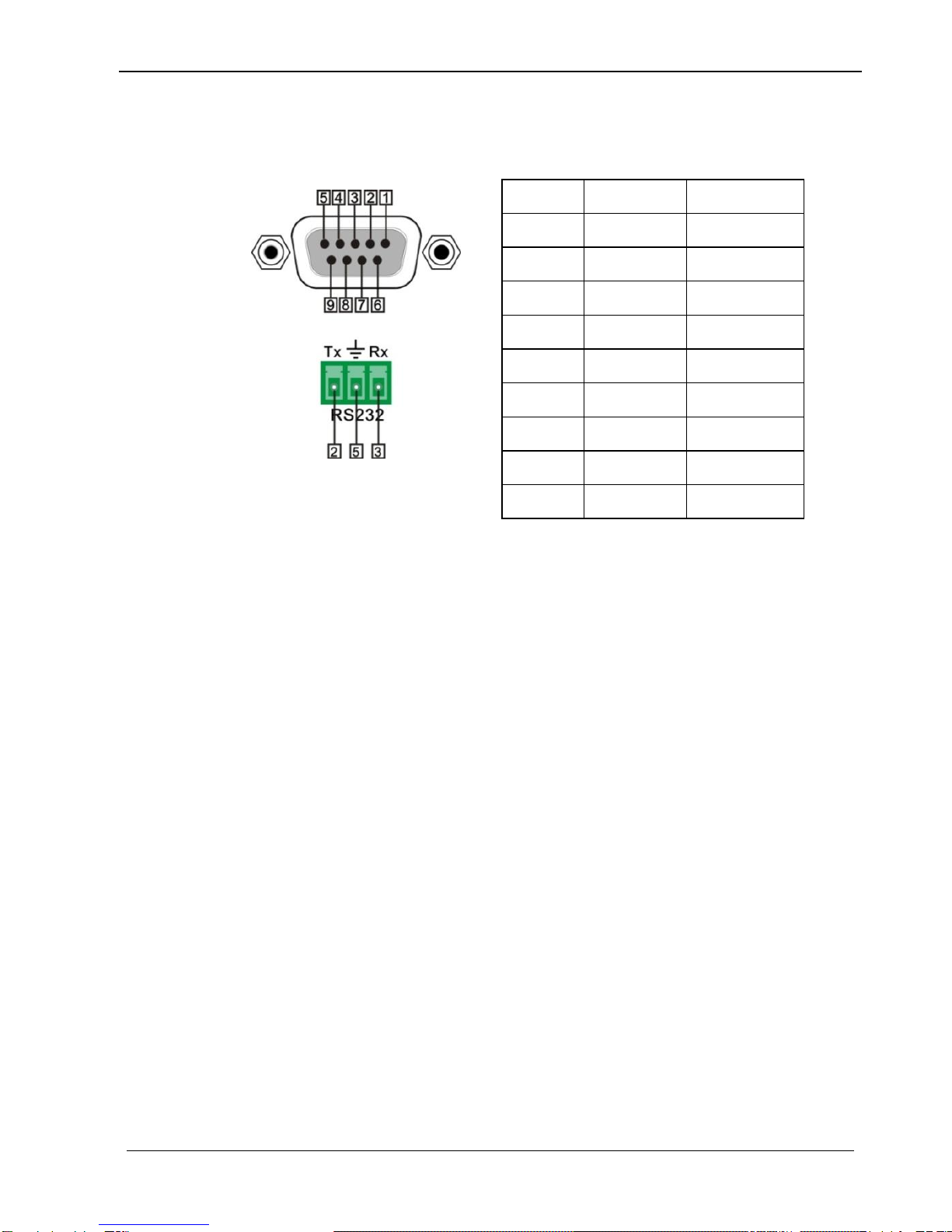

5.3.1 Basic RS232 Settings............................................................................14
5.3.2 RS232 Communication Commands ......................................................15
5.4 Ethernet Control...............................................................................................16
5.4.1 Control Modes.......................................................................................16
5.4.2 Control via TCP/IP communication software .........................................17
5.4.3 Control via WEB based GUI..................................................................18
5.4.4 Port Management..................................................................................20
Panel Drawing.........................................................................................................216.
Troubleshooting & Maintenance..............................................................................227.
Regulatory Compliance ................................................................................................24

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 4
Introduction1.
1.1. Introduction to the 500217
The Audio Zone Amplifier 100W is a compact-size 2x50 Watts digital amplifier (Class-D)
with 3 inputs (1x 2CH analog RCA audio, 1x 2CH analog 3.5mm audio, 1x PCM
digital/optical TosLink audio). It features a switchable stereo (2CH) or mono (bridged)
output, and boasts a complete EQ adjustment and intuitive display.
This device is well suited for applications such as classrooms, small meeting rooms,
lecture halls, bars/pubs, etc.
1.2. Features
3 audio inputs: 1x 2CH analog (RCA), 1x 2CH analog (3.5mm), 1x PCM
digital/optical (TosLink).
Audio inputs switchable by pushbutton, IR remote, RS232 or Web.
Supports 2x50 Watts for 2CH audio @ 8Ω.
Supports 1x100 Watts for mono bridge mode function @ 4Ω. This is also
appropriate to support 70V speaker systems when connected to a MuxLab 70V
transformer such as the 500755-70V.
Device controllable via RS232, IR, TCP/IP.
Supports a web-based GUI via the Ethernet port.
Volume/Bass/Treble are controllable by pushbuttons, IR remote, RS232 or
Web.
Easy adjustments via a volume (level) rotary knob.
Audio Cascade output support.
Intuitive LED indicators for input source, control and volume setting.
Power off memory.
Convection cooling, no fan needed.
Antistatic case design: providing good protection for long-term and stable
performance.

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 5
1.3. Package Content
One (1) Audio Zone Amplifier 100W
One (1) Pluggable 4 Position Terminal Blocks
One (1) RS232 Cable
One (1) 33VDC, 4A Power Adapter
One (1) Remote control
One (1) IR Sensor
One (1) Power Cord
Two (2) Detachable Mounting Ears
Four (4) Screws
Four (4) Plastic Feet
One (1) User Manual
Please verify that the product and the accessories are all included; if not,
please contact your dealer.

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 6
Specification2.
Environment
AnalogAudio
Devices
Audio System, Line Output, Microphone, Speaker
Compatibility
Compatible with MuxLabAnalogAudio products
Transmission
Transparent to the user
Frequency Response
20Hz to 20KHz
CMMR
>75dB @ 20Hz-20KHz
SNR
80dB at maximum output
Input Impedance
>10KΩ
Damping Coefficient
>100
Stereo Channel
Separation
>75dB @ 20HZ to 20KHz
THD + Noise
1% @ 1KHz, 50W
Voltage Gain
32dB
Power Output
1x100 Watts (@ 4Ω) or 2x50 Watts (@ 8Ω)
Connectors
Two (2) RCAInput Jacks for L+R audio input.
Two (2) 3.5mm Jacks; one input & one cascade output.
One (1) 4-pin terminal block (5.08mm) for the speakers.
One (1) Optical TosLink for the DigitalAudio.
One (1) IR Sensor 3.5mm stereo Jack.
One (1) RJ45 Shielded for the Ethernet LAN connection.
One (1) 3-pin terminal block (3.81 mm) for RS232.
One (1) 4-pin DIN Jack for Power.
Power Supply
One (1) 110-240VAC to 33VDC power supply
Temperature
Operating: 0° to 50°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal
Dimensions
5.83” x 1.73” x 6.50” (148 x 44 x 165 mm)
Weight
1.59 lbs (0.72 kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500217Audio Zone Amplifier 100W

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 7
Panel Description3.
3.1. Front Panel

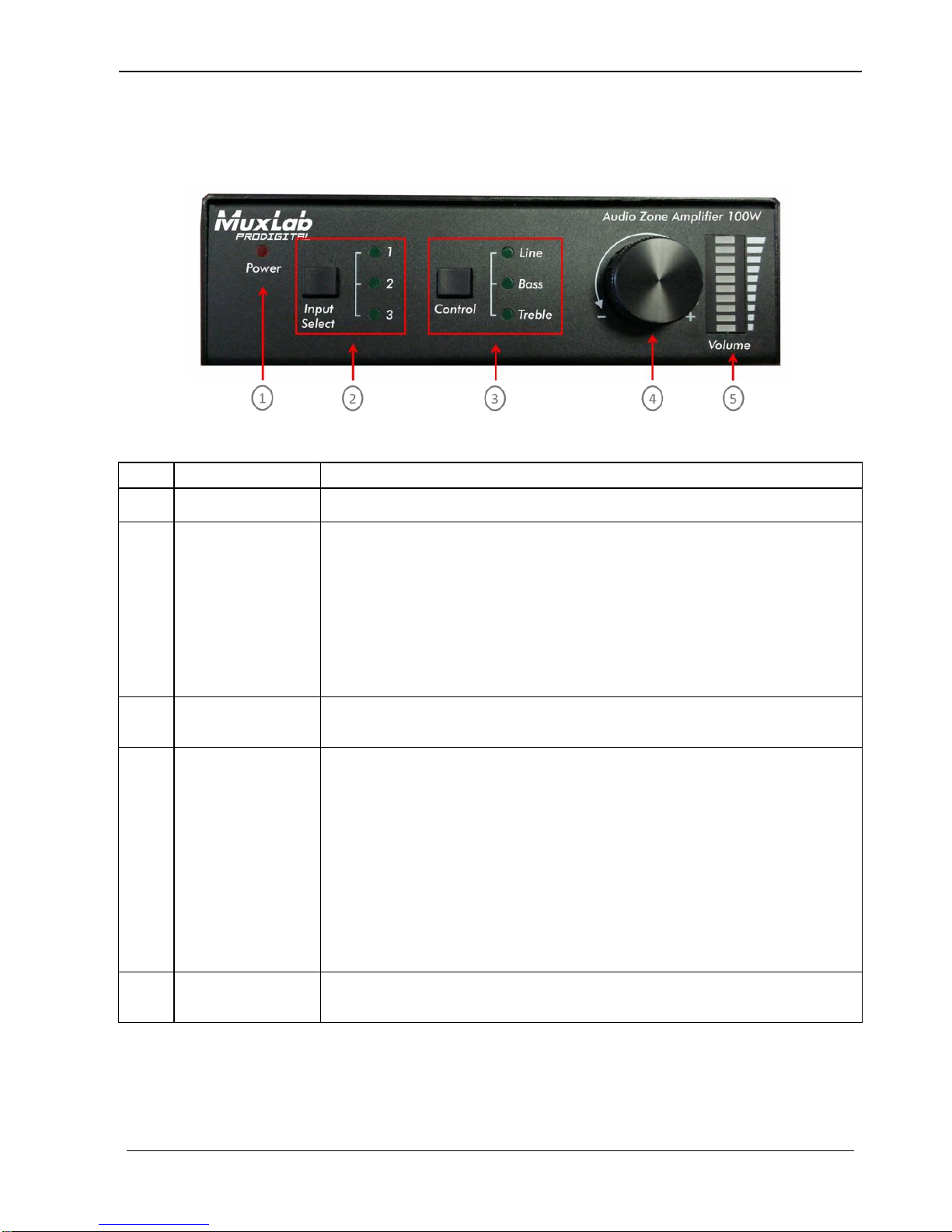

Figure 2- 1 Front Panel of Zone Audio Amplifier
No.
Name
Description
1
Power LED
LED illuminates red when powered on
2
Input Selection
Press to select any one of 3 inputs. Indicators will light
accordingly.
Inputs 1 to 3 correspond to audio sources connected to the 3
audio input ports, namely;
1: 2CH analog (RCA) audio
2: 2CH analog (3.5mm) audio
3: PCM Digital/Optical (TosLink) audio
3
Control
Press to select the audio parameter to be controlled, including
LINE (Volume), BASS (Level), TREBLE (Level)
4
Volume (Level)
Knob
Press to mute/unmute the audio
Note: after pressed the button to mute the audio, you can
press it again to restore the audio at the same volume, or
rotate the knob to set the audio output level to the
respective volume required.
Rotate the knob to adjust volume. The volume bars will
change accordingly.
Rotate clockwise in increase volume (level)
Rotate counter-clockwise to decrease volume (level)
5
Volume (Level)
Bars
Indicates real-time volume setting, 10 bars for max volume. No
volume bars will be illuminated if audio is muted.
Operation Format: “INPUT SEL”+ “CONTROL”+ “Volume Knob”
Example: To adjust bass audio of input 3, select input 3 -> choose bass -> adjust the
volume (level) knob.

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 8
3.2. Rear Panel
Figure 2- 2 Rear Panel of Zone Audio Amplifier
No.
Name
Description
1
CONTROL
Ethernet: Connect to an Ethernet LAN to enable IP control via
a web-based GUI & TCP/IP communication software;
Indicators will blink when connected to a network and
communicating normally.
RS232: Connect to an RS232 controlling device to enable
serial control.
IR Sensor: Connect to an IR Sensor to receive infrared signals.
Channel Switcher: Select STEREO or MONO to enable
2x50W or 1x100W (bridged) operation.
2
INPUTS
There are 3 audio inputs, including 1x 2CH analog (RCA)
audio, 1x 2CH analog (3.5mm) audio and 1x PCM
digital/optical (TosLink) audio
3
OUTPUTS
Cascade: analog audio cascade output port, available only
when input signal selected is 2CH analog audio
Audio Output: includes stereo audio (2x50W@8Ω), or mono
output (1x100W@4Ω)
4
DC 33V
33VDC, 4A power adapter Input Jack
5
GND
Connect for grounding purposes
Note: When connecting or disconnecting speakers, make sure to disconnect the power
from the Audio Zone Amplifier 100W first to avoid electric shock or damage.

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 9
System Connection4.
4.1. Safety Precautions
The system should be installed in a clean environment with typical room temperature
and humidity levels, within the specified operating range (see specifications).
All devices should be connected before turning on the power.

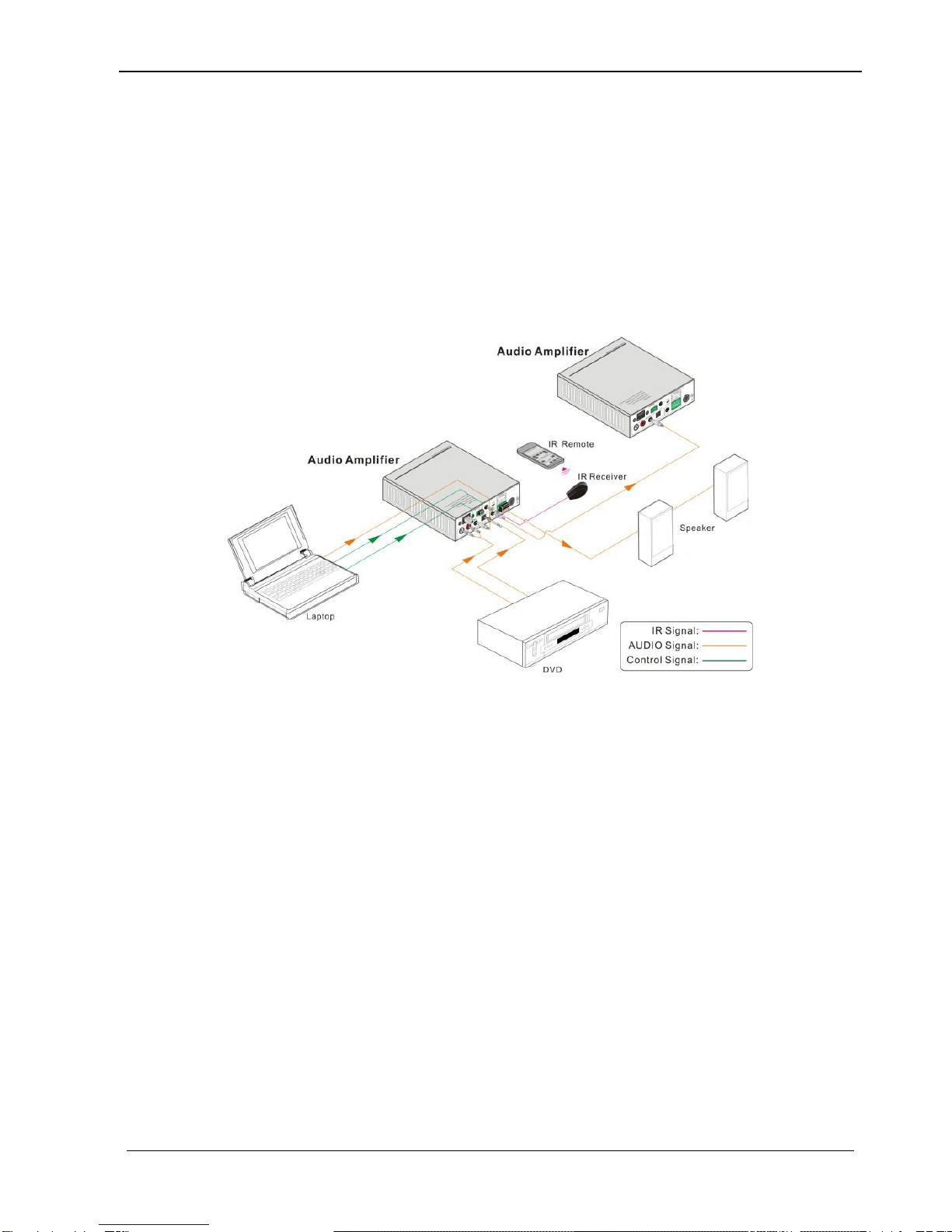

4.2. System Diagram
4.3. Connection Procedure
Step 1 Connect audio sources (such as CD, Blue-ray, DVD, media player, etc.) to
INPUT ports of the device with audio cables;
Step 2 Set the Input Select to the correct source, and connect the audio output device(s)
(such as passive speakers) to the audio output port accordingly. Ensure that the
unit is not powered while connecting or disconnecting speakers.
Step 3 (Optional) Insert an IR receiver (5V, without carrier) to IR Sensor to enable IR
control.
Step 4 (Optional) Connect a control device (e.g. a PC) to RS232 port to enable serial
control.
Step 5 (Optional) Connect a control device (e.g. a PC) to an Ethernet LAN and the
amplifier TCP/IP port to the same LAN to enable IP control.
Step 6 Plug 33VDC power adaptor to the power port of the amplifier.

Audio Zone Amplifier 100W Operation Manual
© MuxLab Inc. 2016 10
4.4 Audio Output Connection
4.4.1 Stereo output (default): 2x50 Watts @ 8Ω
Set the switch to STEREO to enable 2x50 Watts @ 8Ωfor stereo output mode. Connect
the amplifier and speaker normally as shown in the figure below:
Figure 4- 1 Stereo Output Connection
4.4.2 Mono output: 1x100 Watts @ 4Ω
Set the switch to MONO to enable to enable 1x100 Watts @ 4Ωfor mono output mode.
Connect the amplifier and speaker(s) as shown in the figure below:
Figure 4- 2 Mono Output Connection
Note: In mono mode the user can also connect a MuxLab 70V transformer such as the
500755-70V to support 70V daisy-chained speaker systems. This is useful for longer
speaker runs in a distributed speaker environment.
