My Fireplace Blower FK12 User manual

Installation Videos:
MY
FireplaceBlower MyFireplaceBlower.com:
Installation Instructions:
Installer is responsible to check local codes
and read all instructions prior to installation.
Layout designed in U.S.A. © 2014
My Fireplace Blower
Burlington, Wisconsin
1-800-466-4045
Drywall dust or other fragments may be present in your replace’s vent space, clean this area before you install the
blower kit. Any bearing or motor damage resulting from this condition is not covered by the warranty policy.
Instructions for Design Version - FK12 Blower Kit
This Blower Kit is tested and safe when installed in accordance with these installation instructions. It is your re-
sponsibility to read all instructions and consult the Owner’s Installation Manual for your particular model number
for Supplemental Information before starting installation. Blower operates on 115V/60Hz power.
CLICK
High Quality Aftermarket Fireplace Blowers & Fans 1-800-466-4045
Check the contents of the carton.
Make sure nothing was damaged in shipment.
Do NOT install a damaged blower kit!
Blower Kit Parts
Step 1: Turn Off Fireplace and allow it to cool
down. Disconnect from 120V Power. Shut off
the Gas supply. Remove the louver which cov-
ers the lower vent space below the rebox.
Lay cord set out in a straight line, with the
3-Prong Power Plug furthest away from the
replace.
Step 2: Push the green wire disconnect onto the
ground tab on the end of fan. (Figure: 1)
Connect white and black wires of the cord set to either
of the spade terminals attached to the motor. Push
disconnects onto metal tabs. (Figure: 1)
CLICK
CLICK
NOTE: Diagrams and Illustrations NOT to Scale
Page 1 of 4
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK!
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE INSTALLING BLOWER!
When installed, make sure to contain any excess wire of the cord set;
Preventing it from making contact with moving or hot objects.
Description Qty.
Fan
Power Cord
Velcro Strip
Dampening Pad
1
1
1
3
1
Installation Instructions (Downloadable)

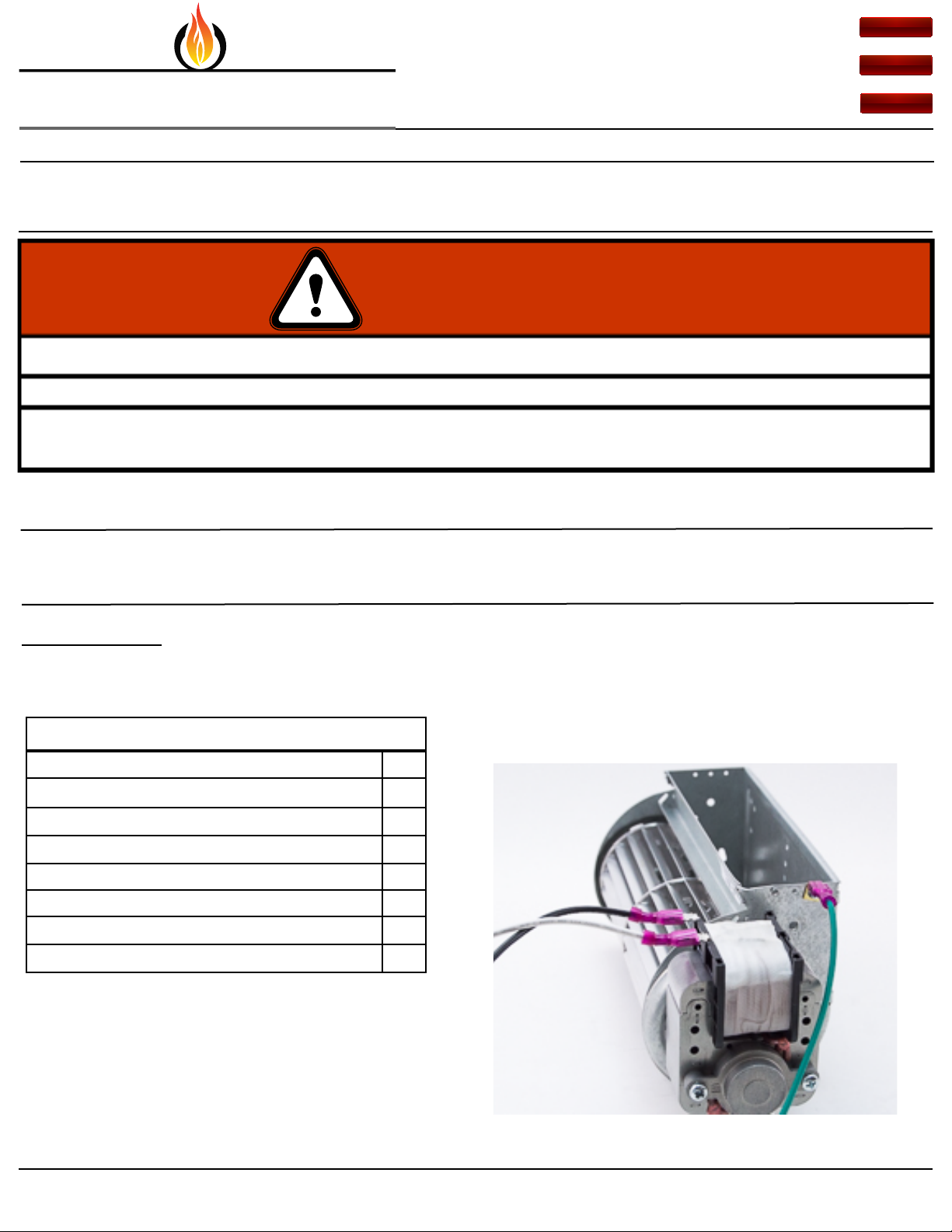

Figure: 1 •Does not matter which metal tab you
connect the black and white wires to.

Figure: 4
Step 3: Under Firebox, wipe off the area
where the Fan will be mounted, this will
allow the velcro to take hold.
(Figures: 3&4)
Visualize a pathway for the blower to
reach the back. Remove the clear backing
of velcro strips. (Figure: 3)
Hold fan assembly so the fan blades face
up and fan motor is furthest away from
replace.
Slide blower assembly through bottom
vent space; as blower reaches the back,
position blower parallel with the back
wall and rotate blower, so the blower’s
rectangle air exit port is facing up.
(Figures: 2, 3 & 4)
CLICK
Dampening Pad
Installer is responsible to check local codes
and read all instructions prior to installation.
Layout designed in U.S.A. © 2014
NOTE: Diagrams and Illustrations NOT to Scale
Page 2 of 4
My Fireplace Blower
Burlington, Wisconsin
1-800-466-4045
MyFireplaceBlower.com:
Junction Box
Bottom of Firebox
Valve
Gas
Line
Blower Placement
Figure: 3
•For Models SC36/42 and others with a lower front vent access grill / louver, go to Step 3.
•For Models BC36/42, TL36/42, UVBC36/42, VL33, NVBC36/42 and UVSRC36/42, go to Step 4
•For Models SC36/42 and others with a lower front vent access grill / louver, go to Step 3.
•For Models BC36/42, TL36/42, UVBC36/42, VL33, NVBC36/42 and UVSRC36/42, go to Step 4.

Figure: 5
Step 4: Refractory Brick and Access Panel Removal. If your replace has glass doors, it is recommended
that doors and the lower track be removed for easier access.
Models BC36/42, TL36/42, UVBC36/42, VL33:
Remove the Refractory Brick by carefully lifting it out of the replace. Next, remove the access panel by
carefully pulling up and out from the back middle edge of the panel until the tabs at each side are free.
Use caution — the panel edges may be sharp. (Figure: 5)
Models NVBC36/42 and UVSRC36/42:
Remove the 2 Refractory Brick panels by carefully lifting them out of the replace. Next, remove the
access panel by pulling it up and out from the side edge of the panel. Use caution — the panel edges
may be sharp. (Figure: 5)
CLICK
Installer is responsible to check local codes
and read all instructions prior to installation.
Layout designed in U.S.A. © 2014
NOTE: Diagrams and Illustrations NOT to Scale
Page 3 of 4
My Fireplace Blower
Burlington, Wisconsin
1-800-466-4045
MyFireplaceBlower.com:
Hearth Refractory Brick
Access Panel to Remove
Figure: 6
•Go to Step 3 to install fan.
BLACK
GREEN
WHITE
Receptacle
Junction
Box
120VAC
Receptacle
Junction
Box
120VAC
AIR
FLOW
Attach GREEN Wire to Ground Tab
•Does not matter which metal tab you
connect the black and white wires to.
Figure: 2

MY
FireplaceBlower
NOTE: Diagrams and Illustrations NOT to Scale
Page 4 of 4
Installations in Canada must conform to the current CAN/CGAB-419.1 and .2 Gas Installation Code and local regula-
tions. When installing the blower fan kit, it must be electrically grounded in accordance with CSA C22.1 Canadian
Electrical Code Part 1 and/or Local Codes.
Installations in the USA must conform to local codes, or in absence of local codes or the National Fuel Gas Code,
ANSI Z223.1-1988. When installing the blower fan kit, it must be grounded in accordance with local codes, or in
absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1987.
My Fireplace Blower LLC produces and sells aftermarket replace blower kits; which require consultation
of an Owner’s Installation Manual from the Manufacturer of a particular replace model number for in-
stallation. During Installation of a replace blower kit or replacement blower, refer to the Owner’s Instal-
lation Manual for your particular replace model to obtain supplemental information. My Fireplace Blower
LLC is not responsible for any damage incurred during installation or resulting from installation of a re-
place blower kit, which was directed and/or conducted from the information within this document.
Installation Videos:
Installation Instructions:
Step 5: Insert the plug into the Junction Box /
power receptacle located on the lower right or left
side of the lower vent space. (Figures : 3&7)
(Caution: Make sure no wires are pinched.)
Figure: 7
CLICK
CLICK
CLICK
•Wiring Diagram for this Blower Kit is illustrated in
Figure: 6.
Finishing Steps:
If appliance is connected to a gas supply, turn it
back on.
If Appliance is connected to 120 Volt Power, turn it
back on.
Prior to reinstalling the access panel and the
refractory brick, it is advisable to operate the wall
switch on and off to assure fan operation.
Reinstall the access panel and refractory brick by
reversing Step 4.
