Myers Power Products CTFRP9003 User manual

Myers Power Products 6/2013
CTFRP Series Manual
CTFRP Series
Power Supplies
Ferroresonant Non-Standby Power Supplies
User Manual

CTFRP Series Manual Page 1 6/2013
Chapter 1 General Information
The Myers CTFRP Series Power Supply provides a stable non-standby power source for broadband
cable operations.
Important Safety Instructions – Save These Instructions
This Safety Guide contains important instructions that should be followed during installation and
maintenance of the Myers equipment and batteries. It is intended for Myers customers who setup,
install, relocate, or maintain Myers equipment.
Changes and modifications to this unit not expressly approved by Myers Power Products could
void the warranty.
Failure to observe these warnings may result in serious injury, death or damage to the
equipment.
ELECTRICAL
WARNINGS
•Do not work alone under hazardous conditions.
•Do not handle any metallic connector before the power has been
disconnected.
•Servicing this equipment may require working with protective covers
removed and utility power connected. Use extreme caution during these
procedures.
•High current through conductive materials could cause severe burns.
•When grounding cannot be verified, disconnect the equipment from the
utility power outlet before installing or connecting to other equipment.
Reconnect the power cord only after all connections are made.
•Check that the power cord(s), plug(s), and sockets are in good condition.
•Replacement of fuses or other parts must be with identical types and ratings.
Substitution of nonidentical parts may cause safety and fire hazards.
BATTERY
WARNINGS Danger of explosion if battery is incorrectly connected or replaced. Replace
batteries with same or equivalent type recommended by the manufacturer.
OVERHEAD
WARNINGS Never stand below anything while it is being hoisted.
Always wear a hard hat.
LIFTING
WARNINGS Transformer modules are heavy. Use proper lifting techniques and equipment to
avoid injury.

Myers Power Products Page 2 6/2013
Unpacking
Inspect the module upon receipt. Notify the carrier if there is damage. The packaging is recyclable;
save it for reuse or dispose of it properly.
The package contents include:
9the CTFRP Power Supply
9this product documentation
Models Supported
CTFRP9003 CTFRP Power Supply In: 120VAC 60Hz, Out: 60/75/87V @ 3Amps
CTFRP9006 CTFRP Power Supply In: 120VAC 60Hz, Out: 60/75/87V @ 6Amps
CTFRP9015 CTFRP Power Supply In: 120VAC 60Hz, Out: 60/75/87V @ 15Amps
CTFRP9018 CTFRP Power Supply In: 120VAC 60Hz, Out: 60/75/87V @ 18Amps
Specifications
Environmental Specifications
OPERATING TEMPERATURE -40º F to 158º F (-40º C to 70º C)
HUMIDITY 5% to 95% noncondensing within enclosure
Physical Specifications
CHARACTERISTIC SPECIFICATION
Height 11.5”
Width 9.5”
Depth 7.5”
Weight – CTFRP9003 35 lbs
Weight – CTFRP9006 41 lbs
Weight – CTFRP9015 50 lbs
Weight – CTFRP9018 60 lbs
Electrical Specifications
CHARACTERISTIC SPECIFICATION
Input 120VAC +/- 15%, 60Hz +/-3Hz
Output Voltage 60/75/87VAC quasi-square wave
Output Current – CTFRP9003 3 Amps, steady-state maximum
Output Current – CTFRP9006 6 Amps, steady-state maximum
Output Current – CTFRP9015 15 Amps, steady-state maximum
Output Current – CTFRP9018 18 Amps, steady-state maximum

CTFRP Series Manual Page 3 6/2013
Chapter 2 Installation and Maintenance
Only trained service personnel should install and maintain the CTFRP.
Prior to powering up the CTFRP, utility line voltage must be routed to the enclosure. Local, state,
federal and/or National Electric Code (NEC) regulations regarding location, permits and electrical
wiring must be adhered to.
Before installing the CTFRP, ensure that the input AC utility circuit breaker is OFF.
Failure to adhere to this warning may result in death, serious injury or equipment damage.
When positioning the CTFRP ensure adequate space for proper airflow. Myers recommends that
there be at least 3 inches of clearance on all sides and above the module.
Failure to adhere to this warning may result in equipment damage.
Do not operate this unit where the temperature and humidity are outside the specified limits. See
Specifications in this manual.
Front View Side View
Coax Bushing
AC Utility
Access
Ground Lug
Status LED

Myers Power Products Page 4 6/2013
Installing the Power Supply
If already present, the AC utility circuit breaker must be OFF prior to battery installation.
1. Remove the screw holding the key to the chassis.
2. Remove the 10-32 Phillips mounting screw that secures the pole/wall bracket to the
housing.
3. Remove the mounting bracket from the housing by pulling down.
4. Set the Power Supply and the key aside.
5. Refer to Specifications in this manual for Power Supply dimensions.
6. Locate the position on the pole where the Power Supply is to be located.
7. Drill two 3/4” holes vertically spaced 6” (15.2 cm) apart.
8. Attach the top of the mounting bracket to the pole using a 5/8” pole bolt and washer. Repeat
this procedure for the bottom of the bracket.
9. Ensure that the power supply enclosure is closed and locked.
10. Holding the Power Supply above the bracket, slide the unit down the bracket. The lip of the
bracket must slide under the lip at the top of the Power Supply cabinet.
11. Replace the 10-32 Philips screw (removed in step 2 above).
Wiring
1. Unlock the CTFRP enclosure. Lift up the front cover from the bottom and flip open the top.
2. With the top flipped open, place the cover back into place and remove one of the two screws
acting as the cover hinge. The cover can now be removed.
3. Check the external AC breaker/feed to ensure that it is OFF.
4. Install a pin type connector (not furnished) to the hardline coax bushing located on the
bottom of the power supply.
5. Attach the yellow wire with the Euroblock clamp to the stinger of the pin connector.
Tighten the set-screw.

CTFRP Series Manual Page 5 6/2013
6. At the other end of that yellow wire, select the desired output voltage by moving the yellow
wire end to one of the three voltages on the terminal strip 60VAC, 75VAC or 87VAC.
Tighten all set-screws on the output voltage terminal block.

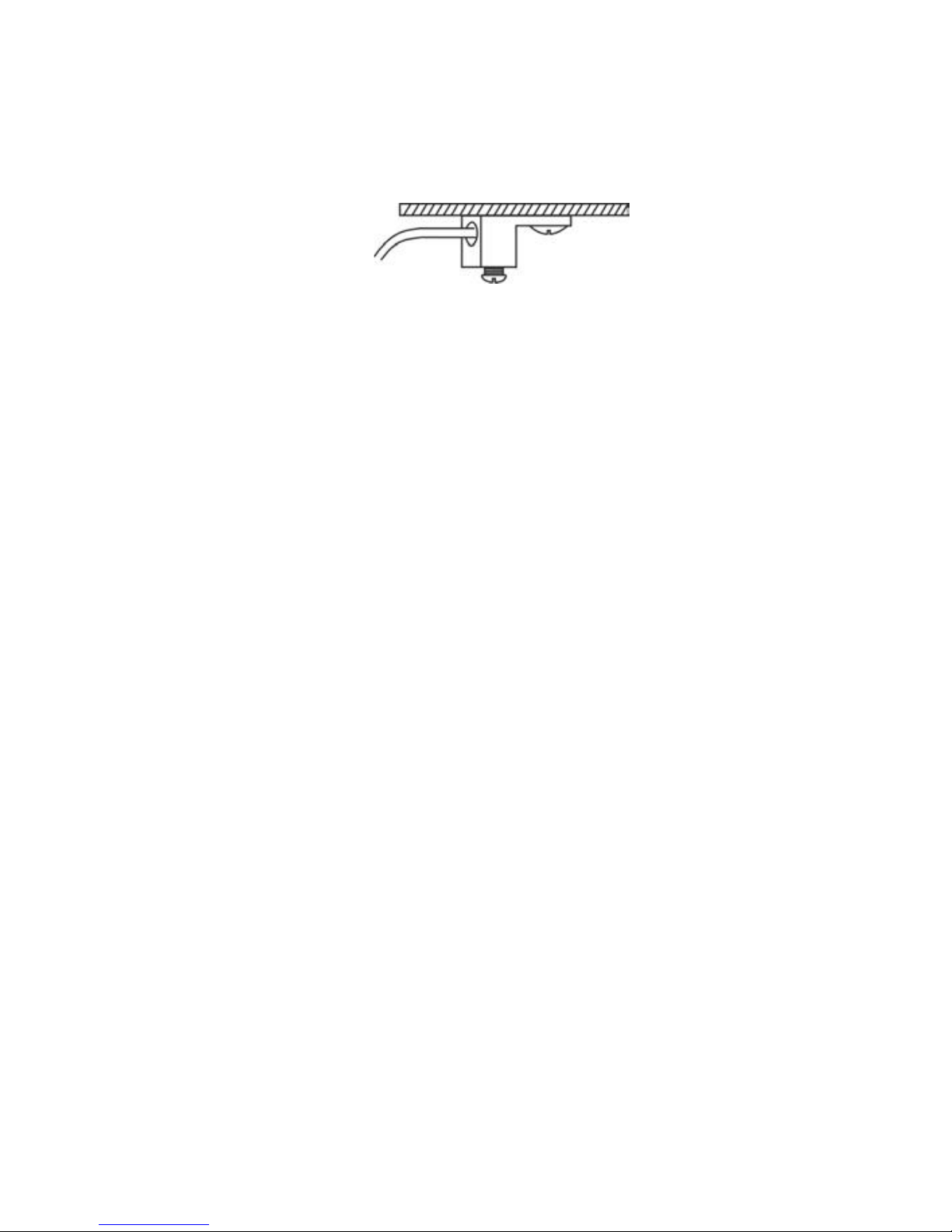

7. Secure a #6 copper ground wire into the ground lug located on the bottom of the
cabinet.Route and attach the ground wire according to local electrical codes.
8. Install an approved 20 amp high magnetic circuit breaker on the input power side of the
power supply.
9. Install conduit into the AC utility opening on the bottom and attach line power in
accordance with local electrical codes. The barrier strip is wired with the hot leg at the top.
The bottom connector is chassis ground.
Initial Start-up
1. Turn the utility breaker to the ON position.
2. Immediately check to see if the Status LED located at the bottom of the unit is illuminated.
If the LED is not lit, turn off the utility breaker and troubleshoot the problem.
3. With the Status LED illuminated, check for the correct voltage at the stinger lug by using a
true RMS voltmeter. The unit is now operational.
4. With the top flipped up, replace the cover and cover screw.
5. Fully open the cover and drop down the top. The top of the cover will hook to the top when
the cover is closed.
6. Close and lock the cover.
To shut down the Power Supply
Move the utility circuit breaker to the OFF position. The Status LED will go out.

Myers Power Products Page 6 6/2013
Chapter 3 Service, Contact and Warranty Information
Service
Myers Power Products makes every effort to ensure parts and equipment arrives in working
condition. Occasionally, it may be necessary to return parts or equipment that is not in working
condition.
If the unit requires service do not return it to the dealer. Follow these steps:
1. Contact Myers Customer Service by telephone at [phone] Monday - Friday 8AM to 5PM
U.S. Eastern time.
Note the product model number, the serial number, and the date purchased. If you call
Myers Customer Service, a technician may ask you to describe the problem and try to solve
it over the phone. If this is not possible the technician may issue a Returned Material
Authorization Number (RMA#).
If the product is under warranty, repairs are free. If not, there is a repair charge.
Procedures for servicing or returning products may vary internationally. Contact Myers
Power Products for country specific instructions.
2. Pack the product well, preferably in its original packaging.
Pack the unit properly to avoid damage in transit. Never use Styrofoam beads for packaging
as the static electricity that is generated may damage electronics. Damage sustained in
transit is not covered under warranty.
3. Mark the RMA# on the outside of the package.
4. Return the unit by insured, prepaid carrier to the address given to you by Customer Service.
Be sure to deliver spent batteries to a recycling facility or ship to the
manufacturer in the replacement battery packing material.
Myers Power Products contact information:
For Customer Service… Mailing/Shipping Address…
Telephone: [phone]
Monday – Friday
8AM to 5PM US Eastern
Myers Power Products, Inc.
44 S Commerce Way.
Bethlehem, PA 18017

CTFRP Series Manual Page 7 6/2013
Limited Warranty
Myers Power Products, Inc. (Myers) warrants this product to be free from defects in materials and workmanship for a period
of five years from the date of purchase. Its obligation under this warranty is limited to repairing or replacing, at its own sole
option, any such defective products. To obtain service under warranty you must obtain a Returned Material Authorization
(RMA) number from customer support. Products must be returned with transportation charges prepaid and should be
accompanied by a brief description of the problem encountered and proof of date of purchase. This warranty does not apply to
equipment that has been damaged by accident, negligence, or misapplication or has been altered or modified in any way. This
warranty applies only to the original purchaser.
