MYERS MSW-2B-220V100W ZB User manual

Smart Light Switch
Myers MSW-2B-220V100W ZB
User manual
PREMIUM SMART HOME SYSTEMS
by PARTIZAN
WWW.PARTIZAN.GLOBAL
2022

2
PREMIUM SMART HOME SYSTEMS by PARTIZAN
1. How to start ................................................................................................................................................ 3
2. Main elements of the device ....................................................................................................................... 5
3. Connecting device to the power grid ........................................................................................................... 6
4. Adding device to Partizan mobile application .............................................................................................. 8
4.1 Download and install Partizan mobile application ....................................................................................... 8
4.2 Starting the device via ZigBee Hub ............................................................................................................... 8
5. Control Screen ........................................................................................................................................... 10
6. Settings Menu ........................................................................................................................................... 11
6.1 Connection Settings ................................................................................................................................... 11
6.2 Switch names ............................................................................................................................................. 11

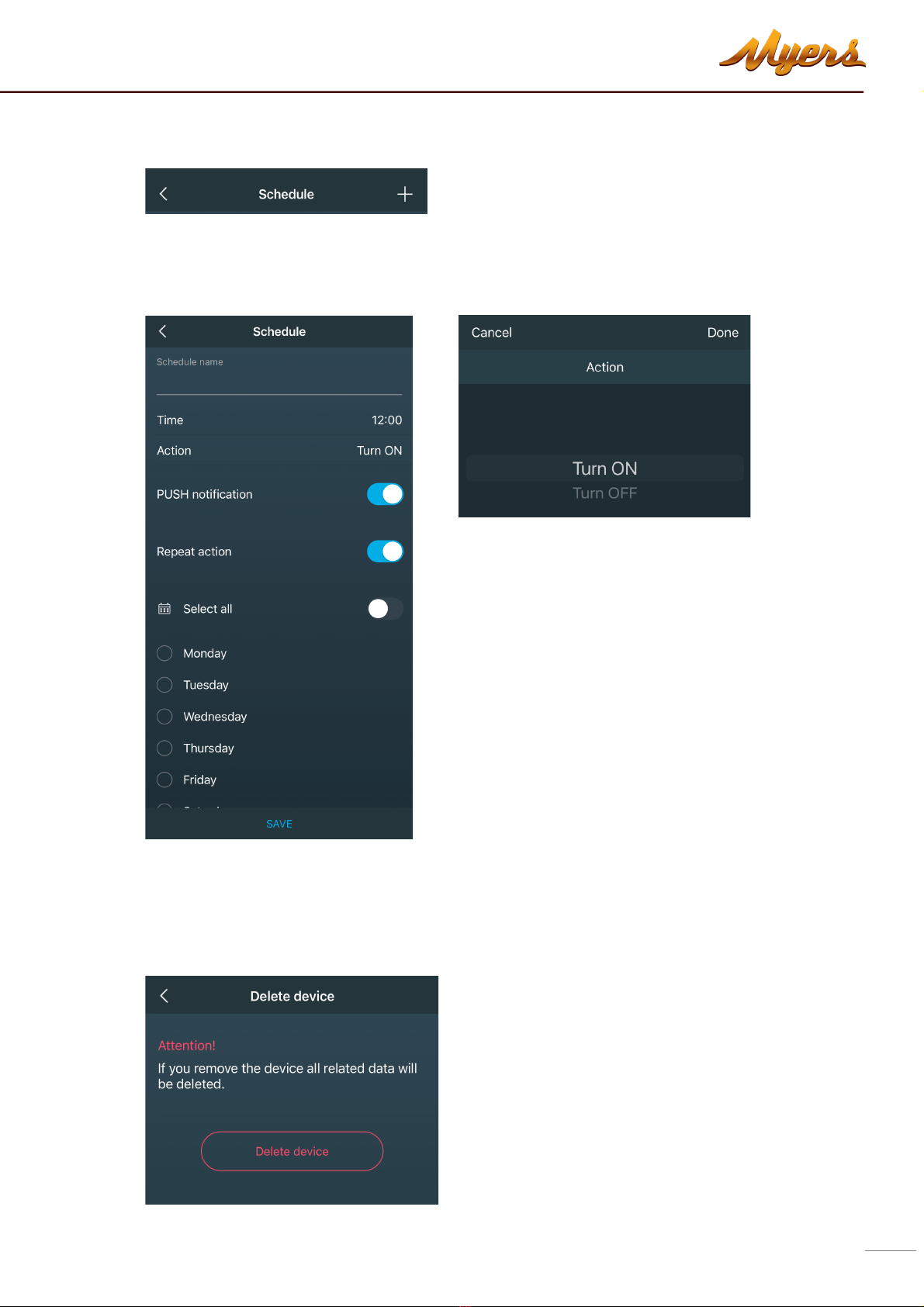

6.3 Schedule ……………………………………………………………………………………………………………………………………………… 12
6.4 Delete device .............................................................................................................................................. 12

3
PREMIUM SMART HOME SYSTEMS by PARTIZAN
1. How to start
This device supports Partizan Cloud Storage service and Partizan mobile application for iOS and Android.
Partizan Cloud Storage benefits:
Your data cannot be stolen or damaged.
No one can access your devices, live and archived video without your permission.
Access to your account and devices from anywhere in the world. Even mobile Internet is enough.
Partizan app won "Best Mobile Video Surveillance App 2019" international award.
To take full advantage of the device, install Partizan mobile application for iOS or Android:
Partizan mobile application for iOS:
https://apps.apple.com/app/partizan/id1473001227
Partizan mobile application for Android:
https://play.google.com/store/apps/details?id=com.partizan.pro

4
PREMIUM SMART HOME SYSTEMS by PARTIZAN
To work with this device you need to sign in to your cloud account.
Open the app, use an existing account or create a new one:
After signing into the cloud account you can go directly to device setting.
If you have any questions,
please contact our technical support:
E-mail: [email protected]
Skype: partizan-support
Chat: [phone] (Viber, Telegram, WhatsApp)
Technical support working time:
https://partizan.global/support/
technical-support
Partizan software:
https://apps.partizan.global/

5
PREMIUM SMART HOME SYSTEMS by PARTIZAN
L N
N
2S2
S1
LL
L
1
2. Main elements of the device
WARNING! You will need a ZigBee Hub to connect and configure this device. Make
sure it is available and connected to the Partizan mobile app.
There are six contacts in the lower part of the device:
• Contacts L1 and L2 are intended for connecting light devices
• Contacts S1 and S2 are intended for connecting switches
• L and N contacts are intended for power supply connection

6
PREMIUM SMART HOME SYSTEMS by PARTIZAN
3. Connecting device to the power grid
The device is connected to the power grid using contacts L and N according to the following schemes:
a) With switches:
Light
Switch
N
L
L N
N
2S2
S1
LL
L
1
Light
Switch

7
PREMIUM SMART HOME SYSTEMS by PARTIZAN
b) Without switches
ATTENTION! Danger of electric shock! The connection must be performed by qualified specialists!
Before installation, it is necessary to de-energize the electrical network (turn off the switch/circuit
breaker/fuse)
Light
N
L
L N
N
2S2
S1
LL
L
1
Light

8
PREMIUM SMART HOME SYSTEMS by PARTIZAN
4. Adding device to Partizan mobile application
4.1 Download and install Partizan mobile application
4.2 Starting the device via ZigBee Hub
Launch Partizan mobile application. Click on ZigBee Hub in the list of added devices.
Make sure the device is connected correctly and turn on the power.
Wait 10 seconds for the device to boot.
Click the “+” button in the upper right corner of the screen for iOS or in the lower right corner of the
screen for Android.
Before starting work, it is necessary to press the Reset button or press the connected switch button 10
times with an interval of 0.5 seconds to reset device.
If the reset is done correctly, the device will beep and its indicator will flash blue.
Partizan mobile application for iOS:
https://apps.apple.com/app/partizan/id1473001227
Partizan mobile application for Android:
https://play.google.com/store/apps/details?id=com.partizan.pro

9
PREMIUM SMART HOME SYSTEMS by PARTIZAN
Do not turn off the device and wait until it is connected and added to the device list of your
ZigBee Hub!

10
PREMIUM SMART HOME SYSTEMS by PARTIZAN
5. Control Screen
On this screen you can control the device.
Control buttons
Control each dimmer separately
Сontrol of both dimmers (adjusts both light sources to the same brightness by
moving the scale on the touch screen)
