Myrope M508 User manual

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

GPS Tracking Device

Model NO.: M508

User Manual

Version 1.5

Notes:...................................................................................................................................................1

1. Product Introduction.................................................................................................................... 2

2. Characteristics...............................................................................................................................2

3. Specifications................................................................................................................................. 3

3.1、Hardware parameter........................................................................................................... 3

3.2、Others................................................................................................................................. 4

4. Connector Description.................................................................................................................. 4

4.1 Power interface......................................................................................................................5

4.2 Expanding Interface 1........................................................................................................... 6

4.3 Expanding interface 2........................................................................................................... 7

4.4 Expanding Interface 3(Handset)........................................................................................... 7

4.5. Expanding Interface 4(Serial camera)................................................................................. 8

4.6. Expanding Interface 5 (LED AD Screen)............................................................................ 8

5. Web based tracking online activation...................................................................................... 9

6. Standard Accessories.................................................................................................................. 12

7. Optional accessories................................................................................................................. 12

7.1 Temperature Sensor.............................................................................................................12

7.2 Relay....................................................................................................................................13

7.3 Serial Camera...................................................................................................................... 13

7.4 Handset................................................................................................................................13

7.5 Scheduling Screen...............................................................................................................14

7.6 RFID device........................................................................................................................ 14

7.7 Fuel Sensor..........................................................................................................................14

7.8 LED AD Screen...................................................................................................................15

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

Notes:

Please mount the device steadily on the flat place before using;

Please make sure the voltage value is right before connecting with battery, and placing the

wires to where shouldn’t be trodden;

Please power off when plugging or taking out of any module or connector;

Please keep the device dry and don’t let any liquid fall into the device in case any damage

caused in the device or circuit;

If any problem caused as follows, please turn to professional technician:

When power wire, keyboard, or socket are damaged;

When liquid infiltrating into the device;

When the device work unusually or cannot resume to normal even operated according to the

instruction;

When the device cannot work as usual after falling, throwing or breaking;

When there is obvious damage in the device.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

1. Product Introduction

GPS Tracking device mainly consists of two parts such as GPS module and GSM module.

GPS module is for getting location data from satellite, and GSM module is for transferring data to

server so that people can check the information via PC or mobile phone. Our GPS Tracking device

M508, with the best quality, stable performance and versatile functions，can be applied to various

kind of fleet management like construction trucks, rental cars, logistics vehicles and public

transportation, anti-theft system and security purpose.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

2. Characteristics

1) Small size, easy to install;

2) Accurate GPS positioning, dynamic positioning deviation is less than 5 m;

3) GPRS and SMS tracking mode, adopt UDP / TCP communication protocol in GPRS mode;

4) Get current location immediately, and support real-time tracking (GPS data uploading at

interval);

5) Two way voice communication via handset/dispatching screen;

6) Two way SMS communication via Mobile and PC software;

7) Voice monitoring;

8) Protect the device from high level voltage;

9) Resend data from signal dead zone;

10) Remotely disable engine;

11) 2 digital inputs for detecting the status of engine, door, air condition, etc.;

12) Remotely control door open/close.

13) SOS alarm, power-off alarm, over-speed alarm, parking alarm, Geo-fence alarm, fatigue

driving alarm

14) Fuel changing alarm;

15) Temperature changing alarm;

16) Mileage statistics;

17) Remote update firmware;

18) Connect with oil collector/uncuttable fuel sensor/cuttable fuel sensor/ultrasonic fuel sensor

to detect fuel consumption remotely;

19) Connect with temperature sensor to detect the temperature;

20) Three serial peripherals to connect with accessories:camera, RFID device and ultrasonic

sensor.

3. Specifications

3.1、Hardware parameter

working voltage

8VDC～36VDC

Working current

50mA~160mA

GSM module

Four Band: GSM 850/900/1800/1900Mhz

Quectel M50

Communication

protocol

UDP/TCP(can customize)

GPS module

Ublox chipset

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

GPS sensitivity

-159dBm

GPS frequency

L1, 1575.42 MHz

C/A coding

1.023 MHz chip rate

Channels

20 channels for tracking

Position accuracy

10 meter, 2D RMS

Speed accuracy

0.1 meter/second

Time accuracy

GPS synchronization

Default data

WGS-84

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

Recover

Average 0.1 second

Hot start

Average 1 second

Warm start

Average 38 second

Cold start

Average 42 second

Height limit

18,000 meter (60,000 feet) max

Speed limit

515 kilometer/second (1000 knots)max

Acceleration limit

Less than 4g

Expansion peripheral

Peripherals can be accessed by an extension (such as: Handle /

scheduling screen / camera etc.)

3.2、Others

Work temperature

-20°～70° C

Storage temperature

-30°～85° C

Humidity

5% ～95% non-condensing

Terminal size

10.1×6×2.4 cm

Inside battery

Continuing working not less than 4 hours

LED light

Red: power status; yellow: module status

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

4. Connector Description

4.1 Power interface

Description

color

function explanation/connection method

red

Power positive input, the working voltage 9VDC ~ 36VDC, connect the

positive of car battery;

black

Power negative input, connect with the negative of vehicle battery;

yellow

Check ignition status，connect to car ACC cable ;

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

4.2 Expanding Interface 1

Description

color

function explanation/connection method

red

SOS alarm input, low-level triggered alarm, directly connect with the wire

of SOS button

black

Relay negative input, connect with the white wire in relay

yellow

Relay positive input, connect with the yellow wire in relay

blue

HV( high-level signal detection,) input positive voltage to detect, which

should be 5DC~input power supply, connecting with effective high-level

signal wire.

purple

GND of SOS alarm wire

brown

SOS alarm indicator signal, drive LED, when alarm is triggered, the LED

will be on.

orange

Central lock cable for control door close

white

LV( low-level signal detection, it is described as A/C on/off signal

detection).

Redish

black

5VDC power (max output current: 220mA)

green

Positive pole for oil collecting signal, connecting with the added sensor of

fuel volume or original sensor of vehicle

grey

Oil collecting control signal wire (when connecting with oil collector),

please note: this wire are unable to connect with ground.

black

AD signal detection, detect the temperature.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

4.3 Expanding interface 2

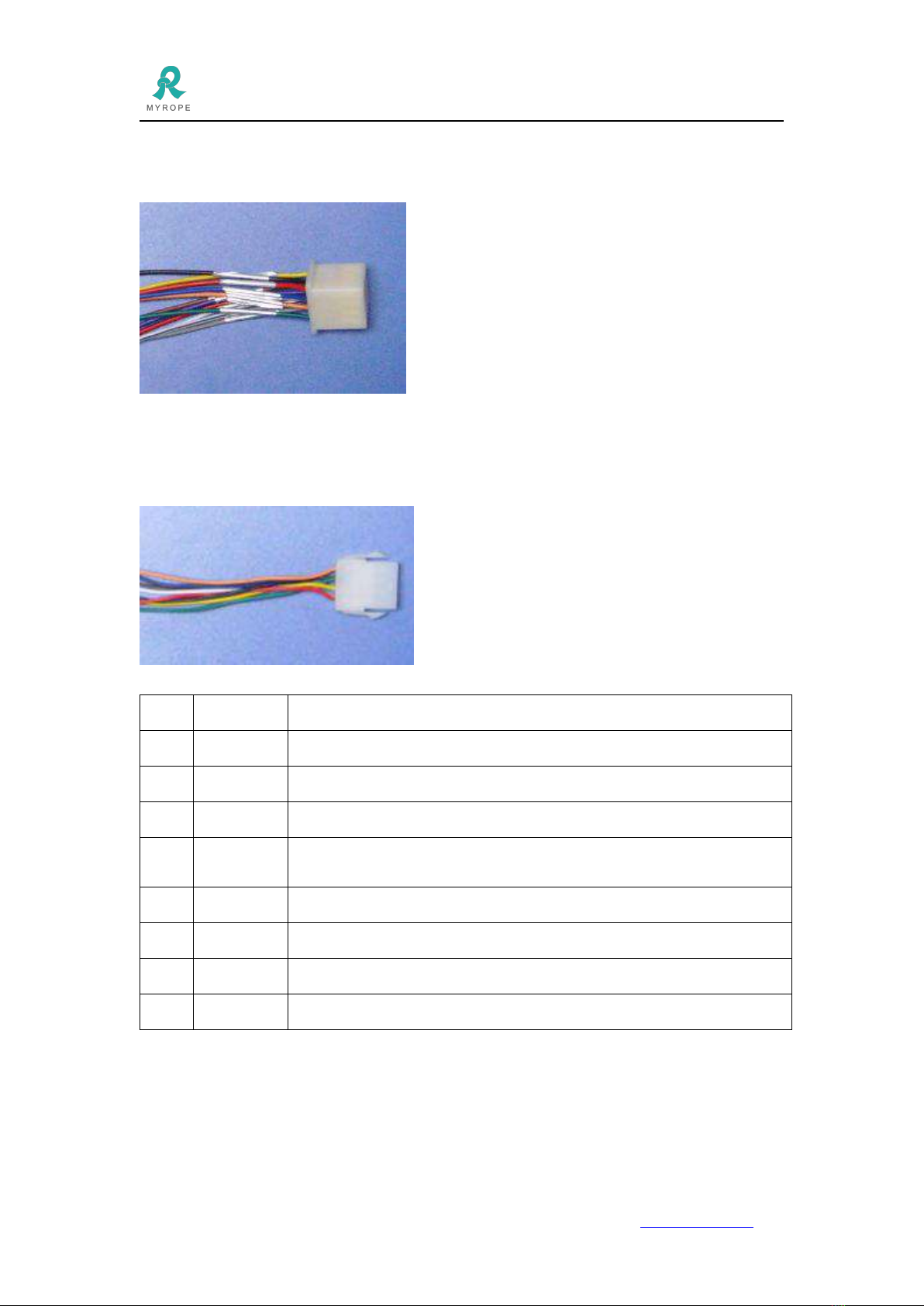

4.4 Expanding Interface 3(Handset)

Description

color

function explanation/connection method

red

Power positive output, 5VDC

yellow

RXD, serial output, RS-232 level, the baud rate 19200bps;

green

TXD, serial output, RS-232 level, the baud rate 19200bps;

orange

Detectaphone positive input, MIC ＋(with Orange line lead with the

monitor DC)

white

Detectaphone negative input, MIC－

blue

Headphone positive output, SP＋

brown

Headphone negative output, SP－

black

Power negative output

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

4.5. Expanding Interface 4(Serial camera)

Description

color

function explanation/connection method

red

+5VDC power

black

GND

yellow

RXD , terminal serial port for data-reading, the baud rate 9600bps;

green

TXD , terminal serial port for data-typing, the baud rate 9600bps;

4.6. Expanding Interface 5 (LED AD Screen)

Description

wire

color

function explanation/connection method

green

TXD , terminal serial port for data-typing, the baud rate 9600bps;

yellow

RXD , terminal serial port for data-reading, the baud rate 9600bps;

black

GND

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

5. Web based tracking online activation

5.1 Open website www.overseetracking.com and login with the user & password that created by

Rope

5.2 Click Information Management

5.3 Click Vehicle Tracker List and you will see all your vehicles are listed there. Please note, to

add more devices, please contact your sales.

Please check the Tracker Status, if it is Unactivated, please click Activate. If it is Activated,

please click Edit.

5.4 Click Activate, please fill in the blanks marked with red *. You also can fill in other blanks to

complete the device information.

5.5 Click Next Step and fill in the requested blanks.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

5.6 Click Next Step to fill in sim card APN information. Please select the telecom name, if the

telecom is not listed there, please click Enter Telecom Name to fill in the sim card telecom name.

5.7 Click Next Step, OVERSEE gives the configuration SMS to you. Please copy it and send it to

the gps device, after you receive reply from the gps device, it should be online.

5.8 Click Finish--Tracking Map to see if the gps device is online or not.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

6. Standard Accessories

Power Line, 9PIN Expanding Line 1, 9PIN Expanding Line 2, SOS Alarm Line, GPS Antenna,

GPRS Antenna, Velcro, Warranty Card, Return Receipt of Warranty Card, Qualification.

7. Optional accessories

7.1 Temperature Sensor

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

7.2 Relay

7.3 Serial Camera

7.3 RFID device

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802

7.4 Fuel Sensor

Table of contents

Other MYROPE GPS manuals

MYROPE

MYROPE R14 User manual

MYROPE

MYROPE M588G User manual

MYROPE

MYROPE M528F User manual

MYROPE

MYROPE M508N User manual

MYROPE

MYROPE M588GS User manual
