MYROPE M588GS User manual

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
1

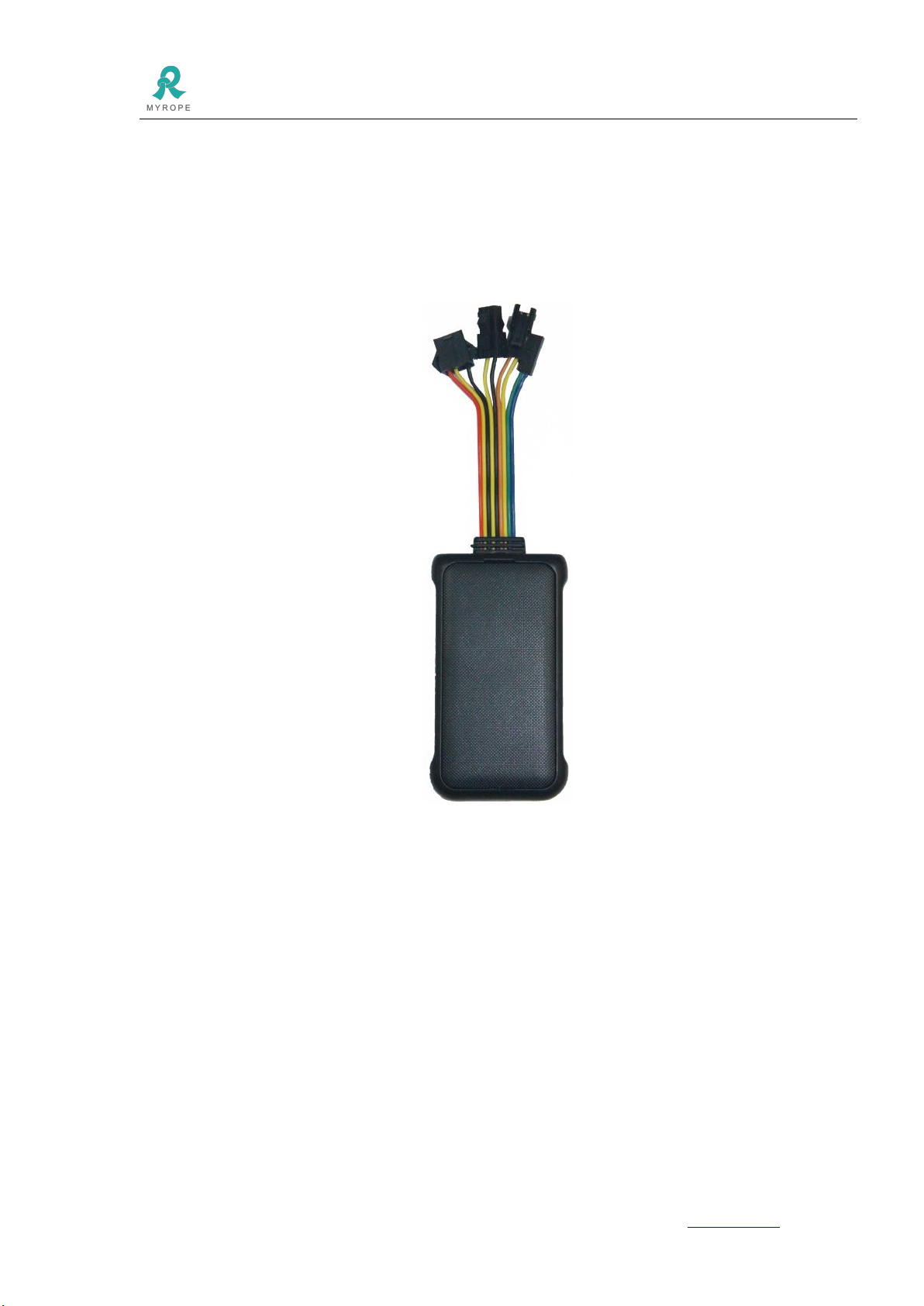

GPS Tracking Device
Model NO.: M588GS
User Manual
Version ：Rope-E19111801
Notes:.....................................................................................................................................................................1
1. Product Introduction.......................................................................................................................................2
2. Characteristics................................................................................................................................................. 3
2.1 Red LED (power/working status)........................................................................................................... 3
2.2 Blue LED(GPS status indicator)............................................................................................................. 3
2.3 Green LED（GSM status indicator）.................................................................................................... 3
2.4.Specifications.......................................................................................................................................... 4
2.5 Device outlet specification...................................................................................................................... 4
2.6 Device wiring diagram............................................................................................................................ 5
3. Method of installation..................................................................................................................................... 6
3.1. Preparation before installation............................................................................................................... 6
3.2 Installation............................................................................................................................................... 6
4. Web based tracking online activation............................................................................................................6
5. SMS Configuration..........................................................................................................................................7
6. Trouble shooting.............................................................................................................................................. 9

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
2
Notes:
Please mount the device steadily on the flat place before using;
Please make sure the voltage value is right before connecting with battery, and placing the wires to where
shouldn’t be trodden;
Please power off when plugging or taking out of any module or connector;
Please keep the device dry and don’t let any liquid fall into the device in case any damage caused in the
device or circuit;

If any problem caused as follows, please turn to professional technician:

When power wire, keyboard, or socket are damaged;
When liquid infiltrating into the device;
When the device work unusually or cannot resume to normal even operated according to the instruction;
When the device cannot work as usual after falling, throwing or breaking;
When there is obvious damage in the device.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
3
1. Product Introduction
GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for
getting location data from satellite, and GSM module is for transferring data to server so that people can
check the information via PC or mobile phone. Our GPS Tracking device, with the best quality, stable
performance and versatile functions, can be applied to various kind of fleet management like construction
trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.
2. Characteristics
1) Built-in antenna;
2) Track by SMS or 3G (support 3G WCDMA sim card);
3) Real time tracking at interval;
4) Cut off car engine remotely (Engine immobilization);
5) Resend data from signal dead zone;
6) SOS alarm;
7) Low power alarm;
8) Overspeed alarm;
9) Geo-fence alarm;
10) Parking alarm;
11) Idling alarm;
12) Tired driving alarm;
13) History playback;

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
4
14) Mileage statistics;
15) Reports statistics;
16) Remotely update firmware.
12)SMS alarm notification.
2.1 Specifications
Items
Parameters
Main specification
Size
83mm × 46mm × 16mm
Weight
210g
Built-in battery
150MA/3.7V
Working Voltage
9—50V
Operating Temperature
-20℃—60℃
Storage temperature
-20℃—80℃
Sensor
Precision shock sensor
Air interface protocol
Transfer Protocol
TCP/UDP optional
Power detection
Upload alarm information when the main power is
disconnected
Data transmission
Update GPS data in real time, support
customization
Electric fence
TBD
Oil quantity monitoring
Real-time monitoring of changes in oil volume
GPS data
Real-time location update
Vibration alarm
When the vehicle is stationary and vibration ,it will
be uploaded.
GSM specification
GSM Frequency
GSM 850/900/1800/1900
UMTS 850/900/1900/2100
Data Transmission
HSPDA/WCDMA/EDGE/GPRS/CSD
Root mean square error
S degree
Maximum output power
GSM 850/900:33.0±2dBm
UMTS1900/2100:24.0±2dBm
Dynamic output range
-15~-108d
Receiving sensitivity
-107dBm
Maximum frequency error
±0.1ppm
GPS specification
Sensitivity
Cold start: -145dBm
Hot start: -156dBm
Warm start: -145dBm
Navigation: -160dBm
Track: -162dBm

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
5
Positioning Accuracy
＜5m
First positioning time
Cold start: average 32s
Connector
Communication antenna
Internal
Locate antenna
Internal
LED indicator
Power, indicating status
2.2 Standard packing list
NO.
name
quantity
unit
1
M588F Host (including built-in battery)
1
pc
2
Instruction manual,Warranty card, certificate
1
pc
3
SOS alarm button
1
pc
4
Packing box
1
pc
5
3pin power cable
1
pc
6
Velcro
1
pc
2.3 List of cable definitions
2.4 Definition of the line of the oil quantity detection connector
NO
Color
Meaning
1
Blue
Oil signal

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
6
2
Green
Oil signal input
2.5 Definition of the line of the Relay connector
NO
Color
Meaning
1
Yellow
Relay positive control terminal
2
Black
Relay negative control terminal

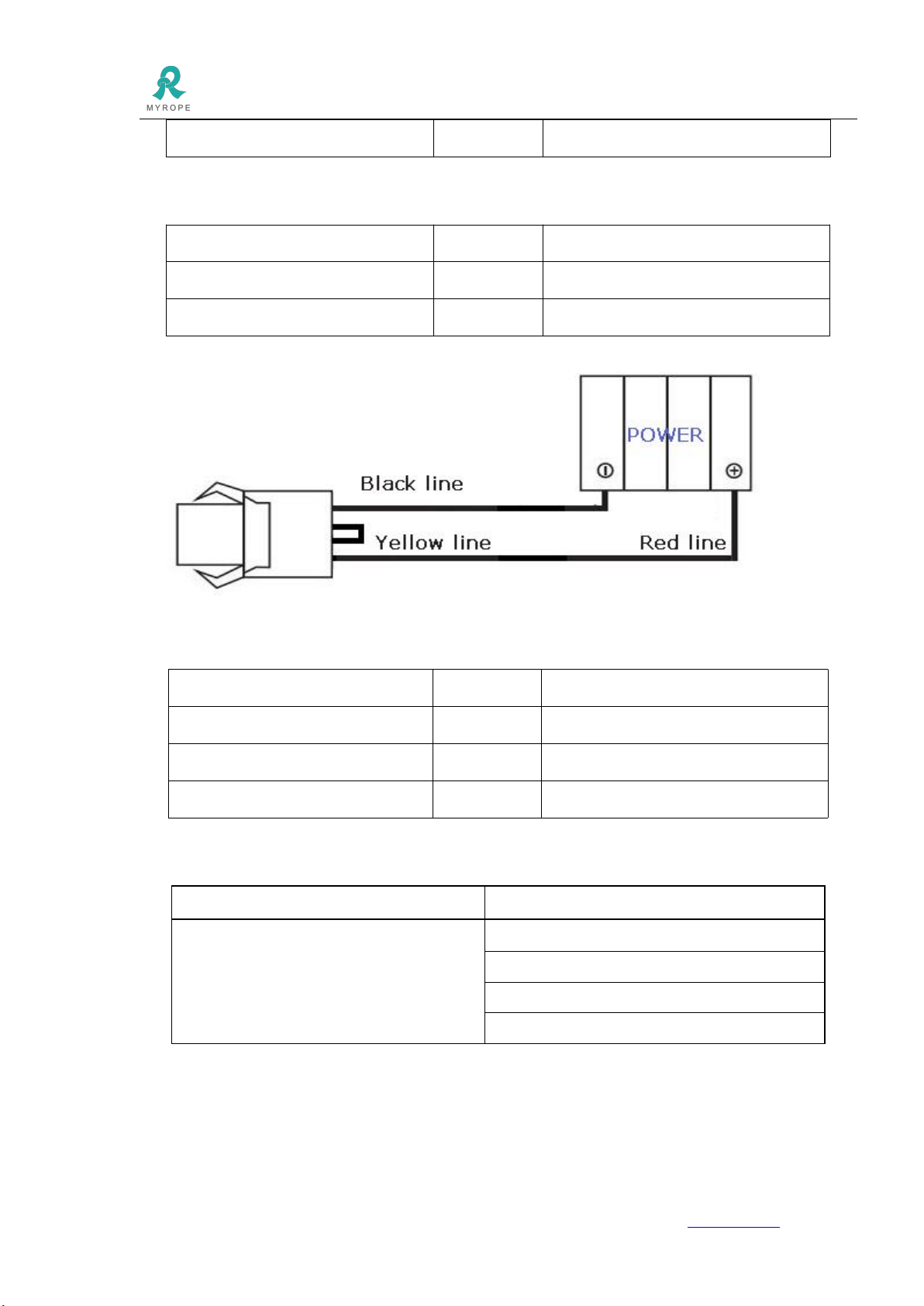

2.6 Definition of the line of the power connector
NO
Color
Meaning
1
Red
Positive power supply(9V~48V)
2
Black
Negative power supply
3
Yellow
ACC
2.7 Definition of the line of the LED connector
LED type
LED status
Red(Power Indicator)
Not bright：No power/device failure
Normal flash（1 time/S）：Connected to the server
Slow flash（1 time/2S）：In the network
Slow flash：1time/200ms ,Data transmission

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
7
2.8 Device wiring diagram
3. Method of installation
3.1. Preparation before installation
3.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are
included, or else please contact your distributor.
3.1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.

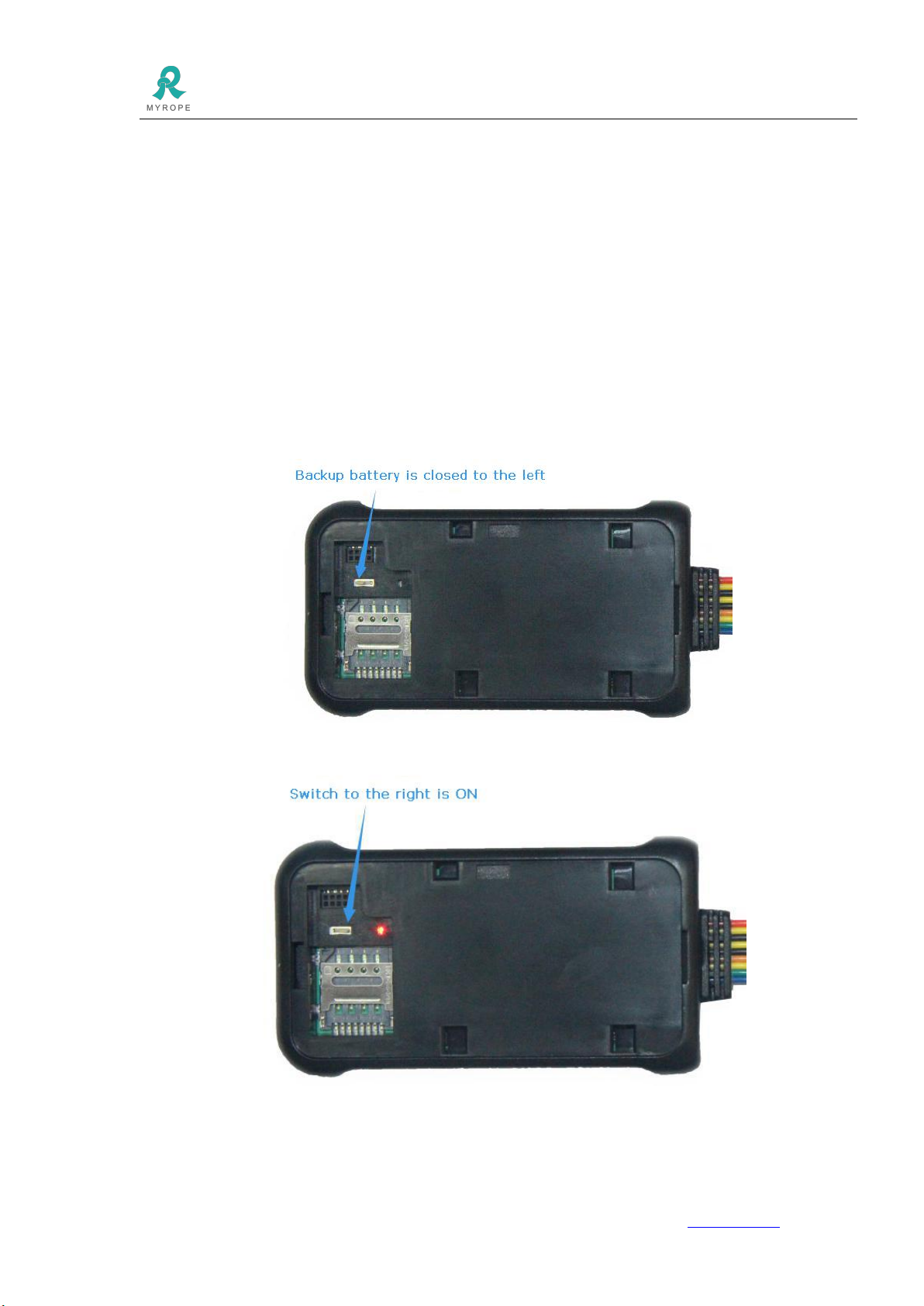

3.1.3 Installing SIM card into the tracker, open the device with screwdriver and put the SIM card into the
tracker (do not insert the SIM card backwards).
Note:
Power off before installing or removing the SIM card
The SIM card should have GPRS credit
Ensure the SIM card is able to send and receive SMS

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
8
3.2 Installation
The device installation is covert. Please refer installation to an auto electrical contractor.
NOTE:
3.2.1 To prevent theft of the device, it should be installed as covertly as possible. Covertly installation is
suggested.
3.2.2 Avoid placing the device close to higher power electrical devices, such as reversing radar, anti-theft
device or other vehicle communication equipment;
3.2.3 The device should be fixed into position with cable ties or wide double-side tape.
3.2.4 The device has built-in GSM antenna and GPS antenna. During installation, please make sure the
receiving side is upwards sky without metal object above the device to interfere with GPS reception. The
following places are suggested for installation:
-shelter in the decorated board below the front windshield;
-shelter around the front instrument panel (non-metallic material face);
-in the decorated board below back windshield;

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
9
4. Web based tracking online activation
4.1 Open website www.overseetracking.com and login with the user & password that created by Rope
4.2 Click Information Management

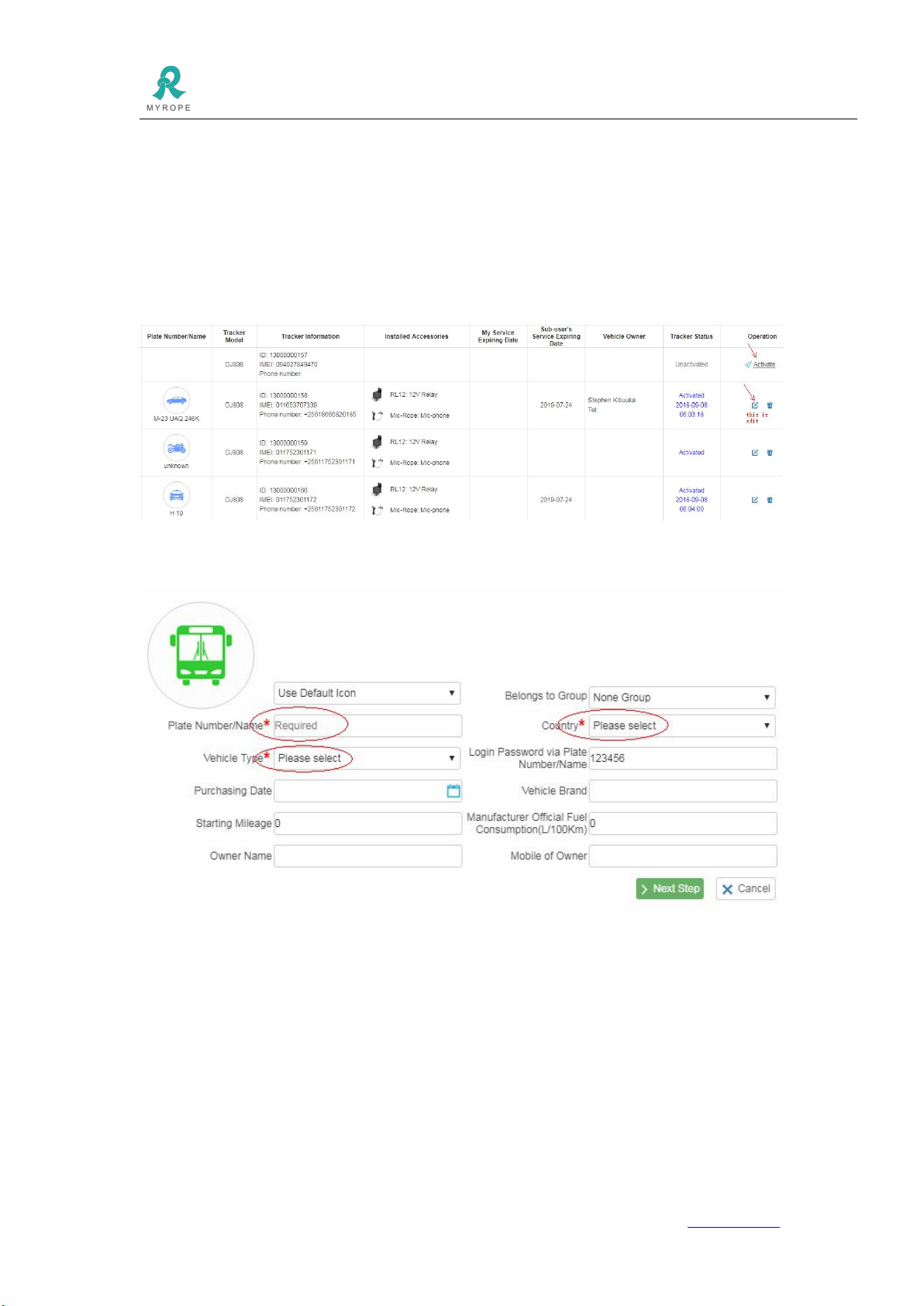

4.3 Click Vehicle Tracker List and you will see all your vehicles are listed there. Please note, to add more
devices, please contact your sales.
Please check the Tracker Status, if it is Unactivated, please click Activate. If it is Activated, please click
Edit.
4.4 Click Activate, please fill in the blanks marked with red *. You also can fill in other blanks to complete
the device information.

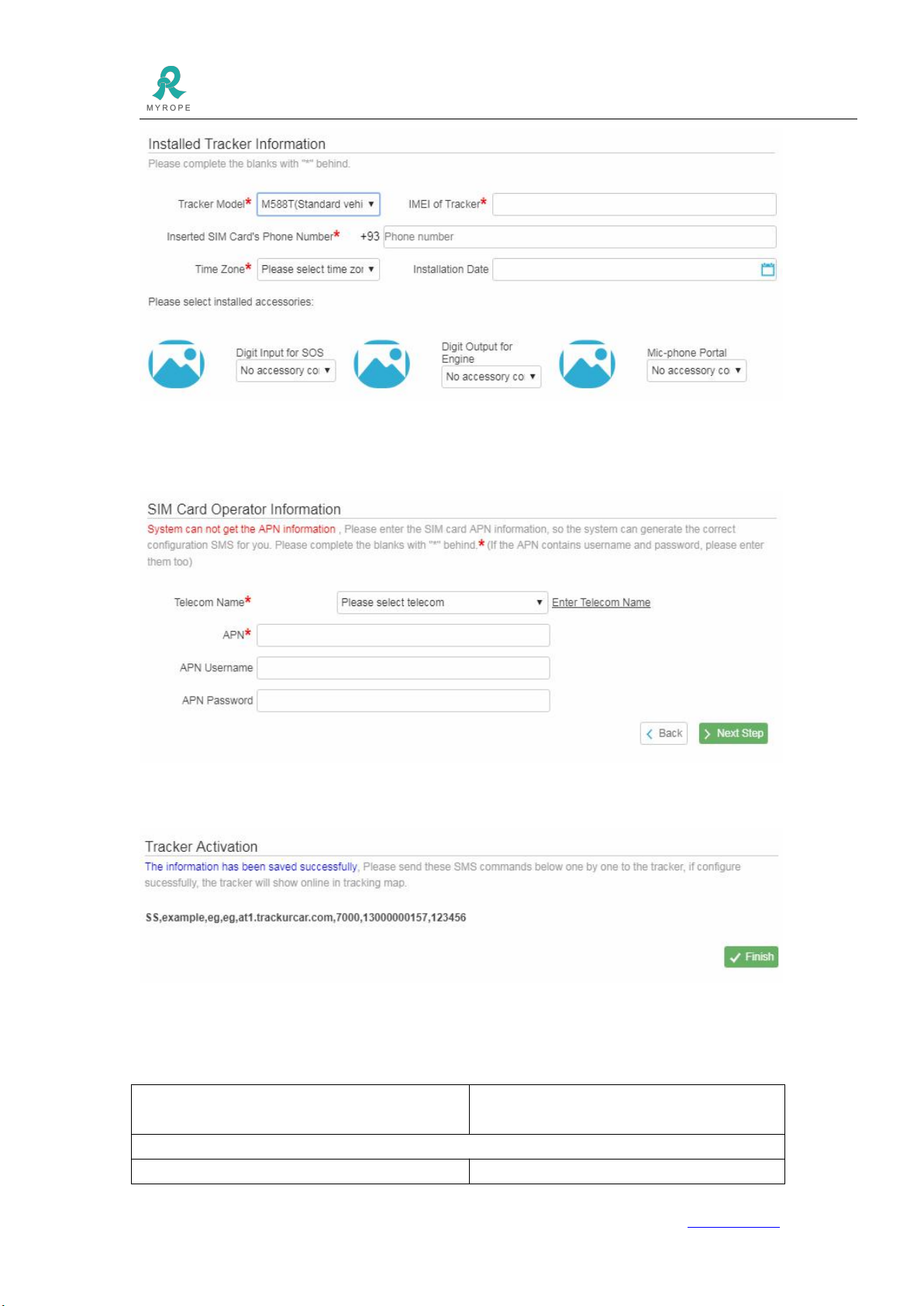

4.5 Click Next Step and fill in the requested blanks.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
10
4.6 Click Next Step to fill in sim card APN information. Please select the telecom name, if the telecom is not
listed there, please click Enter Telecom Name to fill in the sim card telecom name.
4.7 Click Next Step, OVERSEE gives the configuration SMS to you. Please copy it and send it to the gps
device, after you receive reply from the gps device, it should be online.
4.8 Click Finish--Tracking Map to see if the gps device is online or not.
5. SMS List
Modify the device SMS authentication password
command
C,*old code of the device*,*new code of the
device*
E.g:Change the factory password to 654321, send “C,*123456*,*654321*”
Device remote restart command
R,*PASSWORD*

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn
11
E.g: R,*123456*
SMS locate（SMS locate command -T, reply to
vehicle location）
T+*PASSWORD*
Cut fuel
CLOSE OIL,*PASSWORD*
Recover fuel
RESTORE OIL,*PASSWOED*
Work interval setting
SET+TIME=T1,T2*123456*
T1 indicates the ACC open transmission interval.
T2 indicates the ACC close transmission interval.
Set parameter query
DEV+CK,*PASSWORD*
6. Trouble shooting
6.1. After installing it in the first time, if device cannot get connected with platform server, at this time it is
“logged off” status in platform.
Follow the instructions one by one as below:
1) Call the device to see what happens.
If ring: go to the next step.
If not ring:
a. Check whether the SIM card is installed correctly or not. Check whether the connection of power-line is
correct or not . (Details: If the users are testing the device in office or at home, they have to connect device
with 12V DC external power supply. If it is tested in the car, make sure the installer connect all the cable
correctly.)
b. Check the LEDs’ status. In normal working status, the red LED is in bright flash 0.1s dark 2s, yellow GSM
LED bright flash 0.1s dark 2s and blue GPS LED bright flash 0.1s dark 2s
c. Check whether the vehicle is in no GSM area, such as basement;
2) Check whether the device reply after sending SMS command.
If reply:
a. Check whether the APN is correct or not,
b. Whether the port is correct or not,
c. check whether the SIM card support GPRS.
d. check the IMEI number is correct or not
If not reply: check the SMS command format, make sure it is correction.
