GPS Tracking Device
Model NO.: M588G
User Manual
Version ：ROPE-E17080501
Notes:..................................................................................................................................................................... 2
1. Product Introduction.......................................................................................................................................3
2. Characteristics................................................................................................................................................. 4
2.1 Blue LED(GPS status indicator)............................................................................................................. 4
2.2 Green LED（GSM status indicator）.................................................................................................... 4
2.3.Specifications.......................................................................................................................................... 5
2.4 Device outlet specification...................................................................................................................... 5
2.5 Device wiring diagram............................................................................................................................ 6
3. Method of installation..................................................................................................................................... 7
3.1. Preparation before installation............................................................................................................... 7
3.2 Installation............................................................................................................................................... 7
4. Web based tracking online activation............................................................................................................7
5. SMS Configuration..........................................................................................................................................8
6．Trouble shooting.........................................................................................................................................11
7. Standard Accessories.....................................................................................................................................12
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., Ltd. All rights reserved. Website: www.ropetrack.com
2
Notes:
Please mount the device steadily on the flat place before using;
Please make sure the voltage value is right before connecting with battery, and placing the wires to where
shouldn’t be trodden;
Please power off when plugging or taking out of any module or connector;
Please keep the device dry and don’t let any liquid fall into the device in case any damage caused in the
device or circuit;
If any problem caused as follows, please turn to professional technician:
When power wire, keyboard, or socket are damaged;
When liquid infiltrating into the device;
When the device work unusually or cannot resume to normal even operated according to the instruction;
When the device cannot work as usual after falling, throwing or breaking;
When there is obvious damage in the device.
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., Ltd. All rights reserved. Website: www.ropetrack.com
3
1. Product Introduction
GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for
getting location data from satellite, and GSM module is for transferring data to server so that people can
check the information via PC or mobile phone. Our GPS Tracking device, with the best quality, stable
performance and versatile functions，can be applied to various kind of fleet management like construction
trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
4
2. Characteristics
1) Built-in antenna;
2) Track by SMS or 3G;
3) Real time tracking at intervals;
4) Resend data from signal dead zone;
5) Voice monitoring;
6) SOS alarm;
7) Low power alarm;
8) Overspeed alarm;
9) Geo-fence alarm;
10) Parking alarm;
11) Idling alarm;
10) Tired driving alarm;
11) History playback;
12) Mileage statistics;
13) Reports statistics;
14) Remotely update firmware;
15) cut off engine remotely (Engine immobilization)
16) Water resistance.
2.1 Blue LED(GPS status indicator)
LED Status
Meaning
Slow Flashing (bright 1s dark 2s)
GPS located
Fast flashing(bright 0.1s dark 2.9s)
Searching GPS signal
Continuously in dark state
Power off/Internal fault
2.2 Green LED（GSM status indicator）
LED Status
Meaning
Fast Flashing (bright 0.1s dark 2s)
GSM working
Slow flashing(bright 1s dark 2s)
Start GSM
Continuously in dark state
Power off/Internal fault
Always keep on
Dialing out /talking
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
5
2.3.Specifications
Items
Parameters
3G Module
Quectel UC15
3G Frequency
WCDMA 2100MHZ
LBS Positioning Accuracy
100-500m
3G Antenna
Built-in
GPS Chipset
U-blox 7020
GPS Sensitivity
-159 dBm
GPS Frequency
L1, 1575.42 MHZ
Channels
50 channels examine track
GPS Positioning Accuracy
5-10m, 2D RMS
GPS Antenna
Built-in
Speed Accuracy
0.1m/s
Time Accuracy
Synchronize with GPS
GPS Data
WGS-84
Hot Start
<1s
Warm Start
<38s
Max Altitude
18000m
Max Speed
515m/s
Gravity Acceleration
<4g
Working Voltage
8VDC～50VDC
Working Current
50mA~160mA
Operating Temperature
-20℃—70℃
Humidity
5%—95%
Size
96mm × 52mm × 19mm
Simcard
Micro simcard
Battery
Rechargeable lithium polymer battery 260mAh
Internal battery Standby
>2h
2.4 Device outlet specification
Line No.
Specification
Color
Instruction
1. 2
microphone
red/black
Connect to Microphone
3. 4
Power
black(V-) red (V+)
Connect to vehicle storage battery
5
ACC
white
Connect to ACC ignition
6
Motor
green
Connect to relay control line
7.8
SOS button
red, yellow
Connect SOS button
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
7
3. Method of installation
3.1. Preparation before installation
3.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are
included, or else please contact your distributor.
3.1.2 Choose SIM card: each device needs to insert a 3G SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.
3.1.3 Install SIM card into the tracker, open the device with screwdriver and put the SIM card into the tracker
(do not insert the SIM card backwards).
Note:
Power off before installing or removing the SIM card
The SIM card should have GPRS credit
Ensure the SIM card is able to send and receive SMS
3.2 Installation
The device installation is covert. Please refer installation to an auto electrical contractor.
NOTE:
3.2.1 To prevent theft of the device, it should be installed as covertly as possible. Covertly installation is
suggested.
3.2.2 Avoid placing the device close to higher power electrical devices, such as reversing radar, anti-theft
device or other vehicle communication equipment;
3.2.3 The device should be fixed into position with cable ties or wide double-side tape.
3.2.4 The device has built-in 3G antenna and GPS antenna. During installation, please make sure the
receiving side is upwards sky without metal object above the device to interfere with GPS reception. The
following places are suggested for installation:
-shelter in the decorated board below the front windshield;
-shelter around the front instrument panel (non-metallic material face);
-in the decorated board below back windshield;
4. Web based tracking online activation
4.1 Open website www.overseetracking.com and login with the user & password that created by Rope
4.2 Click Information Management
4.3 Click Vehicle Tracker List and you will see all your vehicles are listed there. Please note, to add more
devices, please contact your sales.
Please check the Tracker Status, if it is Unactivated, please click Activate. If it is Activated, please click
Edit.
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
8

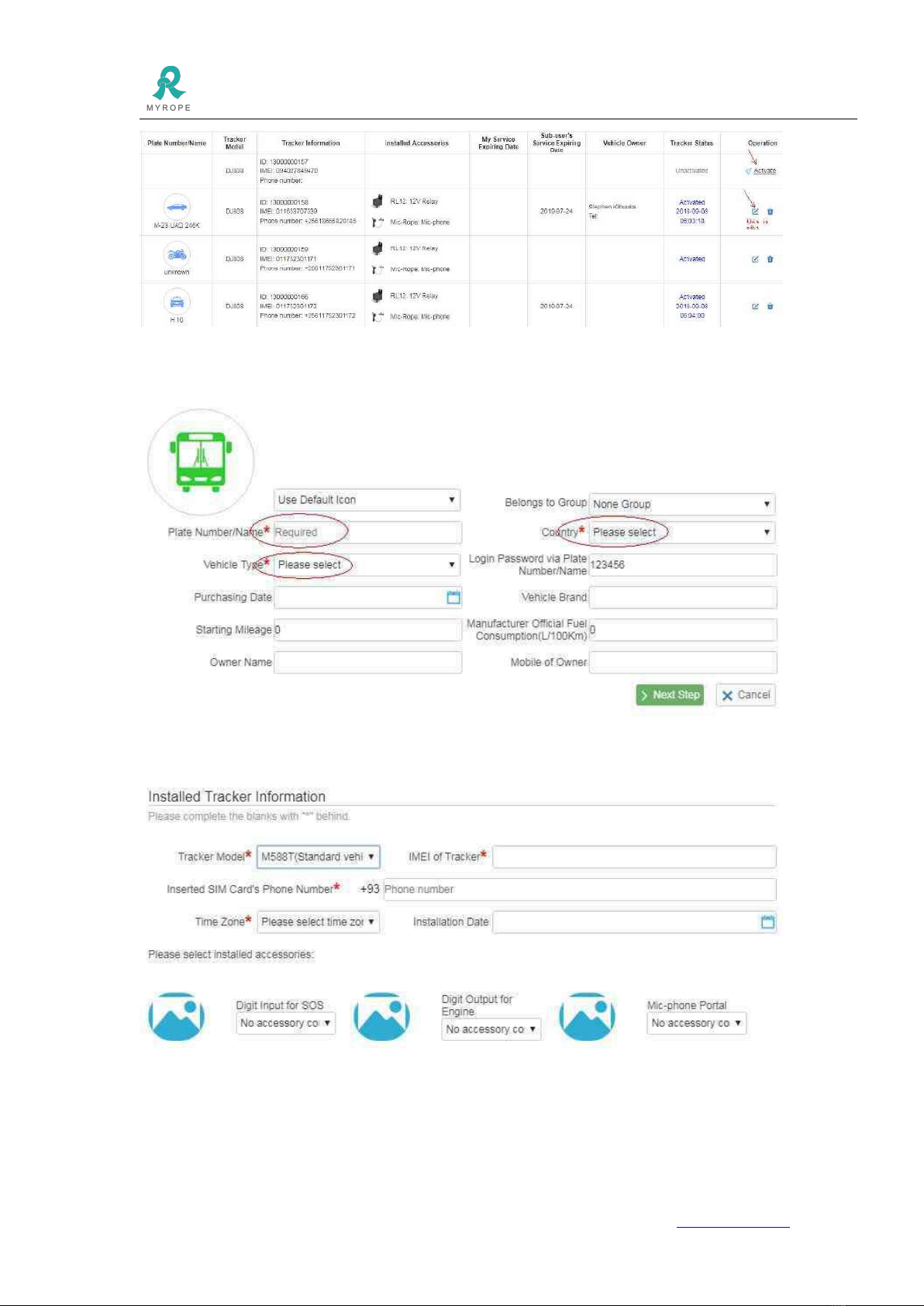

4.4 Click Activate, please fill in the blanks marked with red *. You also can fill in other blanks to complete
the device information.
4.5 Click Next Step and fill in the requested blanks.
4.6 Click Next Step to fill in sim card APN information. Please select the telecom name, if the telecom is not
listed there, please click Enter Telecom Name to fill in the sim card telecom name.
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
9
4.7 Click Next Step, OVERSEE gives the configuration SMS to you. Please copy it and send it to the gps
device, after you receive reply from the gps device, it should be online.
4.8 Click Finish--Tracking Map to see if the gps device is online or not.
5. SMS Configuration
Function
Command
Notes
Change Password
pwd,old_pwd,new_pwd
Eg : pwd,123456,666666
Default password is 123456
Replied SMS:
Config OK=Set successfully
Config failed=fail to set
Set SOS Alert
Numbers
service,phone1,phone2,phone3,password
Eg:
service ,13512345001,13512345002,13512345
003,123456
If configured OK, when press SOS button, the
device will sent notification SMS to the preset
3 numbers.
SOS alert content: Your vehicle triggered
emergency alarm, now the location of the car
is http://maps.google.com/maps?q= Latitude,
longitude
Delete SOS Alert
Numbers
service, , , ,password
If you want to delete any one of the three
numbers, please leave it in command blank
without space.
Eg: (Delete All)
service, , , ,123456
You can choose to delete some or all the SOS
alert numbers.
Checking
Parameters
param,password
Eg: param,123456
Replied SMS: TCP, APN, APN user name,
APN password, port, system number
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
10
if the password is worng, it will reply: Get
status failed.
Remotely Restart
Restart,password
Eg: restart,123456
The device will restart after 1min after
receiving this command,
Recover Default
Password
ResetPwd
Eg: resetpwd
Password will be recovered to default
password if set successfully.
Check GPS
Location
tgoogle,password
Eg: tgoogle,123456
The device will reply with Google link after
receiving the command
Disable Engine
disable eng, password
Eg: disable eng,123456
The device will disable the engine of the car
after receiving the command in the condition
that the speed of car is under 15km/h
Enable Engine
enable eng,password
Eg: enable eng,123456
The device will enable the engine after
receiving the command
Voice Monitoring
tap,password
Eg: tap,123456
The device will call back to the phone
number who sent the command
Enable Defence
arm,password
Eg: arm,123456
Config OK=Set successfully
Config failed=fail to set
If defence enabled, you are able to get illegal
start alarm when ignition is on.
Disable Defence
disarm,password
Eg: disarm,123456
Config OK=Set successfully
Config failed=fail to set
Online
Configuration
ss,apn,user_name,user_code,ip,port,id,
password
Eg:
ss,cmnet,1,1,211.154.139.208,7000,131888888
88,123456
Config OK=Set successfully
Config failed=fail to set
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
11
Check Status
status,password
Eg: status,123456
Replied SMS:
GSM=31
GPRS=1
GPS=10
ACC=N0
SPEED=120
ACCON=30S
ACCOFF=120S
VCC=12V
IMEI=356823031234501
If the password is wrong, it will reply: Get
status failed
Check Service
Number
GetService,password
Eg: getservice,123456
The device will reply with the service
numbers
Enable Auto
Answer Call
(Voice Monitoring)
AUDIO-EN,password
Eg: audio-en,123456
Config OK=Set successfully
Config failed=fail to set
Disable Auto
Answer Call
AUDIO-DIS,password
Eg: audio-dis,123456
Config OK=Set successfully
Config failed=fail to set
Recover to Default
Settings
Reset,password
Eg:Reset,123456
It will recover the IP to be 211.154.139.208,
port to be 7000, APN to be cmnet
Set Interval
interval,x1,x2,password
Eg: interval,30,100,123456
30=ACC ON 100=ACC OFF
X1=ACC ON interval (second),
X2=ACC OFF interval (second).
Enable sleep mode
sleep enable,password
Eg: sleep enable,123456
Config OK=Set successfully
It’s for save battery purpose
Disable sleep
mode
sleep disable,password
Eg: sleep disable,123456
Config OK=Set successfully
Enable Limit for
Voice monitoring,
LisLimit,ON,password
Eg: LisLimit,ON,123456
It will limit the voice monitoring phone
number within the preset SOS alert number
Disable Limit for
Voice monitoring
LisLimit,OFF,password
Eg: LisLimit,OFF,123456
Default setting
6．Trouble shooting
After installing it in the first time, if device cannot get connected with platform server, at this time it is
“logged off” status in platform.
Follow the instructions one by one as below:
1) Call the device to see what happens.
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
12
If ring: go to the next step.
It not ring:
a. Check whether the SIM card is installed correctly or not. Check whether the connection of power-line is
correct or not . (Details: If the users are testing the device in office or at home, they have to connect device
with 12V DC external power supply. If it is tested in the car, make sure the installer connect all the cable
correctly.)
b. Check the LEDs’ status. In normal working status, the green GSM LED is in bright flash 0.1s dark 2s , blue
GPS LED bright flash 0.1s dark 2s.
c. Check whether the vehicle is in no 3G area, such as basement;
2) Check whether the device reply after sending SMS command.
If reply:
a. Check whether the APN is correct or not,
b. Whether the port is correct or not,
c. Check whether the SIM card support GPRS.
d. Check the IMEI number is correct or not
If not reply: check the SMS command format, make sure it is correction.
Table of contents
Other MYROPE GPS manuals
