GPS Tracking Device
Model NO.: M508N
User Manual
Version：Rope-E16102901
Notes:..................................................................................................................................................................... 1
1. Product Introduction.......................................................................................................................................1
2. Characteristics................................................................................................................................................. 1
2.1 LED Status...............................................................................................................................................2
2.2.Specifications.......................................................................................................................................... 2
2.3 Device wiring diagram............................................................................................................................ 3
3. Method of installation..................................................................................................................................... 3
3.1. Preparation before installation............................................................................................................... 3
3.2 Installation............................................................................................................................................... 4
4. Web based tracking online activation............................................................................................................4
5. SMS Configuration..........................................................................................................................................5
6. Trouble shooting.............................................................................................................................................. 8
7. Standard Accessories.......................................................................................................................................8

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
2
Notes:
Please mount the device steadily on the flat place before using;
Please make sure the voltage value is right before connecting with battery, and placing the wires to where
shouldn’t be trodden;
Please power off when plugging or taking out of any module or connector;
Please keep the device dry and don’t let any liquid fall into the device in case any damage caused in the
device or circuit;
If any problem caused as follows, please turn to professional technician:
When power wire, keyboard, or socket are damaged;
When liquid infiltrating into the device;
When the device work unusually or cannot resume to normal even operated according to the instruction;
When the device cannot work as usual after falling, throwing or breaking;
When there is obvious damage in the device.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
3
1. Product Introduction
GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for
getting location data from satellite, and GSM module is for transferring data to server so that people can
check the information via PC or mobile phone. Our GPS Tracking device, with the best quality, stable
performance and versatile functions，can be applied to various kind of fleet management like construction
trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
4
2. Characteristics
1) Metal cover;
2) External antenna;
3) Track by SMS or GPRS;
4) Real time tracking at intervals;
5) Resend data from signal dead zone;
6) Voice monitoring;
7) Two way voice communication;
8) SOS alarm;
9) Low power alarm;
10) Overspeed alarm;
11) Geo-fence alarm;
13) Illegal start alarm;
14) Parking alarm;
15) Idling alarm;
16) Tired driving alarm;
17) Fuel or temperature monitoring;
18) History playback;
19) Mileage statistics;
20) Reports statistics;
21) Remotely update firmware;
22) Serial ports for 3 peripherals.
2.1 LED Status
LED Color
LED Status
Meaning
Red
Always on
Working normally
Flash at interval 0.2S
Registering to the GPRS network
Flash at interval 1S
Registered to GPRS network already
while not connect to server
Continuously in dark status
Power off/Faulty
Yellow
Always keep on
Working normally
Continuously flash
Cannot receive GPS signal
Continuously in dark status
Power off/Faulty

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
5
2.2. Specifications
Items
Parameters
GSM Module
Quectel M50
GSM Frequency
850/900/1800/1900 MHZ
LBS Positioning Accuracy
100-500m
GSM Antenna
External
GPS Chipset
U-blox 7020
GPS Sensitivity
-159 dBm
GPS Frequency
L1, 1575.42 MHZ
Channels
20 channels examine track
GPS Positioning Accuracy
5-10m, 2D RMS
GPS Antenna
External
Speed Accuracy
0.1m/s
Time Accuracy
Synchronize with GPS
GPS Data
WGS-84
Hot Start
<1s
Warm Start
<38s
Max Altitude
18000m
Max Speed
515m/s
Gravity Acceleration
<4g
Working Voltage
8VDC～50VDC
Working Current
50Ma~160Ma
Operating Temperature
-20℃—70℃
Humidity
5%—95%
Size
96mm × 55mm × 26mm
Simcard
Normal simcard
Battery
Rechargeable lithium polymer battery 380mAh
Internal battery Standby
>4h
Input
3pcs (including ACC detection)
Output
2pcs
A/D input
1pc
Serial port
3pcs

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
6

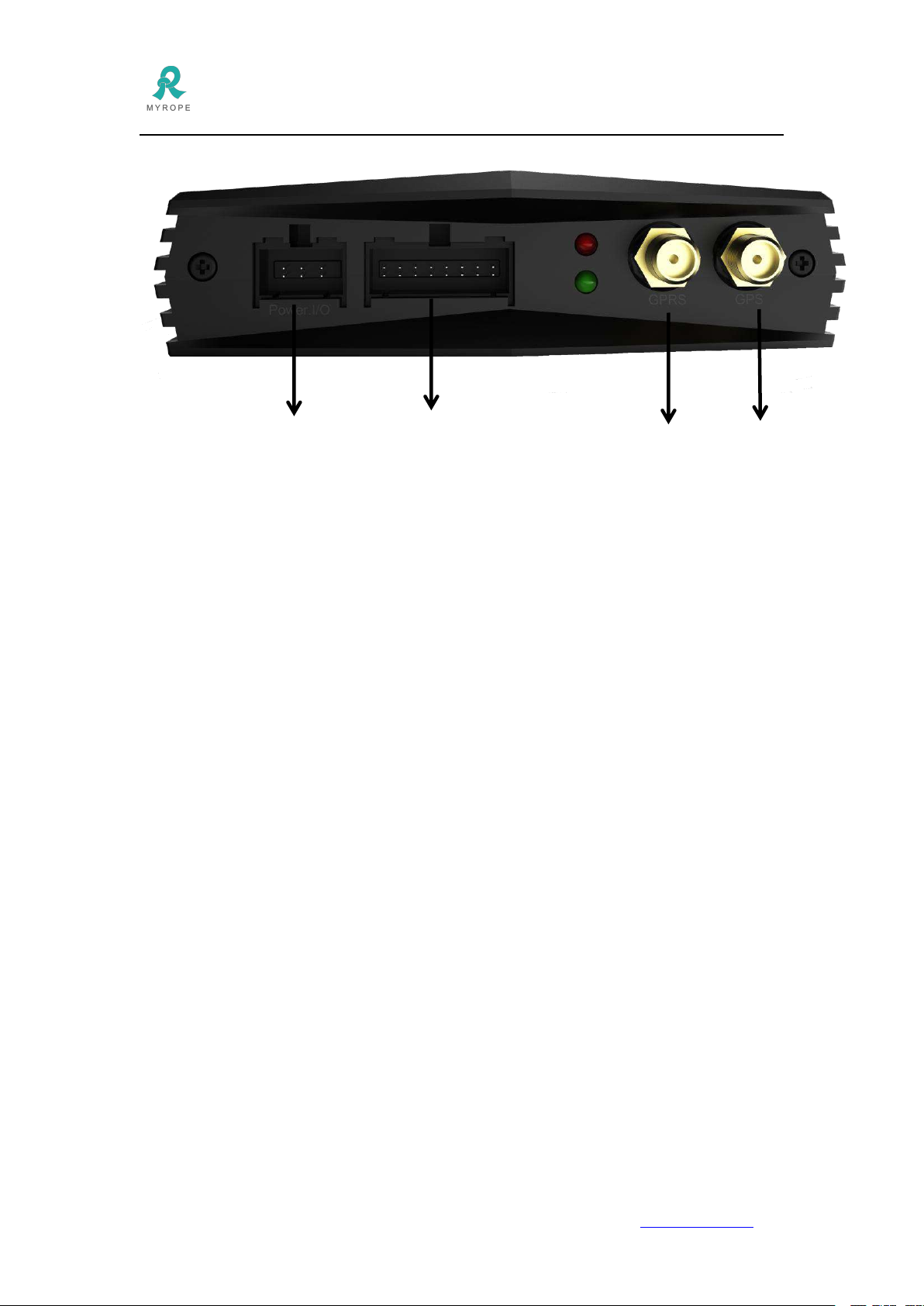

2.3 Device wiring diagram
Power I/O Extend GPRS GPS
Connector Connector Antenna
Antenna
Power I/O Connector:
1. Black and purple cables for microphone
2. Black cable to power+
3. Red cable to power-
4. White cable to ACC
5. Yellow cable for relay(from relay to tracker: yellow to yellow, black to black)
Extend Connector:
1. The first row:
1st cable to power+ of camera
2nd cable to GND
3rd cable to RX of fuel sensor
4th cable is for >5V high voltage detection
5th cable is for >5V high voltage output
6th cable is for >5V high voltage output
7nd cable to GND
8nd cable to power+ of speaker
2. The second row:
1st cable to TX of camera
2nd cable to RX of camera
3rd cable to TX of fuel sensor
4th cable is for AD input
5th cable is for <5V low voltage detection
6th cable to TX of RFID reader
7nd cable is RX of RFID reader
8nd cable to power- of speakerThe 8nd cable to power- of speaker

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
7

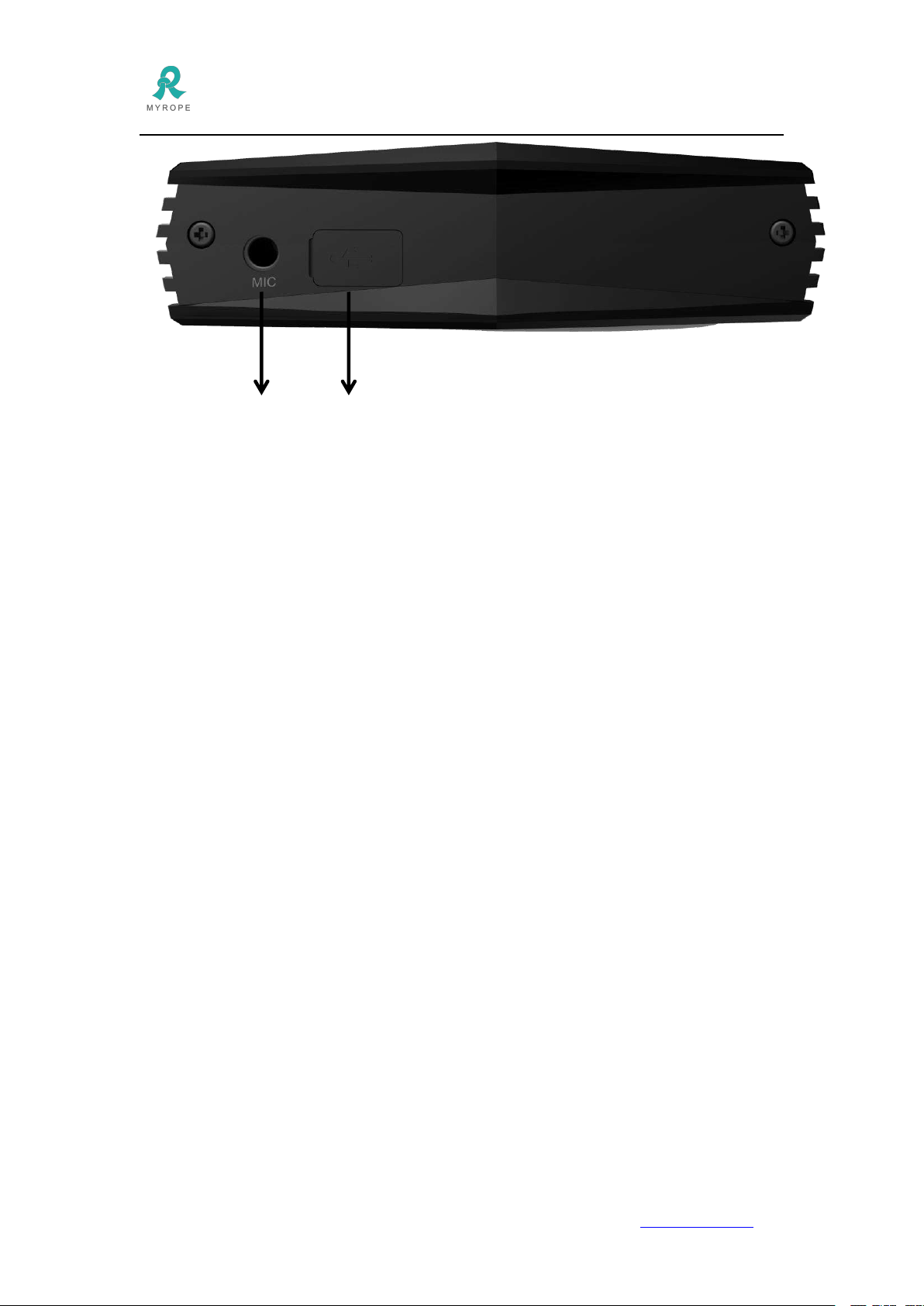

Microphone Slot USB Port
3. Method of installation
3.1. Preparation before installation
3.1.1 Open the packing box to check whether the type of device is correct and whether the
accessories are included, or else please contact your distributor.
3.1.2 Choose SIM card: each device needs to insert a 3G SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.
3.1.3 Installing SIM card into the tracker, open the device with screwdriver and put the SIM card
into the tracker (do not insert the SIM card backwards).
Note:
Power off before installing or removing the SIM card
The SIM card should have GPRS credit
Ensure the SIM card is able to send and receive SMS
3.2 Installation
The device installation is covert. Please refer installation to an auto electrical contractor.
NOTE:
3.2.1 To prevent theft of the device, it should be installed as covertly as possible. Covertly
installation is suggested.
3.2.2 Avoid placing the device close to higher power electrical devices, such as reversing radar,
anti-theft device or other vehicle communication equipment;
3.2.3 The device should be fixed into position with cable ties or wide double-side tape.
3.2.4 The device has external 3G antenna and GPS antenna. During installation, please make sure
the receiving side is upwards sky without metal object above the device to interfere with GPS
reception. The following places are suggested for installation:
-shelter in the decorated board below the front windshield;
-shelter around the front instrument panel (non-metallic material face);
-in the decorated board below back windshield;
4. Web based tracking online activation
4.1 Open website www.overseetracking.com and login with the user & password that created by

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
8
Rope
4.2 Click Information Management

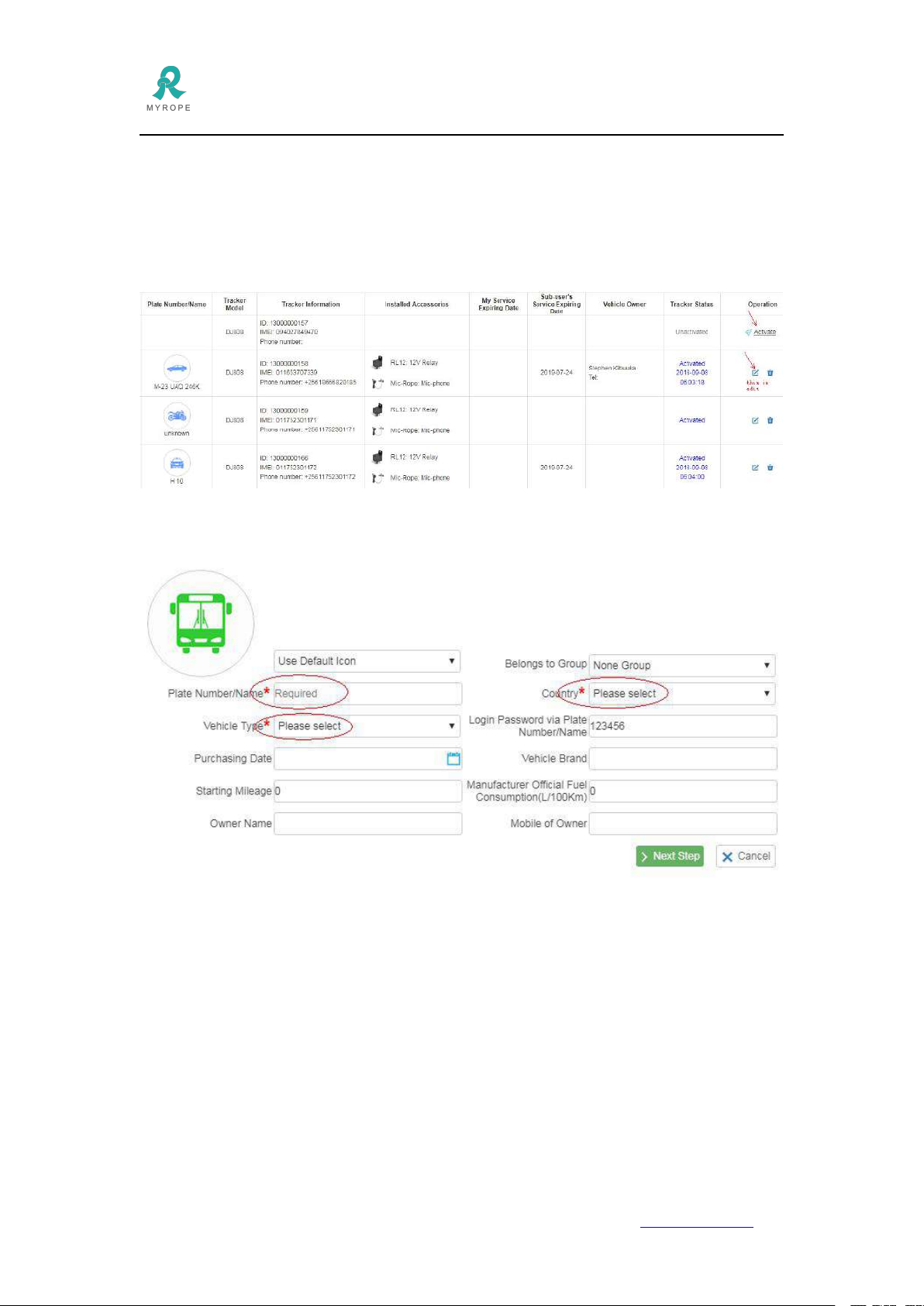

4.3 Click Vehicle Tracker List and you will see all your vehicles are listed there. Please note, to
add more devices, please contact your sales.
Please check the Tracker Status, if it is Unactivated, please click Activate. If it is Activated,
please click Edit.
4.4 Click Activate, please fill in the blanks marked with red *. You also can fill in other blanks to
complete the device information.
4.5 Click Next Step and fill in the requested blanks.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
9

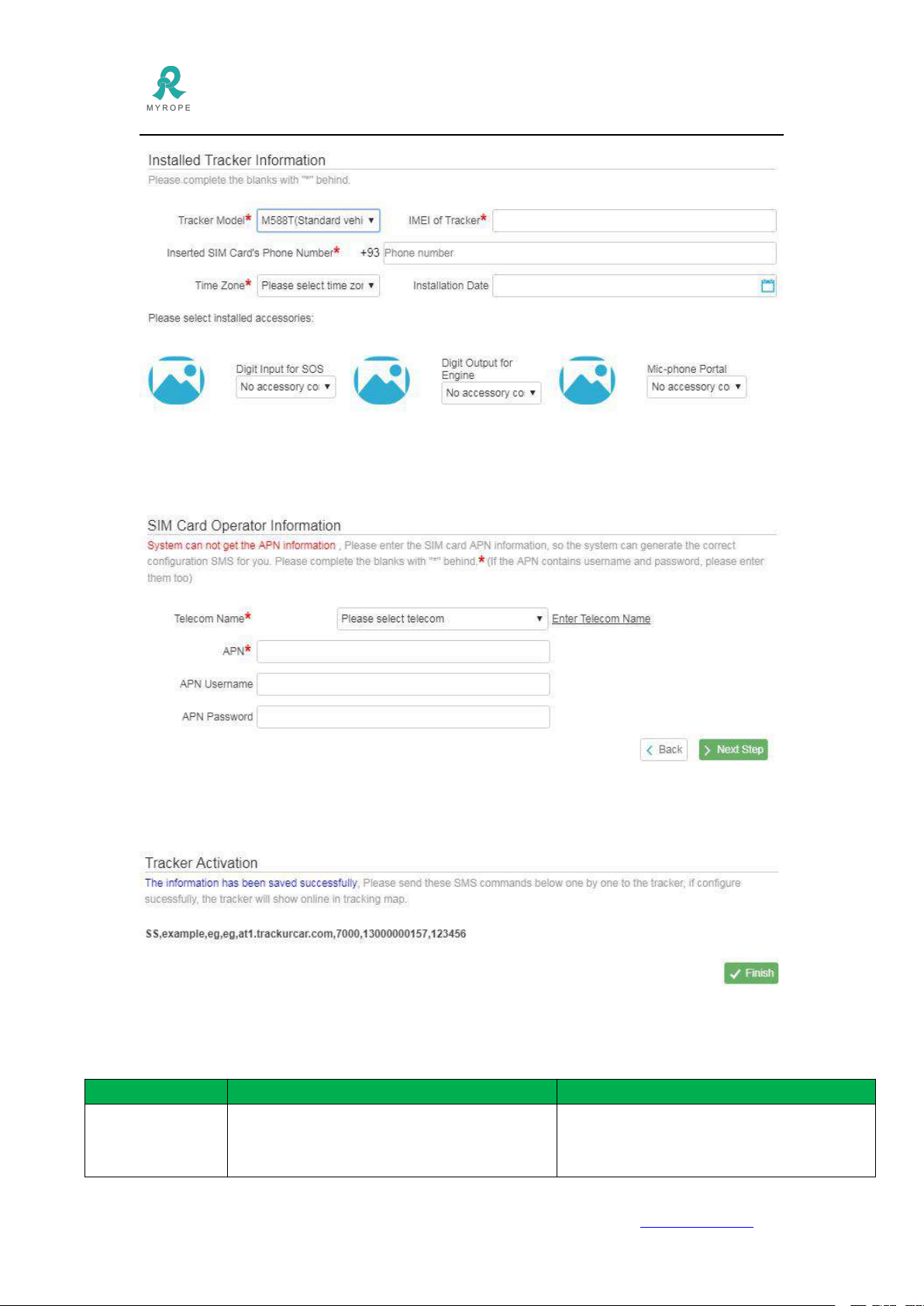

4.6 Click Next Step to fill in sim card APN information. Please select the telecom name, if the
telecom is not listed there, please click Enter Telecom Name to fill in the sim card telecom name.
4.7 Click Next Step, OVERSEE gives the configuration SMS to you. Please copy it and send it to
the gps device, after you receive reply from the gps device, it should be online.
4.8 Click Finish--Tracking Map to see if the gps device is online or not.
5. SMS Configuration
Function
Command
Notes
Change Password
pwd,old_pwd,new_pwd
Eg : pwd,123456,666666
Default password is 123456
Replied SMS:
Config OK=Set successfully

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
10
Config failed=fail to set
Set SOS Alert
Numbers
service,phone1,phone2,phone3,password
Eg:
service ,13512345001,13512345002,13512345
003,123456,
If configured OK, when press SOS button, the
device will sent notification SMS to the preset
3 numbers.
SOS alert content: Your vehicle triggered
emergency alarm, now the location of the car
is http://maps.google.com/maps?q= Latitude,
longitude
Delete SOS Alert
Numbers
service, , , ,password
If you want to delete any one of the three
numbers, please leave it in command blank
without space.
Eg: (Delete All)
service, , , ,123456
You can choose to delete some or all the SOS
alert numbers.
Checking
Parameters
param,password
Eg: param,123456
Replied SMS: TCP, APN, APN user name,
APN password, port, system number
if the password is worng, it will reply: Get
status failed.
Remotely Restart
Restart,password
Eg: restart,123456
The device will restart after 1min after
receiving this command,
Recover Default
Password
ResetPwd
Eg: resetpwd
Password will be recovered to default
password if set successfully.
Check GPS
Location
tgoogle,password
Eg: tgoogle,123456
The device will reply with Google link after
receiving the command
Disable Engine
disable eng, password
Eg: disable eng,123456
The device will disable the engine of the car
after receiving the command in the condition
that the speed of car is under 15km/h
Enable Engine
enable eng,password
Eg: enable eng,123456
The device will enable the engine after
receiving the command

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
11
Voice Monitoring
tap,password
Eg: tap,123456
The device will call back to the phone
number who sent the command
Enable Defence
arm,password
Eg: arm,123456
Config OK=Set successfully
Config failed=fail to set
If defence enabled, you are able to get illegal
start alarm when ignition is on.
Disable Defence
disarm,password
Eg: disarm,123456
Config OK=Set successfully
Config failed=fail to set
Online
Configuration
ss,apn,user_name,user_code,ip,port,id,
password
Eg:
ss,cmnet,1,1,211.154.139.208,7000,131888888
88,123456
Config OK=Set successfully
Config failed=fail to set
Check Stauts
status,password
Eg: status,123456
Replied SMS:
GSM=31
GPRS=1
GPS=10
ACC=N0
SPEED=120
ACCON=30S
ACCOFF=120S
VCC=12V
IMEI=356823031234501
If the password is worng, it will reply: Get
status failed
Check Sevice
Number
GetService,password
Eg: getservice,123456
The device will reply with the service
numbers
Enable Auto
Answer Call
(Voice Monitoring)
AUDIO-EN,password
Eg: audio-en,123456
Config OK=Set successfully
Config failed=fail to set
Disable Auto
Answer Call
AUDIO-DIS,password
Eg: audio-dis,123456
Config OK=Set successfully
Config failed=fail to set
Recover to Default
Settings
Reset,password
Eg:Reset,123456
It will recover the IP to be 211.154.139.208,
port to be 7000, APN to be cmnet
(If your device version is before 2016-04-07
08:00:00, pls use this command:

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
12
DEF-PARA,password )
Set Interval
interval,x1,x2,password
Eg: interval,30,100,123456
30=ACC ON 100=ACC OFF
X1=ACC ON interval (second),
X2=ACC OFF interval (second).
(If your device version is before 2016-04-07
08:00:00, pls use this command:
GINTERVAL,X1,X2,password)
Enable sleep mode
sleep enable,password
Eg: sleep enable,123456
Config OK=Set successfully
It’s for save battery purpose
Diable sleep mode
sleep disable,password
Eg: sleep disable,123456
Config OK=Set successfully
Enable Limit for
Voice monitoring,
LisLimit,ON,password
Eg: LisLimit,ON,123456
It will limit the voice monitoring phone
number within the preset SOS alert number
(If your device version is before 2016-04-07
08:00:00, pls use this command:
LisLimite-Enable,password)
Disable Limit for
Voice monitoring
LisLimit,OFF,password
Eg: LisLimit,OFF,123456
Default setting
(If device version is before 2016-04-07
08:00:00, Pls use this command:
LisLimite-Disable,password)
6．Trouble shooting
6.1. After installing it in the first time, if device cannot get connected with platform server, at this
time it is “logged off” status in platform.
Follow the instructions one by one as below:
1) Call the device to see what happens.
If ring: go to the next step.
If not ring:
a. check whether the SIM card installed correctly or not. Check whether the connection of
power-line is correction or not . (Details: If the users are testing the device in office or at home,
M588 has to connect with 12V DC external power supply. If it is tested in the car, make sure the
installer connect all the cable correctly.)
b. Check the LEDs’ status. In normal working status, the red LED is in bright flash 0.1s dark 2s ,
yellow GSM LED bright flash 0.1s dark 2s and blue GPS LED bright flash 0.1s dark 2s
c. Check whether the vehicle is in no 3G area, such as basement;
2) Check whether the device reply after sending SMS command.
If reply:
a. Check whether the APN is correct or not,
b. Whether the port is correct or not,
c. check whether the SIM card support 3G.
d. check the IMEI number is correct or not
If not reply, check the SMS command format, make ensure it is correction.

ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：
ROPE-15121802
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com
13
7. Standard Accessories
Device
6 PIN power cable 4 PIN I/O cable
GPS antenna 3G antena
Relay Microphone
SOS button
