MYVELO CF20 User manual

Instruction Manual
Folding bike with pedal assist
Note: The image may differ from the product.

INDEX
INTRODUCTION....................................................................................... 2
SAFETY WARNING .................................................................................. 3
GENERAL DESCRIPTION ....................................................................... 7
BEFORE USING THE PRODUCT ........................................................... 8
TECHNICAL SPECIFICATIONS ............................................................. 12
SAFE DRIVING AND RANGE ................................................................. 13
BATTERY AND SAFETY WARNING ...................................................... 14
CLEANING AND MAINTENANCE ......................................................... 15
SERVICE AND DISPOSAL .......................................................................16

INTRODUCTION
Dear Customer,
Thank you for purchasing a MYVELO Pedal Assist Bike!
What is commonly referred to as a Pedal Assisted Bike is a personal transportation device that relies on muscle
propulsion, with the aid of an electric motor.
The principles governing the riding of this vehicle are virtually the same as those valid for a traditional bike.
This manual provides the user with a description of the features and operation of the vehicle.
Use of the vehicle is under the sole responsibility of the driver who, after reading and understanding this manual
and having requested from the seller and/or manufacturer any clarifications deemed necessary, considers themself
suitable from a psychological point of view to use the vehicle.
The manufacturer disclaims any liability for damage of any kind and extent caused to persons or property as a result
of the use of the vehicle.
The illustrations in the manual may differ slightly from your product, but the contents of the directions remain
valid.
2

SAFETY WARNING
THIS OPERATION MANUAL SHOULD REMAIN AN INTEGRAL PART OF THE PRODUCT: KEEP IT FOR FUTURE REFERENCE.
This vehicle should not be handled and/or used by children under 14 years of age and/or persons with reduced physical, sensory, and
cognitive abilities unless they are supervised and/or adequately instructed by a person for their safety in how to use it and are aware
of all possible inherent risks.
Keep the device and its power supply (including cord) out of the reach of children under 8 years of age and prevent them from
playing with it.
This device is not suitable for transporting objects or animals.
Any use of the product not in accordance with the directions in this manual and in violation of traffic laws is to be considered
improper and dangerous.
The manufacturer cannot be held responsible for any damage resulting from improper and/or unreasonable use.
Packaging items (plastic bags, expanded polystyrene, etc.) should NOT be left within reach of children or incapacitated persons as
they are potential sources of danger. Before using the unit visually verify its integrity. If in doubt, contact qualified personnel for
repairs. If the external power supply is damaged, it should be replaced by the manufacturer or its technical service department or
otherwise by a similarly qualified person in order to prevent any risk.
Before connecting the appliance's power supply unit to the mains power supply, check that the connection data, indicated on the
nameplate, are in accordance with those of the mains power supply.
Connect and disconnect the wires of the power supply unit with dry hands and hold them firmly.
Unwind the power supply cables completely to avoid overheating, avoid stretching them in any case (do not pull, tug or use them to
drag the devices to which they are connected).
Avoid placing power supply cables where they can be easily damaged.
3

SAFETY WARNING
DO NOT immerse the device or its power supply unit in water or other liquids.
When using the device for the first time, be sure to remove any labels or protective sheets that prevent it from working
properly.
The vehicle must be kept at a safe distance from open flames and any flammable or potentially explosive objects and/or
substances. In case of abnormal operation, turn off the appliance and contact a qualified technician for appropriate repairs.
DO NOT perform operations not provided for in this user manual (such as disassembling the appliance and/or tampering with
it).
In case of any abnormality during the charging phase, immediately disconnect the power supply unit from the main power
supply and contact technical service.
Do not leave the power supply unit connected to the main power supply when it is not being used.
Use only the supplied power supply unit or, if it is damaged, contact the technical service department for a replacement.
Cleaning and maintenance, intended and to be carried out by the user, should not be done by children without supervision.
Store the appliance and any of its accessories/components only indoors, with low humidity, protected from dust and weather
such as rain, direct sunlight etc.
When you decide to stop using the bike, it is recommended to make those parts that may pose a danger to people harmless or
to dispose of them in accordance with the relevant regulations. (See page 16.)
4

SAFETY WARNING
Before using the product, carefully check that it's correct assembly and its integrity. This bike is suitable for carrying a single person,
within the weight limits given in the technical characteristics, subject to training and practice.
Important! Do not exceed the load limits, minimum and maximum, given in the "Technical Specifications" section.
The use of this product is not recommended for children under the age of 14 and/or in case of height less than 140cm. Pregnant
women and children are strongly discouraged from using this product. Wear comfortable clothing that allows the body to maintain
flexibility in order to have better control.
It is recommended, for proper use, to always wear appropriate protection (such as a bicycle helmet, knee pads, elbow pads, etc.) and
be careful not to cause damage to people and/or property.
It is recommended that you do not use the vehicle in crowded spaces before you have done proper practice and are comfortable
with mechanisms that allow you to brake and accelerate. Especially while you are still getting comfortable with the bike, it is
necessary to routinely use the machine in a very spacious environment, free of obstacles, where there is full freedom of movement
and on a floor that is as smooth, even and as free of slopes as possible. It is also advisable to use it away from objects that could be
damaged or injure the driver as a result of accidental impacts.
Remember that it is always advisable to maintain an appropriate speed for the environment and the characteristics of the terrain on
which you are moving: very uneven terrain, not perfectly horizontal or with suction or bumps, can cause balance problems and falls
with all the consequent risks.
Avoid making turns at high speed or abruptly, as this can cause a fall. It is therefore advisable to perform turns at moderate speed
and in any case with a large radius of curvature.
5

SAFETY WARNING
Do not use the product in situations dangerous to your personal safety and that of people close to you.
This device has a non-negligible height from the floor, especially when crossing passages such as doorways or low passages: be
careful to assess well the height of the passageway in relation to your own added to that of the vehicle.
Avoid use on surfaces that are slippery (such as ice) or too uneven (such as gravel). The product has a degree of water and dust
resistance that makes its use possible in the presence of accidental and non-persistent splashes. Therefore, it is not allowed to be
used in the presence of standing water, puddles, or adverse weather conditions (such as rain, snow, or hail). Use the product in a dry
environment to avoid damage to the motor and electrical circuits.
While riding always keep both hands on the handlebar grips and do not carry objects in your hands.
Do not turn off the bike while riding; first stop the movement. Always turn off the device after use.
Never lift the bike (such as for transport) by grasping it from the wheels, as there is danger of injury.
Before cleaning the bike, make sure it is turned off and the power outlet is dry and protected from liquid. To wash, use a cloth that
has been moistened with water only. When finished, dry immediately with a soft cloth. Do not use the bike after using substances
that may alter your mental state and/or reduced your normal concentration abilities .
6

OVERVIEW
7
Motor
Battery
Suspension
Front light
Seat
1.
2.
3.
4.
5.
6. Splash guard
7. Rear light
8. Pedal
9. Lever folding system
10. Phone holder
11. USB Port
12. Bell
13. LCD display
14. Disc brake

BEFORE USING THE PRODUCT
8
Adjusting the seat height1.
The height of the seat can be adjusted:
2. Adjusting the handlebar
Unlock the lever (OPEN), adjust the height of the seat.
Position without exceeding the incline mark on the
seat tube and the lever (LOCK).
The seat height should be set so the legs are extended
when the corresponding pedal is in the lower position.
The insertion depth of the seat post height should go
below the safety mark.
Loosen the screw, adjust direction.
Turn left or right to adjust direction.
The depth of the seat
height must be above
the safety line!

BEFORE USING THE PRODUCT
9
(Left)

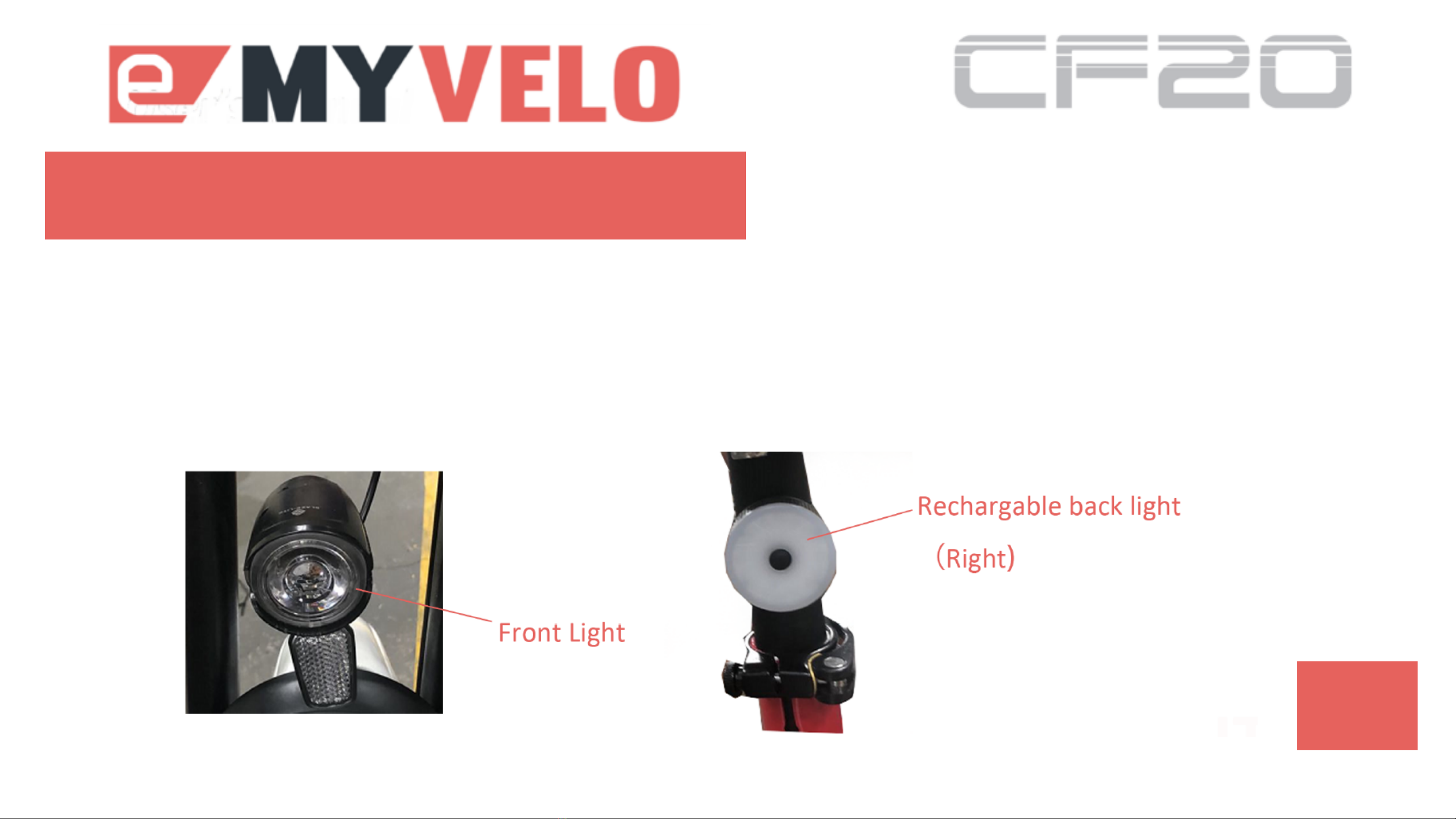

3. Lights
The front and rear lights have a self-contained power supply. They are turned on and
off using the switch located on each light. Heed national and local legal requirements
when the bicycle is to be ridden on public roads.

10
BEFORE USING THE PRODUCT
4. Place the E Bike on its kickstand.
Your E Bike is equipped with a double or side kickstand.
Always rest the bike on its kickstand on a level and stable ground surface.

INTRODUCTION
5. Precautions required before each use
Check that the brakes and front and rear lights are working properly. Also, check the
tire pressure. On derailleur oriented bicycles, the rear derailleur tensions the chain
automatically. Make sure the hinges on your bike are properly locked. In fact, when
you use your bicycle regularly, the tension of the adjustment and locking may change
slightly. When necessary, adjust the tension again.
Please note: If you use your bicycle often, you should check the condition of your
fork, frame, suspension and fastening. Materials and components may be subject to
different reactions to use and wear.
11
BEFORE USING THE PRODUCT

SPECIFICATIONS
12
Product Size: 1650*60mm*1200mm
Wheel Distance: 1100mm
Product Weight: 23kg
Max Load Weight: 100kg
Distance: 55 km
Max Speed: 25 km/h
Motor: 250W Brushless Rear Motor
Battery Cycle Life: 500 cycles
Battery Type: 36V 10Ah
Charging Input: 110-240VAC
Charging Output:42V/2A
Charging Time: 5 hours
Wheel Size: 20"
Braking System: Disc

SAFE DRIVING AND AUTONOMY
After starting the vehicle, maintain a speed sufficient to maintain balance and appropriate to the
surroundings. Regarding the places where this vehicle can be used and the speed limits imposed according
to the place of use, refer to the current local regulations.
This bike is equipped with a control panel that allows you to set the speed limit attainable with the help of
the electric motor (see section "LCD Display User Manual" for details on limiting speed values).
The end user should use this feature to adjust their riding to the limits imposed by applicable local laws.
AUTONOMY OF USE
The maximum distance that can be driven on a single battery charge is given as an approximation in the
Technical Specifications" section.
This value should be considered approximate since it can be influenced by many factors such as:
the type of surface traveled, as uneven surfaces and those with obstacles (such as gravel) can increase
consumption and reduce battery life; the weight carried, within the weight limits specified in this manual,
influences energy consumption; speed and driving style, a uniform straight motion requires less energy
expenditure than motions with continuous acceleration/deceleration or steering; the proper management
of battery charging and discharging cycles.
13

BATTERY SAFETY AND WARNING
To avoid damage and/or premature deterioration of the battery, charging should be carried out in a dry environment and at a temperature within
the range indicated between the Technical Specifications of the product. Open the cover cap of the DC power socket on the product. Check that all
connectors and sockets involved are dry (especially the DC power socket on the product). Connect the power cord to a power supply, conforming to
the nameplate data on it (if the connection is correct, the LED on it will glow green), then plug the DC power connector into the DC power socket on
the product: when the battery is charging, the LED on the power supply will be red; when fully charged, its color will change to green.
When charging is completed, protect the power socket with the power plug. The battery charging status is indicated on the display by the
appropriate icon (6 notches indicates a maximum charge). Caution! It is recommended not to leave the product connected to the power supply for
prolonged periods and in any case not longer than the time required to fully charge the battery because this may adversely affect the performance
and longevity of the battery.
Always store and use the battery and power supply unit in a dry environment with temperature within the range specified in the "Specifications"
section and with adequate ventilation.
DO NOT charge the battery outdoors or with exposure to the elements.
Prevent the battery from coming into contact with water or other liquids (danger of chemical reactions).
Keep the battery away from flames and heat sources: it may explode.
DO NOT short the electrical contacts of the battery: it may explode.
DO NOT bump or shake the battery violently: in case of breakage, do not touch with bare hands.
DO NOT open or disassemble the battery for any reason.
DO NOT use non-original power supplies: use of a non-original power supply can cause risk of damage and even explosion.
Keep children away from the battery and power supply.
14

CLEANING AND MAINTENANCE
CLEANING
Before carrying out any cleaning and/or maintenance, make sure the product is turned off and not connected to the power supply.
Clean only the external parts of the bike and with a cloth lightly dampened with water, do not use chemical cleaners or solvents.
In any case, avoid the entry of water or dust inside the equipment.
MAINTENANCE
Avoid recharging the product in environments where the temperature is below 0°C. In case it is necessary to recharge the product make sure the
ambient temperature is above 0°C, a minimum temperature of 10°C is recommended. When storing the device; choose an environment with as little
dust as possible; it is recommended to wrap it in plastic wrap to prevent dust from entering. Always store the product indoors with temperature
within the operating ranges given in the "Specifications" table and controlled humidity. Important! When storing the product for long periods of non-
use, make sure it is fully charged and provide periodic (at least once every 2 months) a battery charge status check: this will help prevent the battery
from losing its charging capacity.
HOW TO STORE THE BIKE
Fully charge the battery before storing it. Thereafter, the battery should be fully recharged once a month. Cover the bike to protect it from dust. Store
the bike indoors in a dry place.
SERVICING
In case of failure, please contact your dealer for service. Important! Any maintenance to and/or the replacement of the battery pack, must be carried
out by technical personnel who are authorized and qualified. When working on the battery pack, it is recommended that the power supply be
disconnected from the unit beforehand. Lithium batteries are hazardous material; in case of the need for transportation, observe the relevant
regulations and laws. The distributor cannot be held responsible for any damage to third parties caused by improper use of the batteries.
15

SERVICE AND DISPOSAL
After sale:
If you encounter any problems when using our product; please feel free to contact us:
Contact: Concorde SPA
Site: www.concordespa.com
DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT
The European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) provides that used
household appliances cannot be disposed of in the normal municipal solid waste stream. Discarded
appliances must be collected separately to optimize the recovery and recycling of their component materials,
to achieve significant energy savings, and to prevent potential harm to human health and the environment.
The crossed-out garbage container symbol is displayed on all products to remind of separate collection
obligations. consumers should deliver discarded appliances to the separate collection centers set up by
municipal governments.
Manufactured in Korea
DoC: Declaration of Conformity:
MYVelo Company hereby declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU. The Declaration can be viewed at www.myvelo.kr.
16
