N-Com B901L User manual

EN
B901L “R” - Fw 1.1x-1 - 06/10/2017
USER INSTRUCTIONS AND SAFETY
Congratulations on your purchase of an N-Com product.
N-Com B901L was made using the most advanced technologies and the best
materials. Long-running tests and thorough system development have allowed
the highest audio quality to be achieved.
For additional information about B901L, and to download high-definition
instructions as well as the latest Firmware version, visit the website www.n-com.it
Firmware version: 1.1
REFERENCE STANDARDS
The products of the N-Com line are in compliance with standards as per the table below:
B901L
The Bluetooth system complies with the main safety requirements and
other applicable provisions of Directive 99/5/CE, Directive 2009/65/EC,
Directive 2011/65/CE, Directive 2012/19/EU
Battery
charger
Directive 2006/95, 2004/108,
2009/65/EC
,
2011/65/E
C
,
2012/19/EU
,
2009/125/CE
Battery
Directive 2006/66
/CE
The Declarations of Compliance can be downloaded from the website www.n-com.it (Download
section).
FCC ID: Y6MNCOM15 IC: 9455A-NCOM15
R-NZ
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by N-Com is under license. Other trademarks and
trade names are those of their respective owners.

Contents
1. WARNINGS AND SAFETY ................................................................................................................... 3
1.1.Road safety.................................................................................................................................................................................................3
1.2.Switching on the system in safe environments........................................................................................................................3
1.3.Interferences..............................................................................................................................................................................................3
1.4.Appropriate use .......................................................................................................................................................................................3
1.5.Qualified personnel................................................................................................................................................................................4
1.6.Accessories and batteries....................................................................................................................................................................4
1.7. Disposal..................................................................................................................................................................................................4
2. CONTENT OF THE PACKAGING ........................................................................................................ 5
3. INSTALLATION ON THE HELMET...................................................................................................... 6
3.1.Preparing the ESS system....................................................................................................................................................................7
3.2.Installing the B901L system on the helmet ................................................................................................................................8
3.3.Positioning the ESS system on the helmet.............................................................................................................................. 12
3.4.Removing the B901L system from the helmet ...................................................................................................................... 12
4. BASIC FUNCTIONS.............................................................................................................................14
4.1.Volume adjustment............................................................................................................................................................................. 14
4.2.Auto On / Off function ...................................................................................................................................................................... 14
4.3.N-Com EASYSET ................................................................................................................................................................................... 14
5. CONFIGURATION MENU..................................................................................................................15
6. PAIRING UP WITH MOBILE PHONES OR OTHER BLUETOOTH DEVICES................................ 16
7. MOBILE PHONE..................................................................................................................................16
7.1. Speed dial............................................................................................................................................................................................... 16
7.2.Conference call function................................................................................................................................................................... 17
8. MANAGING TWO MOBILE PHONES (OR BLUETOOTH DEVICES) ............................................ 18
9. MUSIC VIA BLUETOOTH...................................................................................................................18
9.1.Sharing music via Bluetooth ( A2DP Sharing ) ......................................................................................................................... 18
10. MUSIC VIA CABLE ..............................................................................................................................19
11. SATELLITE NAVIGATOR FOR MOTORCYCLES ..............................................................................19
12. FM RADIO............................................................................................................................................19
13. LED SIGNALLING LIGHTS..................................................................................................................20
13.1.Emergency Stop Signal ESS (mode 1) ..................................................................................................................................... 20
13.2.Rear Light (mode 2).......................................................................................................................................................................... 20
13.3.Poor visibility light (mode 3)....................................................................................................................................................... 20
14. INTERCOM...........................................................................................................................................21
14.1.N-Com “900” Series Intercom pairing up..............................................................................................................................21
14.2.Pairing up other N-Com intercoms .......................................................................................................................................... 21
14.3.Intercom function (one-to-one connection)........................................................................................................................ 22
14.4. Smart Conference (Group Intercom) ....................................................................................................................................... 23
15. “UNIVERSAL INTERCOM” INTERCOM............................................................................................24
15.1.Pairing up the UNIVERSAL INTERCOM................................................................................................................................... 24
15.2.Universal Intercom Function ........................................................................................................................................................ 24
15.3. Universal Conference (chain intercom)................................................................................................................................... 25
16. REMOTE CONTROL............................................................................................................................26
17. BATTERY AND RECHARGE................................................................................................................27
17.1.Low battery signal ............................................................................................................................................................................. 27
17.2.Checking the Battery Level ........................................................................................................................................................... 27
17.3.Charging the system ........................................................................................................................................................................ 27
18. SUMMARY TABLE OF CONTROLS ..................................................................................................28
19. LIMITED WARRANTY .........................................................................................................................30
19.1.Warranty coverage............................................................................................................................................................................ 30
19.2.Exclusions and limitations of the coverage .......................................................................................................................... 30
19.3.Validity of this limited warranty.................................................................................................................................................. 31
19.4.Procedure for the forwarding of claims ................................................................................................................................. 31
19.5.Product identification...................................................................................................................................................................... 31
20. WARRANTY REGISTRATION FORM ................................................................................................32

3
1. WARNINGS AND SAFETY
Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these rules may lead
to dangerous situations.
Caution: The product cannot be used in official or non-official competitions, motordromes, circuits, racing tracks and
the like.
Caution: Installation of the N-Com B901L system results in a weight increase of approximately 120g, which is added
to the weight of the helmet and of the other accessories.
Warning: The electronic components of the N-Com system mounted inside the helmet are not waterproof.
Consequently, make sure the inside of the helmet, including the comfort padding, does not get wet in order to
avoid damage to the system. If it does, remove the N-Com system and the helmet comfort padding and let it
air dry. Remove the battery from its housing and let it dry.
1.1. Road safety
Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should always be engaged in
actually riding the vehicle. Any operation to the N-Com system must be carried out with the vehicle stopped.
Specifically:
Set your cell phone on automatic answer (see the cell phone instructions to do this).
If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in compliance with
Traffic Regulations and then answer the call.
Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic Regulations, and
then make the call.
Adjust the volume so that it does not cause a disturbance or distraction while riding and at the same time allows
you to distinctively hear background noises.
Do not operate your cell phone or other devices connected to N-Com while riding your motorcycle.
In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute priority over any
other manoeuvre.
The B901L system is equipped with an emergency brake light (ESS – Emergency Stop Signal). The ESS system IS
NOT intended to replace the stop or brake lights fitted on the motorcycle, consequently its operation alone is not
enough for proper brake signaling.
Make sure that the use of the emergency brake light (ESS – Emergency Stop Signal) is not in conflict with the
regulations in force in the country where you will be travelling.
1.2. Switching on the system in safe environments
When using the N-Com system, comply with all limitations and instructions related to the use of cell phones.
Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when the devices can
cause interference or dangerous situations.
Turn off while refuelling. Do not use the N-Com system in filling stations. Do not use the device near combustible
materials or chemical products.
Turn off in proximity to explosive materials.
1.3. Interferences
All phones and devices with wireless signal transmission are subject to interferences that may affect the
performance of the device connected to them. These interferences are not ascribable to a defect of the N-Com
system.
1.4. Appropriate use
Use the device only in the normal position, as described in the product documentation. Do not attempt to
disassemble, tamper with or modify any part of the N-Com system.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it before
you use the system on the road.

EN
4
Caution: Adjusting the volume to very high levels may cause damage to your hearing.
Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected to it so as to
avoid audio reproduction at high volumes. Constant exposure to high audio volumes may damage your
hearing.
Caution: An incorrect installation of the system in the helmet may alter the aerodynamic and safety characteristics of
the helmet itself, thus creating dangerous conditions. Install the N-Com system according to the instructions
provided in the product documentation. In case of doubt, please contact your local N-Com dealer.
Warning: Listening to other equipment should not interfere with driving the vehicle, which must be the top priority
at all times. Carry out all operations on the electronic equipment and on the N-Com system with the vehicle
stopped, in compliance with Traffic Regulations.
Caution: The N-Com system allows reception of the FM radio signal. Any radio licence fees are to the user’s charge.
1.5. Qualified personnel
Only qualified personnel can carry out technical assistance on this product. In case of any malfunction, always
turn to your local dealer.
The helmet is a safety device. Tampering with it and/or with the electronic system inside the helmet, in addition
to invalidating the product warranty, can also lead to dangerous situations.
1.6. Accessories and batteries
Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific model.
The use of a battery type different from the recommended one may lead to dangerous situations and invalidate
the warranty.
Contact your local dealer to see about the availability of approved accessories.
When disconnecting the power supply cable of any accessory or of the battery charger, always grab and pull the
plug not the cable.
Do not use batteries for purposes other than the prescribed ones.
Never use batteries or battery chargers that turn out to be damaged.
Do not short-circuit the battery.
Keep the battery at a temperature between 0° / +32°C (charging): -20° / +55°C (in use).
Danger of fire or explosion: do not throw the batteries into a fire nor expose them to high temperatures!
Do not throw out batteries together with household refuse. The batteries should be disposed of in compliance
with local regulations
Do not wear the helmet while the battery is recharging.
The helmet should never be left within the reach of unsupervised children in order to prevent damage to their
health caused by access to the batteries.
Battery
Li
-
Po 523450P
Lithium
3,7V
–
1000 mAh
Battery charger
S
-
TR
-
009L
100/24
0V
–
50/60 Hz
5V
-
0.5 A
1.7. Disposal
Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the
system from the helmet. Once the system has been disassembled, dispose of it according to the following
instructions:
The presence of a crossed-out wheelie bin indicates that in the European Union the product is
subject to separate collection at the end of its useful life.
Do not dispose of these products together with undifferentiated urban waste.
The proper disposal of obsolete equipment contributes to preventing possible negative consequences on
people’s health and on the environment.
For more detailed information on the disposal of obsolete equipment, contact your municipality, a waste disposal
service or the store where the product was purchased.

5
2. CONTENT OF THE PACKAGING
The N-Com B901L package contains:
N
-
Com B
901
L system
Mini
USB
wire
Battery charger
Helmet adapters
Helmet adapter double
-
sided adhesive tape
Keypad adapters for
N87, N100-5
ESS
double
-
sided adhesive tape
Key
Microphone foam

EN
6
3. INSTALLATION ON THE HELMET
Important: Prior to installing the N-Com system, it is recommended to write down the identification
code affixed to the product (see chapter 19.5).
You can download the installation video from www.n-com.it N-Com / Download section.
Before you install the B901L system on the helmet, make sure it turns on properly. Press the “ON”
key for about 2 seconds, until the blue LED on the key pad lights up and you hear a beep in the
headset. Proceed with the installation.
Remove the cheek padding (see helmet instructions).

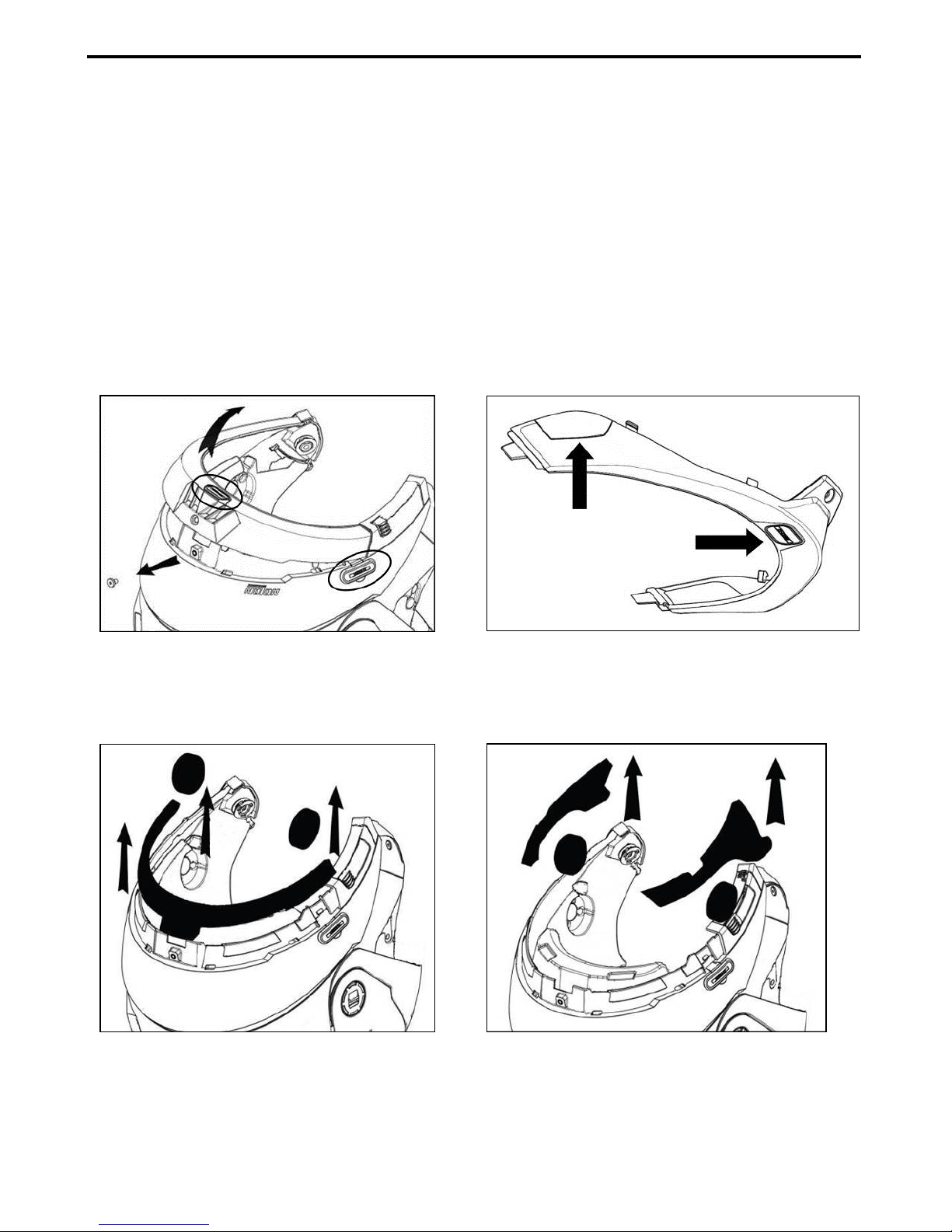

Remove the helmet edge gasket using the special tool (Fig. 1).
Completely remove the gasket as shown in Fig. 1; by doing so you also remove the padding.
Remove the “N-Com” plugs found at the back of the shell gasket and on the left side of the
helmet.
Fig. 1
Fig. 1 – ONLY FOR N87 – N100-5 HELMET
Prior to installing the N-Com system, remove any filling foam material, if present, from the
helmet (refer to the user manual for your specific helmet).
Option 1 Option 2
N.B.: Keep the filling material in case you wish to use the helmet without the N-Com system in the
future.

7
3.1. Preparing the ESS system
Fig. 2
Select the specific adapter for your helmet
(the compatible helmet model is shown on
the back of the support).
N.B.: The installation of the ESS system on N87
and N100-5 helmets requires no adapter.
Remove the protective film from the double-
sided adhesive tape located in the rear of the
system ESS (Fig. 2)
Fig. 3
Apply the double-sided adhesive tape
supplied as standard equipment to the
selected plastic adaptor (Fig. 3).
Fig. 4
Insert the FLEX cable of the ESS system in the
hole of the selected adapter as illustrated, in
the direction shown in the image (Fig. 4);
Fig. 5
Rotate the adapter until it is in a horizontal
position like the ESS system, then press the
two components together until they stick
one onto the other (Fig. 5);

EN
8

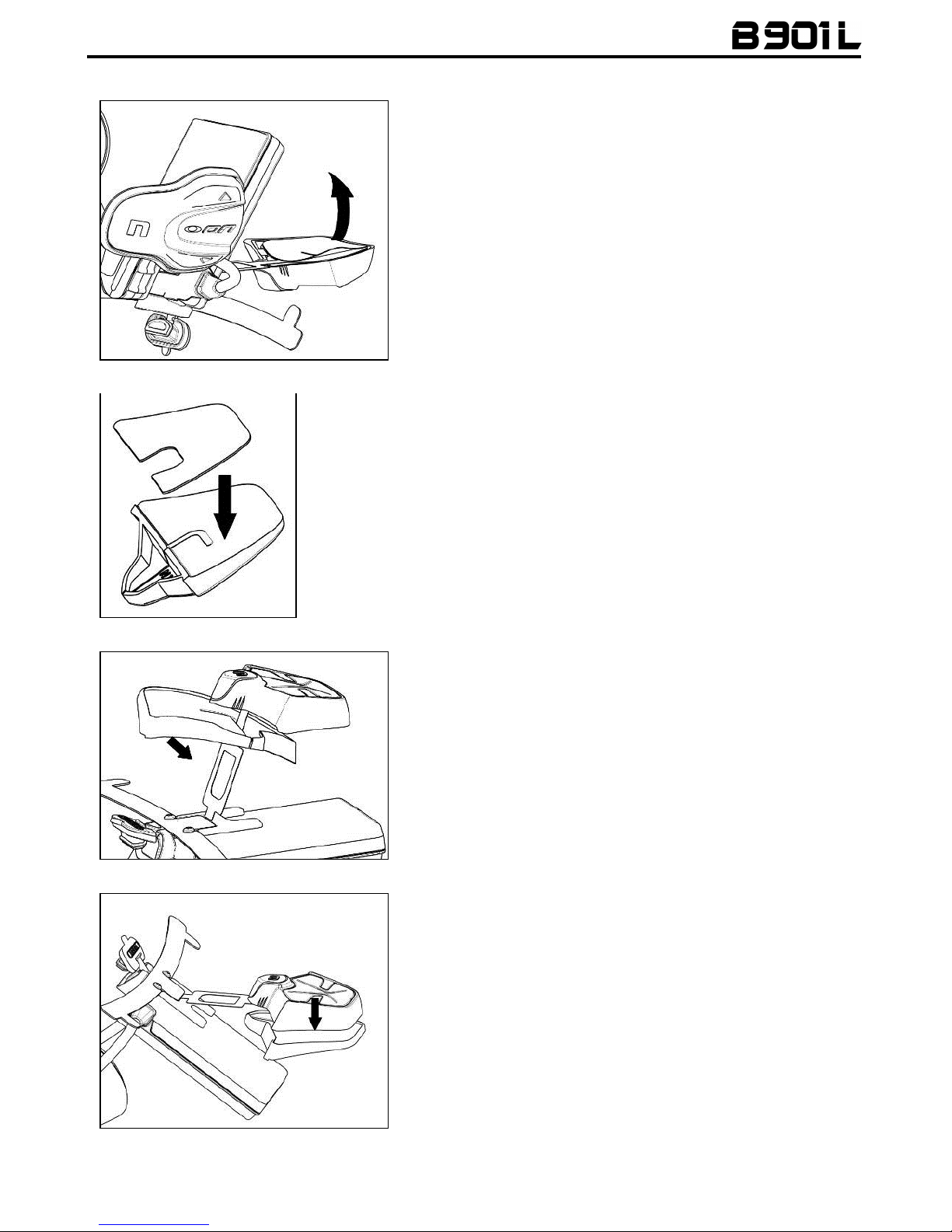

3.2. Installing the B901L system on the helmet
Fig. 6
Place the system in the special housing in the
back of the helmet, pushing it all the way
into the groove (Fig. 6).
Important: Make sure the Flex cable of ESS
system is not pulled too tightly.
Fold the antenna back inside the shell.
Fig. 7
N.B.: For positioning of the wiring and of the
microphone in the N100-5 helmet, follow the
instructions provided in the dedicated box.
Fix the cable inside the helmet and make
sure the right fixing clip snaps into its
housing (Fig. 7)
Fig. 8

Position the microphone in the h
ousing on
the left of the helmet, inserting the metal
boom in the groove found in the chin guard
coupling frame (Fig. 8).
Caution: make sure that the side of the
microphone support with the writing “N-
Com” is facing inward.
Fig. 9

Fix the cable inside
the helmet and make
sure the left fixing clip snaps into its housing.
Hook up the keypad to the helmet by
clicking in the relevant hooks.
N.B.: For positioning of the keypad in helmets
N87 and N100-5, follow the instructions provided
in the dedicated box.
Open the rubber cap of the B901L system.
Reassemble the gasket and secure it with the
specific screw.

9

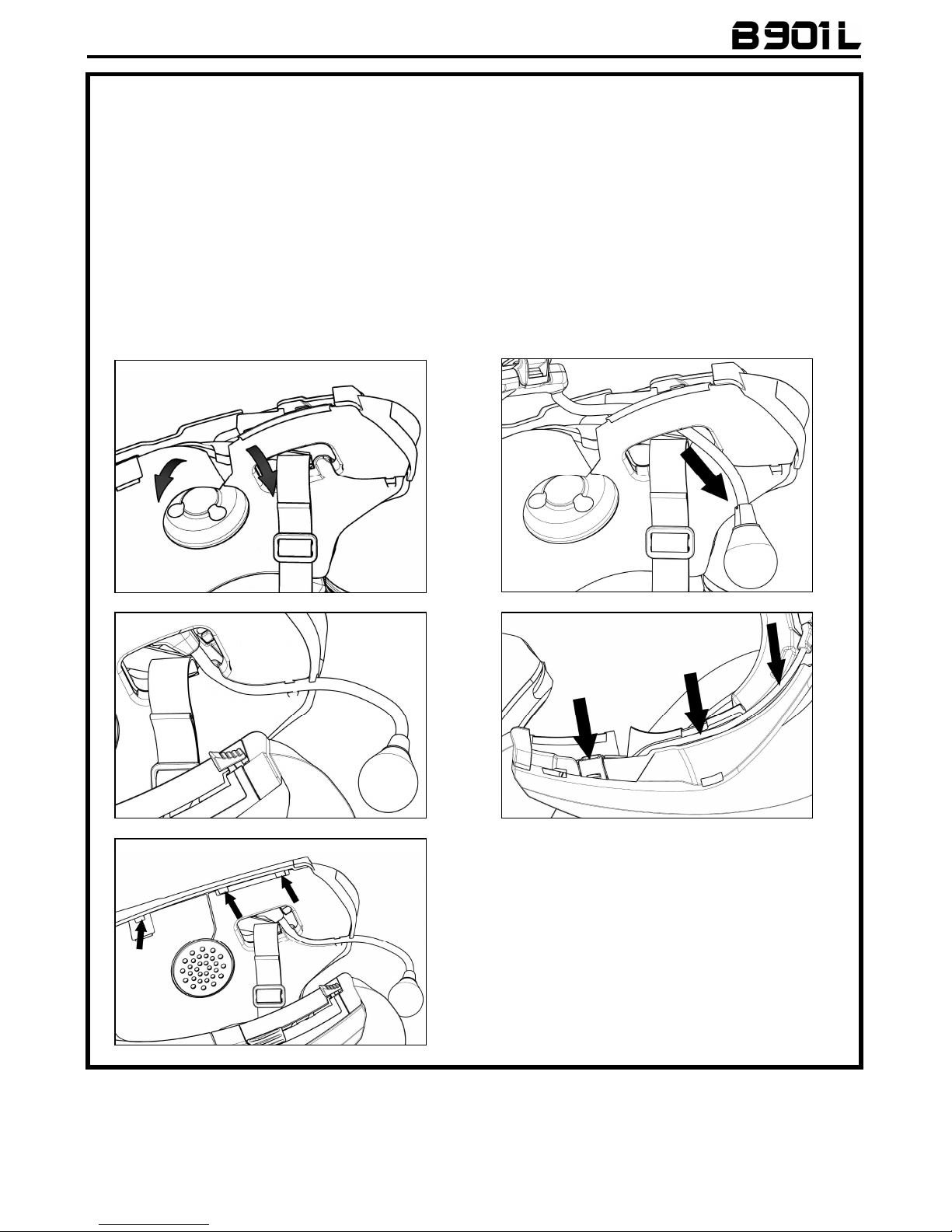

ONLY FOR HELMET N100-5 – positioning of wiring and microphone
Positioning the right side wiring and the microphone:
Lift up the plastic lining of the cheek padding (Fig. 10)
Insert the microphone into the eyelet (Fig. 11) and position it in the special housing, then
inserting the metal boom in the groove found in the chin guard coupling frame (Fig. 12)
Caution: make sure that the side of the microphone support with the writing “N-Com” is facing
inward.
Fix the cable inside the helmet and make sure the right fixing clip snaps into its housing (Fig.
13)
Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks
(Fig. 14)
Fig. 10 Fig. 11
Fig. 12 Fig. 13
Fig. 14

EN
10
ONLY FOR HELMET N100-5 – positioning of wiring and microphone
Positioning the left side wiring:
Lift up the plastic lining of the cheek padding (Fig. 15)
Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. 16)
Reposition the plastic lining of the cheek padding, arranging it behind the two small stop hooks
(Fig. 17)
Fig. 15 Fig. 16
Fig. 17
