N2VZ Enterprises Turbo Tuner User manual

N2VZ Enterprises

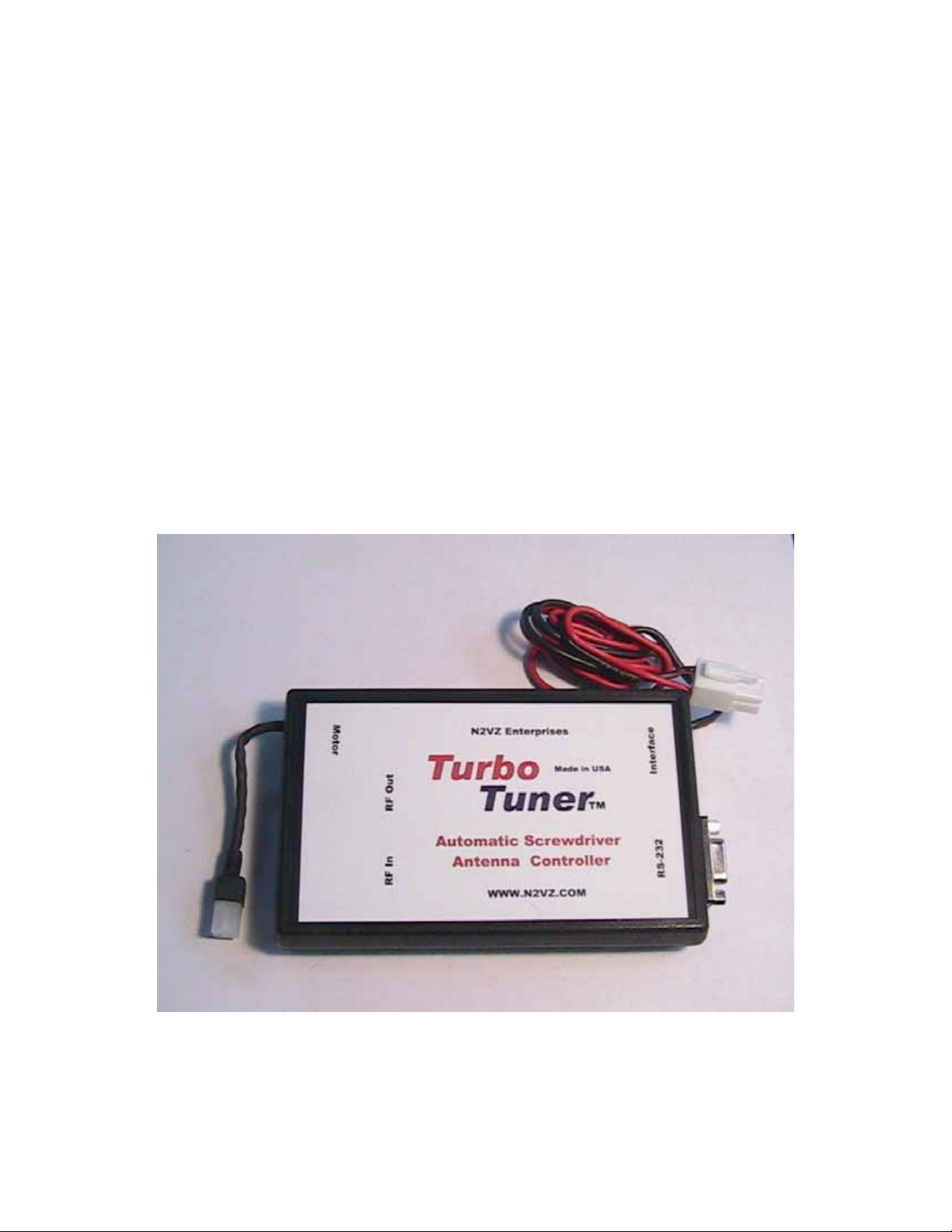

Turbo TunerTM
Fully automatic screwdriver antenna controller
for:
Yaesu FT-897 / FT-857
Operating and Installation Instructions

Operation and Installation Instructions N2VZ Enterprises Turbo Tuner
Web:WWW.N2VZ.com Page 2 of 4 Tel: [phone]
Eml: [email protected]
Theory of Operation:
The Turbo Tuner is designed to allow automatic Tuning and control of screwdriver antennas based on
finding the minimum SWR for the current operating frequency. This is accomplished by using the
Tune function of the radio to supply RF power while the Turbo Tuner moves the screwdriver antenna
in the correct direction based on the operating frequency and looks for the minimum SWR. Once the
minimum SWR is found, the transceiver is placed back in receive mode automatically.
INSTALLATION:
Yaesu setup:
Yaesu Menu Settings – Menu item 20 must be set to “Tuner”. Menu item 85 must also be set to
“Tuner”.
To get into Yaesu extended menu on the FT-857/897 Press and hold the “F” Key. You will now be in
extended menu mode. To leave the menu press and hold the “F” key again.
Turbo Tuner Setup:
The next step is to set the dip switches to configure the Turbo Tuner to operate with your screwdriver
antenna configuration.
Access to the dip switches is accomplished by removing the 4 Phillips head screws located at the
bottom of the Turbo Tuner enclosure. Once the 4 screws are removed, lift off the top cover and you
will see the 6 position dip switch located on the printed circuit board next to the fuse.
Dip Switch Settings:
Antenna Direction – This option sets the direction of travel for the antenna. This is normally set in the
“Normal” position. If during the tuning cycle, the antenna does not move in the proper direction,
change Dip SW-1 to the “Reversed” position.
Antenna Stall Current – For the Lil’ Tarheel, this option should be set to 200 MA. For Tarheel Models
100 – 400, use 900 MA. If the antenna changes direction in the middle of travel for no apparent
reason, try the 300 MA option for the Lil’ TH and 1000 Ma for the TH Models 100 – 400. For High
Sierra antennas with the Black Hawk motor set stall current to 900 MA.
SWR Threshold – Keep this in the Normal position unless the controller has trouble finding a match
on some bands. This option will allow the controller to accept a slightly higher SWR. With the option
set to “Alternate” the controller will still search and find the lowest SWR.

Operation and Installation Instructions N2VZ Enterprises Turbo Tuner
Web:WWW.N2VZ.com Page 3 of 4 Tel: [phone]
Eml: [email protected]
Factory Default Settings *
Antenna Direction Dip SW-1 = OFF
Dip SW-1 = ON Normal * Reversed
Antenna Stall Current Dip Sw-2 = OFF Dip SW-3 = OFF
Dip Sw-2 = OFF Dip SW-3 = ON
Dip Sw-2 = ON Dip SW-3 = OFF
Dip Sw-2 = ON Dip SW-3 = ON
200 MA *
300 MA
900 MA
1000 MA
SWR Threshold Dip SW-4 = OFF
Dip SW-4 = ON Normal * Alternate
Once the Dip switches have been set correctly, place the top cover on the Turbo Tuner and make
sure the Motor and Interface wires are positioned correctly in the enclosure cut outs before screwing
the top cover into place.
Connections:
Connect the supplied 1/8” audio cable from the Turbo Tuner to the ACC jack on the FT-857/897.
Connect the mini DIN interface cable from the Turbo Tuner to the FT-857/897 “CAT/Linear” connector
located on the rear of the radio body.
Connect the Motor wire from the Screwdriver antenna to the ‘Motor’ connector on the Turbo Tuner.
Use the supplied Molex pigtail if reqired.
Connect the coax from the antenna to the “Antenna” connector on the Turbo Tuner. Connect coax
from the radio to “Radio” connector on the Turbo Tuner.
This completes the installation of the Turbo Tuner.
OPERATION:
Power On:
The Turbo Tuner is powered by the radio and is powered on and off with the radio’s power button.
When the radio is first powered up, the Turbo Tuner after initializing will sound a Morse code ‘R’ to
signify that it is ready.
Tuning:
To initiate tuning of the antenna, select a proper operating frequency and press and hold the “Tune”
Key on the Yaesu radio. This will place the radio in Tune mode and you will see the screwdriver
antenna start moving in about 3 seconds. Once the antenna is tuned and a proper match is found, the
Turbo Tuner will sound a Morse code ‘K’ and return the transceiver to receive mode.

Operation and Installation Instructions N2VZ Enterprises Turbo Tuner
Web:WWW.N2VZ.com Page 4 of 4 Tel: [phone]
Eml: [email protected]
If the antenna can not be tuned and an acceptable match found after the screwdriver antenna makes
one reversal looking for a match, the Turbo Tuner will sound a series of Morse code ‘E’s and return
the radio to receive mode.
Before changing bands press the “Tune” button to make the “Tunr” indicator go away. This will
prevent the FT-857/897 from automatically initiating a tune cycle when the band is changed.
Parking the Antenna:
The Turbo Tuner also has a Park function that will automatically lower the screwdriver antenna to its
minimum height. To start the Park function, press and hold the ‘Tune’ key just like initiating a tune
cycle but press the ‘Tune’ key again before the tune cycle completes and the Turbo Tuner will enter
Park mode. Note that there can be a 3 second delay before the park mode starts after pressing the
tune button for the second time. Upon entering Park mode, the Turbo Tuner will sound a Morse code
‘P’; and once the screwdriver antenna is completely lowered, the Turbo Tune will sound another
Morse code ‘P’ to signify completion of the park cycle. Once Park mode is initiated, it can not be
interrupted.
TROUBLE SHOOTING:
Tune button does not work:
Make sure menu items 20 and 85 on the FT-857/897 are set per instructions.
Antenna reverses before reaching end of travel while tuning:
This is caused by the antenna stall current being set too low. Set the antenna stall current one
setting higher via the dip switches.
Turbo Tuner gives immediate tuning error when initiating a tune cycle:
This is caused by the antenna stall current being set too low. Set the antenna stall current to the
correct setting via the dip switches.
Antenna stalls at end of travel and does not reverse while tuning:
This is caused by the antenna stall current being set too high. Decrease the stall current by one
setting via the Dip switches.
When changing frequency, the antenna moves in the incorrect direction:
This can be corrected without reversing the antenna motor wires by changing the position of
Dip switch 1.
Can not find a proper match on one or more bands:
Manually check the antenna for an SWR of less than 2:1 on all bands of operation, if this is the
problem check, the antenna installation and grounding. Changing Dip switch 4 to the alternate
position will help the Turbo Tuner find a match if the antenna can not be tuned to better than 2:1
SWR.
Turbo Tuner totally dead, no audio feed back, and tuning will not initiate:
Check that the interface cable is connected to the Yaesu “CAT/Linear” Connector. Check the
internal fuse in the Turbo Tuner which is a 20mm 3A fast blow.
