Nachfolger Pump User manual

nachfolger GmbH
Boecklinstrasse 59 / 2
1020 Vienna
Austria, EU
www.nachfolger.com
[e-mail]
pump
compatible with
nachfolger series
• Input voltage: 15 V DC, cigarette lighter 12 V DC
• Battery type: LiFe (Lithium Iron Phosphat)
• Energy content: 6,6 Wh
• Battery current: 500 mAh
• Max. current: 5 A
• Inator efciency: Fill up nachfolger HY5 series in 3 minutes
• Max. pressure: 0,9 bar
• Operation temperature: -20°C – +60°C
• Size: 55mm x 45mm x 200mm
TECHNICAL DATA
C101_802_D

The mobile pump allows maximum exibility, as well as mobility and further
intensies the simplicity of the nachfolger series.
• Connect the tube (E) with the pump rst.
• Connect the hose connector (C) tight to the car seat and lock it.
• Activate the indicator on the car seat. Make sure that the indicator on the
car seat ashes red slowly.
• Press the button (A) briey 3 times to activate the pump.
• The button ashes blue, when the activation of the pump was successful.
• After pressing the button (A) once more the pump inates the seat
automatically.
• When the correct pressure is reached, the pump switches off automatically.
• Afterwards the pump function can be switched off by pressing the same
button (A) for a few seconds.
•If the pump is not used for 30 seconds, it must be activated again.
•If the pump batteries are empty the button (A) ashes blue quickly.
Charging the pump:
Use the supplied USB cable (F) for charging by connecting it with the charge socket
(B). You can charge the pump via USB or connect it with a power adapter (not
included) with the USB cable and plug it into a power outlet. While charging the
small light on the USB cable glows red. When the light glows green, the pump is
fully charged. The higher the amp value of the charger, the faster it will charge.
OPERATION OF THE PUMP
FUNCTION OF THE PUMP

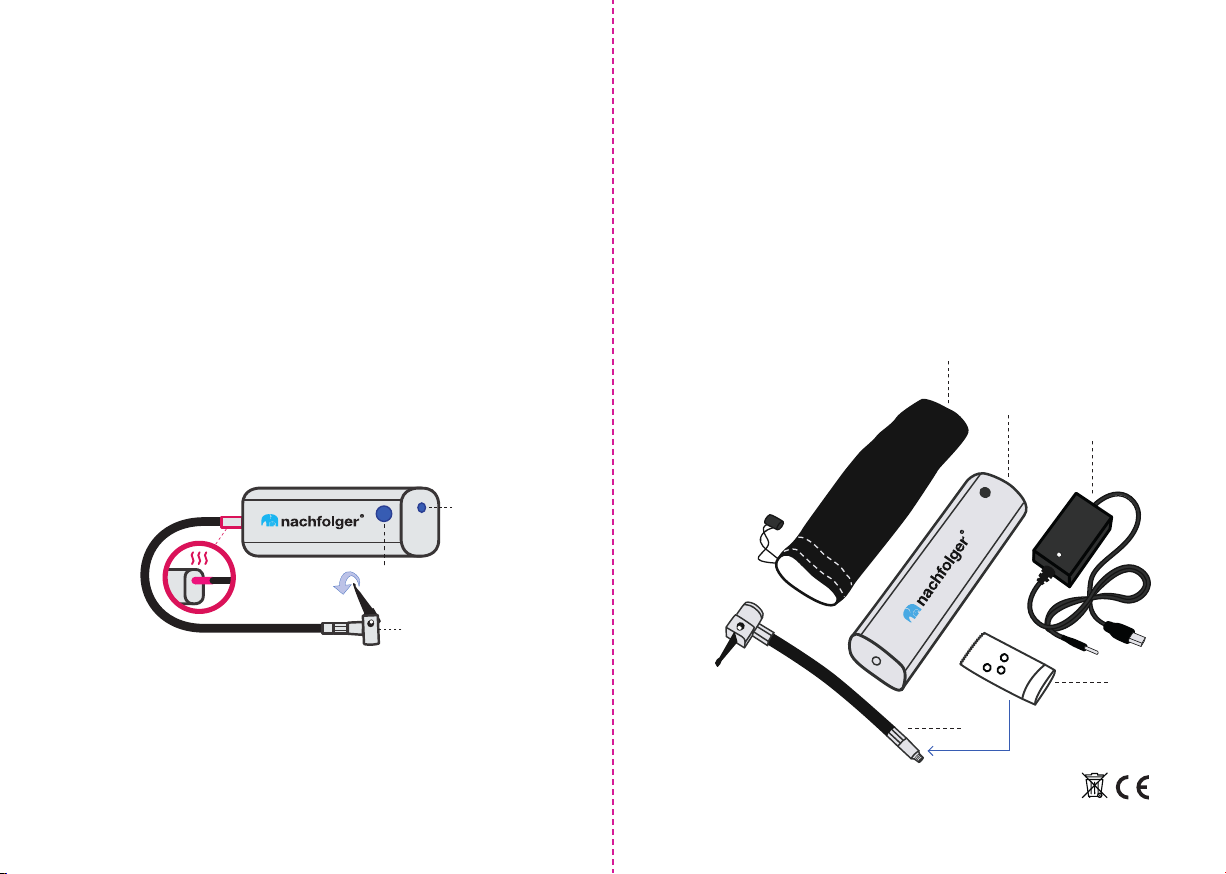

A
B
C
1x Inator (D)
1x Tube with nozzle (E)
1x USB charger cable (F)
3x Sealing rings (G)
1x Hand bag (H)
1x User manual
• Please read the user guide of the car seat carefully before using
it the rst time.
• After lling the seat, the hose connector (C) of the pump must be removed
from the seat valve, otherwise the valve remains slightly open.
• Please note, that the tube will get hot after the inator has worked for
a long time.
• If the car seat is lled by other pump or compressor make sure that the
pressure applied.
to the car seat is not higher than 1,0 bar.
• Especially when traveling by airplane, ensure that the pump will not be
activated accidentally by other objects.
Made in China
PACKAGE
WARNINGS
D
H
F
G
E
LOCK
